RAD397HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB3331ALAAA Quick Start Guide Thank you for buying ALCATEL ONETOUCH 6032A. We hope you will enjoy your high-quality mobile communication experience. For more information about how to use the mobile phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. 23 Table of contents 1 Your mobile ���������������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������14 3 Phone call ����������������������������������������������������������������������15 4 People ����������������������������������������������������������������������������17 5 Messaging�����������������������������������������������������������������������18 6 Email ������������������������������������������������������������������������������19 7 Getting connected ��������������������������������������������������������20 8 Find my location using GPS satellites �������������������������22 9 Data backup ������������������������������������������������������������������23 10 Factory data reset �������������������������������������������������������23 11 Applications & Internal storage ����������������������������������24 12 Making the most of your phone ����������������������������������25 Safety and use �������������������������������������������������������������������������27 General information ��������������������������������������������������������������34 Warranty ���������������������������������������������������������������������������������35 Troubleshooting����������������������������������������������������������������������36 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 31 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 1 Your mobile ������������������ 1�1 Keys and connectors Front camera Back key Home key Menu key Touch screen LED light LED light PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 45 Camera Camera Flash/ Flashlight Volume up Volume down Power key SIM card slot micro-USB connector Menu key • Touch to access Settings options. • Touch and hold: Touch and hold to open a list of thumbnail images of applications you've worked with recently. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu providing more options, such as Restart, Airplane mode, etc. • Press and hold Power key and Volume down key to capture a screenshot. • Press to mute the ringtone when there’s an incoming call. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • Mute the ringtone of an incoming call. • Press to light up the screen when it dims during a call. LED light The phone is equipped with 6 LED lights on the top and bottom which will light up according to the situations outlined below. You can adjust their brightness from Settings. Light LocationEvent Light effect middle LED on top pre-chargingLight on ChargingLight on Low battery Blinking (and popup message) three LEDs on topNotificationsSoftly pulsing three LEDs on bottom A touch key is active Light on all 6 LEDs TorchLight on Front camera is active Light on Incoming callLight on 67 1�2 Getting started 1�2�1 Set-up Inserting or removing the SIM card You must insert your SIM card to make phone calls. You do not need to power off your phone before inserting or removing the SIM card as this phone can support hot swap. Installing SIM Card Removing SIM Card Before you install or remove the SIM card, use a pin to press the small cavity until the SIM cassette pops out. Your phone only supports micro-SIM card. Do not attempt to insert other SIM types like mini and nano cards, otherwise you may damage your phone. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, date & time, Google account, etc. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the Phone options appear, select Power off. 89 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Slide the Home screen horizontally left and right to get a complete view of the home screen. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators Favorite applications tray • Touch to enter the application • Touch and hold to move or change applications 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-02-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-02-14 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD397 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

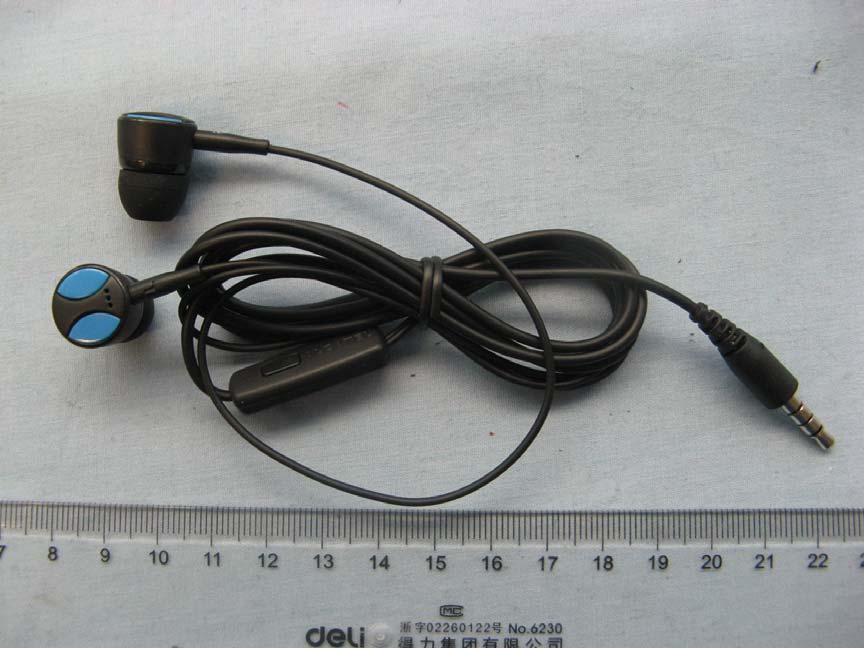

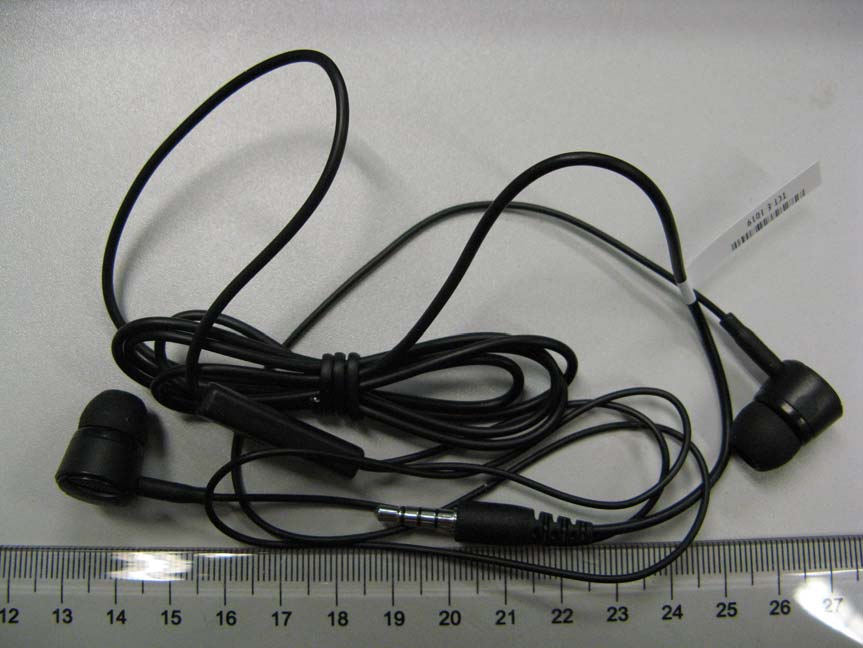

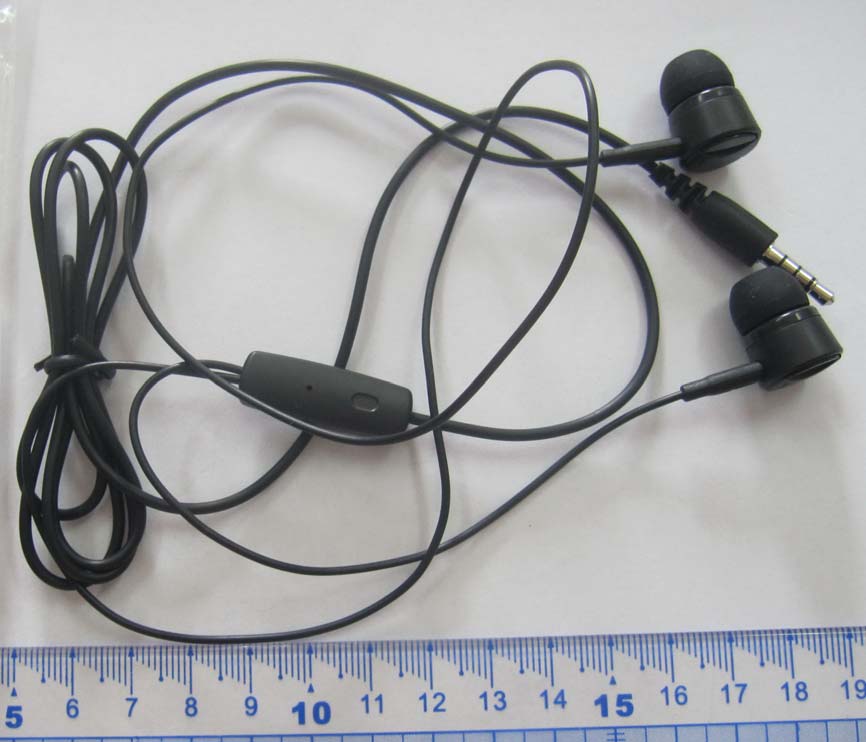

EUT photograph

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

Report No.: RXA1401-0006SAR01R1 Page 1 of 237 TESTING No. L2264 SAR TEST REPORT Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name Alpha Marketing Name 6032A FCC ID RAD397 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Date of issue March 3, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 2 of 237 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 Handset SAR v01r01: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D02 HSPA and 1x Advanced v02r02 SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced KDB 941225 D03 Test Reduction GSM_GPRS_EDGE v01:Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 941225 D06 Hotspot Mode SAR v01r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 3 of 237 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. The Maximum Reported SAR 1g .......................................................................................... 10 1.7. Test Date ............................................................................................................................ 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up .................................................................................................. 11 2.2. DASY5 E-field Probe System ............................................................................................. 12 2.2.1. EX3DV4 Probe Specification ....................................................................................... 12 2.2.2. E-field Probe Calibration .............................................................................................. 13 2.3. Other Test Equipment ......................................................................................................... 13 2.3.1. Device Holder for Transmitters .................................................................................... 13 2.3.2. Phantom ...................................................................................................................... 14 2.4. Scanning Procedure ........................................................................................................... 14 2.5. Data Storage and Evaluation .............................................................................................. 16 2.5.1. Data Storage ................................................................................................................ 16 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 16 3. Laboratory Environment ............................................................................................................. 18 4. Tissue-equivalent Liquid ............................................................................................................ 19 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 19 4.2. Tissue-equivalent Liquid Properties .................................................................................... 20 5. System Check ............................................................................................................................ 21 5.1. Description of System Check .............................................................................................. 21 5.2. System Check Results ........................................................................................................ 23 6. Operational Conditions during Test ............................................................................................ 24 6.1. General Description of Test Procedures ............................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 121 of 237 GSM 1900 Left Tilt Low (Antenna 1) Date/Time: 1/25/2014 7:45:36 PM Communication System: GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.386 mho/m; ε r = 39.813; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Left Tilt Low/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.132 W/kg Left Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.233 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 0.205 mW/g SAR(1 g) = 0.102 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.128 W/kg Figure 62 Left Hand Tilt 15° GSM 1900 Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 122 of 237 GSM 1900 Right Cheek High (Antenna 1) Date/Time: 1/25/2014 4:21:42 PM Communication System: GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1910 MHz; σ = 1.44 mho/m; ε r = 39.607; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek High/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.315 W/kg Right Cheek High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.457 V/m; Power Drift = 0.041 dB Peak SAR (extrapolated) = 0.403 mW/g SAR(1 g) = 0.276 mW/g; SAR(10 g) = 0.182 mW/g Maximum value of SAR (measured) = 0.297 W/kg Figure 63 Right Hand Touch Cheek GSM 1900 Channel 810 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 123 of 237 GSM 1900 Right Cheek Middle (Antenna 1) Date/Time: 1/25/2014 2:37:44 PM Communication System: GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.413 mho/m; ε r = 39.689; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek Middle/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.339 W/kg Right Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.248 V/m; Power Drift = 0.047 dB Peak SAR (extrapolated) = 0.443 mW/g SAR(1 g) = 0.308 mW/g; SAR(10 g) = 0.205 mW/g Maximum value of SAR (measured) = 0.326 W/kg Figure 64 Right Hand Touch Cheek GSM 1900 Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 124 of 237 GSM 1900 Right Cheek Low (Antenna 1) Date/Time: 1/25/2014 4:38:41 PM Communication System: GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.386 mho/m; ε r = 39.813; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek Low/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.340 W/kg Right Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.383 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.444 mW/g SAR(1 g) = 0.308 mW/g; SAR(10 g) = 0.205 mW/g Maximum value of SAR (measured) = 0.329 W/kg Figure 65 Right Hand Touch Cheek GSM 1900 Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 125 of 237 GSM 1900 Right Tilt High (Antenna 1) Date/Time: 1/25/2014 5:22:40 PM Communication System: GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1910 MHz; σ = 1.44 mho/m; ε r = 39.607; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Tilt High/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0876 W/kg Right Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.648 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.128 mW/g SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.053 mW/g Maximum value of SAR (measured) = 0.0880 W/kg Figure 66 Right Hand Tilt 15° GSM 1900 Channel 810 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1401-0006SAR01R1 Page 126 of 237 GSM 1900 Right Tilt Middle (Antenna 1) Date/Time: 1/25/2014 5:39:42 PM Communication System: GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = …

Text truncated - open the document above for the full version.

No. I14Z45042-SRD01 Page30 of 119 A.5. Band Edges Compliance Measure ment Limit: Standard Limit (dBc) FCC 47 CFR Part 15.247 (d) > 20 The measurement is made according to KDB558074. EUT ID: EUT2 Modulation type and data rate tested: 802.11b 802.11g 802.11n-HT20 802.11n-HT40 11Mbps(CCK) 54Mbps(OFDM) MCS5(OFDM) MCS5(OFDM) Measure me nt Re sult: 802.11b/g mode Mode Channel Te st Results Conclusion 802.11b 1 Fig.A.5.1 P 11 Fig.A.5.2 P 802.11g 1 Fig.A.5.3 P 11 Fig.A.5.4 P 802.11n-HT20 mode Mode Channel Te st Results Conclusion 802.11n (HT20) 1 Fig.A.5.5 P 11 Fig.A.5.6 P 802.11n-HT40 mode Mode Channel Te st Results Conclusion 802.11n (HT40) 3 Fig.A.5.7 P 9 Fig.A.5.8 P Conclusion: Pass Measure me nt Uncertainty: Measurement Uncertainty 0.75dB Te st graphs as be low: No. I14Z45042-SRD01 Page31 of 119 Fig.A.5.1 Band Edge s (802.11b, Ch 1) Fig.A.5.2 Band Edge s (802.11b, Ch 11) No. I14Z45042-SRD01 Page32 of 119 Fig.A.5.3 Band Edge s (802.11g, Ch 1) Fig.A.5.4 Band Edge s (802.11g, Ch 11) No. I14Z45042-SRD01 Page33 of 119 Fig.A.5.5 Band Edge s (802.11n-HT20, Ch 1) Fig.A.5.6 Band Edge s (802.11n-HT20, Ch 11) No. I14Z45042-SRD01 Page34 of 119 Fig.A.5.7 Band Edge s (802.11n-HT40, Ch 3) Fig.A.5.8 Band Edge s (802.11n-HT40, Ch 9) No. I14Z45042-SRD01 Page35 of 119 A.6. Transmitter Spurious Emission A.6.1 Transmitter Spurious Emission - Conducte d Measure me nt Limit: Standard Limit FCC 47 CFR Part 15.247 (d) 20dB below peak output power in 100 kHz bandwidth The measurement is made according to KDB558074. EUT ID: EUT2 Modulation type and data rate tested: 802.11b 802.11g 802.11n-HT20 802.11n-HT40 11Mbps(CCK) 54Mbps(OFDM) MCS5(OFDM) MCS5(OFDM) Measure me nt Re sults: 802.11b mode M ODE Channel Frequency Range Te st Results Conclusion 802.11b 1 2.412 GHz Fig.A.6.1.1 P 30 MHz ~ 1 GHz Fig.A.6.1.2 P 1 GHz ~ 2.5 GHz Fig.A.6.1.3 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.4 P 7.5 GHz ~ 10 GHz Fig.A.6.1.5 P 10 GHz ~ 15 GHz Fig.A.6.1.6 P 15 GHz ~ 20 GHz Fig.A.6.1.7 P 20 GHz ~ 26 GHz Fig.A.6.1.8 P 6 2.437 GHz Fig.A.6.1.9 P 30 MHz ~ 1 GHz Fig.A.6.1.10 P 1 GHz ~ 2.5 GHz Fig.A.6.1.11 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.12 P 7.5 GHz ~ 10 GHz Fig.A.6.1.13 P 10 GHz ~ 15 GHz Fig.A.6.1.14 P 15 GHz ~ 20 GHz Fig.A.6.1.15 P 20 GHz ~ 26 GHz Fig.A.6.1.16 P 11 2.462 GHz Fig.A.6.1.17 P 30 MHz ~ 1 GHz Fig.A.6.1.18 P 1 GHz ~ 2.5 GHz Fig.A.6.1.19 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.20 P 7.5 GHz ~ 10 GHz Fig.A.6.1.21 P 10 GHz ~ 15 GHz Fig.A.6.1.22 P 15 GHz ~ 20 GHz Fig.A.6.1.23 P 20 GHz ~ 26 GHz Fig.A.6.1.24 P No. I14Z45042-SRD01 Page36 of 119 802.11g mode M ODE Channel Frequency Range Te st Results Conclusion 802.11g 1 2.412 GHz Fig.A.6.1.25 P 30 MHz ~ 1 GHz Fig.A.6.1.26 P 1 GHz ~ 2.5 GHz Fig.A.6.1.27 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.28 P 7.5 GHz ~ 10 GHz Fig.A.6.1.29 P 10 GHz ~ 15 GHz Fig.A.6.1.30 P 15 GHz ~ 20 GHz Fig.A.6.1.31 P 20 GHz ~ 26 GHz Fig.A.6.1.32 P 6 2.437 GHz Fig.A.6.1.33 P 30 MHz ~ 1 GHz Fig.A.6.1.34 P 1 GHz ~ 2.5 GHz Fig.A.6.1.35 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.36 P 7.5 GHz ~ 10 GHz Fig.A.6.1.37 P 10 GHz ~ 15 GHz Fig.A.6.1.38 P 15 GHz ~ 20 GHz Fig.A.6.1.39 P 20 GHz ~ 26 GHz Fig.A.6.1.40 P 11 2.462 GHz Fig.A.6.1.41 P 30 MHz ~ 1 GHz Fig.A.6.1.42 P 1 GHz ~ 2.5 GHz Fig.A.6.1.43 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.44 P 7.5 GHz ~ 10 GHz Fig.A.6.1.45 P 10 GHz ~ 15 GHz Fig.A.6.1.46 P 15 GHz ~ 20 GHz Fig.A.6.1.47 P 20 GHz ~ 26 GHz Fig.A.6.1.48 P No. I14Z45042-SRD01 Page37 of 119 802.11n-HT20 mode M ODE Channel Frequency Range Te st Results Conclusion 802.11n (HT20) 1 2.412 GHz Fig.A.6.1.49 P 30 MHz ~ 1 GHz Fig.A.6.1.50 P 1 GHz ~ 2.5 GHz Fig.A.6.1.51 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.52 P 7.5 GHz ~ 10 GHz Fig.A.6.1.53 P 10 GHz ~ 15 GHz Fig.A.6.1.54 P 15 GHz ~ 20 GHz Fig.A.6.1.55 P 20 GHz ~ 26 GHz Fig.A.6.1.56 P 6 2.437 GHz Fig.A.6.1.57 P 30 MHz ~ 1 GHz Fig.A.6.1.58 P 1 GHz ~ 2.5 GHz Fig.A.6.1.59 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.60 P 7.5 GHz ~ 10 GHz Fig.A.6.1.61 P 10 GHz ~ 15 GHz Fig.A.6.1.62 P 15 GHz ~ 20 GHz Fig.A.6.1.63 P 20 GHz ~ 26 GHz Fig.A.6.1.64 P 11 2.462 GHz Fig.A.6.1.65 P 30 MHz ~ 1 GHz Fig.A.6.1.66 P 1 GHz ~ 2.5 GHz Fig.A.6.1.67 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.68 P 7.5 GHz ~ 10 GHz Fig.A.6.1.69 P 10 GHz ~ 15 GHz Fig.A.6.1.70 P 15 GHz ~ 20 GHz Fig.A.6.1.71 P 20 GHz ~ 26 GHz Fig.A.6.1.72 P No. I14Z45042-SRD01 Page38 of 119 802.11n-HT40 mode M ODE Channel Frequency Range Te st Results Conclusion 802.11n (HT40) 3 2.422 GHz Fig.A.6.1.73 P 30 MHz ~ 1 GHz Fig.A.6.1.74 P 1 GHz ~ 2.5 GHz Fig.A.6.1.75 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.76 P 7.5 GHz ~ 10 GHz Fig.A.6.1.77 P 10 GHz ~ 15 GHz Fig.A.6.1.78 P 15 GHz ~ 20 GHz Fig.A.6.1.79 P 20 GHz ~ 26 GHz Fig.A.6.1.80 P 6 2.437 GHz Fig.A.6.1.81 P 30 MHz ~ 1 GHz Fig.A.6.1.82 P 1 GHz ~ 2.5 GHz Fig.A.6.1.83 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.84 P 7.5 GHz ~ 10 GHz Fig.A.6.1.85 P 10 GHz ~ 15 GHz Fig.A.6.1.86 P 15 GHz ~ 20 GHz Fig.A.6.1.87 P 20 GHz ~ 26 GHz Fig.A.6.1.88 P 9 2.452 GHz Fig.A.6.1.89 P 30 MHz ~ 1 GHz Fig.A.6.1.90 P 1 GHz ~ 2.5 GHz Fig.A.6.1.91 P 2.5 GHz ~ 7.5 GHz Fig.A.6.1.92 P 7.5 GHz ~ 10 GHz Fig.A.6.1.93 P 10 GHz ~ 15 GHz Fig.A.6.1.94 P 15 GHz ~ 20 GHz Fig.A.6.1.95 P 20 GHz ~ 26 GHz Fig.A.6.1.96 P Conclusion: Pass Measure me nt Uncertainty: Frequency Range Uncertainty(dB) 30MHz ≤ f ≤ 2GHz 0.63 2GHz ≤ f ≤3.6GHz 0.82 3.6GHz ≤ f ≤8GHz 1.55 8GHz ≤ f ≤20GHz 1.86 20GHz ≤ f ≤22GHz 1.90 22GHz ≤ f ≤26GHz 2.20 Te st graphs as be low: No. I14Z45042-SRD01 Page39 of 119 Fig.A.6.1.1 Conducted Spurious Emission (802.11b, Ch1, Center Frequency) Fig.A.6.1.2 Conducted Spurious Emission (802.11b, Ch1, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page40 of 119 Fig.A.6.1.3 Conducted Spurious Emission (802.11b, Ch1, 1 GHz-2.5 GHz) Fig.A.6.1.4 Conducted Spurious Emission (802.11b, Ch1, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page41 of 119 Fig.A.6.1.5 Conducted Spurious Emission (802.11b, Ch1, 7.5 GHz-10 GHz) Fig.A.6.1.6 Conducted Spurious Emission (802.11b, Ch1, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page42 of 119 Fig.A.6.1.7 Conducted Spurious Emission (802.11b, Ch1, 15 GHz-20 GHz) Fig.A.6.1.8 Conducted Spurious Emission (802.11b, Ch1, 20 GHz-26 GHz) No. I14Z45042-S…

Text truncated - open the document above for the full version.

No. I14Z45042-SRD01 Page59 of 119 Fig.A.6.1.41 Conducted Spurious Emission (802.11g, Ch11, Center Frequency) Fig.A.6.1.42 Conducted Spurious Emission (802.11g, Ch11, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page60 of 119 Fig.A.6.1.43 Conducted Spurious Emission (802.11g, Ch11, 1 GHz-2.5 GHz) Fig.A.6.1.44 Conducted Spurious Emission (802.11g, Ch11, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page61 of 119 Fig.A.6.1.45 Conducted Spurious Emission (802.11g, Ch11, 7.5 GHz-10 GHz) Fig.A.6.1.46 Conducted Spurious Emission (802.11g, Ch11, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page62 of 119 Fig.A.6.1.47 Conducted Spurious Emission (802.11g, Ch11, 15 GHz-20 GHz) Fig.A.6.1.48 Conducted Spurious Emission (802.11g, Ch11, 20 GHz-26 GHz) No. I14Z45042-SRD01 Page63 of 119 Fig.A.6.1.49 Conducted Spurious Emission (802.11n-HT20, Ch1, Center Frequency) Fig.A.6.1.50 Conducted Spurious Emission (802.11n-HT20, Ch1, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page64 of 119 Fig.A.6.1.51 Conducted Spurious Emission (802.11n-HT20, Ch1, 1 GHz-2.5 GHz) Fig.A.6.1.52 Conducted Spurious Emission (802.11n-HT20, Ch1, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page65 of 119 Fig.A.6.1.53 Conducted Spurious Emission (802.11n-HT20, Ch1, 7.5 GHz-10 GHz) Fig.A.6.1.54 Conducted Spurious Emission (802.11n-HT20, Ch1, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page66 of 119 Fig.A.6.1.55 Conducted Spurious Emission (802.11n-HT20, Ch1, 15 GHz-20 GHz) Fig.A.6.1.56 Conducted Spurious Emission (802.11n-HT20, Ch1, 20 GHz-26 GHz) No. I14Z45042-SRD01 Page67 of 119 Fig.A.6.1.57 Conducted Spurious Emission (802.11n-HT20, Ch6, Center Frequency) Fig.A.6.1.58 Conducted Spurious Emission (802.11n-HT20, Ch6, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page68 of 119 Fig.A.6.1.59 Conducted Spurious Emission (802.11n-HT20, Ch6, 1 GHz-2.5 GHz) Fig.A.6.1.60 Conducted Spurious Emission (802.11n-HT20, Ch6, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page69 of 119 Fig.A.6.1.61 Conducted Spurious Emission (802.11n-HT20, Ch6, 7.5 GHz-10 GHz) Fig.A.6.1.62 Conducted Spurious Emission (802.11n-HT20, Ch6, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page70 of 119 Fig.A.6.1.63 Conducted Spurious Emission (802.11n-HT20, Ch6, 15 GHz-20 GHz) Fig.A.6.1.64 Conducted Spurious Emission (802.11n-HT20, Ch6, 20 GHz-26 GHz) No. I14Z45042-SRD01 Page71 of 119 Fig.A.6.1.65 Conducted Spurious Emission (802.11n-HT20, Ch11, Center Frequency) Fig.A.6.1.66 Conducted Spurious Emission (802.11n-HT20, Ch11, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page72 of 119 Fig.A.6.1.67 Conducted Spurious Emission (802.11n-HT20, Ch11, 1 GHz-2.5 GHz) Fig.A.6.1.68 Conducted Spurious Emission (802.11n-HT20, Ch11, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page73 of 119 Fig.A.6.1.69 Conducted Spurious Emission (802.11n-HT20, Ch11, 7.5 GHz-10 GHz) Fig.A.6.1.70 Conducted Spurious Emission (802.11n-HT20, Ch11, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page74 of 119 Fig.A.6.1.71 Conducted Spurious Emission (802.11n-HT20, Ch11, 15 GHz-20 GHz) Fig.A.6.1.72 Conducted Spurious Emission (802.11n-HT20, Ch11, 20 GHz-26 GHz) No. I14Z45042-SRD01 Page75 of 119 Fig.A.6.1.73 Conducted Spurious Emission (802.11n-HT40, Ch3, Center Frequency) Fig.A.6.1.74 Conducted Spurious Emission (802.11n-HT40, Ch3, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page76 of 119 Fig.A.6.1.75 Conducted Spurious Emission (802.11n-HT40, Ch3, 1 GHz-2.5 GHz) Fig.A.6.1.76 Conducted Spurious Emission (802.11n-HT40, Ch3, 2.5 GHz-7.5 GHz) No. I14Z45042-SRD01 Page77 of 119 Fig.A.6.1.77 Conducted Spurious Emission (802.11n-HT40, Ch3, 7.5 GHz-10 GHz) Fig.A.6.1.78 Conducted Spurious Emission (802.11n-HT40, Ch3, 10 GHz-15 GHz) No. I14Z45042-SRD01 Page78 of 119 Fig.A.6.1.79 Conducted Spurious Emission (802.11n-HT40, Ch3, 15 GHz-20 GHz) Fig.A.6.1.80 Conducted Spurious Emission (802.11n-HT40, Ch3, 20 GHz-26 GHz) No. I14Z45042-SRD01 Page79 of 119 Fig.A.6.1.81 Conducted Spurious Emission (802.11n-HT40, Ch6, Center Frequency) Fig.A.6.1.82 Conducted Spurious Emission (802.11n-HT40, Ch6, 30 M Hz-1 GHz) No. I14Z45042-SRD01 Page80 of…

Text truncated - open the document above for the full version.
