RAD414GSM/EGPRS quadband mobile phone

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 9/9/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD414 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-09-05 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

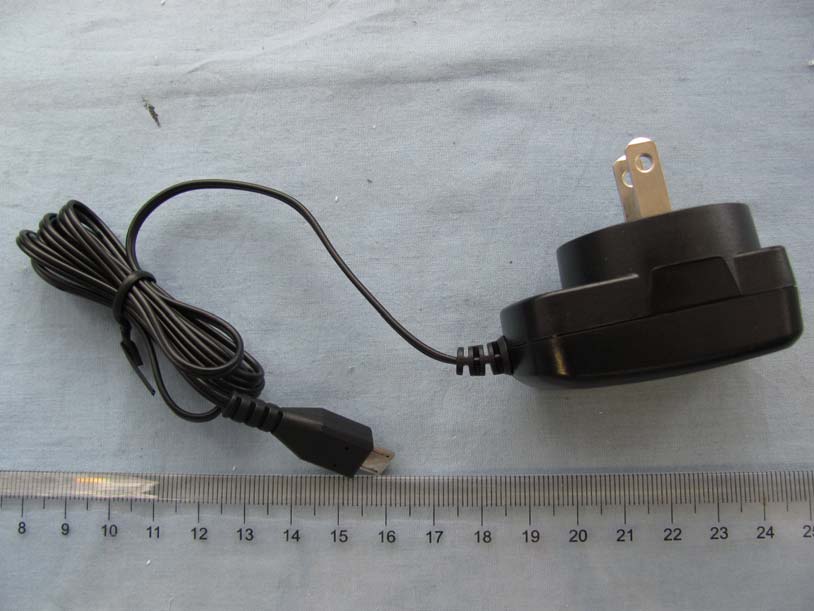

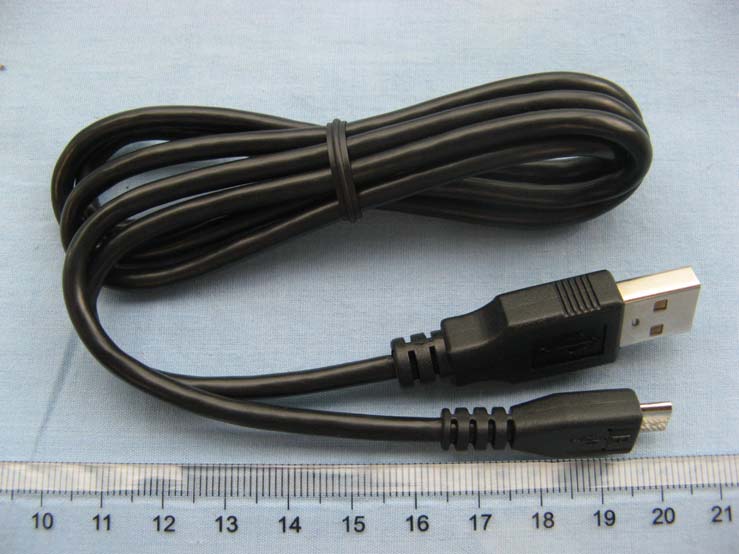

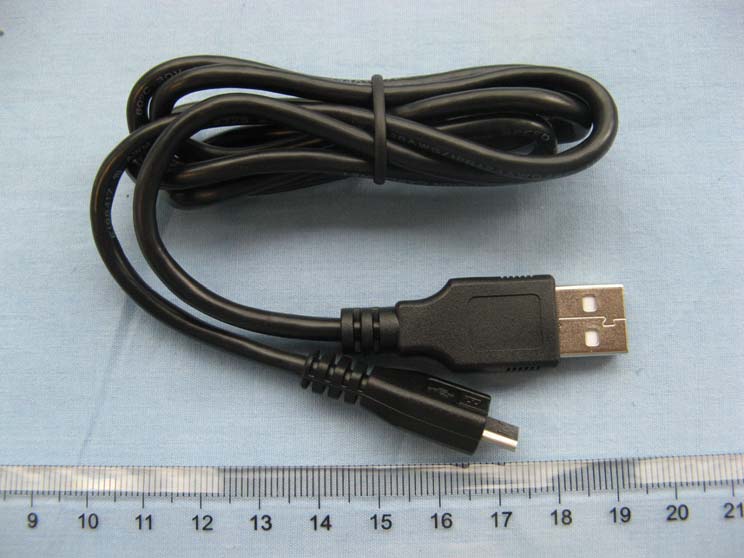

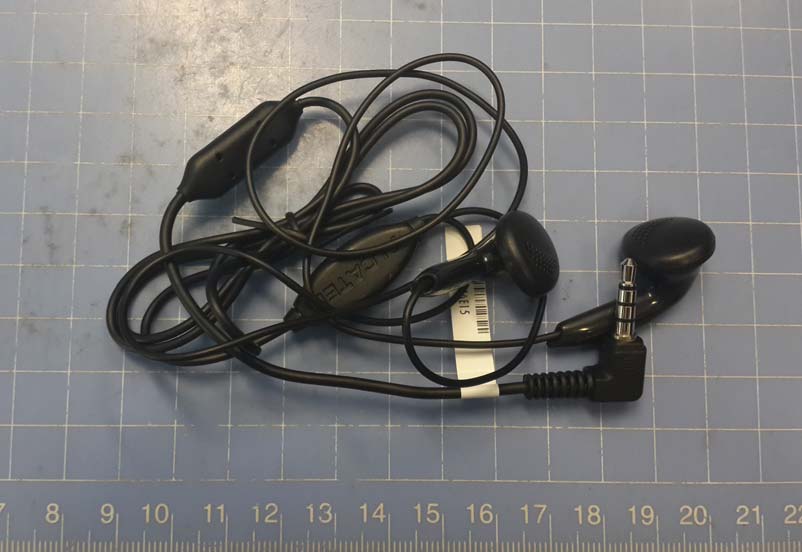

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Charger AE2 Label of Charger AE2 Charger AE3 Label of Charger AE3 Headset AE4 Headset AE5 Data Cable AE6 Data Cable AE7

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

No.2013SAR00121 Page 1 of 105 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00121 For TCT Mobile Limited GSM/EGPRS quadband mobile phone Mode Name: Tigris Plus 1SIM Marketing Name: ALCATEL 3020G With Hardware Version: Proto Software Version: VE15 FCC ID: RAD414 Issued Date: 2013-09-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00121 Page 2 of 105 Revision Version Report Number Revision Date Memo 2013SAR00121 00 2013-09-26 Initial creation of test report No. 2013SAR00121 Page 3 of 105 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.4 POWER DRIFT ............................................................................................................................................... 20 10 AREA SCAN BASED 1-G SAR ................................................................................................. 21 10.1 REQUIREMENT OF KDB .............................................................................................................................. 21 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 21 11 CONDUCTED OUTPUT POWER .............................................................................................. 22 11.1 MANUFACTURING TOLERANCE ................................................................................................................... 22 No. 2013SAR00121 Page 4…

Text truncated - open the document above for the full version.

No. 2013SAR00121 Page 36 of 105 Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 9.25 9.12 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 18.5 18.2 16.2 Measurement Uncertainty for Normal SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 4.0 R 3 1 1 2.3 2.3 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 No. 2013SAR00121 Page 37 of 105 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 21 1 22' i iic ucu 10.8 10.7 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 21.6 21.4 16.3 Measurement Uncertainty for Fast SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 7.0 R 3 1 1 4.0 4.0 ∞ Test sample related 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up No. 2013SAR00121 Page 38 of 105 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 22 1 22' i iic ucu 10.1 9.95 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 20.2 19.9 16.4 Measurement Uncertainty for Fast SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution D iv. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RF ambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 14.0 R 3 1 1 8.1 8.1 ∞ Test sample related 15 Test sample A 3.3 N 1 1 1 3.3 3.3 71 No. 2013SAR00121 Page 39 of 105 positioning 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty ∑ = = 22 1 22' i iic ucu 13.3 13.2 257 Expanded uncertainty (confidence interval of 95 %) ce uu2= 26.6 26.4 17 MAIN TEST INSTRUMENTS Table 17.1: List of Main Instruments No. Name Type Serial Number Calibration Date Valid Period 01 Network analyzer E5071C MY46110673 February 15, 2013 One year 02 Power meter NRVD 102083 September 11, 2013 One year 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 November 13, 2012 One Year 05 Amplifier 60S1G4 0331848 No Calibration Requested 06 BTS E5515C MY50263375 January 30, 2013 One year 07 E-field Probe SPEAG EX3DV4 3846 December 20, 2012 One year 08 DAE SPEAG DAE4 771 November 20, 2012 One year 09 Dipole Validation Kit SPEAG D835V2 443 May 03, 2012 Three years 10 Dipole Validation Kit SPEAG D1900V2 5d101 July 09, 2013 One year 11 Dipole Validation Kit SPEAG D2450V2 853 July 08, 2013 One year ***END OF REPORT BODY*** No. 2013SAR00121 Page 40 of 105 ANNEX A Graph Results 850 Left Cheek High Date: 2013- 8- 24 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.905 mho/m; εr = 41.005; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) Cheek High/Area Scan (61x91x1): Interpolated grid: dx=1.0…

Text truncated - open the document above for the full version.

No. 2013SAR00121 Page 71 of 105 No. 2013SAR00121 Page 72 of 105 No. 2013SAR00121 Page 73 of 105 No. 2013SAR00121 Page 74 of 105 No. 2013SAR00121 Page 75 of 105 No. 2013SAR00121 Page 76 of 105 No. 2013SAR00121 Page 77 of 105 No. 2013SAR00121 Page 78 of 105 No. 2013SAR00121 Page 79 of 105 No. 2013SAR00121 Page 80 of 105 No. 2013SAR00121 Page 81 of 105 ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. 2013SAR00121 Page 82 of 105 No. 2013SAR00121 Page 83 of 105 No. 2013SAR00121 Page 84 of 105 No. 2013SAR00121 Page 85 of 105 No. 2013SAR00121 Page 86 of 105 No. 2013SAR00121 Page 87 of 105 No. 2013SAR00121 Page 88 of 105 No. 2013SAR00121 Page 89 of 105 1900 MHz Dipole Calibration Certificate No. 2013SAR00121 Page 90 of 105 No. 2013SAR00121 Page 91 of 105 No. 2013SAR00121 Page 92 of 105 No. 2013SAR00121 Page 93 of 105 No. 2013SAR00121 Page 94 of 105 No. 2013SAR00121 Page 95 of 105 No. 2013SAR00121 Page 96 of 105 No. 2013SAR00121 Page 97 of 105 2450 MHz Dipole Calibration Certificate No. 2013SAR00121 Page 98 of 105 No. 2013SAR00121 Page 99 of 105 No. 2013SAR00121 Page 100 of 105 No. 2013SAR00121 Page 101 of 105 No. 2013SAR00121 Page 102 of 105 No. 2013SAR00121 Page 103 of 105 No. 2013SAR00121 Page 104 of 105 No. 2013SAR00121 Page 105 of 105 ANNEX I DIPOLE QUALIFICATION FOR THE EXTENDED 3-YEAR CALIBRATION INTERVAL I1 Dipole 835 The information and documentation below are provided to qualify the extended 3-year calibration interval of dipole. I1.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46110673 02 Power meter NRVD 102083 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 05 Amplifier 60S1G4 0331848 06 E-field Probe SPEAG EX3DV4 3846 07 DAE SPEAG DAE4 771 08 Dipole Validation Kit SPEAG D835V2 443 I1.2 Results of Impedance, Return-loss and System validation Dipole 835 - Head Year Deviation Limit 2012 2013 Impedance Real (Ω) 50.8 53.6 2.8Ω Deviation < 5Ω Imaginary (Ω) -6.7 -2.2 4.5Ω Deviation < 5Ω Return-loss (dB) -23.5 -23.3 0.2dB Deviate < 0.2dB System validation 10g 1.52 1.56 2.63% Deviation < 10% 1g 2.33 2.38 2.15% Deviation < 10% Dipole 835 - Body Year Deviation Limit 2012 2013 Impedance Real (Ω) 46.8 49.1 2.3Ω Deviation < 5Ω Imaginary (Ω) -7.8 -3.7 4.1Ω Deviation < 5Ω Return-loss (dB) -21.2 -21.4 -0.2dB Deviate < 0.2dB System validation 10g 1.59 1.61 1.26% Deviation < 10% 1g 2.42 2.42 0.00% Deviation < 10% According to the above tables, it is not necessary to recalibration the dipoles in 2013.

No. 2013TAR625 Page1 of 80 TEST REPORT No. 2013TAR625 for TCT Mobile Limited GSM/EGPRS quadband mobile phone Model Name: Tigris Plus 1SIM Marketing Name: ALCATEL 3020G FCC ID : RAD414 with Hardware Version: Proto Software Version: VE15 Issued Date: 2013-09-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304633, Email:[email protected], web: www.emcite.com No. 2013TAR625 Page2 of 80 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 17 A.3 CONDUCTED EMISSION ............................................................................................................. 23 A.4 FREQUENCY STABILITY ............................................................................................................... 28 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 30 A.6 EMISSION BANDWIDTH ................................................................................................................ 42 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 54 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 60 No. 2013TAR625 Page3 of 80 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2013-08-20 Testing End Date: 2013-09-25 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2013TAR625 Page4 of 80 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. 2013TAR625 Page5 of 80 3. Equipment Under Test (EUT) and An…

Text truncated - open the document above for the full version.

No. 2013HAC00025 Page 1 of 73 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2013HAC00025 For TCT Mobile Limited GSM/EGPRS quadband mobile phone Mode Name: Tigris Plus 1SIM Marketing Name: ALCATEL 3020G With Hardware Version: Proto Software Version: VE15 FCC ID: RAD414 Results Summary: M Category = M3 Issued Date: 2013-09-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com Revision Version Report Number Revision Date Memo 2013HAC00025 00 2013-09-26 Initial creation of test report No.2013HAC00025 Page 3 of 73 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 4 1.1 TESTING LO C AT I O N ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 CLIENT INFORMATION ............................................................................................................... 5 2.1 APPLICANT INFORMATION .............................................................................................................................. 5 2.2 MANUFACTURER INFORMATION ..................................................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 6 3.1 ABOUT EUT ................................................................................................................................................... 6 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 6 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 6 3.4 AIR INTERFACES / BANDS INDICATING OPERATING MODES ............................................................................ 6 4 CONDUCTED OUTPUT POWER MEASUREMENT ................................................................... 7 4.1 SUMMARY ...................................................................................................................................................... 7 4.2 CONDUCTED POWER ...................................................................................................................................... 7 5. REFERENCE DOCUMENTS ....................................................................................................... 7 5.1REFERENCE DOCUMENTS FOR TESTING ........................................................................................................... 7 6 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 8 6.1 HAC MEASUREMENT SET-UP .................................................................................................................. 8 6.2 PROBE SPECIFICATION .................................................................................................................................... 9 6.3 TEST ARCH PHANTOM & PHONE POSITIONER............................................................................................... 10 6.4 ROBOTIC SYSTEM SPECIFICATIONS .............................................................................................................. 10 7 EUT ARRANGEMENT ................................................................................................................. 11 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE ...................................................................... 11 8 SYSTEM VALIDATION ............................................................................................................... 12 8.1 VALIDATION PROCEDURE ............................................................................................................................. 12 8.2 VALIDATION RE S U LT .................................................................................................................................... 12 9 PROBE MODULATION FACTOR............................................................................................... 13 9.1 MODULATION FACTOR TEST PROCEDURE ..................................................................................................... 13 9.2 MODULATION FACTOR.................................................................................................................................. 14 10 RF TEST PROCEDUERES ...................................................................................................... 15 11 HAC RF TEST DATA SUMMARY ............................................................................................. 16 11.1 MEASUREMENT RESULTS (E-FIELD) ........................................................................................................... 16 11.2 MEASUREMENT RESULTS (H-FIELD) .......................................................................................................... 16 11.3 TOTAL M-R AT I N G .........................................................................…

Text truncated - open the document above for the full version.

FDD ID RAD414 Conducted emission RE Radiated Spurious Emission

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. 2013SAR00121 For TCT Mobile Limited GSM/EGPRS quadband mobile phone Mode Name: Tigris Plus 1SIM Marketing Name: ALCATEL 3020G With Hardware Version: Proto Software Version: VE15 FCC ID: RAD414 Issued Date: 2013-09-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 2 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 6: Front Picture 7: Rear Picture 7-1:…

Text truncated - open the document above for the full version.
