RAD418HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile ................... 1.1 Keys and connectors • Navigation key Press to go left/right/up/down Press to access function • OK key Press to confirm an option • Volume key Press to adjust volume up/down • Answer/Send a call • Enter Call log • Press: End a call Return to the Home screen • Press and hold: Power on/off • Press and hold: Access your voicemail • Press once: Input a capitalized character • Press twice: Lock the keyboard in capital letter input mode • Press once: Input a top-half character • Press twice: Lock the keyboard in top-half key input mode Fn+ B: Access Bluetooth Fn+ M: Access Music Fn + P: Access Profiles Fn + R: Access Email • Short key press: Enter a space (on edit mode) Unlock the keypad (on Home screen) • Press and hold: Access language list (on edit mode) Lock the keypad (on Home screen) • Hold down Fn key, then press Space key to select input method • Enter symbol table • Hold down Fn key, then press SYM key to enter emotion table • Confirm an option • Enter the next line • Press and hold: Turn on/off vibration alert • Press: Take a picture • Press and hold: Access Camera 1.2 Status bar icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Headset connected. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Voicemail message arrived. Missed calls. Call in progress. Stopwatch is active. Radio is on. Email unread. WAP messages. Roaming. microSD card scanning completed. GPRS connecting. GPRS attached. EDGE connecting. EDGE attached. 3G network connecting. 3G network attached. Wi-Fi connected Wi-Fi disconnected Music active. MMS receipt in progress. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. Message unread. (Red) Message list is full: your phone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Airplane mode. 1.3 Home screen You can customize your Home screen by selecting ”Personalize” through Right softkey. 1.3.1 Widget bar Widgets are convenient shortcuts for quick access from the Home screen. 1.3.2 Change wallpaper You can select a folder to choose one image as favorite wallpaper by selecting "Change wallpaper". Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the phone; switch off Bluetooth and running applications in the background when not in use, reduce the backlight time, etc. 2.2 Power on your phone Hold down the key until the telephone powers on. 2.3 Power off your phone Hold down the key from the Home screen. 3 Making a call ................ Dial the desired number then press the key to place the call. The number you entered can be saved to Contacts by selecting "Save". If you make a mistake, you may press key to delete the incorrect digits one by one, or you may press and hold key to delete all. To hang up the call, press the key. 4 Menu arrange .............. It is designed to vary according to your preference. Change the order Access the main menu, focus on the main menu item you want to move, select "Options\Move", and tick "√" will be shown on the item you selected, then release it to your favorite destination. Show/Hide Access the main menu, select "Options\Add and remove menu", and select the left check box of the selected menu once to show/ hide, and then select "Done" to save the operation. 5 Messaging .............. 5.1 Access You may access this menu using the following options: • Access from the main menu by selecting "Messaging". • Select from shortcut bar, and then enter the sub-menu you require. When you access "Messaging", you can switch between SMS/MMS and Email by navigation key. (1) The icons and illustrations in this guide are provided for informational purposes only. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator and market. 2 Getting started .............. 2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the telephone cover. Unclip the cover, then remove the battery. 5.2 Conversational On (Off) mode In conversational on mode, you can view chat history in chronological order. In conversational off mode, you may have access to the following folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast SMS, Empty folder, Archive, Templates, Emergency alerts and Settings. Conversational view mode is set as default. You may switch to conventional mode by selecting "Settings\Switch view mode". The following instructions are based on conversational mode. 5.3 Write message You can select "Messaging\New message" from the main menu or access from shortcut to write text/multimedia message. One or more recipients can be added from contact list and you can remove a recipient by pressing the Delete key. Press the key and select "More" to multi-choice recipients from Contacts. An SMS will be converted to MMS automatically when images, videos, audio, slides or attachments are inserted; Subject, CC/BCC/email address is added; or the message contains more than 8 pages of text. An SMS message of more than a certain number of characters (the number of characters depends on your language) will be charged as several SMS. An MMS message…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-09-10 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-09-10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD418 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCT Mobile Limited

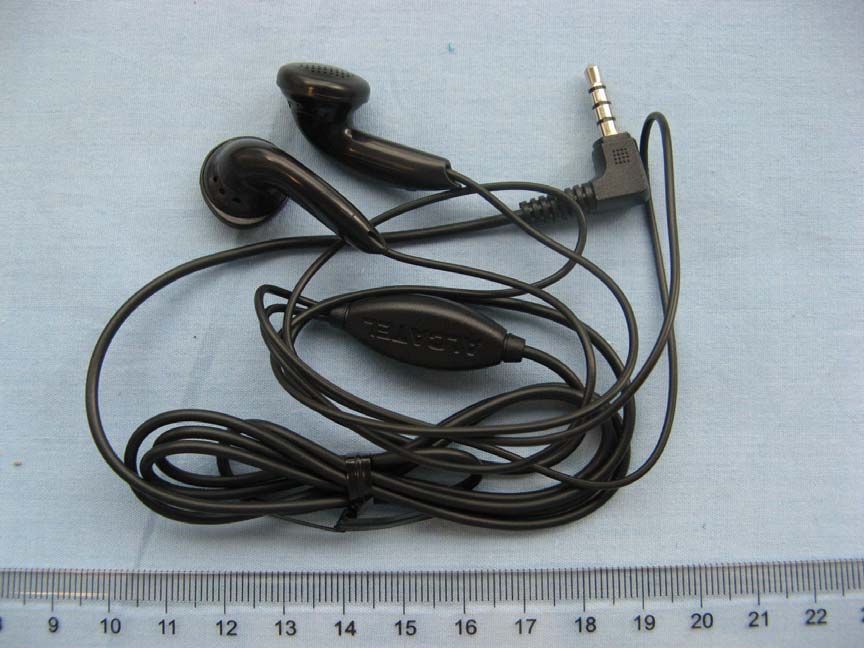

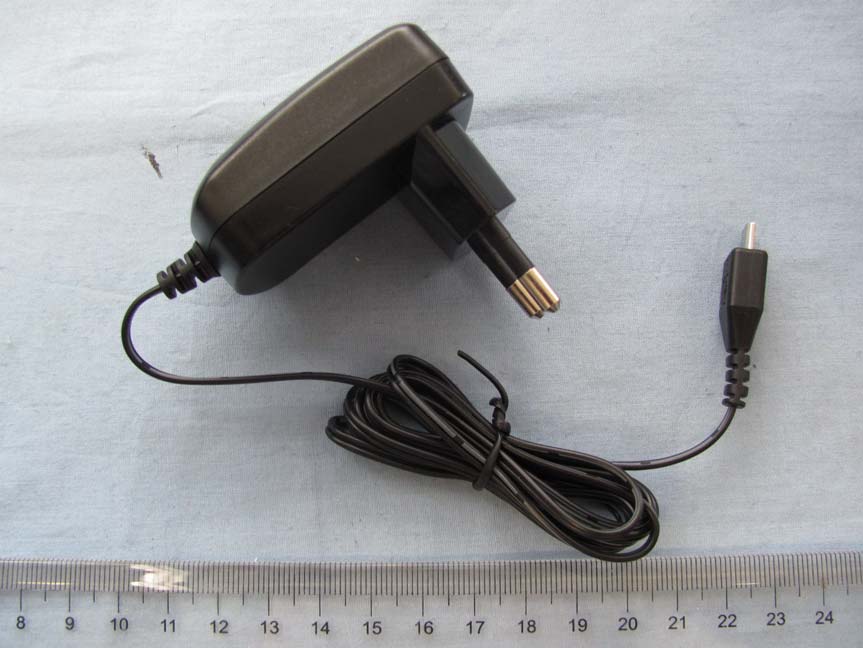

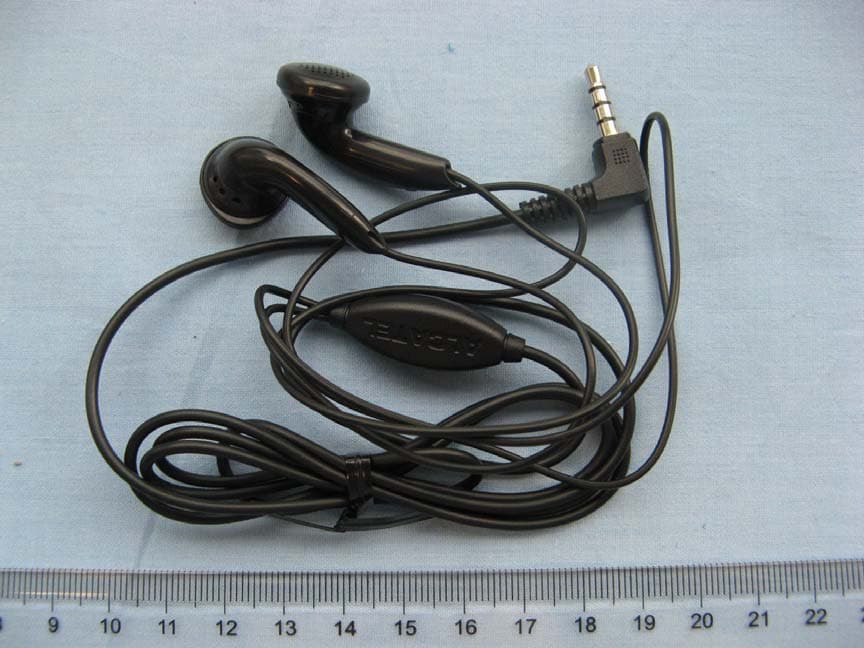

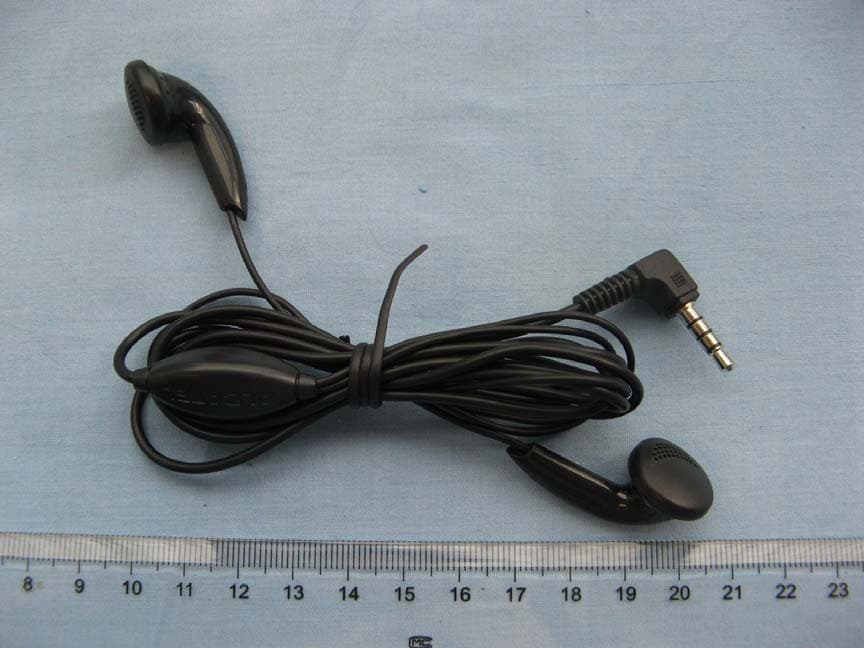

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly

No.I14Z47557-SEM01 Page 1 of 109 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z47557-SEM01 For TCT Mobile Limited HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone Model Name: 3075M With Hardware Version: 04 Software Version: A6E FCC ID: RAD418 Issued Date: 2014-09-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z47557-SEM01 Page 2 of 109 Revision Version Report Number Revision Date Memo I14Z47557-SEM01 0 2014-09-10 Initial creation of test report No. I14Z47557-SEM01 Page 3 of 109 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 18 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 19 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.5 POWER DRIFT ............................................................................................................................................... 20 10 AREA SCAN BASED 1-G SAR ................................................................................................. 21 10.1 REQUIREMENT OF KDB .............................................................................................................................. 21 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 21 11 CONDUCTED OUTPUT POWER .............................................................................................. 22 No. I14Z47557-SEM01 Page 4 of 109 11.1 MANUFACTU…

Text truncated - open the document above for the full version.

No. I14Z47557-SEM01 Page 61 of 109 2450MHz Date: 2014- 8- 23 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.77 mho/m; ε r = 39.48; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.78, 6.78, 6.78) System Validation /Area Scan (61x81x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 85.479 V/m; Power Drift = 0.02 dB SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.23 W/kg Maximum value of SAR (interpolated) = 17.3 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.479 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 26.92 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 6.06 W/kg Maximum value of SAR (measured) = 16.1 W/kg 0 dB = 16.1 W/kg = 12.07 dBW/kg Fig.B.5 validation 2450MHz 250mW No. I14Z47557-SEM01 Page 62 of 109 2450MHz Date: 2014- 8- 23 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.978 S/m; ε r = 51.85; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) System Validation/Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 87.385 V/m; Power Drift = -0.07 dB SAR(1 g) = 12.2 W/kg; SAR(10 g) = 5.75 W/kg Maximum value of SAR (interpolated) = 14.0 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.385 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 24.47 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.85 W/kg Maximum value of SAR (measured) = 14.1 W/kg 0 dB = 14.0 W/kg = 11.46 dB W/kg Fig.B.6 validation 2450MHz 250mW No. I14Z47557-SEM01 Page 63 of 109 The SAR system verification must be required that the area scan estimated 1-g SAR is within 3% of the zoom scan 1-g SAR. Table B.1 Comparison between area scan and zoom scan for system verification Band Position Area scan (1g) Zoom scan (1g) Drift (%) 835 Head 2.40 2.43 -1.23 835 Body 2.37 2.34 1.28 1900 Head 9.98 9.76 2.25 1900 Body 10.3 10.2 0.98 2450 Head 13.1 12.9 1.55 2450 Body 12.2 12.3 -0.81 No. I14Z47557-SEM01 Page 64 of 109 ANNEX C SAR Measurement Setup C.1 Measurement Set-up The Dasy4 or DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1 SAR Lab Test Measurement Set-up  A standard high precision 6-axis robot (Stäubli TX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE).  An isotropic field probe optimized and calibrated for the targeted measurement.  A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC.  The Electro-optical converter (EOC) performs the conversion from optical to electrical signals for the digital communication to the DAE. To use optical surface detection, a special version of the EOC is required. The EOC signal is transmitted to the measurement server.  The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts.  The Light Beam used is for probe alignment. This improves the (absolute) accuracy of the probe positioning.  A computer running WinXP and the DASY4 or DASY5 software.  Remote control and teach pendant as well as additional circuitry for robot safety such as  warning lamps, etc.  The phantom, the device holder and other accessories according to the targeted measurement. No. I14Z47557-SEM01 Page 65 of 109 C.2 Dasy4 or DASY5 E-field Probe System The SAR measurements were conducted with the dosimetric probe designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multifiber line ending at the front of the probe tip. It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY4 or DASY5 software reads the reflection durning a software approach and looks for the maximum using 2 nd ord curve fitting. The approach is stopped at reaching the maximum. Probe Specifications: Model: ES3DV3, EX3DV4 Frequency 10MHz — 6.0GHz(EX3DV4) Range: 10MHz — 4GHz(ES3DV3) Calibration: In head and body simulating tissue at Frequencies from 835 up to 5800MHz Linearity: ± 0.2 dB(30 MHz to 6 GHz) for EX3DV4 Picture C.2 Near-field Probe ± 0.2 dB(30 MHz to 4 GHz) for ES3DV3 Dynamic Range: 10 mW/kg — 100W/kg Probe Length: 330 mm Probe Tip Length: 20 mm Body Diameter: 12 mm Tip Diameter: 2.5 mm (3.9 mm for ES3DV3) Tip-Center: 1 mm (2.0mm for ES3DV3) Application: SAR Dosimetry Testing Compliance tests of mobile phones Dosimetry in strong gradient fields Picture C.3 E-field Probe C.3 E-field Probe Calibration Each E-Probe/Probe Amplifier combination has unique calibration parameters. A TEM cell calibration procedure is conducted to determine the proper amplifier sett…

Text truncated - open the document above for the full version.

No. I14Z47557-SEM01 Page 91 of 109 No. I14Z47557-SEM01 Page 92 of 109 No. I14Z47557-SEM01 Page 93 of 109 No. I14Z47557-SEM01 Page 94 of 109 1900 MHz Dipole Calibration Certificate No. I14Z47557-SEM01 Page 95 of 109 No. I14Z47557-SEM01 Page 96 of 109 No. I14Z47557-SEM01 Page 97 of 109 No. I14Z47557-SEM01 Page 98 of 109 No. I14Z47557-SEM01 Page 99 of 109 No. I14Z47557-SEM01 Page 100 of 109 No. I14Z47557-SEM01 Page 101 of 109 No. I14Z47557-SEM01 Page 102 of 109 2450 MHz Dipole Calibration Certificate No. I14Z47557-SEM01 Page 103 of 109 No. I14Z47557-SEM01 Page 104 of 109 No. I14Z47557-SEM01 Page 105 of 109 No. I14Z47557-SEM01 Page 106 of 109 No. I14Z47557-SEM01 Page 107 of 109 No. I14Z47557-SEM01 Page 108 of 109 No. I14Z47557-SEM01 Page 109 of 109

No. I14Z47557-GTE01 Page1 of 82 TEST REPORT No. I14Z47557-GTE01 for TCT Mobile Limited HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone Model Name: 3075M FCC ID: RAD418 with Hardware Version: 04 Software Version: A6E Issued Date: 2014-9-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. I14Z47557-GTE01 Page2 of 82 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 18 A.3 CONDUCTED EMISSION ............................................................................................................. 24 A.4 FREQUENCY STABILITY ............................................................................................................ 29 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 31 A.6 EMISSION BANDWIDTH ................................................................................................................ 43 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 55 A.8 CONDUCTED SPURIOUS EMISSION ............................................................................................... 61 No. I14Z47557-GTE01 Page3 of 82 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-8-19 Testing End Date: 2014-9-1 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. I14Z47557-GTE01 Page4 of 82 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. I14Z47557-GTE01 Page5 of 82 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description…

Text truncated - open the document above for the full version.

No. I14Z47557-GTE02 Page1 of 40 TEST REPORT No. I14Z47557-GTE02 for TCT Mobile Limited HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone Model Name: 3075M FCC ID: RAD418 with Hardware Version: 04 Software Version: A6E Issued Date: 2014-9-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. I14Z47557-GTE02 Page2 of 40 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT .................................................................................…

Text truncated - open the document above for the full version.
