RAD429HSUPA/HSDPA/UMTS triband /GSM quadband mobile phone

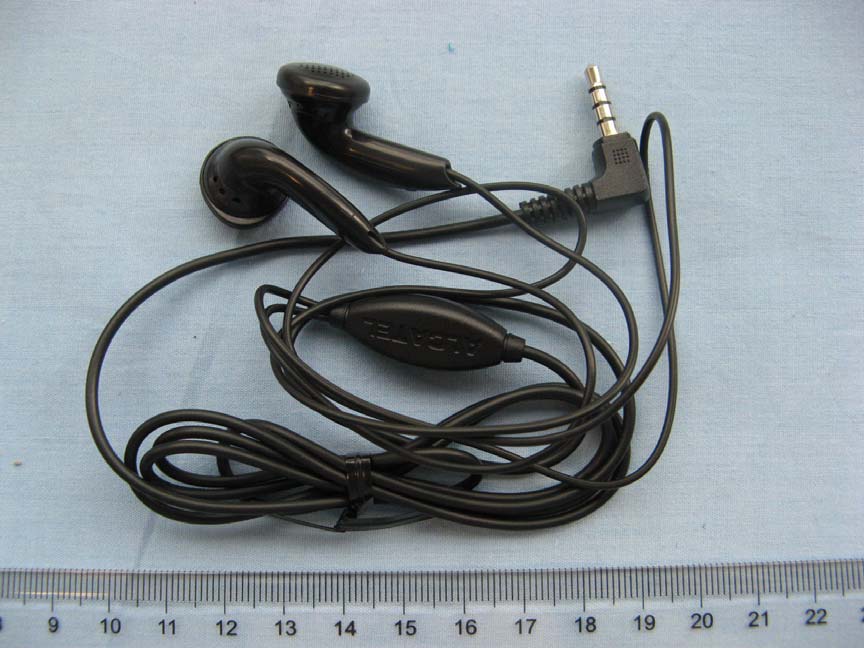

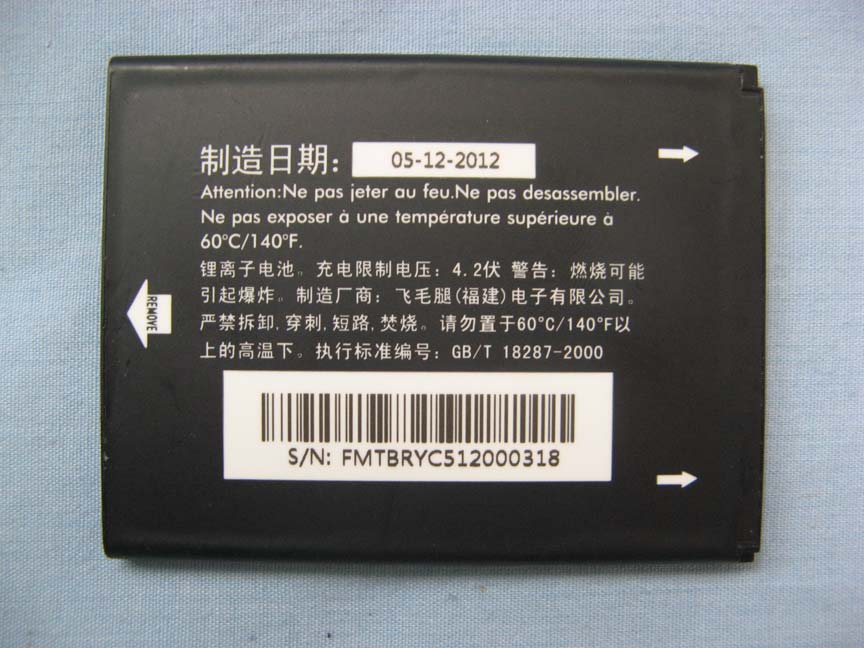

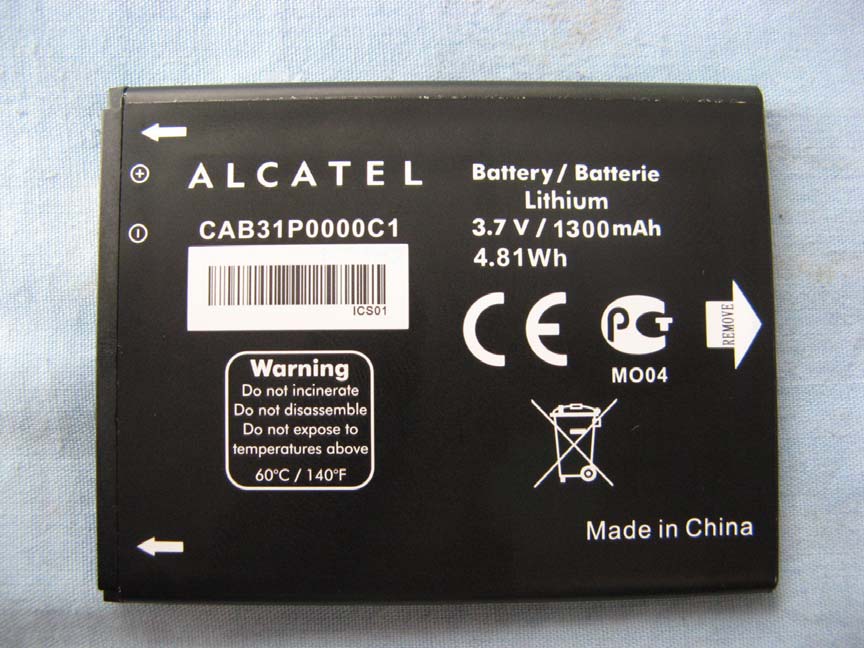

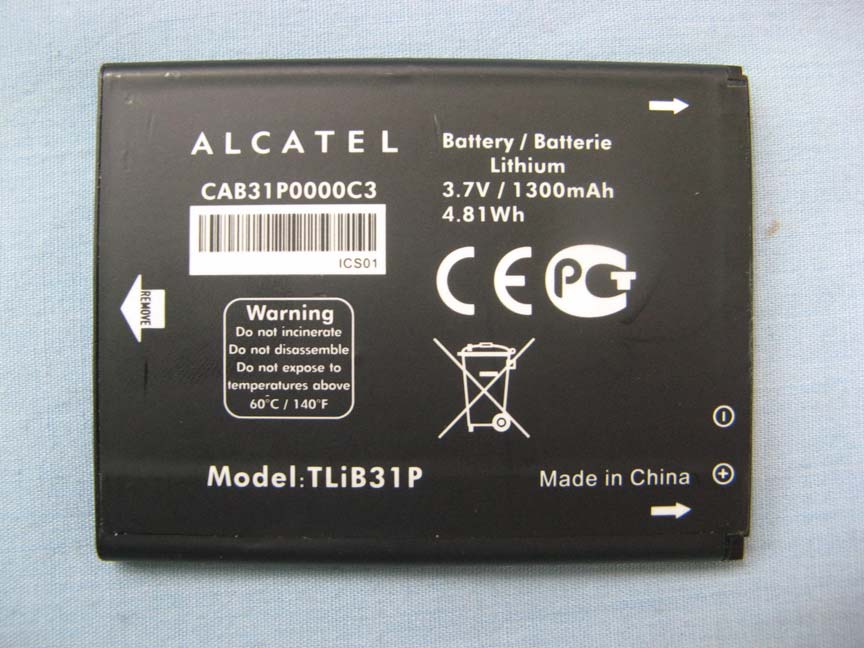

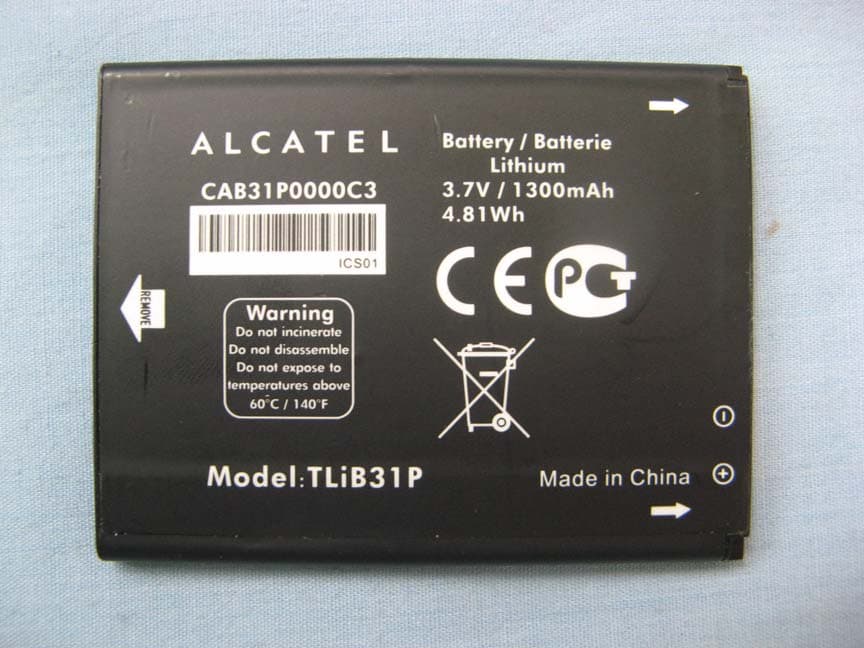

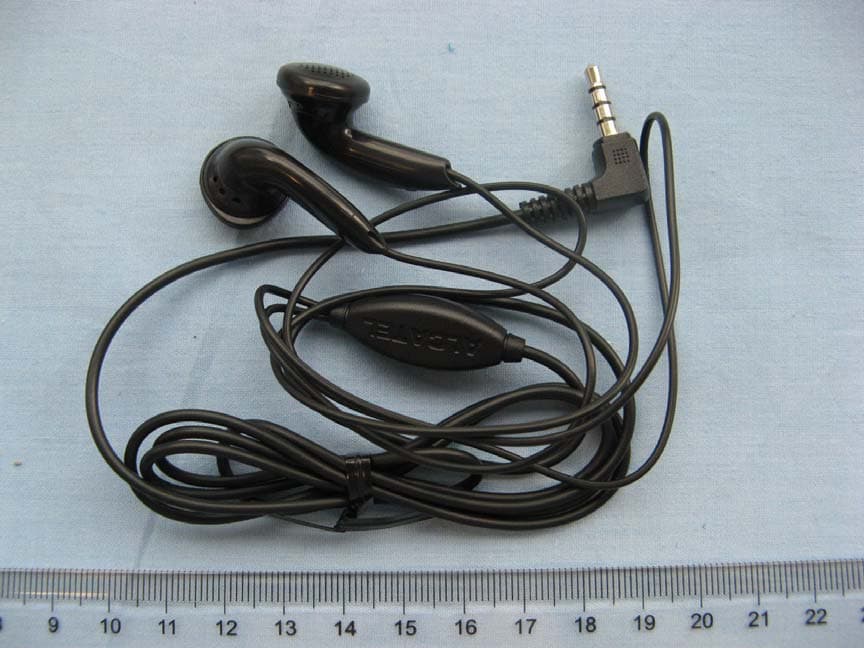

12 English - CJB27G3ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, upgrade software, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Your mobile 1 .................. Keys and connectors1.1 Power key Headset connector micro-USB connector Back key Home key Menu key Touch screen LED light IP4826_4015N_QG_Eng_USA_05_140109.indd 1-2IP4826_4015N_QG_Eng_USA_05_140109.indd 1-22014-1-9  10:57:082014-1-9  10:57:08 34 Volume up Volume down Camera Menu key Option menu.• Touch to access Wallpaper, Manage applications and Settings. Recent apps. • Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list. Home key While on any application or screen, touch to return • to the Home screen. Back key Touch to go back to the previous screen, or to close a • dialog box, options menu, the notification panel, etc. Power key Press: Lock the screen/Light up the screen• Press and hold: Show the pop-up menu to select from • Power off/Restart/Airplane mode/Quick start Press and hold: Power on Press to mute the ringtone when there’s an incoming • call. Press and hold for more than 7 seconds to restart the • phone when the system halted. Press and hold • Power key and Volume down key to capture a screenshot. Press and hold • Power key and Volume up key under power off mode to restore factory set. Volume keys Under call mode, adjust the earpiece or headset • volume. In Music/Video/Streaming mode, adjust the media • volume. In general mode, adjust the ring tone volume.• Mute the ringtone of an incoming call.• In Camera mode, using it as the capture key allows you • to take a photo. IP4826_4015N_QG_Eng_USA_05_140109.indd 3-4IP4826_4015N_QG_Eng_USA_05_140109.indd 3-42014-1-9  10:57:092014-1-9  10:57:09 56 Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks, but when 3G SIM cards are inserted into both SIM1 and SIM2 slot at the same time, only one SIM card will support 3G network. Your phone only supports mini SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. Insert and click the battery into place, then close the cover.• Unclip the cover, then remove the battery.• Installing or removing the microSD card Insert the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, gently press and slide it out. Charging the battery Connect the battery charger to your phone and outlet respectively. The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. IP4826_4015N_QG_Eng_USA_05_140109.indd 5-6IP4826_4015N_QG_Eng_USA_05_140109.indd 5-62014-1-9  10:57:092014-1-9  10:57:09 78 Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. For dual SIM mode, you should select a SIM card or choose Always ask for voice call, messaging, etc. Power off your phone1.2.3 Hold down the Power key from the Home screen until the Phone options appear, select Power off. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and drag down to open the • notification panel. Application tab Touch to open main menu.• Favorite applications tray Touch to enter the application.• Touch and hold to move or change • applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The white short line at the lower part of the screen indicates which screen you are viewing. Using the touchscreen1.3.1 Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the wallpaper. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide …

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-12-16 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 12/16/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD429 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

No.2013SAR00166 Page 1 of 112 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00166 For TCT Mobile Limited HSUPA/HSDPA/UMTS dual band/GSM quad-band mobile phone Mode Name: Yaris-3.5 Marketing Name: 4015N With Hardware Version: PIO Software Version: VBB5 FCC ID: RAD429 Issued Date: 2014-01-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00166 Page 2 of 112 Revision Version Report Number Revision Date Memo 2013SAR00166 00 2014-01-07 Initial creation of test report No. 2013SAR00166 Page 3 of 112 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR ................................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER .............................................................................................. 23 No. 2013SAR00166 Page 4 of 112 11.1 MAN…

Text truncated - open the document above for the full version.

No. 2013SAR00166 Page 29 of 112 12.3 SAR Measurement Positions According to the KDB941225 D06 Hot Spot SAR v01, the edges with less than 2.5 cm distance to the antennas need to be tested for SAR. SAR measurement positions Mode Front Rear Left edge Right edge Top edge Bottom edge Main antenna Yes Yes Yes Yes No Yes WLAN Yes Yes No Yes Yes No 12.4 Standalone SAR Test Exclusion Considerations Standalone 1-g head or body SAR evaluation by measurement or numerical simulation is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The 1-g SAR test exclusion threshold for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Table 12.1: Standalone SAR test exclusion considerations Band/Mode F(GHz) Position SAR test exclusion threshold (mW) RF output power SAR test exclusion dBm mW Bluetooth 2.441 Head 9.60 8.12 6.49 Ye s Body 19.20 8.12 6.49 Ye s 2.4GHz WLAN 802.11 b 2.45 Head 9.58 17.83 60.67 No Body 19.17 17.83 60.67 No No. 2013SAR00166 Page 30 of 112 13 Evaluation of Simultaneous Table 13.1: The sum of reported SAR values for main antenna and WiFi Position Main antenna WiFi Sum Highest reported SAR value for Head Left hand, Touch cheek 0.93 0.44 1.37 Highest reported SAR value for Body Rear 1.18 0.16 1.34 Table 13.2: The sum of reported SAR values for main antenna and Bluetooth Position Main antenna BT* Sum Highest reported SAR value for Head Left hand, Touch cheek 0.93 0.29 1.22 Highest reported SAR value for Body Rear 1.18 0.15 1.33 BT* - Estimated SAR for Bluetooth (see the table 13.3) Table 13.3: Estimated SAR for Bluetooth Position F (GHz) Distance (mm) Upper limit of power * Estimated 1g (W/kg) dBm mW Head 2.441 5 8.5 7.08 0.29 Body 2.441 10 8.5 7.08 0.15 * - Maximum possible output power declared by manufacturer When standalone SAR test exclusion applies to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to following to determine simultaneous transmission SAR test exclusion: (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)/x] W/kg for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Conclusion: According to the above tables, the sum of reported SAR values is < 1.6W/kg. So the simultaneous transmission SAR with volume scans is not required. No. 2013SAR00166 Page 31 of 112 14 SAR Test Result It is determined by user manual for the distance between the EUT and the phantom bottom. The distance is 10mm and just applied to the condition of body worn accessory. It is performed for all SAR measurements with area scan based 1-g SAR estimation (Fast SAR). A zoom scan measurement is added when the estimated 1-g SAR is the highest measured SAR in each exposure configuration, wireless mode and frequency band combination or > 1.2W/kg. The calculated SAR is obtained by the following formula: Reported SAR=Measured SAR×10 � P Target −P Measured � 10 ⁄ Where P Target is the power of manufacturing upper limit; P Measured is the measured power in chapter 11. Table 14.1: Duty Cycle Mode Duty Cycle Speech for GSM850/1900 1:8.3 GPRS&EGPRS for GSM850 1:8.3 GPRS&EGPRS for GSM1900 1:4 WCDMA850&WiFi 1:1 14.1 The evaluation of multi-batteries We’ll perform the head measurement in all bands with the primary battery depending on the evaluation of multi-batteries and retest on highest value point with other batteries. Then, repeat the measurement in the Body test. Table 14.2: The evaluation of multi-batteries for Head Test Frequency Mode/Band Side Te s t Position Battery Type SAR(1g) Power Drift(dB) MHz Ch. (W/kg) 846.6 4233 WCDMA 850 Left Touch CAB31P0000C1 0.781 -0.06 846.6 4233 WCDMA 850 Left Touch CAB31P0000C2 0.764 0.05 846.6 4233 WCDMA 850 Left Touch CAB31P0000C3 0.755 -0.07 Note: According to the values in the above table, the battery, CAB31P0000C1, is the primary battery. We’ll perform the head measurement with this battery and retest on highest value point with others. Table 14.3: The evaluation of multi-batteries for Body Test Frequency Mode/Band Te s t Position Spacing (mm) Battery Type SAR(1g) Power Drift(dB) MHz Ch. (W/kg) 826.4 4132 WCDMA 850 Rear 10 CAB31P0000C1 1.01 -0.01 826.4 4132 WCDMA 850 Rear 10 CAB31P0000C2 0.948 -0.05 826.4 4132 WCDMA 850 Rear 10 CAB31P0000C3 0.961 0.04 Note: According to the values in the above table, the battery, CAB31P0000C1, is the primary battery. We’ll perform the Body measurement with this battery and retest on highest value point with others. No. 2013SAR00166 Page 32 of 112 14.2 SAR results for Fast SAR Table 14.4: SAR Values (GSM 850 MHz Band - Head) – CAB31P0000C1 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch / 32.48 33.3 0.452 0.55 0.662 0.80 -0.10 836.6 190 Left Touch Fig.1 32.45 33.3 0.518 0.63 0.692 0.84 0.02 824.2 128 Left Touch / 32.41 33.3 0.455 0.56 0.664 0.82 -0.02 848.8 251 Left Tilt / 32.48 33.3 0.275 0.33 0.400 0.48 -0.00 836.6 190 Left Tilt / 32.45 33.3 0.281 0.34 0.407 0.49 -0.01 824.2 128 Left Tilt / 32.41 33.3 0.288 0.35 0.417 0.51 -0.04 848.8 251 Right Touch / 32.48 33.3 0.409 0.49 0.596 0.72 -0.01 836.6 190 Right Touch / 32.45 33.3 0.428 0.52 0.624 0.76 0.00 824.2 128 Right Touch / 32.41 33.3 0.477 0.59 0.639 0.78 0.01 848.8 251 Right Tilt / 32.48 33.3 0.285 0.34 0.414 0.50 0.01 836.6 19…

Text truncated - open the document above for the full version.

No. 2013SAR00166 Page 57 of 112 Fig. 7-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00166 Page 58 of 112 Wifi 802.11b Body Rear Channel 6 Date: 2013-12-12 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.957 S/m; ε r = 51.983; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) Rear Middle/Area Scan (81x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.179 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.765 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.149 W/kg; SAR(10 g) = 0.084 W/kg Maximum value of SAR (measured) = 0.173 W/kg Fig.8 2450 MHz CH6 No. 2013SAR00166 Page 59 of 112 Fig. 8-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00166 Page 60 of 112 ANNEX B System Verification Results 835MHz Date: 2013-12-18 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.894 S/m; ε r = 41.77; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) System Validation/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 55.117 V/m; Power Drift = -0.14 dB Fast SAR: SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (interpolated) = 2.65 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.117 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 3.62 W/kg SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.65 W/kg = 8.46 dBW/kg Fig.B.1 validation 835MHz 250mW No. 2013SAR00166 Page 61 of 112 835MHz Date: 2013-12-18 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.984 S/m; ε r = 54.46; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) System Validation /Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.905 V/m; Power Drift = 0.09 dB Fast SAR: SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (interpolated) = 2.62 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.905 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.40 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.62 W/kg = 8.37 dBW/kg Fig.B.2 validation 835MHz 250mW No. 2013SAR00166 Page 62 of 112 1900MHz Date: 2013-12-19 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.403 S/m; ε r = 39.28; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 98.43 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 9.94 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (interpolated) = 11.7 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 98.43 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 18.11 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.34 W/kg Maximum value of SAR (measured) = 11.9 W/kg 0 dB = 11.7 W/kg = 21.36 dB W/kg Fig.B.3 validation 1900MHz 250mW No. 2013SAR00166 Page 63 of 112 1900MHz Date: 2013-12-19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.501 S/m; ε r = 52.19; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.03, 7.03, 7.03) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 79.372 V/m; Power Drift = -0.08 dB Fast SAR: SAR(1 g) = 10.0 W/kg; SAR(10 g) = 5.21 W/kg Maximum value of SAR (interpolated) = 11.6 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.372 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 16.61 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.35 W/kg Maximum value of SAR (measured) = 11.8 W/kg 0 dB = 11.6 W/kg = 21.29 dB W/kg Fig.B.4 validation 1900MHz 250mW No. 2013SAR00166 Page 64 of 112 2450MHz Date: 2013-12-12 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.824 S/m; ε r = 38.86; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.78, 6.78, 6.78) System Validation /Area Scan (81x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.7 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.383 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 27.84 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.09 W/kg Maximum value of SAR (measured) = 16.7 W/kg 0 dB = 16.7 W/kg = 24.45 dB W/kg Fig.B.5 validation 2450MHz 250mW No. 2013SAR00166 Page 65 of 112 2450MHz Date: 2013-12-12 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.971 S/m; ε r = 51.94; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) System Validation/Area Scan (81x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.5 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid:…

Text truncated - open the document above for the full version.

No. 2013SAR00166 Page 85 of 112 No. 2013SAR00166 Page 86 of 112 No. 2013SAR00166 Page 87 of 112 No. 2013SAR00166 Page 88 of 112 No. 2013SAR00166 Page 89 of 112 ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. 2013SAR00166 Page 90 of 112 No. 2013SAR00166 Page 91 of 112 No. 2013SAR00166 Page 92 of 112 No. 2013SAR00166 Page 93 of 112 No. 2013SAR00166 Page 94 of 112 No. 2013SAR00166 Page 95 of 112 No. 2013SAR00166 Page 96 of 112 No. 2013SAR00166 Page 97 of 112 1900 MHz Dipole Calibration Certificate No. 2013SAR00166 Page 98 of 112

No. 2013SAR00166 Page 99 of 112 No. 2013SAR00166 Page 100 of 112 No. 2013SAR00166 Page 101 of 112 No. 2013SAR00166 Page 102 of 112 No. 2013SAR00166 Page 103 of 112 No. 2013SAR00166 Page 104 of 112 No. 2013SAR00166 Page 105 of 112 2450 MHz Dipole Calibration Certificate No. 2013SAR00166 Page 106 of 112 No. 2013SAR00166 Page 107 of 112 No. 2013SAR00166 Page 108 of 112 No. 2013SAR00166 Page 109 of 112 No. 2013SAR00166 Page 110 of 112 No. 2013SAR00166 Page 111 of 112 No. 2013SAR00166 Page 112 of 112

No. 2013TAR851 Page1 of 83 TEST REPORT No. 2013TAR851 for TCT Mobile Limited HSUPA/HSDPA/UMTS dual band/GSM quad-band mobile phone Model Name: Yaris-3.5 Marketing Name: 4015N FCC ID: RAD429 with Hardware Version: PIO Software Version: VBB5 Issued Date: 2013-12-27 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633, Fax:+86(0)10-62304633-2504, Email:[email protected], web: www.emcite.com No. 2013TAR851 Page2 of 83 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 7 3.5. GENERAL DESCRIPTION ............................................................................................................ 7 4. REFERENCE DOCUMENTS ............................................................................................................. 8 4.1. REFERENCE DOCUMENTS FOR TESTING .....................................................................…

Text truncated - open the document above for the full version.
