RAD432HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE 3 bands mobile phone

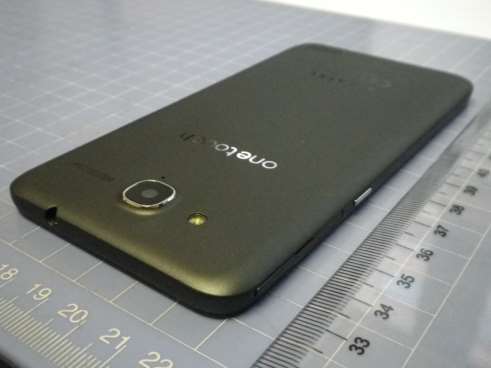

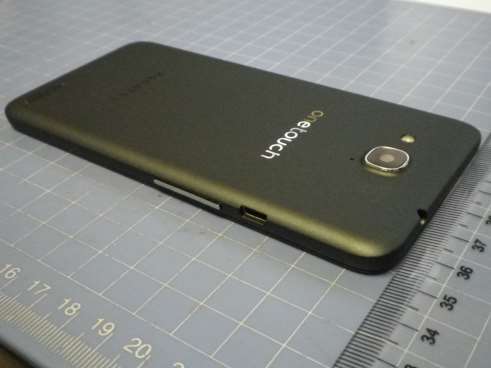

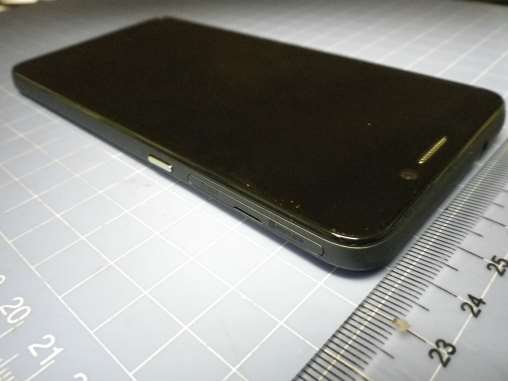

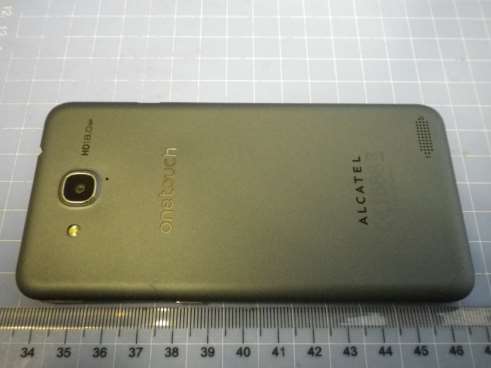

English - CJB60S0ALAAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Nonauthorized personnel is strictly prohibited to disassemble the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears, select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. 6034M 1 1 Your mobile phone ������ 1�1 Keys and connectors LED indicator Proximity sensor Headset connector Home key Front camera SD card slot SIM card slot Power key Touch screen Back key Menu key PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile phone ���������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������13 4 Contacts ������������������������������������������������������������������������15 5 Messaging�����������������������������������������������������������������������16 6 Email ������������������������������������������������������������������������������17 7 Getting connected ��������������������������������������������������������18 8 Locate my location using GPS satellites ��������������������20 9 Data backup ������������������������������������������������������������������21 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������22 12 Making the most of your phone ����������������������������������23 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������33 TCT Mobile (US), Inc� Warranty ������������������������������������������34 Troubleshooting����������������������������������������������������������������������36 www.sar-tick.com This product meets applicable national SAR limits of 2.0 W/kg. The specific maximum SAR values can be found on page 30 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 Power key • Press: Lock the screen / Light up the screen. • Press to mute the ringtone when there's an incoming call. • Press and hold: Show the pop-up menu to select from Power off / Restart / Airplane mode / Quick start / Power on. • Press Power key more than 9s to restart. • Press Power key and Volumn up key to reset. • Press Power key and Volumn down key to capture a screenshot. Volume Keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up An insertion tool is provided at the phone package, please use it to install or remove the SIM/SD card conveniently. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. To install, place the SIM card chip facing downwards, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Volumn Key Micro-USB Connector Camera Camera Flash/Flashlight Menu key • Touch to access Wallpaper, Manage apps and Settings. • Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. 45 Installing and removing the microSD card Insert the microSD card with golden contact facing downwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and mains socket respectively, LED indicator will light while charging. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set following options: language, Input method, date & time, etc. Power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, se…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 10/25/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 432 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 11/12/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 432 To Whom It May Concern, We TCT Mobile Limited to declare WLAN Channel 12 and 13 are disabled for United States version. Our device supports 802.11d feature. Limited by local law regulations, region selection option is limited in US code for United States version. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

FCC ID : RAD432 LABEL

No.2013SAR00137 Page 1 of 147 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00137 For TCT Mobile Limited HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/ LTE 3 bands mobile phone Mode Name: Diablo HD LTE LATAM V1 Marketing Name: ONE TOUCH 6034M With Hardware Version: PIO Software Version: V1B2T FCC ID: RAD432 Issued Date: 2013-11-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00137 Page 2 of 147 Revision Version Report Number Revision Date Memo 2013SAR00137 00 2013-10-23 Initial creation of test report 2013SAR00137 01 2013-11-07 Update the conducted power of HSUPA for UMTS Band II on page 31 No. 2013SAR00137 Page 3 of 147 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 23 9.5 POWER DRIFT ............................................................................................................................................... 23 10 AREA SCAN BASED 1-G SAR ................................................................................................. 24 10.1 REQUIREMENT OF KDB .............................................................................................................................. 24 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 24 11 CONDUCTED OUTPUT POWER .....…

Text truncated - open the document above for the full version.

No. 2013SAR00137 Page 65 of 147 WCDMA 1900 Body Rear Middle Date: 2013- 10-3 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.537 mho/m; εr = 54.476; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: WCDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.03, 7.03, 7.03) Rear Middle/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.12 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.776 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 1.07 W/kg; SAR(10 g) = 0.622 W/kg Maximum value of SAR (measured) = 1.17 W/kg Fig.8 WCDMA1900 CH9400 No. 2013SAR00137 Page 66 of 147 Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9400) No. 2013SAR00137 Page 67 of 147 Wifi 802.11b Left Cheek Channel 6 Date: 2013-9- 28 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.81 mho/m; ε r = 38.462; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.78, 6.78, 6.78) Cheek Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.430 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.139 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.692 W/kg SAR(1 g) = 0.316 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.467 W/kg Fig.9 2450 MHz CH6 No. 2013SAR00137 Page 68 of 147 Fig. 9-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00137 Page 69 of 147 Wifi 802.11b Body Rear Channel 6 Date: 2013-9- 28 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.959 mho/m; ε r = 53.326; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) Rear Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.409 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.114 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.516 W/kg SAR(1 g) = 0.275 W/kg; SAR(10 g) = 0.129 W/kg Maximum value of SAR (measured) = 0.408 W/kg Fig.10 2450 MHz CH6 No. 2013SAR00137 Page 70 of 147 Fig. 10-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00137 Page 71 of 147 Wifi 802.11a Right Cheek Channel 36 Date: 2013-10-1 Electronics: DAE4 Sn771 Medium: Head 5200 MHz Medium parameters used: f = 5180 MHz; σ = 5.558 mho/m; ε r = 36.693; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 5G Frequency: 5180 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(5.25, 5.25, 5.25) Cheek/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.21 W/kg Cheek/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 8.898 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 2.43 W/kg SAR(1 g) = 0.543 W/kg; SAR(10 g) = 0.156 W/kg Maximum value of SAR (measured) = 1.16 W/kg Fig.11 5GHz CH36 No. 2013SAR00137 Page 72 of 147 Fig. 11-1 Z-Scan at power reference point (5GHz CH36) No. 2013SAR00137 Page 73 of 147 Wifi 802.11a Top Edge Channel 36 Date: 2013-10-1 Electronics: DAE4 Sn771 Medium: Body 5300 MHz Medium parameters used: f = 5320 MHz; σ = 5.368 mho/m; ε r = 50.366; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 5G Frequency: 5320 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(4.17, 4.17, 4.17) Top Edge/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.326 W/kg Top Edge/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 5.029 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.606 W/kg SAR(1 g) = 0.156 W/kg; SAR(10 g) = 0.058 W/kg Maximum value of SAR (measured) = 0.320 W/kg Fig.12 5GHz CH36 No. 2013SAR00137 Page 74 of 147 Fig. 12-1 Z-Scan at power reference point (5GHz CH36) No. 2013SAR00137 Page 75 of 147 ANNEX B System Verification Results 835MHz Date: 2013-10-2 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.896 mho/m; ε r = 40.28; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) System Validation/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.657 V/m; Power Drift = 0.15 dB Fast SAR: SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (interpolated) = 2.57 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.657 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.31 W/kg; SAR(10 g) = 1.50 W/kg Maximum value of SAR (measured) = 2.55 W/kg 0 dB = 2.57 W/kg = 8.20 dBW/kg Fig.B.1 validation 835MHz 250mW No. 2013SAR00137 Page 76 of 147 835MHz Date: 2013-10-2 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 56.51; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) System Validation /Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.811 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (interpolated) = 2.61 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement gr…

Text truncated - open the document above for the full version.

No. 2013SAR00137 Page 110 of 147 No. 2013SAR00137 Page 111 of 147 No. 2013SAR00137 Page 112 of 147 No. 2013SAR00137 Page 113 of 147 No. 2013SAR00137 Page 114 of 147 No. 2013SAR00137 Page 115 of 147 No. 2013SAR00137 Page 116 of 147 1900 MHz Dipole Calibration Certificate No. 2013SAR00137 Page 117 of 147 No. 2013SAR00137 Page 118 of 147 No. 2013SAR00137 Page 119 of 147 No. 2013SAR00137 Page 120 of 147 No. 2013SAR00137 Page 121 of 147 No. 2013SAR00137 Page 122 of 147 No. 2013SAR00137 Page 123 of 147 No. 2013SAR00137 Page 124 of 147 2450 MHz Dipole Calibration Certificate No. 2013SAR00137 Page 125 of 147 No. 2013SAR00137 Page 126 of 147 No. 2013SAR00137 Page 127 of 147 No. 2013SAR00137 Page 128 of 147 No. 2013SAR00137 Page 129 of 147

No. 2013SAR00137 Page 130 of 147 No. 2013SAR00137 Page 131 of 147 No. 2013SAR00137 Page 132 of 147 5GHz Dipole Calibration Certificate No. 2013SAR00137 Page 133 of 147 No. 2013SAR00137 Page 134 of 147 No. 2013SAR00137 Page 135 of 147 No. 2013SAR00137 Page 136 of 147 No. 2013SAR00137 Page 137 of 147 No. 2013SAR00137 Page 138 of 147 No. 2013SAR00137 Page 139 of 147 No. 2013SAR00137 Page 140 of 147 No. 2013SAR00137 Page 141 of 147 No. 2013SAR00137 Page 142 of 147 No. 2013SAR00137 Page 143 of 147 No. 2013SAR00137 Page 144 of 147 No. 2013SAR00137 Page 145 of 147 No. 2013SAR00137 Page 146 of 147 No. 2013SAR00137 Page 147 of 147

No. 2013WLN0768 Page1 of 95 FCC PART 15C TEST REPORT No. 2013WLN0768 for TCT Mobile Limited HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE 3 bands mobile phone Model name: Diablo HD LTE LATAM V1 Marketing Name: ONE TOUCH 6034M With FCC ID: RAD432 Hardware Version: PIO Software Version: V1B2T Issued Date: 2013-10-17 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633-2046, Fax:+86(0)10-62304633-2063 Email:[email protected]. www.emcite.com No. 2013WLN0768 Page2 of 95 CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LABORATORY ........................................................................................................ 6 1.1. TESTING LOCATION .............................................................................................................. 6 1.2. PROJECT DATA .................................................................................................................... 6 1.3. SIGNATURE .......................................................................................................................... 6 2. CLIENT INFORMATION .................................................................................................... 7 2.1. APPLICANT INFORMATION ..................................................................................................... 7 2.2. MANUFACTURER INFORMATION ............................................................................................. 7 3. EQUIPMENT UNDER TEST(EUT) AND ANCILLARY EQUIPMENT(AE) ....................... 8 3.1. ABOUT EUT ......................................................................................................................... 8 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................................. 8 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .................................................... 8 3.4. GENERAL DESCRIPTION ....................................................................................................... 8 4. REFERENCE DOCUMENTS ............................................................................................ 9 4.1. DOCUMENTS SUPPLIED BY APPLICANT ................................................................................... 9 4.2. REFERENCE DOCUMENTS FOR TESTING.................................................................... 9 5. LABORATORY ENVIRONMENT ...................................................................................... 9 6. SUMMARY OF TEST RESULTS ....................................................................................... 9 6.1. SUMMARY OF TEST RESULTS ................................................................................................ 9 6.2. STATEMENTS...................................................................................................................... 10 6.3. TEST CONDITIONS .............................................................................................................. 10 7. TEST EQUIPMENTS UTILIZED...................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 12 A.1. MEASUREMENT METHOD ....................................................................................................... 12 A.2. MAXIMUM OUTPUT POWER .................................................................................................... 13 A.2.1. MAXIMUM PEAK OUTPUT POWER-CONDUCTED .................................................................... 13 A.2.2. MAXIMUM AVERAGE OUTPUT POWER-CONDUCTED .............................................................. 14 A.3. PEAK POWER SPECTRAL DENSITY ......................................................................................... 15 FIG.A.3.1 POWER SPECTRAL DENSITY (802.11B, CH 1) .............................................................. 16 FIG.A.3.2 POWER SPECTRAL DENSITY (802.11B, CH 6) .............................................................. 16 FIG.A.3.3 POWER SPECTRAL DENSITY (802.11B, CH 11) ............................................................ 17 FIG.A.3.4 POWER SPECTRAL DENSITY (802.11G, CH 1) .............................................................. 17 FIG.A.3.5 POWER SPECTRAL DENSITY (802.11G, CH 6) .............................................................. 18 FIG.A.3.6 POWER SPECTRAL DENSITY (802.11G, CH 11) ............................................................ 18 FIG.A.3.7 POWER SPECTRAL DENSITY (802.11N-HT20, CH 1) .................................................... 19 FIG.A.3.8 POWER SPECTRAL DENSITY (802.11N-HT20, CH 6) .................................................... 19 FIG.A.3.9 POWER SPECTRAL DENSITY (802.11N-HT20, CH 11) .................................................. 20 No. 2013WLN0768 Page3 of 95 A.4. OCCUPIED 6DB BANDWIDTH .................................................................................................. 21 FIG.A.4.1 OCCUPIED 6DB BANDWIDTH (802.11B, CH 1) .............................................................. 22 FIG.A.4.2 OCCUPIED 6DB BANDWIDTH (802.11B, CH 6) .............................................................. 22 FIG.A.4.3 OCCUPIED 6DB BANDWIDTH (802.11B, CH 11) ............................................................ 23 FIG.A.4.4 OCCUPIED 6DB BANDWIDTH (802.11G, CH 1) .............................................................. 23 FIG.A.4.5 OCCUPIED 6DB BANDWIDTH (802.11G, CH 6) ...............…

Text truncated - open the document above for the full version.

No. 2013WLN0768 Page47 of 95 Fig.A.6.1.27 Conducted Spurious Emission (802.11g, Ch1, 1 GHz-2.5 GHz) Fig.A.6.1.28 Conducted Spurious Emission (802.11g, Ch1, 2.5 GHz-7.5 GHz) No. 2013WLN0768 Page48 of 95 Fig.A.6.1.29 Conducted Spurious Emission (802.11g, Ch1, 7.5 GHz-10 GHz) Fig.A.6.1.30 Conducted Spurious Emission (802.11g, Ch1, 10 GHz-15 GHz) No. 2013WLN0768 Page49 of 95 Fig.A.6.1.31 Conducted Spurious Emission (802.11g, Ch1, 15 GHz-20 GHz) Fig.A.6.1.32 Conducted Spurious Emission (802.11g, Ch1, 20 GHz-26 GHz) No. 2013WLN0768 Page50 of 95 Fig.A.6.1.33 Conducted Spurious Emission (802.11g, Ch6, Center Frequency) Fig.A.6.1.34 Conducted Spurious Emission (802.11g, Ch6, 30 MHz-1 GHz) No. 2013WLN0768 Page51 of 95 Fig.A.6.1.35 Conducted Spurious Emission (802.11g, Ch6, 1 GHz-2.5 GHz) Fig.A.6.1.36 Conducted Spurious Emission (802.11g, Ch6, 2.5 GHz-7.5 GHz) No. 2013WLN0768 Page52 of 95 Fig.A.6.1.37 Conducted Spurious Emission (802.11g, Ch6, 7.5 GHz-10 GHz) Fig.A.6.1.38 Conducted Spurious Emission (802.11g, Ch6, 10 GHz-15 GHz) No. 2013WLN0768 Page53 of 95 Fig.A.6.1.39 Conducted Spurious Emission (802.11g, Ch6, 15 GHz-20 GHz) Fig.A.6.1.40 Conducted Spurious Emission (802.11g, Ch6, 20 GHz-26 GHz) No. 2013WLN0768 Page54 of 95 Fig.A.6.1.41 Conducted Spurious Emission (802.11g, Ch11, Center Frequency) Fig.A.6.1.42 Conducted Spurious Emission (802.11g, Ch11, 30 MHz-1 GHz) No. 2013WLN0768 Page55 of 95 Fig.A.6.1.43 Conducted Spurious Emission (802.11g, Ch11, 1 GHz-2.5 GHz) Fig.A.6.1.44 Conducted Spurious Emission (802.11g, Ch11, 2.5 GHz-7.5 GHz) No. 2013WLN0768 Page56 of 95 Fig.A.6.1.45 Conducted Spurious Emission (802.11g, Ch11, 7.5 GHz-10 GHz) Fig.A.6.1.46 Conducted Spurious Emission (802.11g, Ch11, 10 GHz-15 GHz) No. 2013WLN0768 Page57 of 95 Fig.A.6.1.47 Conducted Spurious Emission (802.11g, Ch11, 15 GHz-20 GHz) Fig.A.6.1.48 Conducted Spurious Emission (802.11g, Ch11, 20 GHz-26 GHz) No. 2013WLN0768 Page58 of 95 Fig.A.6.1.49 Conducted Spurious Emission (802.11n-HT20, Ch1, Center Frequency) Fig.A.6.1.50 Conducted Spurious Emission (802.11n-HT20, Ch1, 30 MHz-1 GHz) No. 2013WLN0768 Page59 of 95 Fig.A.6.1.51 Conducted Spurious Emission (802.11n-HT20, Ch1, 1 GHz-2.5 GHz) Fig.A.6.1.52 Conducted Spurious Emission (802.11n-HT20, Ch1, 2.5 GHz-7.5 GHz) No. 2013WLN0768 Page60 of 95 Fig.A.6.1.53 Conducted Spurious Emission (802.11n-HT20, Ch1, 7.5 GHz-10 GHz) Fig.A.6.1.54 Conducted Spurious Emission (802.11n-HT20, Ch1, 10 GHz-15 GHz) No. 2013WLN0768 Page61 of 95 Fig.A.6.1.55 Conducted Spurious Emission (802.11n-HT20, Ch1, 15 GHz-20 GHz) Fig.A.6.1.56 Conducted Spurious Emission (802.11n-HT20, Ch1, 20 GHz-26 GHz) No. 2013WLN0768 Page62 of 95 Fig.A.6.1.57 Conducted Spurious Emission (802.11n-HT20, Ch6, Center Frequency) Fig.A.6.1.58 Conducted Spurious Emission (802.11n-HT20, Ch6, 30 MHz-1 GHz) No. 2013WLN0768 Page63 of 95 Fig.A.6.1.59 Conducted Spurious Emission (802.11n-HT20, Ch6, 1 GHz-2.5 GHz) Fig.A.6.1.60 Condu…
