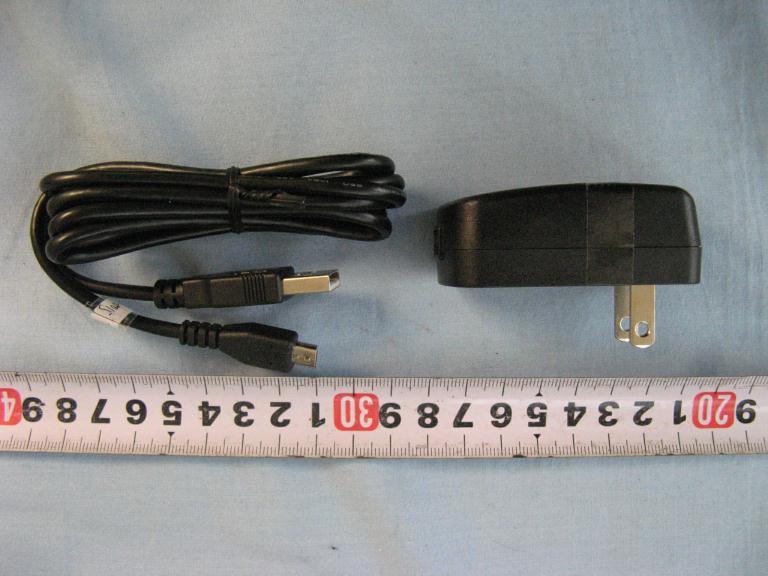

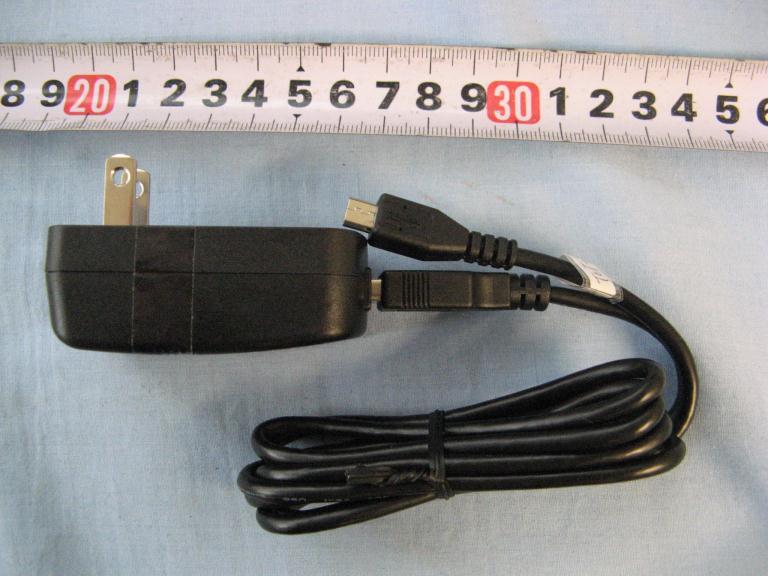

RAD433HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE 3 bands

English - CJB60S0ALAAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Nonauthorized personnel is strictly prohibited to disassemble the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears, select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. 6034Y 1 1 Your mobile phone ������ 1�1 Keys and connectors LED indicator Proximity sensor Headset connector Home key Front camera SD card slot SIM card slot Power key Touch screen Back key Menu key PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile phone ���������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������13 4 Contacts ������������������������������������������������������������������������15 5 Messaging�����������������������������������������������������������������������16 6 Email ������������������������������������������������������������������������������17 7 Getting connected ��������������������������������������������������������18 8 Locate my location using GPS satellites ��������������������20 9 Data backup ������������������������������������������������������������������21 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������22 12 Making the most of your phone ����������������������������������23 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������33 TCT Mobile (US), Inc� Warranty ������������������������������������������34 Troubleshooting����������������������������������������������������������������������36 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 30 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 Power key • Press: Lock the screen / Light up the screen. • Press to mute the ringtone when there's an incoming call. • Press and hold: Show the pop-up menu to select from Power off / Restart / Airplane mode / Quick start / Power on. • Press Power key more than 9s to restart. • Press Power key and Volumn up key to reset. • Press Power key and Volumn down key to capture a screenshot. Volume Keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up An insertion tool is provided at the phone package, please use it to install or remove the SIM/SD card conveniently. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. To install, place the SIM card chip facing downwards, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Volumn Key Micro-USB Connector Camera Camera Flash/Flashlight Menu key • Touch to access Wallpaper, Manage apps and Settings. • Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. 45 Installing and removing the microSD card Insert the microSD card with golden contact facing downwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and mains socket respectively, LED indicator will light while charging. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set following options: language, Input method, date & time, etc. Power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, se…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 12/17/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 433 To Whom It May Concern, We TCT Mobile Limited to declare WLAN Channel 12 and 13 are disabled for United States version. Our device supports 802.11d feature. Limited by local law regulations, region selection option is limited in US code for United States version. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 12/6/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 433 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

RAD433 label location \ label

No.2013SAR00157 Page 1 of 192 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00157 For TCT Mobile Limited HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/ LTE 3 bands mobile phone Mode Name: Diablo HD LTE LATAM V2 Marketing Name: ONE TOUCH 6034Y With Hardware Version: PIO Software Version: V1B2T FCC ID: RAD433 Issued Date: 2013-12-05 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00157 Page 2 of 192 Revision Version Report Number Revision Date Memo 2013SAR00157 00 2013-12-05 Initial creation of test report No. 2013SAR00157 Page 3 of 192 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES .............................................................................................. 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 22 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 23 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 24 10 AREA SCAN BASED 1-G SAR ................................................................................................. 25 10.1 REQUIREMENT OF KDB .............................................................................................................................. 25 10.2 FAST SAR ALGORITHMS ....................................................................................................…

Text truncated - open the document above for the full version.

No. 2013SAR00157 Page 72 of 192 Fig. 5-1 Z-Scan at power reference point (WCDMA 850 CH4233) No. 2013SAR00157 Page 73 of 192 WCDMA 850 Body Rear High Date: 2013- 10-2 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.987 mho/m; εr = 56.366; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) Rear High/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.639 W/kg Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.631 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.740 W/kg SAR(1 g) = 0.611 W/kg; SAR(10 g) = 0.471 W/kg Maximum value of SAR (measured) = 0.641 W/kg Fig.6 WCDMA 850 CH4233 No. 2013SAR00157 Page 74 of 192 Fig. 6-1 Z-Scan at power reference point (WCDMA850 CH4233) No. 2013SAR00157 Page 75 of 192 WCDMA 1900 Right Cheek Middle Date: 2013- 10-3 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.362 mho/m; εr = 39.679; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: WCDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) Cheek Middle/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.586 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.180 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.833 W/kg SAR(1 g) = 0.528 W/kg; SAR(10 g) = 0.317 W/kg Maximum value of SAR (measured) = 0.570 W/kg Fig.7 WCDMA1900 CH9400 No. 2013SAR00157 Page 76 of 192 Fig. 7-1 Z-Scan at power reference point (WCDMA1900 CH9400) No. 2013SAR00157 Page 77 of 192 WCDMA 1900 Body Rear Middle Date: 2013- 10-3 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.537 mho/m; εr = 54.476; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: WCDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.03, 7.03, 7.03) Rear Middle/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.12 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.776 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 1.07 W/kg; SAR(10 g) = 0.622 W/kg Maximum value of SAR (measured) = 1.17 W/kg Fig.8 WCDMA1900 CH9400 No. 2013SAR00157 Page 78 of 192 Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9400) No. 2013SAR00157 Page 79 of 192 Wifi 802.11b Left Cheek Channel 6 Date: 2013-9- 28 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.81 mho/m; ε r = 38.462; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.78, 6.78, 6.78) Cheek Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.430 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.139 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.692 W/kg SAR(1 g) = 0.316 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.467 W/kg Fig.9 2450 MHz CH6 No. 2013SAR00157 Page 80 of 192 Fig. 9-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00157 Page 81 of 192 Wifi 802.11b Body Rear Channel 6 Date: 2013-9- 28 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.959 mho/m; ε r = 53.326; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) Rear Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.409 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.114 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.516 W/kg SAR(1 g) = 0.275 W/kg; SAR(10 g) = 0.129 W/kg Maximum value of SAR (measured) = 0.408 W/kg Fig.10 2450 MHz CH6 No. 2013SAR00157 Page 82 of 192 Fig. 10-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00157 Page 83 of 192 Wifi 802.11a Right Cheek Channel 36 Date: 2013-10-1 Electronics: DAE4 Sn771 Medium: Head 5200 MHz Medium parameters used: f = 5180 MHz; σ = 5.558 mho/m; ε r = 36.693; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 5G Frequency: 5180 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(5.25, 5.25, 5.25) Cheek/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.21 W/kg Cheek/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 8.898 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 2.43 W/kg SAR(1 g) = 0.543 W/kg; SAR(10 g) = 0.156 W/kg Maximum value of SAR (measured) = 1.16 W/kg Fig.11 5GHz CH36 No. 2013SAR00157 Page 84 of 192 Fig. 11-1 Z-Scan at power reference point (5GHz CH36) No. 2013SAR00157 Page 85 of 192 Wifi 802.11a Top Edge Channel 36 Date: 2013-10-1 Electronics: DAE4 Sn771 Medium: Body 5300 MHz Medium parameters used: f = 5320 MHz; σ = 5.368 mho/m; ε r = 50.366; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 5G Frequency: 5320 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(4.17, 4.17, 4.17) Top Edge/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.326 W/kg Top Edge/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference V…

Text truncated - open the document above for the full version.

No. 2013SAR00157 Page 135 of 192 No. 2013SAR00157 Page 136 of 192 No. 2013SAR00157 Page 137 of 192 No. 2013SAR00157 Page 138 of 192 No. 2013SAR00157 Page 139 of 192 No. 2013SAR00157 Page 140 of 192 No. 2013SAR00157 Page 141 of 192 No. 2013SAR00157 Page 142 of 192 1750 MHz Dipole Calibration Certificate

No. 2013SAR00157 Page 143 of 192 No. 2013SAR00157 Page 144 of 192 No. 2013SAR00157 Page 145 of 192 No. 2013SAR00157 Page 146 of 192 No. 2013SAR00157 Page 147 of 192 No. 2013SAR00157 Page 148 of 192 No. 2013SAR00157 Page 149 of 192 No. 2013SAR00157 Page 150 of 192 1900 MHz Dipole Calibration Certificate No. 2013SAR00157 Page 151 of 192 No. 2013SAR00157 Page 152 of 192 No. 2013SAR00157 Page 153 of 192 No. 2013SAR00157 Page 154 of 192 No. 2013SAR00157 Page 155 of 192 No. 2013SAR00157 Page 156 of 192 No. 2013SAR00157 Page 157 of 192 No. 2013SAR00157 Page 158 of 192 2450 MHz Dipole Calibration Certificate No. 2013SAR00157 Page 159 of 192 No. 2013SAR00157 Page 160 of 192 No. 2013SAR00157 Page 161 of 192

No. 2013SAR00157 Page 162 of 192 No. 2013SAR00157 Page 163 of 192 No. 2013SAR00157 Page 164 of 192 No. 2013SAR00157 Page 165 of 192 No. 2013SAR00157 Page 166 of 192 5GHz Dipole Calibration Certificate No. 2013SAR00157 Page 167 of 192 No. 2013SAR00157 Page 168 of 192 No. 2013SAR00157 Page 169 of 192 No. 2013SAR00157 Page 170 of 192 No. 2013SAR00157 Page 171 of 192 No. 2013SAR00157 Page 172 of 192 No. 2013SAR00157 Page 173 of 192 No. 2013SAR00157 Page 174 of 192 No. 2013SAR00157 Page 175 of 192 No. 2013SAR00157 Page 176 of 192 No. 2013SAR00157 Page 177 of 192 No. 2013SAR00157 Page 178 of 192 No. 2013SAR00157 Page 179 of 192 No. 2013SAR00157 Page 180 of 192 No. 2013SAR00157 Page 181 of 192 No. 2013SAR00157 Page 182 of 192 ANNEX J SPOT CHECK TEST As the test lab for ONE TOUCH 6034Y from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed for reused bands. The test results are as below. All the differences between spot check data and original data are within the measurement uncertainty. So it is acceptable to quote the test results of original sample. J.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 013823000050070 PIO V1B2T *EUT ID: is used to identify the test sample in the lab internally. J.2 Conducted power of selected case Table J.1: The conducted power measurement results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 32.44 / / GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) / / 29.78 Table J.2: The conducted power measurement results for GPRS and EGPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 1 Txslot / / / 2 Txslots / / / 3Txslots / / / 4 Txslots 28.32 / / PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 1 Txslot / / / 2 Txslots / / 27.15 3 Txslots / / / 4 Txslots / / / No. 2013SAR00157 Page 183 of 192 Table J.3: The conducted Power for WCDMA850/1900 Item band FDDV result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA \ 23.72 / / Item band FDDII result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA \ / 22.38 / J.3 Measurement results The tests were carried out at the same day of the original test. SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Right Touch CAC2000008C1 0.262 0.286 SAR Values (GSM 850 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS (4) Rear 10 CAC2000008C1 0.570 0.620 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1850.2 512 Right Touch CAC2000008C1 0.351 0.332 SAR Values (PCS 1900 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1850.2 512 GPRS (2) Front 10 CAC2000008C1 0.948 0.747 SAR Values (WCDMA 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Right Touch CAC2000008C1 0.295 0.313 SAR Values (WCDMA 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Rear 10 CAC2000008C1 0.611 0.548 No. 2013SAR00157 Page 184 of 192 SAR Values (WCDMA 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1880 9400 Right Touch CAC2000008C1 0.528 0.498 SAR Values (WCDMA 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1880 9400 Rear 10 CAC2000008C1 1.07 1.03 J.4 Reported SAR Comparison Exposure Configuration Technology Band Reported SAR 1g (W/Kg): original Reported SAR 1g (W/Kg): spot check Head (Separation Distance 0mm) GSM 850 0.32 0.38 PCS 1900 0.47 0.41 UMTS FDD 2 0.58 0.61 UMTS FDD 5 0.33 0.35 Body-worn (Separation Distance 10mm) GSM 850 0.68 0.66 PCS 1900 1.13 0.81 UMTS FDD 2 1.18 1.11 UMTS FDD 5 0.69 0.54 No. 2013SAR00157 Page 185 of 192 J.5 Graphic results 850 Right Cheek High Date: 2013- 11-25 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.932 S/m; ε r = 43.252; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) Cheek High/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.307 W/kg Cheek High/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.427 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.351 W/kg SAR(1 g) = 0.286 W/kg; SAR(10 g) = 0.219 W/kg Maximum value of SAR (measured) = 0.298 W/kg Fig. J.1 850MHz CH251 No. 2013SAR00157 Page 186 of 192 850 Body Rear High Date: 2013- 11-19 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.983 S/m; ε r = 56.049; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) Toward Ground High/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.777 W/kg Toward Ground High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.374 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.893 W/kg SAR(1 g) = 0.620 W/kg; SAR(10 g) = 0.482 W/kg Maximum value of SAR (measured) = 0.759 W/kg Fig.J.2 850 MHz CH251 No. 2013SAR00157 Page 187 of 192 1900 Right Cheek Low Date: 2013- 11-19 Electronics: D…

Text truncated - open the document above for the full version.

No.2013TAR791 Page1 of 39 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2013TAR791 for TCT Mobile Limited HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE 3 bands mobile phone Model Name: Diablo HD LTE LATAM V2 Marketing Name: ONE TOUCH 6034Y FCC ID: RAD433 with Hardware Version: PIO Software Version: v1B2T Issued Date: 2013-12-17 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304633 Email:[email protected] No. 2013TAR791 Page2 of 39 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. N ORMAL ACCESSORY SETTING ........................................................................................................ 6 3.5. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLI…
