ONE TOUCH Y600A0 Quick Start Guide CJB17K0ALAAA 1 Safety and use __________ We recommend that you read this chapter carefully before using this device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this device or of use contrary to the instructions contained herein. Do not switch on your device when its use is prohibited or when using the device may cause interference or danger. Follow rules or regulations in hospitals and health care facilities. Switch off your device near medical apparatus. Switch off your device in an aircraft. The device may cause interference to aircraft control signals. Switch off your device near high-precision electronic devices. The device may affect the performance of these devices. Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair the device. 2 Do not place your device or its accessories in containers with a strong electromagnetic field. Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on them. Do not subject your device to high temperatures or use it in a place with flammable gas such as a petrol station. Keep your device and its accessories away from children. Do not allow children to use your device without guidance. Only use approved batteries and chargers to avoid the risk of explosion. Observe the laws or regulations on device use. Respect others’ privacy and legal rights when using your device. It is recommended that the equipment only be used in an environment where the temperature is between -10°C and 50°C and humidity is between 10% to 90%. 3 1. Overview ONE TOUCH Y600 is a portable wireless router, providing a simple way to share 3G with any Wi-Fi embedded device. 1.1 Package contents ●ONE TOUCH Y600 ● USB cable ● Quick start guide ● USB Wall charger ● Car Charger* ● USB Adapter* ● USB Cradle charger * Note: *depending on your region and market. 4 1.2 Application 5 1.3 Device overview Number Description ① Power on/off Key ② WPS Key ③ Reboot Button ④ Charging Pin ① ② ③ ④ ⑤ ⑥ ⑦ 6 ⑤ SIM Card Cover ⑥ OLED screen ⑦ Micro USB Interface Use the device’s 3 buttons as follows: Button Description ① Power On/Off Long press to turn on/off the device Short press to put the OLED screen in either active or sleep mode. ②WPS Long press to turn on WPS Short press to display SSID and password ③Reboot Long press to reboot the device if the system freezes. 7 1.4 Turning on the device Step 1: Push down on the SIM Card cover and install your SIM card as indicated on the device. Step 2: Press the Power On/Off button 8 1.5 Screen display The screen display is interpreted as follows: 1 Network Signal (dynamic graphic symbol ) 2 Network type (3G+/3G/2G) 3 SMS status (full, unread, incoming) 4 Connection status(connected and disconnected ) 5 Wi-Fi (number of user connected/WPS connection) 6 Battery level (dynamic graphic symbol when charging) 7 Name of the network registered 9 Screen description: Category Icon Display Signal Strength From 1 bar to excellent signal strength Network type : EDGE/GPRS : UMTS/HSDPA/HSUPA : HSPA+ SMS status : SMS is available : Unread SMS : SMS full Connection Status connected 10 Note: the information is displayed for 20 seconds, then the display powers off. You can reactivate the display with a short press on the Power key. 1.6 Connecting in Wi-Fi mode SSID：locate the SSID information on the sticker on the SIM card cover. Wi-Fi status : Wi-Fi is active : Number of Wi-Fi users : WPS is active : WPS connected successfully : WPS connection failed Battery : From 1 level to level 4 : Low power 11 Step 1: Use the Wi-Fi manager on the Wi-Fi embedded device to select network name (SSID). ◆From a Windows PC: Right-click Wireless network connection on the task bar, and select: View Available Networks. Choose Y600*_XXXX from the list of available networks. ◆From a Mac computer: Select System Preferences -> Network->Airport. Click “Advanced” to choose Y600*_XXXX from the list of available networks. ◆From an iOS device: Settings->Wi-Fi. Choose Y600*_XXXX from the available networks. ◆From an android device: Settings->Wireless controls->Wi-Fi settings. Choose Y600*_XXXX from the available networks. Step 2: Enter the Wi-Fi key when prompted for a security key. 12 2. Quick Setup ________________ Open your browser, and input the address http://192.168.1.1 to access the login page. Default login password: admin Login and click "Quick Setup" to configure the basic settings. Admin Password:  Login Password: Set the password for login. Wi-Fi Settings:  SSID: Set the network name of this device.  Security: Configure the security mode for Wi-Fi connection. 13 3. Charging the device ____________ You have many ways to charge your device - the magnetic attraction of the device ensures that the ONE TOUCH Y600 maintains close contact with your Wall Charger/Cradle */Adapter*. Wall Charger charging: Option1: Plug Wall Charger into power socket and put the ONE TOUCH Y600 on wall charger. Lightly rotate the device to ensure it is securely located in the slot. Charging will then begin. Option 2: Plug Wall Charger into power socket, plug the USB cable into the USB charging port on the Wall Charger, then connect the ONE Magnetic Charging Pin USB charging port 14 TOUCH Y600 by USB cable. Charging will then begin. When the device is powered off, charging will take a maximum of 3 hours. USB Cable charging You can also charge the device by connecting it to a PC with the USB cable. When the device is powered off, charging will take a maximum of 4 hours. Cradle charging * Connect the USB cable with the Cradle and put the ONE TOUCH Y600 on the Cradle. Lightly rotate the device to ensure it is securely located in the slot. Charging will then begin. 15 Car charging * Assemble Car Charger and Adapter as below, and plug into the cigarette lighter port of the Car. Place the ONE TOUCH Y600 on the Adapt…

Text truncated - open the document above for the full version.

Date: 18 March, 2014 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: TCT Mobile Limited the undersigned, hereby authorizes Mrs Ivy Zhu from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of TCT Mobile Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID: RAD435 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd on our behalf of TCT Mobile Limited in connection with the Application shall have the same effect as acts of TCT Mobile Limited. TCT Mobile Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Signatory Gong ZhiZhou Validation Project Manager TCT Mobile Limited

Date: 18 March, 2014 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: TCT Mobile Limited FCC ID: RAD435 Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material.TCT Mobile Limited requests that the following documents regarding this submission for FCC ID: RAD435 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX RAD435_Block Diagram.pdf Schematics CONF APPENDIX RAD435 _Schematics.pdf Operational Description CONF APPENDIX RAD435 _Operational Description.pdf Part list CONF APPENDIX RAD435 _BOM.pdf Tune-Up-Procedure CONF APPENDIXRAD435 _Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which TCT Mobile Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, TCT Mobile Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Signatory Gong ZhiZhou TCT Mobile Limited

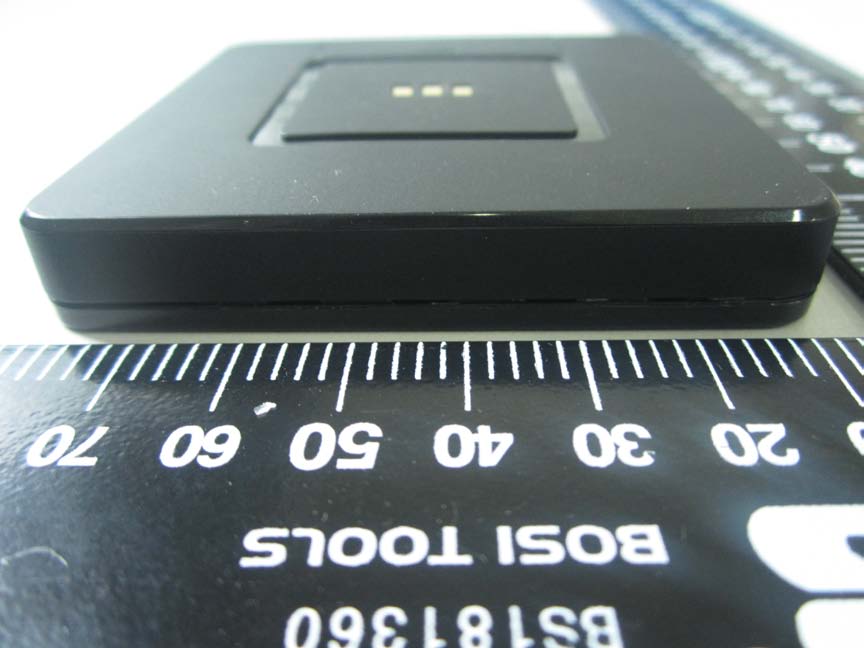

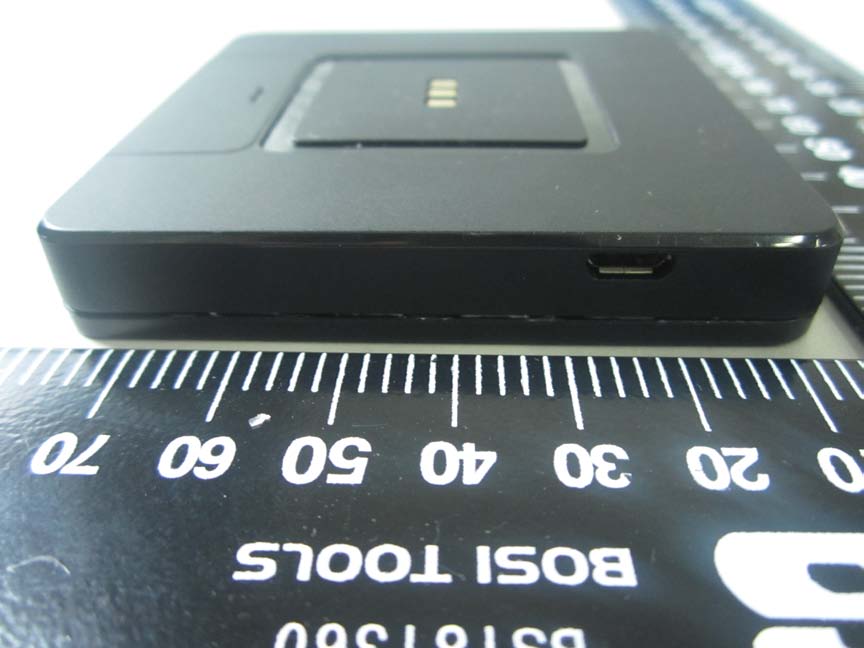

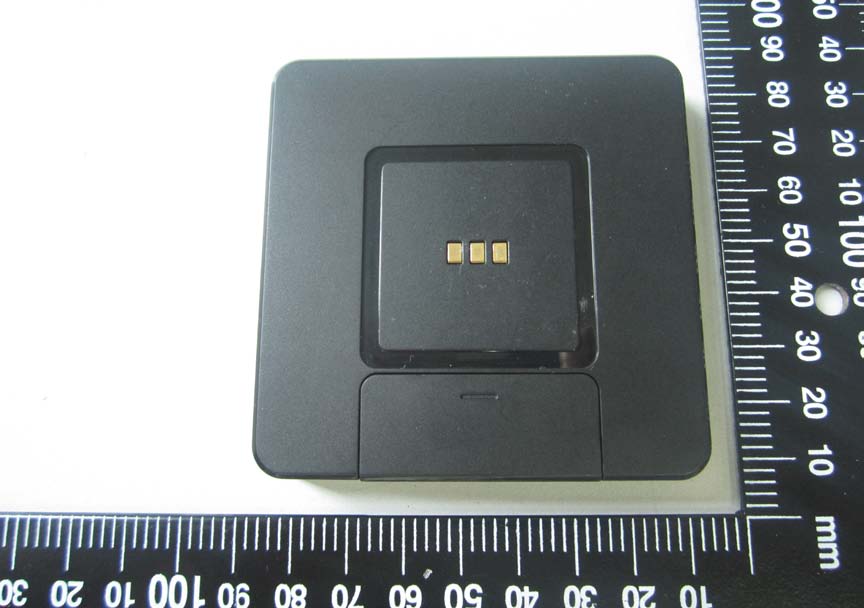

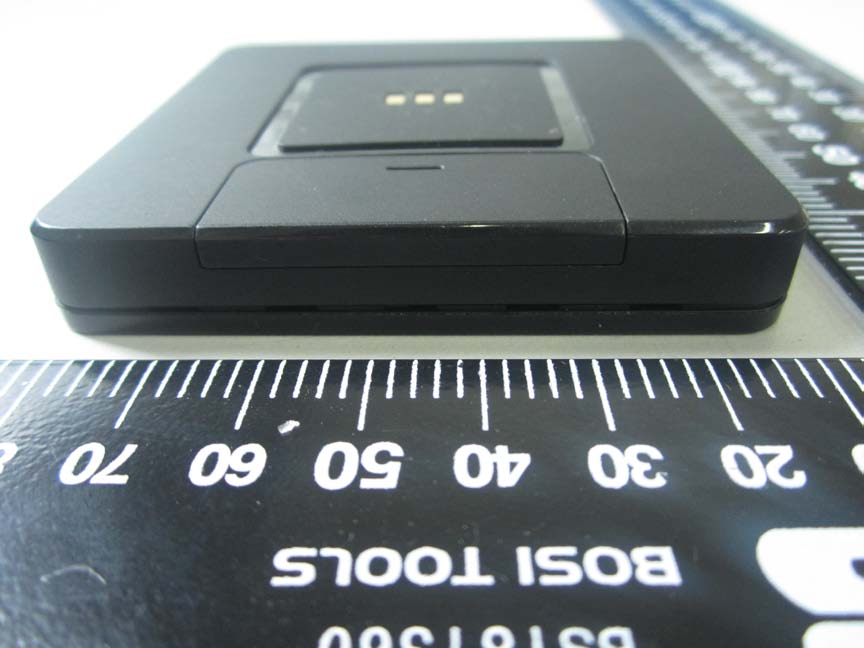

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories
