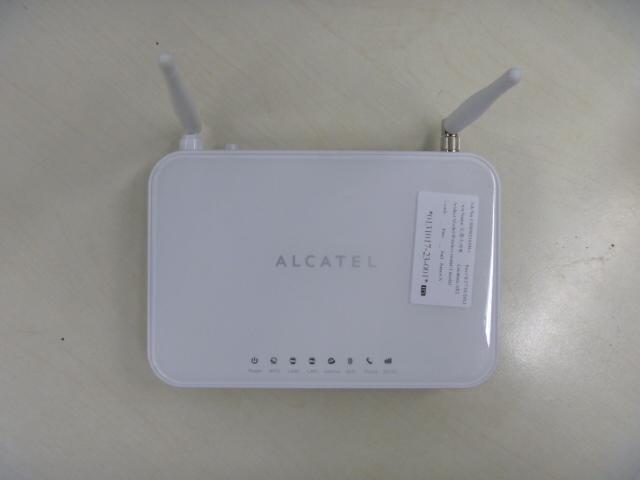

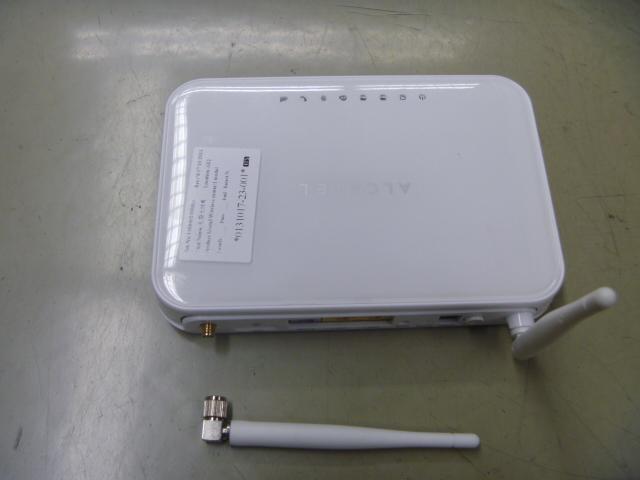

RAD440One touch-H200 3G Router

User Manual FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. There is no country code option in the WIFI setting. In the USA, only 11 channels are available for 802.11 operation, the following table provides the frequencies for the 11 channels: Channel Number Center Frequency (MHz) 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 User Manual of Onetouch-H200 3G Router i Table of Contents 1 Hardware Description and Device connection .............................. 2 1.1 Hardware Description .................................................... 2 1.1.1 LED Indicator Status ............................................. 2 1.1.2 Interface Description ............................................. 3 1.2 Device Connection ........................................................ 3 1.2.1 Device Install ......................................................... 3 2 PC Setting ...................................................................................... 4 3 WIFI Connection ........................................................................... 6 4 Web Configuration ........................................................................ 7 4.1 Language Setting ........................................................... 8 4.2 Setup Wizard ................................................................. 8 4.3 Network Setup ............................................................. 10 4.3.1 WAN Interface Setup ........................................... 10 4.4 Wireless Setup ............................................................. 13 4.4.1 Basic Setup .......................................................... 13 User Manual of Onetouch-H200 3G Router 2 1 Hardware Description and Device connection 1.1 Hardware Description 1.1.1 LED Indicator Status This 3G router contains 8 LED indicators. User can easily check the situation of device by observing LED indicator’s status Definition of LED Indicators follows below table. LED Indicator Status Description PWR Light Power on and normal operation Off Power off or failure WPS Light Connected Blink Connecting Off Closed or not used LAN1/2 Light Lan port is on without data transporting Blink Lan port is on with data transporting Off Lan port is off PPP Light Connected Blink Data transporting Off Connection off WiFi Light WiFi radio is on without data transporting Blink WiFi radio is on with data transporting Off WiFi radio is off PHONE Light In use Off Stand by 2G/3G Light Registered on network User Manual of Onetouch-H200 3G Router 3 LED Indicator Status Description off Disconnected to network 1.1.2 Interface Description Interface and button description follows the below table. Interface/Button Description SIM slot Place to insert SIM card VOIP Voice interface (RJ11) for phone connection Lan1/2 LAN port for switch, concentrator and PC with network adaptor WPS WPS PBC mode control button. Reset By pressing the button for 3-6 seconds, the system will restore the default setting. Power Interface for power adaptor On/Off Press for power on/off 1.2 Device Connection 1.2.1 Device Install Device should be connected by following procedure: Step 1: insert the RJ45 cable in package to the LAN port of your device Step 2: insert another port of RJ45 cable to your PC Step 3: connect the power adaptor to the power slot of your device User Manual of Onetouch-H200 3G Router 4 2 PC Setting In default setting, the IP address of LAN of the device is 192.168.1.1, DNS server address is 255.255.255.0，DHCP Server on. When PC connected to Onetouch-H200, normally the user needs to set the TCP/IP of PC according to follow procedure. Step 1: Click the right bottom as red part, then click “Open Network and Sharing Center”. Step 2:Click “Local Area Connection” Step 3: Click the “Properties” of Ethernet, then double-click “TCP/IPv4” User Manual of Onetouch-H200 3G Router 5 Step 4: Normally the user should choose “Obtain an IP address automatically, then Click “OK”. Also the user can choose “Use the following IP address” as below pictures, set “IP address” as 192.168.1.X (any figure from 2-254), DNS server address as 255.255.255.0. Step 5: after configuration, select “Start”, input “ping 192.168.1.1” in command to check if PC and 3G router has been right connected. User Manual of Onetouch-H200 3G Router 6 Note: 192.168.1.1 is the default IP address of LAN of the 3G router. If the IP address has been changed, please modify t…
