RAD449HSDPA/HSUPA/HSPA+/UMTS Quad bands / GSM quad bands/LTE 5 bands mobile phone

English - CJB60X2ALAAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Unauthorized personnel are strictly prohibited from disassembling the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download the complete user manual. In addition, from the website you can also consult the FAQ, perform software upgrades, etc. BC 1 1 Your mobile ������������������ 1�1 Keys and connectors Micro-USB Connector Front camera LED indicator Headset connector Home key Touch screen Back key Menu key Power key Volume key SD card slot SIM card slot Camera Camera Flash/ Flashlight PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile ���������������������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������13 4 Contacts ������������������������������������������������������������������������15 5 Messaging�����������������������������������������������������������������������16 6 Email ������������������������������������������������������������������������������17 7 Getting connected ��������������������������������������������������������18 8 Find my location using GPS satellites ������������������������20 9 Data backup ������������������������������������������������������������������21 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������22 12 Making the most of your phone ����������������������������������23 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������33 TCT Mobile (US), Inc� Warranty ������������������������������������������34 Troubleshooting����������������������������������������������������������������������36 www.sar-tick.com This product meets applicable national SAR limits of 2.0 W/kg. The specific maximum SAR values can be found on page 30 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 To install, place the SIM card with the chip facing upwards in to the housing, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports micro-SIM cards. Do not attempt to insert other SIM type like mini and nano cards, otherwise this may cause phone damage. Installing and removing the microSD card Insert the microSD card with golden contact facing upwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Menu key • Touch to access settings options. • Touch and hold to open a list of thumbnail images of apps you've worked with recently. Home key • From any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible when the screen lights up. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Power off/Restart/Airplane mode/Quick start. • Press the Power key for more than 9s to restart. • Press the Power key and Volume up key to reset. • Press the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up An insertion tool is provided with the phone package, please use it to install or remove the SIM/SD card conveniently. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. 45 Charging the battery Connect the battery charger to your phone and mains socket respectively, the LED indicator will light while charging. To reduce power consumption and energy waste when the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, Input method, date & time, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the pho…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 4/4/2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 449 To Whom It May Concern, We TCT Mobile Limited to declare WLAN Channel 12 and 13 are disabled for United States version. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-06-07 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-03-21 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD449 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

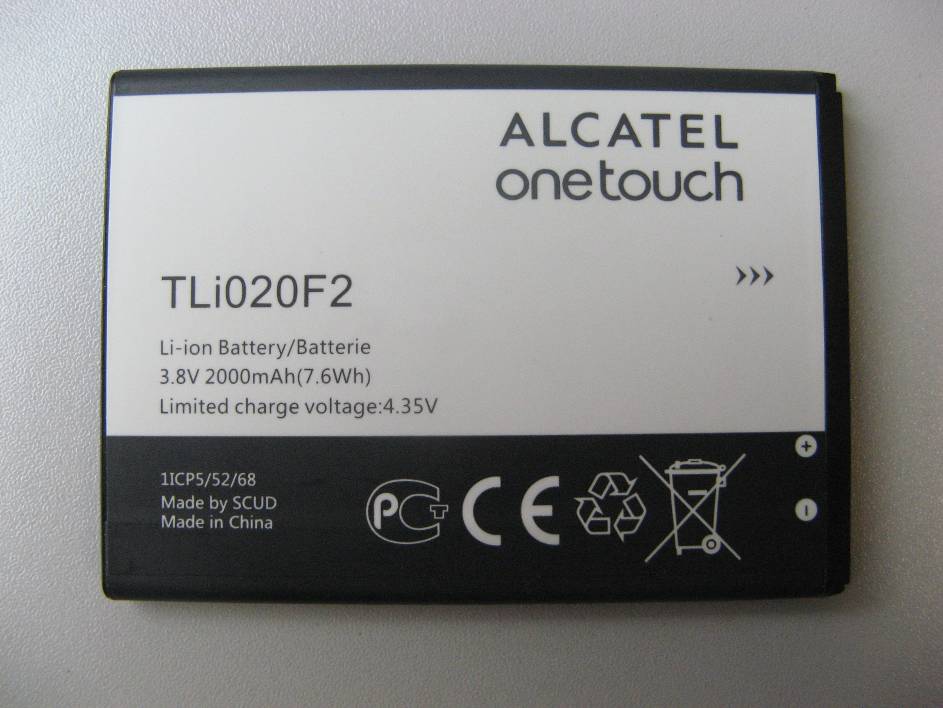

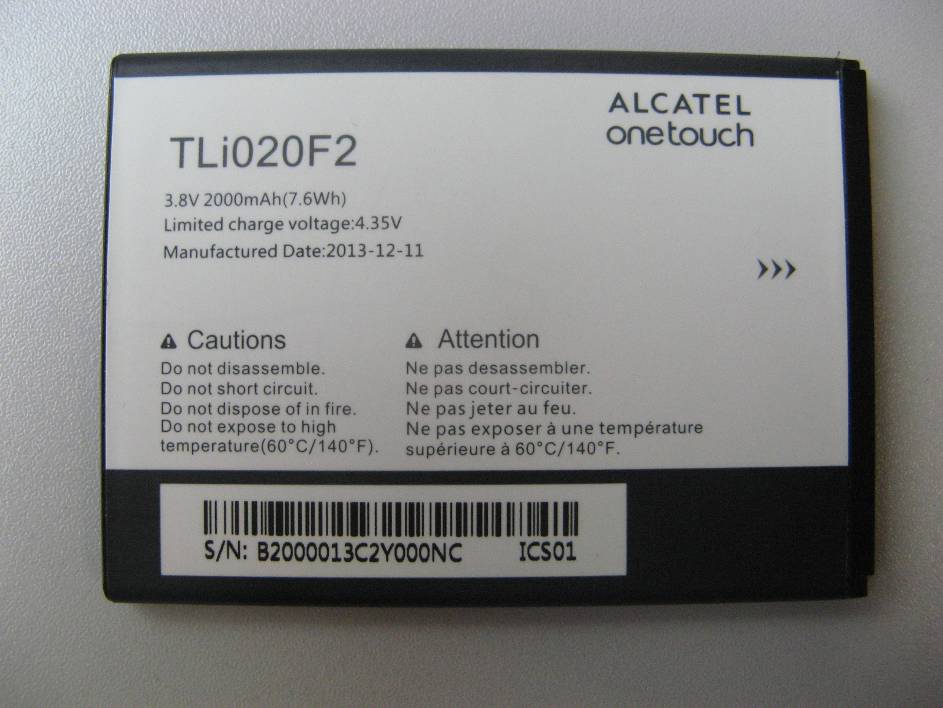

External Photo Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2

Label Location Label Mobile Phone

Internal Photo

Report No.: RXA1402-0022SAR01R2 Page 1 of 547 TESTING No. L2264 SAR TEST REPORT Product Name HSDPA/HSUPA/HSPA+/UMTS Quad bands / GSM quad bands/LTE 5 bands mobile phone Model Name Miata LATAM Marketing Name 6036A FCC ID RAD449 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Date of issue April 4, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 2 of 547 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 Handset SAR v01r02: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D02 HSPA and 1x Advanced v02r02 SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced KDB 941225 D03 Test Reduction GSM_GPRS_EDGE v01:Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 941225 D04 SAR for GSM E GPRS Dual Xfer Mode v01：Evaluating SAR for GSM/(E)GPRS Dual Transfer Mode KDB 941225 D05 SAR for LTE Devices v02r03 SAR Test Considerations for LTE Handsets and Data Modems KDB 941225 D06 Hotspot Mode SAR v01r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Weizhong Yang Director Revised by Minbao Ling SAR Manager Performed by Yi Zhang SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 3 of 547 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. The Maximum Reported SAR 1g .......................................................................................... 10 2.1. Test Date ............................................................................................................................ 11 3. SAR Measurements System Configuration ................................................................................ 12 3.1. SAR Measurement Set-up .................................................................................................. 12 3.2. DASY5 E-field Probe System ............................................................................................. 13 3.2.1. EX3DV4 Probe Specification ....................................................................................... 13 3.2.2. E-field Probe Calibration .............................................................................................. 14 3.3. Other Test Equipment ......................................................................................................... 14 3.3.1. Device Holder for Transmitters .................................................................................... 14 3.3.2. Phantom ...................................................................................................................... 15 3.4. Scanning Procedure ........................................................................................................... 15 3.5. Data Storage and Evaluation .............................................................................................. 17 3.5.1. Data Storage ................................................................................................................ 17 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 17 4. Laboratory Environment ............................................................................................................. 19 5. Tissue-equivalent Liquid ............................................................................................................ 20 5.1. Tissue-equivalent Liquid Ingredients ................................................................................... 20 5.2. Tissue-equivalent Liquid Properties .................................................................................... 23 6. System Check ............................................................................................................................ 24 6.1. Description of System Check .............................................................................................. 24 …

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 251 of 547 UMTS Band V Right Cheek Middle Date/Time: 2/23/2014 12:26:54 AM Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.932 mho/m; ε r = 41.357; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek Middle /Area Scan (51x101x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.452 W/kg Right Cheek Middle /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.304 V/m; Power Drift = -0.057 dB Peak SAR (extrapolated) = 0.552 mW/g SAR(1 g) = 0.437 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.462 W/kg Figure 150 Right Hand Touch Cheek UMTS Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 252 of 547 UMTS Band V Right Cheek Low Date/Time: 2/23/2014 12:59:21 AM Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.921 mho/m; ε r = 41.437; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek Low /Area Scan (51x101x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.517 W/kg Right Cheek Low /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.312 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.619 mW/g SAR(1 g) = 0.493 mW/g; SAR(10 g) = 0.372 mW/g Maximum value of SAR (measured) = 0.518 W/kg Figure 151 Right Hand Touch Cheek UMTS Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 253 of 547 UMTS Band V Right Tilt High Date/Time: 2/23/2014 1:45:55 AM Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.943 mho/m; ε r = 41.323; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Tilt High /Area Scan (51x101x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.347 W/kg Right Tilt High /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.879 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.418 mW/g SAR(1 g) = 0.331 mW/g; SAR(10 g) = 0.251 mW/g Maximum value of SAR (measured) = 0.347 W/kg Figure 152 Right Hand Tilt 15° UMTS Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 254 of 547 UMTS Band V Right Tilt Middle Date/Time: 2/23/2014 1:30:28 AM Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.932 mho/m; ε r = 41.357; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Tilt Middle /Area Scan (51x101x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.392 W/kg Right Tilt Middle /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.957 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.484 mW/g SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.292 mW/g Maximum value of SAR (measured) = 0.400 W/kg Figure 153 Right Hand Tilt 15° UMTS Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 255 of 547 UMTS Band V Right Tilt Low Date/Time: 2/23/2014 1:14:59 AM Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.921 mho/m; ε r = 41.437; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Tilt Low /Area Scan (51x101x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.439 W/kg Right Tilt Low /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.589 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.532 mW/g SAR(1 g) = 0.426 mW/g; SAR(10 g) = 0.324 mW/g Maximum value of SAR (measured) = 0.446 W/kg Figure 154 Right Hand Tilt 15° UMTS Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 256 of 547 UMTS Band V Right Cheek Low (Battery 2) Date/Time: 2/23/2014 4:05:14 AM Communication System: WCDMA; Frequency: 826.4 MHz;Dut…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 351 of 547 LTE Band 4 50%RB Right Tilt Middle Date/Time: 3/3/2014 10:47:03 PM Communication System:LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.372 S/m; ε r = 40.368; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.22, 8.22, 8.22); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right Tilt Middle/Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.258 W/kg Right Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.094 V/m; Power Drift = 0.120 dB Peak SAR (extrapolated) = 0.344 W/kg SAR(1 g) = 0.221 W/kg; SAR(10 g) = 0.135 W/kg Maximum value of SAR (measured) = 0.244 W/kg Figure 243 Right Hand Tilt 15° LTE Band 4 50%RB Channel 20175 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 352 of 547 LTE Band 4 50%RB Right Tilt Low Date/Time: 3/3/2014 9:51:19 PM Communication System:LTE (0); Frequency: 1720 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1720 MHz; σ = 1.36 S/m; ε r = 40.414; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.22, 8.22, 8.22); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right Tilt Low/Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.263 W/kg Right Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.250 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.336 W/kg SAR(1 g) = 0.220 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.237 W/kg Figure 244 Right Hand Tilt 15° LTE Band 4 50%RB Channel 20050 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 353 of 547 LTE Band 4 50%RB Right Cheek Low (Battery 2) Date/Time: 3/3/2014 2:23:57 AM Communication System:LTE (0); Frequency: 1720 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1720 MHz; σ = 1.36 S/m; ε r = 40.414; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.22, 8.22, 8.22); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right Cheek Low/Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.728 W/kg Right Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.773 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 0.950 W/kg SAR(1 g) = 0.643 W/kg; SAR(10 g) = 0.407 W/kg Maximum value of SAR (measured) = 0.654 W/kg Figure 245 Right Hand Touch Cheek LTE Band 4 50%RB Channel 20050 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 354 of 547 LTE Band 4 50%RB Back Side High Date/Time: 3/1/2014 10:30:49 PM Communication System:LTE (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.498 S/m; ε r = 52.918; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.77, 7.77, 7.77); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side High/Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.892 W/kg Back Side High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.531 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.753 W/kg; SAR(10 g) = 0.474 W/kg Maximum value of SAR (measured) = 0.776 W/kg Figure 246 Body, Back Side, LTE Band 4 50%RB Channel 20300 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 355 of 547 LTE Band 4 50%RB Back Side Middle Date/Time: 3/1/2014 10:46:18 PM Communication System:LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.488 S/m; ε r = 52.928; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.77, 7.77, 7.77); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side Middle/Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.876 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.681 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.757 W/kg; SAR(10 g) = 0.477 W/kg Maximum value of SAR (measured) = 0.806 W/kg Figure 247 Body, Back Side, LTE Band 4 50%RB Channel 20175 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 356 of 547 LTE Band 4 50%RB Back Side Low Date/Time: 3/1/2014 10:17:29 PM Communication System:LTE (0); Frequency: 1720 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1720 MHz; σ = 1.47…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 451 of 547 802.11b Left Tilt Low Date/Time: 2/26/2014 1:42:33 PM Communication System:802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.759 S/m; ε r = 39.353; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.64, 7.64, 7.64); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Left Tilt Low/Area Scan (51x101x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0924 W/kg Left Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.144 V/m; Power Drift = 0.097 dB Peak SAR (extrapolated) = 0.192 W/kg SAR(1 g) = 0.087 W/kg; SAR(10 g) = 0.040 W/kg Maximum value of SAR (measured) = 0.0995 W/kg Figure 339 Left Hand Tilt 15° 802.11b Channel 1 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 452 of 547 802.11b Right Cheek High Date/Time: 2/26/2014 4:53:29 PM Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.818 mho/m; ε r = 39.076; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.64, 7.64, 7.64); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek High/Area Scan (51x101x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0826 W/kg Right Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.951 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 0.149 mW/g SAR(1 g) = 0.073 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.0797 W/kg Figure 340 Right Hand Touch Cheek 802.11b Channel 11 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1402-0022SAR01R2 Page 453 of 547 802.11b Right Cheek Middle Date/Time: 2/26/2014 6:48:00 PM Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.787 mho/m; ε r = 39.199; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.64, 7.64, 7.64); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Right Cheek Middle/Area Scan (51x101x1): Interpolated grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.203 W/kg Right Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.447 V/m; Power Drift = 0.048 dB Peak SAR (extrapolated) = 0.364 mW/g SAR(1 g) = 0.185 mW/g; SAR(10 g) = 0.098 mW/g Maximum value of SAR (measured) = 0.201 W/kg Figure 341 Right Hand Touch Cheek 802.11b Channe…

Text truncated - open the document above for the full version.
