RAD455HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone

12 English - CJB27L4ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Your mobile 1 .................. Keys and connectors1.1 Proximity sensor Front Camera Headset connector Power key micro-USB connector Back key Home key Menu key Touch screen LED light (lighted when charging) IP4892_4036E_QG_Eng_USA_01_140613.indd 1-2IP4892_4036E_QG_Eng_USA_01_140613.indd 1-22014-6-13 10:11:222014-6-13 10:11:22 34 Volume up Volume down Camera Flash Menu key Option menu• . Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. Recent apps• . Touch and hold to open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list. Home key While on any application or screen, touch to return • to the Home screen. Back key Touch to go back to the previous screen, or to close a • dialog box, options menu, the notification panel, etc. Power key Press: Lock the screen/Light up the screen.• Press and hold: Power on or generate a pop up menu • selecting from Power off/Restart/Airplane mode or icons of Ringer mode. Press to mute the ringtone when there’s an incoming • call. Press and hold for more than 7 seconds to restart the • phone when the system halted. Press and hold • Power key and Volume down key to capture a screenshot. Press and hold • Power key and Volume up key under power off mode to restore factory set. Volume keys Under call mode, adjust the earpiece or headset • volume. In Music/Video/Streaming mode, adjust the media • volume. In general mode, adjust the ring tone volume.• Mute the ringtone of an incoming call.• In Camera mode, using it as the capture key allows you • to take a photo. IP4892_4036E_QG_Eng_USA_01_140613.indd 3-4IP4892_4036E_QG_Eng_USA_01_140613.indd 3-42014-6-13 10:11:222014-6-13 10:11:22 56 Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. SIM1 SIM2 Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Both SIM1 and SIM2 can support 2G and 3G networks. If both of them are 3G SIM cards, only one card can support 3G network. Your phone only supports mini-SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise you may damage your phone. Installing or removing the battery Please power off your phone before removing the battery. Insert and click the battery into place, then close the cover.• Unclip the cover, then remove the battery.• Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. If the battery is very low, there will be no indication that power is being received until the charge is sufficient to show the charging status bar. To reduce power consumption and energy waste, once the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. IP4892_4036E_QG_Eng_USA_01_140613.indd 5-6IP4892_4036E_QG_Eng_USA_01_140613.indd 5-62014-6-13 10:11:222014-6-13 10:11:22 78 Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the Phone options appear, select Power off. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and drag down to open the • notification panel. Application tab Touch to open main menu.• Search bar (1) Touch • n to enter text search screen. Touch • o to enter voice search screen. Favorite applications tray Touch to enter the application.• Touch and hold to move or change • applications. Add a location to display local weather.• Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The row of small squares at the lower part of the screen indicates which screen you are viewing. Using the touchscreen1.3.1 Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the ho…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-05-20 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD455 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-5-20 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

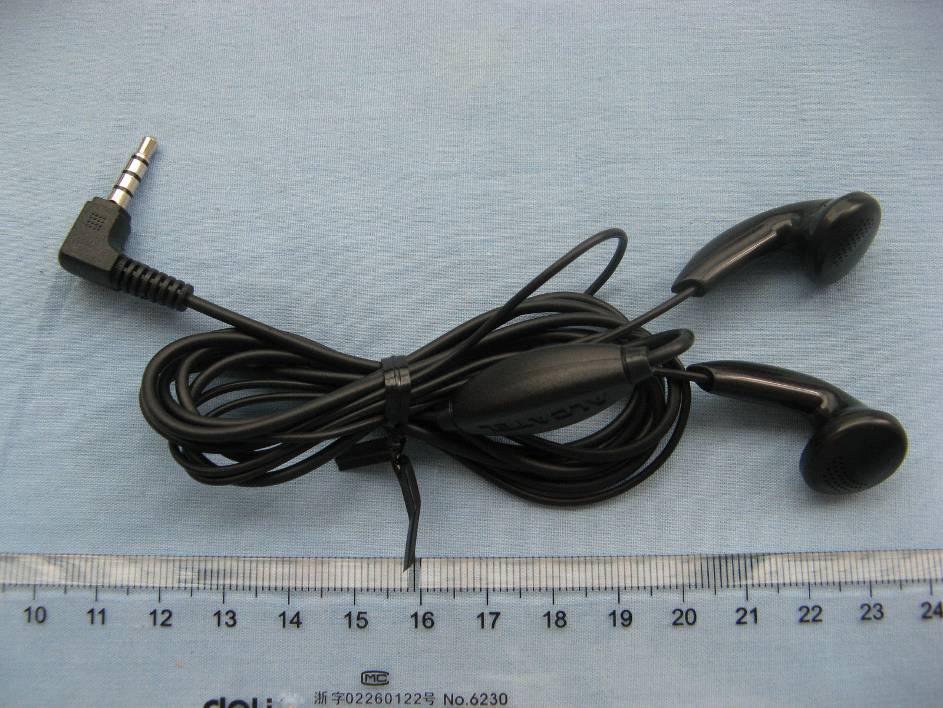

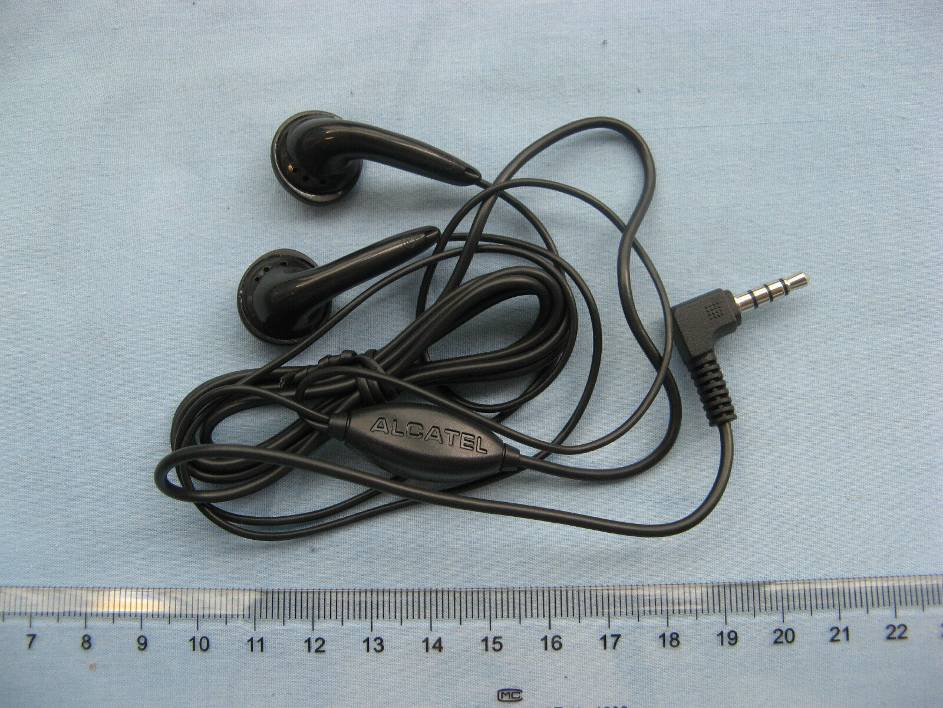

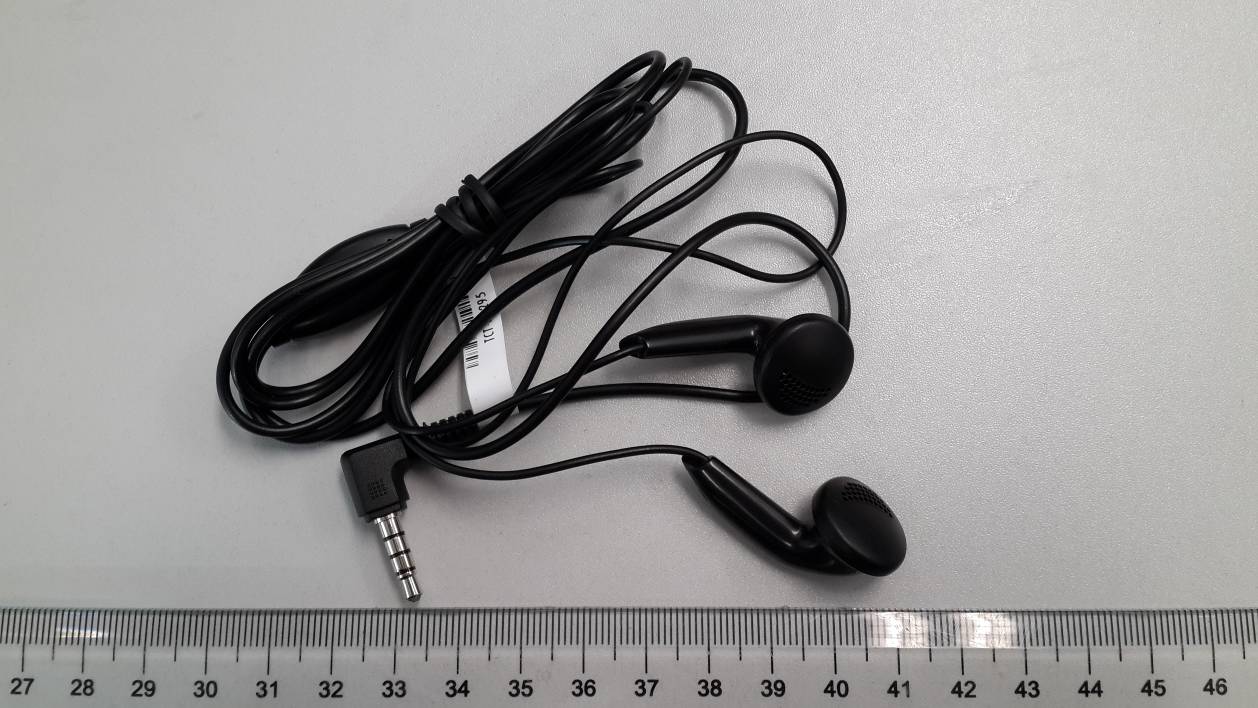

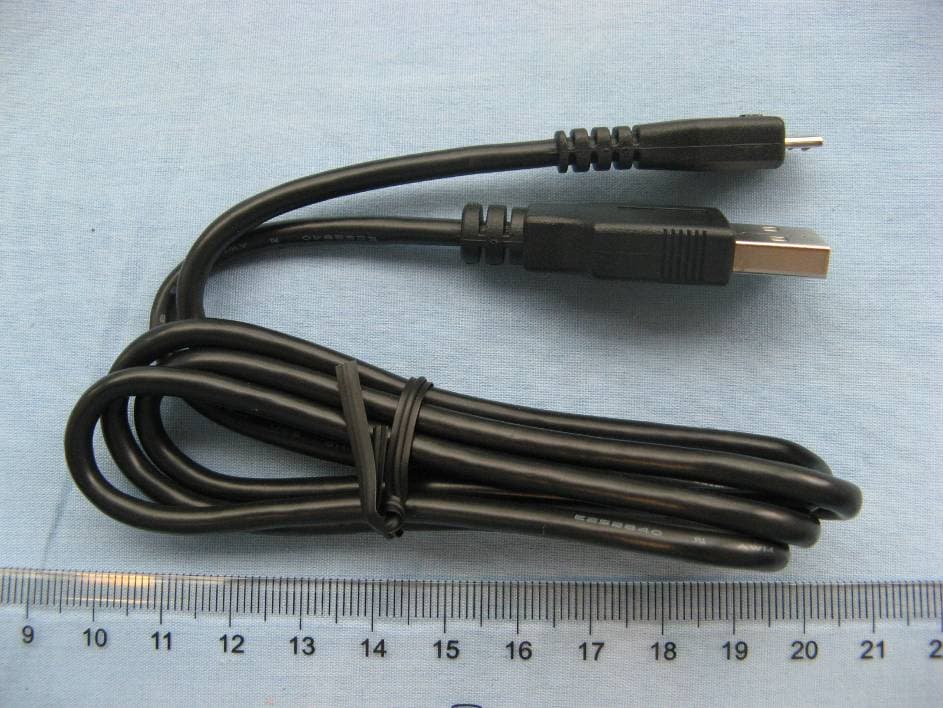

External Photos

Label

Internal Photos

No.I14Z46098-SEM02 Page 1 of 129 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z46098-SEM02 For TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone Model Name: 4036E/4136E With Hardware Version: PIO Software Version: v9H26 FCC ID: RAD455 Issued Date: 2014-06-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z46098-SEM02 Page 2 of 129 Revision Version Report Number RevisionDate Memo I14Z46098-SEM02 0 2014-06-04 Initial creation of test report I14Z46098-SEM02 1 2014-06-19 Add the note in section 2 on page 6 No. I14Z46098-SEM02 Page 3 of 129 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................................................... 10 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR .............................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 22 11 CONDUCTED OUTPUT POWER ............................................................................................ 23 No. I14Z46…

Text truncated - open the document above for the full version.

No. I14Z46098-SEM02 Page 71 of 129 2450MHz Date: 2014-5- 11 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.973 S/m; ε r = 52.92; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) System Validation/Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 91.424 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 12.7 W/kg; SAR(10 g) = 5.81 W/kg Maximum value of SAR (interpolated) = 14.5 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.424 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 25.78 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.99 W/kg Maximum value of SAR (measured) = 14.7 W/kg 0 dB = 14.5 W/kg = 23.23 dB W/kg Fig.B.6 validation 2450MHz 250mW No. I14Z46098-SEM02 Page 72 of 129 The SAR system verification must be required that the area scan estimated 1-g SAR is within 3% of the zoom scan 1-g SAR. Table B.1 Comparison between area scan and zoom scan for system verification Band Position Area scan (1g) Zoom scan (1g) Drift (%) 835 Head 2.47 2.44 1.23 835 Body 2.37 2.40 -1.25 1900 Head 10.0 10.2 -1.96 1900 Body 10.0 10.2 -1.96 2450 Head 13.1 13.1 0.00 2450 Body 12.7 12.9 -1.55 No. I14Z46098-SEM02 Page 73 of 129 ANNEX C SAR Measurement Setup C.1 Measurement Set-up The Dasy4 or DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1 SAR Lab Test Measurement Set-up  A standard high precision 6-axis robot (Stäubli TX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE).  An isotropic field probe optimized and calibrated for the targeted measurement.  A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC.  The Electro-optical converter (EOC) performs the conversion from optical to electrical signals for the digital communication to the DAE. To use optical surface detection, a special version of the EOC is required. The EOC signal is transmitted to the measurement server.  The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts.  The Light Beam used is for probe alignment. This improves the (absolute) accuracy of the probe positioning.  A computer running WinXP and the DASY4 or DASY5 software.  Remote control and teach pendant as well as additional circuitry for robot safety such as  warning lamps, etc.  The phantom, the device holder and other accessories according to the targeted measurement. No. I14Z46098-SEM02 Page 74 of 129 C.2 Dasy4 or DASY5 E-field Probe System The SAR measurements were conducted with the dosimetric probe designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multifiber line ending at the front of the probe tip. It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY4 or DASY5 software reads the reflection durning a software approach and looks for the maximum using 2 nd ord curve fitting. The approach is stopped at reaching the maximum. Probe Specifications: Model: ES3DV3, EX3DV4 Frequency 10MHz — 6.0GHz(EX3DV4) Range: 10MHz — 4GHz(ES3DV3) Calibration: In head and body simulating tissue at Frequencies from 835 up to 5800MHz Linearity: ± 0.2 dB(30 MHz to 6 GHz) for EX3DV4 Picture C.2 Near-field Probe ± 0.2 dB(30 MHz to 4 GHz) for ES3DV3 Dynamic Range: 10 mW/kg — 100W/kg Probe Length: 330 mm Probe Tip Length: 20 mm Body Diameter: 12 mm Tip Diameter: 2.5 mm (3.9 mm for ES3DV3) Tip-Center: 1 mm (2.0mm for ES3DV3) Application: SAR Dosimetry Testing Compliance tests of mobile phones Dosimetry in strong gradient fields Picture C.3 E-field Probe C.3 E-field Probe Calibration Each E-Probe/Probe Amplifier combination has unique calibration parameters. A TEM cell calibration procedure is conducted to determine the proper amplifier settings to enter in the probe parameters. The amplifier settings are determined for a given frequency by subjecting the probe to a known E-field density (1 mW/cm 2 ) using an RF Signal generator, TEM cell, and RF Power Meter. The free space E-field from amplified probe outputs is determined in a test chamber. This calibration can be performed in a TEM cell if the frequency is below 1 GHz and inn a waveguide or other methodologies above 1 GHz for free space. For the free space calibration, the probe is placed No. I14Z46098-SEM02 Page 75 of 129 in the volumetric center of the cavity and at the proper orientation with the field. The probe is then rotated 360 degrees until the three channels show the maximum reading. The power density readings equates to 1 mW/ cm 2 . . E-field temperature correlation calibration is performed in a flat phantom filled with the appropriate simulated brain tissue. Th…

Text truncated - open the document above for the full version.

No. I14Z46098-SEM02 Page 101 of 129 No. I14Z46098-SEM02 Page 102 of 129 No. I14Z46098-SEM02 Page 103 of 129 1900 MHz Dipole Calibration Certificate No. I14Z46098-SEM02 Page 104 of 129 No. I14Z46098-SEM02 Page 105 of 129 No. I14Z46098-SEM02 Page 106 of 129 No. I14Z46098-SEM02 Page 107 of 129 No. I14Z46098-SEM02 Page 108 of 129 No. I14Z46098-SEM02 Page 109 of 129 No. I14Z46098-SEM02 Page 110 of 129 No. I14Z46098-SEM02 Page 111 of 129 2450 MHz Dipole Calibration Certificate No. I14Z46098-SEM02 Page 112 of 129 No. I14Z46098-SEM02 Page 113 of 129 No. I14Z46098-SEM02 Page 114 of 129 No. I14Z46098-SEM02 Page 115 of 129 No. I14Z46098-SEM02 Page 116 of 129 No. I14Z46098-SEM02 Page 117 of 129 No. I14Z46098-SEM02 Page 118 of 129 No. I14Z46098-SEM02 Page 119 of 129 ANNEX I SPOT CHECK TEST As the test lab for 4036E/4136E from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. I.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 863665020100117 PIO v9H26 *EUT ID: is used to identify the test sample in the lab internally. I.2 Conducted power of selected case Table I.1: The conducted power results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 32.82 \ \ GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 29.35 \ \ Table I.2: The conducted power results for GPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 2 Txslots 29.94 \ \ PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 4 Txslots \ \ 23.87 Table I.3: The conducted power results for WCDMA Item band FDD V result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA \ 22.87 \ \ Item band FDD II result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA \ 22.36 \ 22.25 No. I14Z46098-SEM02 Page 120 of 129 I.3 Measurement results SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Left Touch CAB60B0000C1 0.697 0.660 SAR Values (GSM 850 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS Rear 10 CAB60B0000C1 0.852 0.815 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 Left Touch CAB60B0000C1 0.362 0.315 SAR Values (PCS 1900 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1850.2 512 GPRS Front 10 CAB60B0000C1 0.660 0.438 SAR Values (WCDMA 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Left Touch CAB60B0000C1 0.713 0.698 SAR Values (WCDMA 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 846.6 4233 Rear 10 CAB60B0000C1 0.867 0.779 SAR Values (WCDMA 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1907.6 9538 Right Touch CAB60B0000C1 0.654 0.597 SAR Values (WCDMA 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1852.4 9262 Rear 10 CAB60B0000C1 1.02 1 No. I14Z46098-SEM02 Page 121 of 129 I.4 Reported SAR Comparison Exposure Configuration Technology Band Reported SAR 1g (W/Kg): original Reported SAR 1g (W/Kg): spot check Head (Separation Distance 0mm) GSM 850 0.82 0.74 PCS 1900 0.51 0.39 UMTS FDD 2 0.70 0.62 UMTS FDD 5 0.79 0.72 Body-worn (Separation Distance 10mm) GSM 850 0.92 0.83 PCS 1900 0.73 0.45 UMTS FDD 2 1.14 1.06 UMTS FDD 5 0.96 0.80 No. I14Z46098-SEM02 Page 122 of 129 I.5 Graphic results 850 Left Cheek High Date: 2014-5- 9 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.902 S/m; εr = 40.802; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.692 W/kg Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.403 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.780 W/kg SAR(1 g) = 0.660 W/kg; SAR(10 g) = 0.512 W/kg Maximum value of SAR (measured) = 0.695 W/kg Fig.I.1 850MHz CH251 No. I14Z46098-SEM02 Page 123 of 129 850 Body Rear High Date: 2014-5- 9 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.98 S/m; εr = 54.649; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: GSM 850 EGPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) Rear High/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.932 W/kg Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.894 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.815 W/kg; SAR(10 g) = 0.618 W/kg Maximum value of SAR (measured) = 0.881 W/kg Fig.I.2 850 MHz CH251 No. I14Z46098-SEM02 Page 124 of 129 GSM1900 Left Cheek High Date: 2014-5- 10 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.437 S/m; εr = 39.557; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm…

Text truncated - open the document above for the full version.

No. I14Z46098-SRD02 Page1 of 179 FCC PART 15C TEST REPORT No. I14Z46098-SRD02 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone Model Name: 4036E/4136E With FCC ID: RAD455 Hardware Version: PIO Software Version: v9H26 Issued Date: 2014-06-03 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10- 62304633-2046, Fax:+86(0)10-62304633-2063 Email:[email protected]. www.emcite.com No. I14Z46098-SRD02 Page2 of 179 CONTENTS CONTENTS .................................................................................................................................... 2 1. TEST LABORATORY .................................................................................................... 10 1.1. T ESTING LOCATION ........................................................................................................... 10 1.2. P ROJECT DATA ................................................................................................................. 10 1.3. S IGNATURE ...................................................................................................................... 10 2. CLIENT INFORMATION ................................................................................................ 11 2.1. A PPLICANT INFORMATION .................................................................................................. 11 2.2. M ANUFACTURER INFORMATION .......................................................................................... 11 3. EQUIPMENT UNDER TEST(EUT) AND ANCILLARY EQUIPMENT(AE) ..................... 12 3.1. A BOUT EUT ..................................................................................................................... 12 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ............................................... 12 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST .................................................. 12 3.4. G ENERAL DESCRIPTION .................................................................................................... 12 4. REFERENCE DOCUMENTS ......................................................................................... 13 4.1. D OCUMENTS SUPPLIED BY APPLICANT ................................................................................ 13 4.2. REFERENCE DOCUMENTS FOR TESTING ................................................................. 13 5. LABORATORY ENVIRONMENT ................................................................................... 13 6. SUMMARY OF TEST RESULTS .................................................................................... 13 6.1. S UMMARY OF TEST RESULTS ............................................................................................ 13 6.2. S TATEMENTS .................................................................................................................... 14 6.3. T EST CONDITIONS ............................................................................................................ 14 7. TEST EQUIPMENTS UTILIZED .................................................................................... 15 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 16 A.1. MEASUREMENT METHOD ...................................................................................................... 16 A.2. MAXIMUM OUTPUT POWER ................................................................................................... 17 A.2.1. MAXIMUM PEAK OUTPUT POWER-CONDUCTED ...............................................…

Text truncated - open the document above for the full version.
