RAD494Wi-Fi dual-band tablet

1 Thank you for buying ALCATEL ONETOUCH D819. We hope you will enjoy your high-quality communication experience. For more information about how to use the device, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ, upgrade software, etc. ONETOUCH D819 is the Wi-Fi only device. Quick Start Guide English - CJB33W301AAA 23 www.sar-tick.com This device meets applicable national SAR limits of 1.6 W/kg. SAR values can be found on page 17 of this user guide. When carrying the device or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 5 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not using it. To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your device 11 Appearance illustration Table of contents 1 Your device 3 1.1 Appearance illustration ................................................................................................................................................................................3 1.2 Home screen ..................................................................................................................................................................................................4 1.3 Apps and widgets ...........................................................................................................................................................................................7 1.4 Basic operation ...............................................................................................................................................................................................8 2 Settings 10 2.1 Device ............................................................................................................................................................................................................10 2.2 Personal .......................................................................................................................................................................................................11 2.3 System ...........................................................................................................................................................................................................11 3 Making the most of your phone 12 3.1 Smart Suite ...................................................................................................................................................................................................12 3.2 Upgrade .........................................................................................................................................................................................................13 Safety and use14 General information 20 TCT Mobile (US), Inc Warranty 21 Troubleshooting 23 Headphone jackmicroSD card slot Front camera Camera Camera Flash/Flashlight Power key Volume up Volume down micro-USB connector 45 Inserting the microSD card 12 Home screen Your device has multiple Home screen pages, giving you more space to add favorite apps, folders, and widgets for one-touch access. To switch between screens, slide your finger to the left or to the right. 121 Lock/Unlock your screen Press the Power key, and then slide to the right to unlock your device. You can also customize your lock settings by choosing Settings/Lock settings. 122 Icons on your screen Google Search All Apps Back Status/Notification Bar Voice Actions Home Menu NameDescription Google SearchTouch it to access the Google search engine. Voice ActionsUse Voice Actions to watch a video, send email, set alarm, get directions, etc. All AppsTouch to show all apps list interface. BackGo back to the previous menu or screen. HomeReturn to the home screen. 67 Touch and drag down the Status bar to open Quick setting panel, where you can enable or disable functions or change modes by touching the icons. When there are notifications, touch and drag down the Status bar to open the Notification panel and read the detailed information. 13 Apps and widgets 131 Apps The Applications (apps) list contains all pre-embedded and newly installed apps. To access the apps list, touch the all apps key on Home screen. 132 Widgets Touch & hold any empty space on home screen to switch to widgets interface. 133 Get more apps Touch the Play Store icon to get more apps. 134 Create and manage shortcut on desktop Touch and hold an icon in the 'All Apps' list to create a shortcut. It will jump to home screen automatically and you can drag the ico…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-07-30 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Su bject: Permanent Confidentiality request for FCC ID: RAD494 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zh izhou GONG Product Certification Manager TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-08-01 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

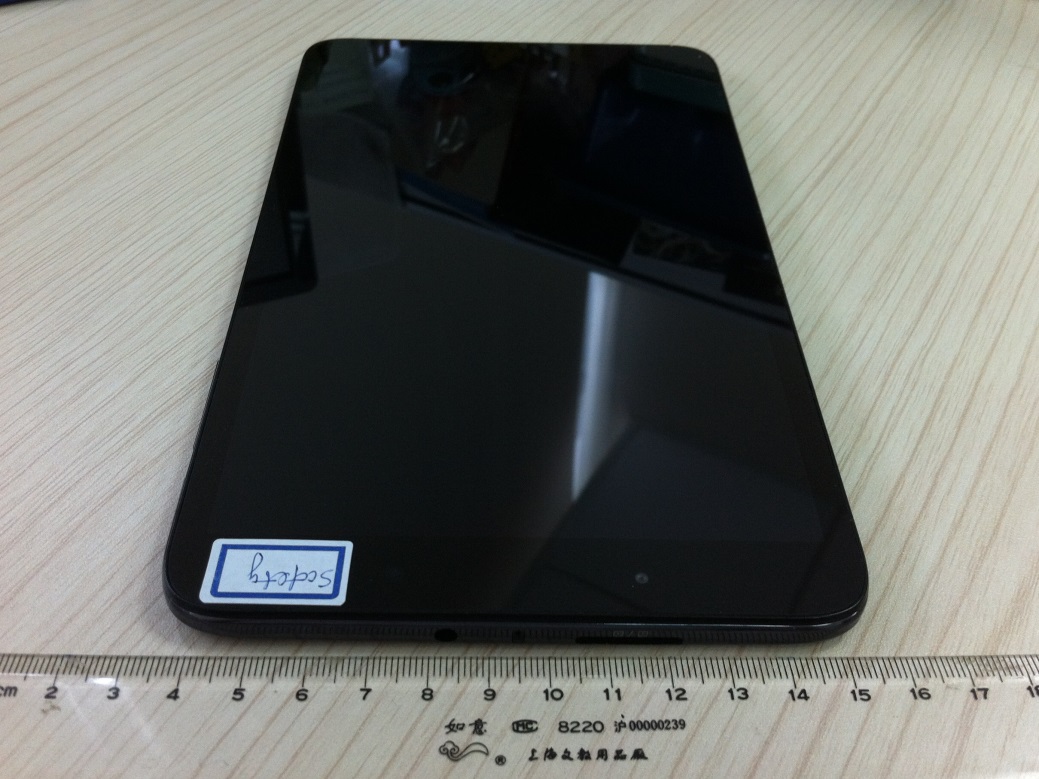

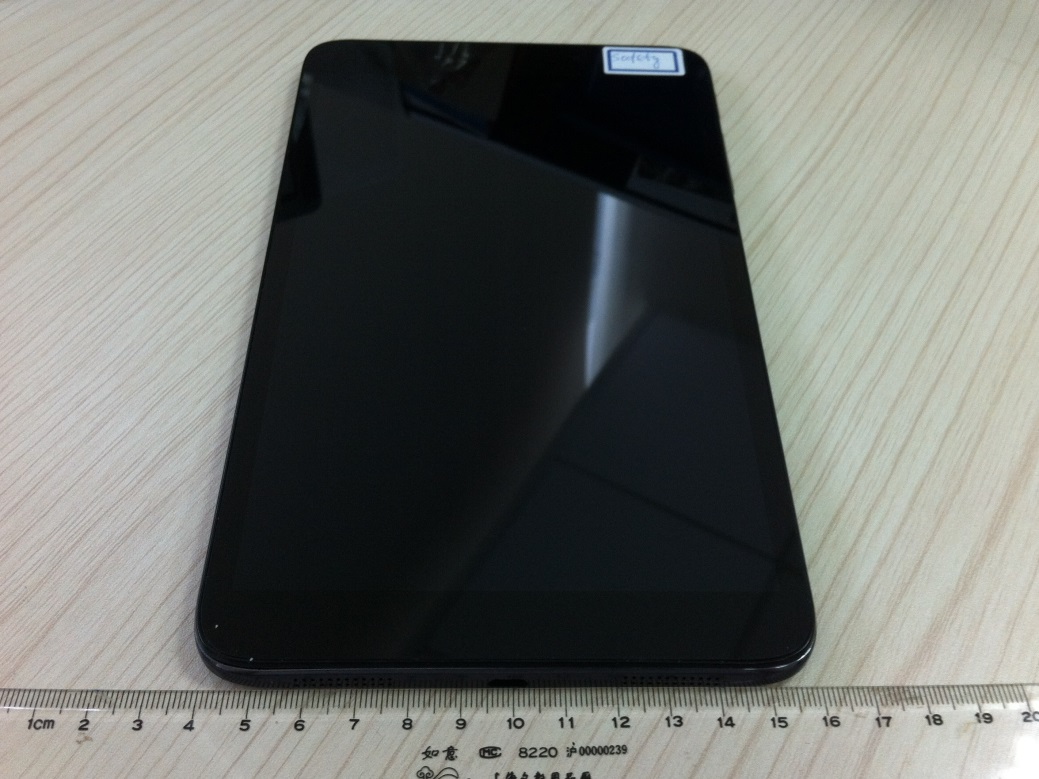

External Photo Pic A-1 Mobile Phone Pic A-2 Mobile Phone Pic A-3 Battery AE1 Pic A-4 Battery AE1 Pic A-5 Charger AE2 Pic A-6 Label of Charger AE2 Pic A-7 USB Cable AE4 Pic A-8 Headset AE6 Headset AE7

Internal Photo Pic A-1 Mobile phone Disassembly Pic A-2 Mobile phone Disassembly Pic A-3 Mobile phone Disassembly Pic A-4 Mobile phone Disassembly Pic A-5 Mobile phone Disassembly

No.I14Z46912-SEM03 Page 1 of 97 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z46912-SEM03 For TCT Mobile Limited Wi-Fi dual-band tablet Model Name: D819 With Hardware Version: PIO Software Version: vJ58 FCC ID: RAD494 Issued Date: 2014-09-12 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z46912-SEM03 Page 2 of 97 Revision Version Report Number Revision Date Memo I14Z46912-SEM03 0 2014-08-12 Initial creation of test report I14Z46912-SEM03 1 2014-09-12 1. Change the model name from D819X to D819 on page 1/6/8 2. Update the step size on page 29/31 3. Add the output power for U-NII band 3 on page 20/21 4. Supplement the SAR measurement for WLAN-5G that be presented in table 12.3 No. I14Z46912-SEM03 Page 3 of 97 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 13 8.1 SYSTEM SETUP ............................................................................................................................................. 13 8.2 SYSTEM VERIFICATION ................................................................................................................................. 14 9 MEASUREMENT PROCEDURES .............................................................................................. 15 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 15 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 17 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 18 9.4 POWER DRIFT ............................................................................................................................................... 18 10 CONDUCTED OUTPUT POWER.............................................................................................. 19 10.1 MANUFACTURING TOLERANCE ................................................................................................................... 19 10.2 WI-FI AND BT MEASUREMENT RESULT ...................................................................................................... 19 11 TEST EXCLUSION CONSIDERATIONS ..................................................................…

Text truncated - open the document above for the full version.

No. I14Z46912-SEM03 Page 71 of 97 No. I14Z46912-SEM03 Page 72 of 97 No. I14Z46912-SEM03 Page 73 of 97 No. I14Z46912-SEM03 Page 74 of 97 ANNEX H Dipole Calibration Certificate 2450 MHz Dipole Calibration Certificate No. I14Z46912-SEM03 Page 75 of 97 No. I14Z46912-SEM03 Page 76 of 97 No. I14Z46912-SEM03 Page 77 of 97 No. I14Z46912-SEM03 Page 78 of 97 No. I14Z46912-SEM03 Page 79 of 97 No. I14Z46912-SEM03 Page 80 of 97 No. I14Z46912-SEM03 Page 81 of 97 No. I14Z46912-SEM03 Page 82 of 97 5GHz Dipole Calibration Certificate No. I14Z46912-SEM03 Page 83 of 97 No. I14Z46912-SEM03 Page 84 of 97 No. I14Z46912-SEM03 Page 85 of 97 No. I14Z46912-SEM03 Page 86 of 97 No. I14Z46912-SEM03 Page 87 of 97 No. I14Z46912-SEM03 Page 88 of 97 No. I14Z46912-SEM03 Page 89 of 97 No. I14Z46912-SEM03 Page 90 of 97 No. I14Z46912-SEM03 Page 91 of 97 No. I14Z46912-SEM03 Page 92 of 97 No. I14Z46912-SEM03 Page 93 of 97 No. I14Z46912-SEM03 Page 94 of 97 No. I14Z46912-SEM03 Page 95 of 97 No. I14Z46912-SEM03 Page 96 of 97 No. I14Z46912-SEM03 Page 97 of 97

No. I14Z46912-SRD14 Page1 of 16 FCC PART 15 TEST REPORT No. I14Z46912-SRD14 for TCT Mobile Limited Wi-Fi dual-band tablet Model name: D819 With FCC ID: RAD494 Hardware Version: PIO Software Version: vJ58 Issued Date: 2014-09-11 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10- 62304633-2046, Fax:+86(0)10-62304633-2063 Email:[email protected]. www.emcite.com No. I14Z46912-SRD14 Page2 of 16 CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LATORATORY ......................................................................................................... 3 1.1. T ESTING LOCATION .............................................................................................................. 3 1.2. P ROJECT DATA ..................................................................................................................... 3 1.3. S IGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION .................................................................................................... 4 2.1. A PPLICANT INFORMATION ......................................................................... 错误!未定义书签。 2.2. M ANUFACTURER INFORMATION ................................................................. 错误!未定义书签。 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 5 3.1. A BOUT EUT ......................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 5 3.3. G ENERAL DESCRIPTION ....................................................................................................... 5 4. REFERENCE DOCUMENTS ............................................................................................ 6 4.1. D OCUMENTS SUPPLIED BY APPLICANT ................................................................................... 6 4.2. R EFERENCE DOCUMENTS FOR TESTING ................................................................................ 6 5. LABORATORY ENVIRONMENT ...................................................................................... 6 6. SUMMARY OF TEST RESULTS ....................................................................................... 6 6.1. S UMMARY OF TEST RESULTS ................................................................................................ 6 6.2. S TATEMENTS........................................................................................................................ 6 7. TEST EQUIPMENTS UTILIZED........................................................................................ 7 ANNEX A: MEASUREMENT RESULTS ......................................................................................... 8 A.1. MEASUREMENT METHOD ......................................................................................................... 8 A.2. CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME .......................................... 10 A.3. NON-OCCUPANCY PERIOD ..................................................................................................... 15 A3.1 ASSOCIATED TEST ................................................................................................................. 15 ANNEX B: PHOTOGRAPHS OF THE TEST SET-UP .................................................................. 16 No. I14Z46912-SRD14 Page3 of 16 1. TEST LATORATORY 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52 Hua Yuanbei Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 008610623046332561 Fax: 008610623046332504 1.2. Project data Testing Start Date: 2014-07-07 Testing End Date: 2014-08-07 1.3. Signature __________________________________ Xu Zhongfei (Prepared this test report) __________________________________ Jiang Afang (Reviewed this test report) __________________________________ Xiao Li Deputy Director of the laboratory (Approved this test report) No. I14Z46912-SRD14 Page4 of 16 2. CLIENT INFORMATION 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5 F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Gong Zhizhou Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5 F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact Gong Zhizhou Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. I14Z46912-SRD14 Page5 of 16 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) 3.1. About EUT Description Wi-Fi dual-band tablet Model name D819 FCC ID RAD494 WLAN Frequency Range ISM Band: -5250MHz~5350MHz -5470MHz~5725MHz Type of modulation OFDM Number of Channels 15 Antenna Integral Antenna Extreme vol. Limits 3.6VDC to 4.2VDC (nominal: 3.8VDC) Device Type (DFS) Client without radar detection(only support client mode) TPC mechanism Not support Note1: Photographs of EUT are shown in ANNEX C of this test report. Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification o…

Text truncated - open the document above for the full version.

No. I14Z46912-SRD12 Page1 of 133 FCC PART 15 TEST REPORT No. I14Z46912-SRD12 for TCT Mobile Limited Wi-Fi dual-band tablet Model Name: D819 With Hardware Version: PIO Software Version: vJ58 Issued Date: 2014-09-18 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P.R.China 100191 Tel: +86(0)10-62304633-2561, Fax: +86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No. I14Z46912-SRD12 Page2 of 133 CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LATORATORY ......................................................................................................... 7 1.1. TESTING LOCATION .............................................................................................................. 7 1.2. PROJECT DATA ..................................................................................................................... 7 1.3. SIGNATURE .......................................................................................................................... 7 2. CLIENT INFORMATION .................................................................................................... 8 2.1. APPLICANT INFORMATION ..................................................................................................... 8 2.2. MANUFACTURER INFORMATION ............................................................................................. 8 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 9 3.1. ABOUT EUT ......................................................................................................................... 9 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 9 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 9 3.4. GENERAL DESCRIPTION ....................................................................................................... 9 4. REFERENCE DOCUMENTS ............................................................................................ 9 4.1. DOCUMENTS SUPPLIED BY APPLICANT ................................................................................. 10 4.2. REFERENCE DOCUMENTS FOR TESTING .............................................................................. 10 5. LABORATORY ENVIRONMENT .................................................................................... 10 6. SUMMARY OF TEST RESULTS ..................................................................................... 11 6.1. SUMMARY OF TEST RESULTS ............................................................................................... 11 6.2. STATEMENTS....................................................................................................................... 11 6.3. TEST CONDITIONS ............................................................................................................... 11 7. TEST EQUIPMENTS UTILIZED...................................................................................... 12 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 13 A.1. MEASUREMENT METHOD ....................................................................................................... 13 A.2. MAXIMUM OUTPUT POWER ..................................................................................................... 14 A.3. PEAK POWER SPECTRAL DENSITY (CONDUCTED) ................................................................... 15 A.4. OCCUPIED 26DB BANDWIDTH(CONDUCTED) ........................................................................... 17 FIG. 1 OCCUPIED 26DB BANDWIDTH (802.11A, 5180MHZ) .................................................... 18 FIG. 2 OCCUPIED 26DB BANDWIDTH (802.11A, 5200MHZ) .................................................... 18 FIG. 3 OCCUPIED 26DB BANDWIDTH (802.11A, 5240MHZ) .................................................... 19 FIG. 4 OCCUPIED 26DB BANDWIDTH (802.11A, 5260MHZ) .................................................... 19 FIG. 5 OCCUPIED 26DB BANDWIDTH (802.11A, 5280MHZ) .................................................... 20 FIG. 6 OCCUPIED 26DB BANDWIDTH (802.11A, 5320MHZ) .................................................... 20 FIG. 7 OCCUPIED 26DB BANDWIDTH (802.11A, 5500MHZ) .................................................... 21 FIG. 8 OCCUPIED 26DB BANDWIDTH (802.11A, 5600MHZ) .................................................... 21 FIG. 9 OCCUPIED 26DB BANDWIDTH (802.11A, 5700MHZ) .................................................... 22 FIG. 10 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5180MHZ) .......................................... 22 No. I14Z46912-SRD12 Page3 of 133 FIG. 11 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5200MHZ) .......................................... 23 FIG. 12 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5240MHZ) .......................................... 23 FIG. 13 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5260MHZ) .......................................... 24 FIG. 14 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5280MHZ) .......................................... 24 FIG. 15 OCCUPIED 26DB BANDWIDTH (802.11N-HT20, 5320MHZ) .......................................... 25 FIG. 16 OCCUPIED 26DB BANDWIDTH (802. 11N-HT20, 5500MHZ) ......................................... 25 FIG. 17 OCCUPIED 26DB BANDWIDTH (802. 11N-HT20, 5600MHZ) ......................................... 26 FIG. 18 OCCUPIED 26DB BANDWIDTH (802. 11N-HT20, 5700MHZ) ......................................…

Text truncated - open the document above for the full version.

No. I14Z46912-SRD12 Page72 of 133 Fig. 83 Radiated Spurious Emission (802.11n-HT20, ch40, 26.5 GHz-40 GHz) Fig. 84 Radiated Spurious Emission (802.11n-HT20, ch48, 1 GHz-6 GHz) 30 35 40 45 50 55 60 65 70 75 80 85 90 26 .5 28 30 32 34 36 38 40 Le vel i n dB 礦 /m F re q u e n c y in G H z N o rma l R E _ 2 6 . 5 G -4 0 G H z F C C P A R T 1 5 _ P K _ 1 m F C C P A R T 1 5 _ A V G _ 1 m 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 1G 2G 3G 4G 5G 6G Le vel i n dB 礦 /m F re q u e n c y in H z R E _ W L A N _ 1 G -6 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G No. I14Z46912-SRD12 Page73 of 133 Fig. 85 Radiated Spurious Emission (802.11n-HT20, ch48, 6 GHz-18 GHz) Fig. 86 Radiated Spurious Emission (802.11n-HT20, ch52, 1 GHz-6 GHz) 20 25 30 35 40 45 50 55 60 65 70 75 80 6 8 10 12 14 16 18 Le vel i n dB 礦 /m F re q u e n c y in G H z N o rma l R E _ 6 G -1 8 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 1G 2G 3G 4G 5G 6G Le vel i n dB 礦 /m F re q u e n c y in H z R E _ W L A N _ 1 G -6 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G No. I14Z46912-SRD12 Page74 of 133 Fig. 87 Radiated Spurious Emission (802.11n-HT20, ch52, 6 GHz-18 GHz) 20 25 30 35 40 45 50 55 60 65 70 75 80 6 8 10 12 14 16 18 Le vel i n dB 礦 /m F re q u e n c y in G H z N o rma l R E _ 6 G -1 8 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G 5 10 15 20 25 30 35 40 45 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB 礦 /m F re q u e n c y in H z N o rma l R E _ 3 0 M -1 G H z _ 1 0 m F C C P A R T 1 5 _ Q P _ 1 0 m No. I14Z46912-SRD12 Page75 of 133 Fig. 88 Radiated Spurious Emission (802.11n-HT20, ch56, 30 MHz-1 GHz) Fig. 89 Radiated Spurious Emission (802.11n-HT20, ch56, 1 GHz-6 GHz) 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 1G 2G 3G 4G 5G 6G Le vel i n dB 礦 /m F re q u e n c y in H z R E _ W L A N _ 1 G -6 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G No. I14Z46912-SRD12 Page76 of 133 Fig. 90 Radiated Spurious Emission (802.11n-HT20, ch56, 6 GHz-18 GHz) 20 25 30 35 40 45 50 55 60 65 70 75 80 6 8 10 12 14 16 18 Le vel i n dB 礦 /m F re q u e n c y in G H z N o rma l R E _ 6 G -1 8 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G 30 35 40 45 50 55 60 65 70 75 18 19 20 21 22 23 24 25 2626 .5 Le vel i n dB 礦 /m F re q u e n c y in G H z N o rma l R E _ 1 8 G -2 6 . 5 G H z F C C P A R T 1 5 _ P K F C C P A R T 1 5 _ A V G No. I14Z46912-SRD12 Page77 of 133 Fig. 91 Radiated Spurious Emission (802.11n-HT20, ch56, 18 GHz-26.5 GHz) Fig. 92 Radiated Spurious Emission (802.11n-HT20, ch56, 26.5 GHz-40 GHz) 30 35 40 45 50 55 60 65 70 7…
