RAD498HSUPA/HSDPA+/UMTS triband/GSM quad-band mobile phone

12 English - CJB27V3ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com. Also on our website you can find helpful FAQs, realize software upgrade, etc. www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile .................. 1.1 Keys and connectors Headset connector Power key micro-USB connector Back key Home key Recent apps key Touch screen LED light 34 Volume up Volume down Camera Recent apps key • Touch: As Menu key, touch to access Wallpaper, Manage applications and System settings. • Touch and hold: Open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen/Light up the screen • Press and hold: Show the pop-up menu to select from Power off/Restart/Airplane mode/Quick start Press and hold: Power on • Press to mute the ringtone when there’s an incoming call. • Press and hold for more than 7 seconds to restart the phone when the system is frozen. • Press and hold Power key and Volume down key to capture a screenshot. • Press and hold Power key and Volume up key under power off mode to restore factory settings. Volume keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ringtone volume. • Mute the ringtone of an incoming call. • In Camera mode, using it as the capture key allows you to take a photo. 56 1.2 Getting started 1.2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. SIM1 SIM2 Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks, but when 3G SIM cards are inserted into both SIM1 and SIM2 slot at the same time, only SIM1 will support 3G network. Your phone only supports mini SIM card. Do not attempt to insert other SIM types like micro and nano cards, otherwise this may cause damage to your phone. Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cover. • Unclip the cover, then remove the battery. Installing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect the battery charger to your phone and outlet respectively. The charging status bar will not float if your battery is completely consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 78 1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. For dual SIM mode, you should select a SIM card or choose Always ask for voice call, messaging, etc. 1.2.3 Power off your phone Hold down the Power key from the Home screen until the Phone options appear, select Power off. 1.3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Favorite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Add a location to display local weather. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The white short line at the lower part of the screen indicates which screen you are viewing. 1.3.1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the wallpaper. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the scre…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 04/10/2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD498 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-04-10 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

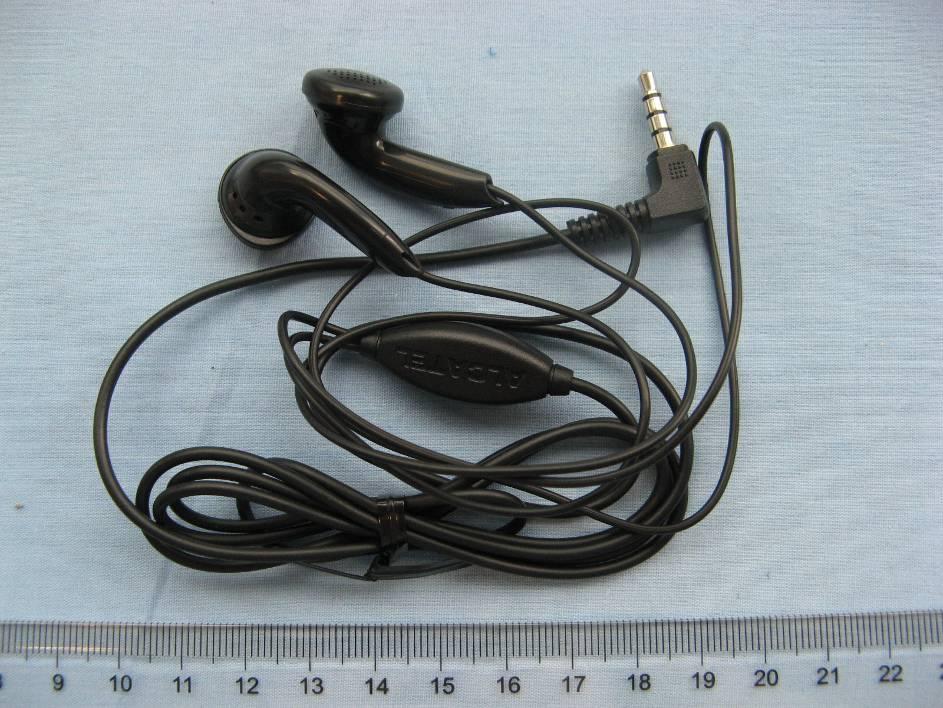

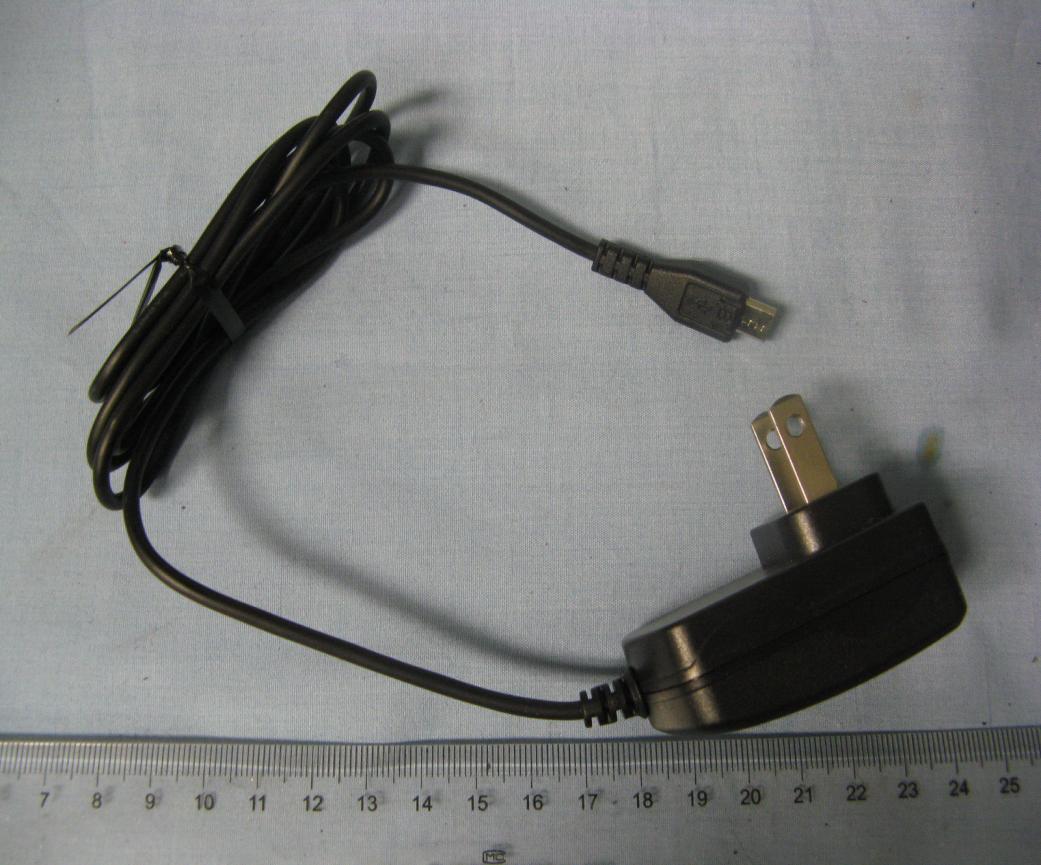

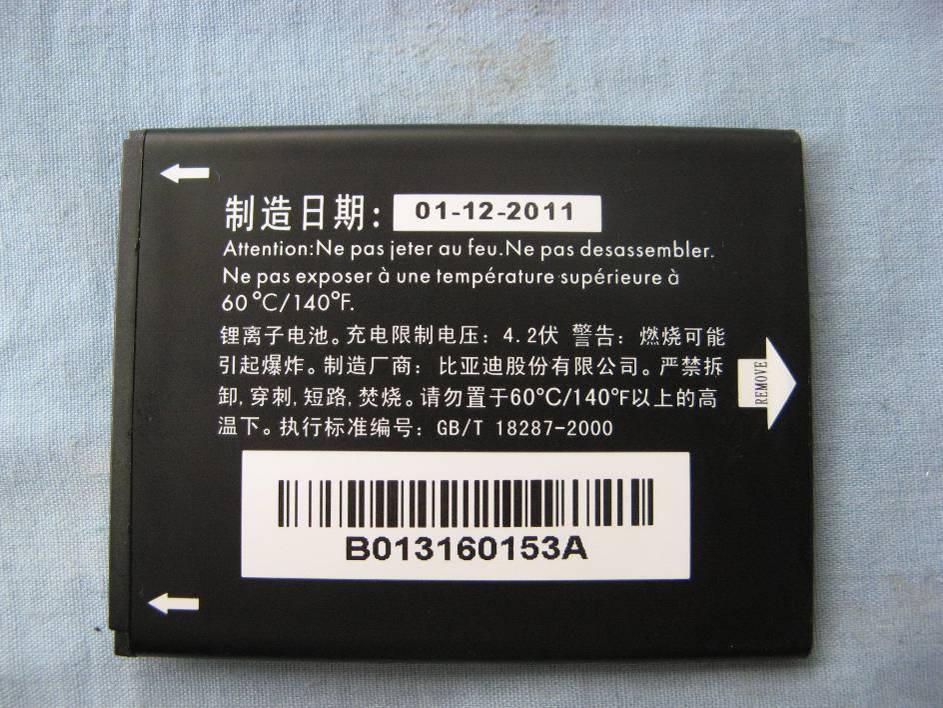

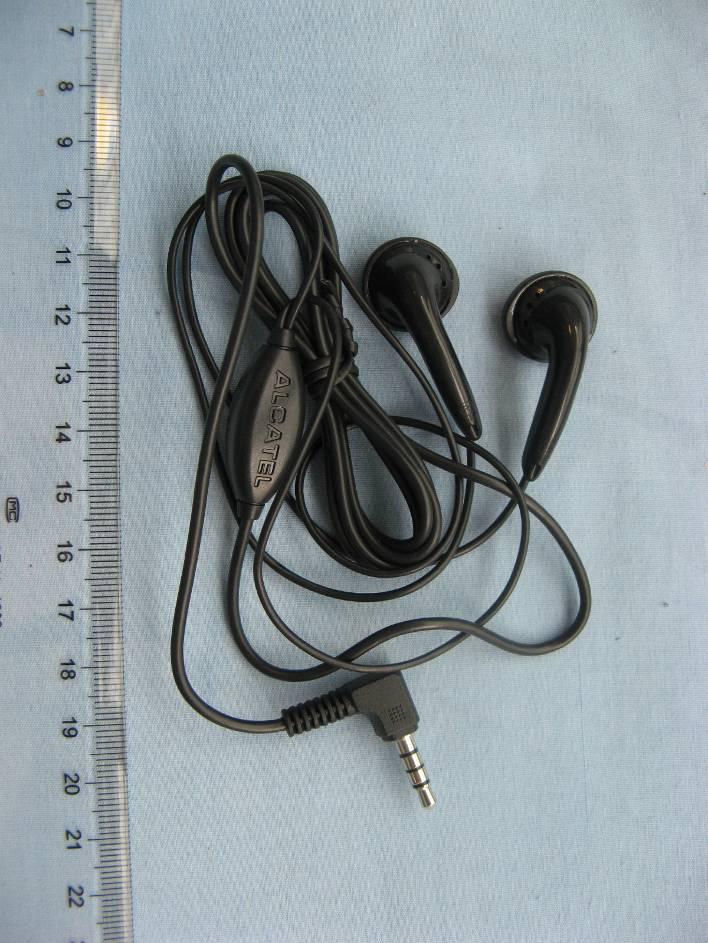

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Battery AE3 Battery AE3 Battery AE18 Battery AE18 Battery AE19 Battery AE19 Battery AE20 Battery AE20 Label of Charger AE4 Charger AE4 Label of Charger AE5 Charger AE5 Label of Charger AE6 Charger AE6 Label of Charger AE7 Charger AE7 Headset AE10 Headset AE11 Headset AE12 Headset AE13 Data Cable AE14 Data Cable AE15 Data Cable AE16 Data Cable AE17

Label Location Label Mobile Phone

EUT Interior photograph Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

No.I14Z45690-SEM01 Page 1 of 132 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z45690-SEM01 For TCT Mobile Limited HSUPA/HSDPA+/UMTS tri band/GSM quad-band mobile phone Mode Name: Yaris 4 ULC Marketing Name: 4032E With Hardware Version: PIO Software Version: vE71 FCC ID: RAD498 Issued Date: 2014-04-18 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z45690-SEM01 Page 2 of 132 Revision Version Report Number Revision Date Memo I14Z45690-SEM01 0 2014-04-09 Initial creation of test report I14Z45690-SEM01 1 2014-04-18 1. Update the MPR values on page 21 2. Add the highest reported SAR of spot check in table 2.1 on page 6 3. Add the information of ELI phantom in annex C4.5 on page 79 4. Update the permittivity on page 49 and 126 No. I14Z45690-SEM01 Page 3 of 132 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT ............................................................................................................................................... 21 10 AREA SCAN BASED 1-G SAR ................................................................................................. 22 10.1 REQUIREMENT OF KDB .............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS ................................…

Text truncated - open the document above for the full version.

No. I14Z45690-SEM01 Page 51 of 132 1900 Left Cheek High Date: 2013- 7- 18 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.414 mho/m; εr = 39.626; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(8.01, 8.01, 8.01) Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.387 W/kg Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.497 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.539 W/kg SAR(1 g) = 0.342 W/kg; SAR(10 g) = 0.202 W/kg Maximum value of SAR (measured) = 0.383 W/kg Fig.3 1900 MHz CH810 No. I14Z45690-SEM01 Page 52 of 132 Fig. 3-1 Z-Scan at power reference point (1900 MHz CH810) No. I14Z45690-SEM01 Page 53 of 132 1900 Body Rear Low Date: 2013- 7- 18 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.496 mho/m; εr = 52.18; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:4 Probe: EX3DV4 - SN3846 ConvF(7.37, 7.37, 7.37) Rear Low/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.829 W/kg Rear Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.969 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.697 W/kg; SAR(10 g) = 0.434 W/kg Maximum value of SAR (measured) = 0.747 W/kg Fig.4 1900 MHz CH512 No. I14Z45690-SEM01 Page 54 of 132 Fig.4-1 Z-Scan at power reference point (1900 MHz CH512) No. I14Z45690-SEM01 Page 55 of 132 WCDMA 850 Left Cheek High Date: 2013- 7- 17 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.933 mho/m; εr = 42.41; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: WCDMA; Frequency: 846.6 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.672 W/kg Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.231 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.785 W/kg SAR(1 g) = 0.648 W/kg; SAR(10 g) = 0.495 W/kg Maximum value of SAR (measured) = 0.672 W/kg Fig.5 WCDMA 850 CH4233 No. I14Z45690-SEM01 Page 56 of 132 Fig. 5-1 Z-Scan at power reference point (WCDMA 850 CH4233) No. I14Z45690-SEM01 Page 57 of 132 WCDMA 850 Body Rear High Date: 2013- 7- 17 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.984 mho/m; εr = 53.996; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: WCDMA; Frequency: 846.6 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.04, 9.04, 9.04) Rear High/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.919 W/kg Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.999 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.878 W/kg; SAR(10 g) = 0.657 W/kg Maximum value of SAR (measured) = 0.921 W/kg Fig.6 WCDMA 850 CH4233 No. I14Z45690-SEM01 Page 58 of 132 Fig. 6-1 Z-Scan at power reference point (WCDMA850 CH4233) No. I14Z45690-SEM01 Page 59 of 132 WCDMA 1900 Left Cheek Low Date: 2013- 7- 18 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.364 mho/m; εr = 39.785; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.01, 8.01, 8.01) Cheek Low/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.741 W/kg Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.955 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.697 W/kg; SAR(10 g) = 0.425 W/kg Maximum value of SAR (measured) = 0.765 W/kg Fig.7 WCDMA1900 CH9262 No. I14Z45690-SEM01 Page 60 of 132 Fig. 7-1 Z-Scan at power reference point (WCDMA1900 CH9262) No. I14Z45690-SEM01 Page 61 of 132 WCDMA 1900 Body Bottom Edge Low Date: 2013- 7- 18 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.497 mho/m; εr = 52.17; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.37, 7.37, 7.37) Bottom Edge Low/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.19 W/kg Bottom Edge Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.246 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.71 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.628 W/kg Maximum value of SAR (measured) = 1.19 W/kg Fig.8 WCDMA1900 CH9262 No. I14Z45690-SEM01 Page 62 of 132 Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9262) No. I14Z45690-SEM01 Page 63 of 132 Wifi 802.11b Left Cheek Channel 6 Date: 2013-7- 5 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.812 mho/m; ε r = 39.79; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.13, 7.13, 7.13) Cheek/Area Scan (91x151x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.524 W/kg Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8…

Text truncated - open the document above for the full version.

No. I14Z45690-SEM01 Page 101 of 132 No. I14Z45690-SEM01 Page 102 of 132 No. I14Z45690-SEM01 Page 103 of 132 No. I14Z45690-SEM01 Page 104 of 132 1900 MHz Dipole Calibration Certificate No. I14Z45690-SEM01 Page 105 of 132 No. I14Z45690-SEM01 Page 106 of 132 No. I14Z45690-SEM01 Page 107 of 132 No. I14Z45690-SEM01 Page 108 of 132 No. I14Z45690-SEM01 Page 109 of 132 No. I14Z45690-SEM01 Page 110 of 132 No. I14Z45690-SEM01 Page 111 of 132 No. I14Z45690-SEM01 Page 112 of 132 2450 MHz Dipole Calibration Certificate No. I14Z45690-SEM01 Page 113 of 132 No. I14Z45690-SEM01 Page 114 of 132 No. I14Z45690-SEM01 Page 115 of 132 No. I14Z45690-SEM01 Page 116 of 132 No. I14Z45690-SEM01 Page 117 of 132 No. I14Z45690-SEM01 Page 118 of 132 No. I14Z45690-SEM01 Page 119 of 132 No. I14Z45690-SEM01 Page 120 of 132 ANNEX I DIPOLE QUALIFICATION FOR THE EXTENDED 3-YEAR CALIBRATION INTERVAL I1 Dipole 835 The information and documentation below are provided to qualify the extended 3-year calibration interval of dipole. I1.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46110673 02 Power meter NRVD 102083 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 05 Amplifier 60S1G4 0331848 06 E-field Probe SPEAG EX3DV4 3846 07 DAE SPEAG DAE4 771 08 Dipole Validation Kit SPEAG D835V2 443 I1.2 Results of Impedance, Return-loss and System validation Dipole 835 - Head Year Deviation Limit 2012 2013 Impedance Real (Ω) 50.8 53.6 2.8Ω Deviation < 5Ω Imaginary (Ω) -6.7 -2.2 4.5Ω Deviation < 5Ω Return-loss (dB) -23.5 -23.3 0.2dB Deviate < 0.2dB System validation 10g 1.52 1.56 2.63% Deviation < 10% 1g 2.33 2.38 2.15% Deviation < 10% Dipole 835 - Body Year Deviation Limit 2012 2013 Impedance Real (Ω) 46.8 49.1 2.3Ω Deviation < 5Ω Imaginary (Ω) -7.8 -3.7 4.1Ω Deviation < 5Ω Return-loss (dB) -21.2 -21.4 -0.2dB Deviate < 0.2dB System validation 10g 1.59 1.61 1.26% Deviation < 10% 1g 2.42 2.42 0.00% Deviation < 10% According to the above tables, it is not necessary to recalibration the dipoles in 2013. No. I14Z45690-SEM01 Page 121 of 132 I2 Dipole 1900 The information and documentation below are provided to qualify the extended 3-year calibration interval of dipole. I2.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46110673 02 Power meter NRVD 102083 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 05 Amplifier 60S1G4 0331848 06 E-field Probe SPEAG EX3DV4 3846 07 DAE SPEAG DAE4 771 08 Dipole Validation Kit SPEAG D1900V2 541 I2.2 Results of Impedance, Return-loss and System validation Dipole 1900 - Head Year Deviation Limit 2012 2013 Impedance Real (Ω) 52.6 50.7 -1.9Ω Deviation < 5Ω Imaginary (Ω) 6.2 2.5 -3.7Ω Deviation < 5Ω Return-loss (dB) -23.7 -23.5 0.2dB Deviate < 0.2dB System validation 10g 5.11 5.07 -0.78% Deviation < 10% 1g 9.62 9.61 -0.10% Deviation < 10% Dipole 1900 - Body Year Deviation Limit 2012 2013 Impedance Real (Ω) 48.6 47.1 -1.5Ω Deviation < 5Ω Imaginary (Ω) 6.9 3.3 -3.6Ω Deviation < 5Ω Return-loss (dB) -23.0 -23.1 -0.1dB Deviate < 0.2dB System validation 10g 5.33 5.46 2.44% Deviation < 10% 1g 10 10.3 3.00% Deviation < 10% According to the above tables, it is not necessary to recalibration the dipoles in 2013. No. I14Z45690-SEM01 Page 122 of 132 I3 Dipole 2450 The information and documentation below are provided to qualify the extended 3-year calibration interval of dipole. I3.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46110673 02 Power meter NRVD 102083 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 05 Amplifier 60S1G4 0331848 06 E-field Probe SPEAG EX3DV4 3846 07 DAE SPEAG DAE4 771 08 Dipole Validation Kit SPEAG D2450V2 853 I3.2 Results of Impedance, Return-loss and System validation Dipole 2450 - Head Year Deviation Limit 2012 2013 Impedance Real (Ω) 53.7 51.6 -2.1Ω Deviation < 5Ω Imaginary (Ω) 3.2 4.8 1.6Ω Deviation < 5Ω Return-loss (dB) -26.4 -26.5 -0.1dB Deviate < 0.2dB System validation 10g 6.09 6.04 -0.82% Deviation < 10% 1g 13.1 12.9 -1.53% Deviation < 10% Dipole 2450 - Body Year Deviation Limit 2012 2013 Impedance Real (Ω) 49.9 52.5 2.6Ω Deviation < 5Ω Imaginary (Ω) 4.8 4.3 -0.5Ω Deviation < 5Ω Return-loss (dB) -26.4 -26.2 0.2dB Deviate < 0.2dB System validation 10g 5.92 5.98 1.01% Deviation < 10% 1g 12.7 12.8 0.79% Deviation < 10% According to the above tables, it is not necessary to recalibration the dipoles in 2013. No. I14Z45690-SEM01 Page 123 of 132 ANNEX J SPOT CHECK TEST As the test lab for ONE TOUCH 4033E from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. All the differences between spot check data and original data are within the measurement uncertainty. So it is acceptable to quote the test results of original sample. J.1 Internal Identification of EUT used during the spot check test EUT ID* IMEI HW Version SW Version EUT1 013767000101575 Proto VC86 *EUT ID: is used to identify the test sample in the lab internally. J.2 Conducted power of selected case Table J.1: The conducted power results for GSM850/1900 GSM 850MHz Conducted Power (dBm) Channel 251(848.8MHz) Channel 190(836.6MHz) Channel 128(824.2MHz) 31.82 \ \ GSM 1900MHz Conducted Power (dBm) Channel 810(1909.8MHz) Channel 661(1880MHz) Channel 512(1850.2MHz) 29.04 \ \ Table J.2 : The conducted power results for GPRS GSM 850 GPRS (GMSK) Measured Power (dBm) 251 190 128 2 Txslots \ 29.79 \ PCS1900 GPRS (GMSK) Measured Power (dBm) 810 661 512 2 Txslots \ \ 26.54 Table J.3 : The conducted power results for WCDMA Item band FDD V result ARFCN 4233 (846.6MHz) 4182 (836.4MHz) 4132 (826.4MHz) WCDMA \ 23.32 \ \ Item band FDD II result ARFCN 9538 (1907.6MHz) 9400 (1880MHz) 9262 (1852.4MHz) WCDMA \ \ \ 23.32 J.3 Measurement results The test were carried out at the same day of the original test. SAR Values (GSM 850 MHz Band - Head) Frequency Si de T…

Text truncated - open the document above for the full version.

No. I14Z45690-SRD01 Page1 of 118 FCC PART 15C TEST REPORT No. I14Z45690-SRD01 for TCT Mobile Limited HSUPA/HSDPA+/UMTS triband/GSM quad-band mobile phone Model Name: Yaris 4 ULC Marketing Name: 4032E With FCC ID: RAD498 Hardware Version: PIO Software Version: vE71 Issued Date: 2014-04-09 Note :The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633-2046, Fax:+86(0)10-62304633-2063 Email:[email protected]. www.emcite.com No. I14Z45690-SRD01 Page2 of 118 CONTENTS CONTENTS ................................................................................................................................. 2 1. TEST LABORATORY .................................................................................................... 7 1.1. TESTING LOCATION .......................................................................................................... 7 1.2. PROJECT DATA ................................................................................................................ 7 1.3. SIGNATURE...................................................................................................................... 7 2. CLIENT INFORM ATION ................................................................................................ 8 2.1. APPLICA NT INFORMATION.................................................................................................. 8 2.2. MANUFA CTUR ER INFORMATION.......................................................................................... 8 3. EQUIPM ENT UNDER TEST(EUT) AND ANCILLARY EQUIPM ENT(AE)....................... 9 3.1. ABOUT EUT .................................................................................................................... 9 3.2. INTERNAL IDENTIF ICATION OF EUT USED DURING THE TEST ................................................ 9 3.3. INTERNAL IDENTIF ICATION OF AE USED DURING THE TEST................................................... 9 3.4. GENERAL DESCRIPTION .................................................................................................... 9 4. REFERENCE DOCUM ENTS ....................................................................................... 10 4.1. DOCUMENTS SUPPLIED BY A PPLICA NT .............................................................................. 10 4.2. REFERENCE DOCUMENTS FOR TESTING ............................................................... 10 5. LABORATORY ENVIRONM ENT ................................................................................. 10 6. SUMM ARY OF TEST RESULTS.................................................................................. 10 6.1. SUMMA RY OF TEST RESULTS .......................................................................................... 10 6.2. STATEMENTS ................................................................................................................. 11 6.3. TEST CONDITIONS.........................................…
