RAD500HSDPA/HSUPA/HSPA+/UMTS Quad bands / GSM quad bands/LTE 5 bands mobile phone

English - CJB60Y1B6AAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Unauthorized disassembly is prohibited. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone is not responding or frozen, restore to factory setting by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing this operation because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use this device, please go to www.alcatelonetouch.com to download the complete user manual. Additionally this website contains FAQ you can access for more information. BC 1 1 Your mobile ������������������ 1�1 Keys and connectors Micro-USB Connector Front camera LED indicator Headset connector Home key Touch screen Back key Menu key Power key Volume key Camera Camera Flash/ Flashlight SD card slot SIM card slot PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile ���������������������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������13 4 Contacts ������������������������������������������������������������������������15 5 Messaging�����������������������������������������������������������������������16 6 Email ������������������������������������������������������������������������������17 7 Getting connected ��������������������������������������������������������18 8 Find my location using GPS satellites ������������������������20 9 Data backup ������������������������������������������������������������������21 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������22 12 Making the most of your phone ����������������������������������23 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������33 Limited Warranty �������������������������������������������������������������������34 Troubleshooting����������������������������������������������������������������������36 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 30 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 To install, place the SIM card with the chip facing downwards in to the housing, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports micro-SIM cards. Do not attempt to insert other SIM type like mini and nano cards, otherwise this may cause phone damage. Installing and removing the microSD card Insert the microSD card with golden contact facing downwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Menu key • Touch to access settings options. • Touch and hold to open a list of recent apps. Home key • From any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible when the screen lights up. Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Power off/Restart/Airplane mode/Quick start. • Press the Power key for more than 9s to restart. • Press the Power key and Volume up key to reset. • Press the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up An insertion tool is provided with the phone package, please use it to install or remove the SIM/SD card conveniently. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. 45 Charging the battery Connect the battery charger to your phone and mains socket respectively, the LED indicator will light while charging. To reduce power consumption and energy waste when the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, Input method, date & time, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power o…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 6/21/2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD500 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up- Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

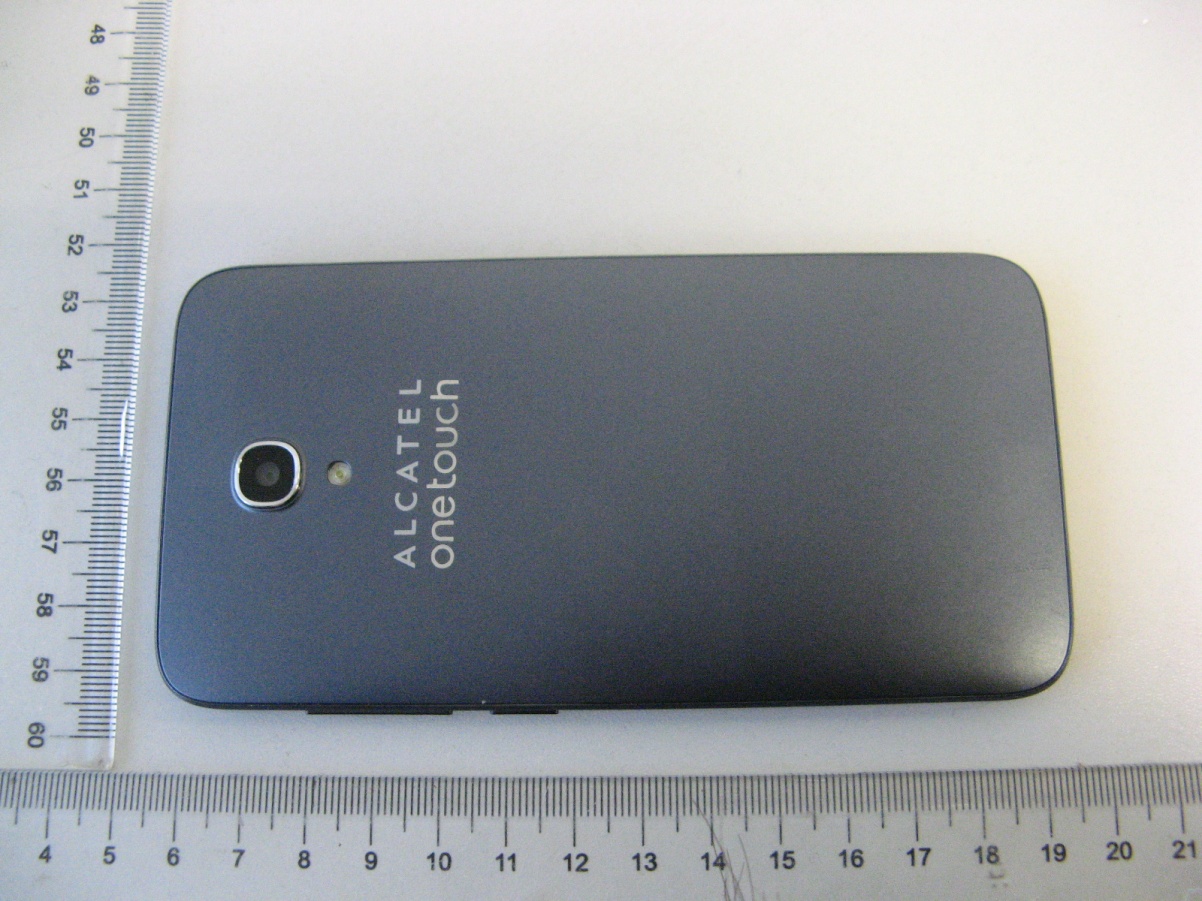

External Photos

0102 14.04.21 EOS 4G_Battery Cover_for Bell Create 14.05.12 Update 23.8mm 19.58mm 21.6 mm 1/4 Line 1/2 Line 25.741mm 28.5mm “onetouch” logo Light Chrome Metal inserted Legal Certification Marking: Clear Ink (Printed on 1st surface) “ALCATEL” logo: pantone 8001C (Printed on 1st surface)

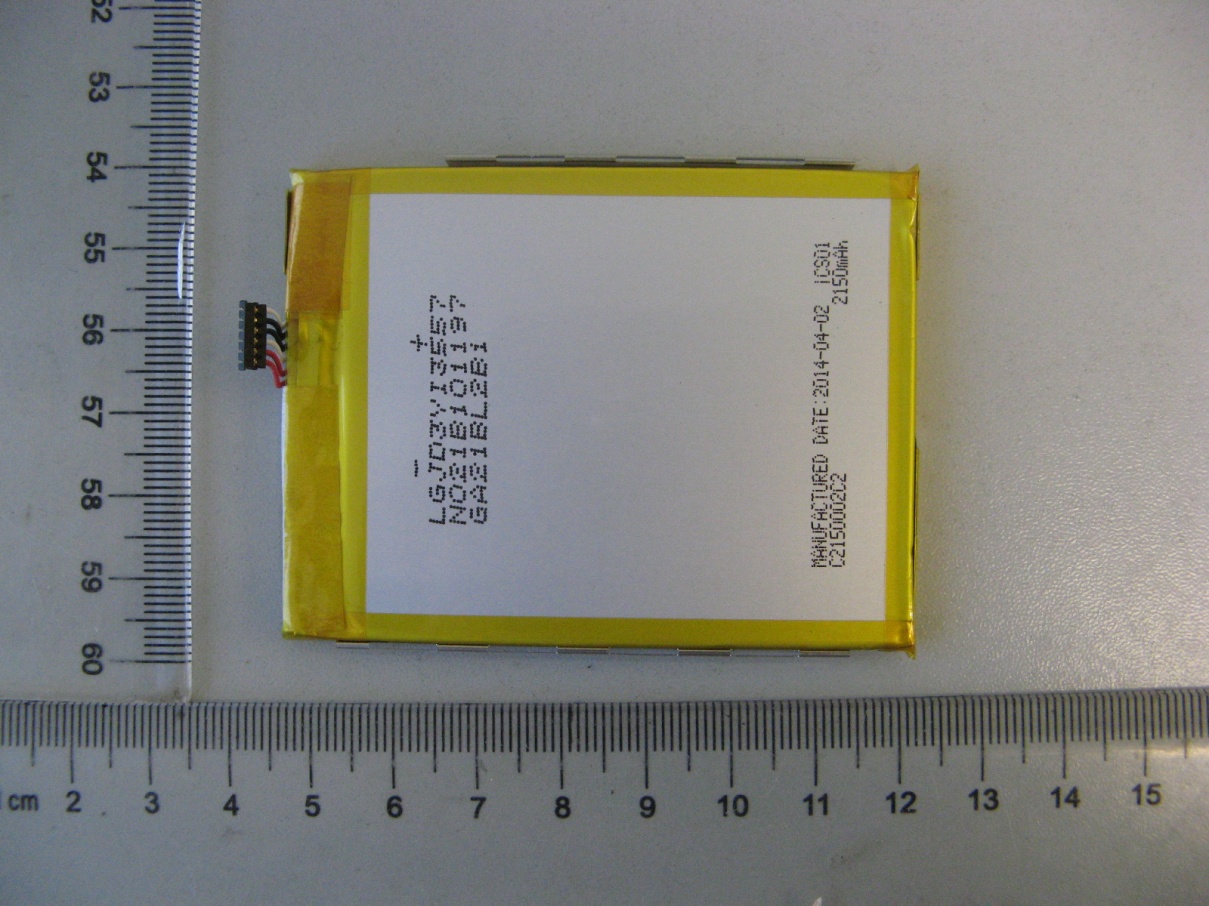

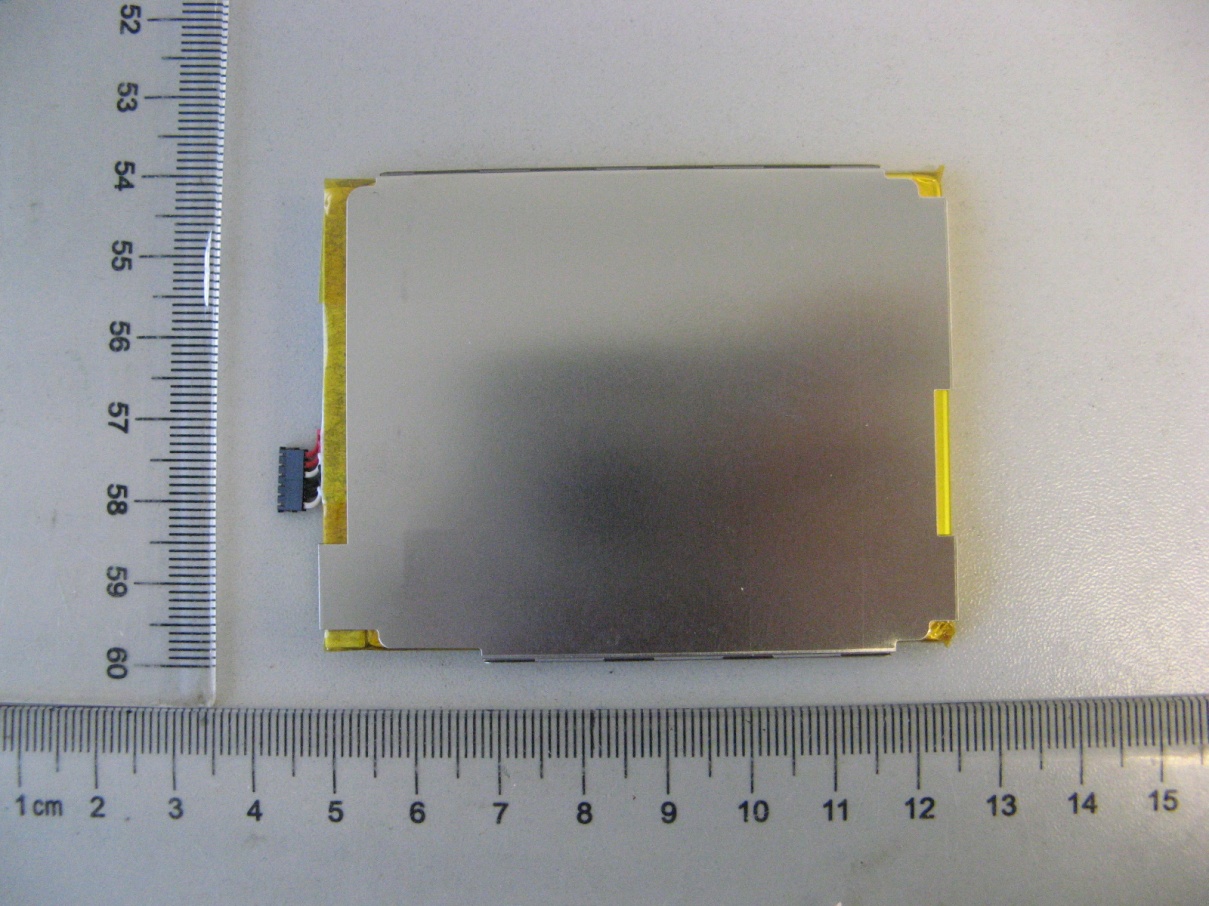

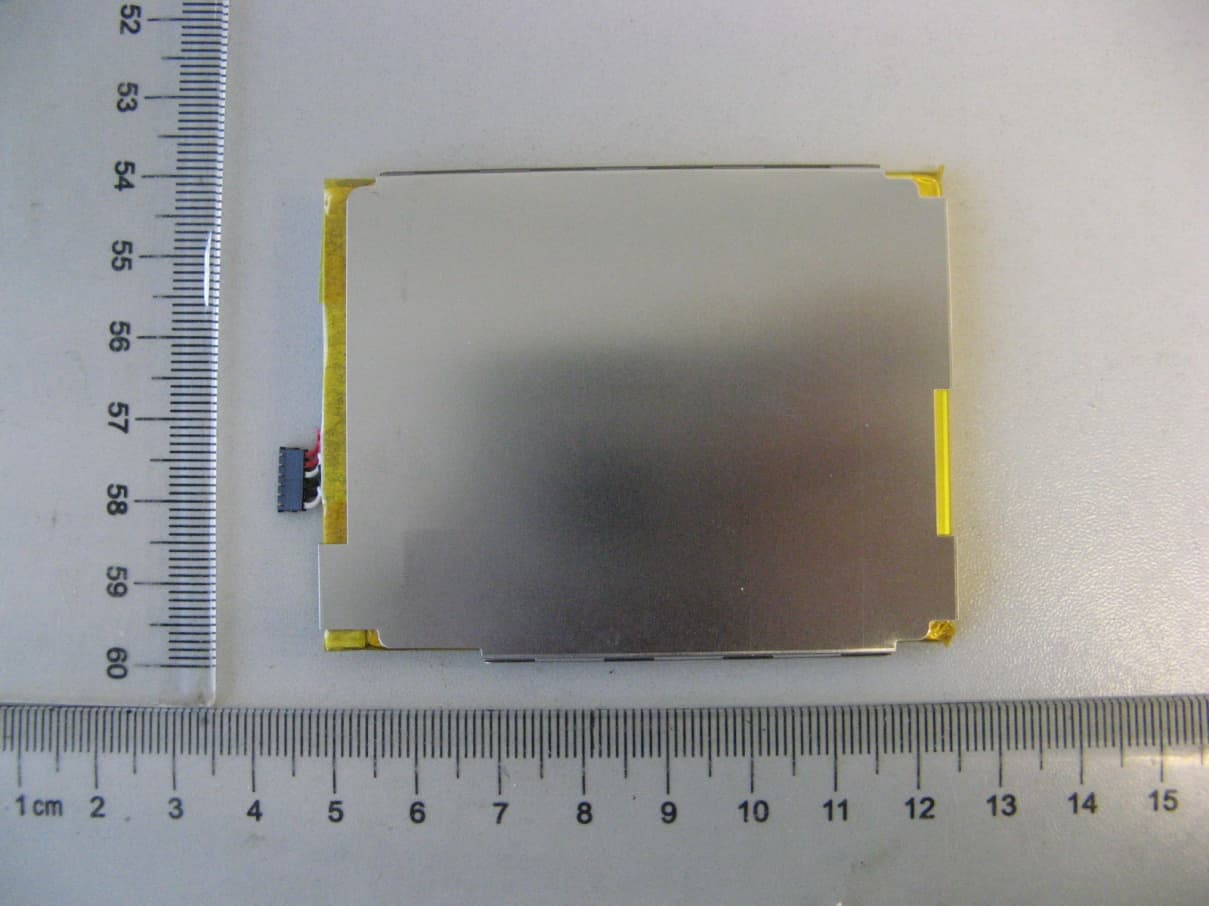

Internal Photos

No.I14Z45965-SEM01 Page 1 of 183 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z45965-SEM01 For TCT Mobile Limited HSDPA/HSUPA/HSPA+/UMTS Quad bands / GSM quad bands/LTE 5 bands mobile phone Model name: EOS 4G BELL Marketing name: 6050A With Hardware Version: 02 So ft ware Version: 7 D1Q FCC I D: RAD500 Issued Date: 201 4-06-20 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z45965-SEM01 Page 2 of 183 Revision Version Report Number Revision Date Memo I14Z45965-SEM01 0 2014-06-20 Initial creation of test report No. I14Z45965-SEM01 Page 3 of 183 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 19 8.1 SYSTEM SETUP ............................................................................................................................................. 19 8.2 SYSTEM VERIFICATION ................................................................................................................................. 20 9 MEASUREMENT PROCEDURES .............................................................................................. 21 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 21 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 22 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 23 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 24 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 POWER DRIFT ............................................................................................................................................... 25 10 AREA SCAN BASED 1-G SAR ................................................................................................. 26 10.1 REQUIREMENT OF KDB .............................................................................................................................. 26 10.2 FAST SAR ALGORITHMS .................................................................................................…

Text truncated - open the document above for the full version.

No. I14Z45965-SEM01 Page 51 of 183 Table 14.14 : SAR Values (LTE Band4 - Head) – CAC2150002C2 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Mode Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1720 20050 1RB_High Left Touch / 23.54 24.2 0.220 0.26 0.328 0.38 0.10 1720 20050 1RB_High Left Tilt / 23.54 24.2 0.118 0.14 0.198 0.23 0.09 1720 20 050 1RB_High Right Touch Fig. 11 23.54 24.2 0.387 0.45 0.584 0.68 -0.04 1720 20050 1RB_High Right Tilt / 23.54 24.2 0.116 0.14 0.202 0.24 -0.10 1745 20300 50RB_Low Left Touch / 22.63 23.2 0.153 0.17 0.250 0.29 0.15 1745 20300 50RB_Low Left Tilt / 22.63 23.2 0.090 0.10 0.151 0.17 0.17 1745 20300 50RB_Low Right Touch / 22.63 23.2 0.314 0.36 0.521 0.59 -0.03 1745 20300 50RB_Low Right Tilt / 22.63 23.2 0.082 0.09 0.142 0.16 0.08 Note1: The LTE mode is QPSK_20MHz. Table 14.15: SAR Values (LTE Band4 - Body) – CAC2150002C2 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Mode Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1720 20050 1RB_High Front / 23.54 24.2 0.378 0.44 0.603 0.70 0.01 1745 20300 1RB_High Rear Fig. 12 23.45 24.2 0.505 0.60 0.868 1.03 -0.03 1732.5 20175 1RB_High Rear / 23.50 24.2 0.490 0.58 0.799 0.94 0.00 1720 20050 1RB_High Rear / 23.54 24.2 0.524 0.61 0.832 0.97 -0.18 1720 20050 1RB_High Left / 23.54 24.2 0.064 0.07 0.109 0.13 -0.12 1720 20050 1RB_High Right / 23.54 24.2 0.111 0.13 0.187 0.22 -0.05 1720 20050 1RB_High Bottom / 23.54 24.2 0.323 0.38 0.593 0.69 0.02 1745 20300 50RB_Low Front / 22.63 23.2 0.264 0.30 0.428 0.49 -0.02 1745 20300 50RB_Low Rear / 22.63 23.2 0.342 0.39 0.556 0.63 -0.05 1745 20300 50RB_Low Left / 22.63 23.2 0.054 0.06 0.092 0.10 -0.10 1745 20300 50RB_Low Right / 22.63 23.2 0.090 0.10 0.153 0.17 0.04 1745 20300 50RB_Low Bottom / 22.63 23.2 0.263 0.30 0.487 0.56 0.02 1745 20300 100RB Rear / 22.62 23.2 0.405 0.46 0.677 0.77 -0.06 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The LTE mode is QPSK_20MHz. No. I14Z45965-SEM01 Page 52 of 183 Table 14.16: SAR Values (LTE Band7 - Head) – CAC2150002C2 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Mode Side Te st Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 2535 21100 1RB_High Left Touch / 21.66 21.8 0.044 0.05 0.082 0.08 0.11 2535 21100 1RB_High Left Tilt / 21.66 21.8 0.027 0.03 0.051 0.05 0.08 2535 21100 1RB_High Right Touch Fig. 13 21.66 21.8 0.154 0.16 0.275 0.28 -0.12 2535 21100 1RB_High Right Tilt / 21.66 21.8 0.024 0.02 0.046 0.05 -0.15 2535 21100 50RB_Mid Left Touch / 20.68 20.8 0.028 0.03 0.050 0.05 0.17 2535 21100 50RB_Mid Left Tilt / 20.68 20.8 0.016 0.02 0.029 0.03 0.11 2535 21100 50RB_Mid Right Touch / 20.68 20.8 0.105 0.11 0.209 0.21 0.15 2535 21100 50RB_Mid Right Tilt / 20.68 20.8 0.014 0.01 0.026 0.03 0.18 Note1: The LTE mode is QPSK_20MHz. Table 14.17: SAR Values (LTE Band7 - Body) – CAC2150002C2 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Mode Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 2535 21100 1RB_High Front / 21.66 21.8 0.046 0.05 0.097 0.10 0.13 2560 21350 1RB_High Rear Fig. 14 21.61 21.8 0.660 0.69 1.38 1.44 0.16 2535 21100 1RB_High Rear / 21.66 21.8 0.648 0.67 1.37 1.41 -0.17 2510 20850 1RB_High Rear / 21.46 21.8 0.603 0.65 1.19 1.29 0.17 2535 21100 1RB_High Left / 21.66 21.8 0.016 0.02 0.034 0.04 0.16 2535 21100 1RB_High Right / 21.66 21.8 0.045 0.05 0.085 0.09 0.19 2535 21100 1RB_High Bottom / 21.66 21.8 0.349 0.36 0.736 0.76 0.11 2535 21100 50RB_Mid Front / 20.68 20.8 0.031 0.03 0.059 0.06 -0.09 2560 21350 50RB_Mid Rear / 20.62 20.8 0.365 0.38 0.817 0.85 -0.12 2535 21100 50RB_Mid Rear / 20.68 20.8 0.373 0.38 0.825 0.85 0.13 2510 20850 50RB_Mid Rear / 20.62 20.8 0.364 0.38 0.815 0.85 -0.08 2535 21100 50RB_Mid Left / 20.68 20.8 0.006 0.01 0.012 0.01 -0.15 2535 21100 50RB_Mid Right / 20.68 20.8 0.071 0.07 0.128 0.13 0.11 2535 21100 50RB_Mid Bottom / 20.68 20.8 0.151 0.16 0.311 0.32 0.17 2535 21100 100RB Rear / 20.68 20.8 0.3 68 0.38 0.8 19 0.84 0.09 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The LTE mode is QPSK_20MHz. No. I14Z45965-SEM01 Page 53 of 183 Table 14.18: SAR Values (LTE Band17 - Head) – CAC2150002C2 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Frequency Mode Side Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 711 23800 1RB_Low Left Touch / 23.58 24.2 0.141 0.16 0.180 0.21 0.04 711 23800 1RB_Low Left Tilt / 23.58 24.2 0.080 0.09 0.113 0.13 0.00 711 23800 1RB_Low Right Touch Fig. 15 23.58 24.2 0.153 0.18 0.194 0.22 0.09 711 23800 1RB_Low Right Tilt / 23.58 24.2 0.072 0.08 0.102 0.12 0.11 709 23780 25RB_Low Left To uch / 22.60 23.2 0.099 0.11 0.141 0.16 0.10 709 23780 25RB_Low Left Tilt / 22.60 23.2 0.066 0.08 0.094 0.11 0.07 709 23780 25RB_Low Right Touch / 22.60 23.2 0.107 0.12 0.154 0.18 0.11 709 23780 25RB_Low Right Tilt / 22.60 23.2 0.058 0.07 0.083 0.10 0.09 Note1: The LTE mode is QPSK_10MHz. Table 14.19: SAR Values (LTE Band17 - Body) – CAC2150002C2 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Frequency Mode Test Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 711 23800 1RB_Low Front / 23.5…

Text truncated - open the document above for the full version.

No. I14Z45965-SEM01 Page 101 of 183 ANNEX B S ystem Verification Results 750 MHz Date: 2014-6-4 Electronics: DAE4 Sn771 Medium: Head 750 MHz Medium parameters used: f = 750 MHz; σ = 0.875 mho/m; ε r = 42.52; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.32, 9.32, 9.32) System Validation /Area Scan (81x191x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 50.97 V/m; Power Drift = -0.10 dB Fast SAR: SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.44 W/kg Maximum value of SAR (interpolated) = 2.36 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.97 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 3.06 W/kg SAR(1 g) = 2.18 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (measured) = 2.34 W/kg 0 dB = 2.36 W/kg = 7.46 dB W/kg Fig. B.1 validation 750MHz 250mW No. I14Z45965-SEM01 Page 102 of 183 750 MHz Date: 2014-6-4 Electronics: DAE4 Sn771 Medium: Body 750 MHz Medium parameters used: f = 750 MHz; σ = 0.942 mho/m; ε r = 56.79; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.96, 8.96, 8.96) System Validation /Area Scan (81x191x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 50.859 V/m; Power Drift = 0.09 dB Fast SAR: SAR(1 g) = 2.14 W/kg; SAR(10 g) = 1.41 W/kg Maximum value of SAR (interpolated) = 2.28 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.859 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 3.02 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.40 W/kg Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 7.16 dB W/kg Fig. B.2 validation 750MHz 250mW No. I14Z45965-SEM01 Page 103 of 183 835MHz Date: 2014-5-29 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 42.44; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) System Validation /Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 52.752 V/m; Power Drift = -0.14 dB Fast SAR: SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (interpolated) = 2.59 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.752 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.60 W/kg 0 dB = 2.59 W/kg = 8.27 dB W/kg Fig. B.3 validation 835MHz 250mW No. I14Z45965-SEM01 Page 104 of 183 835MHz Date: 2014-5-29 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.984 mho/m; ε r = 56.26; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) System Validation /Area Scan (81x171x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 46.571 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (interpolated) = 2.61 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.571 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.40 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.59 W/kg 0 dB = 2.61 W/kg = 8.33 dB W/kg Fig. B.4 validation 835MHz 250mW No. I14Z45965-SEM01 Page 105 of 183 175 0MHz Date: 2014-6-3 Electronics: DAE4 Sn771 Medium: Head 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.352 mho/m; εr = 39.69; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.85, 7.85, 7.85) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 94.477 V/m; Power Drift = -0.09 dB Fast SAR: SAR(1 g) = 9.38 W/kg; SAR(10 g) = 4.99 W/kg Maximum value of SAR (interpolated) = 10.6 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.477 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 16.54 W/kg SAR(1 g) = 9.42 W/kg; SAR(10 g) = 5.01 W/kg Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 20.51 dB W/kg Fig. B.5 validation 1750MHz 250mW No. I14Z45965-SEM01 Page 106 of 183 175 0MHz Date: 2014-6-3 Electronics: DAE4 Sn771 Medium: Body 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.483 mho/m; εr = 53.45; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.56, 7.56, 7.56) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 94.804 V/m; Power Drift = 0.10 dB Fast SAR: SAR(1 g) = 9.31 W/kg; SAR(10 g) = 5.04 W/kg Maximum value of SAR (interpolated) = 10.7 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.804 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 15.01 W/kg SAR(1 g) = 9.35 W/kg; SAR(10 g) = 5.06 W/kg Maximum value of SAR (measured) = 10.7 W/kg 0 dB = 10.7 W/kg = 20.59 dB W/kg Fig. B.6 validation 1750MHz 250mW No. I14Z45965-SEM01 Page 107 of 183 1900MHz Date: 2014-5-30 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.397 mho/m; ε r = 41.51; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 97.312 V/m; Power Drift = -0.07 dB Fast SAR: …

Text truncated - open the document above for the full version.

No. I14Z45965-SEM01 Page 141 of 183 No. I14Z45965-SEM01 Page 142 of 183 No. I14Z45965-SEM01 Page 143 of 183 No. I14Z45965-SEM01 Page 144 of 183 835 MHz Dipole Calibration Certificate No. I14Z45965-SEM01 Page 145 of 183 No. I14Z45965-SEM01 Page 146 of 183 No. I14Z45965-SEM01 Page 147 of 183

No. I14Z45965-SEM01 Page 148 of 183 No. I14Z45965-SEM01 Page 149 of 183 No. I14Z45965-SEM01 Page 150 of 183 No. I14Z45965-SEM01 Page 151 of 183 No. I14Z45965-SEM01 Page 152 of 183 1750 MHz Dipole Calibration Certificate No. I14Z45965-SEM01 Page 153 of 183 No. I14Z45965-SEM01 Page 154 of 183 No. I14Z45965-SEM01 Page 155 of 183

No. I14Z45965-SEM01 Page 156 of 183 No. I14Z45965-SEM01 Page 157 of 183 No. I14Z45965-SEM01 Page 158 of 183 No. I14Z45965-SEM01 Page 159 of 183 No. I14Z45965-SEM01 Page 160 of 183 1900 MHz Dipole Calibration Certificate No. I14Z45965-SEM01 Page 161 of 183 No. I14Z45965-SEM01 Page 162 of 183 No. I14Z45965-SEM01 Page 163 of 183 No. I14Z45965-SEM01 Page 164 of 183 No. I14Z45965-SEM01 Page 165 of 183 No. I14Z45965-SEM01 Page 166 of 183 No. I14Z45965-SEM01 Page 167 of 183 No. I14Z45965-SEM01 Page 168 of 183 2450 MHz Dipole Calibration Certificate No. I14Z45965-SEM01 Page 169 of 183 No. I14Z45965-SEM01 Page 170 of 183 No. I14Z45965-SEM01 Page 171 of 183 No. I14Z45965-SEM01 Page 172 of 183 No. I14Z45965-SEM01 Page 173 of 183 No. I14Z45965-SEM01 Page 174 of 183 No. I14Z45965-SEM01 Page 175 of 183 No. I14Z45965-SEM01 Page 176 of 183 2600 MHz Dipole Calibration Certificate No. I14Z45965-SEM01 Page 177 of 183 No. I14Z45965-SEM01 Page 178 of 183 No. I14Z45965-SEM01 Page 179 of 183 No. I14Z45965-SEM01 Page 180 of 183 No. I14Z45965-SEM01 Page 181 of 183 No. I14Z45965-SEM01 Page 182 of 183 No. I14Z45965-SEM01 Page 183 of 183

No. I14Z45965-GTE05 Page1 of 42 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. I14Z45965-GTE05 for TCT Mobile Limited HSDPA/HSUPA/HSPA+/UMTS Quad bands / GSM quad bands/LTE 5 bands mobile phone Model Name: EOS 4G BELL Marketing Name: 6050A FCC ID: RAD500 IC No. : 9238A-0034 Hardware Version: 02 Software Version: 7D1Q Issued Date: 2014-06-18 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 Note: The test result s in this test report relate o nly to the dev ices specifie d i n this report. T his report sh all not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304633-2504 Email:[email protected] No. I14Z45965-GTE05 Page2 of 42 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. N ORMAL ACCESSORY SETTING ........................................................................................................ 6 3.5. G ENERAL DESCRIPTION ...................................................................................................................…
