RAD505GSM dual band mobile phone

1 9 2 10 3 11 4 12 5 13 6 14 7 15 8 16 1 Your mobile .............. 1.1 Keys Navigation key Confirm an option (press the middle of the key) Answer/Send a call In idle screen: Access call log (Redial) (press) Switch on/Switch off the telephone (press and hold) End call Return to idle screen Left softkey Right softkey Access your voicemail (press and hold) In Edit mode: - Press: access the symbols table - Press and hold: enter zero In Edit mode: - Press: change input methods - Press and hold: access the language list In idle screen: - Press: # - Press and hold: activate/deactivate the vibrate mode In Edit mode: - Press: (space) 1.2 Main screen icons (1) Battery charge level. Vibrate alert: your phone vibrates, but does not ring or beep. Headset connected. Call forwarding activated: your calls are forwarded. Alarm or appointments programed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Roaming. SIM card missing. Music activated. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. Flight mode. Charging the battery Connect the battery charger to your phone and outlet respectively. • The charging may take about 20 minutes to start if the battery is flat. • Be careful not to force the plug into the socket. • Make sure the battery is correctly inserted before connecting the charger. • The outlet must be near to the phone and easily accessible (avoid electric extension cables). • When using your telephone for the first time, charge the battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). • To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; reduce the backlight time, etc. The charge is complete when the animation stops. This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 2.2 Power on your phone Hold down the key until the phone powers on. 2.3 Power off your phone Hold down the key from the main screen. 3 Calls ......................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey. To hang up the call, press the key. 6 Call log ................ 6.1 Access You can access the function using the following options: • Select from main menu • Press the send key from Home screen 6.2 Available options When you press "Options", you can have access to View, Send SMS, Save to Contacts, Edit before call, Add to blacklist, Add to whitelist, Delete etc. 7 Music .................... Access this feature from the main menu by selecting “Music”. You will have full flexibility of managing music on memory card. Make sure your memory card well inserted before activating music. Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). www.sar-tick.com (1) The icons and illustrations in this guide are provided for information purposes only. 4 Contacts ............ 4.1 Consulting your contacts To access the Contacts from the main screen, press the key and select the icon from the menu. 4.2 Adding a contact You can add a new contact to phone or SIM card by selecting "Add contact". 5 Messages ........... 5.1 Create message From the main menu select "Messages" to create text message. You can type a message and you can also modify a predefined message in SMS template. While writing a message, select "Options" to access all the messaging options. You can save your messages that you send often to Drafts. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your directory, your calendar, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 2 Getting started ......... 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. 8 FM radio .............. Your phone is equipped with a radio (1) with RDS functionality. You can use the application as a traditional radio with saved channels or with parallel visual information related to the radio program on the display if you tune to stations that offer Visual Radio service. You can listen to it while running other applications. 9 My files ................ You will have access to all audio and visual files stored in memory card in My files. You can access a number of items with this option: My audios, Photos. Inserting and removing the memory card: To insert the microSD card with the golden contact downward. To remove the card, press and slide it out. 10 Settings ............. From the main menu, select the menu icon and select the function of your choice in order to customize your telephone: Phone set…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-7-2 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD505 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-7-2 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

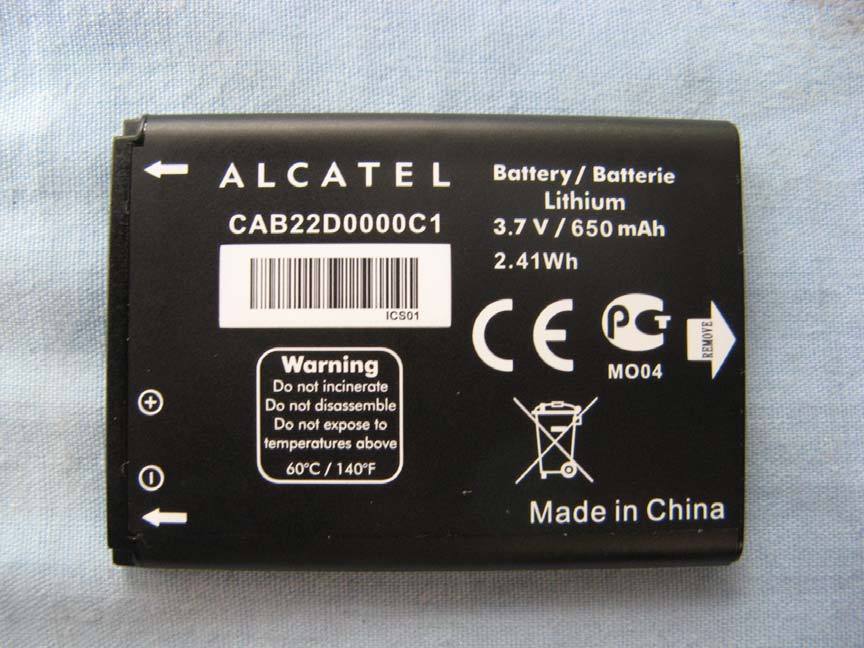

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Battery AE3 Battery AE3 Label of Charger AE4 Charger AE4 Label of Charger AE5 Charger AE4 Headset AE10 Headset AE11 Data Cable AE14 Data Cable AE15

Pic A-3 Mobile phone Disassembly Pic A-4 Mobile phone Disassembly Pic A-5 Mobile phone Disassembly Pic A-5 Mobile phone Disassembly

No. I14Z46994-SRD01 Page1 of 87 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. I14Z46994-SRD01 for TCT Mobile Limited GSM dual band mobile phone Model Name: 1035A FCC ID: RAD505 with Hardware Version: PIO Software Version: SWC13 Issued Date: 2014-07-10 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com CO 1. T 1.1 1.2 1.3 1.4 2. C 2.1 2.2. 3. E 3.1 3.2 3.3 3.4 3.5 4. R 4.1 4.2 5. L 6. S 6.1 6.2 7. T ANN A. 1 A.2 A.3 A.4 A.5 A.6 A.7 A.8 A.9 A. ONTENT TEST LABO 1. TESTING 2. TESTING 3. PROJEC 4. SIGNATU CLIENT INF 1. APPLICA MANUFA EQUIPMEN 1. ABOUT E 2. INTERNA 3. INTERNA 4. NORMAL 5. GENERA REFERENC 1. DOCUM 2. REFERE LABORATO SUMMARY 1. SUMMAR 2. STATEM TEST EQUI EX A: ME A 1. MEASUREM 2. PEAK OUT 3. FREQUENC 4. CONDUCT 5. RADIATED 6. TIME OF O 7. 20DB BAN 8. CARRIER F 9. NUMBER O 10. AC POW TS ORATORY . G LOCATION . G ENVIRONM CT DATA ....... URE ............ FORMATION ANT INFORMA ACTURER IN NT UNDER T EUT ........... AL IDENTIFICA AL IDENTIFICA L ACCESSOR AL DESCRIPT CE DOCUME ENTS SUPPLI ENCE DOCUM ORY ENVIRO OF TEST R RY OF TEST R ENTS .......... PMENTS U ASUREMENT MENT METHO TPUT POWER CY BAND EDG ED EMISSION EMISSION ... OCCUPANCY ( NDWIDTH ...... FREQUENCY OF HOPPING C WERLINE CON ................... ................... ENT ............. ................... ................... N ................. ATION ........... NFORMATIO TEST (EUT) ................... ATION OF EU ATION OF AE RY SETTING ... TION ............. ENTS ......... ED BY APPLIC MENTS FOR TE ONMENT ... RESULTS .... RESULTS ..... ................... UTILIZED ..... T RESULTS OD ............... - CONDUCTE GES - CONDU N.................. ................... DWELL TIME ................... SEPARATION CHANNELS .. NDUCTED EMI ................... ................... ................... ................... ................... ................... ................... ON .............. ) AND ANCI ................... UT USED DUR E USED DURIN ................... ................... ................... CANT ........... ESTING ........ ................... ................... ................... ................... ................... S ................. ................... ED ............... UCTED ......... ................... ................... E) ................. ................... N .................. ................... ISSION ......... ©Copy ................... ................... ................... ................... ................... ................... ................... ................... LLARY EQ ................... RING THE TES NG THE TEST ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... No. I1 yright. All right ................... ................... ................... ................... ................... ................... ................... ................... UIPMENT (A ................... T ................. ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... 14Z46994 Page ts reserved by ................... ................... ................... ................... ................... ................... ................... ................... AE) ............ ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... 4-SRD01 e2 of 87 y TMC Beijing. ................. 3 ................. 3 ................. 3 ................. 3 ................. 3 ................. 4 ................. 4 ................. 4 ................. 5 ................. 5 ................. 5 ................. 5 ................. 5 ................. 5 ................. 6 ................. 6 ................. 6 ................. 7 ................. 8 ................. 8 ................. 8 ................. 9 ............... 10 ............... 10 ............... 11 ............... 12 ............... 19 ............... 44 ............... 63 ............... 73 ............... 79 ............... 81 ............... 85 7 . 3 3 3 3 3 4 4 4 5 5 5 5 5 5 6 6 6 7 8 8 8 9 0 0 2 9 4 3 3 9 5 1. T 1.1. Co Ad Po Te Fa 1.2. No Ex Re 1.3. Pro Tes Tes 1.4. Test Lab Testing L ompany Nam ddress: ostal Code: elephone: ax: Testing E ormal Tempe xtreme Temp elative Humi Project d oject Leader sting Start D sting End D Signatur (Prep (Revie Deputy (Appr boratory Location me: Environme erature: perature: dity: data r: Da…

Text truncated - open the document above for the full version.

Conducted emission Conducted emission Radiated emission Radiated emission Pic F-1 Radiated Spurious Emission Test Layout Pic F-2 Radiated Spurious Emission Test Layout
