RAD513Mobile phone with GSM/GPRS/EDGE 850/1900, WCDMA/HSPA FDD II/V and Bluetooth

1 8 2 9 3 10 4 11 5 12 6 13 7 14 English - CJB19X0ALAAA Quick Start Guide www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. The mobile phone is in compliance with the requirement of EN 60950-1: 2006 amendment A12: 2011. There will appear a warning box when the volume level is over 6. If the user selects left soft key in the warning box, the volume can be increased and the phone will repeat the acknowledgement more than once every 20h of cumulative listening time. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile ................... 1 Left soft key 2 Call log (idle screen) Send call 3 Voicemail (press and hold) 4 Lock Key (long press key) 5 Right soft key 6 Power on/Power off End call 7 Vibrate alert 8 Navigation key : Menu/Confirm an option Increase volume Reduce volume New SMS Alarm 1 2 6 3 5 74 8 1.1 Keys Navigation key Confirm an option (press the middle of the key) Send call Access to call log (idle screen) Power on/off the handset (press and hold) End call Return to idle Left soft key Right soft key Dial the voicemail number (press and hold) From Idle screen - Press: enter zero - Press and hold: input+/p/w, “+” are used for dialing an international call, “P” and “W” are used for calling the extension. In Edit mode: - Press: Input symbol (text edit mode) 0 (add numbers) From Idle screen - Press: input * - Press and hold: lock keypad In Edit mode: - Press: change input methods - Press and hold *: select writing language From Idle screen - Press: input # - Press and hold: activate/deactivate the vibrator In Edit mode: - Press: input “ ” (space) 1.2 Idle screen icons Battery charge level. Meeting mode: your phone vibrates, but neither rings nor beeps. Silence mode: your phone neither rings, beeps nor vibrates. Flight mode. Headset connected. Alarm clock programed. Missed calls. Roaming. Level of network reception. Unread SMS. Unread MMS. Message full. Call divert. 2 Getting started ............ 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing TF card Inserting and removing SIM Charging the battery Connect the battery charger to your phone and outlet respectively. • The charging may take about 20 minutes to start if the battery is flat. • Be careful not to force the plug into the socket. • Make sure the battery is correctly inserted before connecting the charger. • The mains socket must be near to the phone and easily accessible (avoid electric extension cables). • When using your telephone for the first time, charge the battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). • To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; reduce the backlight time, etc. The charge is complete when the animation stops. 2.2 Power on your phone Hold down the key until the phone powers on. 2.3 Power off your phone Hold down the key from the idle screen. 3 Calls ............................... 3.1 Making a call Dial the desired number, press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the key. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) You can see SIM voice mail in this menu. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your directory, your calendar, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 4 Camera ................... This function enables you to take pictures. Press to take the picture. 5 Call log .................... You can access your call memory by pressing from the idle screen, or press the key and select the icon from the menu. In this menu, you will see all call history. 6 Games ..................... Two games named Snake and Sokoban were embedded in the phone, for more information please refers to “help” in the game. 7 Tools ........................ 7.1 Alarm Your mobile phone has a built-in alarm clock with snooze feature. 7.2 Calculator Press the up, down, left, right and OK key to select +, - ×, ÷ and = respectively. Press to delete the figure. 7.3 Calendar Once you enter this menu, there is a monthly-view calendar for you to view the date; you can go to any day you want. 7.4 Bluetooth You can transfer data, such as music to other device using Bluetooth. Search the device and accept/transfer data. The received data is automatically stored in the directory. 7.5 Unit conversion Unit conversion support weight conversion and length conversion. 7.6 Fake call You can create fake call through this function. 7.7 Call filter Management and preview the whitelist and blacklist, and can enable blacklist, enable whitelist, also can turn off this feature. 7.8 Browser This function enables you to surf the Internet using the mobile phone. Note: Consulting the local network operator for related fee and specific setup. 7.9 Services STK service is the tool kit of SIM card. This phone supports the service functionThe specific items depend on SIM card and network. Serv…

Text truncated - open the document above for the full version.

TCT Mobile Limited Date (18/08/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: RAD513 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (TCT Mobile Limited) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts list Block diagram Tune up Procedure Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Gong Zhizhou Telephone Number: +86(0)21 61460666 Email: [email protected]

TCT Mobile Limited Date (18/08/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (TCT Mobile Limited), hereby authorize (Liwei from TÜV SÜD Certification and Testing (China) CO., Ltd. Beijing Branch, Unit 918, Landmark Tower 2, 8 North Dongsanhuan Road,100004 Beijing) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (6 months from original date. If you have any question regarding the authorization, please don’t hesitate to contract with me.). Sincerely, Company Officer: Gong Zhizhou Telephone Number: +86(0)21 61460666 Email: [email protected]

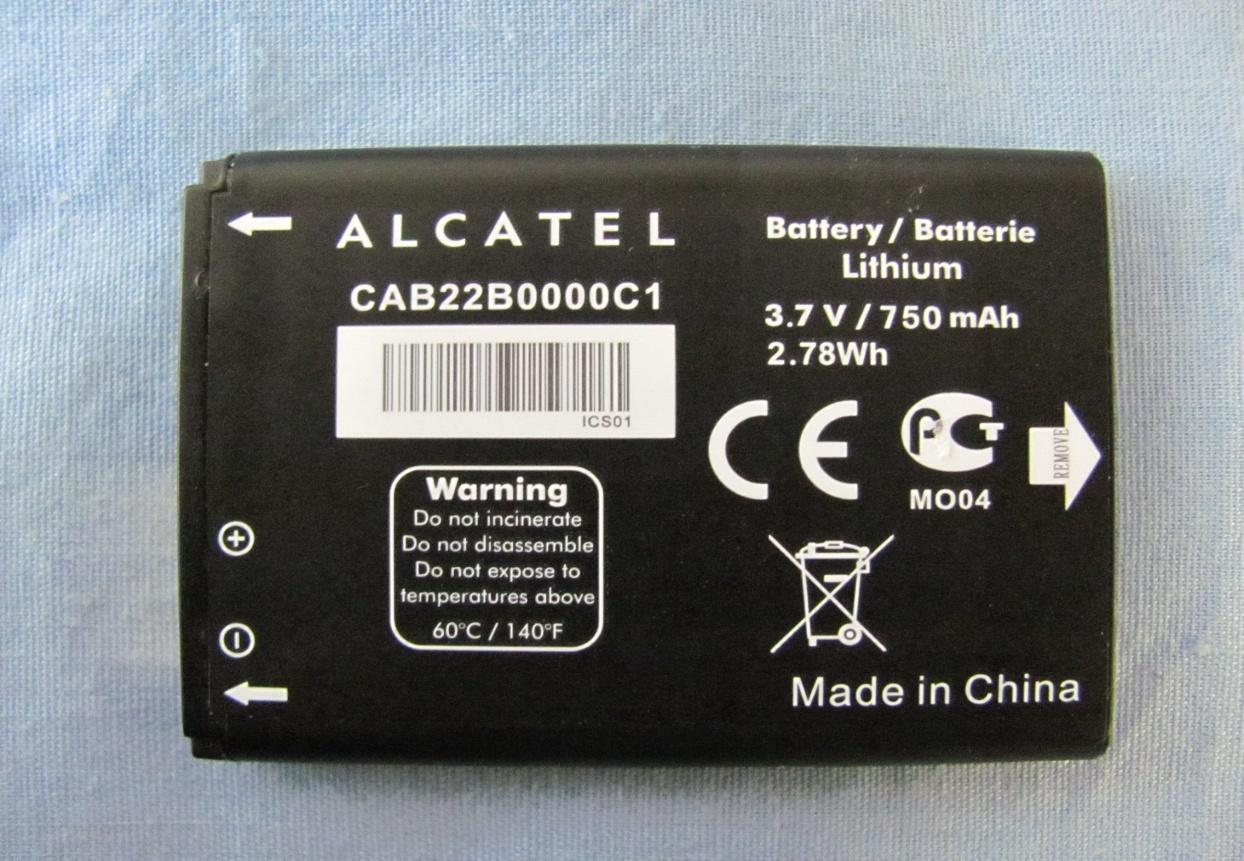

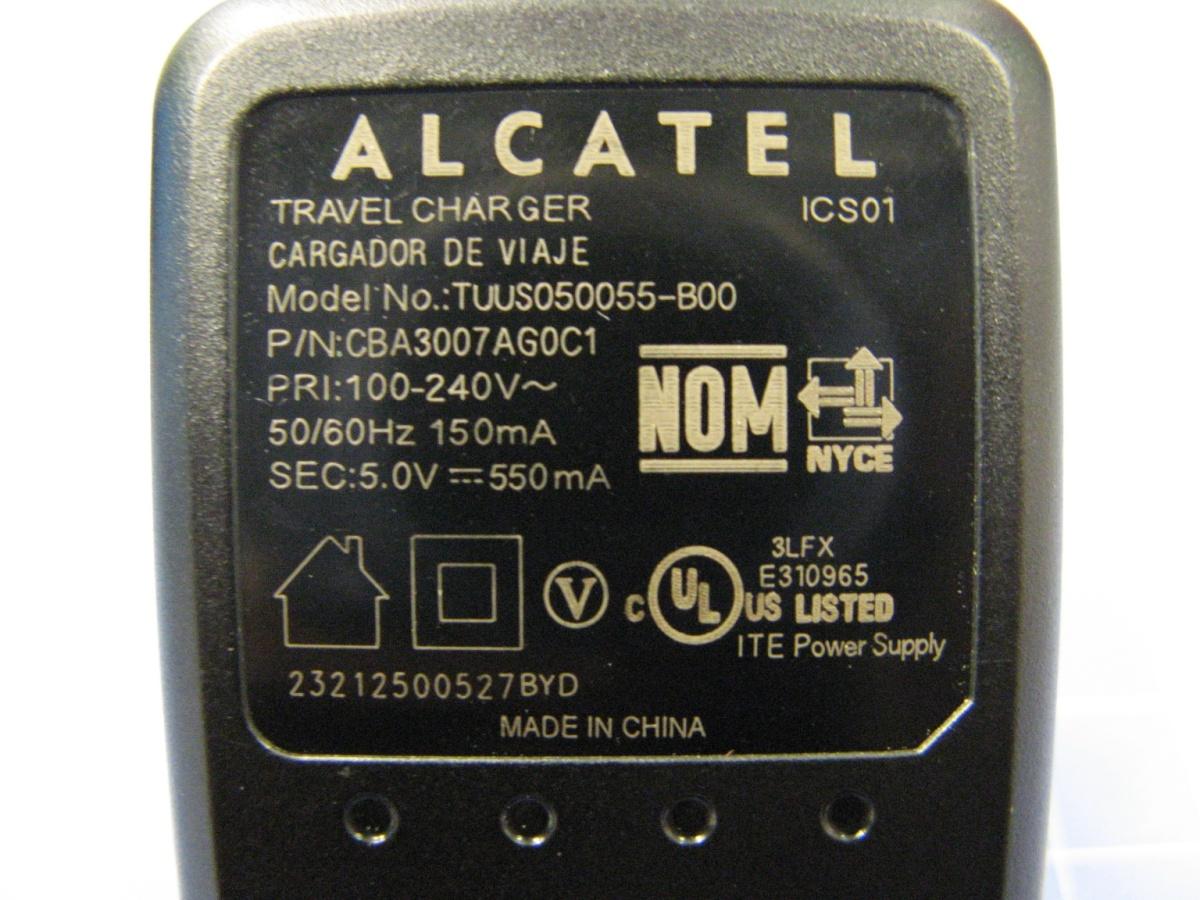

External photo:

Internal photo:

No. I14Z46953-SEM01 Page 1 of 99 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z46953-SEM01 For TCT Mobile Limited GSM Quad band &UMTS Dual band mobile phone Mode Name: 2052A With Hardware Version: PIO Software Version: 01 FCC ID: RAD513 Issued Date: 2014-08-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z46953-SEM01 Page 2 of 99 Revision Version Report Number RevisionDate Memo I14Z46953-SEM01 0 2014-07-10 Initial creation of test report I14Z46953-SEM01 1 2014-08-19 Modify the Highest Reported SAR values in table 2.1 on page 6 No. I14Z46953-SEM01 Page 3 of 99 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 14 8.1 SYSTEM SETUP ............................................................................................................................................. 14 8.2 SYSTEM VERIFICATION ................................................................................................................................. 15 9 MEASUREMENT PROCEDURES .............................................................................................. 16 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 16 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 17 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 18 9.4 BLUETOOTH MEASUREMENT PROCEDURES FOR SAR .................................................................................. 19 9.5 POWER DRIFT ............................................................................................................................................... 19 10 AREA SCAN BASED 1-G SAR ................................................................................................. 20 10.1 REQUIREMENT OF KDB .............................................................................................................................. 20 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 20 11 CONDUCTED OUTPUT POWER ................................................................…

Text truncated - open the document above for the full version.

No. I14Z46953-SEM01 Page 51 of 99 WCDMA 850 Body Rear Low Date: 2014- 6- 6 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.977 S/m; ε r = 56.053; ρ = 1000 kg/m 3 Ambient Temperature: 23.3 o C Liquid Temperature: 22.5 o C Communication System: WCDMA; Frequency: 846.6 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) Rear Low/Area Scan (41x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.773 W/kg Rear Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.934 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.698 W/kg; SAR(10 g) = 0.492 W/kg Maximum value of SAR (measured) = 0.741 W/kg Fig.6 WCDMA 850 CH4132 No. I14Z46953-SEM01 Page 52 of 99 Fig. 6-1 Z-Scan at power reference point (WCDMA850 CH4132) No. I14Z46953-SEM01 Page 53 of 99 WCDMA 1900 Right Cheek High Date: 2014- 6- 7 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.418 S/m; ε r = 40.239; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) Right/Cheek High 2/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.69 W/kg Right/Cheek High 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.511 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 1.91 W/kg SAR(1 g) = 1.3 W/kg; SAR(10 g) = 0.810 W/kg Maximum value of SAR (measured) = 1.64 W/kg Fig.7 WCDMA1900 CH9538 No. I14Z46953-SEM01 Page 54 of 99 Fig. 7-1 Z-Scan at power reference point (WCDMA1900 CH9538) No. I14Z46953-SEM01 Page 55 of 99 WCDMA 1900 Body Rear High Date: 2014- 6- 7 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.491 S/m; ε r = 52.948; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.03, 7.03, 7.03) Configuration/Toward Phantom Low/Area Scan (41x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.36 W/kg Configuration/Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.476 V/m; Power Drift = 0.13 Peak SAR (extrapolated) = 1.87 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.663 W/kg Maximum value of SAR (measured) = 1.30 W/kg Fig.8 WCDMA1900 CH9538 No. I14Z46953-SEM01 Page 56 of 99 Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9538) No. I14Z46953-SEM01 Page 57 of 99 ANNEX B System Verification Results 835MHz Date: 2014- 6- 6 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.917 S/m; ε r = 42.44; ρ = 1000 kg/m 3 Ambient Temperature: 23.3 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) System Validation/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.328 V/m; Power Drift = 0.15 dB Fast SAR: SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (interpolated) = 2.53 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.328 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (measured) = 2.49 W/kg 0 dB = 2.53 W/kg = 8.06 dBW/kg Fig.B.1 validation 835MHz 250mW No. I14Z46953-SEM01 Page 58 of 99 835MHz Date: 2014- 6- 6 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.984 S/m; ε r = 55.96; ρ = 1000 kg/m 3 Ambient Temperature: 23.3 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) System Validation /Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.113 V/m; Power Drift = 0.11dB Fast SAR: SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (interpolated) = 2.61 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.113 V/m; Power Drift = 0.11dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.40 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.62 W/kg 0 dB = 2.61 W/kg = 8.33 dBW/kg Fig.B.2 validation 835MHz 250mW No. I14Z46953-SEM01 Page 59 of 99 1900MHz Date: 2014- 6- 7 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.41 S/m; ε r = 40.24; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.57, 7.57, 7.57) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 99.243 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 9.99 W/kg; SAR(10 g) = 5.24 W/kg Maximum value of SAR (interpolated) = 11.8 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.243 V/m; Power Drift = 0.04dB Peak SAR (extrapolated) = 18.19 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.40 W/kg Maximum value of SAR (measured) = 11.9 W/kg 0 dB = 11.8 W/kg = 21.44 dB W/kg Fig.B.3 validation 1900MHz 250mW No. I14Z46953-SEM01 Page 60 of 99 1900MHz Date: 2014- 6- 7 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.533 S/m; ε r = 52.76; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.03, 7.03, 7.03) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 78.487 V/m; Power Drift = -0.05dB Fast SAR: S…

Text truncated - open the document above for the full version.

No. I14Z46953-SEM01 Page 86 of 99 No. I14Z46953-SEM01 Page 87 of 99 No. I14Z46953-SEM01 Page 88 of 99 No. I14Z46953-SEM01 Page 89 of 99 No. I14Z46953-SEM01 Page 90 of 99 No. I14Z46953-SEM01 Page 91 of 99 No. I14Z46953-SEM01 Page 92 of 99 1900 MHz Dipole Calibration Certificate No. I14Z46953-SEM01 Page 93 of 99 No. I14Z46953-SEM01 Page 94 of 99 No. I14Z46953-SEM01 Page 95 of 99 No. I14Z46953-SEM01 Page 96 of 99 No. I14Z46953-SEM01 Page 97 of 99 No. I14Z46953-SEM01 Page 98 of 99 No. I14Z46953-SEM01 Page 99 of 99

No. I14Z46953-SEM01 Page 89 of 99 No. I14Z46953-SEM01 Page 90 of 99 No. I14Z46953-SEM01 Page 91 of 99 No. I14Z46953-SEM01 Page 92 of 99 1900 MHz Dipole Calibration Certificate No. I14Z46953-SEM01 Page 93 of 99 No. I14Z46953-SEM01 Page 94 of 99 No. I14Z46953-SEM01 Page 95 of 99 No. I14Z46953-SEM01 Page 96 of 99 No. I14Z46953-SEM01 Page 97 of 99 No. I14Z46953-SEM01 Page 98 of 99 No. I14Z46953-SEM01 Page 99 of 99

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. I14Z46953-SEM01 For TCT Mobile Limited GSM Quad band &UMTS Dual band mobile phone Mode Name: 2052A With Hardware Version: PIO Software Version: 01 FCC ID: RAD513 Issued Date: 2014-07-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 2 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 6: Front Picture 6-1: Front with Headset Picture 7: Rear Picture 7-1: Rear with Headset

No. I14Z46953-GTE01 Page1 of 81 TEST REPORT No. I14Z46953-GTE01 for TCT Mobile Limited GSM Quad band &UMTS Dual band mobile phone Model Name: 2052A FCC ID: RAD513 with Hardware Version: PIO Software Version: 01 Issued Date: 2014-08-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. I14Z46953-GTE01 Page2 of 81 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................11 A.2 EMISSION LIMIT ........................................................................................................................... 17 A.3 CONDUCTED EMISSION ............................................................................................................. 23 A.4 FREQUENCY STABILITY ............................................................................................................ 28 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 30 A.6 EMISSION BANDWIDTH................................................................................................................ 42 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 54 A.8 CONDUCTED SPURIOUS EMISSION ........................................................................................... 61 No. I14Z46953-GTE01 Page3 of 81 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2014-06-11 Testing End Date: 2014-06-18 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. I14Z46953-GTE01 Page4 of 81 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Houhua.FAN Contact Email [email protected] Telephone: 0086-21-61460666 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460666 Fax: 0086-21-61460602 No. I14Z46953-GTE01 Page5 of 81 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3…

Text truncated - open the document above for the full version.

No. I14Z46953-GTE02 Page1 of 58 TEST REPORT No. I14Z46953-GTE02 for TCT Mobile Limited GSM Quad band &UMTS Dual band mobile phone Model Name: 2052A FCC ID: RAD513 with Hardware Version: PIO Software Version: 01 Issued Date: 2014-08-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. I14Z46953-GTE02 Page2 of 58 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT .....................................................…

Text truncated - open the document above for the full version.
