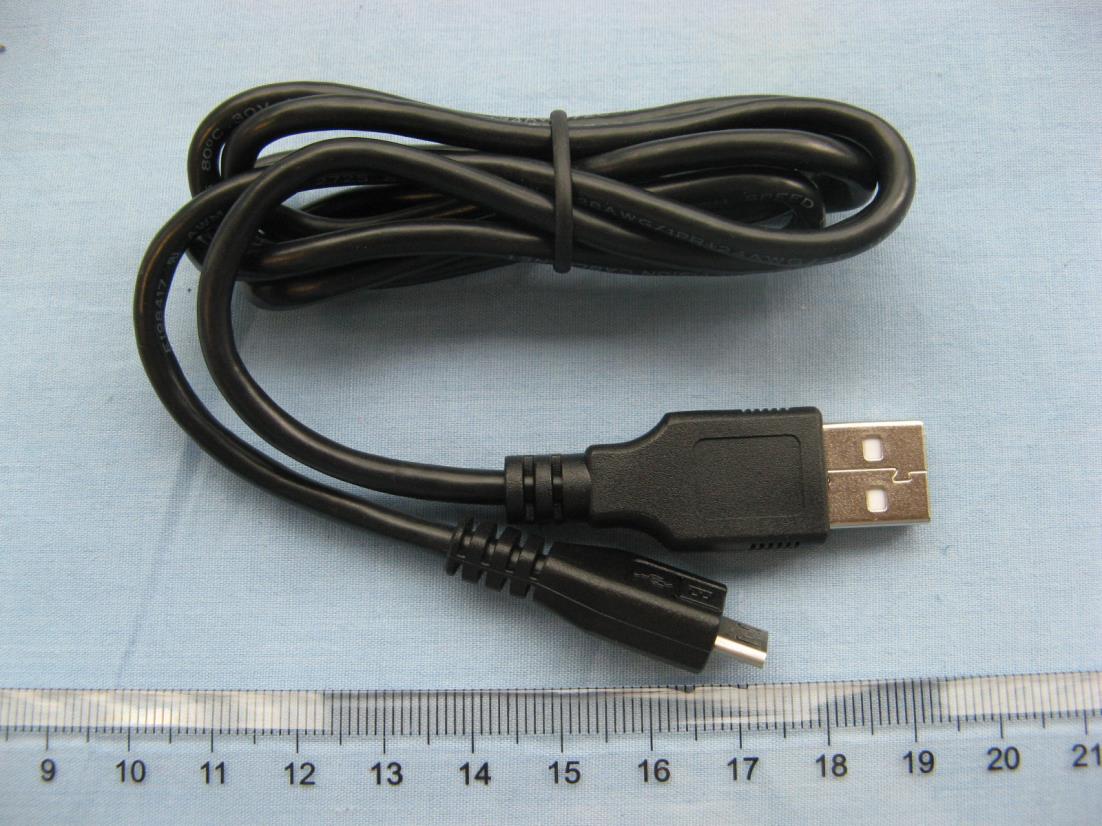

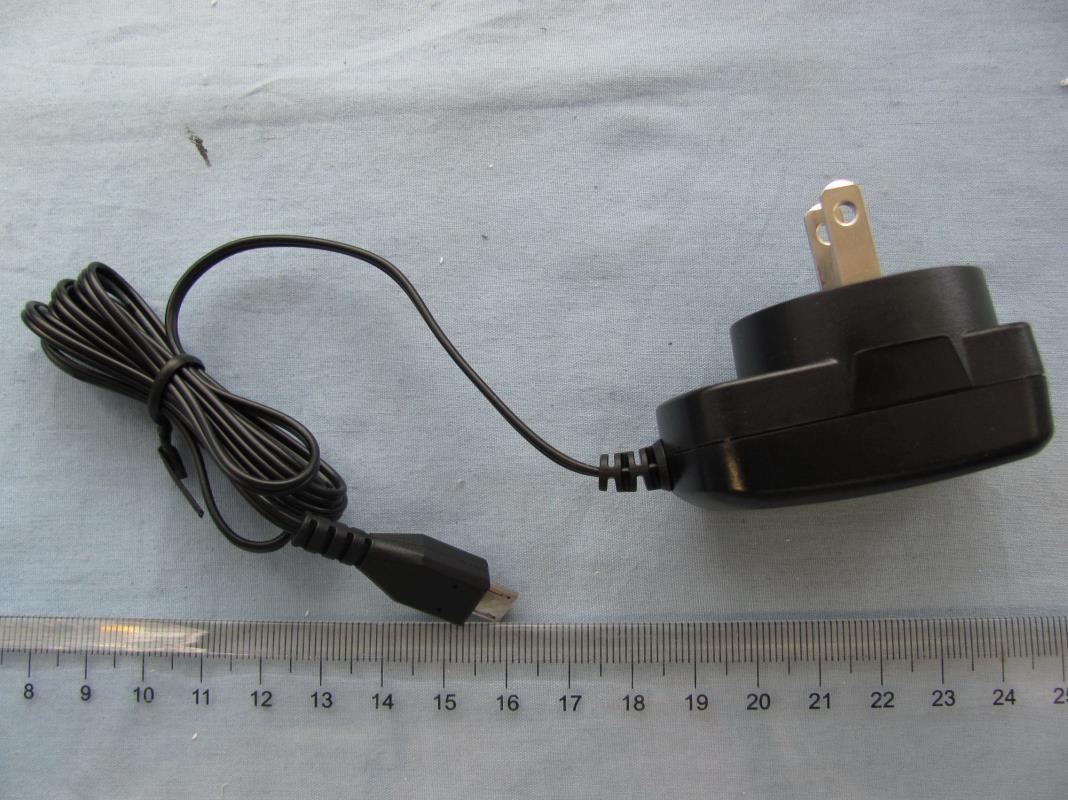

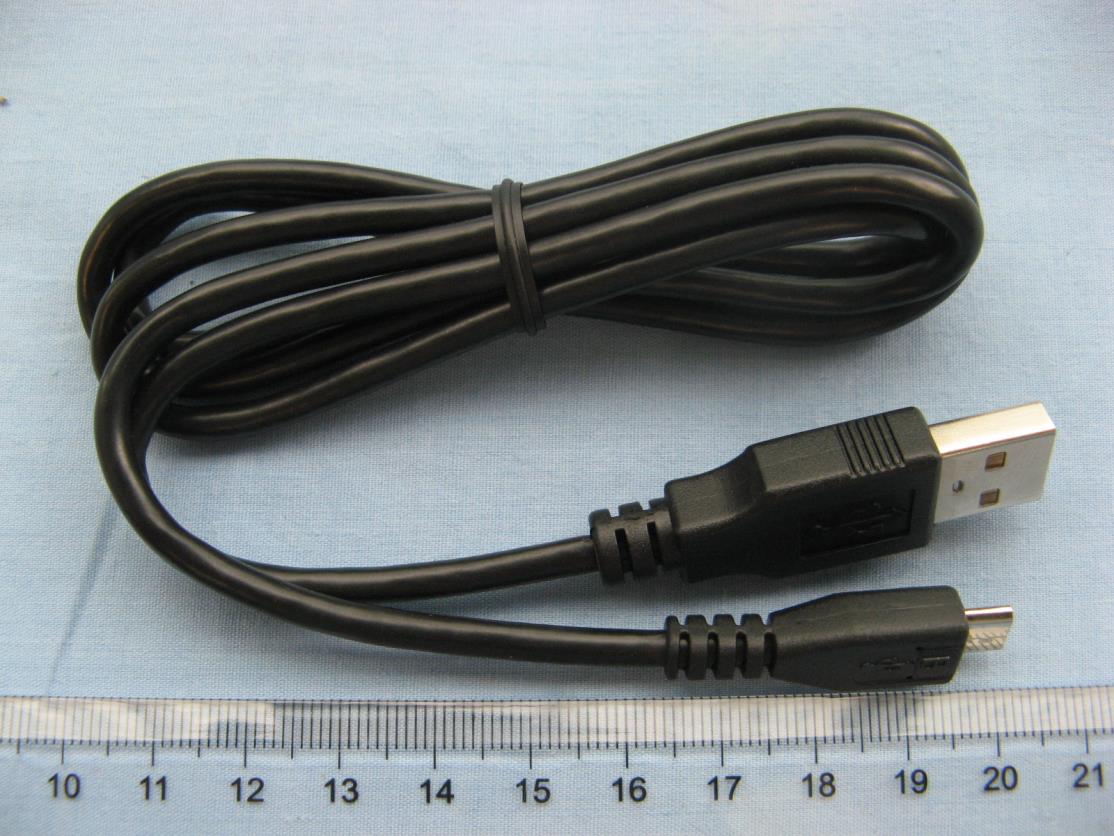

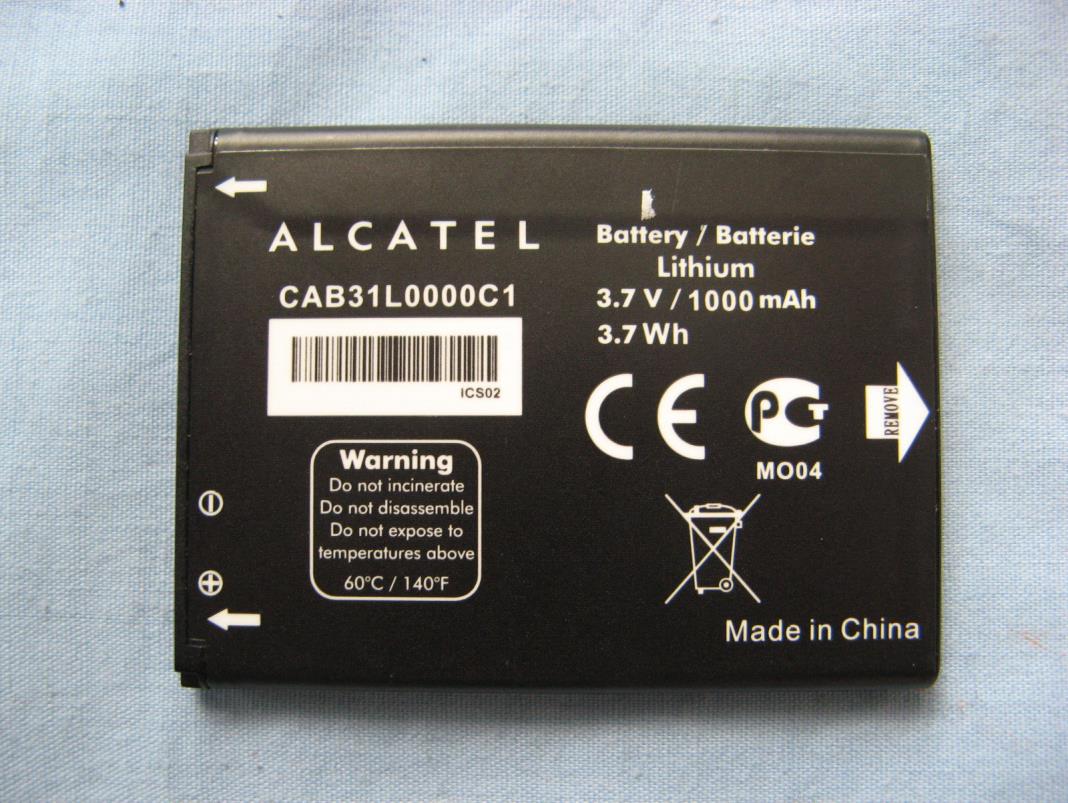

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery Battery Charger Charger Charger Charger Charger Charger Data Cable Data Cable Earphone Earphone Earphone Earphone

EUT Interior photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone

Antenna gain 平均增益 最大增益 GSM850: -3.0dBi 1.1dBi PCS1900: -4.5 dBi 1.2dBi Wlan -3.0dBi 1.8dBi BT -3.0dBi 1.8dBi

No.I14Z47434-SEM01 Page 1 of 102 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z47434-SEM01 For TCT Mobile Limited GSM dual-band mobile phone Model Name: 4020A With Hardware Version: 02 Software Version: v112 FCC ID: RAD517 Issued Date: 2014-08-28 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. I14Z47434-SEM01 Page 2 of 102 Revision Version Report Number RevisionDate Memo I14Z47434-SEM01 0 2014-08-18Initial creation of test report I14Z47434-SEM01 1 2014-08-28 1. Update the picture 12.1 in section 12.2 on page 25 2. Replace “Left hand” with “Left head” in table 2.2/2.3 on page 6 and table 13.1/13.2 on page 27 No. I14Z47434-SEM01 Page 3 of 102 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 18 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 19 9.4 POWER DRIFT ............................................................................................................................................... 20 10 AREA SCAN BASED 1-G SAR ................................................................................................. 20 10.1 REQUIREMENT OF KDB .............................................................................................................................. 20 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 20 11 CONDUCTED OUTPUT POWER .............................................................................................. 21 11.1 MANUFACTURING TOLERAN…

Text truncated - open the document above for the full version.

No. I14Z47434-SEM01 Page 26 of 102 12.4 Standalone SAR Test Exclusion Considerations Standalone 1-g head or body SAR evaluation by measurement or numerical simulation is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The 1-g SAR test exclusion threshold for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Table 12.1: Standalone SAR test exclusion considerations Band/Mode F(GHz) Position SAR test exclusion threshold (mW) RF output power SAR test exclusion dBm mW Bluetooth 2.441 Head 9.60 7.84 6.08 Ye s Body 19.20 7.84 6.08 Ye s 2.4GHz WLAN 802.11 b 2.45 Head 9.58 13.40 21.88 No Body 19.17 13.40 21.88 No No. I14Z47434-SEM01 Page 27 of 102 13 Evaluation of Simultaneous Table 13.1: The sum of reported SAR values for main antenna and WiFi Position Main antenna WiFi Sum Highest reported SAR value for Head Left head, Touch cheek 0.82 0.19 1.01 Highest reported SAR value for Body Rear 0.93 0.08 1.01 Table 13.2: The sum of reported SAR values for main antenna and Bluetooth Position Main antenna BT* Sum Highest reported SAR value for Head Left head, Touch cheek 0.82 0.26 1.08 Highest reported SAR value for Body Rear 0.93 0.13 1.06 BT* - Estimated SAR for Bluetooth (see the table 13.3) Table 13.3: Estimated SAR for Bluetooth Position F (GHz) Distance (mm) Upper limit of power * Estimated 1g (W/kg) dBm mW Head 2.441 5 8 6.31 0.26 Body 2.441 10 8 6.31 0.13 * - Maximum possible output power declared by manufacturer When standalone SAR test exclusion applies to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to following to determine simultaneous transmission SAR test exclusion: (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)/x] W/kg for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Conclusion: According to the above tables, the sum of reported SAR values is < 1.6W/kg. So the simultaneous transmission SAR with volume scans is not required. No. I14Z47434-SEM01 Page 28 of 102 14 SAR Test Result It is determined by user manual for the distance between the EUT and the phantom bottom. The distance is 10mm and just applied to the condition of body worn accessory. It is performed for all SAR measurements with area scan based 1-g SAR estimation (Fast SAR). A zoom scan measurement is added when the estimated 1-g SAR is the highest measured SAR in each exposure configuration, wireless mode and frequency band combination or > 1.2W/kg. The calculated SAR is obtained by the following formula: Reported SAR=Measured SAR×10 � P Target −P Measured � 10 ⁄ Where P Target is the power of manufacturing upper limit; P Measured is the measured power in chapter 11. Table 14.1: Duty Cycle Mode Duty Cycle Speech for GSM850/1900 1:8.3 GPRS&EGPRS for GSM850 1:4 GPRS&EGPRS for GSM1900 1:2.67 WiFi 1:1 14.1 SAR results for Fast SAR Table 14.2: SAR Values (GSM 850 MHz Band - Head) Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch Fig.1 32.18 33 0.481 0.58 0.680 0.82 -0.02 836.6 190 Left Touch / 32.12 33 0.351 0.43 0.517 0.63 0.12 824.2 128 Left Touch / 32.20 33 0.222 0.27 0.325 0.39 0.08 848.8 251 Left Tilt / 32.18 33 0.234 0.28 0.335 0.40 -0.03 836.6 190 Left Tilt / 32.12 33 0.188 0.23 0.271 0.33 -0.17 824.2 128 Left Tilt / 32.20 33 0.118 0.14 0.169 0.20 0.14 848.8 251 Right Touch / 32.18 33 0.457 0.55 0.614 0.74 -0.13 836.6 190 Right Touch / 32.12 33 0.296 0.36 0.427 0.52 -0.11 824.2 128 Right Touch / 32.20 33 0.208 0.25 0.300 0.36 -0.14 848.8 251 Right Tilt / 32.18 33 0.214 0.26 0.312 0.38 -0.18 836.6 190 Right Tilt / 32.12 33 0.142 0.17 0.205 0.25 -0.19 824.2 128 Right Tilt / 32.20 33 0.113 0.14 0.163 0.20 0.00 No. I14Z47434-SEM01 Page 29 of 102 Table 14.3: SAR Values (GSM 850 MHz Band - Body) Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 836.6 190 GPRS (2 ) Front / 29.87 30 0.447 0.46 0.629 0.65 -0.08 848.8 251 GPRS (2 ) Rear / 29.90 30 0.543 0.56 0.819 0.84 0.00 836.6 190 GPRS (2 ) Rear Fig.2 29.87 30 0.682 0.70 0.904 0.93 0.10 824.2 128 GPRS (2 ) Rear / 29.99 30 0.578 0.58 0.852 0.85 -0.03 836.6 190 GPRS (2 ) Left / 29.87 30 0.488 0.50 0.707 0.73 -0.16 836.6 190 GPRS (2 ) Right / 29.87 30 0.425 0.44 0.617 0.64 -0.17 836.6 190 GPRS (2 ) Bottom / 29.87 30 0.035 0.04 0.053 0.05 -0.14 848.8 251 EGPRS (2 ) Rear / 29.70 30 0.558 0.60 0.840 0.90 0.03 836.6 190 EGPRS (2 ) Rear / 29.86 30 0.664 0.69 0.834 0.86 0.03 824.2 128 EGPRS (2 ) Rear / 29.87 30 0.579 0.60 0.858 0.88 -0.05 836.6 190 Speech Rear Headset1 / 32.12 33 0.458 0.56 0.652 0.80 -0.18 836.6 190 Speech Rear Headset2 / 32.12 33 0.291 0.36 0.410 0.50 0.02 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: The Headset1 is CCB3160A11C4, the Headset2 is CCB3160A11C6. Table 14.4: SAR Values (GSM 1900 MHz Band - Head) Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reporte…
