RAD522LTE USB Modem/4G AP

Quick Start Guide ***************** 1 Safety and use__________________________________________________________ We recommend that you read this chapter carefully before using this device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this device or of use contrary to the instructions contained herein. Do not switch on your device when its use is prohibited or when using the device may cause interference or danger. Follow rules or regulations in hospitals and health care facilities. Switch off your device near medical apparatus. Switch off your device in an aircraft. The device may cause interference to aircraft control signals. Switch off your device near high-precision electronic devices. The device may affect the performance of these devices. Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair the device. 2 Do not place your device or its accessories in containers with a strong electromagnetic field. Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on them. Do not subject your device to high temperatures or use it in a place with flammable gas such as a petrol station. Keep your device and its accessories away from children. Do not allow children to use your device without guidance. Only use approved batteries and chargers to avoid the risk of explosion. Observe the laws or regulations on device use. Respect others’ privacy and legal rights when using your device. It is recommended that the equipment only be used in an environment where the temperature is between -10°C and 50°C and humidity is between 10% to 90%. 3 1. Overview____________________________________________________ ALCATEL ONE TOUCH LINK Y850 is a portable wireless router, providing a simple way to share 4G with any Wi-Fi embedded device. 1.1 Package contents ●ONE TOUCH Y850 ● USB cable ● Quick start guide ● USB Wall charger ● Car Charger* ● USB Adapter* ● USB Cradle charger * Note: *depending on your region and market. 4 1.2 Application 5 1.3 Device overview Number Description ① Power on/off Key ② WPS Key ③ Reboot Button ④ Charging Pin* ⑤ SIM Card Cover ⑥ OLED screen ⑦ Micro USB Interface Note: *depending on your region and market ① ② ③ ④ ⑤ ⑥ ⑦ 6 Use the device’s 3 buttons as follows: Button Description ① Power On/Off Long press to turn on/off the device Short press to put the OLED screen in either active or sleep mode. ②WPS Long press to turn on WPS Short press to display SSID and password ③Reboot Long press to reboot the device if the system freezes. 7 1.4 Turning on the device Step 1: Push down on the SIM Card cover and install your SIM card as indicated on the device. Step 2: Press the Power On/Off button 8 1.5 Screen display The screen display is interpreted as follows: Screen description: 1 Network Signal (dynamic graphic symbol ) 2 Network type (4G/H+/3G/2G) 3 SMS status (full, unread, incoming) 4 Connection status(connected and disconnected ) 5 Wi-Fi (number of user connected/WPS connection) 6 Battery level (dynamic graphic symbol when charging) 7 Name of the network registered 9 Category Icon Display Signal Strength From 1 bar to excellent signal strength Network type : EDGE/GPRS : UMTS/HSDPA/HSUPA,H+: HSPA+,4G:LTE SMS status : SMS is available : Unread SMS : SMS full Connection Status connected 10 Note: the information is displayed for 20 seconds, then the display powers off. You can reactivate the display with a short press on the Power key. 1.6 Connecting in Wi-Fi mode SSID：locate the SSID information on the sticker on the SIM card cover. Wi-Fi status : Wi-Fi is active : Number of Wi-Fi users : WPS is active : WPS connected successfully : WPS connection failed Battery : From 1 level to level 4 : Low power 11 Step 1: Use the Wi-Fi manager on the Wi-Fi embedded device to select network name (SSID). ◆From a Windows PC: Right-click Wireless network connection on the task bar, and select: View Available Networks. Choose SSID from the list of available networks. ◆From a Mac computer: Select System Preferences -> Network->Airport. Click “Advanced” to choose SSID from the list of available networks. ◆From an iOS device: Settings->Wi-Fi. Choose SSID from the available networks. ◆From an android device: Settings->Wireless controls->Wi-Fi settings. Choose SSID from the available networks. Step 2: Enter the Wi-Fi key when prompted for a security key. 12 2. Quick Setup___________________________________________________________ Open your browser, and input the address http://192.168.1.1 to access the login page. Default login password: admin Login and click "Quick Setup" to configure the basic settings. Admin Password:  Login Password: Set the password for login. Wi-Fi Settings:  SSID: Set the network name of this device.  Security: Configure the security mode for Wi-Fi connection. 13 3. Charging the device_____________________________________________________ You have many ways to charge your device - the magnetic attraction of the device ensures that the ALCATEL ONETOUCH LINK Y850 maintains close contact with your Wall Charger/Cradle*/Adapter*. Wall Charger charging: Option1: Plug Wall Charger into power socket and put the ALCATEL ONETOUCH LINK Y850 on wall charger. Lightly rotate the device to ensure it is securely located in the slot. Charging will then begin. Option 2: Plug Wall Charger into power socket, plug the USB cable into the USB charging port on the Wall Charger, then connect the Magnetic Charging Pin USB charging port 14 ALCATEL ONETOUCH LINK Y850 by USB cable. Charging will then begin. When the device is powered off, charging will take a maximum of 3 hours. USB Cable charging You can also charge the device by connecting it to a PC with the USB cable. When the device is powered off, charging will take a maximum of 4 hours. Cradle charging* Connect the USB cable with the Cradle and put the ALCATEL ONETOUCH LINK Y850 on th…

Text truncated - open the document above for the full version.

Rev. 1/1/03 TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road,Zhangjiang High-Tech Park, Pudong,Shanghai,China Tel: +86(0)2161460890 ; Fax: +86(0)2161460600 Date: September 30, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RAD522 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhizhou Gong

TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road,Zhangjiang High-Tech Park, Pudong,Shanghai,China Tel: +86(0)2161460890 ; Fax: +86(0)2161460600 Date: September 30, 2014 Power of Attorney To whom it may concern, Please be notified that I, Zhizhou Gong, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: RAD522 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhizhou Gong Company: TCT Mobile Limited TEL: +86(0)2161460890 FAX: +86(0)2161460600 E-mail: [email protected]

1/1 TCT Mobile Limited Date: September 30, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : RAD522 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy. And to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which TCT Mobile Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Zhizhou Gong Company: TCT Mobile Limited TEL: +86(0)2161460890 FAX: +86(0)2161460600 E-mail: [email protected]

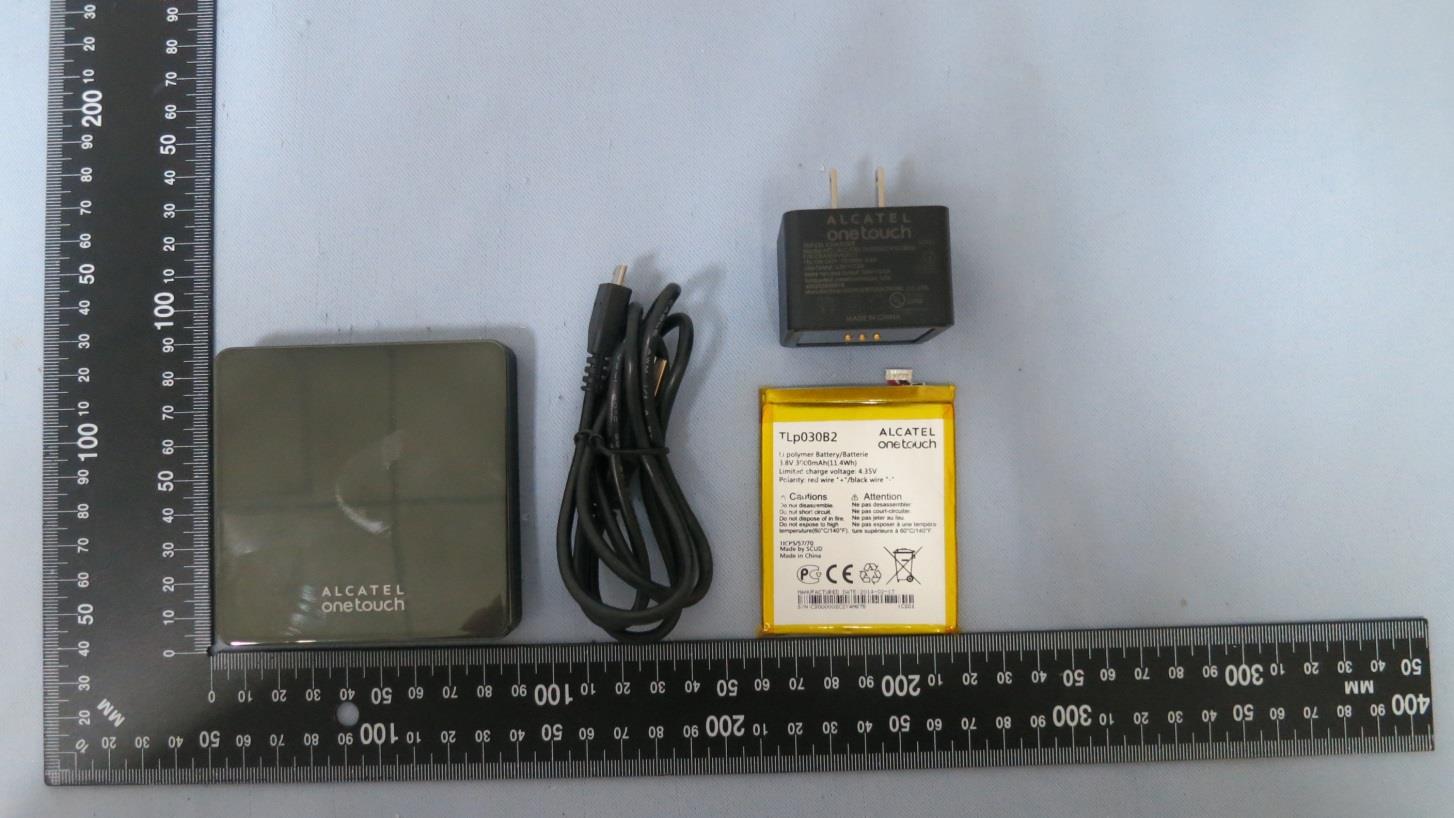

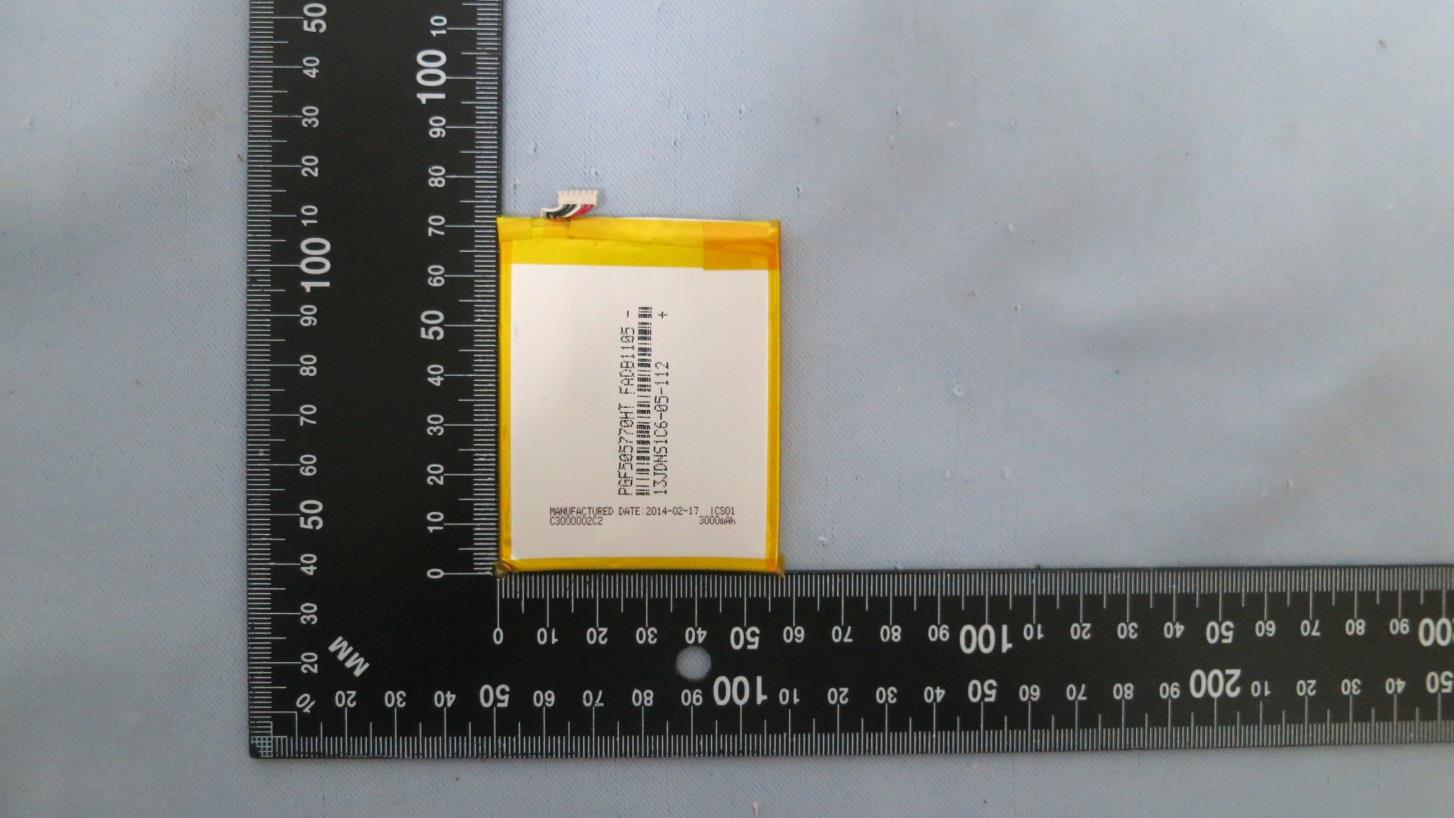

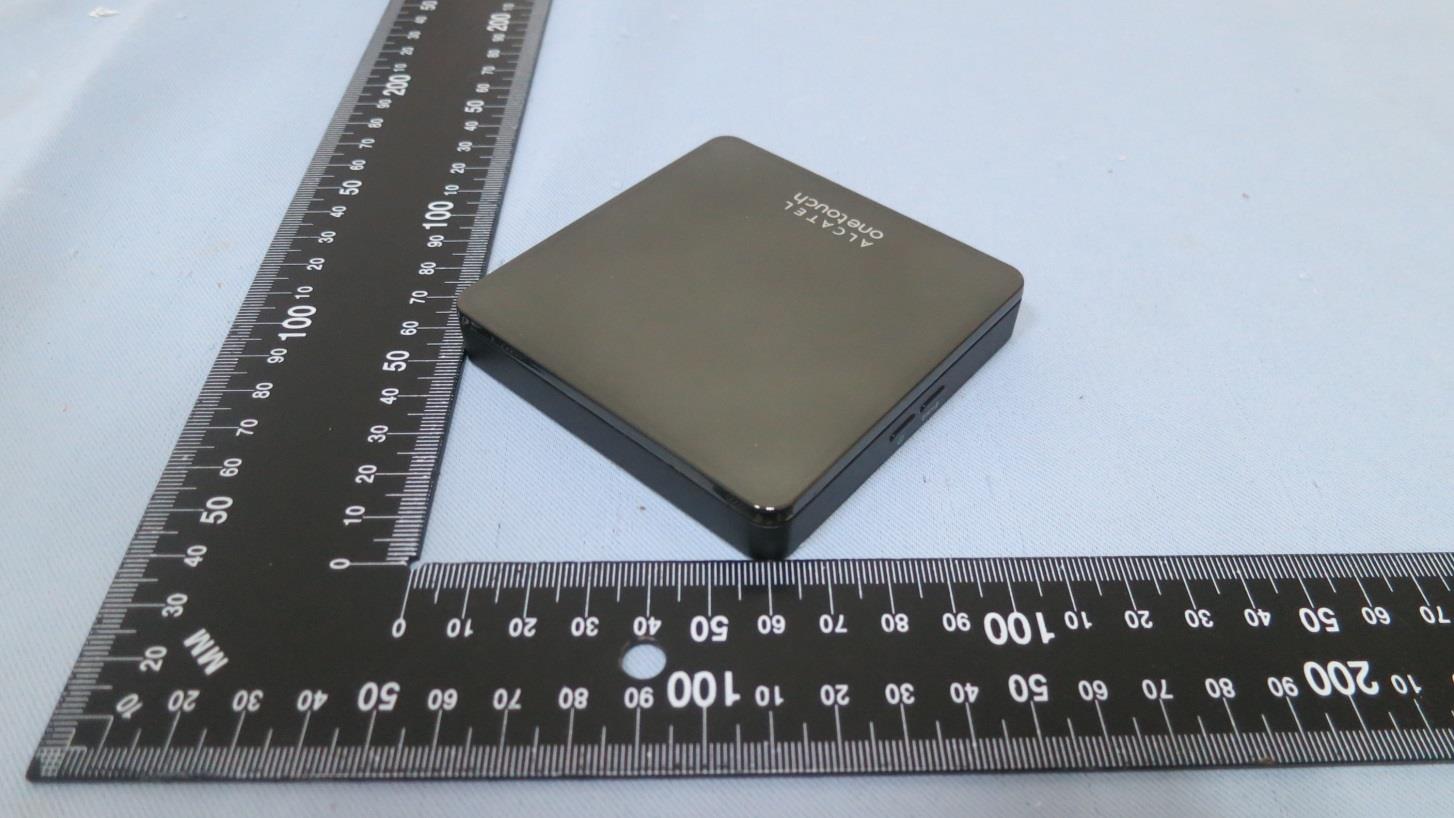

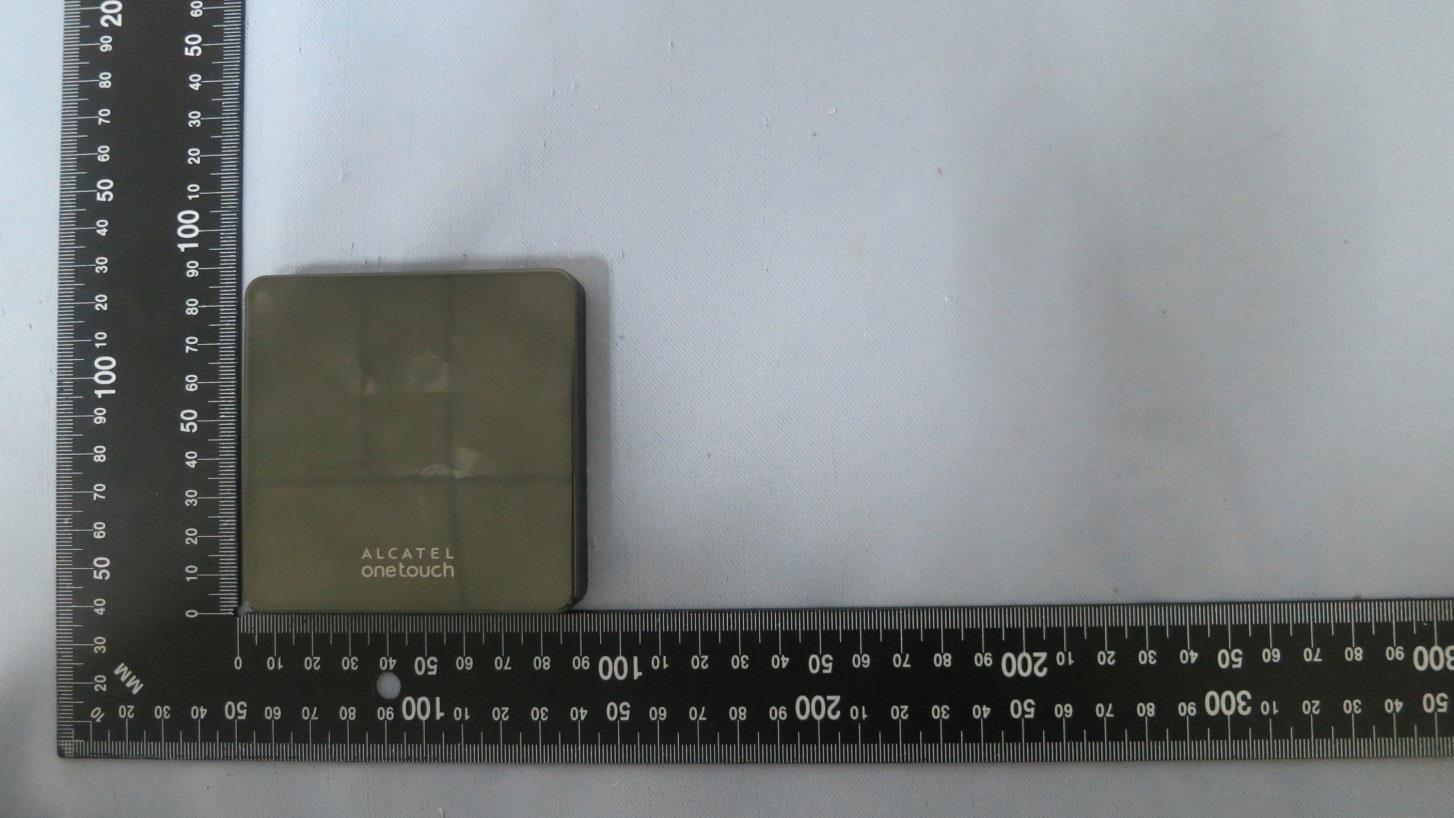

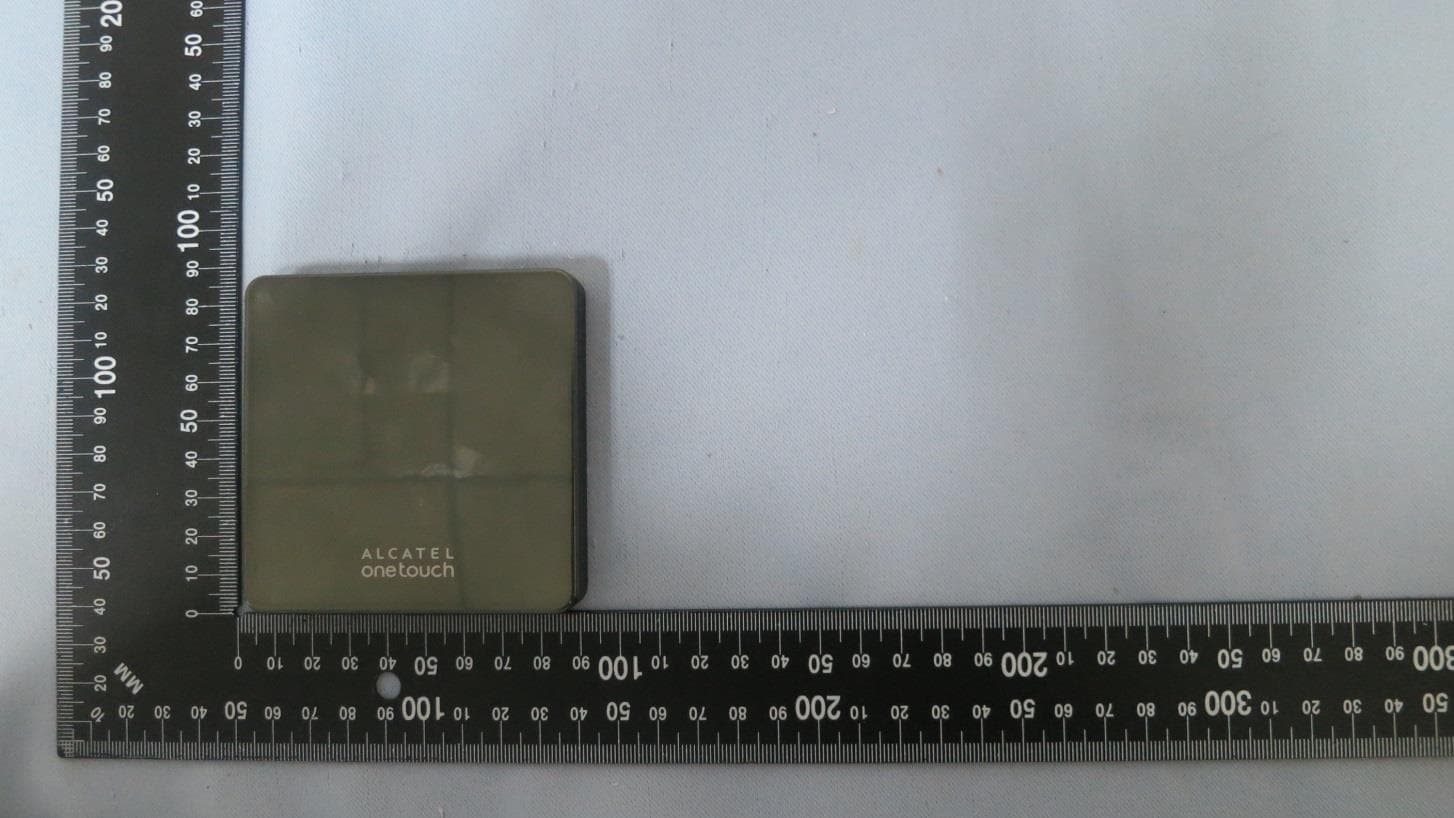

Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 3 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 4 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 5 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 6 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 7 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 8 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 9 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 Specification of Accessory AC Adapter Brand Name ALCATEL Model Name ALCATEL ONETOUCH UC30US Battery Brand Name ALCATEL Model Name TLp030B2 USB Cable Brand Name NA Model Name NA Signal Line 1 meter, non-shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 10 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 11 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 AC Adapter Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 12 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510 Battery Photographs of EUT Report No.: EP493052 Brand Name: ALCATEL onetouch Model Name: ONE TOUCH Y850O0 Marketing Name: ALCATEL ONETOUCH LINK Y850 SPORTON INTERNATIONAL INC. Page Number : 13 of 36 TEL : 886-3-327-3456 Report Issued Date : Oct. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAD522 720510

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Oct. 17, 2014 FCC ID : RAD522 Page 1 of 53 Form version. : 140820 FCC SAR Test Report Report No. : FA493052 FCC SAR Test Report APPLICANT : TCT Mobile Limited EQUIPMENT : LTE USB Modem/4G AP BRAND NAME : ALCATEL onetouch MODEL NAME : ONE TOUCH Y850O0 MARKETING NAME : ALCATEL ONETOUCH LINK Y850 FCC ID : RAD522 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Oct. 17, 2014 FCC ID : RAD522 Page 2 of 53 Form version. : 140820 FCC SAR Test Report Report No. : FA493052 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 7 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 8 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 8. Measurement Procedures ...........................................................................................................................................12 8.1 Spatial Peak SAR Evaluation ................................................................................................................................12 8.2 Power Reference Measurement............................................................................................................................13 8.3 Area Scan .............................................................................................................................................................13 8.4 Zoom Scan ............................................................................................................................................................14 8.5 Volume Scan Procedures ......................................................................................................................................14 8.6 Power Drift Monitoring ...........................................................................................................................................14 9. Test Equipment List .....................................................................................................................................................15 10. System Verification ....................................................................................................................................................16 10.1 Tissue Verification ...............................................................................................................................................16 10.2 System Performance Check Results ...................................................................................................................17 11. RF Exposure Positions ..............................................................................................................................................18 11.1 Wireless Router ...................................................................................................................................................18 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................19 13. Antenna Location…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.27 System Check_Body_750MHz_140827 DUT: Dipole 750 MHz Communication System: UID 0, CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_140827 Medium parameters used: f = 750 MHz; σ = 0.97 S/m; ε r = 54.646; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.71, 9.71, 9.71); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.74 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.380 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.18 W/kg SAR(1 g) = 2.21 W/kg; SAR(10 g) = 1.48 W/kg Maximum value of SAR (measured) = 2.73 W/kg 0 dB = 2.73 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.27 System Check_Body_835MHz_140827 DUT: Dipole 835 MHz Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_140827 Medium parameters used: f = 835 MHz; σ = 0.972 S/m; ε r = 53.975; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.54, 9.54, 9.54); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.45 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.410 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.25 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.43 W/kg 0 dB = 2.43 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.28 System Check_Body_1750MHz_140828 DUT: Dipole 1750 MHz Communication System: UID 0, CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: MSL_1750_140828 Medium parameters used: f = 1750 MHz; σ = 1.524 S/m; ε r = 52.564; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8.01, 8.01, 8.01); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.858 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.55 W/kg; SAR(10 g) = 5.1 W/kg Maximum value of SAR (measured) = 13.3 W/kg 0 dB = 13.3 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.22 System Check_Body_1900MHz_140822 DUT: Dipole 1900 MHz Communication System: UID 0, CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_140822 Medium parameters used: f = 1900 MHz; σ = 1.542 S/m; ε r = 53.532; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.55, 7.55, 7.55); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.8 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 86.373 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.38 W/kg Maximum value of SAR (measured) = 14.9 W/kg 0 dB = 14.9 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.27 System Check_Body_2450MHz_140827 DUT: Dipole 2450 MHz Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140827 Medium parameters used: f = 2450 MHz; σ = 2.001 S/m; ε r = 52.089; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.07, 7.07, 7.07); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM3; Type: QDOVA002AA; Serial: TP:1149 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 17.4 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.745 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 23.8 W/kg SAR(1 g) = 11.6 W/kg; SAR(10 g) = 5.51 W/kg Maximum value of SAR (measured) = 17.6 W/kg 0 dB = 17.6 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.26 System Check_Body_2600MHz_140826 DUT: D2600V2-SN:1008 Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_140826 Medium parameters used: f = 2600 MHz; σ = 2.165 S/m; ε r = 53.823; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(6.79, 6.79, 6.79); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM3; Type: QDOVA002AA; Serial: TP:1149 - …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.27 01_GSM850_GPRS(4 Tx slots)_Front_0.5cm_Ch251 Communication System: UID 0, GPRS/EDGE12 (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: MSL_835_140827 Medium parameters used: f = 849 MHz; σ = 0.987 S/m; ε r = 53.847; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.54, 9.54, 9.54); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch251/Area Scan (71x81x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.180 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.656 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.323 W/kg SAR(1 g) = 0.092 W/kg; SAR(10 g) = 0.060 W/kg Maximum value of SAR (measured) = 0.120 W/kg 0 dB = 0.120 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.22 02_GSM1900_GPRS(2 Tx slots)_Top side_0.5cm_Ch512 Communication System: UID 0, GPRS/EDGE10 (0); Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium: MSL_1900_140822 Medium parameters used: f = 1850.2 MHz; σ = 1.483 S/m; ε r = 53.628; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.55, 7.55, 7.55); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch512/Area Scan (41x81x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 W/kg Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.000 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.591 W/kg; SAR(10 g) = 0.295 W/kg Maximum value of SAR (measured) = 0.848 W/kg 0 dB = 0.848 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.27 03_WCDMA V_RMC 12.2K_Front_0.5cm_Ch4233 Communication System: UID 0, UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: MSL_835_140827 Medium parameters used: f = 847 MHz; σ = 0.985 S/m; ε r = 53.865; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.54, 9.54, 9.54); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch4233/Area Scan (71x81x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.149 W/kg Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.409 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.137 W/kg SAR(1 g) = 0.091 W/kg; SAR(10 g) = 0.064 W/kg Maximum value of SAR (measured) = 0.110 W/kg 0 dB = 0.110 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.08.28 04_WCDMA IV_RMC 12.2K_Top side_0.5cm_Ch1513 Communication System: UID 0, UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: MSL_1750_140828 Medium parameters used: f = 1753 MHz; σ = 1.527 S/m; ε r = 52.557; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8.01, 8.01, 8.01); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2014.07.22 - Phantom: SAM2; Type: QD000P40CD; Seri…

Text truncated - open the document above for the full version.
