RAD527Zodiac Refresh

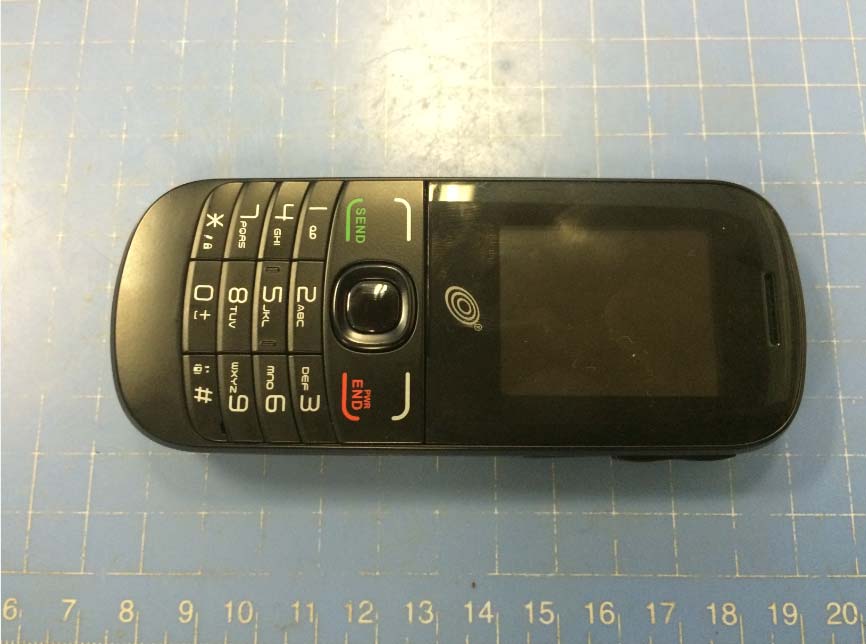

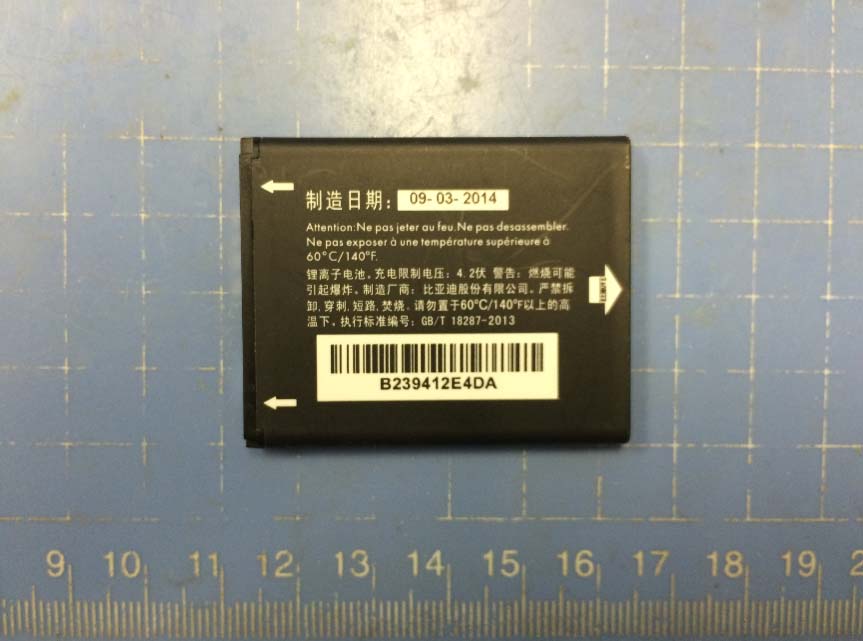

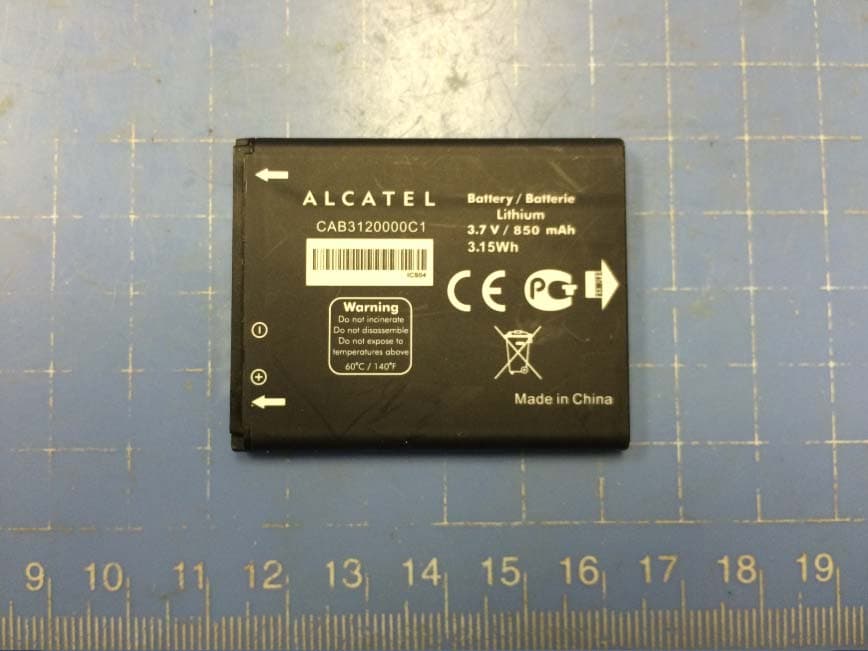

Alcatel A205G-B 1 Table of contents 1. Basics ..................................3 Activating Your Phone ............................3 Powering On or Off ................................4 Charging Your Device .............................5 Phone Overview .....................................6 Setting Up Voicemail ...............................7 2. Getting Started .......................8 Status Bar Icons ....................................8 Menu Navigation .....................................9 Changing Your Shortcuts Menu ............10 3. Phone Calls ..........................11 Making a Call ........................................11 Answering a Call ...................................12 Ending a Call .........................................13 Adjusting Call Volume ...........................13 Recent Calls ..........................................13 In-Call Options .....................................13 4. Contacts ..............................14 Using the contact list ............................14 Adding New Contacts ............................15 Editing/Deleting Contacts ......................15 Making a Call from Your Contact List .....16 Speed Dial List ......................................17 Contacts Settings ..................................17 5. Entering Text .........................18 Keypad Inputting ...................................18 Text Input Mode ...................................19 Changing Text Mode .............................20 6. Messages ............................20 Types of Messages ...............................20 Creating and Sending New Text Messages ......................................................21 Creating and Sending New Multimedia Messages ...........................22 Reading New Messages ........................22 CJA32N0ALAAA 2 Using Message Options ........................23 Deleting Messages ................................24 Message Settings ..................................24 7. Browser ..............................25 Launching Browser ...............................25 Accessing a WAP Site ...........................26 Navigating with the Browser .................26 Settings .................................................27 8. Settings ..............................27 Accessing the Settings Menu ................27 Sound ...................................................27 Phone Settings ......................................29 Call Settings ..........................................31 Airplane mode .......................................32 Security .................................................32 Restore default ......................................33 9. Alarm .................................33 10. Tools .................................34 11. My folder ............................37 Buy Ringtones and Graphics .................37 My audio ...............................................37 My images ............................................37 Others ...................................................37 Memory Status .....................................37 12. Safety and Use ......................38 13. General Information ................46 3 1. Basics Activating Your Phone Removing or Installing the Back Cover Inserting or Removing the SIM Card You must insert your SIM card before making and receiving calls. 1. Power off your phone and remove the battery before inserting or removing the SIM card. 2. Place the SIM card with the metal contact facing down and slide it into its housing. The cut corner should be on the bottom right. 3. To remove the SIM card, press the bottom and slide it out. 4 Installing or Removing the Battery 1. Place the battery on the back of the phone so the metal contacts match up on the battery and in the battery cavity. 2. Slide the battery down into the battery cavity until it locks into place. 3. To remove, lift the battery out of the cavity from the upper right corner. Powering On or Off Power On Your Phone 1. Press and hold the key until the phone powers on. 2. Enter your PIN code if necessary and then press key. 3. The Home screen is displayed. 4. While the phone is searching for a network, Searching/Emergency will be displayed. If you don’t know your PIN code or if you have forgotten it, contact your service provider. Power Off Your Phone Press and hold the key from the Home screen. 5 Charging Your Device The light at the top of the phone when the phone is plugged in indicates it's charging. 1. Plug the AC Charger into a standard outlet. 2. To access the charging port on the upper right side of your phone, open the flap and plug the other end of the AC charger into the charging port. • Charging may take about 10 minutes to start if the battery is completely dead. • Be careful not to force the plug into the socket. • Make sure the battery is correctly inserted before connecting the charger. • Use a wall socket that is easily accessible and in close proximity to the phone (avoid electric extension cables). • When using your phone for the first time, charge the battery fully (approximately 3 hours). When the battery is fully charged the will display on the screen. To reduce power consumption, when the battery is fully charged, disconnect your phone from the AC Charger and the charger from the wall outlet. Switch off some applications when not in use; reduce the backlight time, etc. 6 Phone Overview          micro-USB connector Headset connector  Left soft key: Performs the functions indicated by the screen text on the bottom left of the display  Send key: Pick up Make a call Access recent calls  1 key: Access your voicemail (press and hold)  * key: Lock/Unlock the keypad (press the key and the key to Lock/ Unlock the keypad while on the Home screen) Change input method (in edit mode)  Right soft key: Performs the functions indicated by the screen text on the bottom right of the display  End key: Power on/off (press and hold) End call Return to the Home screen 7  # key: Chan…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2014-07-30 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD527 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GON G Product Certification Manager TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2014-05-06 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Product Certification Manager TCT Mobile Limited

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14Z48112-SEM01 For TCT Mobile Limited Zodiac Refresh Model Name: A205G-B With Hardware Version: 01 Software Version: 01 FCC ID: RAD527 Issued Date: 2014-12-01 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z48112-SEM01 Page 2 of 96 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14Z48112-SEM01 Re v.0 2014-12-01 Initial creation of test report No. I14Z48112-SEM01 Page 3 of 96 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 14 8.1 SYSTEM SETUP ............................................................................................................................................. 14 8.2 SYSTEM VERIFICATION ................................................................................................................................. 15 9 MEASUREMENT PROCEDURES .............................................................................................. 16 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 16 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 17 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 18 9.4 POWER DRIFT ............................................................................................................................................... 19 10 AREA SCAN BASED 1-G SAR ................................................................................................. 20 10.1 REQUIREMENT OF KDB .............................................................................................................................. 20 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 20 11 CONDUCTED OUTPUT POWER .............................................................................................. 21 11.1 MANUFACTURING TOLERANCE ..................................................................…

Text truncated - open the document above for the full version.

No. I14Z48112-SEM01 Page 57 of 96 ©Copyright. All rights reserved by CTTL. The SAR system verification must be required that the area scan estimated 1-g SAR is within 3% of the zoom scan 1-g SAR. Table B.1 Comparison between area scan and zoom scan for system verification Band Position Area scan (1g) Zoom scan (1g) Drift (%) 835 Head 2.41 2.45 -1.63 835 Body 2.36 2.32 1.72 1900 Head 9.95 9.82 1.32 1900 Body 10.1 10.0 1.00 No. I14Z48112-SEM01 Page 58 of 96 ©Copyright. All rights reserved by CTTL. ANNEX C SAR Measurement Setup C.1 Measurement Set-up The Dasy4 or DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1 SAR Lab Test Measurement Set-up  A standard high precision 6-axis robot (Stäubli TX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE).  An isotropic field probe optimized and calibrated for the targeted measurement.  A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC.  The Electro-optical converter (EOC) performs the conversion from optical to electrical signals for the digital communication to the DAE. To use optical surface detection, a special version of the EOC is required. The EOC signal is transmitted to the measurement server.  The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts.  The Light Beam used is for probe alignment. This improves the (absolute) accuracy of the probe positioning.  A computer running WinXP and the DASY4 or DASY5 software.  Remote control and teach pendant as well as additional circuitry for robot safety such as  warning lamps, etc.  The phantom, the device holder and other accessories according to the targeted measurement. No. I14Z48112-SEM01 Page 59 of 96 ©Copyright. All rights reserved by CTTL. C.2 Dasy4 or DASY5 E-field Probe System The SAR measurements were conducted with the dosimetric probe designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multifiber line ending at the front of the probe tip. It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY4 or DASY5 software reads the reflection durning a software approach and looks for the maximum using 2 nd ord curve fitting. The approach is stopped at reaching the maximum. Probe Specifications: Model: ES3DV3, EX3DV4 Frequency 10MHz — 6.0GHz(EX3DV4) Range: 10MHz — 4GHz(ES3DV3) Calibration: In head and body simulating tissue at Frequencies from 835 up to 5800MHz Linearity: ± 0.2 dB(30 MHz to 6 GHz) for EX3DV4 Picture C.2 Near-field Probe ± 0.2 dB(30 MHz to 4 GHz) for ES3DV3 Dynamic Range: 10 mW/kg — 100W/kg Probe Length: 330 mm Probe Tip Length: 20 mm Body Diameter: 12 mm Tip Diameter: 2.5 mm (3.9 mm for ES3DV3) Tip-Center: 1 mm (2.0mm for ES3DV3) Application: SAR Dosimetry Testing Compliance tests of mobile phones Dosimetry in strong gradient fields Picture C.3 E-field Probe C.3 E-field Probe Calibration Each E-Probe/Probe Amplifier combination has unique calibration parameters. A TEM cell calibration procedure is conducted to determine the proper amplifier settings to enter in the probe parameters. The amplifier settings are determined for a given frequency by subjecting the probe to a known E-field density (1 mW/cm 2 ) using an RF Signal generator, TEM cell, and RF Power Meter. The free space E-field from amplified probe outputs is determined in a test chamber. This calibration can be performed in a TEM cell if the frequency is below 1 GHz and inn a waveguide or other methodologies above 1 GHz for free space. For the free space calibration, the probe is placed No. I14Z48112-SEM01 Page 60 of 96 ©Copyright. All rights reserved by CTTL. in the volumetric center of the cavity and at the proper orientation with the field. The probe is then rotated 360 degrees until the three channels show the maximum reading. The power density readings equates to 1 mW/ cm 2 . . E-field temperature correlation calibration is performed in a flat phantom filled with the appropriate simulated brain tissue. The E-field in the medium correlates with the temperature rise in the dielectric medium. For temperature correlation calibration a RF transparent thermistor-based temperature probe is used in conjunction with the E-field probe. T SARC t ∆ = ∆ Where: ∆t = Exposure time (30 seconds), C = Heat capacity of tissue (brain or muscle), ∆T = Temperature increase due to RF exposure. 2 E SAR σ ρ ⋅ = Where: σ = Simulated tissue conductivity, ρ = Tissue density (kg/m 3 ). C.4 Other Test Equipment C.4.1 Data Acquisition Electronics(DAE) The data acquisition electronics consist of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16 bit AD-converter and a command decoder with a control logic unit. Transmission to the measurement server is accomplished th…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. HAC RF TEST REPORT No. I14Z48112-SEM02 For TCT Mobile Limited Zodiac Refresh Model Name: A205G-B With Hardware Version: 01 Software Version: 01 FCC ID: RAD527 Results Summary: M Category = M4 Issued Date: 2014-12-01 Note: The test result s in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z48112-SEM02 Page 2 of 56 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14Z48112-SEM02 Re v.0 2014-12-01 Initial creation of test report No. I14Z48112-SEM02 Page 3 of 56 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 4 1.1 TESTING LO C AT I O N ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 CLIENT INFORMATION ............................................................................................................... 5 2.1 APPLICANT INFORMATION .............................................................................................................................. 5 2.2 MANUFACTURER INFORMATION ..................................................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 6 3.1 ABOUT EUT ................................................................................................................................................... 6 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 6 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 6 3.4 AIR INTERFACES / BANDS INDICATING OPERATING MODES ............................................................................ 6 4 CONDUCTED OUTPUT POWER MEASUREMENT ................................................................... 7 4.1 SUMMARY ...................................................................................................................................................... 7 4.2 CONDUCTED POWER ...................................................................................................................................... 7 5. REFERENCE DOCUMENTS ....................................................................................................... 7 5.1 REFERENCE DOCUMENTS FOR TESTING .......................................................................................................... 7 6 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 8 6.1 HAC MEASUREMENT SET-UP .................................................................................................................. 8 6.2 PROBE SPECIFICATION .................................................................................................................................... 9 6.3 TEST ARCH PHANTOM & PHONE POSITIONER............................................................................................... 10 6.4 ROBOTIC SYSTEM SPECIF I C AT I O N S .............................................................................................................. 10 7 EUT ARRANGEMENT ................................................................................................................. 11 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE ...................................................................... 11 8 SYSTEM VALIDATION ............................................................................................................... 12 8.1 VALIDATION PROCEDURE ............................................................................................................................. 12 8.2 VALIDATION RE S U LT .................................................................................................................................... 12 9 EVALUATION OF MIF ................................................................................................................ 13 9.1 INTRODUCTION ............................................................................................................................................. 13 9.2 MIF MEASUREMENT WITH THE AIA ............................................................................................................. 14 9.3 TEST EQUIPMENT FOR THE MIF MEASUREMENT ........................................................................................... 14 9.4 TEST SIGNAL VALIDATION ............................................................................................................................. 14 9.5 DUT MIF R E S U LT S ....................................................................................................................................... 15 10 EVALUATION FOR LOW-POWER EXEMPTION .............…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. HAC T-Coil TEST REPORT No. I14Z48112-SEM03 For TCT Mobile Limited Zodiac Refresh Model Name: A205G-B With Hardware Version: 01 Software Version: 01 FCC ID: RAD527 Results Summary: T Category = T3 Issued Date: 2014-12-01 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com TESTING CNAS L0570 No. I14Z48112-SEM03 Page 2 of 41 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14Z48112-SEM03 Re v.0 2014-12-01 Initial creation of test report No. I14Z48112-SEM03 Page 3 of 41 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 4 1.1 TESTING LO C AT I O N ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 CLIENT INFORMATION ............................................................................................................... 5 2.1 APPLICANT INFORMATION .............................................................................................................................. 5 2.2 MANUFACTURER INFORMATION ..................................................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 6 3.1 ABOUT EUT ................................................................................................................................................... 6 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 6 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 6 3.4 AIR INTERFACES / BANDS INDICATING OPERATING MODES ............................................................................ 6 4 CONDUCTED OUTPUT POWER MEASUREMENT ................................................................... 7 4.1 SUMMARY ...................................................................................................................................................... 7 4.2 CONDUCTED POWER ...................................................................................................................................... 7 5. REFERENCE DOCUMENTS ....................................................................................................... 7 6 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 8 6.1 HAC MEASUREMENT SET-UP .................................................................................................................. 8 6.2 AM1D PROBE ................................................................................................................................................. 9 6.3 AMCC .......................................................................................................................…

Text truncated - open the document above for the full version.
