RAD530HSDPA/HSUPA/HSPA+/UMTS Quad band/GSM Quad band / LTE 5 band mobile phone

English - CJB6191ALAAA Quick Start Guide Important: Please note your phone is battery embedded design with removable back cover and non-removable battery. Unauthorized personnel are strictly prohibited from disassembling the phone. If your phone isn’t working properly, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use this device, please go to www.alcatelonetouch.com to download the complete user manual. From the website, you can also consult the FAQ, upgrade software, etc. 7043A 1 1 Your mobile ������������������ 1�1 Keys and connectors Micro-USB Connector Front camera Headset connector LED indicator Home key Touch screen Back key Recents key PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile ���������������������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������12 4 People ����������������������������������������������������������������������������14 5 Messaging�����������������������������������������������������������������������15 6 Email ������������������������������������������������������������������������������16 7 Getting connected ��������������������������������������������������������17 8 Find my location using GPS satellites ������������������������20 9 Data backup ������������������������������������������������������������������21 10 Factory data reset ��������������������������������������������������������22 11 Applications & Internal storage ����������������������������������22 12 Making the most of your phone ����������������������������������23 Safety and use �������������������������������������������������������������������������25 General information ��������������������������������������������������������������34 TCT Mobile (US), Inc�Warranty�������������������������������������������35 Troubleshooting����������������������������������������������������������������������37 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 30 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. 23 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select Power off/Restart/Airplane mode. • Press the Power key for more than 9s to restart. • Press the Power key and Volume up key to reset. • Press the Power key and Volume down key to capture a screenshot. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Camera Camera Flash/ Flashlight Power key Volume key Recents key • Touch to view recently used applications. Home key • From any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible once you click the key position when the screen lights up. 45 To install, place the SIM card with the chip facing down into the housing, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your phone only supports micro-SIM cards. To avoid damaging your phone, do not attempt to insert other SIM types, such as mini and nano cards. Installing and removing the microSD card Insert the microSD card with the golden contacts facing down into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, please ensure that the SD card is unmounted before removing it (Settings\ Storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and wall socket respectively, the LED indicator will light while charging. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It may take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, date & time, etc. Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account, and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can bring all of the i…

Text truncated - open the document above for the full version.

Date: February 10,2015 . Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland N/lills Rd. Columbia N4D 21046 Subject: Request pemission to use Wi-Fi / Bluetooth Conducted test results from model 5042W in our applications for model 70434 FCC lD:RAD530 To whom it may concern: We request permission to use Wi-Fi/ Bluetooth Conducted test results from model 5042W (FCC lD: MD539) in our applications for model 7043A(FCC lD: RAD530). lvlodels 5042W and 70434 use the same Wi-Fi / Bluetooth chipset/module, and operate using the same transmit power levels. Although the antenna is changed and the PCB is re-designed , only Radiated test results can be influenced and the Conducted test results cannot be influenced. ?Til"' &\tbL. Date:2015-02-10

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2015-01-19 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Terminals Test Lab of China Academy of Telecommunication Research of MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 1/27/2015 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD530 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

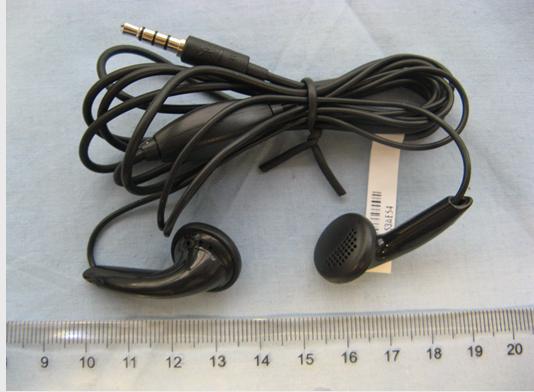

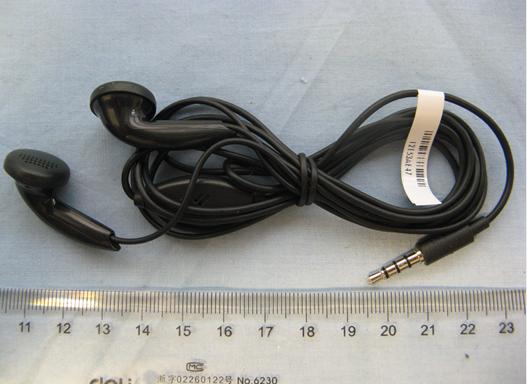

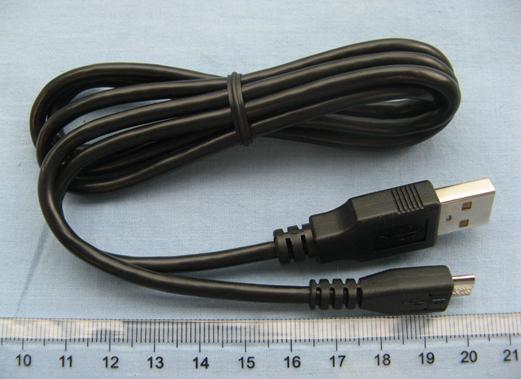

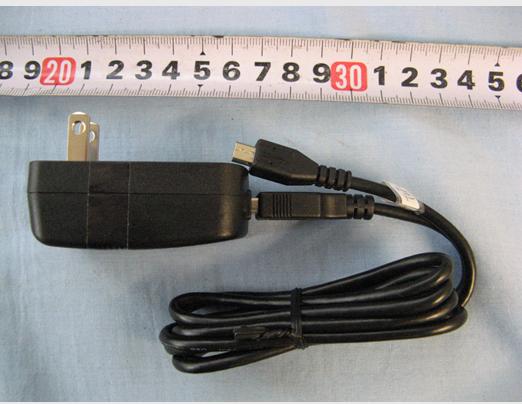

EUT photo Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Charger AE1 Charger AE1 Label of Charger AE1 Charger AE2 Label of Charger AE2 Headset AE1 Headset AE2 Data Cable AE1 Data Cable AE2

EUT Internal photo Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14Z48893-SEM01 For TCT Mobile Limited HSDPA/HSUPA/HSPA+/UMTS quad band /GSM quad band/LTE 5 band mobile phone Model name: 7043A With Hardware Version: PIO Software Version: 3H2G FCC ID: RAD530 Issued Date: 2015-02-16 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No. I14Z48893-SEM01 Page 2 of 166 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14Z48893-SEM01 Rev.0 2015-01-28 Initial creation of test report I14Z48893-SEM01 Rev.1 2015-02-16 Update the table 2.2 on page 7 and the table 13.1 on page 42 No. I14Z48893-SEM01 Page 3 of 166 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 MEASUREMENT PROCEDURES ............................................................................................ 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 24 10 AREA SCAN BASED 1-G SAR .............................................................................................. 25 10.1 REQUIREMENT OF KDB ...................................................................................…

Text truncated - open the document above for the full version.

No. I14Z48893-SEM01 Page 43 of 166 ©Copyright. All rights reserved by CTTL. 14 SAR Test Result It is determined by user manual for the distance between the EUT and the phantom bottom. The distance is 10mm and just applied to the condition of body worn accessory. It is performed for all SAR measurements with area scan based 1-g SAR estimation (Fast SAR). A zoom scan measurement is added when the estimated 1-g SAR is the highest measured SAR in each exposure configuration, wireless mode and frequency band combination or more than 1.2W/kg. The calculated SAR is obtained by the following formula: Reported SAR=Measured SAR×10 �P Target −P Measured � 10 ⁄ Where P Target is the power of manufacturing upper limit; P Measured is the measured power in chapter 11. Table 14.1: Duty Cycle Mode Duty Cycle Speech for GSM850/1900 1:8.3 GPRS&EGPRS 1:2 WCDMA&LTE&WiFi 1:1 14.1 SAR results for Fast SAR Table 14.2: SAR Values (GSM 850 MHz Band - Head) Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 Left Touch / 32.75 33.5 0.149 0.18 0.213 0.25 -0.02 836.6 190 Left Touch / 32.61 33.5 0.177 0.22 0.253 0.31 0.10 824.2 128 Left Touch / 32.89 33.5 0.232 0.27 0.296 0.34 0.09 848.8 251 Left Tilt / 32.75 33.5 0.101 0.12 0.143 0.17 -0.08 836.6 190 Left Tilt / 32.61 33.5 0.120 0.15 0.169 0.21 0.02 824.2 128 Left Tilt / 32.89 33.5 0.142 0.16 0.200 0.23 -0.13 848.8 251 Right Touch / 32.75 33.5 0.224 0.27 0.299 0.36 -0.03 836.6 190 Right Touch / 32.61 33.5 0.235 0.29 0.345 0.42 0.14 824.2 128 Right Touch Fig.1 32.89 33.5 0.311 0.36 0.406 0.47 -0.10 848.8 251 Right Tilt / 32.75 33.5 0.112 0.13 0.157 0.19 0.03 836.6 190 Right Tilt / 32.61 33.5 0.131 0.16 0.183 0.22 -0.02 824.2 128 Right Tilt / 32.89 33.5 0.145 0.17 0.203 0.23 0.05 No. I14Z48893-SEM01 Page 44 of 166 ©Copyright. All rights reserved by CTTL. Table 14.3: SAR Values (GSM 850 MHz Band - Body) Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Mode (number of timeslots) Te s t Position Fi gure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 848.8 251 GPRS (4 ) Front / 27.98 29.2 0.464 0.61 0.702 0.93 -0.07 836.6 190 GPRS (4 ) Front / 28.20 29.2 0.450 0.57 0.681 0.86 -0.04 824.2 128 GPRS (4 ) Front / 28.20 29.2 0.414 0.52 0.623 0.78 0.05 848.8 251 GPRS (4 ) Rear Fig.2 27.98 29.2 0.681 0.90 0.884 1.17 0.00 836.6 190 GPRS (4 ) Rear / 28.20 29.2 0.606 0.76 0.859 1.08 -0.04 824.2 128 GPRS (4 ) Rear / 28.20 29.2 0.554 0.70 0.786 0.99 -0.02 836.6 190 GPRS (4 ) Left / 28.20 29.2 0.256 0.32 0.380 0.48 0.18 848.8 251 GPRS (4 ) Right / 27.98 29.2 0.473 0.63 0.704 0.93 0.03 836.6 190 GPRS (4 ) Right / 28.20 29.2 0.462 0.58 0.685 0.86 0.01 824.2 128 GPRS (4 ) Right / 28.20 29.2 0.422 0.53 0.627 0.79 0.04 836.6 190 GPRS (4 ) Bottom / 28.20 29.2 0.185 0.23 0.299 0.38 0.04 848.8 251 EGPRS (4 ) Rear / 27.92 29.2 0.555 0.75 0.819 1.10 -0.06 848.8 251 Speech Rear Headset1 / 32.75 33.5 0.194 0.23 0.301 0.36 0.08 848.8 251 Speech Rear Headset2 / 32.75 33.5 0.196 0.23 0.303 0.36 0.00 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: Headset1 is CCB3000A12C1, Headset2 is CCB3000A12C2. Table 14.4: SAR Values (GSM 1900 MHz Band - Head) Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1909.8 810 Left Touch / 29.38 30.5 0.055 0.07 0.093 0.12 0.10 1880 661 Left Touch / 29.28 30.5 0.056 0.07 0.097 0.13 0.02 1850.2 512 Left Touch / 29.36 30.5 0.060 0.08 0.101 0.13 0.05 1909.8 810 Left Tilt / 29.38 30.5 0.025 0.03 0.049 0.06 0.12 1880 661 Left Tilt / 29.28 30.5 0.028 0.04 0.057 0.07 0.02 1850.2 512 Left Tilt / 29.36 30.5 0.027 0.04 0.054 0.07 0.11 1909.8 810 Right Touch / 29.38 30.5 0.068 0.09 0.119 0.15 0.03 1880 661 Right Touch / 29.28 30.5 0.069 0.09 0.118 0.16 0.08 1850.2 512 Right Touch Fig.3 29.36 30.5 0.086 0.11 0.137 0.18 0.05 1909.8 810 Right Tilt / 29.38 30.5 0.026 0.03 0.050 0.07 0.06 1880 661 Right Tilt / 29.28 30.5 0.025 0.03 0.046 0.06 0.09 1850.2 512 Right Tilt / 29.36 30.5 0.029 0.04 0.054 0.07 0.13 No. I14Z48893-SEM01 Page 45 of 166 ©Copyright. All rights reserved by CTTL. Table 14.5: SAR Values (GSM 1900 MHz Band - Body) Ambient Temperature: 22.1 o C Liquid Temperature: 21.6 o C Frequency Mode (number of timeslots) Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift (dB) MHz Ch. 1880 661 GPRS (4 ) Front / 24.82 26.5 0.190 0.28 0.326 0.48 -0.10 1909.8 810 GPRS (4 ) Rear / 24.78 26.5 0.180 0.27 0.308 0.46 -0.12 1880 661 GPRS (4 ) Rear / 24.82 26.5 0.210 0.31 0.356 0.52 -0.08 1850.2 512 GPRS (4 ) Rear Fig.4 24.72 26.5 0.354 0.53 0.678 1.02 -0.12 1880 661 GPRS (4 ) Left / 24.82 26.5 0.061 0.09 0.111 0.16 -0.13 1880 661 GPRS (4 ) Right / 24.82 26.5 0.042 0.06 0.072 0.11 -0.12 1880 661 GPRS (4 ) Bottom / 24.82 26.5 0.168 0.25 0.327 0.48 -0.01 1850.2 512 EGPRS (4 ) Rear / 24.72 26.5 0.351 0.53 0.670 1.01 -0.05 1850.2 512 Speech Rear Headset1 / 29.36 30.5 0.320 0.42 0.621 0.81 0.08 1850.2 512 Speech Rear Headset2 / 29.36 30.5 0.280 0.36 0.549 0.71 0.02 Note1: The distance between the EUT and the phantom bottom is 10mm. Note2: Headset1 is CCB3000A12C1, Headset2 is CCB3000A12C2. Table 14.6: SAR Values (WCDMA 850 MHz Band - Head) Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Frequency Side Te s t Position Figure No. Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(10g) (W/kg) Reported SAR(10g) (W/kg) Measured SAR(1g) (W/k…

Text truncated - open the document above for the full version.

No. I14Z48893-SEM01 Page 84 of 166 ©Copyright. All rights reserved by CTTL. Fig. 12-1 Z-Scan at power reference point (LTE Band4) No. I14Z48893-SEM01 Page 85 of 166 ©Copyright. All rights reserved by CTTL. LTE Band7 Left Cheek Low with QPSK_20M_1RB_Low Date: 2015-1- 10 Electronics: DAE4 Sn777 Medium: Head 2600 MHz Medium parameters used: f = 2510 MHz; σ = 1.899 mho/m; εr = 38.103; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: LTE Band7 Frequency: 2510 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.50, 6.50, 6.50) Cheek Low/Area Scan (71x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.388 W/kg Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.995 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.623 W/kg SAR(1 g) = 0.342 W/kg; SAR(10 g) = 0.185 W/kg Maximum value of SAR (measured) = 0.366 W/kg Fig.13 LTE Band7 No. I14Z48893-SEM01 Page 86 of 166 ©Copyright. All rights reserved by CTTL. Fig. 13-1 Z-Scan at power reference point (LTE Band7) No. I14Z48893-SEM01 Page 87 of 166 ©Copyright. All rights reserved by CTTL. LTE Band7 Body Bottom Low with QPSK_20M_1RB_Low Date: 2015-1- 10 Electronics: DAE4 Sn777 Medium: Body 2600 MHz Medium parameters used: f = 2510 MHz; σ = 2.133 mho/m; εr = 50.852; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: LTE Band7 Frequency: 2510 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.68, 6.68, 6.68) Bottom Low/Area Scan (111x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.65 W/kg Bottom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.06 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.12 W/kg; SAR(10 g) = 0.572 W/kg Maximum value of SAR (measured) = 1.44 W/kg Fig.14 LTE Band7 No. I14Z48893-SEM01 Page 88 of 166 ©Copyright. All rights reserved by CTTL. Fig. 14-1 Z-Scan at power reference point (LTE Band7) No. I14Z48893-SEM01 Page 89 of 166 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Right Cheek Channel 6 Date: 2015-1- 11 Electronics: DAE4 Sn777 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.822 mho/m; ε r = 38.452; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (81x141x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.331 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.36 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.519 W/kg SAR(1 g) = 0.287 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.318 W/kg Fig.15 2450 MHz No. I14Z48893-SEM01 Page 90 of 166 ©Copyright. All rights reserved by CTTL. Fig. 15-1 Z-Scan at power reference point (2450 MHz) No. I14Z48893-SEM01 Page 91 of 166 ©Copyright. All rights reserved by CTTL. Wifi 802.11b Body Rear Channel 6 Date: 2015-1- 11 Electronics: DAE4 Sn777 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.996 mho/m; ε r = 51.963; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.90, 6.90, 6.90) Rear Middle/Area Scan (111x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.395 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.721 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.615 W/kg SAR(1 g) = 0.255 W/kg; SAR(10 g) = 0.119 W/kg Maximum value of SAR (measured) = 0.342 W/kg Fig.16 2450 MHz No. I14Z48893-SEM01 Page 92 of 166 ©Copyright. All rights reserved by CTTL. Fig. 16-1 Z-Scan at power reference point (2450 MHz) No. I14Z48893-SEM01 Page 93 of 166 ©Copyright. All rights reserved by CTTL. ANNEX B System Verification Results 835MHz Date: 2015-1- 12 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 42.32; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.974 V/m; Power Drift = -0.02 dB SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (interpolated) = 2.81 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.974 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.83 W/kg = 4.52 dBW/kg Fig.B.1 validation 835MHz 250mW No. I14Z48893-SEM01 Page 94 of 166 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015-1- 12 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.992 S/m; ε r = 54.27; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.701 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (interpolated) = 2.74 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.701 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.72 W/kg 0 dB = 2.72 W/kg = 4.35 dBW/kg Fig.B.2 validation 835MHz 250mW No. I14Z48893-SEM01 Page 9…

Text truncated - open the document above for the full version.

No. I14Z48893-SEM01 Page 126 of 166 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. I14Z48893-SEM01 Page 127 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 128 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 129 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 130 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 131 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 132 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 133 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 134 of 166 ©Copyright. All rights reserved by CTTL. 1750 MHz Dipole Calibration Certificate No. I14Z48893-SEM01 Page 135 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 136 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 137 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 138 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 139 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 140 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 141 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 142 of 166 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I14Z48893-SEM01 Page 143 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 144 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 145 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 146 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 147 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 148 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 149 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 150 of 166 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No. I14Z48893-SEM01 Page 151 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 152 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 153 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 154 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 155 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 156 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 157 of 166 ©Copyright. All rights reserved by CTTL. No. I14Z48893-SEM01 Page 158 of 166 ©Copyright. All rights reserved by CTTL. 2600 MHz Dipole Calibration Certificate No. I14Z48893-SEM01 Page 159 of 166 ©Copyright. All rights…
