RAD540Mobile phone with GSM/GPRS/EDGE 850/1900, WCDMA/HSPA FDD II/IV/V, 802.11b/g/n, Bluetooth.

English - CJA287BALAAA 1 Table of contents 1 Your mobile ��������������������������������������������������������������������������3 1.1 Keys and connectors ........................................................3 1.2 Getting started .................................................................4 1.3 Home screen ...................................................................6 2 Text input ���������������������������������������������������������������������������11 2.1 Using Onscreen Keyboard ..............................................11 2.2 Text editing ....................................................................12 3 Phone call, Call log and Contacts �������������������������������������12 3.1 Phone ............................................................................12 3.2 Placing a call .................................................................12 3.3 Answering or rejecting a call..........................................13 3.4 Call log ..........................................................................15 3.5 Contacts ........................................................................15 3.6 Contacts importing, exporting and sharing .....................17 4 Messaging ��������������������������������������������������������������������������19 4.1 Write message ...............................................................19 4.2 Gmail/Email ...................................................................22 5 Email�����������������������������������������������������������������������������������25 5.1 Hangouts .......................................................................25 6 Calendar & Alarm clock & Calculator �������������������������������27 6.1 Calendar ........................................................................27 6.2 Time ..............................................................................28 6.3 Calculator ......................................................................29 7 Getting connected��������������������������������������������������������������30 7.1 Connecting to the Internet ..............................................30 7.2 Browser .........................................................................31 7.3 Connecting to Bluetooth devices ....................................35 7.4 Connecting to a computer ..............................................36 7.5 Connecting to virtual private networks ...........................37 8 Google Play Store ��������������������������������������������������������������38 8.1 Locate the item you want to download and install .........38 8.2 Download and install .....................................................38 8.3 Manage your downloads ................................................39 9 Multimedia applications ����������������������������������������������������40 9.1 Camera ..........................................................................40 9.2 Gallery ...........................................................................41 9.3 YouTube .........................................................................43 9.4 Music .............................................................................44 9.5 Video Player ...................................................................45 10 Google Maps ����������������������������������������������������������������������45 10.1 Get My Location .............................................................45 10.2 Search for a location ......................................................46 10.3 Get driving, public transport or walking directions..........46 10.4 Share a location .............................................................47 10.5 Map view .......................................................................47 11 Others ���������������������������������������������������������������������������������47 11.1 File Manager ..................................................................47 11.2 Sound Recorder .............................................................47 11.3 Radio .............................................................................48 2 11.4 Notes .............................................................................48 11.5 Setup Wizard .................................................................49 11.6 Help Me .........................................................................49 11.7 Other applications ..........................................................49 12 Settings ������������������������������������������������������������������������������49 12.1 Wireless & networks ......................................................49 12.2 Device ...........................................................................50 12.3 Personal .........................................................................52 12.4 Add account...................................................................55 12.5 System ..........................................................................55 13 Making the most of your phone ����������������������������������������57 13.1 FOTA Upgrade ................................................................57 Safety and use �����������������������������������������������������������������������������57 www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 64 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. BC PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 3 1 Your mobile �����������������…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2015-04-01 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL To Whom It May Concern: We, (TCT Mobile Limited), hereby authorize (Li Wei_ from TÜV SÜD Certification and Testing (China) Co., Ltd. Beijing Branch M Building, No. 7 Wangjing Zhonghuan Nanlu, Chaoyang District Beijing 100102 P.R. China) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 6 months from original date. If you have any question regarding the authorization, please don’t hesitate to contract with me. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 COMPANY LETTERHEAD Date (16/03/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: RAD540 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (TCT Mobile Limited) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation (TCT Mobile Limited) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: Internal Photos External Photos User Manual Test Set-up Photographs 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Gong Zhizhou Telephone Number: +86(0)21 61460666 Email: [email protected]

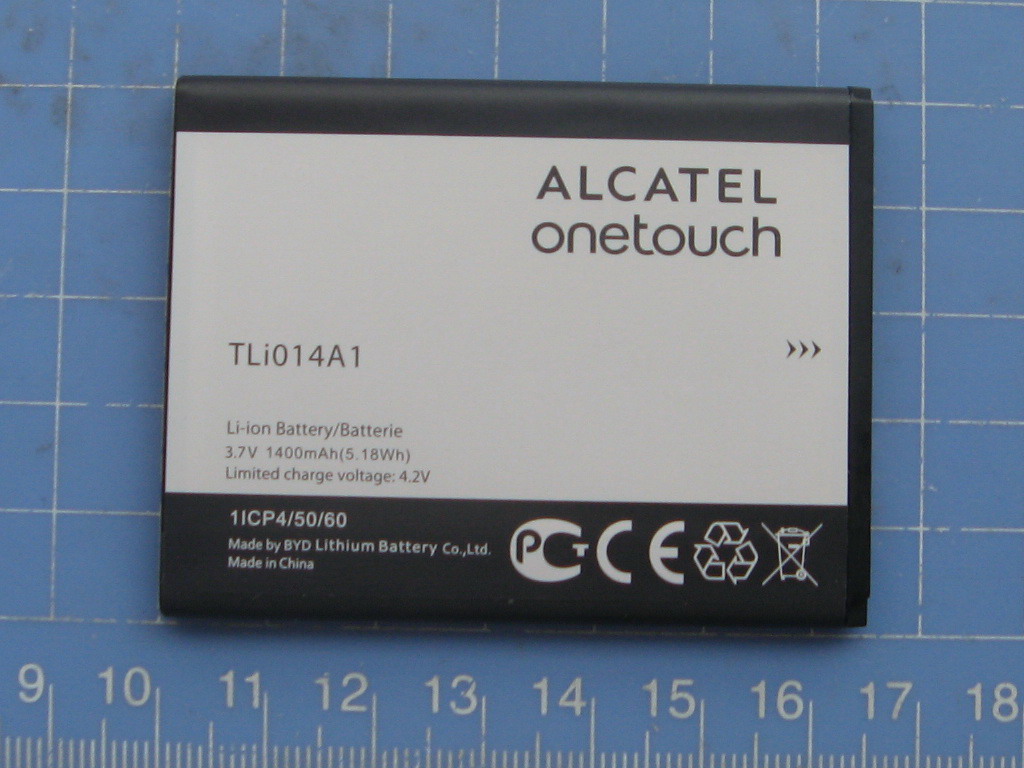

EUT photograph

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z40307-SEM01 For TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone Model Name: A460G With Hardware Version: HVN04 Software Version: v4A59 FCC ID: RAD540 Issued Date: 2015-03-09 Note: The test results in this test report relate only to the d evices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No.I15Z40307-SEM01 Page 2 of 135 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z40307-SEM01 Rev.0 2015-03-09 Initial creation of test report No.I15Z40307-SEM01 Page 3 of 135 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES ............................................................................................ 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 21 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 22 9.5 POWER DRIFT ............................................................................................................................................... 23 10 AREA SCAN BASED 1-G SAR .............................................................................................. 23 10.1 REQUIREMENT OF KDB .............................................................................................................................. 23 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 23 11 CONDUCTED OUTPUT POWER ....................................…

Text truncated - open the document above for the full version.

No.I15Z40307-SEM01 Page 71 of 135 ©Copyright. All rights reserved by CTTL. Fig. 12- 1 Z- Scan at power reference point (2450 MHz) No.I15Z40307-SEM01 Page 72 of 135 ©Copyright. All rights reserved by CTTL. ANNEX B S ystemVerification R esults 835MHz Date: 2015-2-15 Electronics: DAE4 Sn777 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.927 S/m; ε r = 43.07; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) System Validation/Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 54.399 V/m; Power Drift = -0.01 dB Fast SAR: SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.60 W/kg Maximum value of SAR (interpolated) = 2.65 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.399 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.07 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.60 W/kg 0 dB = 2.60 W/kg = 4.15 dBW/kg Fig. B.1 validation 835MHz 250mW No.I15Z40307-SEM01 Page 73 of 135 ©Copyright. All rights reserved by CTTL. 835MHz Date: 2015-2-15 Electronics: DAE4 Sn777 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.978 S/m; ε r = 55.62; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(9.09, 9.09, 9.09) System Validation /Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.081 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 2.31 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (interpolated) = 2.55 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.081 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.06 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.57 W/kg 0 dB = 2.57 W/kg = 4.10 dBW/kg Fig. B.2 validation 835MHz 250mW No.I15Z40307-SEM01 Page 74 of 135 ©Copyright. All rights reserved by CTTL. 1750MHz Date: 2015-2-14 Electronics: DAE4 Sn777 Medium: Head 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.383 mho/m; εr = 40.88; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.64, 7.64, 7.64) System Validation/Area Scan (81x121x1):Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 87.933 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 8.97 W/kg; SAR(10 g) = 4.74 W/kg Maximum value of SAR (interpolated) = 10.0 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.933 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 15.63 W/kg SAR(1 g) = 9.06 W/kg; SAR(10 g) = 4.82 W/kg Maximum value of SAR (measured) = 10.1 W/kg 0 dB = 10.1 W/kg = 10.04 dB W/kg Fig. B.3 validation 1750MHz 250mW No.I15Z40307-SEM01 Page 75 of 135 ©Copyright. All rights reserved by CTTL. 1750MHz Date: 2015-2-14 Electronics: DAE4 Sn777 Medium: Body 1750 MHz Medium parameters used: f=1750 MHz; σ = 1.452 mho/m; εr = 51.7; ρ = 1000 kg/m 3 Ambient Temperature: 22.1 o C Liquid Temperature: 21.7 o C Communication System: CW Frequency: 1750 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.43, 7.43, 7.43) System Validation/Area Scan (81x121x1):Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 96.709 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 9.64 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (interpolated) = 10.5 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 96.709 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 16.59 W/kg SAR(1 g) = 9.51 W/kg; SAR(10 g) = 5.15 W/kg Maximum value of SAR (measured) = 10.3 W/kg 0 dB = 10.3 W/kg = 10.13 dB W/kg Fig. B.4 validation 1750MHz 250mW No.I15Z40307-SEM01 Page 76 of 135 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015-2-16 Electronics: DAE4 Sn777 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.392 mho/m; ε r = 39.48; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.6 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.26, 7.26, 7.26) System Validation /Area Scan(61x81x1):Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 92.101 V/m; Power Drift = 0.04 dB SAR(1 g) = 9.96 W/kg; SAR(10 g) = 5.27 W/kg Maximum value of SAR (interpolated) = 11.9 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.101 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.09 W/kg SAR(1 g) = 9.82 W/kg; SAR(10 g) = 5.15 W/kg Maximum value of SAR (measured) = 11.7 W/kg 0 dB = 11.7 W/kg = 10.68 dBW/kg Fig. B.5 validation 19 00MHz 250mW No.I15Z40307-SEM01 Page 77 of 135 ©Copyright. All rights reserved by CTTL. 1900MHz Date: 2015-2-16 Electronics: DAE4 Sn777 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.51 S/m; ε r = 54.51; ρ = 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 21.6 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.15, 7.15, 7.15) System Validation/Area Scan (81x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 91.37 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.54 W/kg Maximum value of SAR (interpolated) = 12.2 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.37 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.45 W/kg Maximum value of SAR (measured) = 12.0 W/kg 0 dB = 12.0 W/kg = 10.79 dB W/kg Fig. B.6 validation 1900MHz 250mW No.I15Z40307-SEM01 Page 78 of 135 ©Copyright. All rights reserved by CTTL. 2450MHz Date: 2015…

Text truncated - open the document above for the full version.

No. I15Z40307-SRD01 Page66 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.51 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 1 GHz-2.5 GHz) Fig.A.6.1.52 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page67 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.53 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 7.5 GHz-10 GHz) Fig.A.6.1.54 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page68 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.55 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 15 GHz-20 GHz) Fig.A.6.1.56 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch1, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page69 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.57 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, Center Frequency) Fig.A.6.1.58 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 30 MHz-1 GHz) No. I15Z40307-SRD01 Page70 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.59 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 1 GHz-2.5 GHz) Fig.A.6.1.60 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page71 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.61 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 7.5 GHz-10 GHz) Fig.A.6.1.62 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page72 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.63 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 15 GHz-20 GHz) Fig.A.6.1.64 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch6, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page73 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.65 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, Center Frequency) Fig.A.6.1.66 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 30 MHz-1 GHz) No. I15Z40307-SRD01 Page74 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.67 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 1 GHz-2.5 GHz) Fig.A.6.1.68 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page75 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.69 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 7.5 GHz-10 GHz) Fig.A.6.1.70 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page76 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.71 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 15 GHz-20 GHz) Fig.A.6.1.72 Transmitter Spurious Emission - Conducted (802.11n-HT20, Ch11, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page77 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.73 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, Center Frequency) Fig.A.6.1.74 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 30 MHz-1 GHz) No. I15Z40307-SRD01 Page78 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.75 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 1 GHz-2.5 GHz) Fig.A.6.1.76 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page79 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.77 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 7.5 GHz-10 GHz) Fig.A.6.1.78 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page80 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.79 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 15 GHz-20 GHz) Fig.A.6.1.80 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch3, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page81 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.81 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, Center Frequency) Fig.A.6.1.82 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 30 MHz-1 GHz) No. I15Z40307-SRD01 Page82 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.83 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 1 GHz-2.5 GHz) Fig.A.6.1.84 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page83 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.85 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 7.5 GHz-10 GHz) Fig.A.6.1.86 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page84 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.87 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 15 GHz-20 GHz) Fig.A.6.1.88 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch6, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page85 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.89 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, Center Frequency) Fig.A.6.1.90 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 30 MHz-1 GHz) No. I15Z40307-SRD01 Page86 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.91 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 1 GHz-2.5 GHz) Fig.A.6.1.92 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 2.5 GHz-7.5 GHz) No. I15Z40307-SRD01 Page87 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.93 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 7.5 GHz-10 GHz) Fig.A.6.1.94 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 10 GHz-15 GHz) No. I15Z40307-SRD01 Page88 of 121 ©Copyright. All rights reserved by CTTL. Fig.A.6.1.95 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 15 GHz-20 GHz) Fig.A.6.1.96 Transmitter Spurious Emission - Conducted (802.11n-HT40, Ch9, 20 GHz-26 GHz) No. I15Z40307-SRD01 Page89 of 121 ©Copyright. All rights reserved by CTTL. A.6.2 Transmitter Spurio…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. FCC PART 15C TESTREPORT No. I15Z40307-SRD01 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone MODEL NAME: A460G with FCC ID: RAD540 Hardware Version: HVN04 Software Version: v4A59 Issued Date: 2015-03-27 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected], website:www.chinattl.com No. I15Z40307-SRD01 Page2 of 121 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15Z40307-SRD01 Rev.0 1st edition 2015-03-27 No. I15Z40307-SRD01 Page3 of 121 ©Copyright. All rights reserved by CTTL. CONTENTS 1. TEST LABORATORY ............................................................................................................... 5 1.1. TESTINGLOCATION ............................................................................................................ 5 1.2. TESTINGENVIRONMENT .................................................................................................... 6 1.3. PROJECT DATA ................................................................................................................... 6 1.4. SIGNATURE .......................................................................................................................... 6 2. CLIENTINFORMATION ............................................................................................................ 7 2.1. APPLICANT INFORMATION ................................................................................................ 7 2.2. MANUFACTURER INFORMATION ...................................................................................... 7 3. EQUIPMENT UNDERTEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 8 3.1. ABOUT EUT .......................................................................................................................... 8 3.2. INTERNAL IDENTIFICATION OF EUT ................................................................................ 8 3.3. INTERNAL IDENTIFICATION OF AE ................................................................................... 8 3.4. GENERAL DESCRIPTION ................................................................................................... 9 3.5. INTERPRETATION OF THE TEST ENVIRONMENT ........................................................... 9 4. REFERENCE DOCUMENTS .................................................................................................... 9 4.1. DOCUMENTS SUPPLIED BY APPLICANT......................................................................... 9 4.2. REFERENCE DOCUMENTS FOR TESTING......................…

Text truncated - open the document above for the full version.
