RAFSBS0201SweetBeam Digital Photo Frame

Operation Menu Version: 1.0 Operation Menu I FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Operation Menu I Content 1. Power on 1 2. Mode button 2 3. User button 3 4. HTTP control panel 4 5. Specification 4 Operation Menu 1 1. Power on There are three working modes after power on. Maintenance: The device is connected using the USB interface to a PC with specific software named NandPDT to perform firmware update, reset to factory operation to adjust/debug its behavior. This mode is activated by pushing the “Mode” button for 10 seconds with the USB plugged in to a computer. Please refer to section 5. Firmware upgrade. Install: The device is not playing any content but just display its configuration settings on the screen. The device automatically tries to connect to a default open WIFI network named SBMAMA (Ad-Hoc or Managed) and runs a HTTP control panel for configuration over the WLAN. The operator gets to this service by reading the IP address displayed on the device screen and typing the following URL into its browser http://the.device.ip.address. This mode is activated by pushing the Mode button for 5 seconds. The device will try to be managed mode to connect to the WiFi AP named SBMAMA, the name/SSID of WiFi AP can be configured by field of SSID on HTTP control panel. If it failed to establish a link with the AP within 30 seconds, then it will switch to ad-hoc mode with SSID SBMAMA. Pressing the Mode button for 1 second will turn the device back to managed mode again. Operation: The device is configured and plays the content from the server. It uses the network settings from the configuration to connect to the hotel network. It also runs the HTTP control panel to offer configuration over the LAN using the same URL. The operator gets to this service by reading the IP address that is displayed temporarily for 5 seconds on the device screen when the “Mode” button is pressed, the display seconds can be configured by field of Stand_seconds_at_Install_Mod on HTTP control panel. Operation Menu 2 2. Mode button Pressing 1 second to turn the device to set the WiFi to be managed mode and try to establish a new link with WiFi AP named SBMAMA, the name/SSID of WiFi AP can be configured by field of SSID on HTTP control panel. If it failed to establish a link with the AP within 30 seconds, then it will switch to ad-hoc mode with SSID SBMAMA. Pressing the Mode button for 1 second will turn the device back to managed mode again. Pressing 5 seconds to turn the device to Install mode, and showing in formations including Networking mode, Mac address, IP address, SSID, Networking status and Feed URL to be display. Pressing 10 seconds to turn the device to reboot. If the device is connected using the USB interface to a PC with specific software named NandPDT to perform firmware update, reset to factory default. Please refer to section 5. Firmware upgrade. Operation Menu 3 3. User button User button will act multifunction and its role is configured by HTTP control panel. Default to disable. Disable : the User button will be no function, no response to any touch. User Off : the photo frame backlight will turned off once the User button was touched, and keep it off as long as hours defined by the value of UserOff parameter on HTTP control panel. Select Feed : the photo frame will switch to Select Feed window and allow users to pick Feed URL that he/she preferred. Press the user button to move down one row and it will circle back to top once meet the last row. The LED will light to indicate the button be pressed and you have to wait the LED off then press it as you want. There are total 16 feeds can be selected and users can update the Feed’s URL through HTTP Control Panel. Interaction : pressing the user button will generate a request for interaction according to the current image on the slideshow. It is managed by the context of RSS Feed that supports a special tag to perform interaction request. <sweetbeam:interaction anchor="button" event="http://192.168.1.123/picture1.jpg" timeout="30"> <media:content url="http://192.168.1.123/fee…

Text truncated - open the document above for the full version.

X-MICRO TECHNOLOGY CORP 12F-3, N0.186, JlAN Yl RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN Tel: +886-2-8226 2727 Fax: +886-2-8226 2828 Confidential Letter Date: 201 011 011 5 Federal Comrnunlcations Commission Authorization and Evaluation Dlvlslon FCC ID : RAFSBS0201 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits lo its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant's company name : X-MICRO TECHNOLOGY CORP Applicant's company address : 12F-3, N0.186, JlAN Yl RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN Signature Job Title and Dept. I : Arra Lee 1 Project Manager Tel. : +886-2-8226 2727

X-MICRO TECHNOLOGY CORP 12F-3, N0.186, JlAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN Tel: +886-2-8226 2727 Fax: +886-2-8226 2828 Date: 201 011 011 5 Table of Multiple list Product Name: SweetBeam Digital Photo Frame The Models No. : SBS02.01 xxx We hereby state that these models are identical in interior structure, electrical circuits and components, and just model names and appearance color are different for the marketing requirement. The model names in the following table are all refer to the identical product. (The "x" in the model could be defined as 0-9, A-Z or blank) V Arra Lee1 Project Manager Applicant: X-MICRO TECHNOLOGY CORP Address: 12F-3, NO.186, JlAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN TEL: +886-2-8226 2727 FAX: +886-2-8226 2828 EMAIL: [email protected]

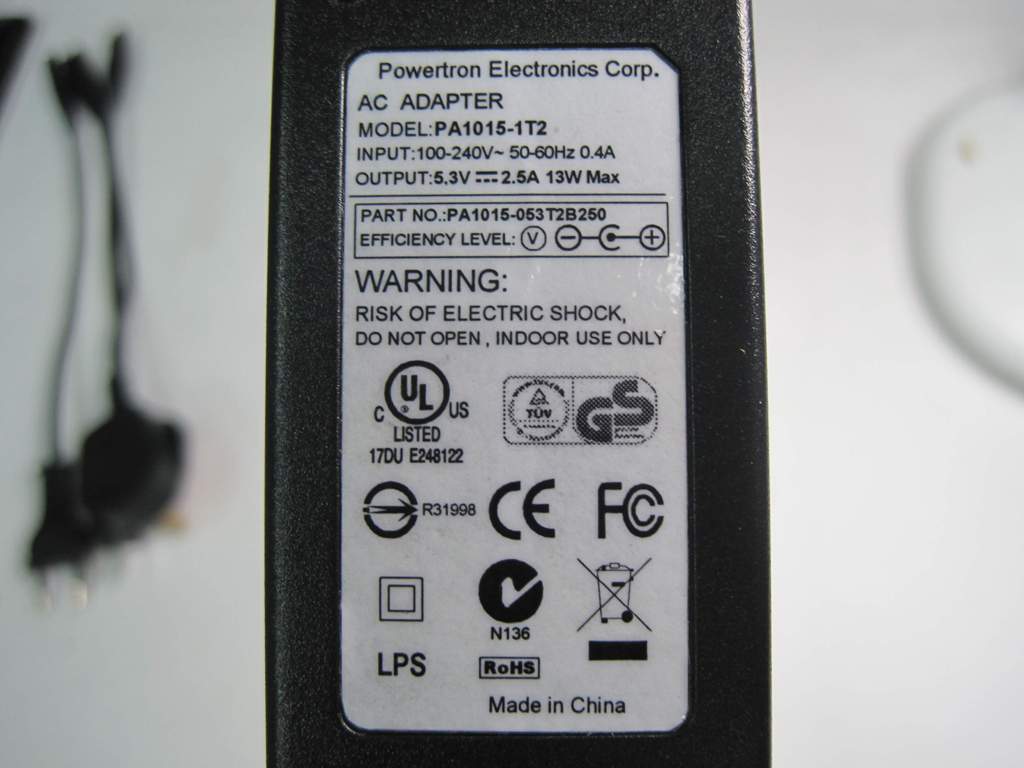

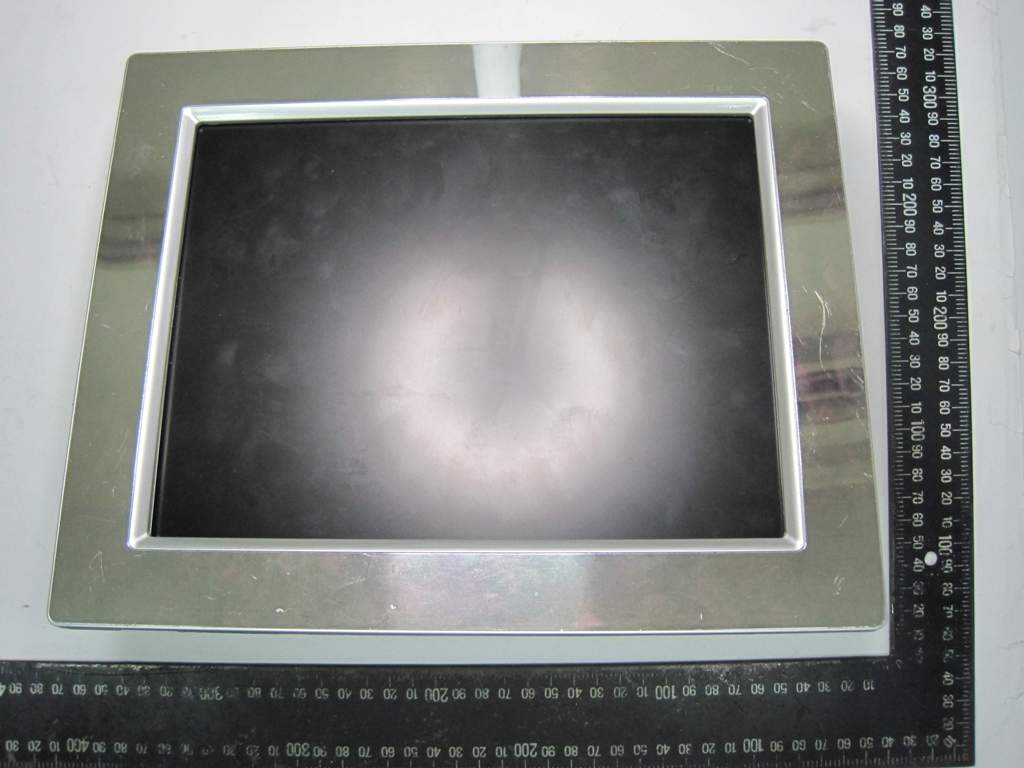

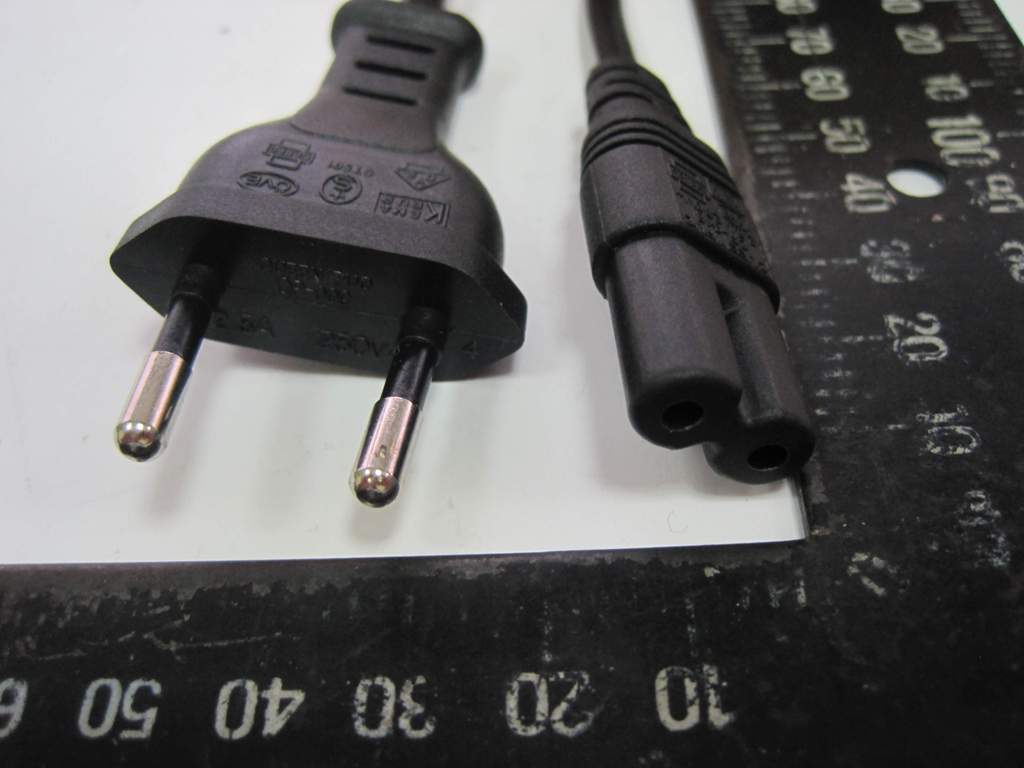

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A21 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A23 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A24 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A25 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A26 OF A26 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 29, 2010 FAX : 886-2-2696-2255

Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Chip Antenna Max Conducted Power for IEEE 802.11g Ant. A: 17.86 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.12 1.6293 17.8600 61.0942 0.019813 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company X-MICRO TECHNOLOGY CORP. Applicant Address 12F-3, NO.186, JIAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN FCC ID RAFSBS0201 Manufacturer’s company X-MICRO TECHNOLOGY CORP. Manufacturer Address 12F-3, NO.186, JIAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Product Name SweetBeam Digital Photo Frame Brand Name SBS02.01 xxx (Please refer to section 3.7 for ‘’xxx’’) Model Name WL300B-USB Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 9, 2008 Final Test Date Jan. 15, 2008 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Report No.: FR092950AB Report Format Version: 01 Page No. : i of ii FCC ID: RAFSBS0201 Issued Date : Oct. 29, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 3 3.3. Table for Filed Antenna....................................................................................................................................................................... 4 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 4 3.5. Table for Test Modes ........................................................................................................................................................................... 5 3.6. Table for Testing Locations .................................................................................................................................................................. 5 3.7. Table for Multiple Listing...................................................................................................................................................................... 5 3.8. Table for Supporting Units ................................................................................................................................................................... 5 3.9. Table for Parameters of Test Software Setting ..................................................................................................................................... 6 3.10. Test Configurations ............................................................................................................................................................................. 7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 9 4.2. Maximum Peak Output Power Measurement ................................................................................................................................... 13 4.3. Power Spectral Density Measurement .............................................................................................................................................. 15 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 20 4.5. Radiated Emissions Measurement .................................................................................................................................................... 25 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 43 4.7. Antenna Requirements ..................................................................................................................................................................... 48 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 49 6. TEST LOCATION.............................................................................................................................................. 51 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 52 APPENDIX A. PHOTOGRAPHS OF EUT ...............................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company X-MICRO TECHNOLOGY CORP. Applicant Address 12F-3, NO.186, JIAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN FCC ID RAFSBS0201 Manufacturer’s company X-MICRO TECHNOLOGY CORP. Manufacturer Address 12F-3, NO.186, JIAN YI RD., CHUNG HO CITY, TAIPEI 23553, TAIWAN Product Name SweetBeam Digital Photo Frame Brand Name SweetBeam Model Name SBS02.01 xxx (Please refer to section 3.7 for ‘’xxx’’) Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 09, 2008 Final Test Date Jan. 15, 2008 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the IEEE 802.11n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR092950AA Report Format Version: 01 Page No. : iof ii FCC ID: RAFSBS0201 Issued Date : Oct. 29, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 4 3.3. Table for Filed Antenna....................................................................................................................................................................... 5 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 5 3.5. Table for Test Modes ........................................................................................................................................................................... 6 3.6. Table for Testing Locations .................................................................................................................................................................. 6 3.7. Table for Multiple Listing...................................................................................................................................................................... 7 3.8. Table for Supporting Units ................................................................................................................................................................... 7 3.9. Table for Parameters of Test Software Setting ..................................................................................................................................... 7 3.10. Test Configurations ............................................................................................................................................................................. 8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 10 4.2. Maximum Peak Output Power Measurement ................................................................................................................................... 14 4.3. Power Spectral Density Measurement .............................................................................................................................................. 16 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 21 4.5. Radiated Emissions Measurement .................................................................................................................................................... 26 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 44 4.7. Antenna Requirements ..................................................................................................................................................................... 49 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 50 6. TEST LOCATION.............................................................................................................................................. 52 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 53 APPENDIX A. PHOTOGRAPHS OF EUT ...............................................................…

Text truncated - open the document above for the full version.

Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 4 of 6 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 5 of 6 SIDE VIEW Report No.: FR092950 FCC ID: RAFSBS0201 Page No. : 6 of 6 Above 1GHz FRONT VIEW REAR VIEW
