RAFXWL-11GRAGX-Micro WLAN 11g Broadband Router

802.11g Wireless Broadband ROUTER USER’S MANUAL Contents 1. Overview................................................................................................................4 1.1 Product Feature..........................................................................................4 1.2 System Requirements.................................................................................4 1.3 Applications...............................................................................................4 2. Getting Start...........................................................................................................5 2.1 Know the 802.11g Wireless Router...........................................................5 2.2 Connect to the 802.11g Wireless Router....................................................6 2.2.1 Access the Setting Menu................................................................6 2.2.2 Quick Setup with Wizard...............................................................8 3. Configuration.......................................................................................................15 3.1 LAN Setting.............................................................................................15 3.1.1 LAN & DHCP Server..................................................................15 3.1.2 WAN............................................................................................15 3.1.3 Password......................................................................................16 3.1.4 Time.............................................................................................16 3.1.5 Dynamic DNS..............................................................................17 3.2 Wireless....................................................................................................18 3.2.1 Basic.............................................................................................18 3.2.2 Authentication..............................................................................18 3.2.3 Advanced.....................................................................................21 3.3 Status........................................................................................................21 3.3.1 Device Information......................................................................22 3.3.2 Log...............................................................................................22 3.3.3 Log Setting...................................................................................23 3.3.4 Statistic.........................................................................................23 3.3.5 Wireless........................................................................................24 3.4 Routing.....................................................................................................25 3.4.1 Static............................................................................................25 3.4.2 Dynamic.......................................................................................25 3.4.3 Routing Table...............................................................................26 3.5 Access......................................................................................................26 3.5.1 Filters...........................................................................................26 3.5.2 Virtual Server...............................................................................31 3.5.3 Special AP....................................................................................31 3.5.4 DMZ.............................................................................................32 3.5.5 Firewall Rule................................................................................32 2 3.6 Management.............................................................................................34 3.6.1 SNMP...........................................................................................34 3.6.2 Remote Management...................................................................34 3.7 Tools.........................................................................................................35 3.7.1 Restart..........................................................................................35 3.7.2 Settings.........................................................................................36 3.7.3 Firmware......................................................................................37 3.7.4 Ping Test.......................................................................................38 4. Glossary...............................................................................................................38 3 1. Overview 1.1 Product Feature ● Compliance with IEEE 802.11g and 802.11b standards ● Highly efficient design mechanism to provide unbeatable performance ● Strong network security with WEP and 802.1X encryption ● Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage; high performance to deliver up to 54Mbps raw data rate for 802.11g ● Quick and easy setup with Web-based management utility 1.2 System Requirements ● Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems ● Microsoft Internet Explorer 5.5 or higher ● DSL/ Cable Modem Broadband Internet connection and ISP account ● PCs equipped with 10Mbps or 10/100 Mbps Ethernet connection to support TCP/IP protocol ● One CD-ROM drive 1.3 Applications ● Home SOHO networking for device sharing and wireless multimedia ● Wireless office provides a wider range for home and SOHO Ethernet ● Enables wireless building-to-building data communication ● Built-in infrastructure mode ● Router provides ideal solution for: ● Difficult-to-wire environments ● Temporary LANs for scenarios such as trade-exhibitions and meetings ● Enables LAN adaptabi…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 20, 2004 RE: X-Micro Technology Corp. FCC ID: RAFXWL-11GRAG After a review of the submitted information, I have a few comments on the above referenced Application. 1) The manual mentions rates up to 108 Mbps, however the test report does not make mention of this, nor is there any data to support this mode.. Typically this mode requires additional measurements of bandwidth, power, spectral density, bandedge, etc. However this information does not appear to have been provided. Please provide. 2) A new sample label was provided today. However, this label has RAFXWL-11GPAG instead. This label does not appear to match all the other documentation in this application. Please confirm which FCC ID is correct and correct all necessary exhibits that may be affected. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

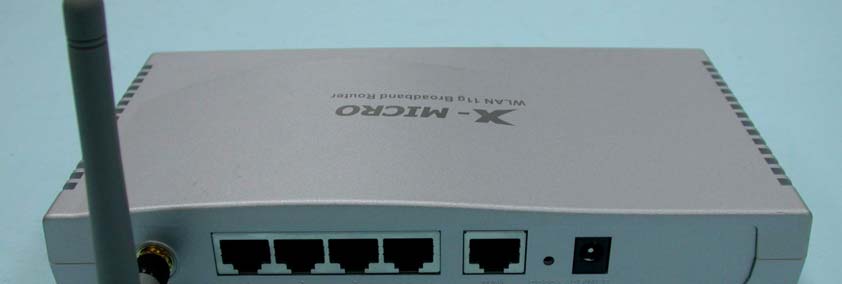

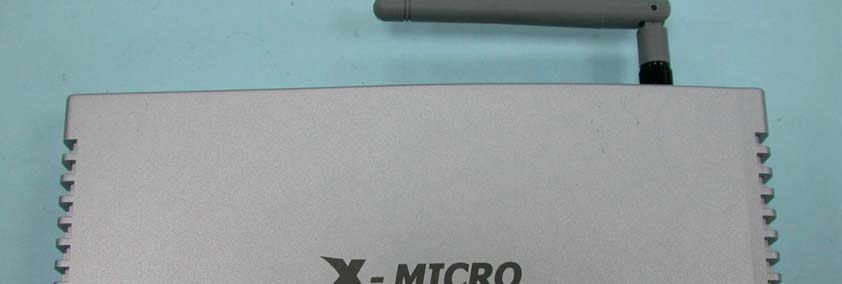

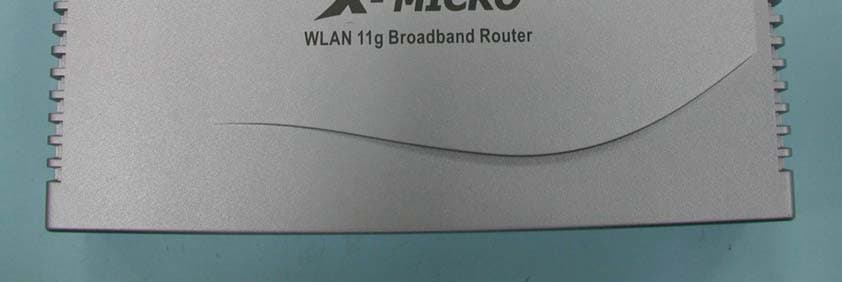

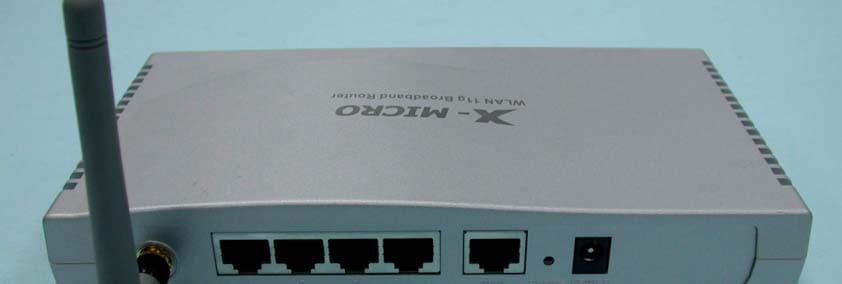

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 CONSTRUCTION PHOTOS OF EUT

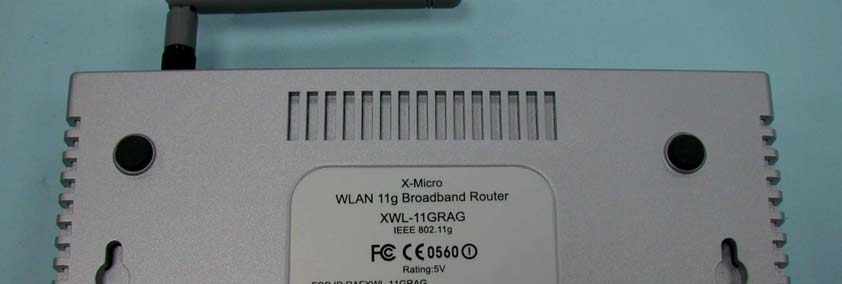

Made in Taiwan IEEE 802.11g Rating:5V WLAN 11g Broadband Router XWL-11GRAG S/N: MAC: IP Address:192.168.1.1 (LAN)

Page 3 Page 4 Page 5

FCC ID: RAFXWL-11GRAG Report No.: RF921011R03F Operational Description This device operates in the 2.4GHz frequency band. The maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT was powered by power adapter. The antenna type is Dipole antenna with Reversed SMA antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: RAFXWL-11GRAG Report No: RF921011R03F 1 RF EXPOSURE REPORT REPORT NO.: RF921011R03F MODEL NO.: XWL-11GRAG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: X-Micro Technology Corp. ADDRESS: 13F-4, No. 738, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: RAFXWL-11GRAG Report No: RF921011R03F 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAFXWL-11GRAG Report No: RF921011R03F 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAFXWL-11GRAG Report No: RF921011R03F 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.760.0161.0 6243750.120.0161.0 11246251.050.0161.0 For 802.11g : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.520.0161.0 6243750.580.0161.0 11246250.350.0161.0

FCC ID: RAFXWL-11GRAG Report No.: RF921011R03FIssued: Aug. 31, 2004 Reference No.: RF921011R03 1 FCC TEST REPORT REPORT NO.: RF921011R03F MODEL NO.: XWL-11GRAG RECEIVED: NA TESTED: Oct. 9, 2003 ~ Oct. 13, 2003 PREARED BY: X-Micro Technology Corp. ADDRESS: 13F-4, No.738, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R. O. C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: RAFXWL-11GRAG Report No.: RF921011R03FIssued: Aug. 31, 2004 Reference No.: RF921011R03 2 Table of Contents 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS...............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT..........................................................................6 3.2DESCRIPTION OF TEST MODES............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................7 3.4DESCRIPTION OF SUPPORT UNITS......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.......................................................9 4TEST TYPES AND RESULTS.................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT..........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................10 4.1.2TEST INSTRUMENTS.............................................................................................10 4.1.3TEST PROCEDURES..............................................................................................11 4.1.4DEVIATION FROM TEST STANDARD....................................................................11 4.1.5TEST SETUP...........................................................................................................12 4.1.6EUT OPERATING CONDITIONS............................................................................13 4.1.7TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT...............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................20 4.2.2TEST INSTRUMENTS.............................................................................................21 4.2.3TEST PROCEDURES.............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS............................................................................23 4.2.7TEST RESULTS.......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT.......................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................31 4.3.2TEST INSTRUMENTS.............................................................................................31 4.3.3TEST PROCEDURE................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD...................................................................31 4.3.5TEST SETUP...........................................................................................................32 4.3.6EUT OPERATING CONDITIONS............................................................................32 4.3.7TEST RESULTS.......................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER......................................................................41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................41 4.4.2TEST INSTRUMENTS.............................................................................................41 4.4.3TEST PROCEDURES.............................................................................................42 4.4.4DEVIATION FROM TEST STANDARD...................................................................42 FCC ID: RAFXWL-11GRAG Report No.: RF921011R03FIssued: Aug. 31, 2004 Reference No.: RF921011R03 3 4.4.5TEST SETUP...........................................................................................................42 4.4.6EUT OPERATING CONDITIONS............................................................................42 4.4.7TEST RESULTS.......................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................44 4.5.2TEST INSTRUMENTS.............................................................................................44 4.5.3TEST PROCEDURE................................................................................................45 4.5.4DEVIATION FROM TEST STANDARD.............................................…

Text truncated - open the document above for the full version.

FCC ID: RAFXWL-11GRAG Report No.: RF921011R03FIssued: Aug. 31, 2004 Reference No.: RF921011R03 61 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAFXWL-11GRAG Report No.: RF921011R03FIssued: Aug. 31, 2004 Reference No.: RF921011R03 62 RADIATED EMISSION TEST
