RAFXWL-11GCAGX-Micro WLAN 11g PCI Card

X-Micro WLAN 11g PCI Adapter USER MANUAL Contents 1. Introduction 5 1.1 Product Feature..........................................................................................5 1.2 System Requirement..................................................................................5 2. Getting Start 5 2.1 LED Indicators...........................................................................................5 2.2 Install the 108Mbps Wireless Network PCI Adapter.................................6 2.2.1 Utility Installation..........................................................................6 2.2.2 Driver Installation..........................................................................9 3. Configuration 12 3.1 Link Information............................................................................................12 3.2 Configuration.................................................................................................13 3.3 Advance..........................................................................................................14 3.4 Site Survey.....................................................................................................17 3.5 About US........................................................................................................19 4. Glossary 19 2 This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. Product Name: X-Micro WLAN 11g PCI Card M o d e l Na m e : XWL-11GCAG MAX. OUT POWER COUNTRY CHANNELS INDOOR OUTDOOR Spain 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP France 2400-2454 MHz 1-8 < 100 mW EIRP < 100 mW EIRP France 2454-2483.5 MHz 9-13 < 100 mW EIRP < 10 mW EIRP Italy 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP UK 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Netherlands 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Germany 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Austria 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Belgium 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Switzerland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Luxemburg 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Ireland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Portugal 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Norway 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Denmark 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Finland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Iceland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Greece 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Lichtenstein 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP Sweden 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP 3 FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. REGULATORY INFORMATION X-Micro WLAN 11g PCI Card must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. 4 1. Introduction 1.1 Product Feature ● Compliance with IEEE 802.11g and 802.11b standards ● Highly efficient design mechanism to provide unbeatable performance ● Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage; high performance to deliver up to 108Mbps raw data rate for 802.11g ● Strong network security with WEP and WPA support ● Auto-switch between the two standards, IEEE 802.11b and 802.11g ● Driver/Utility support most commonly used operating systems including Windows 98SE/ME/200/XP. 1.2 System Requirement ● Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems ● PC with Pentium III 600MHz system or above is recommended ● Equipped with at least one PCI slot. ● One CD-ROM drive 2. Getting Start 2.1 LED Indicators The LED will be ON when the unit is powered up. The LED will be Blinking indicates a WLAN connection. 5 2.2 Install the 108Mbps Wireless Network PCI Adapter 2.2.1 Utility Installation 1. Before insert PCI Adapter into the PCI slot of your computer, please install the Utility Program first. Make sure that the 108Mbps wireless Network P…

Text truncated - open the document above for the full version.

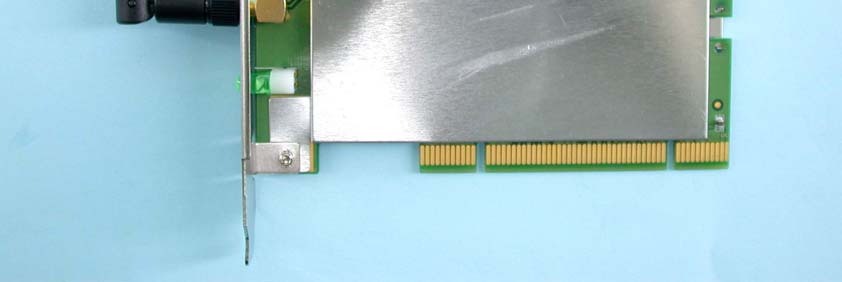

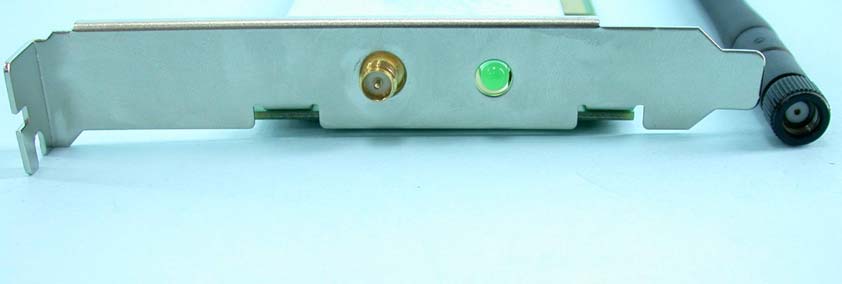

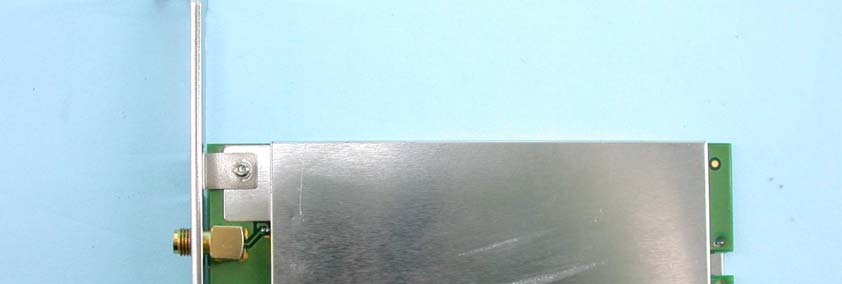

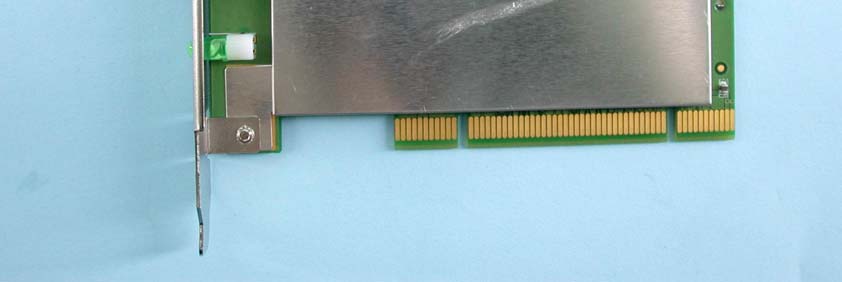

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

Page 4 Page 5 Page 6

FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E Operational Description This device is a X-Micro WLAN 11g PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique (turbo mode:108Mbps) will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reversed SMA connector. The other instruction, please have a look at the users manual.

FCC ID: RAFXWL-11GCAG Report No: RF921204R02E 1 RF EXPOSURE REPORT REPORT NO.: RF921204R02E MODEL NO.: XWL-11GCAG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: X-Micro Technology Corp. ADDRESS: 13F-4, No. 738, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: RAFXWL-11GCAG Report No: RF921204R02E 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAFXWL-11GCAG Report No: RF921204R02E 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAFXWL-11GCAG Report No: RF921204R02E 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.800.0251.0 6243777.980.0251.0 11246277.630.0241.0 For 802.11g (Normal mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.680.0201.0 6243764.570.0201.0 11246264.570.0201.0 For 802.11g (Turbo mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243768.230.0221.0

FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E1Issued: Aug. 30, 2004 Reference No.: RF921204R02 FCC TEST REPORT REPORT NO.: RF921204R02E MODEL NO.: XWL-11GCAG RECEIVED: NA TESTED: Nov. 27 ~ Dec. 9, 2003 APPLICANT: X-Micro Technology Corp. ADDRESS: 13F-4, No. 738, Chung Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E2Issued: Aug. 30, 2004 Reference No.: RF921204R02 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST.......................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS.............................................................................................10 4.1.3TEST PROCEDURES ............................................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD ................................................................... 11 4.1.5TEST SETUP...........................................................................................................12 4.1.6EUT OPERATING CONDITIONS ............................................................................12 4.1.7TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ...............................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD ...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS ............................................................................22 4.2.7TEST RESULTS ......................................................................................................23 4.2.8TEST RESULTS (A) ................................................................................................24 4.2.9TEST RESULTS (B) ................................................................................................27 4.36dB BANDWIDTH MEASUREMENT.......................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................31 4.3.2TEST INSTRUMENTS.............................................................................................31 4.3.3TEST PROCEDURE................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD ...................................................................32 4.3.5TEST SETUP...........................................................................................................32 4.3.6EUT OPERATING CONDITIONS ............................................................................32 4.3.7TEST RESULTS (A) ................................................................................................33 4.3.8TEST RESULTS (B) ................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................43 FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E3Issued: Aug. 30, 2004 Reference No.: RF921204R02 4.4.2TEST INSTRUMENTS.............................................................................................43 4.4.3TEST PROCEDURES .............................................................................................44 4.4.4DEVIATION FROM TEST STANDARD ...................................................................44 4.4.5TEST SETUP...........................................................................................................44 4.4.6EUT OPERATING CONDITIONS ............................................................................44 4.4.7TEST RESULTS (A) ................................................................................................45 4.4.8TEST RESULTS (B) ............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E69Issued: Aug. 30, 2004 Reference No.: RF921204R02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAFXWL-11GCAG Report No.: RF921204R02E70Issued: Aug. 30, 2004 Reference No.: RF921204R02 RADIATED EMISSION TEST
