RAFXBT-DG1GX-Micro Bluetooth USB Dongle

Bluetooth USB Adapter User’s Manual . Bluetooth USB Adapter User’s Manual Version 1.3 Bluetooth USB Adapter User’s Manual REGULATION INFORMATION The Bluetooth USB Adapter must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification no t expressly approved by the party responsible could void the user’s authority to operate the device. R&TTE Directive This device complies with the specifications listed below: • ETS 301 489 -1 & -17 General EMC requirements for Radio equipment. • ETS 300 328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment Bluetooth USB Adapter User’s Manual i LICENSED SOFTWARE © Copyright 2000 – 2002, WIDCOMM, Inc. (“WIDCOMM”). All rights reserved. Warning: This software and accompanying documentation are protected by copyright law and international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. Use of this software is governed by the terms of the end user license agreement that accompanies or is included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of the documentation accompanying this software, whether provided in printed or electronic form may be reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any means, or used to make any derivative work (such as translation, transformation, or adaptation) without the express, prior written consent of WIDCOMM. Trademark(s) ™ and Registered Trademark(s) ® WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to WIDCOMM, Inc. Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. Bluetooth USB Adapter User’s Manual ii Table of Contents 1 Introduction ................................................................................................................ 1 1.1 Bluetooth Technology ..................................................................................................... 1 1.2 Bluetooth USB Adapter................................................................................................... 1 2 Software Installation ................................................................................................. 2 2.1 System Requirements ...................................................................................................... 2 2.2 Before Installation ........................................................................................................... 2 2.3 Install Widcomm Bluetooth Software ............................................................................ 2 3 Hardware Installation ................................................................................................ 7 4 BTW Introduction....................................................................................................... 8 4.1 Bluetooth Tray .................................................................................................................8 4.2 Access My Bluetooth Places ........................................................................................... 8 4.3 Icons Used for Bluetooth Devices and Services .............................................................. 9 5 Basic Operations ..................................................................................................... 12 5.1 Start or Stop Bluetooth .................................................................................................. 12 5.2 Create a Connection From the Bluetooth Icon in the System Tray ............................... 12 5.3 Create a Connection Using the Bluetooth Setup Wizard............................................... 12 5.4 Create a Connection From Entire Bluetooth Neighborhood ......................................... 14 5.5 Find Bluetooth Devices .…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 6, 2003 RE: X-micro Technology Corp. FCC ID: RAFXBT-DG1G I have a few comments on the above referenced Application. 1) The FRN Number provided (0009222233) appears not to be valid from checking on the FCC website. Please provide a correct FRN number for X-Micro Technology Corp. Note that a grant can not be issued without this. 2) Certain characters of the FCC ID on the label are not easily readable. Please provide a higher resolution label that is clear. 3) The 20 cm distance given in the users manual (page 2 of 62) is not applicable to this type of device. Touch conditions can occur. However due to the EIRP of this device, it is not necessary to cite a distance in the users manual. Please remove this sentence from the users manual. 4) The users manual (page 61 of 62) states that this device is a Class 1 Bluetooth device. Note that a Class 1 device is 100 mW (20 dBm). Additionally, the test report states the device is a Class 2. Please explain. 5) FYI. The RF exposure exhibit mentions 2.5 cm distance. This distance is not necessarily correct for the type of device since touch conditions can occur. However, due to the power output and gain of the antenna, an RF exposure exhibit is not necessary. Therefore the exhibit provided will be ignored. 6) Because of the narrow band nature of the signal, normally the delta from peak to average measurements for a frequency hopping system is only a few dB. This is due to the fact that frequency hopping systems must be measured using a hop-stopped carrier (frequency stopped, plus non pulsing carrier) when possible. Frequency hopping systems are measured hop stopped for PEAK and AVG emissions using the non-pulsing frequency stopped signal, and if they TX < 100 msec per channel during normal end user operation they may be additionally corrected for the worse case time of occupancy per channel. If the device was not appropriately hop stopped during average measurements, then the use of the AVG detector using standard RBW = 1 MHz and VBW = 10 Hz will not be allowed. If necessary, please provide plots of the fundamental as it was set during testing using RBW = 1 MHz and VBW = 10 kHz, 1 kHz, 100 Hz, 10 Hz settings, using a zero Hz span and 20 - 30 msec sweep time. Alternatively, you may remove the actual average measurements and replace them by the following: Apply the correction factor for the worse case expected duty cycle using DH5 packet information (see dwell time within attachment provided) to the peak measurements to obtain an average value without actually needing to test the Average emissions. 7) Note that the concern given in 6) will also affect the results shown for the bandedge test. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

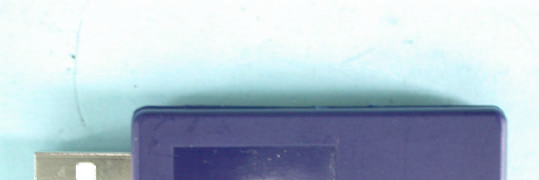

Page 1 FCC Label Location

Page 3 Page 4 Page 5

BLUETOOTH APPROVALS The following exhibit indicates the FCC Spread Spectrum requirements in Section 15.247 for devices meeting the Bluetooth Specifications in the 2.4 GHz band as of February 2001 operating in the USA. The purpose of this exhibit is to help expedite the approval process for Bluetooth devices. This exhibit provides items that vary for each device and also provides a list of items that are common to Bluetooth devices that explains the remaining requirements. The list of common items can be submitted for each application for equipment authorization. This exhibit only specifies requirements in Section 15.247, requirements in other rule Sections for intentional radiators such as in Section 15.203 or 15.207 must be also be addressed. For each individual device, the following items, 1-7 will vary from one device to another and must be submitted. 1) The occupied bandwidth in Section 15.247(a)(1)(ii). 2) Conducted output power specified in Section 15.247(b)(1). 3) EIRP limit in Section 15.247(b)(3). 4) RF safety requirement in Section 15.247(b)(4) 5) Spurious emission limits in Section 15.247©. 6) Processing gain and requirements for Hybrids in Section 15.247(f) in the acquisition mode. 7) Power spectral density requirement in Section 15.247(f) in the acquisition mode. For all devices, the following items, 1-12, are common to all Bluetooth devices and will not vary from one device to another. This list can be copied into the filing. 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason, the RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: The maximum frequency of the device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification must not be supported by the device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units, only the offsets are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions, the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence is generated. For transmitting the wanted data, the complete hopping sequence is not used and the connection ends. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth, synchronization and repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection, one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multi-slot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing is according to the packet type of the connection. Also, the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency …

Text truncated - open the document above for the full version.

FCC ID: RAFXBT-DG1G ADT No.910731R01F Operational Description The transmitter of the EUT is powered by host equipment from USB port. The antenna is Patch Antenna, and there is no antenna connector. The other instruction, please have a look at the users manual. This device is a Frequency Hopping device with 79 hopping frequencies. The declared output power is only 1.61dBm.

FCC ID: RAFXBT-DG1G Report No.: RF910731R01F1Issued: Nov. 04, 2003 Reference No.: RF910731R01 FCC TEST REPORT REPORT NO.: RF910731R01F MODEL NO.: XBT-DG1G RECEIVED: NA TESTED: Aug. 2 ~ Aug. 7, 2002 APPLICANT:X-Micro Technology Corp. ADDRESS:13F-4,No.738,Chung Cheng Road,Chung Ho City,Taipei Hsien,Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: RAFXBT-DG1G Report No.: RF910731R01F2Issued: Nov. 04, 2003 Reference No.: RF910731R01 TABLE OF CONTENTS 1CERTIFICATION..............................................................................................4 2SUMMARY OF TEST RESULTS......................................................................5 3GENERAL INFORMATION..............................................................................6 3.1GENERAL DESCRIPTION OF EUT.................................................................6 3.2DESCRIPTION OF TEST MODES...................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.............................................................8 4TEST PROCEDURES AND RESULTS............................................................9 4.1CONDUCTED EMISSION MEASUREMENT...................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................9 4.1.2TEST INSTRUMENTS................................................................................9 4.1.3TEST PROCEDURES..............................................................................10 4.1.4DEVIATION FROM TEST STANDARD.....................................................10 4.1.5TEST SETUP.............................................................................................11 4.1.6TEST RESULTS.......................................................................................12 4.2NUMBER OF HOPPING FREQUENCY USED..............................................18 4.2.1LIMIT OF HOPPING FREQUENCY USED...............................................18 4.2.2TEST INSTRUMENTS..............................................................................18 4.2.3TEST PROCEDURES..............................................................................18 4.2.4DEVIATION FROM TEST STANDARD.....................................................18 4.2.5TEST SETUP............................................................................................19 4.2.6TEST RESULTS.......................................................................................19 4.3DWELL TIME ON EACH CHANNEL..............................................................22 4.3.1LIMIT OF DWELL TIME USED.................................................................22 4.3.2TEST INSTRUMENTS..............................................................................22 4.3.3TEST PROCEDURES..............................................................................22 4.3.4DEVIATION FROM TEST STANDARD.....................................................23 4.3.5TEST SETUP............................................................................................23 4.3.6TEST RESULTS.......................................................................................23 4.4CHANNEL BANDWIDTH...............................................................................27 4.4.1LIMITS OF CHANNEL BANDWIDTH........................................................27 4.4.2TEST INSTRUMENTS..............................................................................27 4.4.3TEST PROCEDURE.................................................................................27 4.4.4DEVIATION FROM TEST STANDARD.....................................................27 4.4.5TEST SETUP............................................................................................28 4.4.6EUT OPERATING CONDITION................................................................28 4.4.7TEST RESULTS.......................................................................................28 FCC ID: RAFXBT-DG1G Report No.: RF910731R01F3Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.5HOPPING CHANNEL SEPARATION.............................................................32 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION........................................32 4.5.2TEST INSTRUMENTS..............................................................................32 4.5.3TEST PROCEDURES..............................................................................32 4.5.4DEVIATION FROM TEST STANDARD.....................................................32 4.5.5TEST SETUP............................................................................................33 4.5.6TEST RESULTS.......................................................................................33 4.6MAXIMUM PEAK OUTPUT POWER.............................................................37 4.6.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........37 4.6.2INSTRUMENTS........................................................................................37 4.6.3TEST PROCEDURES..............................................................................37 4.6.4DEVIATION FROM TEST STANDARD.....................................................37 4.6.5TEST SETUP............................................................................................38 4.6.6EUT OPERATING CONDITION................................................................38…

Text truncated - open the document above for the full version.

FCC ID: RAFXBT-DG1G Report No.: RF910731R01F41Issued: Nov. 04, 2003 Reference No.: RF910731R01 Channel 78 FCC ID: RAFXBT-DG1G Report No.: RF910731R01F42Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.7 RADIATED EMISSION MEASUREMENT 4.7.1 LIMITS OF RADIATED EMISSION MEASUREMENT Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBuV/m) = 20 log Emission level (uV/m). 3. As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. FCC ID: RAFXBT-DG1G Report No.: RF910731R01F43Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.7.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURERMODEL NO.SERIAL NO.CALIBRATED UNTIL * HP Spectrum Analyzer8590L3544A01176Jun. 10, 2004 * HP Preamplifier8447D2944A08485May 01, 2004 * HP Preamplifier8449B3008A01201Dec. 01, 2003 HP Preamplifier8449B3008A01292Aug. 13, 2004 ROHDE & SCHWARZ TEST RECEIVER ESI7838496/016Feb. 23, 2004 * ROHDE & SCHWARZ TEST RECEIVER ESMI 839013/007 839379/002 Feb. 13, 2004 SCHAFFNER Tunable Dipole Antenna SCHWARZBECK Tunable Dipole Antenna VHBA 9123 UHA 9105 459 977 Nov. 22, 2003 * CHASE BILOG AntennaCBL6112A2221July 26, 2004 * SCHWARZBECK Horn Antenna BBHA9120-D1D130Jun. 30, 2004 * EMCO Horn Antenna31159312-4192Mar. 23, 2004 * EMCO Turn Table10601115NA * CHANCE TowerCM-AT40CM-A010NA * Software ADT_Radiate d_V5.14 NANA * ANRITSU RF SwitchesMP59BM35046Jan. 05, 2004 * TIMES RF cableLMR-600CABLE-ST5-01Jan. 05, 2004 NOTE:1.The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. 2. “*” = These equipment are used for the final measurement. 3. The horn antenna and HP preamplifier (model: 8449B) are used only for the measurement of emission frequency above 1GHz if tested. 4. The test was performed in ADT Open Site No. 5. 5. The VCCI Site Registration No. is R-1039. FCC ID: RAFXBT-DG1G Report No.: RF910731R01F44Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.7.3 TEST PROCEDURES a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10 dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10 dB margin would be re- tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. NOTE: 1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120kHz for Peak detection (PK) and Quasi-peak detection (QP) at frequency below 1GHz. 2. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1 MHz for Peak detection at frequency above 1GHz. 3. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10 Hz for Average detection (AV) at frequency above 1GHz. 4.7.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: RAFXBT-DG1G Report No.: RF910731R01F45Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.7.5 TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. FCC ID: RAFXBT-DG1G Report No.: RF910731R01F46Issued: Nov. 04, 2003 Reference No.: RF910731R01 4.7.6 TEST RESULTS Digital Portion: EUT X-Micro Bluetooth USB Dongle Class2 MODEL XBT-DG1G MODE Channel 78 FREQUENCY RANGE Below 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Quasi-Peak ENVIRONMENTAL CONDITIONS 35 deg. C, 60%RH, 991 hPa TESTED BY: Bunny Yao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Ta b l e Angle (Degree) Raw Value (dBuV) Antenna Factor (dB/m) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB/m) 184.0026.0 QP40.00-14.00 1.52H15216.657.631.710.00-9.35 2144.00 32.8 QP43.50-10.70 1.75H18419.6210.582.600.00-13.18 3205.00 33.5 QP43.50-10.00 1.63H20420.619.253.640.00-12.90 4210.00 34.5 QP43.50-9.001.63H27821.259.543.710.00-13.26 5216.00 31.5 QP43.50-12.00 1.63H13517.729.973.810.00-13.79 6232.00 30.8 QP46.00-15.20 1.76H215.9410.844.020.00-14.86 7240.00 31.8 QP46.00-14.20 1.81H23316.2311.414.160.00-15.57 8272.00 28.8 QP46.00-17.20 1.14H27511.6112.534.660.00-17.19 9360.00 32.0 QP46.00-14.00 1.49H12611.6514.585.770.00-20.35 10460.00 28.6 QP46.00-17.40 1.62H1844.9616.537.110.00-23.65 11525.00 32.9 QP46.00-13.10 1.65H2747.5217.597.790.00-25.39 12590.00 35.0 QP46.00-11.00 1.37H18.1018.488.420.00-26.91 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m…

Text truncated - open the document above for the full version.

FCC ID: RAFXBT-DG1G Report No.: RF910731R01F55Issued: Nov. 04, 2003 Reference No.: RF910731R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAFXBT-DG1G Report No.: RF910731R01F56Issued: Nov. 04, 2003 Reference No.: RF910731R01 RADIATED EMISSION TEST
