RAFXWL-11BPRGX-Micro WLAN 11b PCMCIA Card

1 IEEE 802.11b Wireless LAN PCMCIA Card User Manual 2 IEEE 802.11b X-Micro WLAN PCMCIA Card User’s Manual Version 1.1 3 INFORMATION TO USER FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. 4 REGULATORY INFORMATION X-Micro Wireless LAN PCMCIA Card must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 300-826 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22- MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) JapanETSI North America IsraelFranceMexico 12412 ̧ ̧ ̧ 22417 ̧ ̧ ̧ 32422 ̧ ̧ ̧ ̧ 42427 ̧ ̧ ̧ ̧ 52432 ̧ ̧ ̧ ̧ 62437 ̧ ̧ ̧ ̧ 72442 ̧ ̧ ̧ ̧ 82447 ̧ ̧ ̧ ̧ 92452 ̧ ̧ ̧ ̧ 102457 ̧ ̧ ̧ ̧ ̧ 112462 ̧ ̧ ̧ ̧ ̧ 122467 ̧ ̧ ̧ 132472 ̧ ̧ ̧ 142484 ̧ 5 CONTENTS 1. INTRODUCTION ................................................................... 5 2. Wireless LAN basics ................................................................. 6 3. Install Driver and Utility ............................................................7 4. Configuration Utility................................................................... 8 4.1 Windows XP Wireless Network Connection Setting. 4.2 Other Connection Setting.. 5. Technical Specifications of X-Micro WLAN PCMCIA Card ......................... 12 6. Glossary ................................................................................. 13 6 1 Introduction First of all, we deeply appreciated your purchasing X-Micro wireless LAN PCMCIA Card. This powerful LAN card not only providing stable linking quality but also safe to transmitting data. We supply several security authentication login to enhance your safekeeping, as 802.1x and 802.11i standard. This user manual will guide you to install X-Micro WLAN PCMCIA Card driver and utility quickly! Features • Completely accordance with IEEE 802.11 and IEEE 802.11b standards • Ultra low power consumption in sleep mode • High throughput and long transmission range • 128-pin LQFP, world's most compact size • Requires 50% fewer discrete components • Patented integrated Wireless LAN MAC and Direct Sequence Spread Spectrum Baseband Processor in one chip • On-chip A/D and D/A converters for I/Q Data, AGC, and Adaptive Power Control • Multi-path Delay Spreads 250ns at 11Mbps • Supports Antenna Diversity • 1 Mbps, 2 Mbps, 5.5 Mbps, and 11 Mbps operation • PCI local bus network interface controller • Compliant to PCI Revision 2.2 • Supports ACPI, PCI power management • Supports CardBus. The CIS can be stored in a 93C56 • Compliant to PC97, PC98, PC99 and PC2001 standards • Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power remains off. • Supports auxiliary power auto-detect, and sets the related capability of power management registers in PCI configuration space • Supports Short Preamble option 7 • Internal encryption/decryption engine executes IEEE 802.11 64-bit and 128-bit WEP • 3.3V and 1.8V power supplies needed and 5V tolerant I/Os 2 Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be Configure as: Ad Hoc wireless LAN or Infrastructure wireless LAN. Ad Hoc network is a group of notebooks with wireless LAN PCMCIA Card, called a BSS (Basic Service Set). These notebooks use their wireless LAN PCMCIA Card to communicate with each other directly. The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access P…

Text truncated - open the document above for the full version.

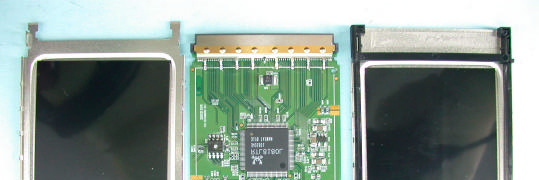

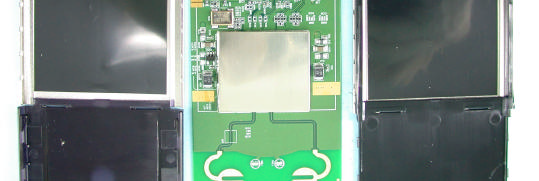

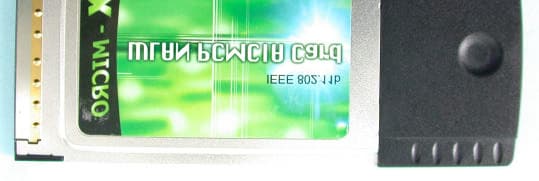

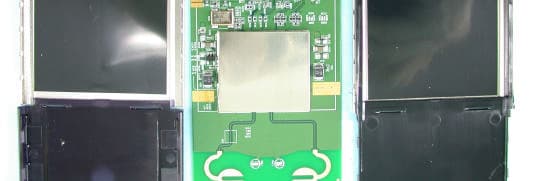

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 3 Page 4 Page 5

FCC ID: RAFXWL-11BPRG ADT No. 920218R06B Operational Description The transmitter of the EUT (X-Micro WLAN 11b PCMCIA Card) is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna without antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: RAFXWL-11BPRG Report No.: RF920218R06B1Issued: Oct. 23, 2003 Reference No.: RF920218R06 FCC TEST REPORT REPORT NO.: RF920218R06B MODEL NO.: XWL-11BPRG RECEIVED: NA TESTED: Feb. 24~ Mar. 5, 2003 APPLICANT:X-Micro Technology Corp. ADDRESS:13F-4,No.738,Chung Cheng Road,Chung Ho City,Taipei Hsien,Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: RAFXWL-11BPRG Report No.: RF920218R06B2Issued: Oct. 23, 2003 Reference No.: RF920218R06 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................9 4.1.2TEST INSTRUMENTS..................................................................................9 4.1.3TEST PROCEDURES.................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.......................................................10 4.1.5TEST SETUP..............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................11 4.1.7TEST RESULTS..........................................................................................12 4.2RADIATED EMISSION MEASUREMENT...................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2TEST INSTRUMENTS................................................................................19 4.2.3TEST PROCEDURES.................................................................................20 4.2.4DEVIATION FROM TEST STANDARD.......................................................20 4.2.5TEST SETUP..............................................................................................21 4.2.6EUT OPERATING CONDITIONS................................................................21 4.2.7TEST RESULTS..........................................................................................22 4.36dB BANDWIDTH MEASUREMENT...........................................................26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................26 4.3.2TEST INSTRUMENTS................................................................................26 4.3.3TEST PROCEDURE...................................................................................27 4.3.4DEVIATION FROM TEST STANDARD.......................................................27 4.3.5TEST SETUP..............................................................................................27 4.3.6EUT OPERATING CONDITIONS................................................................27 4.3.7TEST RESULTS..........................................................................................28 4.4MAXIMUM PEAK OUTPUT POWER..........................................................32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........32 4.4.2TEST INSTRUMENTS................................................................................32 FCC ID: RAFXWL-11BPRG Report No.: RF920218R06B3Issued: Oct. 23, 2003 Reference No.: RF920218R06 4.4.3TEST PROCEDURES.................................................................................33 4.4.4DEVIATION FROM TEST STANDARD.......................................................33 4.4.5TEST SETUP..............................................................................................33 4.4.6EUT OPERATING CONDITIONS................................................................33 4.4.7TEST RESULTS..........................................................................................34 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................35 4.5.2TEST INSTRUMENTS................................................................................35 4.5.3TEST PROCEDURE...................................................................................36 4.5.4DEVIATION FROM TEST STANDARD.......................................................36 4.5.5TEST SETUP..............................................................................................36 4.5.6EUT OPERATING CONDITIONS................................................................36 4.5.7TEST RESULTS..........................................................................................37 4.6BAND EDGES MEASUREMENT................................................................41 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................41 4.6.2TEST INSTRUMENTS................................................................................41 4.6.3TEST PROCEDURE.....…

Text truncated - open the document above for the full version.

FCC ID: RAFXWL-11BPRG Report No.: SA920218R06B1Issued: Oct. 24, 2003 SAR TEST REPORT REPORT NO.: SA920218R06B MODEL NO.: XWL-11BPRG RECEIVED: NA TESTED: March. 06, 2003 APPLICANT:X-Micro Technology Corp. ADDRESS:13F-4, No.738, Chung Cheng Road, Chung Ho City, Taipei Hsien, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: RAFXWL-11BPRG Report No.: SA920218R06B2Issued: Oct. 24, 2003 Table of Contents 1.CERTIFICATION........................................................................................3 2.GENERAL INFORMATION.........................................................................4 2.1GENERAL DESCRIPTION OF EUT...........................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM...................................5 2.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE........................7 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...................8 4.DESCRIPTION OF SUPPORT UNITS.......................................................9 5.TEST RESULTS.......................................................................................10 5.1TEST PROCEDURES..............................................................................10 5.2MEASURED SAR RESULT......................................................................10 5.3SAR LIMITS.............................................................................................11 5.4EUT CONDUCTED POWER VARIATION................................................11 5.5TISSUE....................................................................................................12 5.6TEST EQUIPMENT FOR TISSUE PROPERTY.......................................12 6.SYSTEM VALIDATION.............................................................................13 7.MEASUREMENT UNCERTAINTIES........................................................14 8.INFORMATION ON THE TESTING LABORATORIES.............................15 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: RAFXWL-11BPRG Report No.: SA920218R06B3Issued: Oct. 24, 2003 1. CERTIFICATION PRODUCT : X-Micro WLAN 11b PCMCIA Card MODEL NO. : XWL-11BPRG BRAND NAME : X-Micro APPLICANT : X-Micro Technology Corp. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 06 th March. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: RAFXWL-11BPRG Report No.: SA920218R06B4Issued: Oct. 24, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCTX-Micro WLAN 11b PCMCIA Card MODEL NO.XWL-11BPRG POWER SUPPLY3.3VDC powered by host equipment CLASSIFICATIONPortable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE2412MHz ~ 2462MHz NUMBER OF CHANNEL11 CONDUCTED OUTPUT POWER 41.68mW ANTENNA TYPEInternal Printed Antenna PEAK SAR0.099W/kg DATA CABLENA I/O PORTSPCMCIA ASSOCIATED DEVICESNA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All test items have been performed and recorded as per the above standards. FCC ID: RAFXWL-11BPRG Report No.: SA920218R06B5Issued: Oct. 24, 2003 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY3 (software 3.1d) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY3 software defined. The DASY3 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions Overall length: 330 mm (Tip Length: 16 mm) Tip diameter: 6.8 mm (Bod…

Text truncated - open the document above for the full version.

FCC ID: PANWL1102 Report No.: RF920218R06 46 Issued: Mar. 11, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANWL1102 Report No.: RF920218R06 47 Issued: Mar. 11, 2003 RADIATED EMISSION TEST
