RAFXWL-11GPIG802.11 b/g Wireless LAN Cardbus

User Guide for X-Micro WLAN Solution IEEE 802.11b/g Wireless Network Adapte r X-Micro Technology Corp. 2 Preface This user's guide provides the necessary information for first-time users to successfully install the X-Micro network driver interface specification (NDIS) driver, for the purpose of evaluating and/or operating the X-Micro WLAN card solution for IEEE 802.11b/g in a Microsoft Windows environment and the X-Micro WLAN Driver and Utility. This guide also provides information for users who wish to upgrade the X-Micro NDIS driver from previous releases. This guide describes the steps required to install NDIS drivers for the X- Micro Wireless Network Adapter in Windows 2000, Windows XP, Windows Millennium Edition, Windows 98SE. About this Document Chapter 1 Introduction—Hardware, software, and system requirements needed to set up the X-Micro Wireless Network Adapter. Chapter 2 Installation—Installation/uninstallation procedures for Windows XP, Windows 2000, Windows ME, Windows 98SE. Warning 802.11b Restrictions: • European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400~2.4835GHz. • In France, the equipment must be restricted to the 2.4465~2.4835GHz frequency range and must be restricted to indoor use. 3 1 Introduction The X-Micro Wireless Network Adapters are designs based on the Inprocomm IPN2220 and Maxim 2825 chip set. These designs implement a half-duplex, Orthogonal Frequency Division Multiplexing (OFDM) baseband processor supporting all IEEE 802.11g data rates (6 to 54 Mbps) and 802.11b data rates (1 to 11 Mbps). The host interface is compatible with the PC Card 7.1 and PCI 2.3 standards. System Requirements Laptop PC containing: • 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) • 32 MB memory or greater • 300 MHz processor or higher Microsoft Windows 2000/Windows Millennium Edition/Windows 98 Second Edition/Windows XP 4 2 Installation This chapter describes using the X-Micro installer to install the X-Micro WLAN Driver and Utility. X-Micro provides an InstallShield utility to upgrade the NDIS driver, if a previous release is installed, and to install the X-Micro WLAN Driver and Utility. • Use the X-Micro WLAN Driver and Utility to configure the device driver. • Use the InstallShield Updater to uninstall the NDIS driver and X-Micro WLAN Driver and Utility application and remove them from the Device Manager. X-Micro WLAN Driver and Utility Installation and Driver Update This section describes installing the client utility and driver on the Windows XP, Windows 2000, Windows ME, and Windows 98SE OSs. To install the X-Micro WLAN Driver and Utility: 1. Copy the driver package (ex: setup.exe) to any directory of Notebook or PC. It can be run on the Windows XP, Windows 2000, Windows ME, and Windows 98SE OSs. 2. Click the package “setup.exe” to appear the installation dialog. 3. Click the “Next” icon to continue the installation. If no previous installation exists, the dialog will appear. 4. Click “I accept the terms in the license agreement” shown as in Figure 1. If previous installation is found as shown in Figure 2, chose the desire option from “Modify, Repair”, and “Remove”. 5 Figure 1. License Agreement Dialog Figure 2. Modify, Repair, and Remove Option Dialog 5. Click “Install” to install the program. 6 6. Click the “Continue Anyway” to complete the installation of “X-Micro WLAN Driver and Utility”. Driver Installation This section describes the installation for the Windows driver on the Windows XP, Windows 2000, Windows ME, and Windows 98SE OSs. To install the driver: 1. Insert the X-Micro Wireless Network Adapter into a 32-bit CardBus slot. 2. Wait for the “Found New Hardware Wizard” dialog box to appear as Figure 3. Choose the recommended method to “Install the software automatically,” and click “Next” to continue. Figure 3. Windows Found New Hardware Dialogue 3. The X-Micro NDIS evaluation driver currently does not have a digital signature from Microsoft. Therefore, Windows may show a warning message shown as Figure 4. Click “Continue Anyway” to proceed with driver installation. 4. If the “Found New Hardware Wizard” dialog box doesn’t appear, run the “Add/Remove Hardware” in the “Control Panel”. Click the option to install the driver manually by browsing the created directory and selecting the “IPN2220.inf”. 7 Figure 4. Windows Digital Signature Warning 5. Click “Finish” to complete driver installation. Federal Communication Commission Interference Statement Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. 8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: FCC RF Exposure Statement: This equipment complies with FCC RF rad…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40601003 Date of Issue: June 2, 2004 Page 1 of 5 EXTERNAL PHOTO

X-Micro ������������������������� ���������� ������������ ����������������������� ��������������������� ���� ���� Rating: 5V ������������������������ � ��������������������� ���� ���� ������� �������������������� ������������������������ ���������� ������������������ ��������������������� ���� ���� �������������� WLAN 11g Broadband Router (E) Model Name: XWL-11GRIX EAN: S/N: From: To: Q‘TY: N.W.: G.W.: 20 18.0 19.0 PCS KGS KGS Frank Chang WLAN Product Manager Mobile Solution Business Center Procomp Informatics Ltd. [email protected] T: +886-2-2809-5230 ext 1624 F: +886-2-8809-6111 AP-Router 70 x 42mm USB Dongle 20 x 14mm Cardbus 42 x 70mm Box AP-Router 130 x 190mm

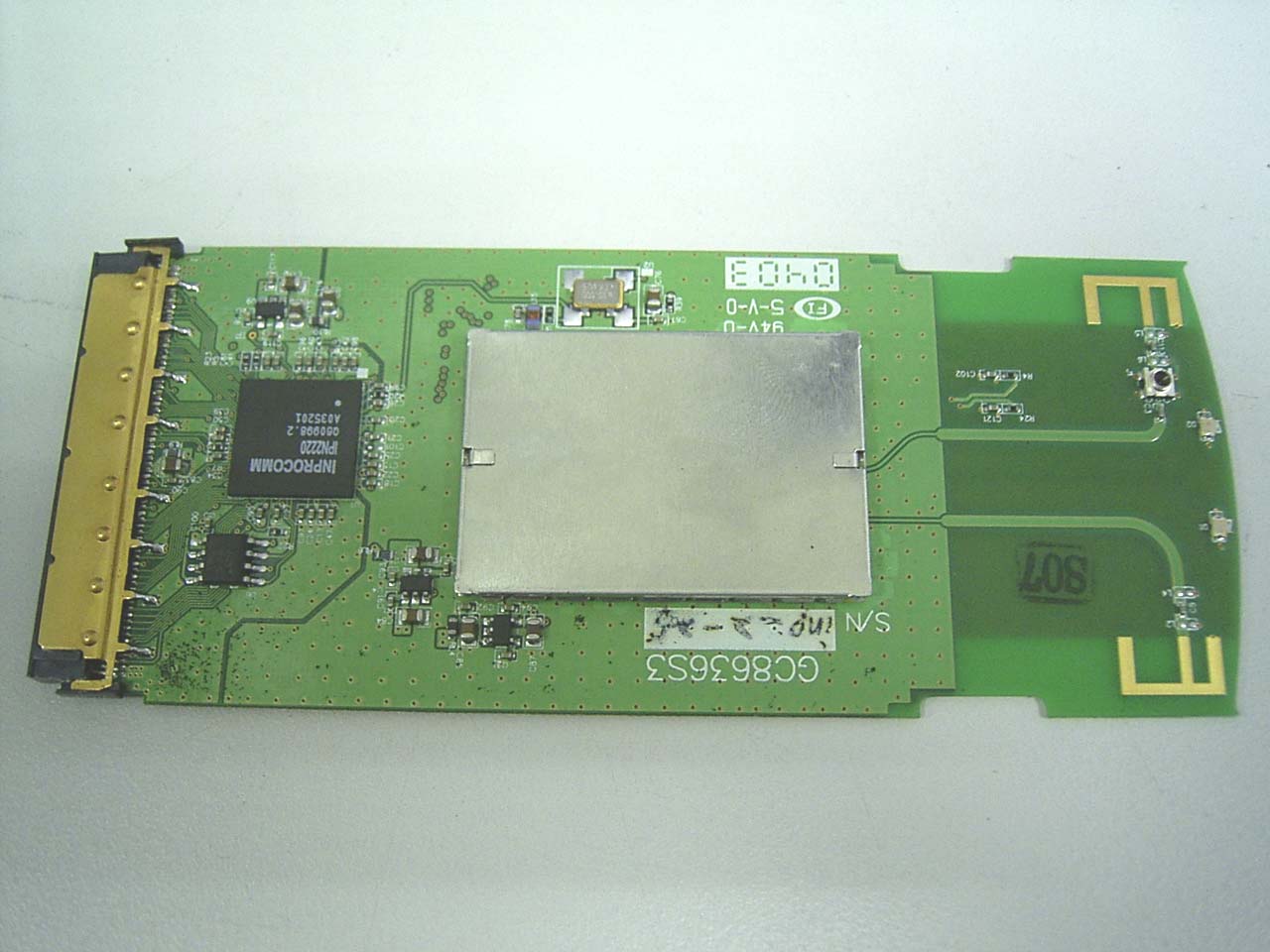

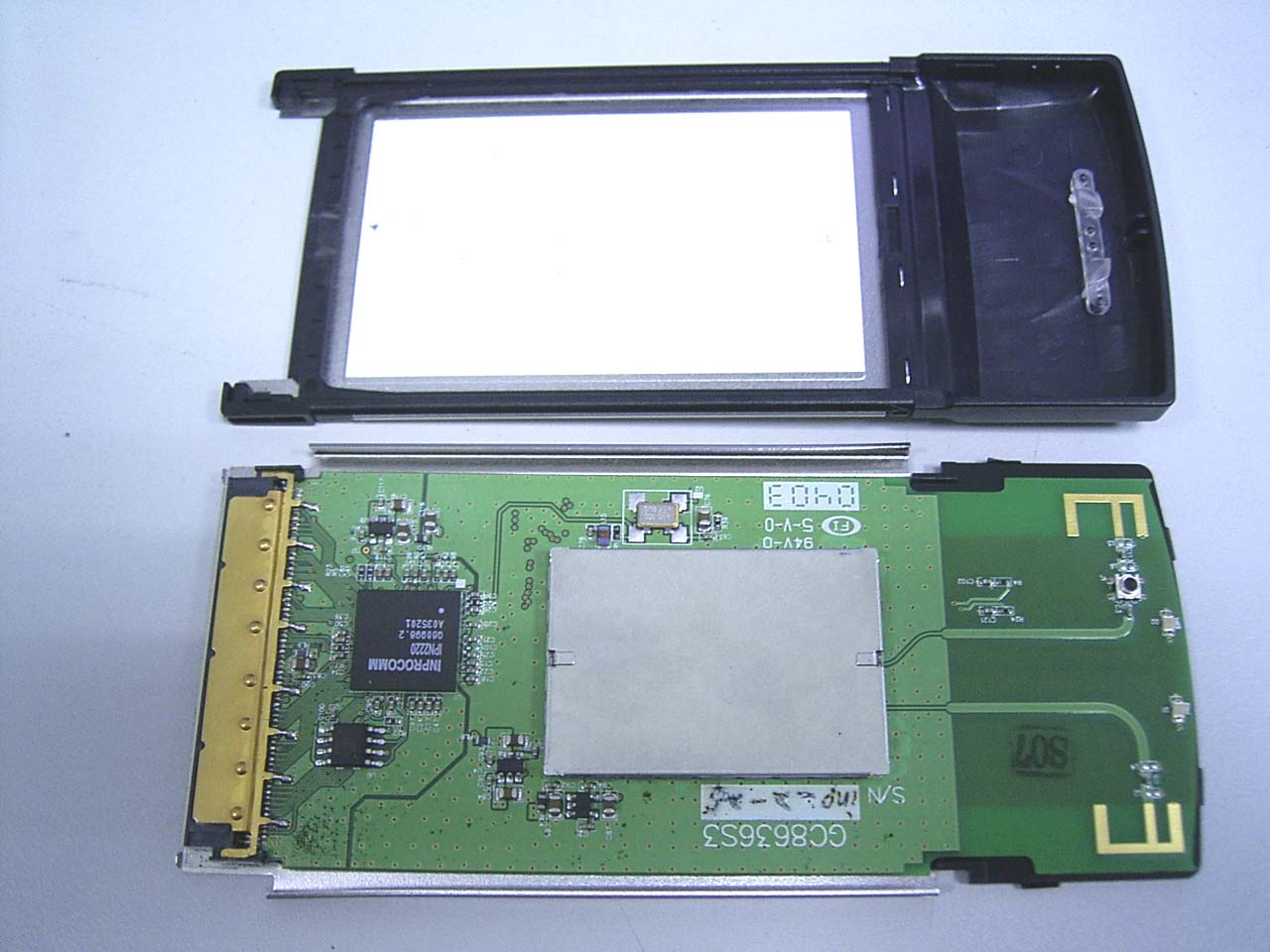

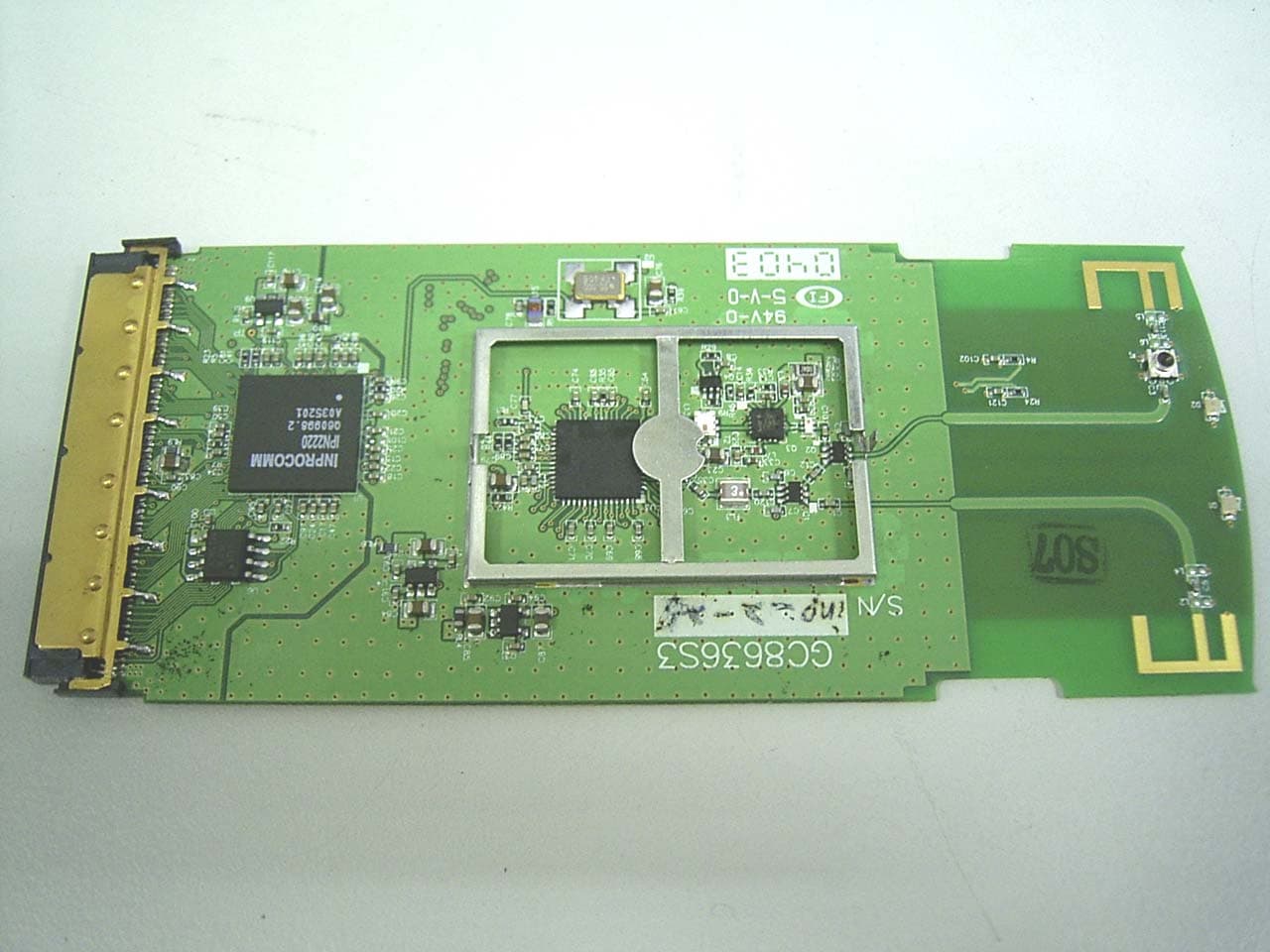

Compliance Certification Services Inc. Report No: B40224201 Date of Issue: March 4, 2004 Page 2 INTERNAL PHOTO Compliance Certification Services Inc. Report No: B40224201 Date of Issue: March 4, 2004 Page 3 Compliance Certification Services Inc. Report No: B40224201 Date of Issue: March 4, 2004 Page 4 Compliance Certification Services Inc. Report No: B40224201 Date of Issue: March 4, 2004 Page 5

Brand/model number : X-Micro/ Antenna gain : Average gain : -2.1dBi, Peak gain : 4.61dBi . Antenna type : Diversity PIFA (Planar Inverted-F Antenna ). Size : L=10.25 mm, W=6.25 mm, H= t = 0.6 mm. Wave pattern :

Compliance Certification Services Inc. Report No: 40601003-SF FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 22 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For X-Micro Technology Corp. X-Micro WLAN 11g PCMCIA Card 802.11g(54Mbits) Model: XWL-11GPIG Trade Name: X-Micro Prepared for X-Micro Technology Corp. 12F-3, No. 186, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40601003-SF Date of Issue: June 2, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM ............................................................. 6 3.2 SYSTEM COMPONENTS..................................................................................... 7 4. EVALUATION PROCEDURES .................................................................................. 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 12 6. EXPOSURE LIMIT ..................................................................................................... 13 7. MEASUREMENT RESULTS ..................................................................................... 14 7.1 SYSTEM PERFORMANCE CHECK.................................................................. 14 7.2 TEST LIQUID CONFIRMATION ...................................................................... 15 7.3 EUT TUNE-UP PROCEDURES.......................................................................... 16 7.4 SAR MEASUREMENTS RESULTS................................................................... 17 8. EUT PHOTOS .............................................................................................................. 19 9. EQUIPMENT LIST & CALIBRATION STATUS................................................... 20 10. FACILITIES ................................................................................................................. 21 11. REFERENCES ............................................................................................................. 21 12. ATTACHMENTS......................................................................................................... 22 Compliance Certification Services Inc. Report No: 40601003-SF Date of Issue: June 2, 2004 Page 4 1. EUT DESCRIPTION Applicant: X-Micro Technology Corp. 12F-3, No. 186, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. Model Number: XWL-11GPIG Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.20dBm Max. SAR (1g): 0.263W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Printed Ant. Test Host: LEO P/N: M285 S/N:1A25B37A002110 Compliance Certification Services Inc. Report No: 40601003-SF Date of Issue: June 2, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe ET3DV6-SN: 1762 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure with accuracy of better than ±10%. The spherical isotropy was evaluated with the procedure and found to be better than ±0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEEE P1528 and EN50361. Compliance Certification Services Inc. Report No: 40601003-SF D…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 65 FCC 47 CFR PART 15 SUBPART C TEST REPORT For X-Micro Technology Corp. X-Micro WLAN 11g PCMCIA Card 802.11g(54Mbits) Model: XWL-11GPIG Trade Name: X-Micro Prepared for X-Micro Technology Corp. 12F-3, No. 186, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................... 3 2. EUT DESCRIPTION ........................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................... 5 3.1 EUT CONFIGURATION........................................................................................................................ 5 3.2 EUT EXERCISE.................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES............................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................ 5 3.5 DESCRIPTION OF TEST MODES........................................................................................................... 6 4. INSTRUMENT CALIBRATION........................................................................................................ 7 5. FACILITIES AND ACCREDITATIONS .......................................................................................... 8 5.1 FACILITIES ......................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS AND LISTING.................................................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................... 10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS............................................................................................. 11 7.1 6DB BANDWIDTH............................................................................................................................. 11 7.2 PEAK POWER.................................................................................................................................... 17 7.3 BAND EDGES MEASUREMENT ................................................................................................ 23 7.4 PEAK POWER SPECTRAL DENSITY.................................................................................................... 32 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................ 38 7.6 SPURIOUS EMISSIONS ................................................................................................................ 39 7.7 POWERLINE CONDUCTED EMISSIONS............................................................................................... 61 Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Page 4 2. EUT DESCRIPTION Product X-Micro WLAN 11g PCMCIA Card 802.11g(54Mbits) Trade Name X-Micro Model Number XWL-11GPIG Model Discrepancy N/A Power Supply Powered from host device Frequency Range 2412 ~ 2462 MHz Transmit Power 802.11b mode: 19.14 dBm 802.11g mode: 19.03 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Transmit Data Rate 802.11b: 11Mbps (Max) 802.11g: 54 Mbps (Max) Number of Channels 11 Channels Antenna Specification Diversity PIFA (Planar Inverted-F Antenna, printed on PCB) Gain: 4.61 dBi (Max) Temperature Range 0 ~ + 55°C Note: This submittal(s) (test report) is intended for FCC ID: RAFXWL-11GPIG filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT m…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Page 64 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40601003-RP FCC ID: RAFXWL-11GPIG Date of Issue: June 2, 2004 Page 65 Conducted Emission Set Up Photos
