RAFXWL-11GRIX802.11 b/g WLAN Broadband Router

User’s Guide Model: – IEEE 802.11g Table of Contents INSTALLING YOUR ROUTER-------3 System Requirement ----------------- 3 Installation Instructions------------- 3 PREPARING YOUR NETWORK -----4 Configuring Windows for IP Networking---------------------------- 4 Collecting ISP Information ---------- 7 BASIC FUNCTIONS ---------------9 Setup---------------------------------- 11 Global Address ----------------------- 15 Wireless ------------------------------ 19 Tools ---------------------------------- 28 Status --------------------------------- 32 DHCP ---------------------------------- 35 Log ------------------------------------ 38 Statistics------------------------------ 42 Printer -------------------------------- 44 ADVANCED FUNCTION ---------- 47 Virtual Servers ---------------------- 48 Filters--------------------------------- 51 IP/URL Block ------------------------ 55 Special Apps ------------------------- 59 DMZ Host----------------------------- 63 MAC Clone---------------------------- 65 Dynamic DNS ------------------------ 66 Proxy DNS --------------------------- 68 SNMP --------------------------------- 70 Static Routing ----------------------- 73 INSTALLING YOUR ROUTER Page 3 of 77 Installing Your Router In this chapter, you’ll learn how to connect your router. System Requirement ▪ Broadband Internet access ▪ Ethernet cables ▪ Wireless interface, if you want to use wireless functions ▪ Desktop or Laptop PCs with Ethernet interface Installation Instructions To Connect the Router: 1. Make sure all equipments are turned off, including the router, Desktop or Laptop PCs, the cable and DSL modem, and so on. 2. Connect the WAN Port of the router to the cable and DSL modem, Ethernet Server or the hub. 3. Connect your client PCs to the LAN Ports. 4. Connect the Power Adaptor (5VDC) to the power jack of the router and plug the power cable into the outlet. 5. Turn on our PCs. Chapter 1 PREPARING YOUR NETWORK Page 4 of 77 B Preparing Your Network In this chapter, you’ll learn what to do before configuring your network. efore configuring your router, you need set up the computers in your network for TCP/IP networking and collect relevant ISP information if necessary. Configuring Windows for IP Networking Each computer in your network should be configured for TCP/IP networking. There are two ways to configure your computers: ▪ You are commended to use DHCP, then you can simply choose to receive an IP address automatically. For detailed instructions, see Configure Windows to Receive Dynamic IP Address. ▪ If you don’t use DHCP, you need assign an IP address to each computer manually. For detailed instructions, refer to your Windows Documentation. To Configure Windows to Receive Dynamic IP Address: 1. Click Start, then choose Settings > Network and Dial-up Connections. 2. Select the name of your ISP connection. The Local Area Connection Status dialog box appears, seen in FIGURE 2-1: Chapter 2 PREPARING YOUR NETWORK Page 5 of 77 FIGURE 2-1: Local Area Connection Status dialog box 3. Click Properties. The Local Area Connection Properties dialog box appears, seen in FIGURE 2-2: PREPARING YOUR NETWORK Page 6 of 77 FIGURE 2-2: Local Area Connection Properties dialog box. 4. Click Internet Protocol (TCP/IP), then click Properties. The Internet protocol (TCP/IP) Properties dialog box appears, seen in FIGURE 2-3: PREPARING YOUR NETWORK Page 7 of 77 FIGURE 2-3: Internet Protocol (TCP/IP) Properties dialog box 5. Click Obtain an IP address automatically and Obtain DNS server address automatically. 6. Click OK. You need restart your computer now or at a later time. Note - The procedural steps above apply to Windows 2000 only. For Windows 95/98/ME/NT/XP, refer to your Windows Documentation. Collecting ISP Information You need query the relevant information from your ISP before configuring your router, for example: ▪ Has your ISP assigned you a static or dynamic IP address? If you have obtained one static IP address, what is it? ▪ Does your ISP use PPPoE? If so, what is your PPPoE user name and password? PREPARING YOUR NETWORK Page 8 of 77 If you are not sure of the above questions, call your ISP to clarify them. BASIC FUNCTIONS Page 9 of 77 T Basic Functions In this chapter, you will learn how to use basic functions that the Company AP Router provides, including Setup, Global Address, Wireless Tools, Status, DHCP, Log and Printer. he Company AP Router provides you a Web-based Administration Tool with which you can easily set up the router and customize the basic router settings. You can use this Web-based Tool from any computer in your network. Notes ▪ Microsoft Internet Explorer 5.0 or later is highly recommended for using this Web-based Tool. ▪ Graphics sampled in this chapter are provided for illustrations only. They may slightly differ from your own router screens. To Open the Web-based Administration Tool: 1. Open the browser on your PC. 2. Type http://192.168.62.1 in the Address bar. The Logon dialog box appears, seen in FIGURE 3-1: Chapter 3 BASIC FUNCTIONS Page 10 of 77 ] FIGURE 3-1: Logon dialog box 3. Type admin in the User Name box. 4. Type the password in the box. Note - The default password is 1234. You can change the password on the Tools page. For detailed instructions, see To Change the Administrative Password for Your Router. 5. Optional. To log on to the Administration Tool once for all, select the check box of Save this password in your password list. 6. Click OK. The Company AP Router Administration Tool appears. Note - The Administration Tool will time out after a period of idling, the Router may ask you to log on again. BASIC FUNCTIONS: SETUP Page 11 of 77 Setup The Setup page allows you to edit the basic configuration parameters for your router, such as Host Name , Domain Name , LAN IP Address , WAN IP Address, PPPoE Login, UPNP, and so on. In most cases, the default settings will be Okay for you. However, different ISPs (Internet Service Provider) may ask for specific requirements, p…

Text truncated - open the document above for the full version.

X-Micro ������������������������� ���������� ������������ ����������������������� ��������������������� ���� ���� Rating: 5V ������������������������ � ��������������������� ���� ���� ������� �������������������� ������������������������ ���������� ������������������ ��������������������� ���� ���� �������������� WLAN 11g Broadband Router (E) Model Name: XWL-11GRIX EAN: S/N: From: To: Q‘TY: N.W.: G.W.: 20 18.0 19.0 PCS KGS KGS Frank Chang WLAN Product Manager Mobile Solution Business Center Procomp Informatics Ltd. [email protected] T: +886-2-2809-5230 ext 1624 F: +886-2-8809-6111 AP-Router 70 x 42mm USB Dongle 20 x 14mm Cardbus 42 x 70mm Box AP-Router 130 x 190mm

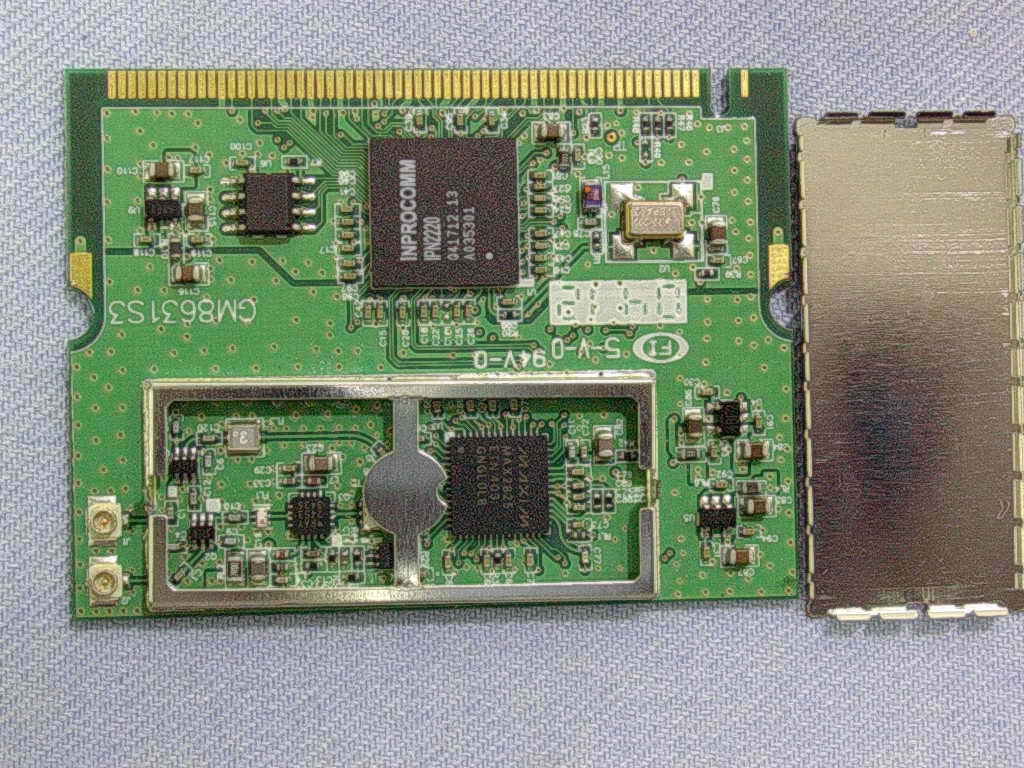

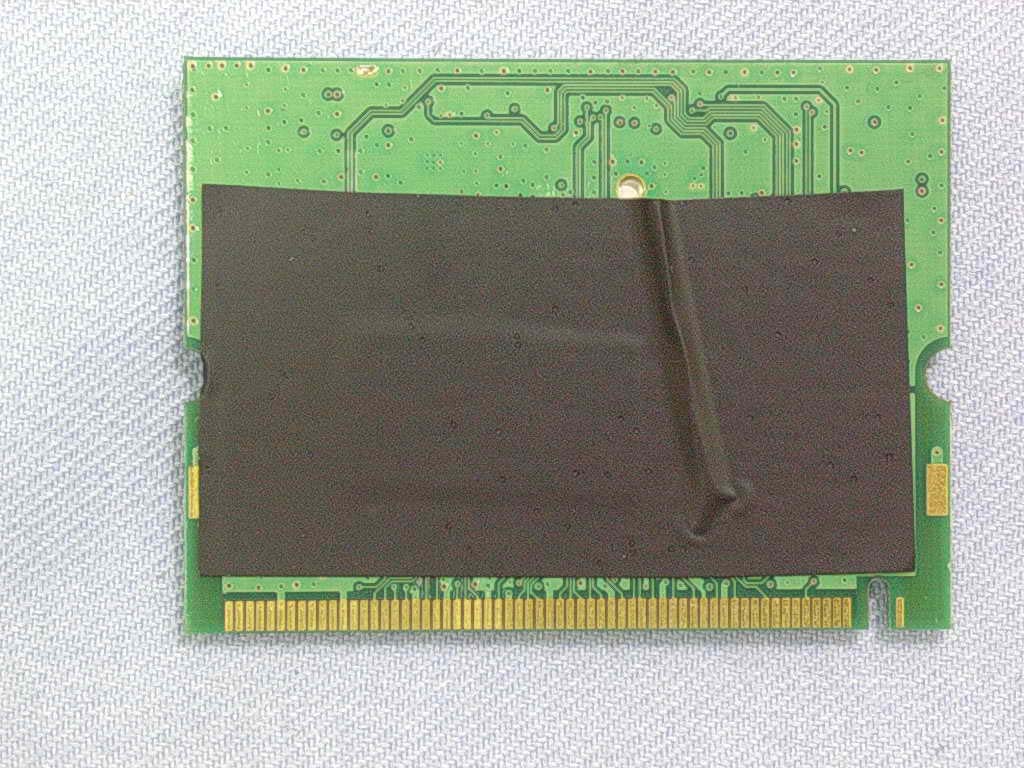

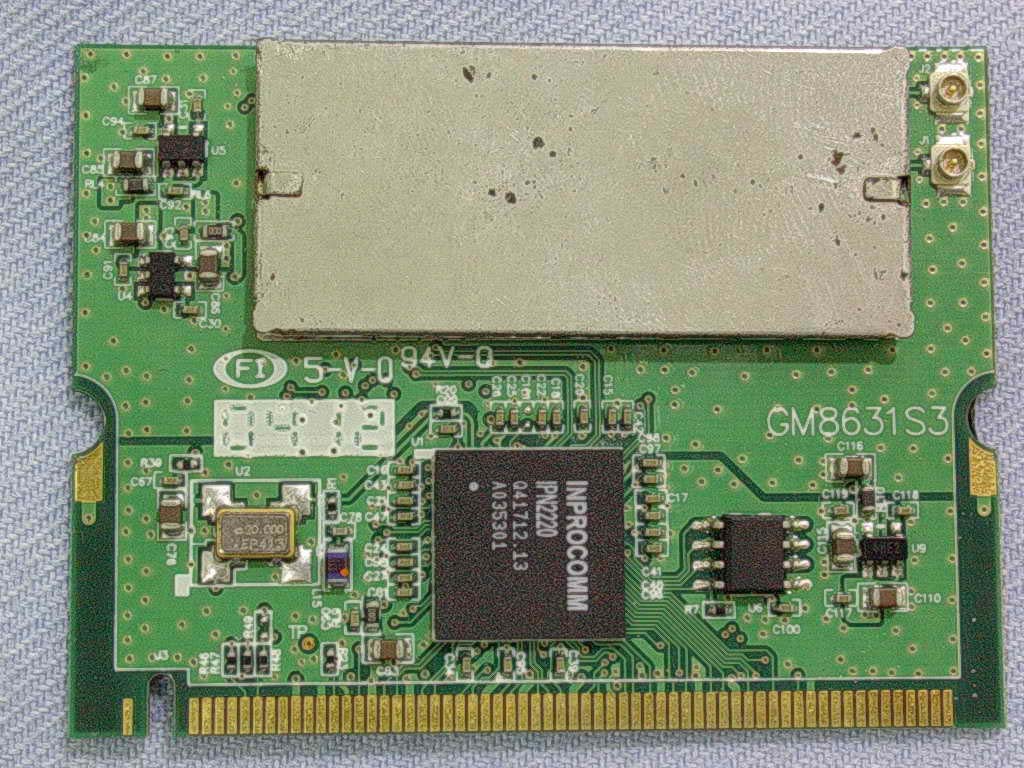

Compliance Certification Services Inc. Report No: 40601005 Date of Issue: June 3, 2004 Page 5 of 9 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40601005 Date of Issue: June 3, 2004 Page 6 of 9 Compliance Certification Services Inc. Report No: 40601005 Date of Issue: June 3, 2004 Page 7 of 9 Compliance Certification Services Inc. Report No: 40601005 Date of Issue: June 3, 2004 Page 8 of 9 Compliance Certification Services Inc. Report No: 40601005 Date of Issue: June 3, 2004 Page 9 of 9

NO: SPECIFICATIONS BI-TEK CO.,LTD12F,-2,NO,700, Jhongheng Rd., Jhonghe City, Taipei County 235, TaiwanTEL:886-2-82278533 FAX:886-2-82278535 CUSTOMER:PRODUCT:PART NO: 2004/05/21 APPROVED BY SALES BY ֆ׹ࢭᎁີ ড়֪ࢭᎁີ DIVISION SIGNATURE ໑ ሒ ઝ ݾ ै ٝ ڶ ૻ ֆ ׹ ANTENNA RFA-02-C2H1-16W-120 ****************************************************** I N D E X ****************************************************** RFA-02-C2H1-16W-120 1.Specification 2.Radiation Pattern 2.1E-plane pattern 2.2H-plane pattern 3.VSWR Test Data 1. Specification 03-11-02 DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2H1-16W-120 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.5dBi (min.) VSWR: Љ 2 Polarization: Linear, Vertical ImpedanceΚ 50Ө Connector: IPEX MHF Cable: RG178W 1.2 MECHANICAL ConditionΚNon operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connectorΚ1000 cycles (min.) MandatoryΚGuaranty of functionalities after test. Bending: Number of 90̓at the hinge parts and bending on one direction with1 ц forceΚ1000 cycles MandatoryΚNo mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 secondΚ5ц MandatoryΚNo mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage ConditionΚNon operating during test. Cold: -40к during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80к during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40к at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) MandatoryΚNo mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation ConditionΚOperating during test. Cold: -10к during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55к during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10кto +55к 95%R.H 4 cycles(IEC 68-2-30 standard Nb test) MandatoryΚNo mechanical or visible damage tolerated. Guaranty of functionalities during and after test.














































































































SPECIFICATION FOR APPROVAL ˗ˢ˖˨ˠ ̆ˡ˧ˍ A30178B001 ˦˧ˬ˟ ̆Κʳ 200к 30V RG-178B/U SIZE: ʳʳʳ 7/0.102 SCCS RECOGNIZED: SPECIFICATION STYLE 200к 30V COAXIAL DOCUMENT NO : A30178B001 SIZERG-178B/U ESTABLISHED DATE: 2000/06/29 STANDARD : MIL-C-17 SizeAWG30 Material---- Silver-Coated Copper Clad Steel Conductors No.----7 Conductors Sizemm0.102 Conductor O.D.mm0.30 Average Thicknessmm0.28 Diametermm0.86 Material----FEP Insulation Color----Clear Material----Silver-Coated Copper Constructionmm16 / 3 / 0.10 Braid Coverage%95 Average Thicknessmm0.25 Diameter mm 1.80̈́0.05 Material----FEP Jacket Color----Brown Marking M17/93-RG178B/U WONDERFUL Drawing AK001/210X297/1.0 PAGE : 1 EDITION:1.0 REVISEDDATE: MAKER: CONFIRM: APPROVAL: ΓWONDERFUL WIRE CABLE CO., LTD SPECIFICATION Electrical & Physical Properties ItemRG-178B/U Rating Temp Voltage 200к 30V Conductor Resistance 838.0 OHM/KM/20к MAX. Insulation Resistance 100 MEGA OHM/KM MIN. Dielectric Strength AC 1.0 KV/Minute Spark Test 0.5 KV Tensile Strength 2500 PSI MIN.( 1.76 Kg / Ӄф) Unaged Elongation200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232к) Insulation Aged Elongation UNAGED MIN.75%(168HRS×232к) Tensile Strength 2500 PSI MIN.( 1.76 Kg / Ӄф) Unaged Elongation200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232к) Jacket Aged Elongation UNAGED MIN.75%(168HRS×232к) Nom. Impedance 50 Ohms VSWRMAX. 1.3 at 0.4G~3GHz Nom. Vel. of Prop. 69.5% Flame Test VW-1 OK 50MHz 100MHz 400MHz 900MHz 1.8GHz3GHz Attenuation (dB/100m) 34.445.991.8139.4207.5308.2 AK001/210X297/1.0 PAGE : 2 EDITION : 1.0 REVISED DATE : MAKER : CONFIRM : APPROVAL :

Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 68 FCC 47 CFR PART 15 SUBPART C TEST REPORT For X-Micro Technology Corp. X-Micro WLAN 11g Broadband Router Model: XWL-11GRIX Trade Name: X-Micro Prepared for X-Micro Technology Corp. 12F-3, No. 186, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES ... ..................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 6DB BANDWIDTH..........................................................................................................................11 7.2 PEAK POWER.................................................................................................................................16 7.3 BAND EDGES MEASUREMENT .............................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY.................................................................................................30 7.5 RADIO FREQUENCY EXPOSURE.....................................................................................................35 7.6 SPURIOUS EMISSIONS .............................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS............................................................................................60 APPENDIX 1 PHOTOGRPHS OF TEST SETUP ..............................................................................60 Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: X-Micro Technology Corp. 12F-3, No. 186, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. Equipment Under Test: X-Micro WLAN 11g Broadband Router Trade Name: X-Micro Model: XWL-11GRIX Date of Test: May 25 ~ June 1, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Harris W. Lai James Lee Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Page 4 2. EUT DESCRIPTION Product X-Micro WLAN 11g Broadband Router Trade Name X-Micro Model Number XWL-11GRIX Model Discrepancy N/A Manufacture: SINCHO INTERNATIONAL INC. Model Number: SW12-050U I/P: AC 100-240V, 50-60Hz, 260mA, O/P: DC 5V, 2A, 12VA MAX Manufacture: ENTERPRISE CO., LTD. Model Number: SL15A205-R I/P: A…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Page 63 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40601005-RP FCC ID: RAFXWL-11GRIX Date of Issue: June 3, 2004 Page 64 Conducted Emission Set Up Photos
