RAR20001001BEL20001 WLAN Radio Module

Page 1 of 12 BEL20001 BEL20001 Product Manual 5 GHz WLAN Radio Module Document Date: January 2004 Document Number: PM20001-001 Document Version Number: 3 Document Status: Release © Copyright 2003 by BelAir Networks. All rights reserved.. BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 2 of 12 PM20001-001 version 3 Contents About this Document ............................................................. 2 Introduction ............................................................................. 3 Conditions of Use .................................................................... 4 Module Installation and Service ............................................ 6 Final Product Requirements .................................................. 7 Regulatory Statements........................................................... 9 About this Document This document is a product manual for the BEL20001 5 GHz WLAN Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 3 of 12 PM20001-001 version 3 Introduction The BEL20001 (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a device. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 4 of 12 PM20001-001 version 3 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module BEL20001 is only intended for use in BelAir Networks products and is not for sale to the general public as a stand-alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of BEL20001 in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The BEL20001 module is only approved for use in the following BelAir Networks products: • BelAir200. See BelAir200 documentation for complete manufacturing instructions. The BelAir200 may contain up to three BEL20001 (FCC ID: RAR20001001, IC: 4674A-20001001) and up to one of module BEL20000 (FCC ID: RAR20000001, IC: 4674A-20000001). Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. Country of Use BEL20001 is certified with limited modular approval for use in the United States as an Intentional Radiator as device: FCC ID: RAR20001001 and in BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 5 of 12 PM20001-001 version 3 Canada as IC: 4674A-20001001. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 6 of 12 PM20001-001 version 3 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: BEL20001 is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. BEL20001 Product Manual – 5 GHz WLAN Radio Module January 2004 Page 7 of 12 PM20001-001 version 3 Final Product Requirements The requirements below apply to any final product in which the BEL20001 module is installed. Antenna Usage BEL20001 module shall only be used in conjunction with the following antenna types: • BelAir Networks model: BEL20007, 15 dBi directional antenna, horizontal beamwidth 45 degre…

Text truncated - open the document above for the full version.

Response to TCB Findings 1. Please clarify if the test procedures were based on Public Notice DA 02-2138. [Glen Westwell] yes this was used. 2. If the above notice was used, please clarify which methods were selected with details of measurement system settings. (Transmission Pulse Duration, Bin Width, Detector Functions) [Glen Westwell] Method 1 for peak cond. Tx. pwr. The EUT was configured for continuous TX, sample detector, 601 bin points in spectrum display. Method 2 for PPSD, the same configuration as for Tx Pwr. 3. Please explain the method used for Peak Excursion Measurement in the report. There seems to be points on the plots with more than 13dB difference between the traces. How was compliance determined from the plots supplied? [Glen Westwell] As per DA 02-2138, Peak Excursion Measurement. Please note that the dB/Division on these plots = 5dB. TCB’s 2 nd request: Some of the points in peak excursion measurement plots seem to be exceeding the 13dB limit in the report. Please clarify/justify how the device complies with this requirement. Test Lab: Please refer to the updated “Peak Excursion Measurement Plots” document. These new plots demonstrate compliance. 4. Please supply stand-alone test set up photos of the module? Supplied. 5. Please clarify the test set-up for power line conducted emissions and radiated emissions. [Glen Westwell] This submission is for modular approval, but for power line conducted, the fully populated (4 radios = 1 x 802.11b(access radio) + 3 x 802.11a(backhaul radio) ) unit was used to demonstrate worst case once the client integrates these modules. Radiated emission test were performed both in and out of casting. This was done to verify emissions that may be effected by the cables etc. This product will always be integrated in this casting and never be sold or deployed as a stand alone module. This module shall not be distributed, marketed or sold to the general public. BelAir Networks shall retain complete control of integration and installation of this device and ensure full compliance of the end product to FCC regulations (see modular approval letter contained in this submission). 6. Does the module comply with 15.407(c) requirement? The device utilizes the 802.11 MAC protocol in its communication with other modules. The 802.11 MAC provides for transmission only when information is present to transmit. When there is no information to transmit, no packets will be scheduled for transmission and the RF transmit circuitry will remain off. In the case that operational failure is detected, the module will be rebooted and transmission will cease until the processor verifies normal operation. 7. How does the module comply with 15.407(g) frequency stability requirement? The crystal oscillator used on the module to derive the RF frequencies is guaranteed by the manufacturer to maintain stability over all operating conditions. BelAir Networks has characterized the frequency stability of the Phase-Locked Loop circuitry which generates the RF Local Oscillator to ensure it remains within that range over its operating temperature and voltage range. Frequency stability data as follows: Temperature Vnom Vneg Vmax -40 C +37.0 kHz +37.1 kHz +37.1 kHz -15 C +75.3 kHz +75.3 kHz +75.4 kHz 25 C +7.5 kHz +7.6 kHz +7.7 kHz 70C -58.7 kHz -58.7 kHz - 58.8 kHz The columns Vnon, Vneg, Vmax correspond to frequency offset measured with input DC voltages to the module at nominal, minimum, and maximum rated voltage. Due to power conditioning on the module, there is negligible performance difference between the different voltage levels. Maximum frequency excursion over temperature and voltage is measured as: -12 ppm to +15 ppm. At all times the frequency stability is within the +/-20 ppm specified for the unit. Note: due to the temperature performance of the frequency-determining components, the worst-case frequency excursions occur at +70 C and -15 C. 8. Is the clamp-on ferrite listed in the report going to be supplied with the power cord of BelAir200 system. The user manual needs to have a warning about this requirement to the installers. The ferrite listed in the report will be supplied as part of the AC power cable assembly with the BelAir200. As the power cable is non-standard, the BelAir200 will only be powered with the BelAir Networks supplied AC power cable. The user manual is updated and included (see page 7, item 3). AC Power cable model BMC200003 includes the ferrite mentioned in the test report to meet emissions. 9. Please clarify the RF exposure category for the host BelAir200? I would like to have the RF exposure approval based on 20cm instead of the 25cm as first submitted. The reason for 25cm was when the modules are integrated and fully loaded with all 4 radios transmitting at max. data rate and power the distance of 25cm was calculated as required to comply with 1.0mW/cm2 for antenna co-location. However when the worst case TX duty cycle of 95% is factored in, the total density = 0.9mw/cm2 and therefore complies with the co-location requirement..(other factors such as cable loss and antenna beam angle contribute to improving this margin, however not included in this calculation). I have attached the revised MPE calculations to support RF exposure compliance at 20cm for this module. RF exposure statement in the manual is updated to reflect 20cm’s as well as “RF exposure evaluation with co-location.pdf” document.

BelAir Networks 5 GHz Radio Module Label Location December 19, 2003 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: FCC ID: RAR20001001 IC: 4674A-20001001 Label size: 30 mm x 7 mm Label material is white polyester with a permanent acrylic adhesive. This is a CSA/UL approved material. Print technique is thermal ink using 400 DPI resolution. The label location shall be as shown in the diagram below: BelAir Networks 5 GHz Radio Module Label Location December 19, 2003 2 Radio Module Top View (actual size) Label Location FCC ID: RAR20001001 IC: 4674A-20001001 BelAir Networks 5 GHz Radio Module Label Location December 19, 2003 3 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20001001 IC: 4674A-20001001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Section 3. RF Exposure Evaluation (1) This U-NII Band radio module will be integrated into an enclosure with FCC approved access radio module FCC ID# RAR20000001. Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. (2) The antenna(s) used with this device are integral and will be installed to provide a minimum separation distance of 20cm from all persons and will not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. (3) This integrated modular transmitter will only be operated according to the exposure conditions described in this application. End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. Power Ratio Summation for Integrated Co-located Radios at 20cm. 802.11b FCC I.D.# RAR20000001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) Sum of Worst Case Power Density at 20cm (mW/cm 2 ) General Exposure Limit (mW/cm 2 ) Radio 1 Radio 2 Radio 3 Radio 4 0.5966 0.1336 ------------- ------------- 0.7302 1.0 PASS 0.5966 0.1336 0.1336 ------------- 0.8638 1.0 PASS 0.5966 0.1336 0.1336 0.1336 0.9974 1.0 PASS The typical worst case transmitter duty cycle is 95%. Therefore the conducted power has been corrected from 100% to 95% to address RF exposure. 802.11b Radio Maximum conducted power = 423.3mW @ a transmitter duty cycle of 95% & cable loss of 0.5dB. Antenna gain = 8.5dBi, therefore the power density at 20cm = 0.5966mW/cm 2 . 802.11a Radio Maximum conducted power = 21.2mW @ a transmitter duty cycle of 95% & cable loss of 0.5dB. Antenna gain = 15dBi, therefore the power density at 20cm = 0.1336mW/cm 2 . Note: This calculation includes the 0.5dB in cable loss from the RF port to the antenna.

Prediction of MPE limit at a given distance 802.11a Radio Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antennaNote: TX power at 95% duty cycle Maximum peak output power at antenna input terminal: 13.27 (dBm) Maximum peak output power at antenna input terminal: 21.23244462 (mW) Antenna gain(typical): 15 (dBi) Maximum antenna gain: 31.6227766 (numeric) Prediction distance: 20 (cm) Prediction frequency: 5250-5825 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.133577 (mW/cm^2) Maximum allowable antenna gain: 23.74269855 (dBi) Margin of Compliance: 8.742698554 Note:The power delivered to the antenna is reduced by 0.5dB due to cable loss. 2 4 R PG S π =

Prediction of MPE limit at a given distance 802.11b Radio Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antennaNote: TX power at 95% duty cycle Maximum peak output power at antenna input terminal: 26.27 (dBm) Maximum peak output power at antenna input terminal: 423.642966 (mW) Antenna gain(typical): 8.5 (dBi) Maximum antenna gain: 7.079457844 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2400-2483.5 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.596664 (mW/cm^2) Maximum allowable antenna gain: 10.74269855 (dBi) Margin of Compliance: 2.242698554 Note:The power delivered to the antenna is reduced by 0.5dB due to cable loss. 2 4 R PG S π =

Master: PT15C-FHT Date: February 7, 2002 Test Report: 3W07702 Applicant: BelAir Networks 603 March Road, Ottawa Ont. K2K 2M5 Equipment Under Test: BA200 Wireless LAN Access Radio Module (EUT) BEL20001, 5GHz Band FCC ID: RAR20001001 In Accordance With: FCC Part 15.401, Subpart E Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date: 14 January 2004 Total Number of Pages: 41 Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 2 of 41 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Exposure Evaluation .....................................................................................6 Section 4. Powerline Conducted Emissions........................................................................7 Section 5. Emission Bandwidth .........................................................................................13 Section 6. Peak Conducted Transmit Power....................................................................18 Section 7. Peak Power spectral density ............................................................................23 Section 8. Peak Excursion Measurement .........................................................................28 Section 9. Undesirable Emissions......................................................................................33 Section 10. Block Diagrams ..................................................................................................36 Section 11. Test Equipment List ..........................................................................................41 Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 3 of 41 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _______________________________ DATE: 14 January 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 4 of 41 Summary Of Test Data Name Of Test Para. No. Result Powerline Conducted Emissions 15.207(a) Complies Emission Bandwidth 15.403(c) Complies Peak Conducted Transmit Power 15.407(a)(3) Complies Peak Power Spectral Density 15.407(a)(3) Complies Peak Excursion Measurement 15.407(a)(6) Complies Undesirable Emissions 15.407(b)(3)(5) Complies Product Modifications: To achieve compliance the following change(s) were made during compliance testing: A clamp on ferrite bead (Steward P/N 28A2029-0A2) was added to the AC power cable. Test Conditions: Indoor Temperature: 23°C Humidity: 12% Outdoor Temperature: -20°C Humidity: 10% Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 5 of 41 Section 2. General Equipment Specification Manufacturer: BelAir Networks Inc. Model No.: BEL20001 Serial No.: K000497309 Date Received In Laboratory: 18 Dec. 2003 Nemko Identification No.: #1 Frequency Band: 5250-5350MHz 5725-5825MHz Operating Frequency(ies) of DUT: TX: 5265-5335MHz TX: 5740-5810MHz Transmit Power (Rated): Data Rates: +14dBm 802.11a - 6,9,12,18,24,36,48&54 Mbps Antenna Gain (integral): 15dBi Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 6 of 41 Section 3. RF Exposure Evaluation (1) This U-NII Band radio module will be integrated into an enclosure with FCC approved access radio module FCC ID# RAR20000001. Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. (2) The antenna(s) used with this device are integral and will be installed to provide a minimum separation distance of 25cm from all persons and will not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. (3) This integrated modular transmitter will only be operated according to the exposure conditions described in this application. End users and installers will be provided with antenna installation and transmitting operating conditions for satisfying RF exposure compliance. Power Ratio Summation for Integrated Co-located Radios at 25cm. 802.11b FCC I.D.# RAR20000001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) 802.11a FCC I.D.# RAR20001001 (mW/cm 2 ) Sum of Worst Case Power Density at 25cm (mW/cm 2 ) General Exposure Limit (mW/cm 2 ) Radio 1 Radio 2 Radio 3 Radio 4 0.452 0.101 ------------- ------------- 0.553 1.0 PASS 0.452 0.101 0.101 ------------- 0.645 1.0 PASS 0.452 0.101 0.101 0.101 0.755 1.0 PASS 802.11b Radio Maximum conducted power = 27dBm, antenna gain = 8.5dBi, therefore the power density at 25cm = 0.451762mW/cm 2 . 802.11a Radio Maximum conducted power = 14dBm, antenna gain = 15…

Text truncated - open the document above for the full version.

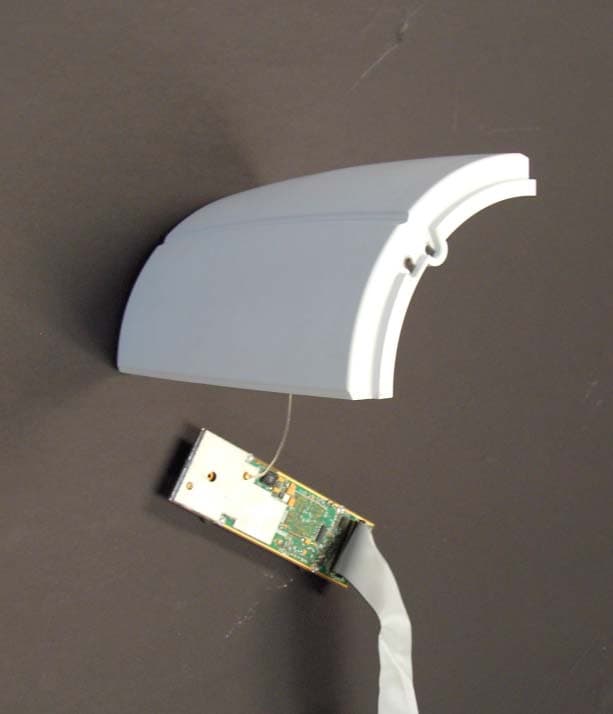

BelAir Networks, 5GHz U-NII Band Module Emissions Test Set Up

Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 7 of 41 Section 4. Powerline Conducted Emissions Para. No.: 15.207(a) Test Performed By: Daniel Hynes Date of Test: 20 Aug. 2003 Test Results: Comply. Measurement Data: See Atached Graphs.

Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:3W07702 EQUIPMENT: BEL20001 Page 12 of 41
