RAR40065006802.11AC Wireless Router

Ericsson Wi-Fi 6300 Legacy Drive, Plano Texas 75024 USA Tel: 19725830000 / Fax: 16132547171 Confidential Letter Date: 2013/9/18 Federal Communications Commission Authorization and Evaluation Division FCC ID：RAR40065006 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Ericsson Wi-Fi Applicant’s company address : 6300 Legacy Drive, Plano Texas 75024 USA Signature : Name and Job Title : Marcel Chenier / Head, R&D Wi-Fi Products E-Mail : [email protected] Tel. : 19725830000

Ericsson Wi-Fi 6300 Legacy Drive, Plano Texas 75024 USA Tel: 19725830000 / Fax: 16132547171 Power of Attorney Date: 2013/9/18 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Ericsson / AP 6321 FCC ID: RAR40065006 Product name: 802.11AC Wireless Router FCC Grantee contact person information. Applicant’s company name : Ericsson Wi-Fi Applicant’s company address : 6300 Legacy Drive, Plano Texas 75024 USA Signature : Name and Job Title : Marcel Chenier / Head, R&D Wi-Fi Products E-Mail : [email protected] Tel. : 19725830000

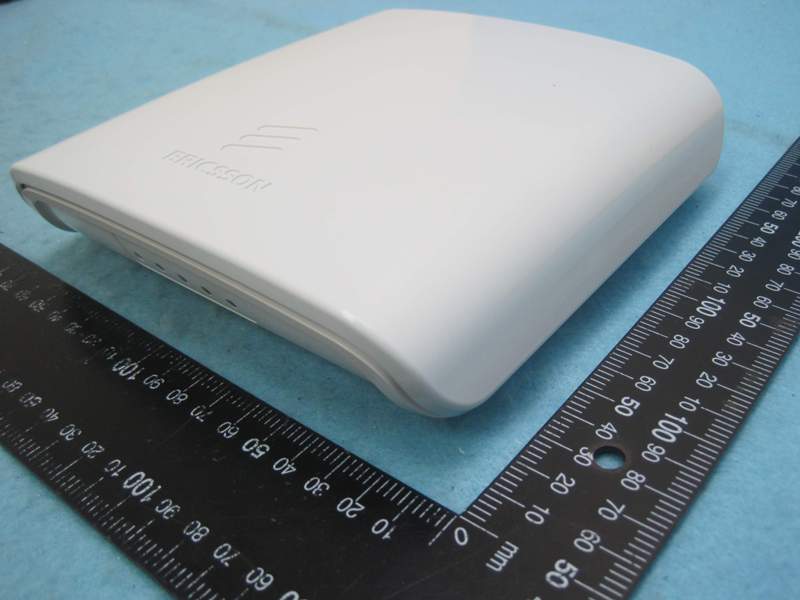

Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Photographs of EUT Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973

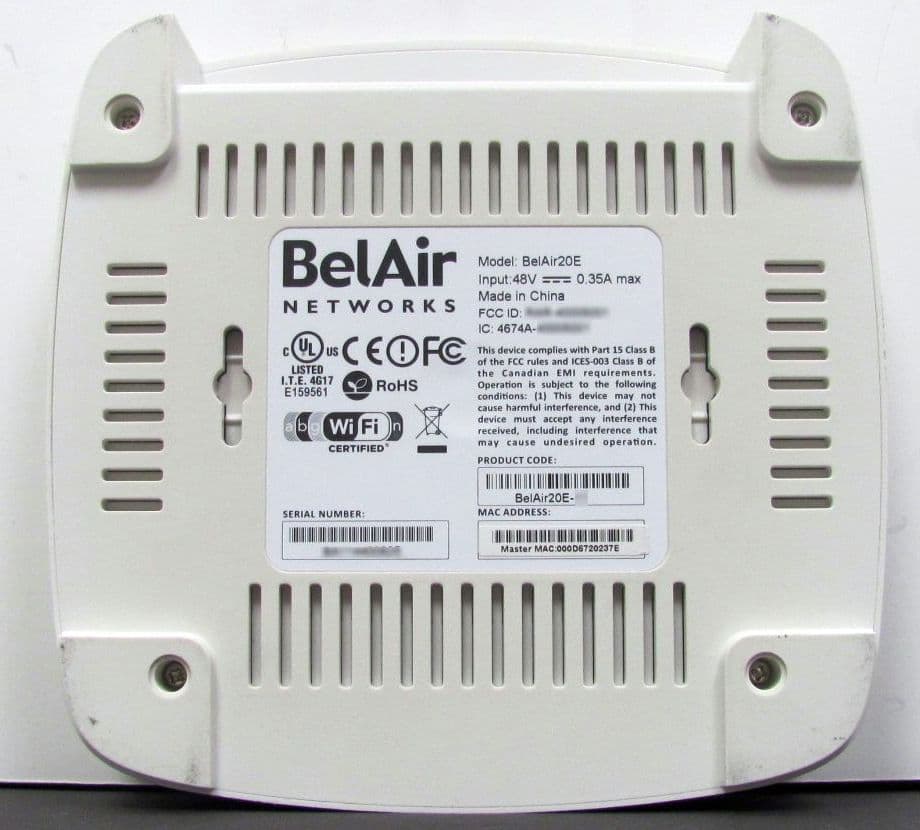

Label size 67mm high x79mm wide

Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Photographs of EUT Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973 Report No.: 390508 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Nov. 07, 2013 FAX : 886-3-327-0973

Report No.: FR390508 FCC ID: RAR40065006 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR390508 FCC ID: RAR40065006 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR390508 FCC ID: RAR40065006 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 40MHz: 16.32dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.49 2.8119 16.3192 42.8470 0.015348 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a: 29.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.82 3.0339 29.9250 982.8757 0.379865 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b: 27.64 dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.77 5.9841 27.6385 580.5650 0.442569 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.442569 / 1 + 0.379865 / 1 = 0.822434, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR390508 FCC ID: RAR40065006 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR390508 FCC ID: RAR40065006 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 64% Test Engineer David Tseng Configurations 2.4G + 5G Horizontal Report No.: FR390508 FCC ID: RAR40065006 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Ericsson Wi-Fi Applicant Address 6300 Legacy Drive Plano Texas 75024 United States FCC ID RAR40065006 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name 802.11AC Wireless Router Brand Name Ericsson Model No. AP 6321 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Aug. 26, 2013 Final Test Date Oct. 31, 2013 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03, KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR390508AB Report Format Version: 01 Page No. : i of ii FCC ID: RAR40065006 Issued Date :Nov. 07, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 6 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 7 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations........................................................................................................................................................................ 9 3.7. Table for Supporting Units ......................................................................................................................................................................... 9 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 10 3.9. EUT Operation during Test ....................................................................................................................................................................... 10 3.10. Duty Cycle................................................................................................................................................................................................. 11 3.11. Test Configurations................................................................................................................................................................................... 13 4. TEST RESULT......................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 14 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement ..................................................................................................... 19 4.3. Maximum Conducted Output Power Measurement......................................................................................................................... 37 4.4. Power Spectral Density Measurement.................................................................................................................................................. 40 4.5. Peak Excursion Measurement ................................................................................................................................................................ 46 4.6. Radiated Emissions Measurement......................................................................................................................................................... 51 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 67 4.8. Frequency Stability Measurement......................................................................................................................................................... 72 4.9. Antenna Requirements ........................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR390508 FCC ID: RAR40065006 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR390508 FCC ID: RAR40065006 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR390508 FCC ID: RAR40065006 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR390508 FCC ID: RAR40065006 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR390508 FCC ID: RAR40065006 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW
