RAR20001002U-NII band radio module

Page 1 of 12 B2CC001AA-E B2CC001AA-E Product Manual 5 GHz WLAN Radio Module Document Date: August 2004 Document Number: PM-B2CC001AA-E Document Version Number: 1 Document Status: Release © Copyright 2004 by BelAir Networks. All rights reserved.. B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 2 of 12 PM-B2CC001AA-E version 1 Contents About this Document ............................................................. 2 Introduction ............................................................................. 3 Conditions of Use .................................................................... 4 Module Installation and Service ............................................ 6 Final Product Requirements .................................................. 7 Regulatory Statements........................................................... 9 About this Document This document is a product manual for the B2CC001AA 5 GHz WLAN Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 3 of 12 PM-B2CC001AA-E version 1 Introduction The B2CC001AA-E (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a device. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 4 of 12 PM-B2CC001AA-E version 1 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B2CC001AA-E is only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B2CC001AA-E in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The B2CC001AA-E module is only approved for use in the following BelAir Networks products: • BelAir100. See BelAir100 documentation for complete manufacturing instructions. The BelAir100 may contain up to one B2CC001AA-E module (FCC ID: RAR20001002, IC: 4674A-20001002) and up to one BEL20000 module (FCC ID: RAR20000001, IC: 4674A-20000001). Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. Country of Use B2CC001AA-E is certified with limited modular approval for use in the United States as an Intentional Radiator as device: FCC ID: RAR20001002 and in B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 5 of 12 PM-B2CC001AA-E version 1 Canada as IC: 4674A-20001002. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 6 of 12 PM-B2CC001AA-E version 1 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B2CC001AA-E is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. B2CC001AA-E Product Manual – 5 GHz WLAN Radio Module August 2004 Page 7 of 12 PM-B2CC001AA-E version 1 Final Product Requirements The requirements below apply to any final product in which the B2CC001AA- E module is installed. Antenna Usage B2CC001AA-E module shall only be used in conjunction with the following antenna types: • BelAir Networks mode…

Text truncated - open the document above for the full version.

1 August 11, 2004 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LIMITED MODULAR APPROVAL FOR FCC ID: RAR20001002 AS PER FCC PUBLIC NOTICE DA 00-1407 To Whom It May Concern, The module FCC ID: RAR20001002 is submitted for Limited Modular Approval (LMA) by BelAir Networks Inc. In keeping with FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approval, this letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end-product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks-specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. As illustrated by the accompanying documentation, the module FCC ID: RAR20001002 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, was tested in a stand-alone configuration, will be labeled with FCC ID and meets RF exposure regulations. The following is a point-by-point response to the items listed in DA 00- 1407: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module in a representative package for the product in which it will be sold. BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com 2 2. The input to the module is an Ethernet interface. All modulation and 802.11 protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behaviour of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC-to-DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module incorporates MCX RF connectors and does not have an integral antenna on the module. The module was tested in conjunction with the intended antennas (see accompanying documentation). Considering our submission is seeking Limited Modular Approval, BelAir Networks will ensure professional installation of the complete product. In this manner we will ensure that only the approved antenna type is used in conjunction with this module. 5. The module was tested in a stand-alone configuration for conducted and radiated emissions. Since the module itself is not AC powered, power line conducted emissions were tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 6. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the wording “Contains FCC ID: 20001002”. See the labeling information provided with this submission. 7. The module operates under Part 15.407. Since all modulation and 802.11 protocol elements reside within the module, users will not have access to controls which may cause the module to BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com

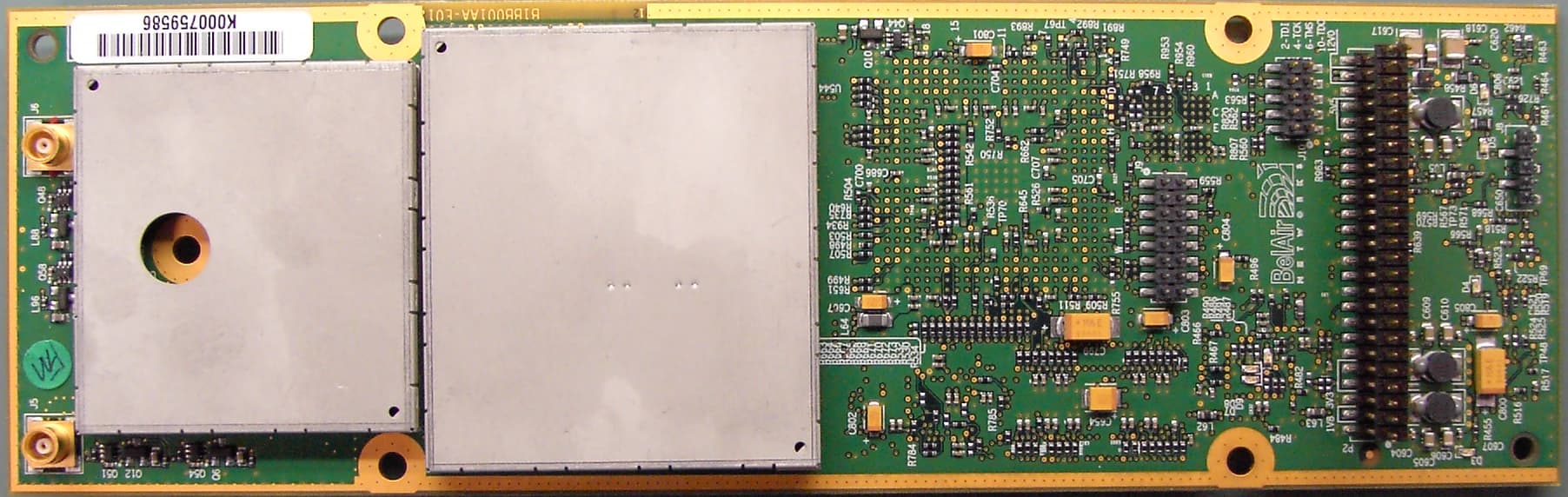

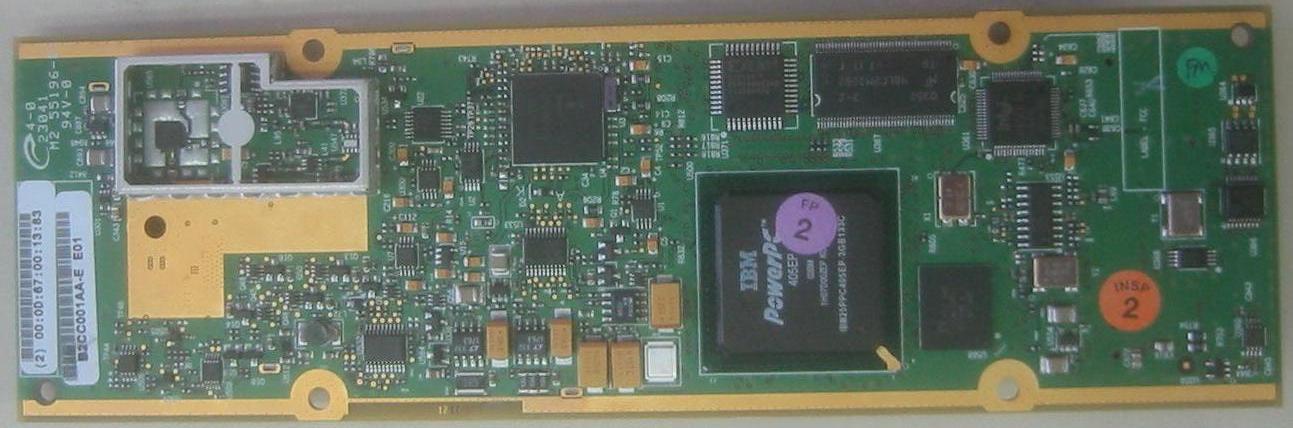

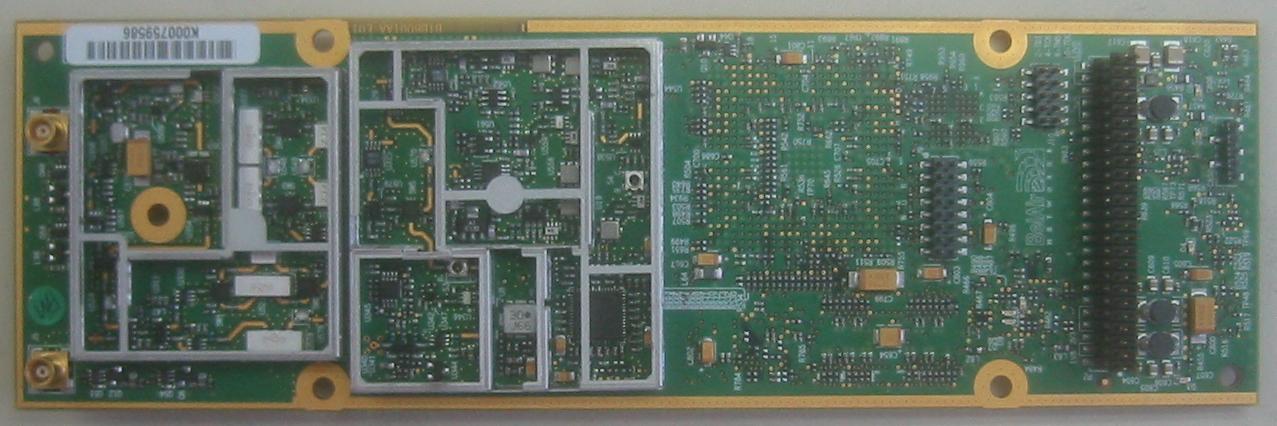

BelAir Networks 5 GHz Radio Module Label Location August 11, 2004 1 Module Labeling The following labels shall be permanently affixed to the radio module as follows: Label size is approximately 1.000” x 0.250” Label material is white polyester with a permanent acrylic adhesive. This is a CSA/UL approved material. Print technique is thermal ink using 400 DPI resolution. The label location is illustrated in the diagram on the next page. In addition, the following labels are permanently fixed and clearly visible on the bottom side of the printed circuit board: 1) a silk-screened manufacturer’s logo (BelAir Networks), and 2) a copper etched printed circuit board model number (B1BB001AA-E). BelAir Networks 5 GHz Radio Module Label Location August 11, 2004 2 FCC ID IC ID |||||||||||||||||||||||||||| B2CC001AA-E Radio Module Top View Product Code Regulatory Label BelAir Networks 5 GHz Radio Module Label Location August 11, 2004 3 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20001002 IC: 4674A-20001002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Prediction of MPE limit at a given distance 802.11b Radio, FCC ID# RAR20000001 Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antennaNote: TX power at 95% duty cycle Maximum peak output power at antenna input terminal: 26.27 (dBm) Maximum peak output power at antenna input terminal: 423.642966 (mW) Antenna gain(typical): 8.5 (dBi) Maximum antenna gain: 7.079457844 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2400-2483.5 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.596664 (mW/cm^2) Maximum allowable antenna gain: 10.74269855 (dBi) Margin of Compliance: 2.242698554 Note:The power delivered to the antenna is reduced by 0.5dB due to cable loss. 2 4 R PG S π =

Prediction of MPE limit at a given distance BA100 Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 17.00 (dBm) Maximum peak output power at antenna input terminal: 50.11872336 (mW) Antenna gain(typical): 15 (dBi) Maximum antenna gain: 31.6227766 (numeric) Prediction distance: 20 (cm) Prediction frequency: 5725-5825 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.315304 (mW/cm^2) Maximum allowable antenna gain: 20.01269855 (dBi) Margin of Compliance: 5.012698554 2 4 R PG S π =

Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:4W08175 EQUIPMENT: B2CC001AA-E Page 40 of 45 Radiated Disturbance Detailed Setup Photos: Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:4W08175 EQUIPMENT: B2CC001AA-E Page 41 of 45 Radiated Emissions Setup Photos: 10dBi Antenna 12dBi Antenna Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:4W08175 EQUIPMENT: B2CC001AA-E Page 42 of 45 15dBi Antenna

Nemko Canada Inc. FCC PART 15, SUBPART E PROJECT NO.:4W08175 EQUIPMENT: B2CC001AA-E Page 10 of 45 Set Up Photo.
