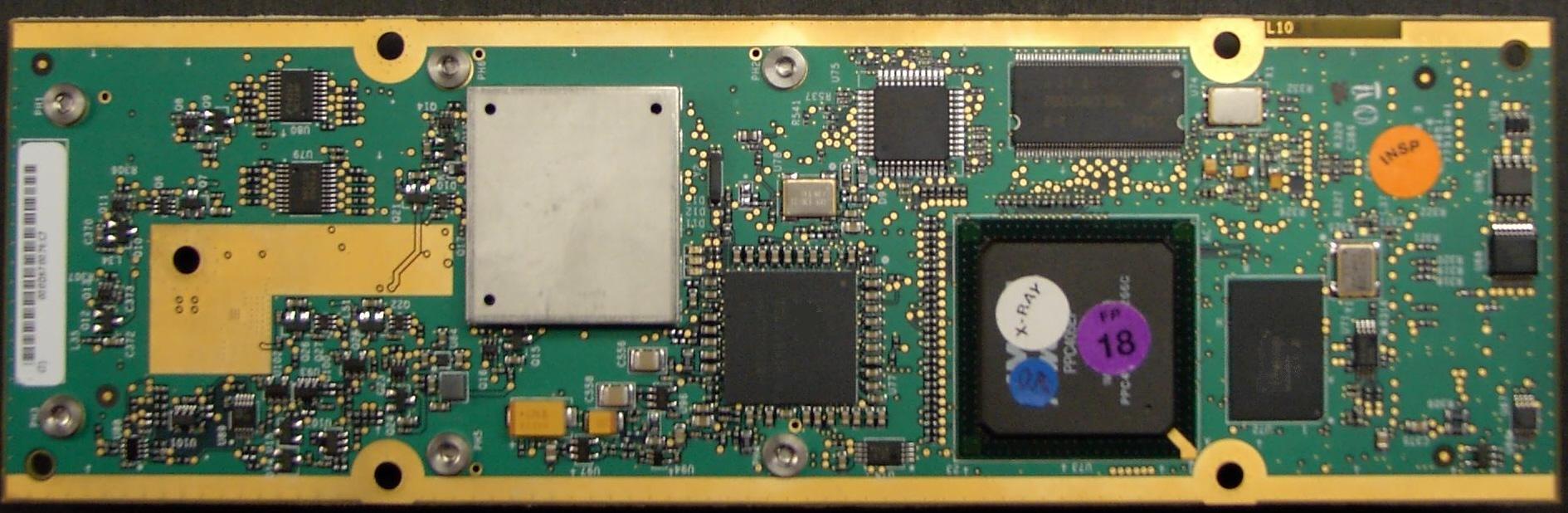

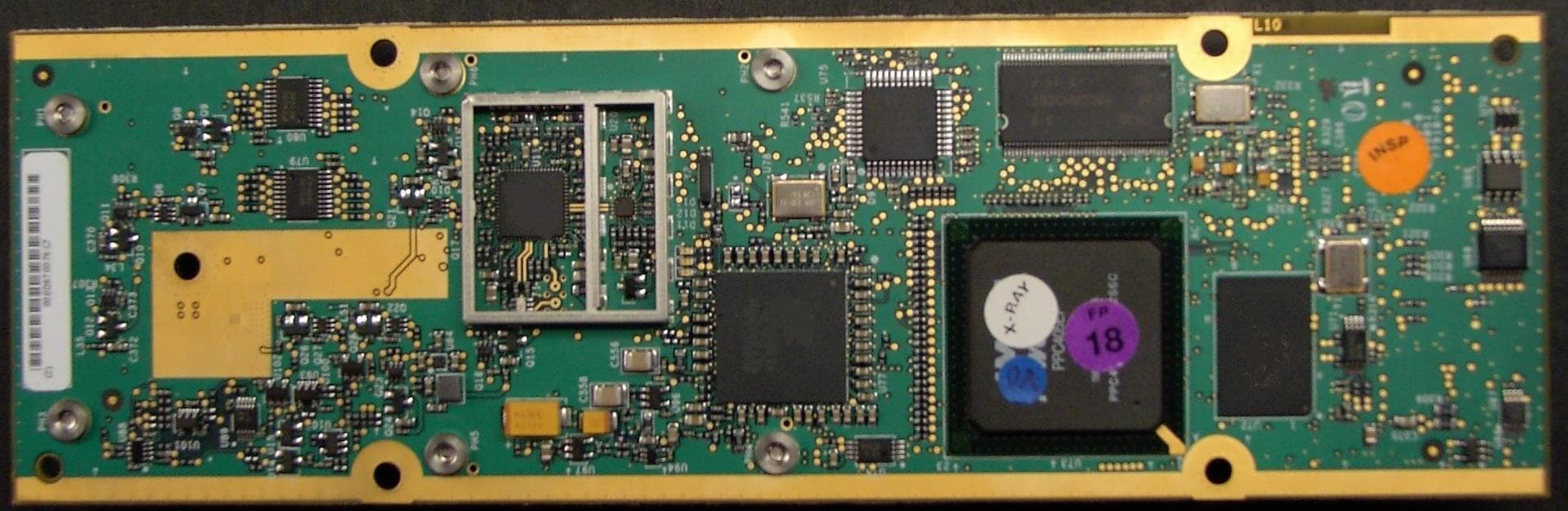

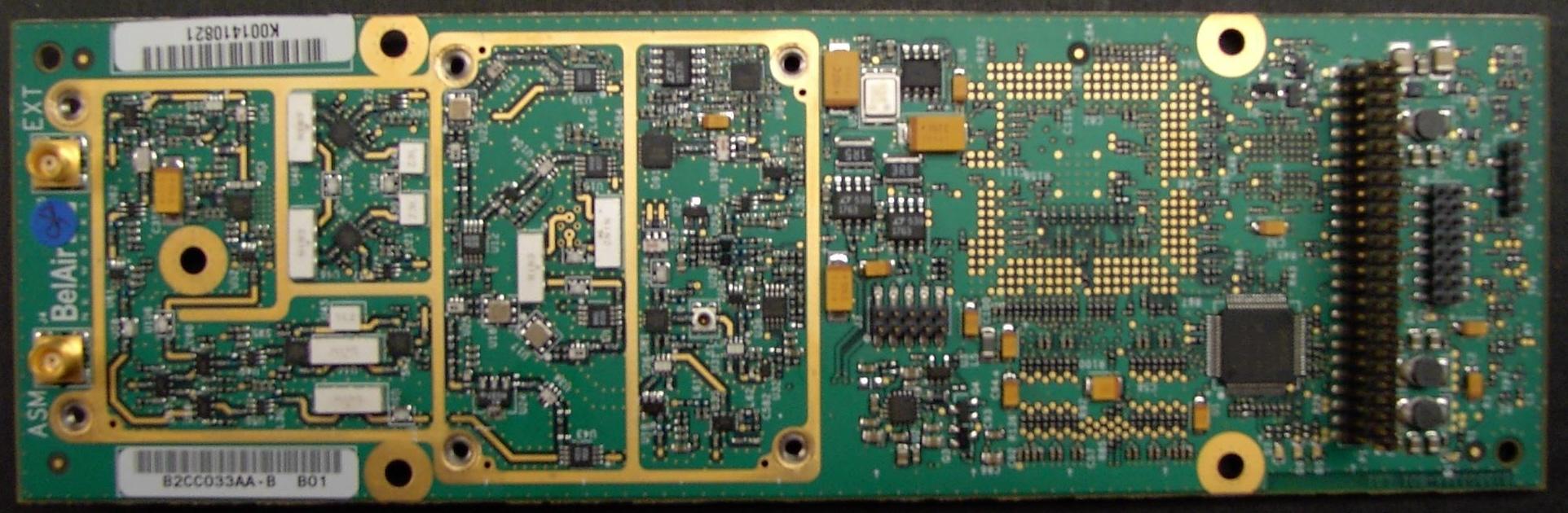

RAR20001003WLAN Radio Module

Page 1 of 15 B2CC033AA B2CC033AA Product Manual 5 GHz WLAN Radio Module Document Date: January 2006 Document Number: PM-B2CC033AA Document Version Number: 1 Document Status: Release © Copyright 2006 by BelAir Networks. All rights reserved.. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 2 of 15 PM-B2CC033AA Version 1 B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 3 of 15 PM-B2CC033AA Version 1 Contents About this Document ............................................................. 3 Introduction ............................................................................. 4 Conditions of Use .................................................................... 5 Module Installation and Service ............................................ 7 Final Product Requirements .................................................. 8 Regulatory Statements......................................................... 12 About this Document This document is a product manual for the B2CC033AA 5 GHz WLAN Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 4 of 15 PM-B2CC033AA Version 1 Introduction The B2CC033AA (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a module. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 5 of 15 PM-B2CC033AA Version 1 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B2CC033AA is only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B2CC033AA in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The B2CC033AA module is only approved for use in the following BelAir Networks products: • BelAir200. See BelAir200 documentation for complete manufacturing instructions. • BelAir100. See BelAir100 documentation for complete manufacturing instructions. • BelAir50c. See BelAir50c documentation for complete manufacturing instructions. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 6 of 15 PM-B2CC033AA Version 1 Country of Use B2CC033AA is certified with limited modular approval for use as an Intentional Radiator in the United States as device: FCC ID: RAR20001003 and in Canada as IC: 4674A-20001003. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 7 of 15 PM-B2CC033AA Version 1 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B2CC033AA is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. B2CC033AA Product Manual – 5 GHz WLAN Radio Module January 2006 Page 8 of 15 PM-B2CC033AA Version 1 Final Product Requirements The requirements below apply to any final product in which the B2CC033AA module is installed. Antenna Usage and Module Transmit Power B2CC033AA module shall only …

Text truncated - open the document above for the full version.

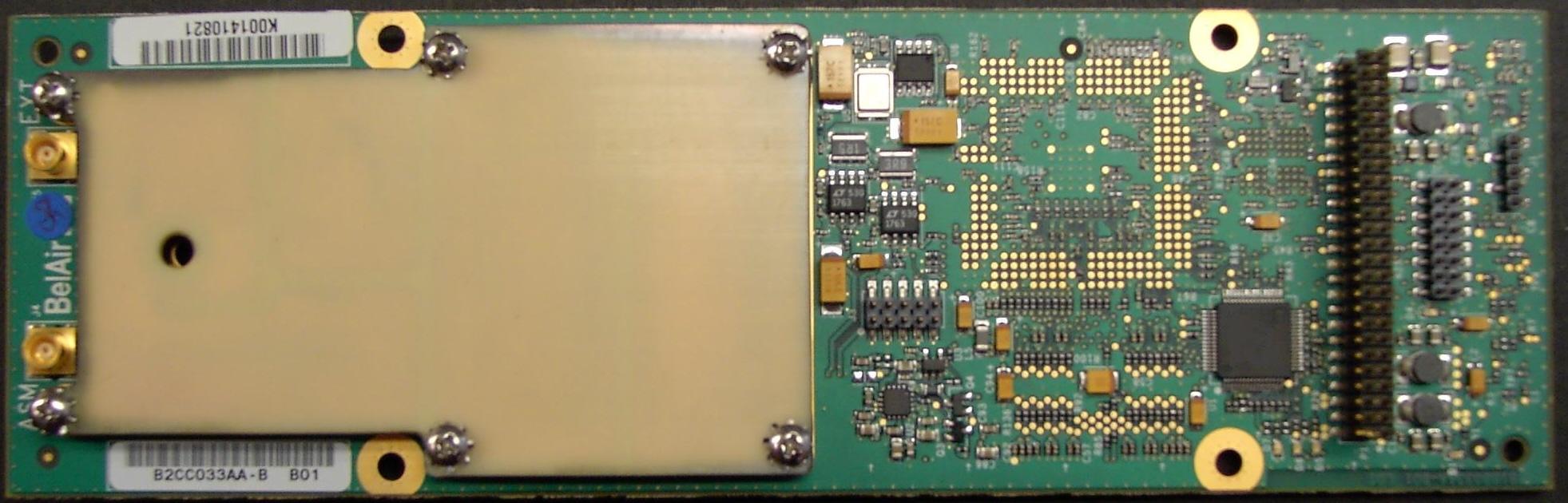

BelAir Networks 5 GHz Radio Module January 10, 2006 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. Label Location: PCB Top View Label Location FCC ID: RAR20001003 IC: 4674A-20001003 BelAir Networks 5 GHz Radio Module January 10, 2006 2 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20001003 IC: 4674A-20001003 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

RAR20001003 MPE Engineering Analysis January 10, 2006 Engineering Analysis MPE for 5 GHz Transceiver FCC ID: RAR20001003 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC part 15, and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. • Module RAR20001003 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co-location compliance tables below. • Module RAR20001003 may be co-located with other modules in BelAir Networks products as shown in the co-location compliance tables below. Worst- case configurations are shown below. • This device will only be operated according to the exposure conditions described in this application. • End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst-case transmit power yielding the worst-case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4πR 2 ). Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst-case analysis since it assumes all devices are continuously transmitting. The device utilizes the 802.11 WLAN protocol which operates in time-division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios add. RAR20001003 MPE Engineering Analysis January 10, 2006 Case I: 5.15 – 5.25 GHz, 4, 10, 15 dBi antennas, 1 x RAR20000003 plus 3 x RAR20001003 Safety distance: 20 cm (7.9 inches) Case I: 5.15 - 5.25 GHz, 4, 10, 15 dBi antennas Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:20 cm ( 7.9 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.7061220.03230.8001Complies RAR20000003RAR20001003 Case II: 5.25 – 5.35 GHz, all antennas, 1 x RAR20000003 plus 3 x RAR20001003 Safety Distance: 25 cm (9.8 inches) Case II: 5.25 - 5.35 GHz, all antennas Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:25 cm ( 9.8 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.4521300.12730.8341Complies RAR20000003RAR20001003 Case III: 5.725 – 5.850 GHz, 4 and 10 dBi antennas, 1 x RAR20000003 plus 3 x RAR20001003 Safety Distance: 25 cm (9.8 inches) Case III: 5.725 - 5.850 GHz, 4 and 10 dBi antennas Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:25 cm ( 9.8 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.4521300.12730.8341Complies RAR20000003RAR20001003 RAR20001003 MPE Engineering Analysis January 10, 2006 Case IV: 5.725 – 5.850 GHz, 15 dBi antenna, 1 x RAR20000003 plus 3 x RAR20001003 Safety Distance: 33 cm (13 inches) Case IV: 5.725 - 5.850 GHz, 15 dBi antenna Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:33 cm ( 13.0 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.2591350.23130.9531Complies RAR20000003RAR20001003 Case V: 5.725 – 5.850 GHz, 23 dBi antenna, 1 x RAR20000003 plus 3 x RAR20001003 Safety Distance: 72 cm (28.3 inches) Case V: 5.725 - 5.850 GHz, 23 dBi antenna Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:72 cm ( 28.3 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.0541430.30630.9731Complies RAR20000003RAR20001003 Case VI: 5.15 – 5.25 GHz, 4, 10, 15 dBi antennas, 1 x RAR20000003 plus 1 x RAR20001003 Safety Distance: 20 cm (7.9 inches) Case VI: 5.15 - 5.25 GHz, 4, 10, 15 dBi antennas, single BRM Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:20 cm ( 7.9 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.7061220.03210.7371Complies RAR20000003RAR20001003 RAR20001003 MPE Engineering Analysis January 10, 2006 Case VII: 5.25 – 5.35 GHz, all antennas, 1 x RAR20000003 plus 1 x RAR20001003 Safety Distance: 20 cm (7.9 inches) Case VII: 5.25 - 5.35 GHz, all antennas, single BRM Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:20 cm ( 7.9 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Dens…

Text truncated - open the document above for the full version.

Test Report: 5W54150.2 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: BRM 3 FCC ID: RAR20001003 In Accordance With: FCC Part 15 Subpart E, 15.407 Unlicensed National Information Infrastructure Devices Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, General Manager Date: January 16, 2006 Total Number of Pages: 106 Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.2 FCC ID: RAR20001003 Specification: FCC Part 15 Subpart E, 15.407 Page 2 of 106 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E, 15.407. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BRM 3 Specification: FCC Part 15.407, Subpart E Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.2 FCC ID: RAR20001003 Specification: FCC Part 15 Subpart E, 15.407 Page 3 of 106 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart E, 15.407 : Test Results............................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Section 1. Power Line Conducted Emissions ........................................................................................................10 Section 2. Emission Bandwidth ............................................................................................................................14 Section 3. Output Power ........................................................................................................................................20 Section 4. Spurious Emissions not in Restricted Band ..........................................................................................41 Section 5. Spurious Emissions within Restricted Bands........................................................................................52 Section 6. Peak Power Spectrum Density ..............................................................................................................61 Section 7. Supply Voltage Variation......................................................................................................................82 Section 8. Peak Excursion Measurement ...............................................................................................................83 Section 9. Frequency Stability ................................…

Text truncated - open the document above for the full version.

Test Report: 5W54150.4, issue 2 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: BRM 3 FCC ID: RAR20001003 In Accordance With: FCC Part 15 Subpart E, 15.407 Unlicensed National Information Infrastructure Devices Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, General Manager Date: February 8, 2006 Total Number of Pages: 66 Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.4, Issue 2 FCC ID:RAR20001003 Specification: FCC Part 15 Subpart E, 15.407 Page 2 of 66 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E, 15.407. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BRM 3 Specification: FCC Part 15.407, Subpart E Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.4, Issue 2 FCC ID:RAR20001003 Specification: FCC Part 15 Subpart E, 15.407 Page 3 of 66 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations .............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart E, 15.407 : Test Results............................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Section 1. Power Line Conducted Emissions ........................................................................................................10 Section 2. Emission Bandwidth ............................................................................................................................14 Section 3. Output Power .......................................................................................................................................17 Section 4. Spurious Emissions not in Restricted Band ..........................................................................................27 Section 5. Spurious Emissions within Restricted Bands........................................................................................36 Section 6. Peak Power Spectrum Density ..............................................................................................................43 Section 7. Supply Voltage Variation......................................................................................................................53 Section 8. Peak Excursion Measurement ...............................................................................................................54 Section 9. Frequency Stability ...........…

Text truncated - open the document above for the full version.

10dBi MaxRad

4dBi MaxRad

15dBi BelAir Patch

23dBi Huber&Suhner

AC Power Line Conducted Emissions

Radiated Emissions Back

Radiated Emissions Front
