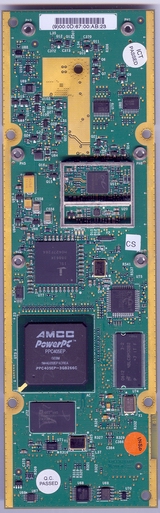

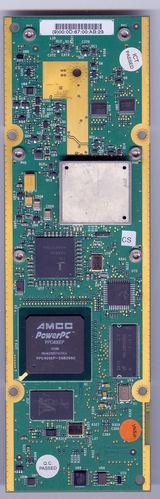

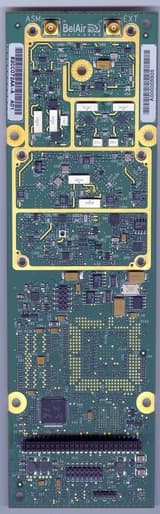

RAR20004001Public Safety Band Transmitter Module

Page 1 of 13 B2CH072AA B2CH072AA Product Manual 4.9 GHz Public Safety Band Radio Module Document Date: February 20, 2007 Document Number: PM-B2CH072AA Document Version Number: 2 Document Status: Release © Copyright 2006 by BelAir Networks. All rights reserved.. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 2 of 13 Contents About this Document ............................................................. 2 Introduction ............................................................................. 3 Conditions of Use .................................................................... 4 Module Installation and Service ............................................ 6 Final Product Requirements .................................................. 7 Regulatory Statements......................................................... 10 About this Document This document is a product manual for the B2CH072AA 4.9 GHz Public Safety Band Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 3 of 13 Introduction The B2CH072AA(hereafter referred to as “the module”) is a 4.9 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a module. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 4 of 13 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B2CH072AAis only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B2CH072AAin any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The B2CH072AAmodule is only approved for use in the following BelAir Networks products: • BelAir200. See BelAir200 documentation for complete manufacturing instructions. • BelAir100. See BelAir100 documentation for complete manufacturing instructions. • BelAir50c. See BelAir50c documentation for complete manufacturing instructions. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 5 of 13 Country of Use B2CH072AA is certified with limited modular approval for use as an Intentional Radiator in the United States as device: FCC ID: RAR20004001. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC identification numbers. Do not attempt to remove any labels from the module. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 6 of 13 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B2CH072AAis an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. B2CH072AA Product Manual –4.9 GHz Public Safety Band Radio Module Page 7 of 13 Final Product Requirements The requirements below apply to any final product in which the B2CH072AAmodule is installed. Antenna Usage and Module Transmit Power B2CH072AAmodule shall only be used in conjunction with the following antenna types as outlined in the table below. Antennas are approved for outdoor use only. In order to comply with the FCC rules in the USA, it is required to respect the maximum transmit power limits as follows for each of the antenna type…

Text truncated - open the document above for the full version.

1 Novembre 30, 2006 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification RE: PRODUCT CODE FCC: ID RAR20004001 Authority to Act as Agent On our behalf, I appoint , Nemko Canada Inc to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with BelAir Networks, 603 March Road Kanata, Ottawa Ontario.

1 February 26, 2007 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: APPROVAL FOR MODULE FCC ID: RAR20004001 Radio module tested under part 90 Private Land Mobile Radio Services subpart Y Public Safety 4.940 to 4.990 GHz Band. To Whom It May Concern, The module FCC ID: RAR20004001 a radio module tested under part 90 subpart Y Public Safety 4.940 to 4.990 GHz band, is submitted for Approval as a module by BelAir Networks Inc. The module can only be installed in BelAir Networks wireless products. This letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end- product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks-specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. The module is installed only in BelAir Networks products using antennas outlined in the filing, meeting public safety applications in compliance with part 90 subpart Y. 2 As illustrated by the accompanying documentation, the module FCC ID: RAR20004001 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, was tested in a stand-alone configuration, will be labeled with FCC ID and meets RF exposure regulations. The module has the following characteristics: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module on its own, with no external shielding beyond that incorporated into the module to ensure compliance to all radiated emissions requirements at the module level. 2. The input to the module is an Ethernet interface. All modulation and 802.11 a protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behavior of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC-to-DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module was tested in a stand-alone configuration for all conducted and radiated emissions, except for conducted power line emissions. Since the module is not AC powered, it was tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 5. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the wording “Contains FCC ID: RAR20004001”. See the labeling information provided with this submission. 6. The module operates under Part 90 Private Land Mobile Radio Services subpart Y Public Safety 4.940 to 4.990 GHz Band . Since all modulation and 802.11 protocol elements reside within the module, users will not 3 have access to controls which may cause the module to operate outside its normal mode of operation. All timing and control for RF and modulator sections are inaccessible from outside the module. 7. The module has been evaluated (see MPE provided with this submission) and complies with RF exposure requirements. The manual states that a distance as per the table below shall be maintained between any person and the antenna. As BelAir Networks or its authorized agents will retain control of the final installation through the requirement for professional installation, BelAir Networks shall ensure that this distance is maintained in all installations. RF Exposure Table: RF Exposure Radios Minimum Safety Distance Radios Other combinations Minimum Safety Distance BelAir50C BelAir50S Radios 1 x RAR20004001 (PSM1) w. 21 dBi antenna 40 cm ( 16 inches) NONE ------- BelAir100 BelAir100S BelAir100C Radios 1 x RAR20001003 and 23 dbi antenna 1 x RAR20004001 (PSM1) w. 21 dBi antenna 60 cm ( 24 inches) 1 x RAR20004001(PSM1) w. 9 dBi antenna and 1 x RAR20000003 (ARM3) 20 cm ( 8 inches) BelAir200 1 x RAR20001003 and 23 dbi antenna and 1 x RAR20004001(PS M1) w. 21 dBi antenna and 1 x RAR20000003 (ARM3) 72 cm ( 28.3 inches) 1 x RAR20004001(PSM1) w. 21 dBi antenna1 x RAR20001003 (BRM3) with 15 dBi ant.and 1 RAR20000003 (ARM3) 50 cm ( 20 inches) 4

1 February 26, 2007 Attn :Reviewing Engineer Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE:CONFIDENTIALITY REQUEST FOR FCC ID RAR20004001 To Whom It May Concern This letter is an official request for confidentiality under FCC rule 47 CFR §0.459 . We requests that the following items with this applications be withheld from public review: • Schematics • Product Block Diagram and Theory of Operation • Parts List The above materials contain trade secrets and are proprietary to BelAir Networks Inc. Public disclosure of information in these materials may be used in the market place to the disadvantage of BelAir Networks.

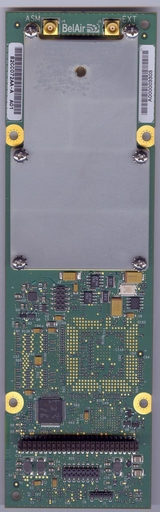

BelAir Networks 4.9 GHz Public Safety Radio Module February 5, 2007 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. Label Location: PCB Top View FCC Label Location FCC ID: RAR20004001 BelAir Networks 4.9 GHz Public Safety Radio Module February 5, 2007 2 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20004001

1 November 30, 2006 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: MODULE FCC ID: RAR20004001 Radio module Frequency and Power control To Whom It May Concern, The subject module is aligned and calibrated as follows; Transmit Power The module is aligned and calibrated in the factory for maximum allowable transmit power. The module transmit power is controlled and kept constant over all operating conditions using a software controlled power control loop using a detector as outlined in the submitted Block Diagram and Theory of Operation document. Frequency Control The module uses a software controlled Phase Locked Loop to set the transmit frequency. All the frequency determining elements are locked to temperature compensated crystal oscillators, no tuning is required of the transmitter. The operation and accuracy of the transmitter frequency is tested in the factory. The transmit frequency is set by the user interface according to the channel scheme of the module in the 4.9 GHz Public Safety band.

RAR20004001 MPE Engineering Analysis February 26, 2007 Engineering Analysis MPE for 4.9 GHz Public Safety Band Transceiver FCC ID: RAR20004001 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC 47cfr1.1310 , and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. • Module RAR20004001 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co-location compliance tables below. • Module RAR20004001 may be co-located with other modules in BelAir Networks products as shown in the co-location compliance tables below. Worst- case configurations are shown below. • This device will only be operated according to the exposure conditions described in this application. • End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst-case transmit power yielding the worst-case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4πR 2 ). Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst-case analysis since it assumes all devices are continuously transmitting. The device utilizes the 802.11 WLAN protocol which operates in time-division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios add. RAR20004001 MPE Engineering Analysis February 26, 2007 The following tables outlines the MPE analysis for various combinations of radios and antenna the RAR20004001 can be used with: Case I: ARM3 + PSM1 & 9 dBi antenna BA100 product Co-location Compliance for Integrated 802.11b/g & 802.11a Public Service Radios Safety Distance:20 cm ( 7.9 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.706130.830.24110.9471Complies Case II: BRM3 & 23 dBi antenna + PSM1 & 21 dBi antennaBA100 product Co-location Compliance for Integrated 802.11a BRM3v3 & 802.11a PSM1 Public Service Radios Safety Distance:60 cm ( 23.6 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 430.441142.810.42210.8631Complies Case III: BRM3 & 15dBi + ARM3 + PSM1 & 21 dBi BA200 product Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:50 cm ( 19.7 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.113142.810.6081350.10120.9221Complies Case IV: BRM3 & 23dBi + ARM3 + PSM1 & 21 dBiBA200 product Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:72 cm ( 28.3 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.054142.810.2931430.30620.9601Complies Case V: PSM1 & 21 dBi antenna Co-location Compliance for Integrated 802.11a BRM3v3 & 802.11a PSM1 Public Service Radios Safety Distance:40 cm ( 15.7 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 00.000042.810.95010.9501Complies 0RAR20004001 RAR20000003RAR20004001 RAR20001003RAR20004001 RAR20001003 RAR20000003RAR20004001RAR20001003 RAR20000003RAR20004001 The equipment therefore fulfills the requirements on power density for general population/uncontrolled exposure and therefore complies with the requirements of FCC Bulletin 65. RAR20004001 MPE Engineering Analysis February 26, 2007 To simplify installation instructions the following summary of distances will be used based on the worst case MPE: RF Exposure Radios Minimum Safety Distance Radios Other combinations Minimum Safety Distance BelAir50C BelAir50S Radios 1 x RAR20004001 (PSM1) w. 21 dBi antenna 40 cm ( 16 inches) NONE ------- BelAir100 BelAir100S BelAir100C Radios 1 x RAR20001003 and 23 dbi antenna 1 x RAR20004001 (PSM1) w. 21 dBi antenna 60 cm ( 24 inches) 1 x RAR20004001(PSM1) w. 9 dBi antenna and 1 x RAR20000003 (ARM3) 20 cm ( 8 inches) BelAir200 1 x RAR20001003 and 23 dbi antenna and 1 x RAR20004001(PS M1) w. 21 dBi antenna and 1 x RAR20000003 (ARM3) 72 cm ( 28.3 inches) 1 x RAR20004001(PSM1) w. 21 dBi antenna1 x RAR20001003 (BRM3) with 15 dBi ant.and 1 RAR20000003 (ARM3) 50 cm ( 20 inches)

Test Report: 6W71243 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: 4.9 GHz Public Safety Band RF Module 1 FCC ID: RAR20004001 In Accordance With: FCC Part 90 Subpart Y Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: February 6, 2007 Total Number of Pages: 31 Nemko Canada Inc. REPORT SUMMARY Report Number:6W71243 FCC ID: RAR20004001 Specification: FCC Part 90 Subpart Y Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90, Subpart Y. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: 4.9 GHz Public Safety Band RF Module 1 Specification: FCC Part 90, Subpart Y Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 31 Nemko Canada Inc. REPORT SUMMARY Report Number:6W71243 FCC ID: RAR20004001 Specification: FCC Part 90 Subpart Y TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1: Equipment Under Test..............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT..........................................................................................................5 Section 2: Test Conditions..........................................................................................................................6 2.1 Specifications.............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment.......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations..............................................................................................................................7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements...............................................................................................................7 3.3 EUT Parameters Affecting Compliance.....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4: Results Summary......................................................................................................................8 4.1 FCC Part 90 Subpart Y: Test Results.........................................................................................................9 Appendix A: Test Results.........................................................................................................................10 Appendix B : Setup Photographs............................................................................................................30 Appendix C : Block Diagram of Test Setups..........................................................................................31 Page 3 of 31 Nemko Canada Inc. SECTION 1: EQUIPMENT UNDER TEST Report Number:6W71243 FCC ID: RAR20004001 Specification: FCC Part 90 Subpart Y Section 1: Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: 4.9 GHz Public Safety Band RF Module1 1.2 Samples Submitted for Assessment The following samples of the apparatus have been submitted for type assessment: Sample No. Description Serial No. 1 4.9 GHz Public Safety Band RF module1 K001739253 2 LPM Card K001017419 The first samples were received on: Nov.21, 2006 Page 4 of 31 Nemko Canada Inc. SECTION 1: EQUIPMENT UNDER TEST Report Number:6W71243 FCC ID: RAR20004001 Specification: FCC Part 90 Subpart Y 1.3 Technical Specifications of the EUT Manufacturer: BelAir Networks Inc. Frequency Band 4940-4990MHz Operation Frequency 4950-4980MHz Modulation: OFDM Antenna Information: 1. Maxrad Omni Antenna: 9dBi 2. MTI MT Antenna: 8.5dBi 3. MTI External Directional Antenna: 21dBi 4. MTI MT 120degree Antenna: 15.5dBi Antenna Connector: MCX Page 5 of 31 Nemko Cana…

Text truncated - open the document above for the full version.
