RAR20005002WLAN Radio Module with Antenna Switch Module

Page 1 of 12 FCC ID: RAR20005002 RAR20005002 Product Manual 5 GHz WLAN Module with Antenna Switch Module Document Date: January 2006 Document Number: PM-RAR20005002 Document Version Number: 1 Document Status: Release © Copyright 2005 by BelAir Networks. All rights reserved.. RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 2 of 12 PM-RAR20005002 version 1 Contents About this Document ............................................................. 2 Introduction ............................................................................. 3 Conditions of Use .................................................................... 4 Module Installation and Service ............................................ 6 Final Product Requirements .................................................. 7 Regulatory Statements........................................................... 9 About this Document This document is a product manual for the FCC ID: RAR20005002, 5 GHz WLAN Radio Module with Antenna Switch Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 3 of 12 PM-RAR20005002 version 1 Introduction The RAR20005002 (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a device. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 4 of 12 PM-RAR20005002 version 1 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module RAR20005002 is only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of RAR20005002 in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The RAR20005002 module is only approved for use in the following BelAir Networks products: • BelAir200. See product assembly instructions for complete details. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. Country of Use RAR20005002 is certified with limited modular approval for use in the United States as an Intentional Radiator as device: FCC ID: RAR20005002 and in RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 5 of 12 PM-RAR20005002 version 1 Canada as IC: 4674A-20005002. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 6 of 12 PM-RAR20005002 version 1 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: RAR20005002 is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. RAR20005002 Product Manual – 5 GHz WLAN Radio Module with Antenna Switch Module January 2006 Page 7 of 12 PM-RAR20005002 version 1 Final Product Requirements The requirements below apply to any final product in which the RAR20005002 module is installed. Antenna Usage RAR20005002 module shall only be used in conjunction with…

Text truncated - open the document above for the full version.

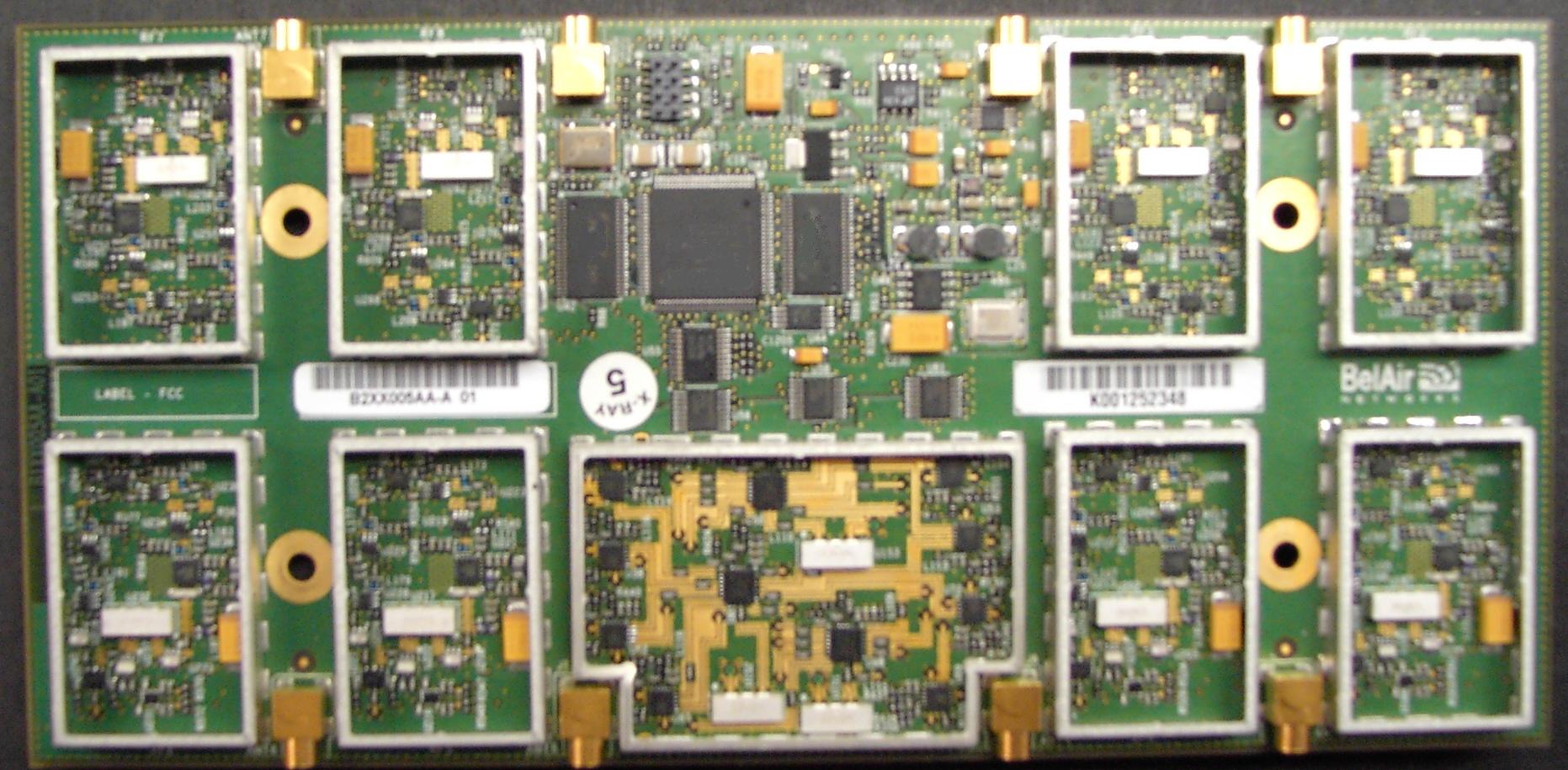

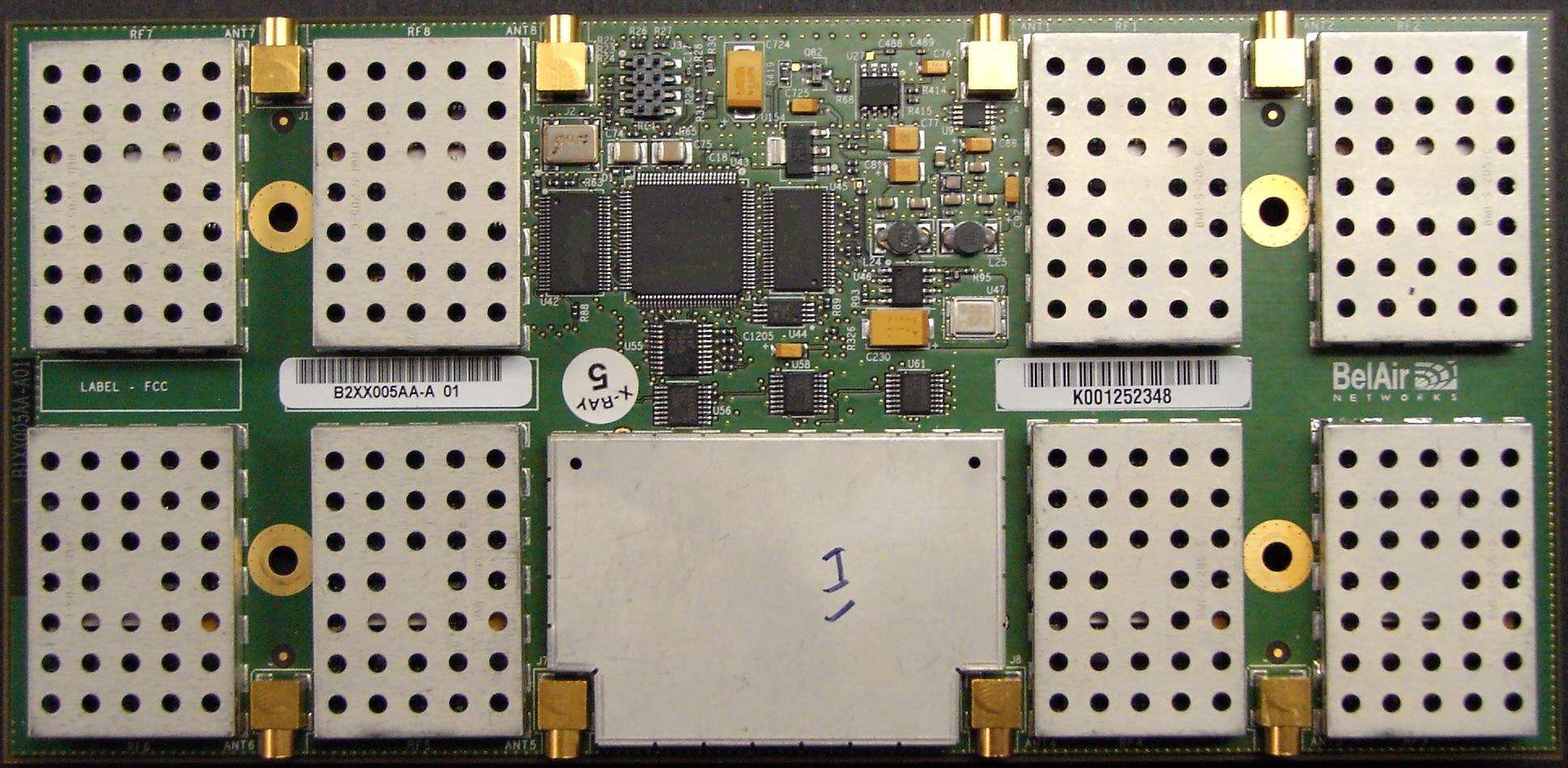

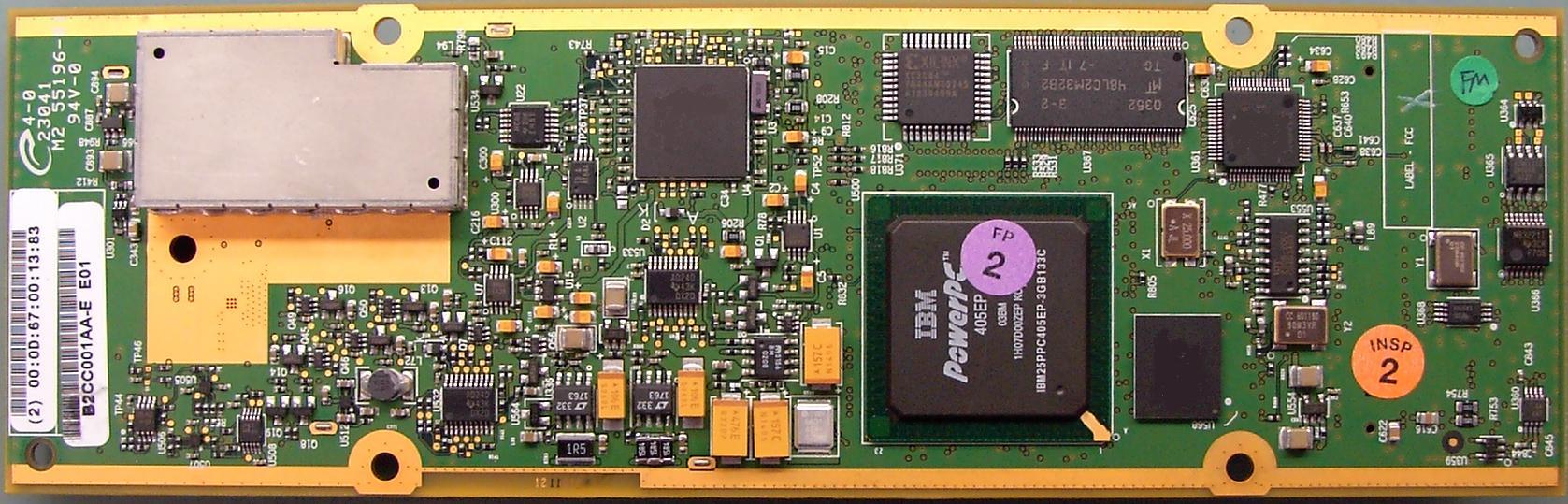

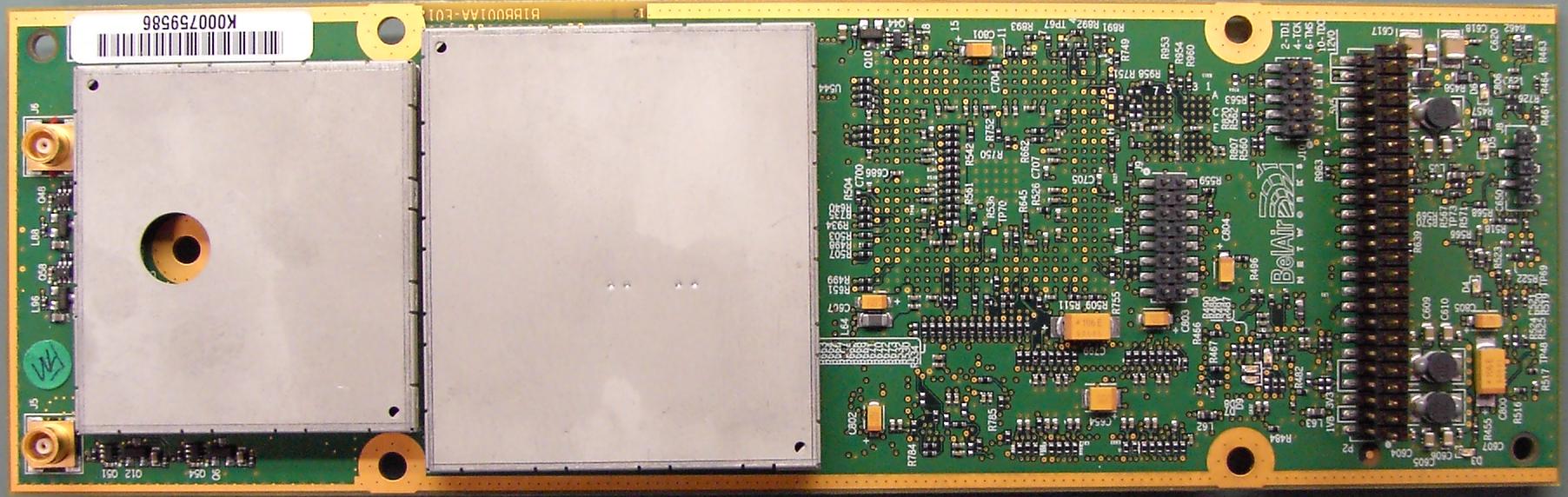

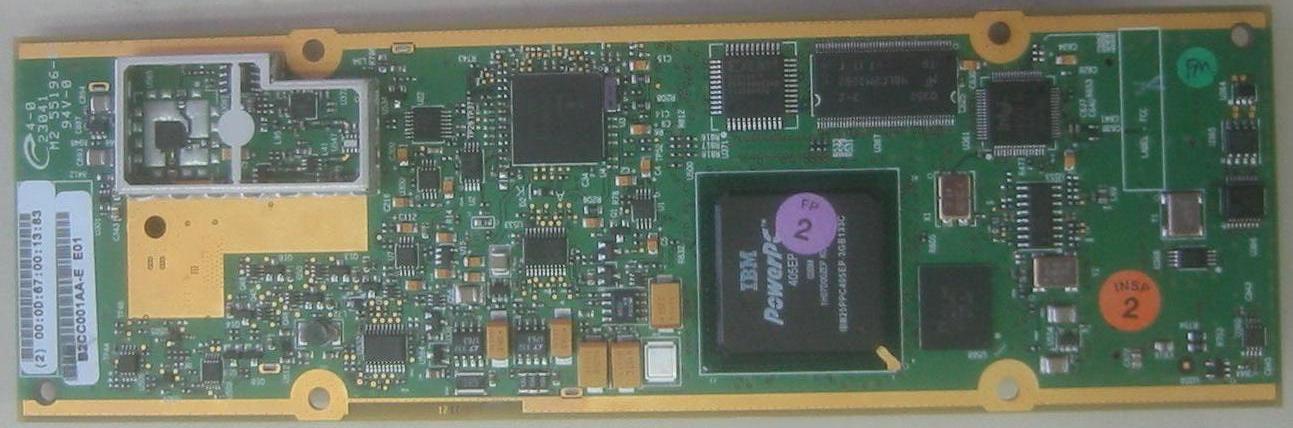

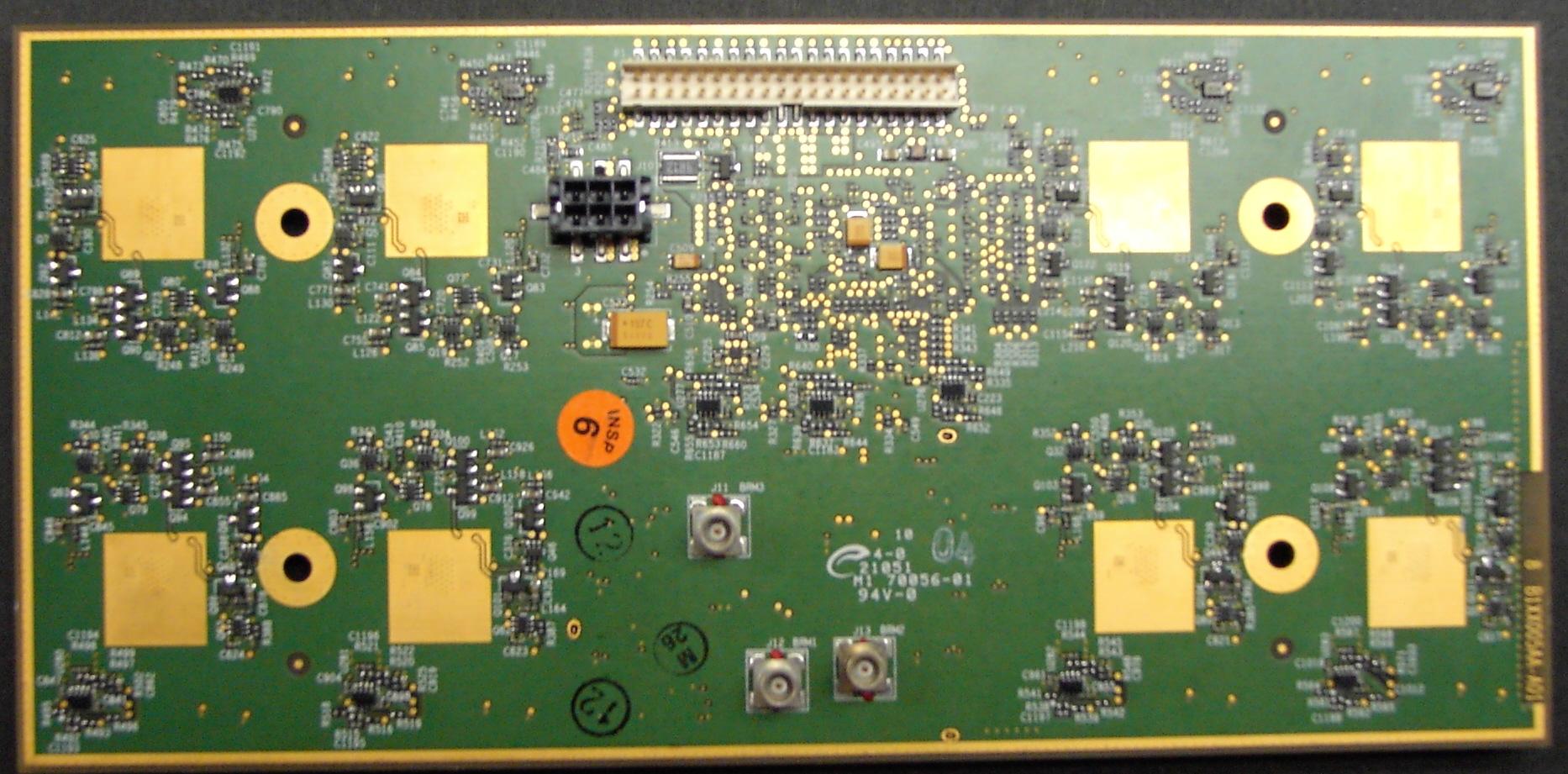

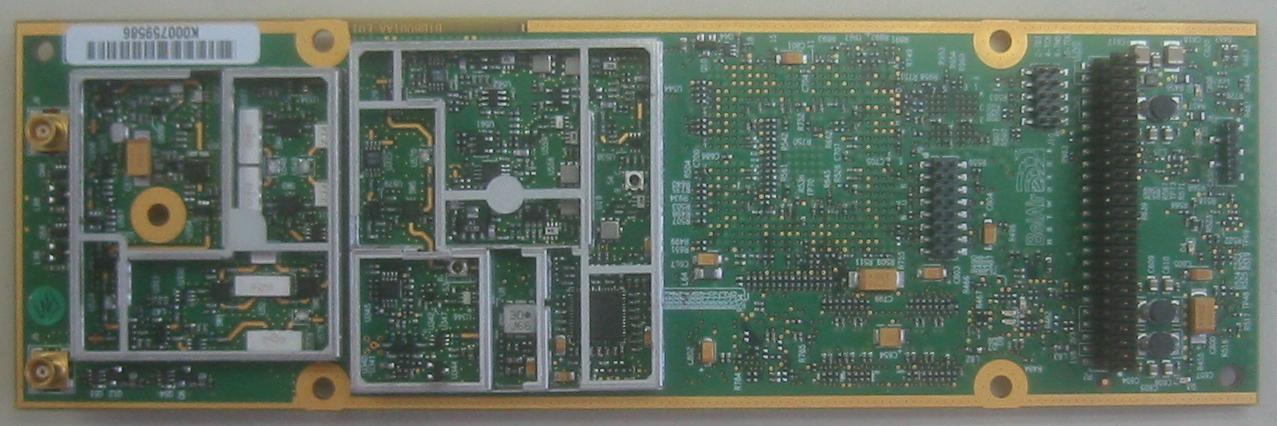

BelAir Networks 5 GHz Radio Module with Antenna Matrix Label Location January 10, 2006 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. Switch Matrix Top View Label Location FCC ID: RAR20005002 IC: 4674A-20005002 FCC ID: RAR20005002 IC: 4674A-20005002 BelAir Networks 5 GHz Radio Module with Antenna Matrix Label Location January 10, 2006 2 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20005002 IC: 4674A-20005002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

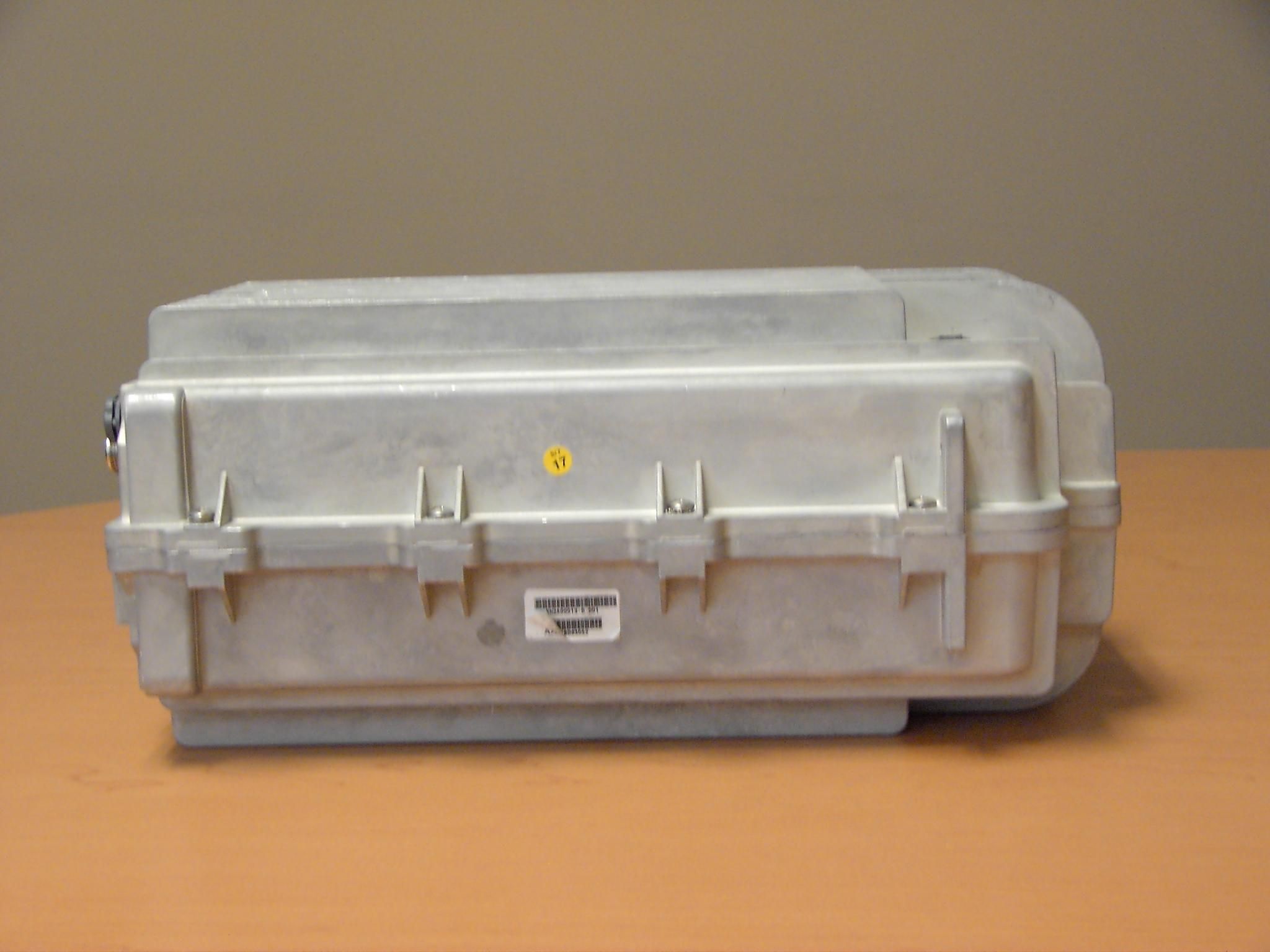

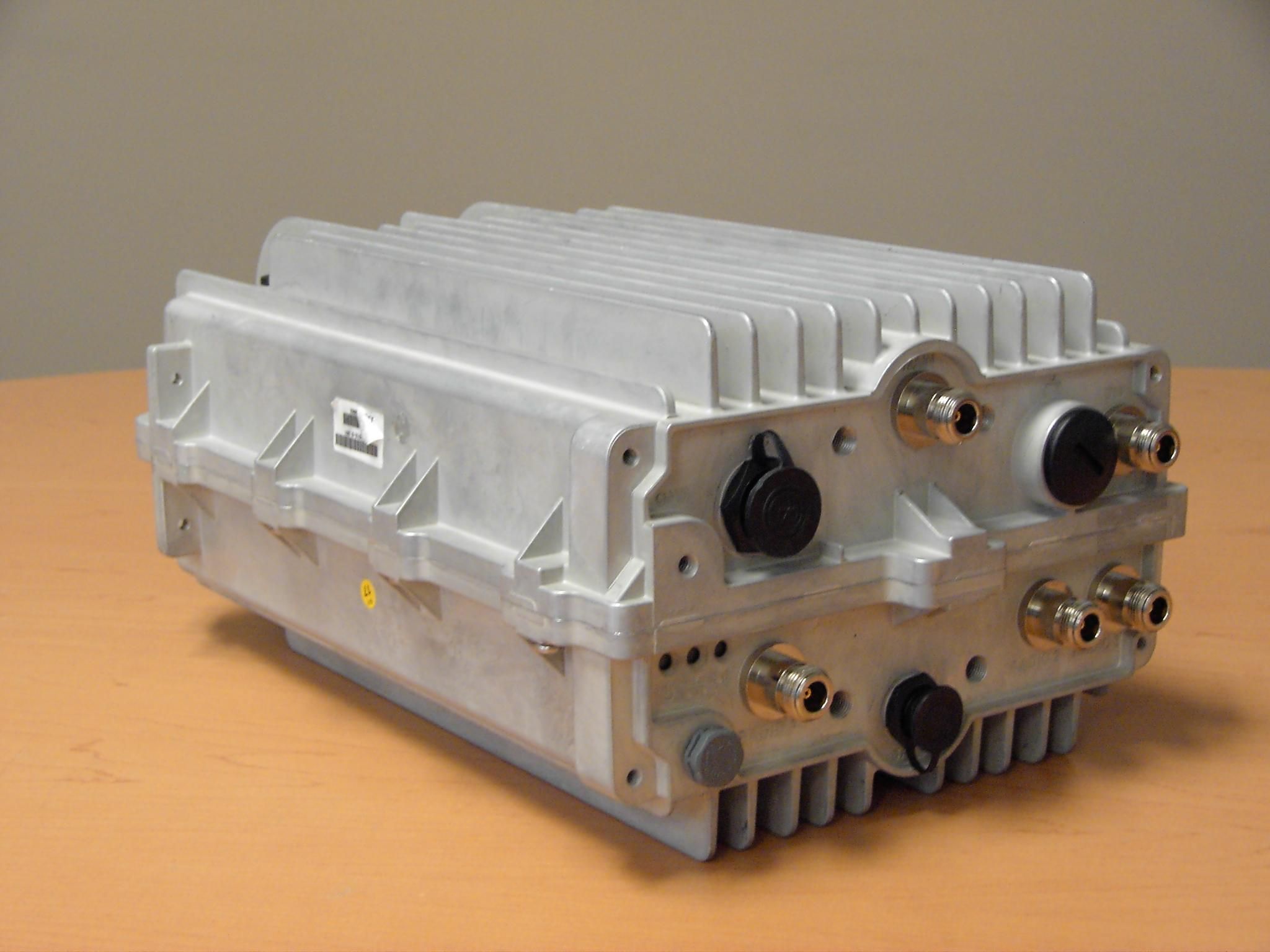

Test Report: 5W54150.8 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: BRM2 North America and ASM-E FCC ID: RAR20005002 In Accordance With: FCC Part 15 Subpart C, 15.247 FHSS System and Digitally Modulated Radiators 902-928MHz, 2400 - 2483.5 MHz, 5725-5850MHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, General Manager Date: January 16, 2006 Total Number of Pages: 36 Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.8 FCC ID:RAR20005002 Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 36 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BRM2 North America and ASM-E Specification: FCC Part 15.247, Subpart C Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number:5W54150.8 FCC ID:RAR20005002 Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 36 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1: Equipment Under Test.............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations .............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4: Results Summary ...................................................................................................................... 8 4.1 FCC Part 15 Subpart C, 15.247: Test Results.............................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Section 1. Power Line Conducted Emissions ........................................................................................................10 Section 2. 6dB Bandwidth ....................................................................................................................................15 Section 3. Output Power .......................................................................................................................................19 Section 4. Spurious Emissions .............................................................................................................................24 Section 5. Peak Power Spectrum Density .............................................................................................................29 Section 6. Supply Voltage Variation......................................................................................................................33 Appendix B : Setup Photographs ............................................................................................................ 34 Appendix C : Block Diagram of Test Setups .......................................................................................... 35…

Text truncated - open the document above for the full version.

Conducted Disturbance at Mains, Setup Photos Radiated Emission Setup Photos
