RAR20005003WLAN Radio Module with Antenna Switch Module

Page 1 of 12 FCC ID: RAR20005003 RAR20005003 Product Manual 5 GHz WLAN Module with Antenna Switch Module Document Date: July 2006 Document Number: PM-RAR20005003 Document Version Number: 1 Document Status: Release © Copyright 2005 by BelAir Networks. All rights reserved.. RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 2 of 12 Contents About this Document ....................................................................... 2 Introduction...................................................................................... 3 Conditions of Use ............................................................................. 4 Module Installation and Service..................................................... 6 Final Product Requirements........................................................... 7 Regulatory Statements .................................................................... 9 About this Document This document is a product manual for the FCC ID: RAR20005003, 5 GHz WLAN Radio Module with Antenna Switch Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 3 of 12 Introduction The RAR20005003 (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a device. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 4 of 12 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module RAR20005003 is only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of RAR20005003 in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The RAR20005003 module is only approved for use in the following BelAir Networks products: • BelAir200. See product assembly instructions for complete details. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. Country of Use RAR20005003 is certified with limited modular approval for use in the United States as an Intentional Radiator as device: FCC ID: RAR20005003 and in RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 5 of 12 Canada as IC: 4674A-20005003. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 6 of 12 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: RAR20005003 is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. RAR20005003 Product Manual – 5 GHz WLAN Radio Module Page 7 of 12 Final Product Requirements The requirements below apply to any final product in which the RAR20005003 module is installed. Antenna Usage RAR20005003 module shall only be used in conjunction with the following antenna types: • BelAir Networks model: BMA000203, 15 dBi directional antenna, horizontal beamwidth 45 degrees. • BelAir Networks model: BMA000221, 12.5 dBi directional antenna, horizontal beamwidth 45 degrees. • BelAir Networks model: BMA000210, 10 dBi directional antenna, horizontal beamwidth 65 degrees. Warning: Use of t…

Text truncated - open the document above for the full version.

1 July 18, 2006 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LIMITED MODULAR APPROVAL FOR FCC ID: RAR20005003 AS PER FCC PUBLIC NOTICE DA 00-1407 To Whom It May Concern, The module FCC ID: RAR20005003 is submitted for Limited Modular Approval (LMA) by BelAir Networks Inc. In keeping with FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approval, this letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end-product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks BelAir200 product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks-specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. As illustrated by the accompanying documentation, the module FCC ID: RAR20005003 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, will be labeled with FCC ID, meets RF exposure regulations, and was tested in a representative enclosure for use in the BelAir200 product. The following is a point-by-point response to the items listed in DA 00- 1407: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module in a representative package for the product in which it will be sold (BelAir200). BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com 2 2. The input to the module is an Ethernet interface. All modulation and 802.11 protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behaviour of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC-to-DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module incorporates MCX RF connectors and does not have an integral antenna on the module. The module was tested in conjunction with the intended antennas (see accompanying documentation). Considering our submission is seeking Limited Modular Approval, BelAir Networks will ensure professional installation of the complete product. In this manner we will ensure that only the approved antenna type is used in conjunction with this module. 5. The module was tested in an enclosure representative of the BelAir200 product. Since the module itself is not AC powered, power line conducted emissions were tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 6. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the wording “Contains FCC ID: RAR20005003”. See the labeling information provided with this submission. 7. The module operates under Part 15.407. Since all modulation and 802.11 protocol elements reside within the module, users will not have access to controls which may cause the module to BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com 3 operate outside its normal mode of operation. All timing and control for RF and modulator sections are inaccessible from outside the module. 8. The module has been evaluated with the intended antenna and complies with RF exposure requirements. The manual states the safety distance must be maintained between any person and the antenna. As BelAir Networks or its authorized agents will retain control of the final installation through the requirement for professional installation, BelAir Networks shall ensure that this distance is maintained in all installations. Sincerely, Marcel Chenier, Vice-President Engineering, BelAir Networks Inc.

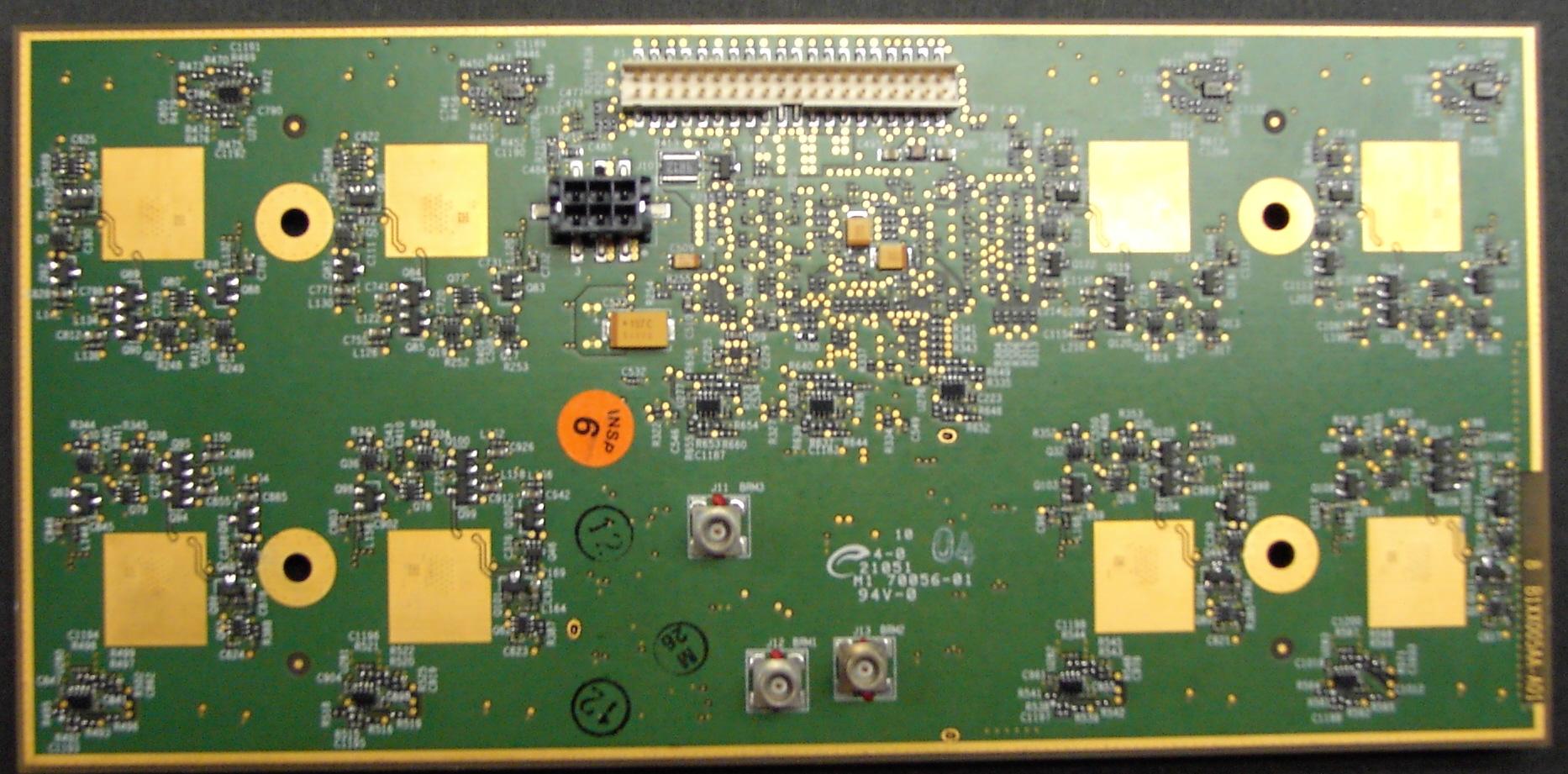

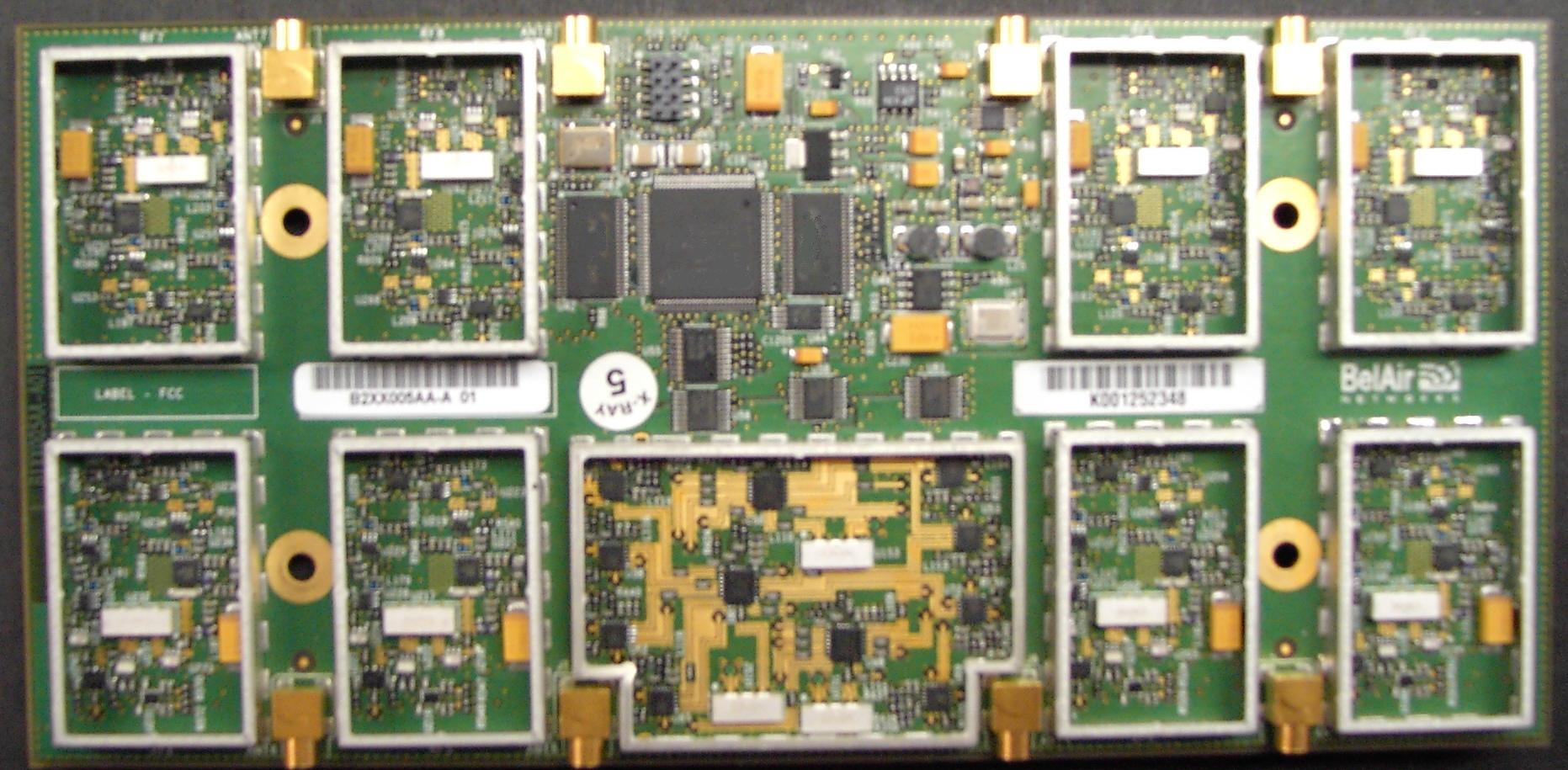

BelAir Networks 5 GHz Radio Module with Antenna Matrix Label Location July 14, 2006 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. Switch Matrix Top View Label Location FCC ID: RAR20005003 IC: 4674A-20005003 FCC ID: RAR20005003 IC: 4674A-20005003 BelAir Networks 5 GHz Radio Module with Antenna Matrix Label Location July 14, 2006 2 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20005003 IC: 4674A-20005003 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

RAR20005003 MPE Engineering Analysis July 14, 2006 Engineering Analysis MPE for 5 GHz Transceiver with Antenna Switch Module FCC ID: RAR20005003 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC part 15, and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. • Module RAR20005003 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co-location compliance tables below. • Module RAR20005003 may be co-located with other modules in BelAir Networks products as shown in the co-location compliance tables below. Worst- case configurations are shown below. • This device will only be operated according to the exposure conditions described in this application. • End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst-case transmit power yielding the worst-case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4πR 2 ). Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst-case analysis since it assumes all devices are continuously transmitting. The device utilizes the 802.11 WLAN protocol which operates in time-division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios add. RAR20005003 MPE Engineering Analysis July 14, 2006 5.25 – 5.35 GHz, all antennas, 1 x RAR20000003 plus 3 x RAR20005003 Safety Distance: 25 cm (9.8 inches) 15dBi Antenna Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance: 25 cm ( 9.8 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm] [mW/cm^2] [dBm] [mW/cm^2] [mW/cm^2] [mW/cm^2] RAR20000003 RAR20005003 35.5 0.452 1 30 0.127 3 0.834 1 Complies The equipment therefore fulfills the requirements on power density for general population/uncontrolled exposure and therefore complies with the requirements of FCC Part 15.247 (b) (4) and FCC Bulletin 65.

Test Report: 6W70104 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: BRM3 North America and ASM-E FCC ID: RAR20005003 In Accordance With: FCC Part 15 Subpart E, 15.407 Unlicensed National Information Infrastructure Devices Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: July 18, 2006 Total Number of Pages: 45 Nemko Canada Inc. REPORT SUMMARY Report Number:6W70104 FCC ID:RAR20005003 Specification: FCC Part 15 Subpart E, 15.407 Page 2 of 45 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E, 15.407. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BRM3 North America and ASM-E Specification: FCC Part 15.407, Subpart E Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number:6W70104 FCC ID:RAR20005003 Specification: FCC Part 15 Subpart E, 15.407 Page 3 of 45 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1: Equipment Under Test.............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations .............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 32 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 Section 4: Results Summary ...................................................................................................................... 8 4.1 FCC Part 15 Subpart E, 15.407: Test Results.............................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Section 1. Power Line Conducted Emissions ........................................................................................................10 Section 2. Emission Bandwidth ............................................................................................................................15 Section 3. Output Power .......................................................................................................................................19 Section 4. Spurious Emissions not in Restricted Band ..........................................................................................24 Section 5. Spurious Emissions within Restricted Bands........................................................................................29 Section 6. Peak Power Spectrum Density ..............................................................................................................32 Section 7. Supply Voltage Variation......................................................................................................................37 Section 8. Peak Excursion Measurement ...............................................................................................................38 Section 9. Frequency Stabilit…

Text truncated - open the document above for the full version.

Setup photos
