RAR200060012.3 GHz WCS Band Modular Transmitter

Page 1 of 12 WCS band Radio Module WRM Product Manual 2.3 GHz WCS band Backhaul Radio Module FCC ID RAR20006001 IC: 4674A-20006001 Document Date: June 2006 Document Number: PM-B2CC050AA-A Document Version Number: 1 Document Status: Release © Copyright 2006 by BelAir Networks. All rights reserved.. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 2 of 12 Contents About this Document ....................................................................... 2 Introduction...................................................................................... 3 Conditions of Use ............................................................................. 4 Module Installation and Service..................................................... 6 Final Product Requirements........................................................... 7 Regulatory Statements .................................................................. 10 About this Document This document is a product manual for the B2CC050AA-A 2.3 GHz WCS band Backhaul Radio Module 1, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 3 of 12 Introduction The B2CC050AA-A (hereafter referred to as “the module”) is a 2.3 GHz WCS band radio module compatible with the IEEE 802.16 standard for WIMAX operation. The module contains a complete 802.16 radio and Medium Access Control protocol engine. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 4 of 12 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B2CC050AA-A is only intended for use in BelAir Networks products and is not for sale to the general public as a stand- alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B2CC050AA-A in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The B2CC050AA-A module is only approved for use in the following BelAir Networks products: • BelAir200. See BelAir200 documentation for complete manufacturing instructions. • BelAir100. See BelAir100 documentation for complete manufacturing instructions. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 5 of 12 Country of Use B2CC050AA-A is certified with limited modular approval for use as an Intentional Radiator in the United States as device: FCC ID: RAR20006001 and in Canada as IC:4674A-20006001. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and in Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 6 of 12 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B2CC050AA-A is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. WRM Product Manual – 2.3 GHz WCS Band Radio Module Page 7 of 12 Final Product Requirements The requirements below apply to any final product in which the B2CC050AA- A module is installed. Antenna Usage and Module Transmit Power B2CC050AA-A module shall only be used in conjunction with the following antenna types: • BelAir Networks model: BEL10012, 8.0 dBi directional diversity antenna. • MTI Wireless Edge MT-344014/18 8.5 dBi patch antenna • MTI Wireless Edge MT-344026 15 dBi • MaxRad model: MFB24006, 6 dBi omni-directional antenna. • MaxRad model: MFB24008, 8 dBi omni-directional antenna. • MaxRad model: WISP 24013, 13 dBi omni-directional antenna. • MaxRad model: WISP 24018, 18 dBi omni-directional…

Text truncated - open the document above for the full version.

1 August 23, 2006 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: APPROVAL FOR MODULE FCC ID: RAR20006001 Radio module tested under part 27 MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES To Whom It May Concern, The module FCC ID: RAR20006001 a radio module tested under part 27 WCS band, is submitted for Approval as a module by BelAir Networks Inc. The module can only be installed in BelAir Networks wireless products. This letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end-product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks-specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. The module is installed only in BelAir Networks products using antennas outlined in the filing, meeting fixed land station applications in compliance with part 27.50(a)(1). The antennas will always be fixed-mounted on permanent structures. BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com 2 As illustrated by the accompanying documentation, the module FCC ID: RAR20006001 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, was tested in a stand-alone configuration, will be labeled with FCC ID and meets RF exposure regulations. The module has the following characteristics: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module on its own, with no external shielding beyond that incorporated into the module to ensure compliance to all radiated emissions requirements at the module level. 2. The input to the module is an Ethernet interface. All modulation and 802.16 protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behaviour of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC-to-DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module was tested in a stand-alone configuration for all conducted and radiated emissions, except for conducted power line emissions. Since the module is not AC powered, it was tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 5. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the wording “Contains FCC ID: RAR20006001”. See the labeling information provided with this submission. BelAir Networks U.S. East 11921 Freedom Drive Suite 550 Reston, VA USA 20190 703-736-8306 BelAir Networks U.S. West 1902 Wright Place Suite 200 Carlsbad, CA USA 92008 760-918-5544 [email protected] BelAir Networks Inc. 603 March Road Kanata, Ontario Canada K2K 2M5 613-254-7070 [email protected] www.belairnetworks.com

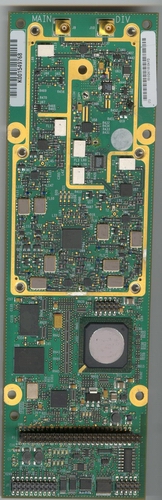

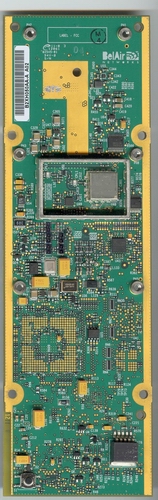

BelAir Networks 2.3 GHz WI-MAX Radio Module 1 Label Location May 16, 2006 1 Module Labeling The following label shall be permanently affixed to the radio module as follows: FCC ID: RAR20006001 IC: 4674A-20006001 Label size approximately 30 mm x 7 mm. Label material is white polyester with a permanent acrylic adhesive. This is a CSA/UL approved material. Print technique is thermal ink using 400 DPI resolution. BelAir Networks 2.3 GHz WI-MAX Radio Module 1 Label Location May 16, 2006 2 The label location shall be as shown in the diagram below: FCC ID IC ID Radio Module Bottom View Regulatory Label Radio Module Top View Product Code FCC ID IC ID |||||||||||||||||||||||||||| B2CC050AA- RF shield BelAir Networks 2.3 GHz WI-MAX Radio Module 1 Label Location May 16, 2006 3 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20006001 IC: 4674A-20006001

RAR20006001 MPE Engineering Analysis June 16, 2006 Engineering Analysis MPE for WCS 2.3 GHz Transceiver FCC ID: RAR20006001 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC part 27, and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. • Module RAR20006001 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co-location compliance tables below. • Module RAR20006001 may be co-located with other modules in BelAir Networks products as shown in the co-location compliance tables below. Worst- case configurations are shown below. • This device will only be operated according to the exposure conditions described in this application. • End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst-case transmit power yielding the worst-case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4πR 2 ). Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst-case analysis since it assumes all devices are continuously transmitting. The device utilizes the 802.16 protocol which operates in time-division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios add. RAR20006001 MPE Engineering Analysis June 16, 2006 The following table 1 summarizes the minimum distance covering all configurations of RAR20006001 radios in BelAir Networks products using worst case scenarios. Table 1 Node 25 dBi antenna 18 dBi and 15 dBi antenna 13, 8.5, 8, 6 dBi antenna Radios BelAir100 BelAir100S BelAir100C 80 (31.5 inches) 36 (14.5 inches) 24 (9.5 inches) 2 x RAR20006001 or 1 RAR20000003 and 1 RAR20006001 BelAir200 115 (45.5 inches) 51 (20.5 inches) 30 (11.8 inches) 4 x RAR20006001 or 1 RAR20000003 and 3x RAR20006001 Minimum Safety Distance cm (inches) The following tables outlines the safety distance calculations for the various combinations of antennas and radios, co-located, worst case conditions. Case I: 2.3 GHz WCS band, 13 dBi or less ( 6 dBi, 8 dBi ), 1 x RAR20006001 Compliance for one WCS Radio Safety Distance:14.5 cm( 5.7 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 340.951100.00000.9511Complies Case II: 2.3 GHz WCS band, 13 dBi or less ( 6 dBi, 8 dBi ), 2 x RAR20006001 Co-location Compliance for two WCS Radios Safety Distance:24 cm ( 9.4 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 340.34720.6941Complies RAR20006001 RAR20006001 RAR20006001 MPE Engineering Analysis June 16, 2006 Case III: 2.3 GHz WCS band, 13 dBi or less ( 6 dBi, 8 dBi ), 1 x RAR20006001 and 1 x RAR20000003 Co-location Compliance for Integrated 802.11b/g & WCS Radios Safety Distance:24 cm( 9.4 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 340.347135.50.49010.8371Complies Case IV: 2.3 GHz WCS band, 13 dBi (Includes 6, 8 dBi), four RAR20006001 Co-location Compliance for four WCS Radios Safety Distance:29 cm( 11.4 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 340.23840.9511Complies RAR20006001 RAR20006001RAR20000003 Case V: 2.3 GHz WCS band, 13 dBi (Includes 6, 8 dBi), three RAR20006001 Co-location Compliance for four WCS Radios Safety Distance:30 cm( 11.8 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 340.222335.50.31410.9801Complies Case VI: 2.3 GHz WCS band, 25 dBi 1 x RAR20006001 Compliance for one WCS Radio Safety Distance:57 cm( 22.4 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 460.97510.9751Complies RAR20006001RAR20000003 RAR20006001 Case VII: 2.3 GHz WCS band, 25 dBi 2 x RAR20006001 Co-location Compliance for two WCS Radios Safety Distance:80 cm( 31.5 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 460.49520.9901Complies Case VIII: 2.3 GHz WCS band, 25 dBi 1 x RAR20006001 and 1 x RAR20000003 Co-location Compliance for Integrated 802.11b/g & WCS Radios Safety Distan…

Text truncated - open the document above for the full version.

Test Report: 6W65729 Applicant: BelAir Networks Inc., 603 March Road, Ottawa, ON K2K 2M5 Apparatus: 2.3GHz WCS Band Radio Module FCC ID: RAR20006001 In Accordance With: FCC Part 27 Miscellaneous Wireless Communications Services Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: June 6, 2006 Total Number of Pages: 65 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W65729 FCC ID: FCC ID # RAR20006001 Specification: FCC Part 27 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: 2.3GHz WCS Band Radio Module Specification: FCC Part 27 Miscellaneous Wireless Communications Services Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 65 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W65729 FCC ID: FCC ID # RAR20006001 Specification: FCC Part 27 TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1: Equipment Under Test..............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT..........................................................................................................5 Section 2: Test Conditions..........................................................................................................................6 2.1 Specifications.............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment.......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations..............................................................................................................................7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements...............................................................................................................7 3.3 EUT Parameters Affecting Compliance.....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations.............................................................................................................................7 Section 4: Results Summary......................................................................................................................8 4.1 FCC Part 27: Test Results..........................................................................................................................9 Appendix A: Test Results.........................................................................................................................10 Appendix B: Setup Photographs.............................................................................................................63 Appendix C: Block Diagram of Test Setups...........................................................................................64 Page 3 of 65 Nemko Canada Inc. SECTION 1: EQUIPMENT UNDER TEST Report Number: 6W65729 FCC ID: FCC ID # RAR20006001 Specification: FCC Part 27 Section 1: Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: 2.3GHz WCS Band Radio Module 1.2 Samples Submitted for Assessment The following samples of the apparatus have been submitted for type assessment: Sample No. Description Serial No. 1 2.3GHz WCS Band Radio Module K001619775 2 Digital Board LPM A000000217 3 Power Supply 02905034 0545 The first samples were received on: May 11, 2006 Page 4 of 65 Nemko Canada Inc. SECTION 2: TEST CONDITIONS Report Number: 6W65729 FCC ID: FCC ID # RAR20006001 Specification: FCC Part 27 1.3 Technical Specifications of the EUT Manufacturer: BelAi…
