RAR20031001802.11a Radio Module

Page 1 of 14 B2CH079AA B2CH079AA Product Manual ERM2 5 GHz WLAN Radio Module Document Date: November 2007 Document Number : PM-B2CH079AA Document Version Number : 2 Document Status: Release © Copyright 2006 by BelAir Networks. All rights reserved.. B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 2 of 14 PM-B2CH079AA Version 2 B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 3 of 14 PM-B2CH079AA Version 2 Contents About this Document .................................................................... 3 Introduction .................................................................................... 4 Conditions of Use ........................................................................... 5 Module Installation and Service.................................................... 7 Final Product Requirements ......................................................... 8 Regulatory Statements ................................................................ 11 About this Document This document is a product manual for the B2CH079AA 5 GHz WLAN Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 4 of 14 PM-B2CH079AA Version 2 Introduction The B2CH079AA (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Direct Sequence Spread Spectrum (DSSS) radio technology. The module contains a complete 802.11a radio and Medium Access Control (MAC) protocol engine which allows implementation of an 802.11a module. The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the product” or the “final product”). Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 5 of 14 PM-B2CH079AA Version 2 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B2CH079AA is only intended for use in BelAir Networks products and is not for sale to the general public as a stand-alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B2CH079AA in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with an antenna which is not expressly listed in this document or approved by BelAir Networks. List of Approved Final Products The B2CH079AA module is only approved for use in the following BelAir Networks products: • BelAir200. See BelAir200 documentation for complete manufacturing instructions. • BelAir100. See BelAir100 documentation for complete manufacturing instructions. • BelAir50c. See BelAir50c documentation for complete manufacturing instructions. Operation of the module within the products expressly listed above is required to ensure compliance to all FCC and Industry Canada regulations. Any modification of the module, or its use in any configuration not expressly listed above may void the user’s right to operate this module. Country of Use B2CH079AA is certified with limited modular approval for use as an Intentional Radiator in the United States as device: FCC ID: RAR20031001 and in Canada as B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 6 of 14 PM-B2CH079AA Version 2 IC: 4674A-20031001. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 7 of 14 PM-B2CH079AA Version 2 Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B2CH079AA is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. B2CH079AA Product Manual – ERM2, 5 GHz WLAN Radio Module November 2007 Page 8 of 14 PM-B2CH079AA Version 2 Final Product Requirements The requirements below apply to any final product in which the …

Text truncated - open the document above for the full version.

1 October 4, 2007 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification RE: PRODUCT CODE FCC: ID RAR20031001 BelAir ERM2 Radio Module Authority to Act as Agent On our behalf, I appoint , Nemko Canada Inc to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with BelAir Networks, 603 March Road Kanata, Ottawa Ontario. Dated this 4 th of October 2007 Agency Agreement expiration date October 4, 2008 Marcel Chenier Vice President of Engineering BelAir Networks Inc. Telephone (613)-254 7070 ext.139

1 October 4, 2007 Attn :Reviewing Engineer Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE:CONFIDENTIALITY REQUEST FOR FCC ID RAR20031001 To Whom It May Concern This letter is an official request for confidentiality under FCC rule 47 CFR §0.459 . We requests that the following items with this applications be withheld from public review: • Schematics • Product Block Diagram and Theory of Operation • Parts List The above materials contain trade secrets and are proprietary to BelAir Networks Inc. Public disclosure of information in these materials may be used in the market place to the disadvantage of BelAir Networks.

1 October 4, 2007 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LIMITED MODULAR APPROVAL FOR FCC ID: RAR20031003 AS PER FCC PUBLIC NOTICE DA 00-1407 Enhanced Radio Module 2, tested under part 15. To Whom It May Concern, The module FCC ID: RAR20031001 is submitted for Limited Modular Approval (LMA) by BelAir Networks Inc. In keeping with FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approval, this letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end-product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks-specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. As illustrated by the accompanying documentation, the module FCC ID: RAR20031001 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, was tested in a stand-alone configuration, will be labeled with FCC ID and meets RF exposure regulations. The following is a point-by-point response to the items listed in DA 00- 1407: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module on its own, with no external shielding beyond that incorporated into the module to ensure compliance to all radiated emissions requirements at the module level. 2 2. The input to the module is an Ethernet interface. All modulation and 802.11 a protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behavior of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC-to-DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module incorporates MCX RF connectors and does not have an integral antenna on the module. The module was tested in conjunction with the intended antennas (see accompanying documentation). Considering our submission is seeking Limited Modular Approval, BelAir Networks will ensure professional installation of the complete product. In this manner we will ensure that only the approved antenna type is used in conjunction with this module. 5. The module was tested in a stand-alone configuration for all conducted and radiated emissions, except for conducted power line emissions. Since the module is not AC powered, it was tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 6. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the wording “Contains FCC ID: RAR20031001”. See the labeling information provided with this submission. 7. The module operates under Part 15.247 (b) (3). Since all modulation and 802.11 protocol elements reside within the module, users will not have access to controls which may cause the module to operate outside its normal mode of operation. All timing and control for RF and modulator sections are inaccessible from outside the module. 8. The module has been evaluated with the intended antenna and complies with RF exposure requirements. The manual states that a 3 distance as per the Table 1 below shall be maintained between any person and the antenna. As BelAir Networks or its authorized agents will retain control of the final installation through the requirement for professional installation, BelAir Networks shall ensure that this distance is maintained in all installations. RF Exposure Table 1: Minimum Safety Distances Radios with ERM2RAR20031001 Product Standard Antennas RF boards : All valid combinations ERM2 ARM3CPSM1,2WRM1,2 ERM2 ARM3CPSM1,2WRM1,2 BelAir50, BelAir 100,100T,100S up to 19 dBi Any10 dbi15 dbiup to 30 dBiAny25 dBi25 dBi Distance BelAir 200 up to 19 dBi Any10 dbi15 dbiup to 30 dBiAny25 dBi25 dBi Distance ARM3C :RAR20000003PSM1,2:RAR20004001, RAR20008001WRM1,2 : RAR20006001, RAR20007001 High Gain Antennas 35 cm (13.8 in)125 cm (49.2 in) 50 cm (19.7 in)160 cm (63 in)

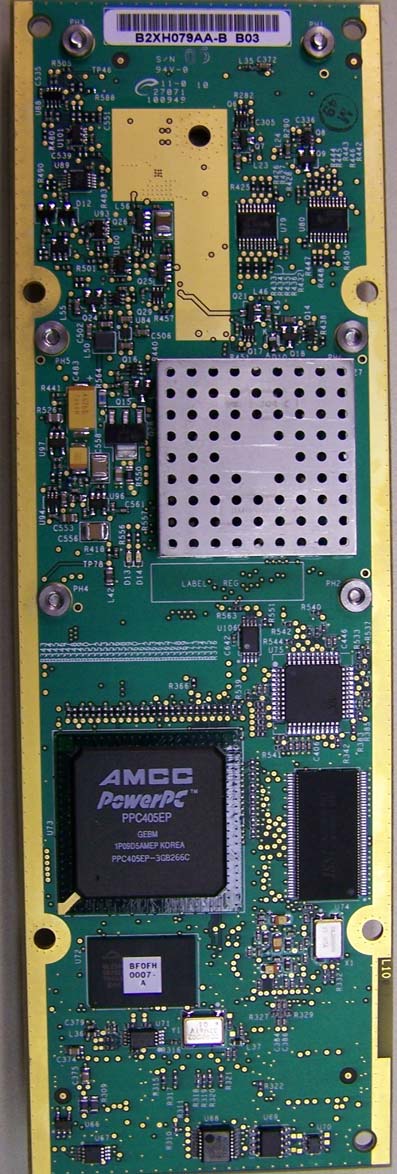

B2CH079AA TOP with shield Bottom with shield TOP no shield Bottom no shield

BelAir Networks ERM2 5.0 GHz Extended Radio Module November 14, 2007 1 Module Labeling –ERM2 5 GHz Extended Radio Module The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: FCC, IC label : Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. BelAir Networks model number label on radio module FCC ID: RAR20031001 B2CH079AA FCC ID: RAR20031001 IC : 4674A-20031001 BelAir Networks ERM2 5.0 GHz Extended Radio Module November 14, 2007 2 Label Location: FCC / IC Label Model Number Label, B2CH079AA BelAir Networks ERM2 5.0 GHz Extended Radio Module November 14, 2007 3 Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR20031001 IC : 4674A-20031001

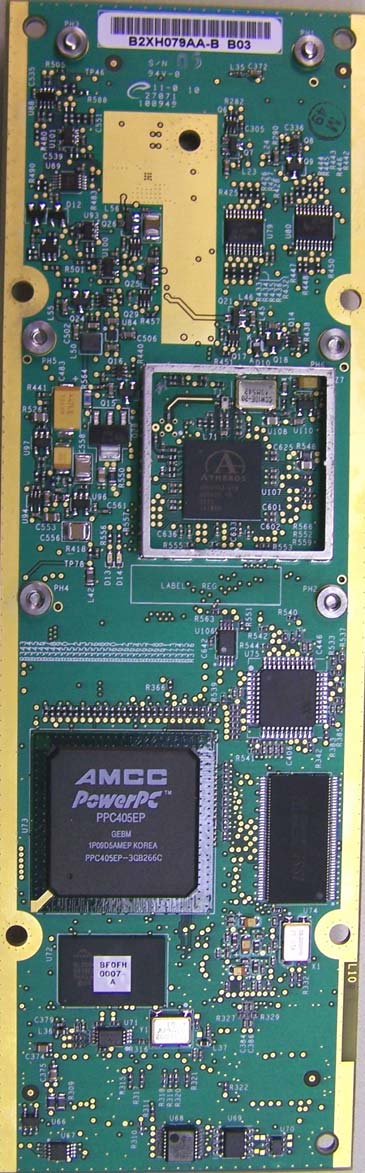

B2CH079AA TOP with shield Bottom with shield TOP no shield Bottom no shield

RAR20031001 MPE Engineering Analysis October 4, 2007 Engineering Analysis MPE for ERM2, 5 GHz Transceiver FCC ID: RAR20031001 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC part 15, and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. • Module RAR20031001 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co-location compliance tables below. • Module RAR20031001 may be co-located with other modules in BelAir Networks products as shown in the co-location compliance tables below. Worst- case configurations are shown below. • This device will only be operated according to the exposure conditions described in this application. • End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst-case transmit power yielding the worst-case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4πR 2 ). Co-location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst-case analysis since it assumes all devices are continuously transmitting. The device utilizes the 802.11 WLAN protocol which operates in time-division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios add. RAR20031001 MPE Engineering Analysis October 4, 2007 The following tables outlines the MPE analysis for various combinations of radios and antenna the RAR20004001 can be used with: BA200 Case I: 3 X RAR20031001 5.725 - 5.850 GHz 19 dBi or less antennas-1 X RAR20000003 Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:50 cm ( 19.7 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.1131390.25330.8711Complies Case II: 3 X RAR20031001 5.725 - 5.850 GHz with 23, 28, 30 dBi antennas and 1 X RAR20000003 Co-location Compliance for Integrated 802.11b/g & 802.11a Radios Safety Distance:160 cm ( 63.0 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co-located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.0111500.31130.9441Complies RAR20000003RAR20031001 RAR20000003RAR20031001 Case IIIa: 2 X RAR20031001 5.725 - 5.850 GHz with 19 dBi or less antennas and 1 X RAR20000003 and 1 X RAR20004001 or 1 X RAR20008001 (10 dBi) Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:45 cm( 17.7 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 35.50.1391390.3122340.09910.8621Complies Case IIIb: 2 X RAR20031001 5.725 - 5.850 GHz with 19 dBi or less antennas and 1 X RAR20000003 and 1 X RAR20004001 or 1 X RAR20008001 (25 dBi) Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:90 cm( 35.4 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2 ][mW/cm^2] 35.50.0351390.0782490.78010.9711Complies RAR20000003RAR20031001RAR20008001 RAR20000003RAR20031001RAR20008001 Case IVa: 2 X RAR20031001 5.725 - 5.850 GHz with 23, 28, 30 dBi antennas and 1 X RAR20000003 and 1 X RAR20004001 or 1 X RAR20008001 (10dBi) Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:130 cm( 51.2 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2 ][mW/cm^2] 35.50.0171500.4712340.01210.9701Complies Case IVb: 2 X RAR20031001 5.725 - 5.850 GHz with 23, 28, 30 dBi antennas and 1 X RAR20000003 and 1 X RAR20004001 or 1 X RAR20008001 (25dBi) Co-location Compliance for Integrated 802.11b/g & 802.11a Radios & 802.11a Public Service Radios Safety Distance:155 cm( 61.0 inches ) Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Worst-case Total EIRP Max Power Density Maximum Number of Radios Total Density for co- located radios Limit: General Population / Uncontrolled Exposure Result [dBm][mW/cm^2][dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2 ][mW/cm^2] 35.50.0121500.3312490.26310.9371Complies RAR20000003RAR20031001RAR20008001 RAR20000003RAR20031001RAR20008001 RAR20031001 MPE Engineering Analysis October 4, 2007 Case Va: 1 X RAR20031001 5.725 - 5.850 GHz with 19 dBi or…

Text truncated - open the document above for the full version.

www.nemko.com FCC Part 15 Subpart C, 15.247 : October 2006 Test Report: 91502-3 Applicant: BelAir Networks Inc 603 March Road, Ottawa, ON K2K 2M5 Apparatus: ERM2 FCC ID: RAR20031001 In Accordance With: FCC Part 15 Subpart C, 15.247 FHSS System and Digitally Modulated Radiators 902-928MHz, 2400 - 2483.5 MHz, 5725-5850MHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: October 29, 2007 Total Number of Pages: 255 Nemko Canada Inc. REPORT SUMMARY Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 255 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: ERM2 Specification: FCC Part 15 Subpart C, 15.247 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Roman Kuleba, EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 255 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1: Equipment Under Test.............................................................................................................. 4 1.1 Product Identification ......................................................................................................................................4 1.2 Samples Submitted for Assessment.................................................................................................................4 1.3 Theory of Operation ........................................................................................................................................4 1.4 Technical Specifications of the EUT ...............................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications ..................................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures .................................................................................................6 2.3 Test Environment ............................................................................................................................................6 2.4 Test Equipment................................................................................................................................................6 2.5 Measurement Uncertainty................................................................................................................................7 Section 3: Observations .............................................................................................................................. 8 3.1 Modifications Performed During Assessment .................................................................................................8 3.2 Record Of Technical Judgements ....................................................................................................................8 3.3 EUT Parameters Affecting Compliance ..........................................................................................................8 3.4 Test Deleted.....................................................................................................................................................8 3.5 Additional Observations ..................................................................................................................................8 Section 4: Results Summary ...................................................................................................................... 9 4.1 FCC Part 15 Subpart C: Test Results ............................................................................................................10 Appendix A: Test Results ......................................................................................................................... 11 Clause §15.207(a) AC Powerline Conducted Emissions .......................................................................................11 Clause 15.209(a) Radiated Emissions within Restricted Bands.............................................................................15 Clause 15.247(a)(2) Systems using digital modulation techniques......................................................................167 Clause 15.247(b)(3) Maximum peak output power of systems using digital modulation in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz bands .................................................................171 Clause 15.247(d…

Text truncated - open the document above for the full version.

Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 128 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 4.5 – 5.15 GHz TX Channel Bandwidth: 10 MHz Antenna Gain: 23dBi (Huber & Suhner, SPA 5600/9/23/0/V) TX-channel: 5735MHz Peak Limit: 74 dBμV/m * * * A TDF Att 5 dB RBW 1 MHz VBW 1 MHz SWT 20 msRef 90 dBμV/m *1 PK CLRWR Start 4.5 GHzStop 5.15 GHz65 MHz/ SGL -10 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 51.55 dBμV/m 4.925000000 GHz D1 74 dB* Date: 24.SEP.2007 09:17:28 NOTE: Tested with RF-filter BMA000281-A connected between the EUT and antenna. Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 129 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 4.5 – 5.15 GHz TX Channel Bandwidth: 10 MHz Antenna Gain: 23dBi (Huber & Suhner, SPA 5600/9/23/0/V) TX-channel: 5840MHz Average Limit: 54 dBμV/m * * * B TDF Att 5 dB RBW 1 MHz VBW 30 Hz SWT 22 sRef 90 dBμV/m *1 PK CLRWR Start 4.5 GHzStop 5.15 GHz65 MHz/ -10 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 51.25 dBμV/m 5.030208333 GHz D1 54 dB* Date: 24.SEP.2007 09:22:30 NOTE: Tested with RF-filter BMA000281-A connected between the EUT and antenna. Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 130 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 4.5 – 5.15 GHz TX Channel Bandwidth: 10 MHz Antenna Gain: 23dBi (Huber & Suhner, SPA 5600/9/23/0/V) TX-channel: 5840MHz Peak Limit: 74 dBμV/m * * * A TDF Att 5 dB RBW 1 MHz VBW 1 MHz SWT 20 msRef 90 dBμV/m *1 PK CLRWR Start 4.5 GHzStop 5.15 GHz65 MHz/ SGL -10 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 52.98 dBμV/m 5.030208333 GHz D1 74 dB* Date: 24.SEP.2007 09:23:06 NOTE: Tested with RF-filter BMA000281-A connected between the EUT and antenna. Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 131 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 5.35 – 5.46 GHz TX Channel Bandwidth: 10 MHz Antenna Gain: 23dBi (Huber & Suhner, SPA 5600/9/23/0/V) TX-channel: 5735MHz Average Limit: 54 dBμV/m * B TDF Att 5 dBRef 90 dBμV/m *1 PK CLRWR 11 MHz/Start 5.35 GHzStop 5.46 GHz * * RBW 1 MHz VBW 30 Hz SWT 9.2 s -10 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 44.36 dBμV/m 5.357227564 GHz D1 54 dB* Date: 23.SEP.2007 21:15:55 NOTE: Tested with RF-filter BMA000281-A connected between the EUT and antenna. Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 132 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 5.35 – 5.46 GHz TX Channel Bandwidth: 10 MHz Antenna Gain: 23dBi (Huber & Suhner, SPA 5600/9/23/0/V) TX-channel: 5735MHz Peak Limit: 74 dBμV/m * A TDF Att 5 dBRef 90 dBμV/m *1 PK CLRWR * * RBW 1 MHz VBW 1 MHz SWT 20 ms Start 5.35 GHzStop 5.46 GHz11 MHz/ SGL -10 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 56.20 dBμV/m 5.359695513 GHz D1 74 dB* Date: 23.SEP.2007 21:17:29 NOTE: Tested with RF-filter BMA000281-A connected between the EUT and antenna. Nemko Canada Inc. APPENDIX A: TEST RESULTS Report Number: 91502-3 FCC ID: RAR20031001 Specification: FCC Part 15 Subpart C, 15.247 Page 133 of 255 Radiated Emissions within Restricted Bands, continued Restricted Band: 5.35 – 5.46 GHz …
