Page 1 of 16 B5CH118AA B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Document Date: Sept 8, 2011 Document Number: B5CH118AA Document Version Number: 1 Document Status: Release © Copyright 2010 by BelAir Networks. All rights reserved. B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Page 2 of 16 Contents About this Document ................................................................... 2 Introduction .................................................................................. 3 Conditions of Use ......................................................................... 4 Module Installation and Service ................................................. 5 Final Product Requirements ........................................................ 6 Regulatory Statements .............................................................. 13 About this Document This document is a product manual for the DRU 5 GHz WLAN Radio Module, including its limitations on use in any product marketed or offered for sale. It is intended as a supplement to training and documentation by BelAir Networks Inc. or its authorized agents. B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Page 3 of 16 Introduction The B5CH118AA (hereafter referred to as “the module”) is a 5 GHz radio module compatible with the IEEE 802.11 standard for Wireless LAN operation. It is designed to be interoperable with WLAN products which are based on Orthogonal Frequency Division Multiplexing (OFDM) radio technology. The module contains a complete IEEE 802.11a/n radio and Medium Access Control (MAC) protocol engine which allows implementation of an IEEE 802.11a/n access point (AP). The module is not intended for stand-alone operation. It will only be marketed as a complete product, in conjunction with a package, DC power supply and antennas (hereafter referred to as “the product” or the “final product”). The module can be used in the 5 GHz ISM unlicensed bands. Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected to any standard telecommunications or computer devices. It can only be used with final products designed and authorized specifically for that purpose. B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Page 4 of 16 Conditions of Use General Conditions of Use This manual is intended to supplement training provided by BelAir Networks or authorized parties. The module B5CH118AA is only intended for use in BelAir Networks products and is not for sale to the general public as a stand-alone module. Please read this entire document, including the Regulatory Statements section before attempting to install or operate the module. Warning: Any use of B5CH118AA in any manner which is not expressly specified within this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s right to operate this module, and is expressly forbidden by BelAir Networks. This includes any modification of the module, installation of the module in a configuration or used with antennas which are not expressly listed in this document or approved by BelAir Networks. B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Page 5 of 16 Country of Use B5CH118AA is certified with limited modular approval for use as an Intentional Radiator in the United States as device: FCC ID: RAR50005001 and in Canada as IC: 4674A-50005001. Please read all regulatory statements at the end of this document before any attempt to install or operate this module. The module is only certified for operation in the United States and Canada. Before attempting to install and operate this module in any other country, contact BelAir Networks for approval. Module Labeling One or more labels are applied to the module during manufacture, including a label which identifies the FCC and Industry Canada identification numbers. Do not attempt to remove any labels from the module. Module Installation and Service Installation into a Product The module shall only be installed by a technician trained by BelAir Networks or its authorized agents. It should only be installed into an approved product (see above) following all manufacturing and service procedures for that product. The module should only be installed into a final product in a manufacturing or service depot site. Caution: B5CH118AA is an electro-static discharge (ESD) sensitive device. All appropriate ESD measures must be taken when handling the module. Failure to employ appropriate ESD protection may damage the module. Module Service The module is not intended as a field-serviceable unit. It contains no field- replaceable or field-serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a manufacturing or service depot site approved by BelAir Networks or its authorized agents. B5CH118AA-A A01 Product Manual DRU 5 GHz WLAN Radio Module Page 6 of 16 Final Product Requirements The requirements below apply to any final product in which the B5CH118AA module is installed. Antenna Usage and Module Transmit Power The DRU 5GHz radio module supports MIMO 3x3 configuration with three transmit chains and three receive chains. The B5CH118AA module shall only be used at the following output power levels in conjunction with the following antenna types as outlined in the tables that follow. 5725-5850 MHz – Part 15 Subpart E For operation in the 5725-5850 MHz NII band, the B5CH118AA may be set to operate on 20 MHz. Table 8.3-2: Power and EIRP results for 3x3 MIMO 802.11n (SM-MIMO and STBC operation) Frequency (MHz) Conducted Avg. Power ANT 1 Conducted Avg. Power ANT 2 Conducted Avg. Power ANT 3 Combined Output Power Conducted Output Power Limit Conducted Output Power Margin Antenna Gain Cable loss EIRP EIRP Limit EIRP Margin (mW) (mW) (mW) (dBm) (dBm) (dB) (dBi) (dB) (dBm) (dBm) (dB) 5740 154.195 139.172 143.151 26.40 30.00 3.60 6.50 0.5 32.40 36.0 3.60 5800 214.642 205.475 159.745 27.63 30.00 2.37 …

Text truncated - open the document above for the full version.

1 September 2, 2011 Attn: Reviewing Engineer Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: RAR50005001 Product Name: DRU 5 GHz Radio To Whom It May Concern: This letter is an official request for confidentiality under FCC rule 47 CFR §0.459 and 0.457(d). We requests that the following items with this applications be withheld from public review:  Schematics  Product Block Diagram and Theory of Operation The above materials contain trade secrets and are proprietary to BelAir Networks Inc. Public disclosure of information in these materials may be used in the market place to the disadvantage of BelAir Networks. Dated this 2nd of September 2011 Marcel Chenier Senior Vice President of Engineering BelAir Networks Inc. Telephone (613)‐254 7070 ext.139

1 September 2, 2011 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC: ID RAR50005001 BelAir 5 GHz DRU Radio Module Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc, 303 River Road, Ottawa, Canada, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc., still resides with BelAir Networks, 603 March Road, Kanata, Ontario, Canada, K2K 2M5. Dated this 2nd of September 2011 Agency Agreement expiration date September 2, 2011 Marcel Chenier Senior Vice President of Engineering BelAir Networks Inc. Telephone (613)‐254 7070 ext.139

1 September 2, 2011 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LIMITED MODULAR APPROVAL FOR FCC ID: RAR50005001 AS PER FCC PUBLIC NOTICE DA 00‐1407 DRUE 5 GHz radio, tested under part 15. To Whom It May Concern, The module FCC ID: RAR50005001 is submitted for Limited Modular Approval (LMA) by BelAir Networks Inc. In keeping with FCC Public Notice DA 00‐1407, Part 15 Unlicensed Modular Transmitter Approval, this letter affirms that BelAir Networks shall retain complete control over the final installation of the device and ensure compliance of the end‐product to FCC regulations. The module shall only be installed into a final product by technicians trained by BelAir Networks Inc. The module shall not be distributed, marketed or sold to the general public. It will only be available installed in a complete BelAir Networks product. The complete BelAir product shall only be sold by BelAir Networks directly or through a BelAir Networks‐specified sales channel to authorized resellers, and will be installed by professional installers with training by BelAir Networks or authorized representatives. As illustrated by the accompanying documentation, the module FCC ID: RAR50005001 is a module with its own RF shielding, contains the complete radio within the module, provides its own power supply regulation, was tested in a stand‐alone configuration, will be labeled with FCC ID and meets RF exposure regulations. 2 The following is a point‐by‐point response to the items listed in DA 00‐1407: 1. The module has its own RF shielding. It has been tested for radiated emissions with the module on its own, with no external shielding beyond that incorporated into the module to ensure compliance to all radiated emissions requirements at the module level. 2. The input to the module is an Ethernet interface. All modulation and IEEE 802.11a/n protocol elements reside within the module. There are no modulation or data inputs to the module which could alter the performance or behavior of the modulator or radio which could cause it to exceed FCC limits. 3. The module has its own power supply filtering and regulation for all modulation and radio circuitry in order to avoid any issues with varying power supply inputs. The module is powered by several DC voltage rails. In order to test power line conducted requirements for the module, it was tested with the power supply and package as intended for the complete product which will be manufactured by BelAir Networks. BelAir Networks maintains complete control of the AC‐to‐DC power supply and packaging of the complete product and therefore ensures that compliance will be maintained. 4. The module incorporates MCX RF connectors and does not have an integral antenna on the module. The module was tested in conjunction with the intended antennas (see accompanying documentation). Considering our submission is seeking Limited Modular Approval, BelAir Networks will ensure professional installation of the complete product. In this manner we will ensure that only the approved antenna type is used in conjunction with this module. 5. The module was tested in a stand‐alone configuration for all conducted and radiated emissions, except for conducted power line emissions. Since the module is not AC powered, it was tested with the power supply and package in the configuration with which it will be installed in the product. This configuration is also tested to ensure the complete product will meet all Class B radiated and conducted emissions requirements. 6. The module will be labeled with its own FCC ID number. Since this label will not be visible when the module is installed in the complete product, the manual indicates that the final product shall include a permanent label which uses the 3 wording “Contains FCC ID: RAR50005001”. See the labeling information provided with this submission. 7. The module operates under Part 15.247(b)(3). Since all modulation and IEEE 802.11 protocol elements reside within the module, users will not have access to controls which may cause the module to operate outside its normal mode of operation. All timing and control for RF and modulator sections are inaccessible from outside the module. 8. The module has been evaluated with the intended antennas and complies with RF exposure requirements. The manual states that a distance as per the Table 1 below shall be maintained between any person and the antenna. As BelAir Networks or its authorized agents will retain control of the final installation through the requirement for professional installation, BelAir Networks shall ensure that this distance is maintained in all installations. RF Exposure Table 1: Max E.I.R.P Minimum Safety Distance DRUE 2.4 GHz radio 37.85 dB 14.2 inches DRUE 5 GHz radio 39.95 dB Sincerely, Marcel Chenier SVP Engineering BelAir Networks Inc.

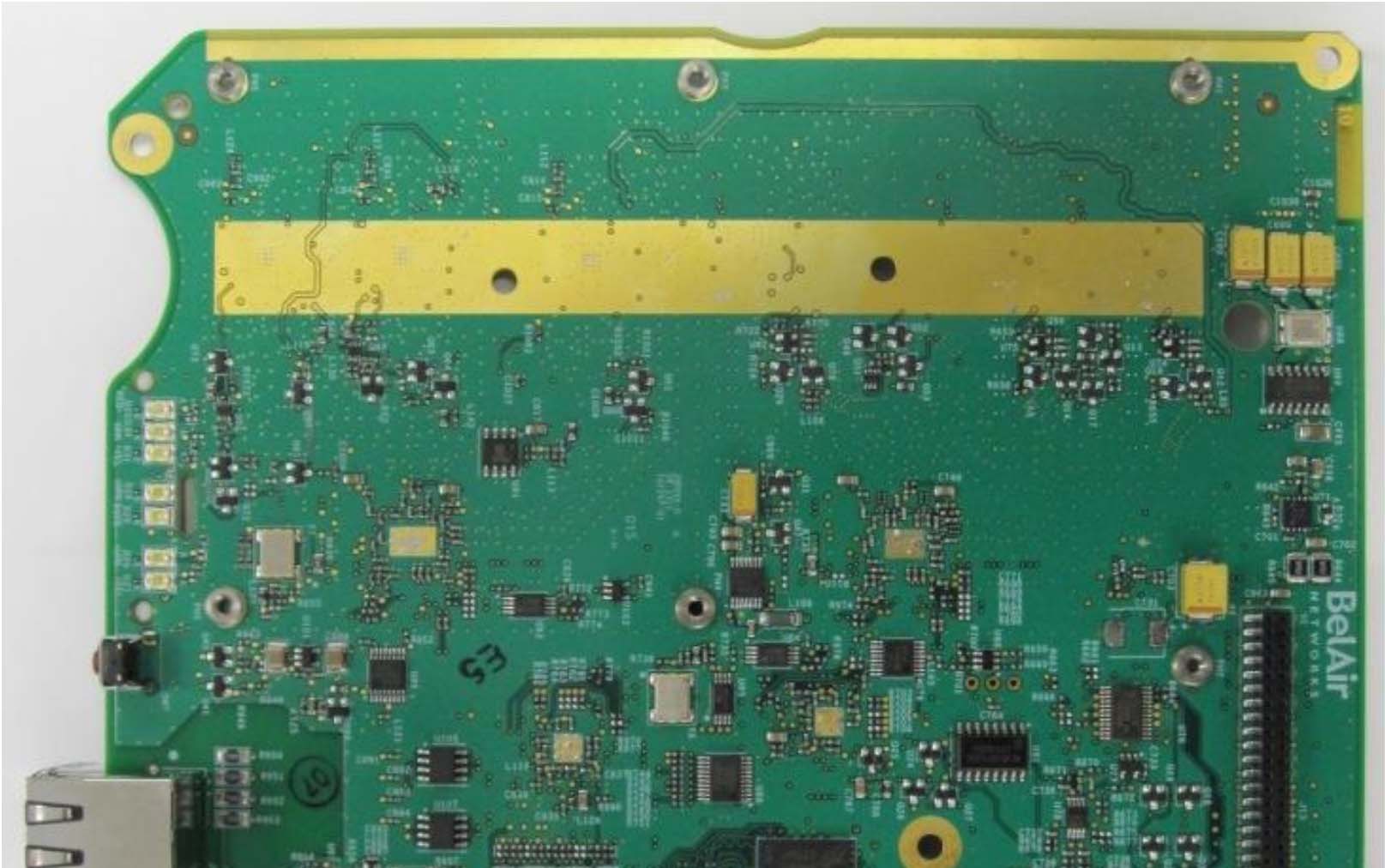

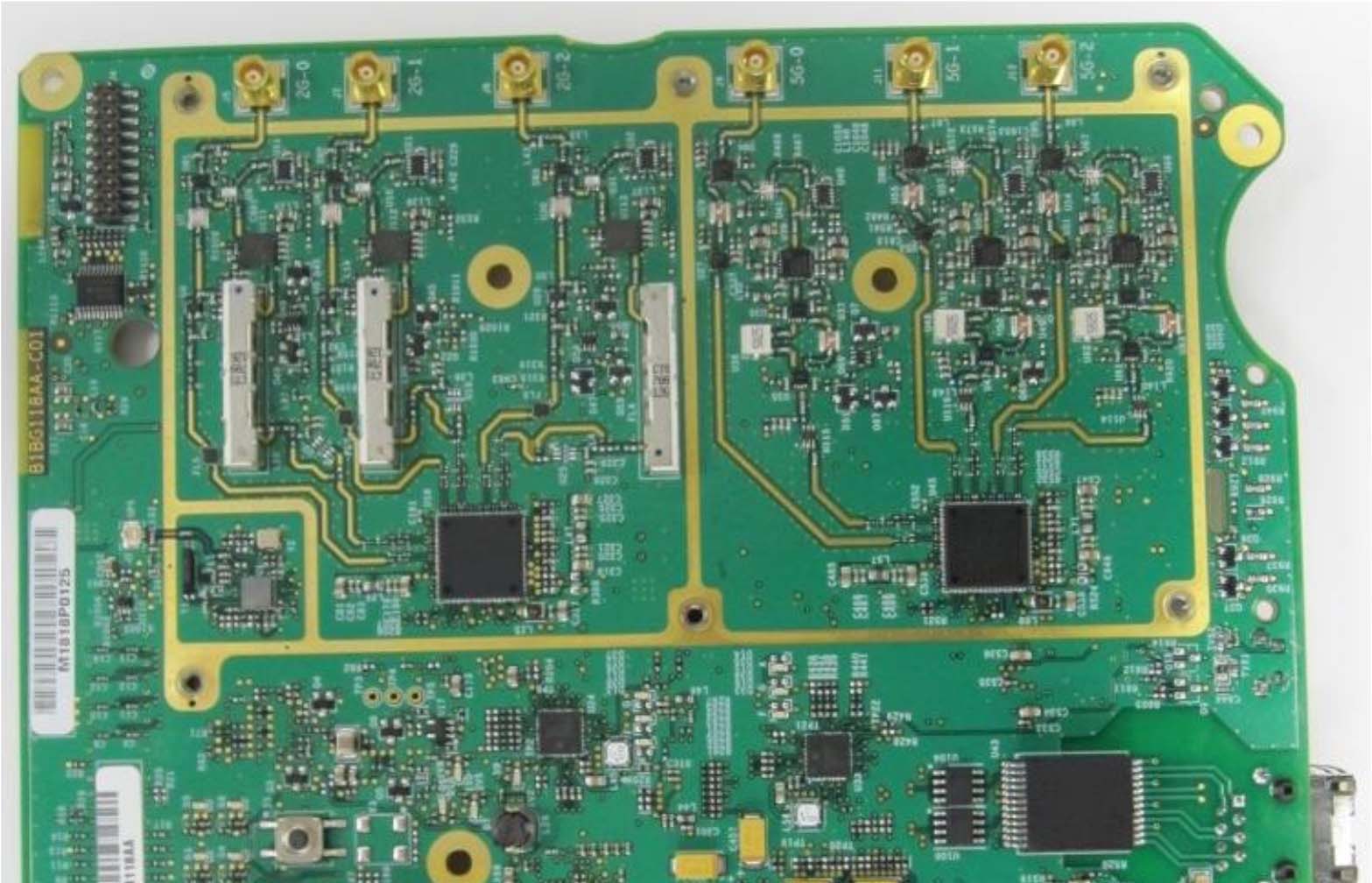

B5CH118AA Primary Side with Shield's B5CH118AA Primary Side with No Shield's B5CH118AA Secondary Side

BelAir Networks DRUE 5 GHz Radio September 2, 2011 1 Module Labeling: DRUE 5 GHz Radio The following label shall be permanently affixed to the radio module as follows: Raw Label Detail: Size: 1 inches x ¼ inch Material: Polyimide, White Finish: Gloss Backing: High Temperature Permanent Acrylic Adhesive Approvals: CSA and UL. Printing Detail: FCC, IC label: Text to be Arial Bold 6 point and is to be centrally located. All printed data is to have excellent solvent and smudge resistance. FCC ID: RAR50005001 IC: 4674A‐50005001 MODEL: B5CH118AA BelAir Networks DRUE 5 GHz Radio September 2, 2011 2 Label Location: Product Labeling The following permanent label, or one containing equivalent information, must be affixed in a conspicuous location on the exterior of any product containing this module. In addition the label contents shall appear prominently in the final product user manual. This device contains the following: FCC ID: RAR50005001 IC : 4674A‐50005001 BelAir Networks DRUE 5 GHz Radio September 2, 2011 3

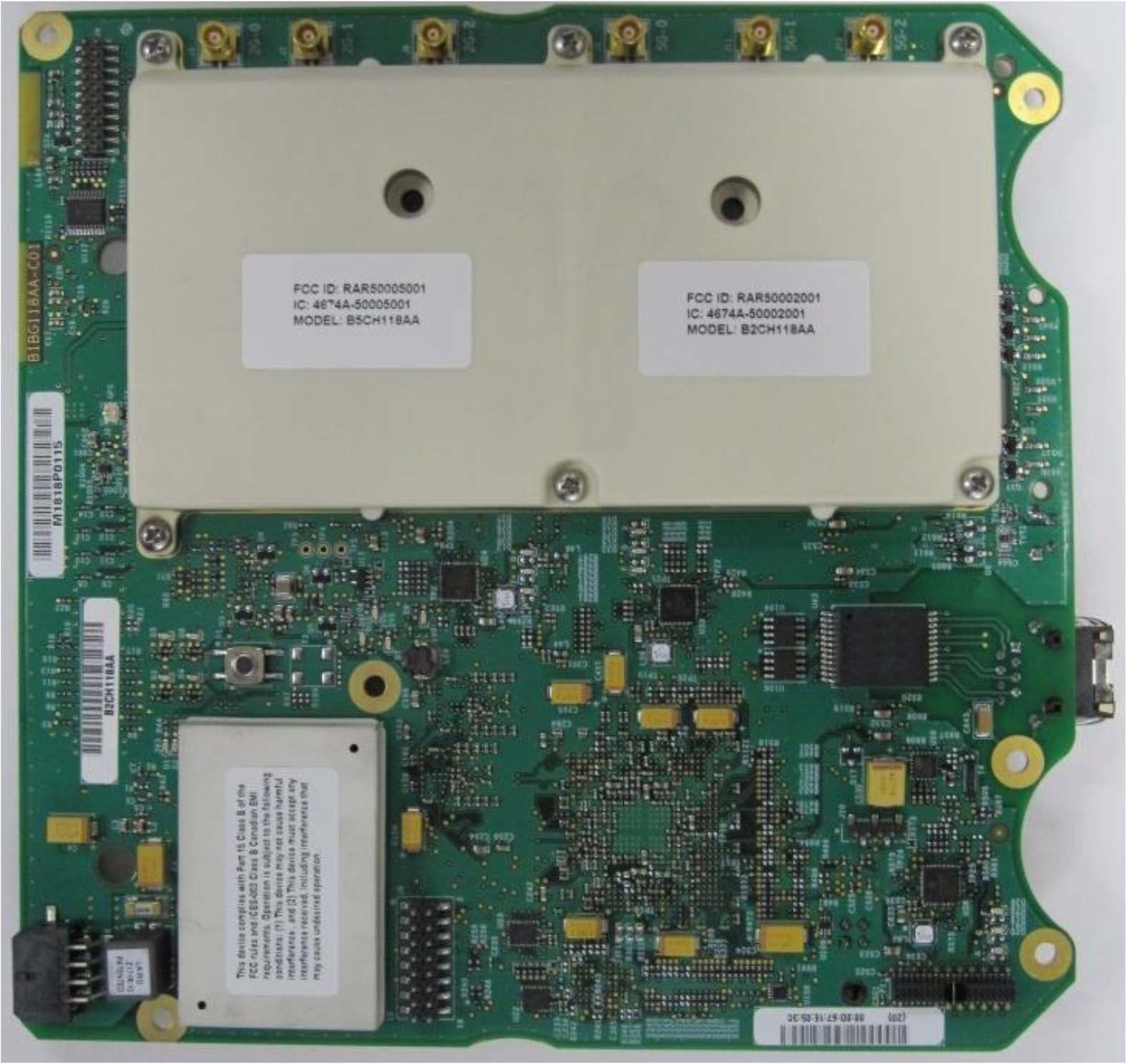

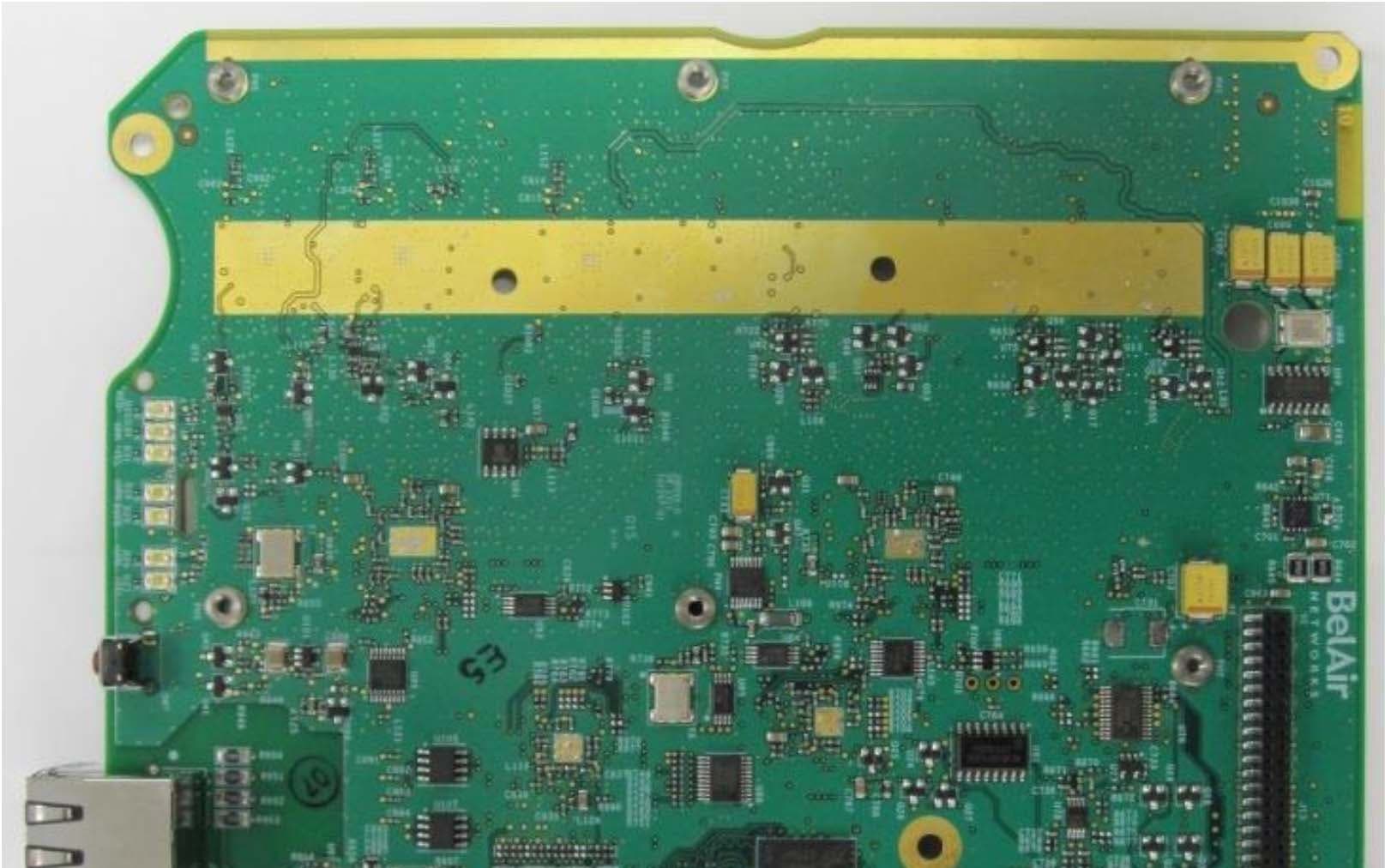

B5CH118AA Primary Side with Shield's B5CH118AA Primary Side with No Shield's B5CH118AA Secondary Side

September 2, 2011 RAR50005001 MPE Engineering Analysis 1 Engineering Analysis MPE for 5 GHz DRUE Transceiver FCC ID: RAR50005001 BelAir Networks This analysis was performed as part of the FCC certification requirements for spread spectrum devices, according to the requirements of: FCC part 15, and FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”.  Module RAR50005001 will be mounted in BelAir Networks host units and will be professionally installed (Fixed) to provide a minimum separation distance from all persons as detailed in co‐location compliance tables below.  This device will only be operated according to the exposure conditions described in this application.  End users and installers will be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The measured worst‐case transmit power yielding the worst‐case EIRP were used for the MPE calculations. Calculations were performed based on FCC OET Bulletin 65. The calculations are performed based on the following formula provided in OET 65: S = EIRP / (4R 2 ). Co‐location compliance for multiple frequency exposure criteria to the power density exposure limit is detailed in the table below. This calculation is a worst‐case analysis since it assumes all devices are continuously transmitting. The device utilizes the IEEE 802.11 WLAN protocol which operates in time‐division duplex (TDD) mode, so the transmit duty cycle can never be 100% in normal operation. It is also assumed that all directional antennas are aligned to point in the same direction so that power from all radios adds together. September 2, 2011 RAR50005001 MPE Engineering Analysis 2 The following tables outlines the MPE analysis for various combinations of radios and antennas the RAR50005001 can be used with: Case 1: 1 X RAR50002001 (DRUE 2.4GHz radio) with 4.5dBi Antennas and 1 X RAR50005001 (DRU 5GHz radio) wtih 6.5 dBi Antenn Co‐location Compliance for Integrated DRU 2.4GHz IEEE 802.11b/g/n & DRU 5GHz IEEE 802.11a/n Radios Safety Distance:36 cm( 14.2 inches ) Worst‐case Total EIRP Max Power Density Maximum Number of Radios Worst‐case Total EIRP Max Power Density Maximum Number of Radios Total Density for co ‐ located radios Limit: General Population / Uncontrolled ExposureResult [dBm][mW/cm^2][dBm][mW/cm^2][mW/cm^2][mW/cm^2] 37.850.374139.950.60710.9811Complies RAR50002001 (DRU 2.4GHz radio)RAR50005001 (DRU 5GHz radio) The equipment therefore fulfills the requirements on power density for general population/uncontrolled exposure and therefore complies with the requirements of FCC Bulletin 65. The following worst case summary table will be incorporated in BelAir Networks installation procedures. Max E.I.R.P Minimum Safety Distance DRUE 2.4 GHz radio 37.85 dB 14.2 inches DRUE 5 GHz radio 39.95 dB

FCC 15.407.doc - Date: June, 2011 www.nemko.com Compliance test report ID: 182563-5TRFWL Date of issue October 28, 2011 FCC 47 CFR Part 15 Subpart E Unlicensed National Information Infrastructure Devised Applicant BelAir Networks Inc. Product DRUE 5.8 GHz radio Model B5CH118AA FCC ID RAR50005001 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation SCC Accredited LAB LAB Accrédité CCN TM Report reference ID: 182563-5TRFWL Page 2 of 27 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Test site FCC ID: 176392 (3 m semi anechoic chamber) Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by October 28, 2011 David Duchesne, Senior Wireless/EMC Specialist Date: Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 182563-5TRFWL Page 3 of 27 Table of contents Section 1: Report summary ......................................................................................................................................................... 4 Section 2: Summary of test results ............................................................................................................................................. 5 Section 3: Equipment under test (EUT) details .......................................................................................................................... 6 Section 4: Engineering considerations ....................................................................................................................................... 7 Section 5: Test conditions ........................................................................................................................................................... 8 Section 6: Measurement uncertainty .......................................................................................................................................... 9 Section 7: Test equipment ......................................................................................................................................................... 10 Section 8: Testing data ............................................................................................................................................................... 11 8.1 Clause 15.207(a) Conducted limits ............................................................................................................................ 11 8.2 Clause 15.403(i) Emission bandwidth ........................................................................................................................ 14 8.3 Clause 15.407(a)(3) 5.725–5.825 GHz band output power and spectral density limits ............................................. 15 8.4 Clause 15.407(a)(6) Peak excursion ......................................................................................................................... 17 8.5 Clause 15.407(b)(4) Undesirable emissions for 5.725–5.825 GHz band ................................................................... 18 8.6 Clause 15.407(b)(6) Unwanted emissions below 1 GHz ........................................................................................... 23 8.7 Clause 15.407(b)(7) Radiated emissions within restricted bands .............................................................................. 24 8.8 Clause 15.407(f) RF exposure requirement ............................................................................................................... 25 8.9 Clause 15.407(g) Frequency stability ........................................................................................................................ 26 Section 9: Block diagrams of test set-ups ................................................................................................................................ 27 Section 1 Report summary Report reference ID: 182563-5TRFWL Page 4 of 27 Section 1: Report summary 1.1 Applicant BelAir Networks Inc. 603 March Road, Ottawa, ON, Canada K2K 2M5 1.2 Test specifications FCC 47 CFR Part 15 Subpart E Unlicensed National Information Infrastructure Devised 1.3 Statement of compliance In the configuration tested, the EUT was found compliant. Testing was completed against all relevant requirements of the test standard. Results obtained indicate that the product under test complies in full with the requirements tested. The test results relate only to the items tested. See “Summary of test results” for full details. 1.4 Test report revision history Original report issued Section 2: Summary of test results Report reference ID: 182563-5TRFWL Page 5 of 27 Section 2: Summary of test results 2.1 FCC Part 15 – General requirements, test results Part Test description Verdict §15.31(e) Variation of power source See Notes 1 §15.31(m) Number of operating frequencies See Notes 2 §15.203 Antenna requirement See Notes 3 §15.207(a) Conducted limits Pass Notes: 1. Transmit o…
