RB2-R772Cellular/PCS CDMA & LTE Portable Router with WLAN

C Spire Wireless 4G LTE Portable Wi-Fi Hotspot R772 User Guide i Table of Contents Table of Contents ......................................................................................................................... i Get Started ............................................................................................................................... 1 Your Device at a Glance ....................................................................................................... 2 Insert USIM Card .................................................................................................................. 3 Insert and Charge the battery .............................................................................................. 4 Power the R772 On and Off ................................................................................................. 6 Activate Your Device ............................................................................................................ 6 C Spire Account Information and Help ............................................................................... 6 C Spire Account Passwords ................................................................................................ 6 Manage Your Account......................................................................................................... 7 Using the R772, Portable Wi-Fi Hotspot ................................................................................. 8 Connecting to the Device ..................................................................................................... 8 Opening the Web Browser Interface ................................................................................... 9 Device User Interface ........................................................................................................... 9 Graphic Color LCD & Icons ................................................................................................. 9 Buttons on the side ............................................................................................................10 Device UI Operation ............................................................................................................10 Your Device’s Web Browser Interface ...................................................................................14 The Browser Interface .........................................................................................................14 Opening the Browser Interface ...........................................................................................14 The Landing Page ................................................................................................................14 Connecting to the Network .................................................................................................16 Navigating Web UI menu .....................................................................................................16 The Device & Network Menu ...............................................................................................17 General Device and Network Information ...........................................................................17 4G LTE Device and Network Information ...........................................................................18 3G Device and Network Information ...................................................................................19 The Check Usage Menu ......................................................................................................20 The Wi-Fi Menu ....................................................................................................................21 ii Wi-Fi Profile ......................................................................................................................21 Connected Devices ..........................................................................................................22 The Settings Menu ...............................................................................................................24 Connection Options .........................................................................................................24 Network Setting ................................................................................................................25 Security Setting ................................................................................................................26 VPN Passthrough .............................................................................................................28 Advanced Settings ...........................................................................................................28 General Settings ................................................................................................................28 Updates .............................................................................................................................31 The Help Menu .....................................................................................................................34 About ................................................................................................................................34 User Guide ........................................................................................................................34 Regulatory Information ..............................................................................................................36 Appendix 1: Glossary ................................................................................................................39 1 Get Started Congratulations on your purchase of the R772, 4G LTE Portable Wi-Fi Hotspot. This section gives you all the information you need to set up your device and service the first time. With the 4G LTE Portable Wi-Fi Hotspot, yo…

Text truncated - open the document above for the full version.

Franklin Wireless Corp 6205 Lusk Blvd, San Diego CA 92121 USA Date: Oct. 18, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: LTE Attestation Letter for FCC ID: RB2-R772 To Whom It May Concern: We attest the following regarding FCC ID: RB2-R772 1. Supported LTE Transmission Bands, channel BWs, and modulations: a) LTE Band 25 (Channel BW 5 MHz)/QPSK & 16QAM 2. MPR is enabled for this device, according to 3GPP TS 36.101 Section 6.2.3 – 6.2.5 under Table 6.2.3 – 1. With the MPR permanently implemented, this device will never operate at a power higher than 23.0 dBm in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below: a) The LTE MPR Targets for Band 25 (5 MHz) are: Low channel Bandwidth UL Channel UL Freq.(MHz) Modulation RB Size RB Offset Max.Average Power (dBm) Target MPR (dB) Measured Power reduction (dB) 5 MHz 26065 1852.5 QPSK 1 0 22.28 0 0.00 1 24 22.26 0 0.02 12 6 21.26 1 1.02 25 0 21.10 1 1.18 16QAM 1 0 21.27 1 1.01 1 24 21.38 1 0.90 12 6 20.24 2 2.04 25 0 20.10 2 2.18 Middle channel Bandwidth UL Channel UL Freq.(MHz) Modulation RB Size RB Offset Max.Average Power (dBm) Target MPR (dB) Measured Power reduction (dB) 5 MHz 26365 1882.5 QPSK 1 0 22.06 0 0.00 1 24 21.96 0 0.10 12 6 20.88 1 1.18 25 0 20.73 1 1.33 16QAM 1 0 21.03 1 1.03 1 24 21.00 1 1.06 12 6 19.85 2 2.21 25 0 19.87 2 2.19 High Channel Bandwidth UL Channel UL Freq.(MHz) Modulation RB Size RB Offset Max.Average Power (dBm) Target MPR (dB) Measured Power reduction (dB) 5 MHz 26665 1912.5 QPSK 1 0 22.22 0 0.00 1 24 22.17 0 0.05 12 6 21.25 1 0.97 25 0 21.11 1 1.11 16QAM 1 0 21.13 1 1.09 1 24 21.24 1 0.98 12 6 20.33 2 1.89 25 0 20.18 2 2.04 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. We attest to the Simultaneous Tx listed on Operational Description to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, -------------------------------------------- DAVID Kim DIRECTOR Franklin Wireless Corp

Franklin Wireless Corp 6205 Lusk Blvd, San Diego CA 92121 USA Date: October 17, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. SunHee Kim of HCT Co., Ltd and hereafter referred to as HCT, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. SunHee Kim of HCT Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours,

Franklin Wireless Corp 6205 Lusk Blvd, San Diego CA 92121 USA Date: October 17, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: RB2-R772 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Franklin Wireless Corp hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Franklin Wireless Corp temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2Operational Descriptions 3Parts Lists and Tune-Up Procedure 4Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7Test-Setup Photos 8User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely,

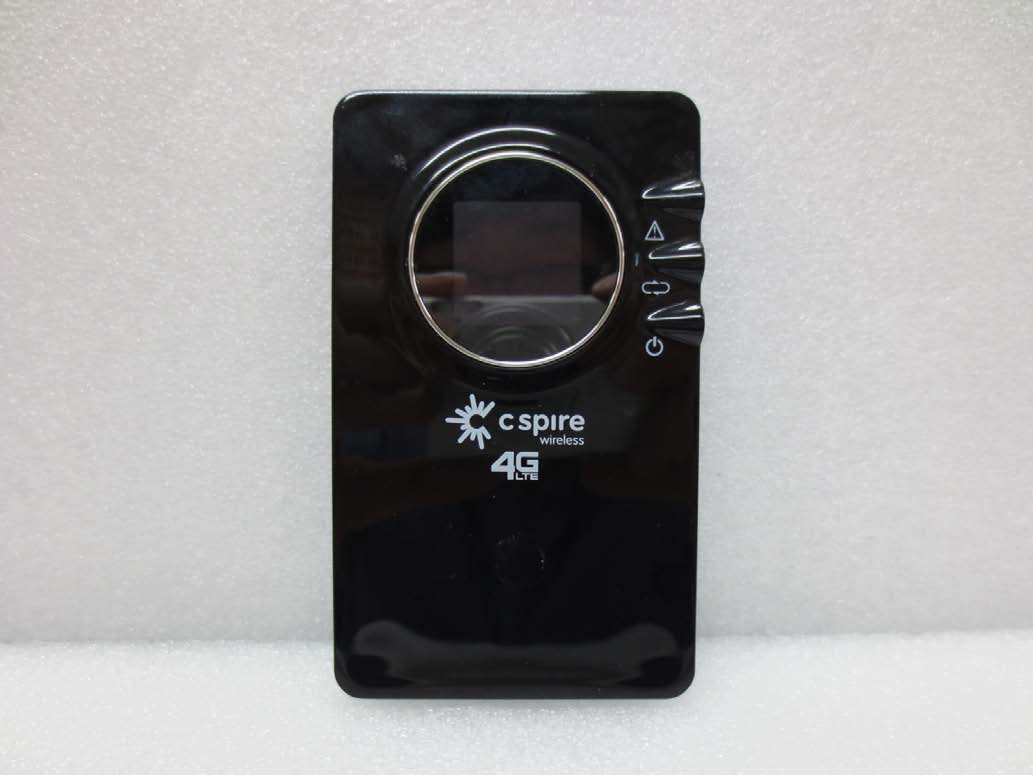

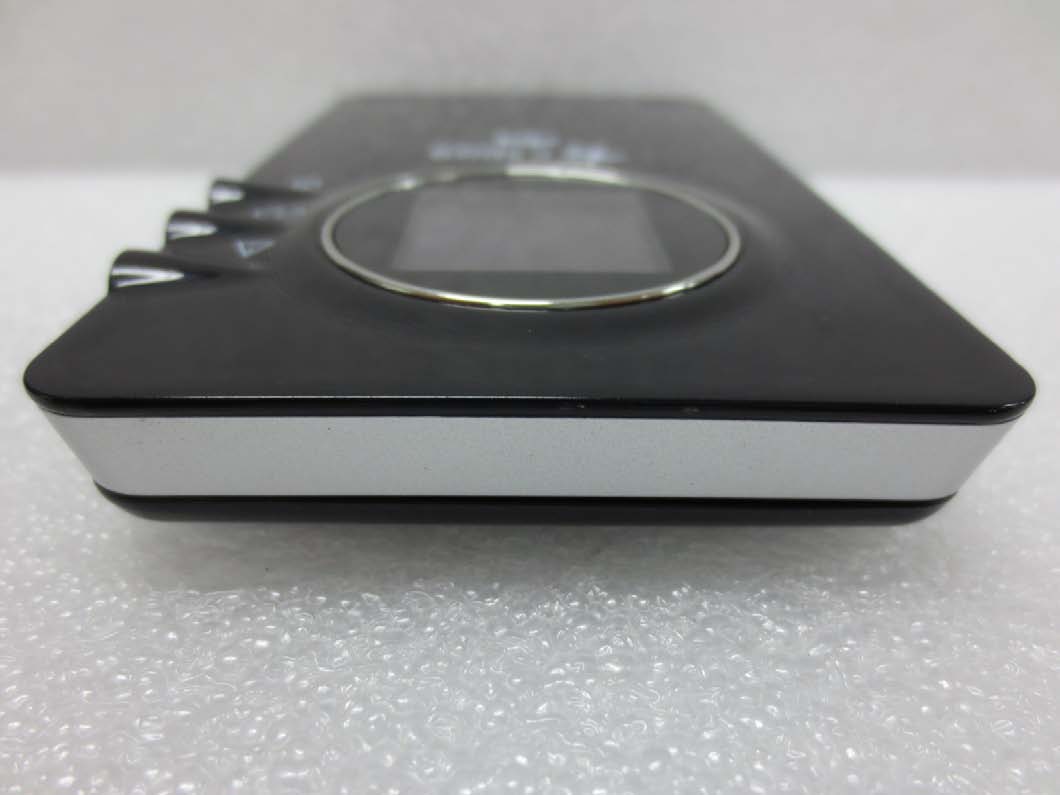

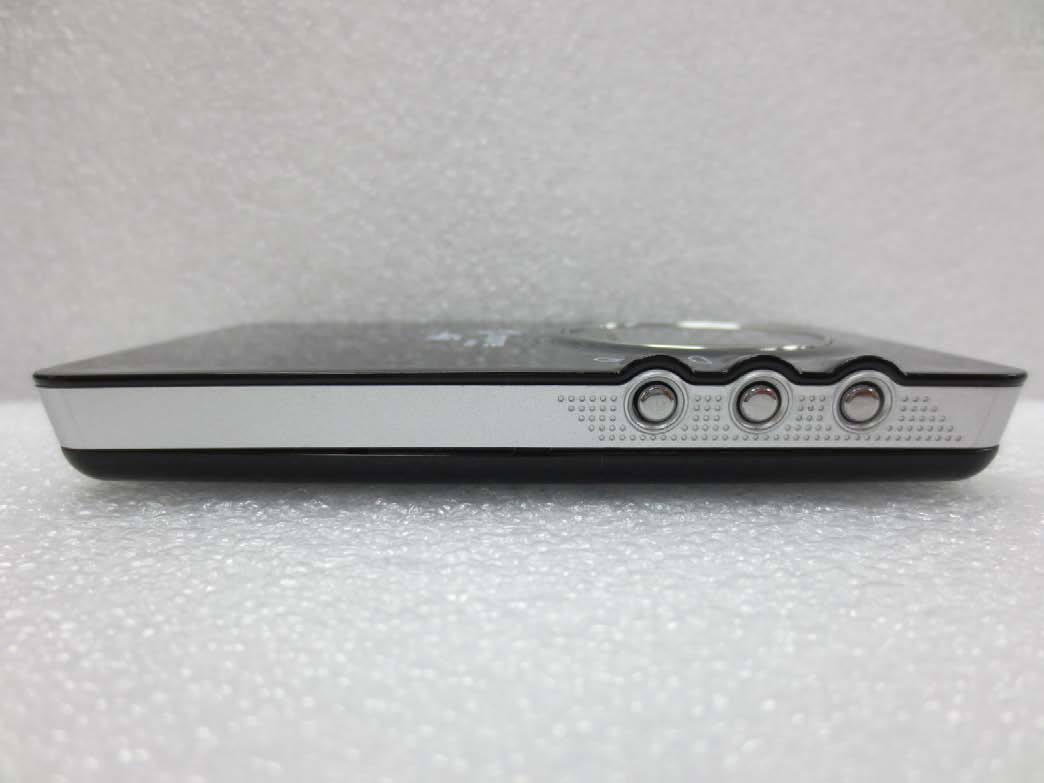

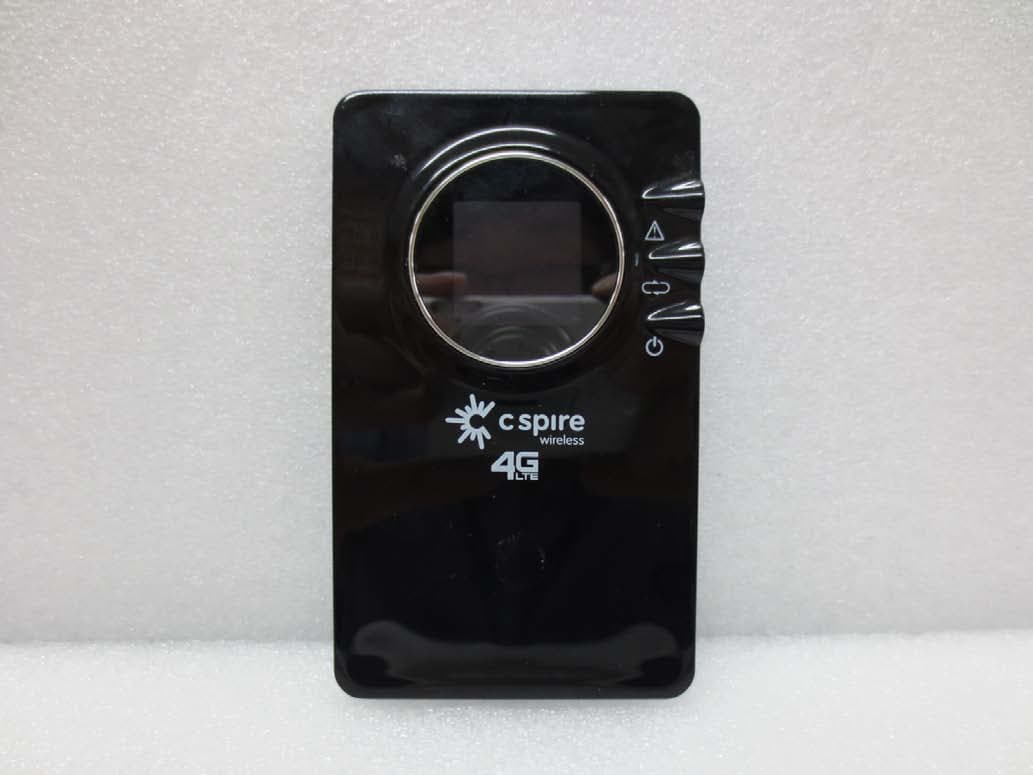

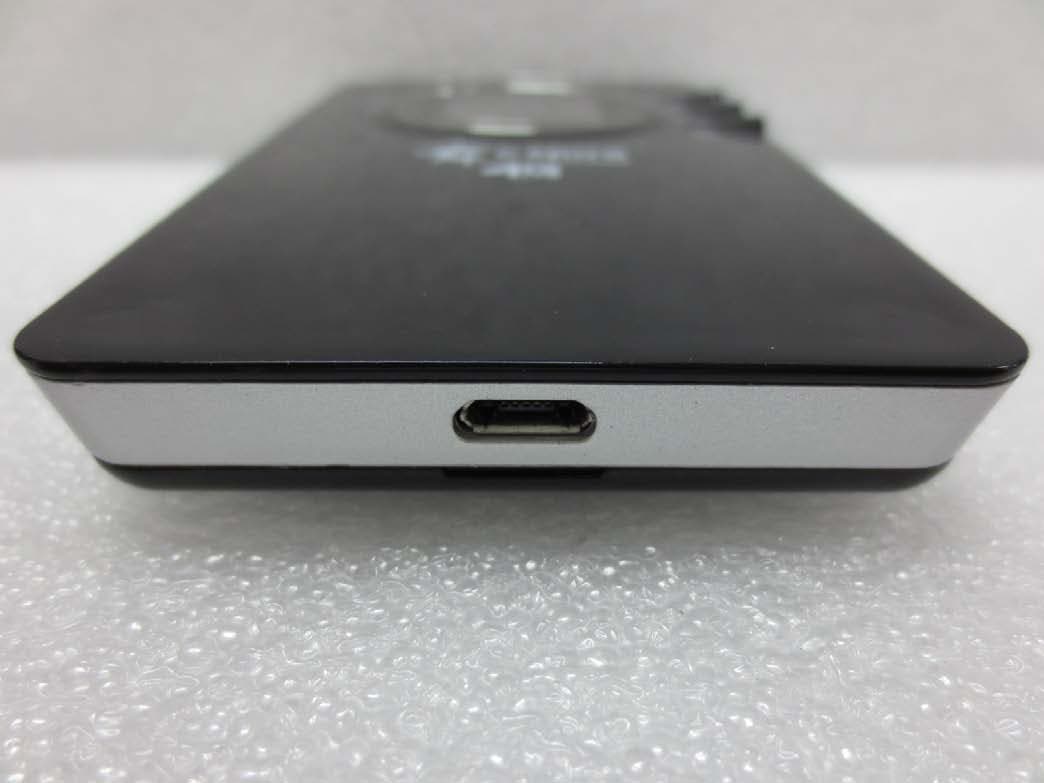

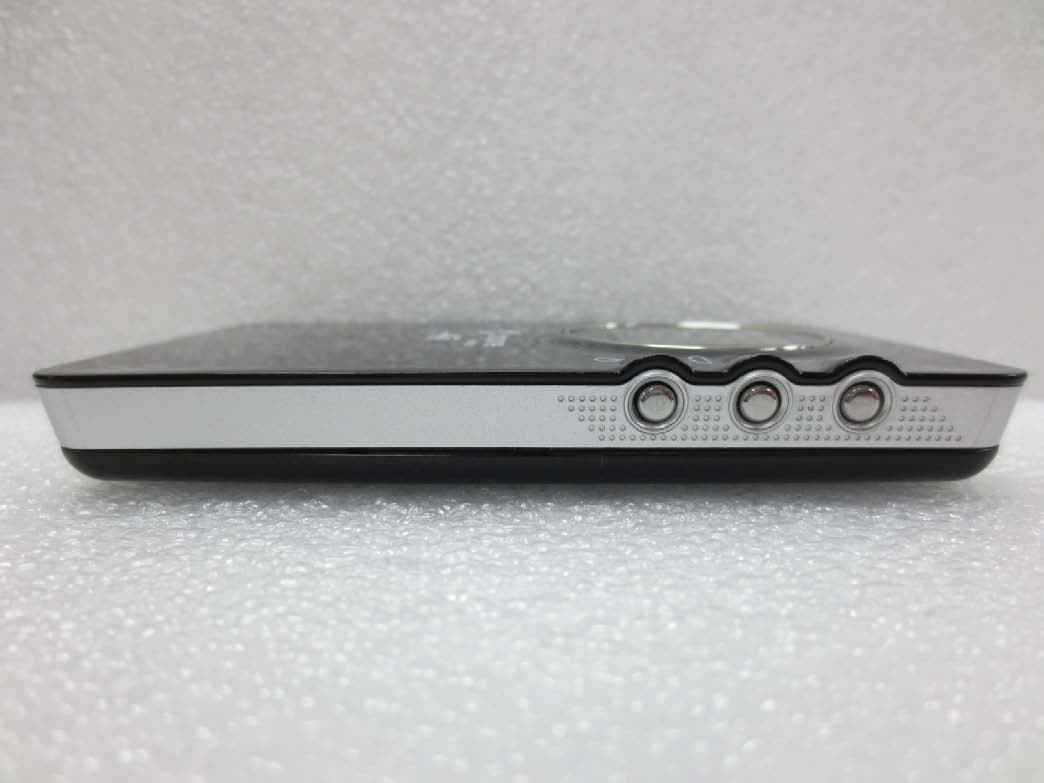

FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

Note : The FCC label will be visible at the time of purchase.

FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 16 INTERNAL PHOTOGRAPHS FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 16 ■ INTERNAL PHOTO FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 16 ■ INTERNAL PHOTO Main Ant. FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 16 ■ INTERNAL PHOTO Main Ant. FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 16 ■ INTERNAL PHOTO Main Ant. FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 16 ■ INTERNAL PHOTO Diversity / GPS / WIFI Ant. FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 16 ■ INTERNAL PHOTO Diversity / GPS / WIFI Ant. FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 16 ■ INTERNAL PHOTO Diversity / GPS / WIFI Ant.

Report No.: HCTA1210FS04 FCC ID: RB2-R772 Date of Issue: Oct.17 , 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 151 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. TEST METHODOLOGY ............................................................................................................................... ４ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ５ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １６ 8. SYSTEM VERIFICATION ......................................................................................................................... １７ 9. RF CONDUCTED POWER MEASUREMENT ......................................................................................... １８ 10. SAR Test configuration & Antenna information ................................................................................ ２７ 11. SAR TEST DATA SUMMARY ................................................................................................................ ３０ 11.1 Measurement Results (BC10 Body SAR) .................................................................................. ３０ 11.2 Measurement Results (CDMA835 Body SAR) .......................................................................... ３１ 11.3 Measurement Results (PCS1900 Body SAR) ............................................................................ ３２ 11.4 Measurement Results (LTE Band 25 5MHz SAR QPSK) .......................................................... ３３ 11.5 Measurement Results (LTE Band 25 5MHz SAR 16QAM) ........................................................ ３４ 11.6 Measurement Results (802.11b/g/n Hotspot SAR) ................................................................... ３５ 12. Scaled SAR Values to the Maximum tune-up tolerances ................................................................. ３６ 13. CONCLUSION ........................................................................................................................................ ３７ 14. REFERENCES ....................................................................................................................................... ３８ Attachment 1. – SAR Test Plots ......................................................................................................... ３９ Attachment 2. – Dipole Validation Plots ......................................................................................... １０６ Attachment 3. – Probe Calibration Data ......................................................................................... １１５ Attachment 4. – Dipole Calibration Data ........................................................................................ １２７ Report No.: HCTA1210FS04 FCC ID: RB2-R772 Date of Issue: Oct.17 , 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 151 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative of the incremental electromagnetic energy (dW) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (r ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. NOTE: The primary factors that control rate of energy absorption were found to be the wavelength of the incident field in relations to the dimensions and geometry of the irradiated organism, the orientation of the organism in relation to the polarity of field vectors, the presence of reflecting surfaces, and whether conductive contact is made by the organism with a ground plane. Report No.: HCTA1210FS04 FCC ID: RB2-R772 Date of Issue: Oct.17 , 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeo…

Text truncated - open the document above for the full version.

FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR24 Date of Issue: October 17, 2012 EUT Type: Cellular/PCS CDMA & LTE Portable Router with WLAN FCC ID: RB2-R772 Page୎ of 120 Version TEST REPORT NO. DATE DESCRIPTION HCTR1210FR24 October 17, 2012 - First Approval Report FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR24 Date of Issue: October 17, 2012 EUT Type: Cellular/PCS CDMA & LTE Portable Router with WLAN FCC ID: RB2-R772 Page୏ of 120 Table of Contents 1. GENERAL INFORMATION ..........................................................................................................................எ 2. EUT DESCRIPTION ..................................................................................................................................... எ 3. TEST METHODOLOGY ............................................................................................................................... ஏ 3.1 EUT CONFIGURATION ...................................................................................................................... ஏ 3.2 EUT EXERCISE .................................................................................................................................. ஏ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ஏ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ஏ 4. INSTRUMENT CALIBRATION..................................................................................................................... ஐ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ஐ 5.1 FACILITIES ......................................................................................................................................... ஐ 5.2 EQUIPMENT ....................................................................................................................................... ஐ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ஑ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ஒ 8. TEST RESULT ............................................................................................................................................. ஓ 8.1 6dB BANDWIDTH (802.11b/g/n) ....................................................................................................... ஓ 8.2 OUTPUT POWER (802.11b/g/n) .................................................................................................... ஋ஐ 8.3 POWER SPECTRAL DENSITY (802.11b/g/n) ............................................................................... ஒஎ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ஓ஋ 8.5 RADIATED MEASUREMENT. ..................................................................................................... ஋ஊஐ 8.5.1 RADIATED SPURIOUS EMISSIONS. ............................................................................... ஋ஊஐ 8.5.2 RADIATED RESTRICTED BAND EDGES ....................................................................... ஋஋எ 8.6 POWERLINE CONDUCTED EMISSIONS .................................................................................. ஋஋ஏ 9. LIST OF TEST EQUIPMENT ................................................................................................................ ஋஌ஊ G FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR24 Date of Issue: October 17, 2012 EUT Type: Cellular/PCS CDMA & LTE Portable Router with WLAN FCC ID: RB2-R772 Page୐ of 120 1. GENERAL INFORMATION G Applicant: Franklin Wireless Corp Address: 6205 Lusk Blvd, San Diego CA 92121 FCC ID: RB2-R772 EUT Type: Cellular/PCS CDMA & LTE Portable Router with WLAN Model name(s): R772 Date(s) of Tests: October 09, 2012 ~ October 16, 2012 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) G 2. EUT DESCRIPTION EUT Type Cellular/PCS CDMA & LTE Portable Router with WLAN FCC Model Name R772 Power Supply DC 5.0 V Frequency Range TX: 2412 MHz ~ 2462 MHz RX: 2412 MHz ~ 2462 MHz Max. RF Output Power Peak Wi-Fi 802.11b(21.48 dBm) / Wi-Fi 802.11g (20.35 dBm) / Wi-Fi 802.11n (19.22 dBm) Average Wi-Fi 802.11b(15.17 dBm) / Wi-Fi 802.11g (12.37 dBm) / Wi-Fi 802.11n (11.10 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g, 802.11n) Antenna Specification Manufacturer: KWANG HYUN AIRTECH CO.,LTD Antenna type: Monopole Antenna Peak Gain : 1.62 dBi FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR24 Date of Issue: October 17, 2012 EUT Type: Cellular/PCS CDMA & LTE Portable Router with WLAN FCC ID: RB2-R772 Page୑ of 120 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.10-2009) and FCC KDB 558074 D01 DTS Meas Guidance V01 dated January 18, 2012 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) Operating Under ­15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Sub…

Text truncated - open the document above for the full version.

FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 13 TEST SETUP PHOTOGRAPHS FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 13 ■ Test Setup Photo FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 13 ■ Test Setup Photo FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 13 ■ Test Setup Photo FCC ID: RB2-R772 HCT CO., LTD 105-1, JANGAM…

Text truncated - open the document above for the full version.
