RB2NXG9230Licensed PCS Transmitter Held to Ear

1 NXG9230 User Guide 2 FCC Information FCC part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RB2NXG9230 FCC part 15.21 Modifications not expressly approved by this company could void the user's authority to operate the equipment. FCC part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. RF exposure FCC Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operation can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the 3 power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. Health and Safety Information FCC Exposure to Radio Frequency (RF) Signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies: This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. 4 Contents 1. Before You Begin ......................................................................................................... 5 2. About Your Phone ........................................................................................................ 6 3. Basic Operations .......................................................................................................... 8 4. Predictive Text Input ................................................................................................... 13 5. Phone Book ................................................................................................................ 15 6. The Menu ................................................................................................................... 22 7. Messages ................................................................................................................... 30 8. Call records ................................................................................................................39 9. Communication Settings............................................................................................. 41 10. Agenda ....................................................................................................................... 43 11. Fun ..............................................................................................................…

Text truncated - open the document above for the full version.

___________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 29.09.2003 Subject:Application for TCB Certification Applicant: Franklin Wireless, Corp. Equipment: Licensed PCS Transmitter Held to Ear FCC ID: RB2NXG9230 Dear Sirs, Submitted herewith, on behalf of Franklin Wireless, Corp., is an application for certifi- cation under FCC Rule 24 of the following PCS equipment: Licensed PCS Transmitter Held to Ear / FCC ID: RB2NXG9230 Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), SAR TestRpt, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information and user manual. In accordance with 0.459 of CFR 47 Franklin Wireless, Corp. hereby requests confiden tiality of all Block Diagrams, Circuit Diagrams (Schematics) and Parts List (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected]. Best Regards Axel Müller Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany e-mail: [email protected]

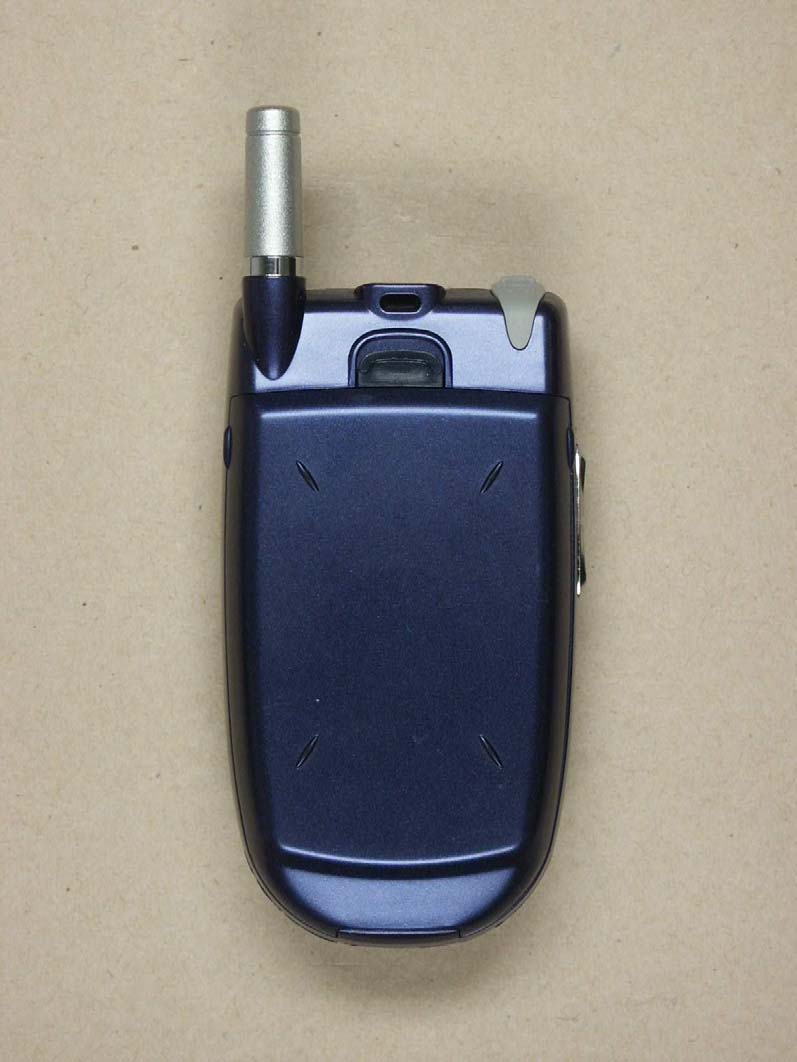

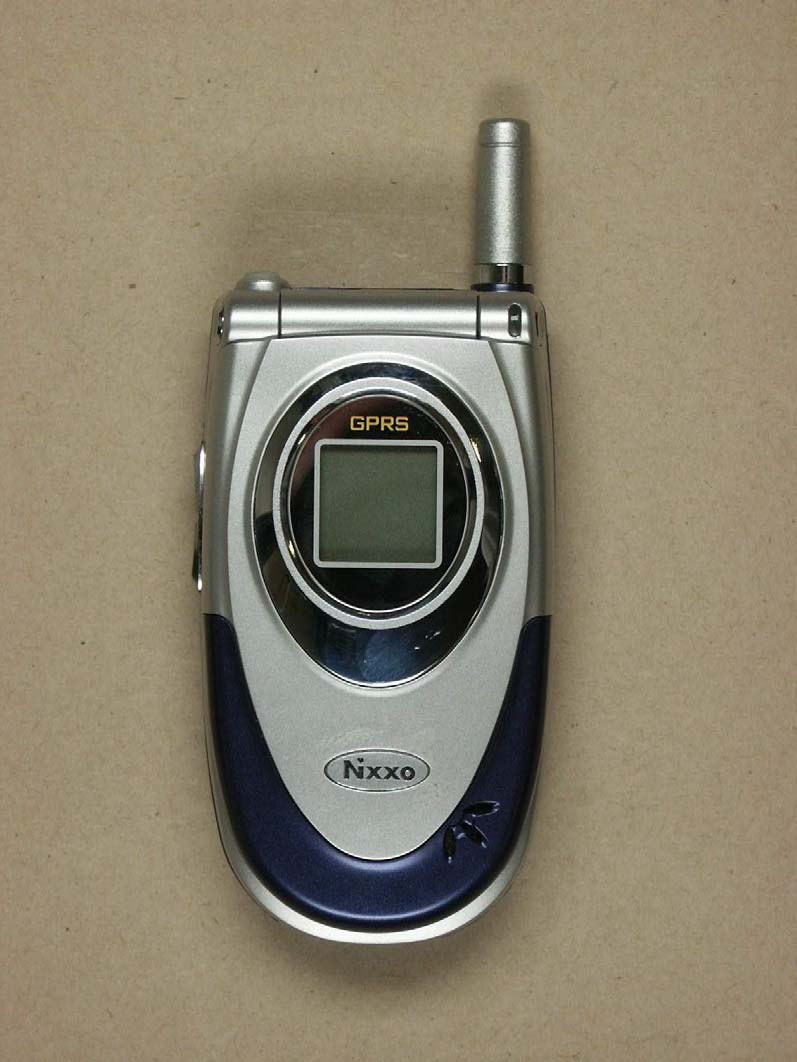

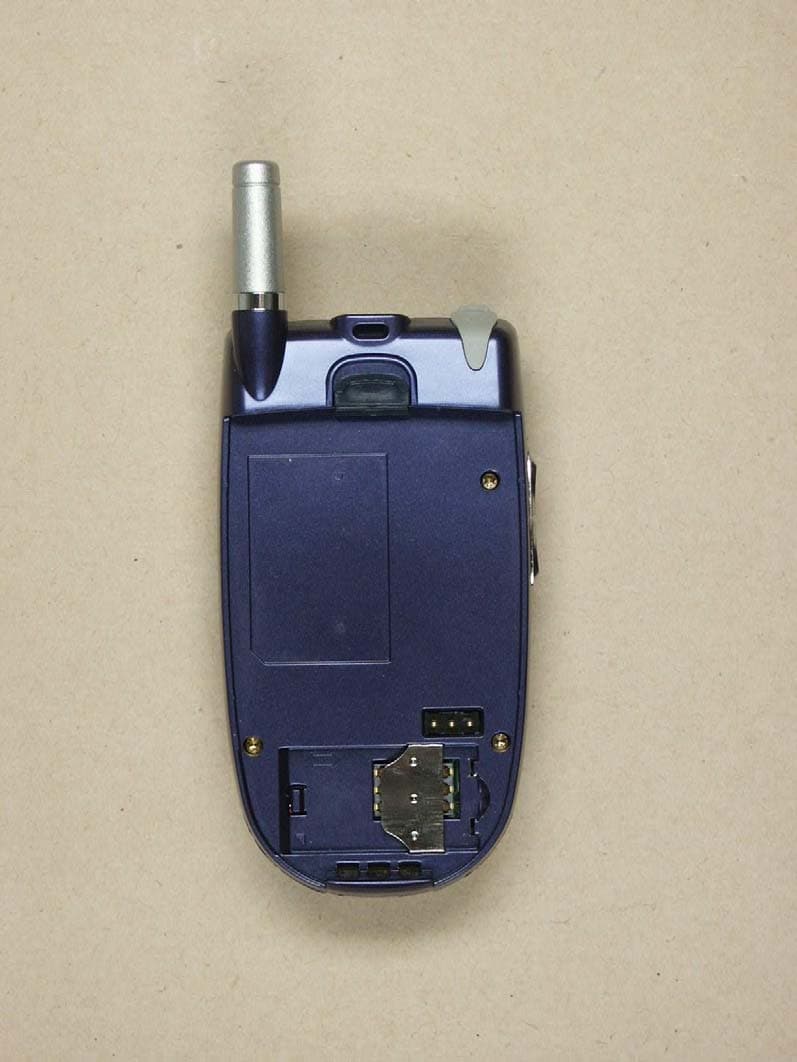

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 4 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 5 of 12

Franklin Wireless, Corp. NXG9230 Label Location

Franklin Wireless, Corp.Model No.: NXG9230||||||||||||||||||||||||||||||||||| (bar code)IMEI: 01029400yyyyyyzz||||||||||||||||||||||||||||||||||| (bar code)FCC ID: RB2NXG9230Made in China FCC Label Sample:

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 8 of 12

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20310-8258-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 27.10.2003 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 27.10.2003 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Franklin Wireless, Corp (Formerly Accetio, Inc.) Street : 9565 Waples St. Suite 250 Town : San Diego Country : USA Telephone : 001 858-320-0567 Fax : 001 858-320-0576 Contact : Mr. Nick Lim E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 06.10.2003 Date of receipt of test item : 06.10.2003 Date of test : 09.10.2003 - 17.10.2003 1.6 Test item FCC ID : RB2NXG9230 Description of test item : Dual-band GSM/GPRS Cell Phone Type identification : NXG9230 Serial number : without; Identical prototype Device category : PCE ( Licensed Portable Transmitter held to ear) Technical data GSM850 PCS TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,8 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 31,5 dBm (1,41 W) 30,6 dBm (1,15 W) Power supply : 3,8 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.957 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Appendix B Date/Time: 9/10/03 14:22:54 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.900(h)_250mW_9.10.03.da4 Dipol Valid.900(h)_250mW_9.10.03 DUT: Dipole 900 MHz; Type: SA AAD 090 BA; Serial: 164 Program: Dipol Valid 900 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.936426 mho/m, ε r = 41.4512, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.4, 6.4, 6.4); Calibrated: Probe not calibrated z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 900 (250mW)/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.1 V/m Power Drift = 0.03 dB Maximum value of SAR = 2.62 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.64 W/kg SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.7 mW/g Reference Value = 55.1 V/m Power Drift = 0.03 dB Maximum value of SAR = 2.65 mW/g 0 dB = 2.65mW/g Date/Time: 10/10/03 11:01:17 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.900(h)_250mW_10.10.03.da4 Dipol Valid.900(h)_250mW_10.10.03 DUT: Dipole 900 MHz; Type: SA AAD 090 BA; Serial: 164 Program: Dipol Valid 900 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.936426 mho/m, ε r = 41.4512, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.4, 6.4, 6.4); Calibrated: Probe not calibrated z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 900 (250mW)/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 54.9 V/m Power Drift = 0.02 dB Maximum value of SAR = 2.59 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.64 W/kg SAR(1 g) = 2.47 mW/g; SAR(10 g) = 1.6 mW/g Reference Value = 54.9 V/m Power Drift = 0.02 dB Maximum value of SAR = 2.63 mW/g 0 dB = 2.63mW/g Date/Time: 10/15/03 07:08:12 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol_Valid.1900(h)_250mW_15.10.03.da4 Dipol_Valid.1900(h)_250mW_15.10.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz (σ = 1.41529 mho/m, ε r = 39.8679, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 92.4 V/m Power Drift = 0.04 dB Maximum value of SAR = 12.6 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 14.3 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.16 mW/g Reference Value = 92.4 V/m Power Drift = 0.04 dB Maximum value of SAR = 12.6 mW/g 0 dB = 12.6mW/g Date/Time: 10/16/03 07:05:54 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid.1900(m)_250mW_16.10.03.da4 Dipol Valid.1900(m)_250mW_16.10.03 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Program: Dipol Valid 1900 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz (σ = 1.58 mho/m, ε r = 51.02, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5, 5, 5); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 93.3 V/m Power Drift = -0.06 dB Maximum value of SAR = 12.2 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 19.2 W/kg SAR(1 g) = 10.9 mW/g; SAR(10 g) = 5.61 mW/g Reference Value = 93.3 V/m Power Drift = -0.06 dB Maximum value of SAR = 12.3 mW/g 0 dB = 12.3mW/g Date/Time: 10/17/03 10:25:01 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: Dipol Valid. 900 (m) 250mW_17.03.03.da4 Dipol Valid. 900 (m) 250mW_17.03.03 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Program: Dipol Valid. 900 Muscle Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz (σ = 1.03749 mho/m, ε r = 54.4094, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6.2, 6.2, 6.2); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 _ (250 mW)/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 8.07 V/m Power Drift = 0. 04 dB Maximum value of SAR = 2.89 mW/g _ (250 mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.91 W/kg SAR(1 g) = 2.7 mW/g; SAR(10 g) = 1.74 mW/g Reference Value = 8.07 V/m Power Drift = 0.04 dB Ma…

Text truncated - open the document above for the full version.

Date/Time: 10/16/03 08:47:36 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch512_cheek.da4 NXG9230_1900_right_ch512_cheek DUT: Dual Band GSM850 / PCS1900; Type: -; Serial: NXG9230 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 NXG9230/Area Scan (91x181x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.06 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.68 mW/g NXG9230/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.942 W/kg SAR(1 g) = 0.621 mW/g; SAR(10 g) = 0.377 mW/g Reference Value = 5.06 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.677 mW/g 0 dB = 0.677mW/g Date/Time: 10/16/03 07:46:27 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch512_tilted.da4 NXG9230_1900_right_ch512_tilted DUT: Dual Band GSM850 / PCS1900; Type: -; Serial: NXG9230 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz (σ = 1.3685 mho/m, ε r = 39.9283, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 NXG9230/Area Scan (91x181x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.34 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.0777 mW/g NXG9230/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.12 W/kg SAR(1 g) = 0.083 mW/g; SAR(10 g) = 0.0534 mW/g Reference Value = 5.34 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.0893 mW/g 0 dB = 0.0893mW/g Date/Time: 10/16/03 09:32:33 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch661_cheek.da4 NXG9230_1900_right_ch661_cheek DUT: Dual Band GSM850 / PCS1900; Type: -; Serial: NXG9230 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz (σ = 1.39732 mho/m, ε r = 39.9416, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 NXG9230/Area Scan (91x181x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.57 V/m Power Drift = 0.08 dB Maximum value of SAR = 0.653 mW/g NXG9230/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.938 W/kg SAR(1 g) = 0.598 mW/g; SAR(10 g) = 0.354 mW/g Reference Value = 4.57 V/m Power Drift = 0.08 dB Maximum value of SAR = 0.661 mW/g 0 dB = 0.661mW/g Date/Time: 10/15/03 15:18:07 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch661_tilted.da4 NXG9230_1900_right_ch661_tilted DUT: Dual Band GSM850 / PCS1900; Type: -; Serial: NXG9230 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz (σ = 1.39732 mho/m, ε r = 39.9416, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 NXG9230/Area Scan (91x181x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.04 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.0777 mW/g NXG9230/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.0726 mW/g; SAR(10 g) = 0.0467 mW/g Reference Value = 5.04 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.0773 mW/g 0 dB = 0.0773mW/g Date/Time: 10/16/03 10:17:36 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch810_cheek.da4 NXG9230_1900_right_ch810_cheek DUT: Dual Band GSM850 / PCS1900; Type: -; Serial: NXG9230 Program: PCS 1900 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: Head 1900 MHz (σ = 1.4255 mho/m, ε r = 39.78, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.3, 5.3, 5.3); Calibrated: 11/29/2002 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 NXG9230/Area Scan (91x181x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.11 V/m Power Drift = 0.09 dB Maximum value of SAR = 0.58 mW/g NXG9230/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.857 W/kg SAR(1 g) = 0.532 mW/g; SAR(10 g) = 0.312 mW/g Reference Value = 4.11 V/m Power Drift = 0.09 dB Maximum value of SAR = 0.575 mW/g 0 dB = 0.575mW/g Date/Time: 10/15/03 14:38:02 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH File Name: NXG9230_1900_right_ch810_tilted.da4 NXG9230_1900_right_ch8…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix C Pictures ETS Dr. Genz GmbH, Germany Registration number: G0M20310-8258-S-8 Appendix C ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 4 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 5 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 7 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 8 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 9 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 10 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-S-8Page 11 of 11

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: RB2NXG9230 Test report no.: G0M20310-8258-P-2224 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8258-P-2224Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Emission in Receiver Critical Band FCC 22.917(f) 12 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 13.1 Test Procedure 12.2 Tes…

Text truncated - open the document above for the full version.
