RB3-13201Animal Field Disturbance Sensor

User’s Guide Guide de L’utilisateur 2003-12 PET CONTAINMENT SYSTEM Training, Installation and Troubleshooting Guide Important Information please keep this manual for future reference Questions? see our website at: www.multivet-inter.com Table of contents: I. How the system works 5 II. Equipment needed for installation 6 III. Installation procedures 7 IV. Spray receiver collar 13 V. Operating your system 14 VI. Training your pet 15 VII. Troubleshooting 20 CAUTION: This Pet Containment System is NOT a solid barrier. The system is designed to act as a deterrent to remind animals by spray stimulation to remain within the boundary established. This system is to be used only in the intended manner as specified in this instruction manual. Any misuse of the system other than as recommended in this instruction manual may result in electric shock or fire. It is your responsibility to properly train your animal to remain within the established boundary. It is important you reinforce training if needed. Since the tolerance level to spray varies from pet to pet, Multivet CANNOT guarantee that this system will, in all cases, keep your pet within the established boundary. NOT ALL PETS CAN BE TRAINED TO AVOID CROSSING THE BOUNDARY. Therefore, if you have reason to believe that your pet may pose a danger to others or harm itself if it is not kept from crossing the boundaries, the Purchaser/User should NOT rely solely upon the Pet Containment System to confine your pet. Multivet shall NOT be liable for any property damage, economic loss or any consequential damages sustained as a result of an animal crossing the boundary. Do not allow children to use this pet training system. This product is intended for residential use and for containment of healthy pets only. It is not intended for containment of guard dogs or vicious animals. Seek the advice of your veterinarian to determine your pet’s health and suitability for this pet training system. Thank You! Thank you for purchasing the world’s finest pet containment system. This manual will explain how to operate, install your system and train your pet. The Pet Containment System eliminates the expense and maintenance of conventional fencing. Plus, it is portable! You may have to bury new wire, but the rest of the system can be moved with you when you move! We want to make sure you are a satisfied customer. You can help ensure this by taking time to carefully read the following instructions on training and installation. We have also included a detailed installation and training video. We recommend you watch the video first then follow the manual as a guide. Your Pet Containment System is easy to install. The time will vary depending on the size of your yard. Please take this opportunity to complete and mail the warranty card to insure proper service if something in your kit becomes damaged. Again, we sincerely appreciate your purchase and hope it provides you and your pet with years of service. QUESTIONS & ANSWERS Q: How much area can the transmitter in my kit cover? A: The transmitter will cover up to 25 acres (100,000 m2). Q: Will the spray hurt my pet? A: No. Spray is harmless. The spray will only startle your pet. Q: How deep do you have to bury the wire? A: From 2.5 to 7.5 cm (1” to 3”). The only reason for burying is so you don’t accidentally trip over it or cut it. Q: How many dogs can be put on the system? A: A large number but each must be wearing a receiver collar. Q: What size or type pet can be used on the system? A: The pet must be trainable and able to comfortably wear the receiver. It SHOULD NOT be used on vicious or attack dogs. If your pet is in ill health, you should consult with your veterinarian. Q: Can the receiver be used on my pet’s present collar? A: Yes. Q: How long does it take to install? A: Allow about 2 to 3 hours for a 150 m (500’) fence. It depends on layout, soil conditions, tools, etc. A typical installation can be completed in one afternoon. I. How The System Works The Pet Containment System is simple and straightforward. It consists of three primary parts: the TRANSMITTER, the RECEIVER, and the ANTENNA (boundary wire). The transmitter is an ultra-low frequency radio transmitter that plugs into a standard 120 volt outlet. The signal it transmits is carried by the boundary wire which serves as an antenna. The range of the signal (i.e. the distance from the boundary that the receiver picks up the signal) can be adjusted from a few steps up to 9 m (30’) by the range adjustment knob located on the transmitter. (Note: There may be some variations in these distances due to different ground and wire conditions, and the depth that the wire is buried. The deeper the wire, the weaker the signal.) CAUTION: While all Pet Containment System transmitters use a microprocessor to send a coded signal, it is still possible that a stray signal can be picked up. This most often is the case around TV’s. You may want to put the receiver battery in and hold it near various appliances in the home. If it beeps near one, then you should either have your pet avoid these appliances or remove the collar when your pet enters the house. II. Equipment needed for installation 1. Transmitter 2. Receiver 3. Collar for receiver 4. Battery 5. Video 6. Wire nuts for splicing 7. Wire and flags * Wire must be 18 gauge and 30 strands. We strongly recommend buying only wire supplied for this product. Extra wire and flags are sold separately. In addition to the contents of the kit, the following items are necessary to install the Pet Containment System. A. Straight-edged spade, a lawn edger or a shovel. Installation in small to medium sized yards should only require use of the spade or shovel. For a large yard we recommend that you rent a power edger to make installation easier. B. Wire stripping pliers, electrical tape, and waterproofing compound (e.g. silicone caulk) for insulating splice connectors (wire nuts). C. If you are going to cross brick, asphalt or concrete …

Text truncated - open the document above for the full version.

C.P. 651 St-Hyacinthe, Quebec Canada, J2S 7P5 TEL : 450-778-0244 FAX : 450 : 773-4009 E-MAIL : [email protected] WEB SITE : www.multivet-inter.com F C C CONFIDENTIALITY Date: 2003/07/15 To: FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Non disclosure for FCC ID: RB3-13202 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Multivet International Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # RB3-13202 a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Multivet International Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Mark Garon Vice-President R&D Multivet International Inc.

Response to TCB Findings 1. Please supply a copy of the user's manual. Supplied 2. Has the device complied with the requirements of 15.31(e)? Yes. The EUT was exercised with a power supply variation between 93.5 VAC (85% Nominal), and 126.5 VAC (115% Nominal), and found to vary less than 1 dB in output power. (Logbook 0024, page 18). The EUT has an onboard 5 VDC linear regulator.

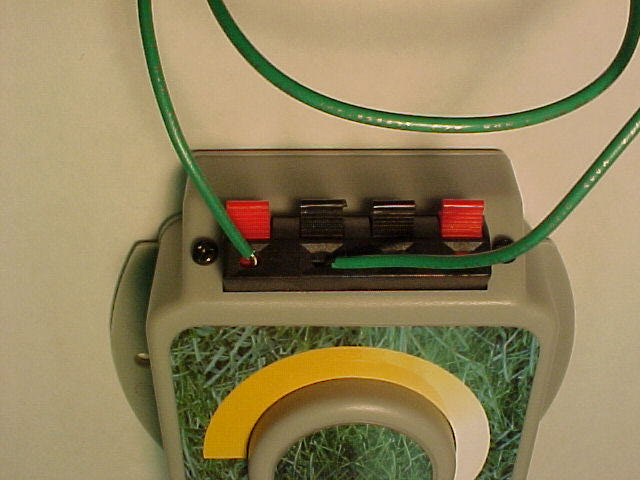

Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo One – External Virtual Fence System showing Basic Unit, Power Adapter and Wire Antenna Note: Wire Antenna may be up to 2,500 feet in length Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Two – External Virtual Fence System showing FCC ID Label Location on Base Side of Unit Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Three – External FCC ID Label Close-up Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Four – External Close-up showing Antenna Connections Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Five – External Close-up showing External Earth Ground Connection and Fuse Holder Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Six – External Close-up showing Power Connection

ID Back Label for Virtual Fence This device complies with Part 15 of FCC rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme aux normes CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : 1) il ne doit pas produire de brouillage et 2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Multivet International Inc. www.multivet-inter.com MODEL: DSP13201 FCC ID: RB3-13201 IC: 4684A 13201 Made in China

Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Seven – Internal Open for Inspection Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Eight – Internal PCB Close-up, Component Side Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Nine – Internal PCB Close-up, Flip Side Multivet International, Inc. 10kHz Transmitter for Dog and Cat Training Virtual Fence System FCC ID#: RB3-13201 Photo Ten – Internal Antenna Connections to PCB

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 Fax: 262-375-4248 Assigned Engineer: Abtin Spantman COMPLIANCE TESTING OF: Outdoor Virtual Fence Transmitter PREPARED FOR: Multivet International, Inc. B.P. 651 St-Hyacinthe, QC, Canada TEST REPORT NUMBER: 303192 TEST DATES: July 15 th , 2003 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of L. S. Compliance, Inc. L.S. Compliance, Inc. Page 2 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. Table of Contents Section Description Page Index 2 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Signatures 6 5 Product and General Information 8 6 Product Description 8 7 Test Requirements 8 8 Summary of Test Report 9 9 Introduction 9 10 Purpose 9 11 Radiated Emissions Test 10 12 Conducted AC Mains Emissions Test 18 Appendix A Test Equipment List 23 L.S. Compliance, Inc. Page 3 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 1. L. S. Compliance In Review L. S. Compliance, Inc. is located in Cedarburg, Wisconsin – United States. We may be contacted by: Mail: L. S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, Wisconsin 53012 Phone: 262-375-4400 Fax: 262-375-4248 E-mail: [email protected] As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Conformity Assessment Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union EMC Directive 89/336/EEC, Article 10.2. Date of Validation: January 16, 2001 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 FCC Registration Number: 90756 Listing of 3 and 10 meter OATS based on 47CFR 2.948 FCC Registration Number: 90757 Industry Canada On-file, 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 File Number: IC 3088 On-file 3 and 10 Meter OATS based on RSS-210 File Number: IC 3088-A L.S. Compliance, Inc. Page 4 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 2. A2LA Certificate of Accreditation L.S. Compliance, Inc. Page 5 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 3. A2LA Scope of Accreditation L.S. Compliance, Inc. Page 6 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 4. Signatures: Manufacturer: Multivet International, Inc. Model No.: Virtual Fence Transmitter Serial No.: Engineering Unit Description: Perimeter Detection Transmitter Prepared By: October 27, 2003 Teresa A. White, Document Coordinator Date Tested By: October 27, 2003 Abtin Spantman, EMC Engineer Date Approved By: October 27, 2003 Kenneth L. Boston, EMC Lab Manager Date PE # 31926 Licensed Professional Engineer Registered in the State of Wisconsin, United States L.S. Compliance, Inc. Page 7 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 5. Product and General Information Manufacturer: Multivet International, Inc. Model No.: Virtual Fence Transmitter Serial No.: Engineering Unit Description: Perimeter Detection Transmitter Operating Voltage: 15 VAC 6. Product Description The Multivet International Virtual Fence is an outdoor RF based training system for pets. This product combines electronics with a citronella spray system to alert the pet when it has approached the pre-defined perimeter. The Virtual Fence training system has 3 components: an emitter (Transmitter), a spray receiver collar, and an antenna (buried wire around established perimeter). The emitter is plugged into the regular household 120 VAC power mains. It generates a low frequency 10.5 kHz radio signal that is transmitted through the buried wire. As the pet approaches the buried wire, the spray receiver collar will pick up the low frequency signal. The collar will at first emit a warning beeping sound to let your animal know it has reached the limit. Should he continue on, he will then receive a brisk spray of citronella. The Multivet Virtual Fence must be used in conjunction with Multivet International spray receiver collars and citronella refills. The Virtual Fence training system is not a solid barrier. The system is designed as a training aid to remind the pet to stay within set boundaries. 7. Test Requirements The Multivet Virtual Fence was tested for Radiated Emissions to establish compliance with the limits set forth by Title 47 CFR, Parts 15.205, 15.207, and 15.209 as an intentional radiator. L.S. Compliance, Inc. Page 8 of 22 Test Report Number: 303192 Prepared For: Multivet International, Inc. 8. Summary of Test Report DECLARATION OF CONFORMITY The Multivet Virtual Fence was found to MEET the requirements as described within the specification of Title 47 CFR FCC, Parts 15.205, 15.207, 15.209 and Industry Canada I.C. RSS-210, Section 6 for an intentional radiator. The enclosed test results pertain to the samples of the test item listed, and only for the tests performed per the data sheets. Any subsequent modification or changes to the test items could invalidate the data contained herein, and could therefore invalidate the findings of this report. 9. Introduction On July 15 th , 2003 a series of Radiated Emission tests were performed on one sample of the Multivet International model: “Outdoor Virtual Fence”, Serial Number: “Engineering Unit”, here forth referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the procedures outlined in ANSI C63.4-2001 for intentional radiators, and in accordance with the limits set forth in FCC Parts 15.207, 15.205 and 15.209 (Industry Canad…

Text truncated - open the document above for the full version.

Photo(s) Taken During Radiated Emission Testing Setup for the Radiated Emissions Test View of the EUT during Radiated Emission Testing on the 10 Meter OATS View of the EUT during Radiated Emission Investigative Testing In the 3 Meter Chamber Photo(s) Taken During Conducted AC Mains Emission Testing Setup for the Conducted Emissions Test View of the EUT during Conducted Emission Testing in the 3 Meter FCC Listed Chamber
