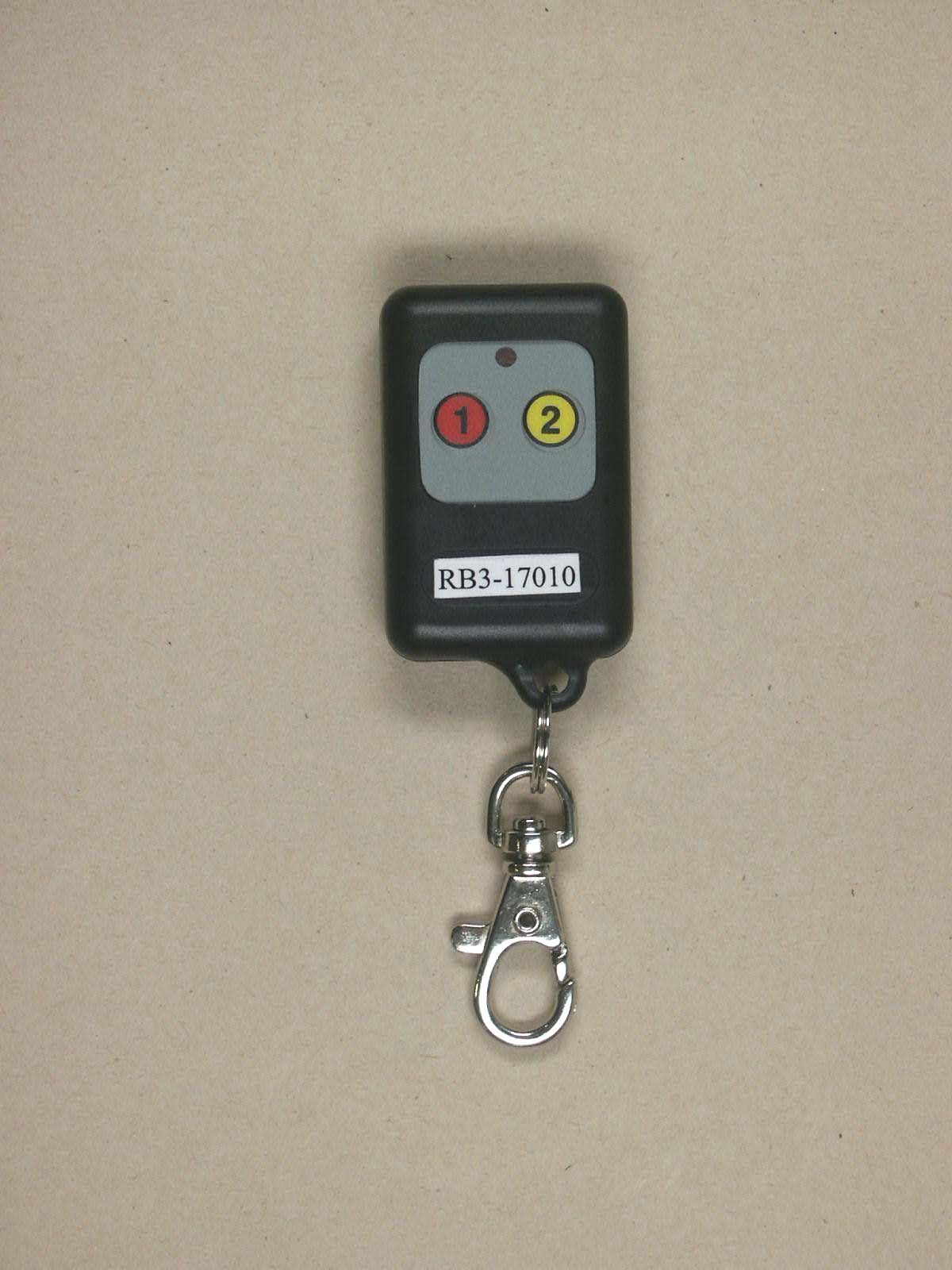

RB3-17010Remote Control

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 1 of 7 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 2 of 7

FCC ID Label Sample RB3-17010 23 mm 5 mm

FCC ID Label Location for Remote Control Model : DSP17010 FCC ID Label

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 3 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 4 of 7

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART B and C Test report no.: W6M20401-4992-C-1 FCC ID:RB3-17010 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 1 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 2 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 23.01.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 23.01.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 3 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3Details of approval holder Name: Mulitvet International Inc. Street: 17420 rue centrale. Town: St-Hyacinth, QC, J2T 3L7 Country: Canada Telephone: +1 450 778 0244 Fax: +1 450 778 4009 Contact: Mr. Mark Garon Telephone: +1 450 778 0244 ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 4 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application :07.01.2004 Date of receipt of test item:07.01.2004 Date of test:13.01.2004 1.5 Test item Description of test item:Remote Control Type identification:DSP17010 Serial number:Test sample without serial number Transmitting frequency: 433,92 MHz Operation mode: simplex Transmitting mode: K1N Voltage supply:12 V DC (battery) Antenna:integral antenna Photos:see Annex Manufacturer: (if applicable) Name: Street: Town: Country: Additional information: none ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 5 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART B §15.109/ SUBPART C § 15.203, §15.209, § 15.231 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply:12 V DC (battery) ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 6 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022AntennaSAS-200/ 521A.H. Systeme / USA ETS 0023AntennaDP 1MEB ETS 0024Antenna mastAF 2MEB ETS 0025Antenna mastAF 2MEB ETS 0026TripodHeinrich Deisel ETS 0027TripodHeinrich Deisel ETS 0028TripodSTA 2C. Lorenz AG ETS 0029TripodBerlebach ETS 0030Turn tableTT 1ETS ETS 0031Turn tableDS 412Heinrich Deisel ETS 0032ControllerHD 050Heinrich Deisel ETS 0033RF generatorSMGRohde&Schwarz ETS 0034RF generator/ AmplifierSMLRRohde&Schwarz ETS 0035RF generator/ AmplifierSMLMRohde&Schwarz ETS 0036RF amplifier10W 1000AM2Amplifier Research ETS 0037RF amplifier50W 1000Amplifier Research ETS 0038RF amplifier150LAmplifier Research ETS 0039Absorbing clampMDS 21Rohde&Schwarz ETS 0040Artifical mainsESH3-Z5Rohde&S…

Text truncated - open the document above for the full version.

Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 100 kHz VBW 100 kHz RF Att 10 dB B IN1 1AP Unit dBm SWT 5 s Center 433.93301 MHz500 ms/ SGL -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 Title: RB3-17010 WITHIN 1 SECOND OF BEING RELEASED SWITCH Date: 6.APR.2004 05:14:54

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 5 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 6 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20401-4992-C-1Page 7 of 7
