RCP-IMCWT200301Walkie Talkie 007 - RX

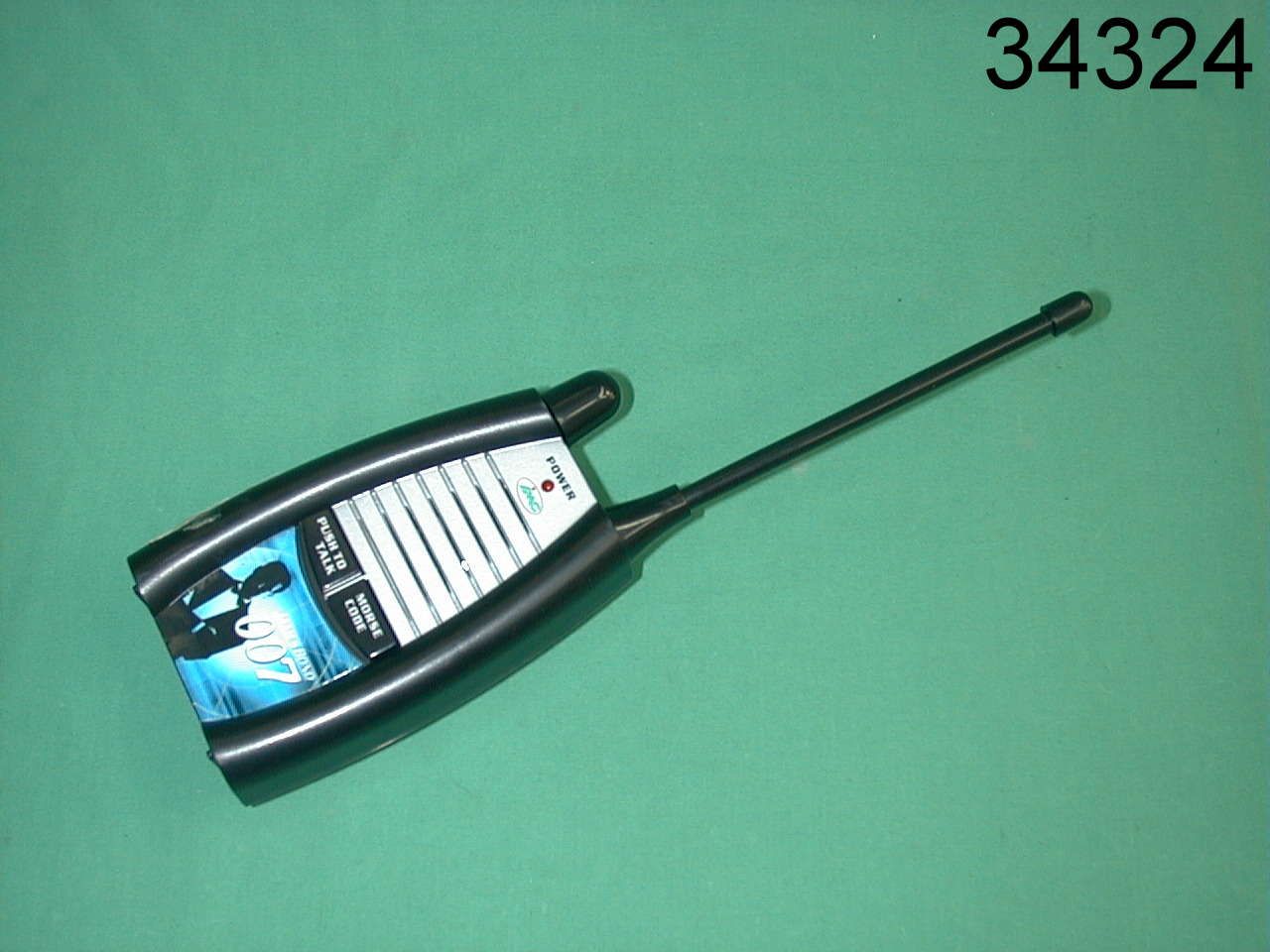

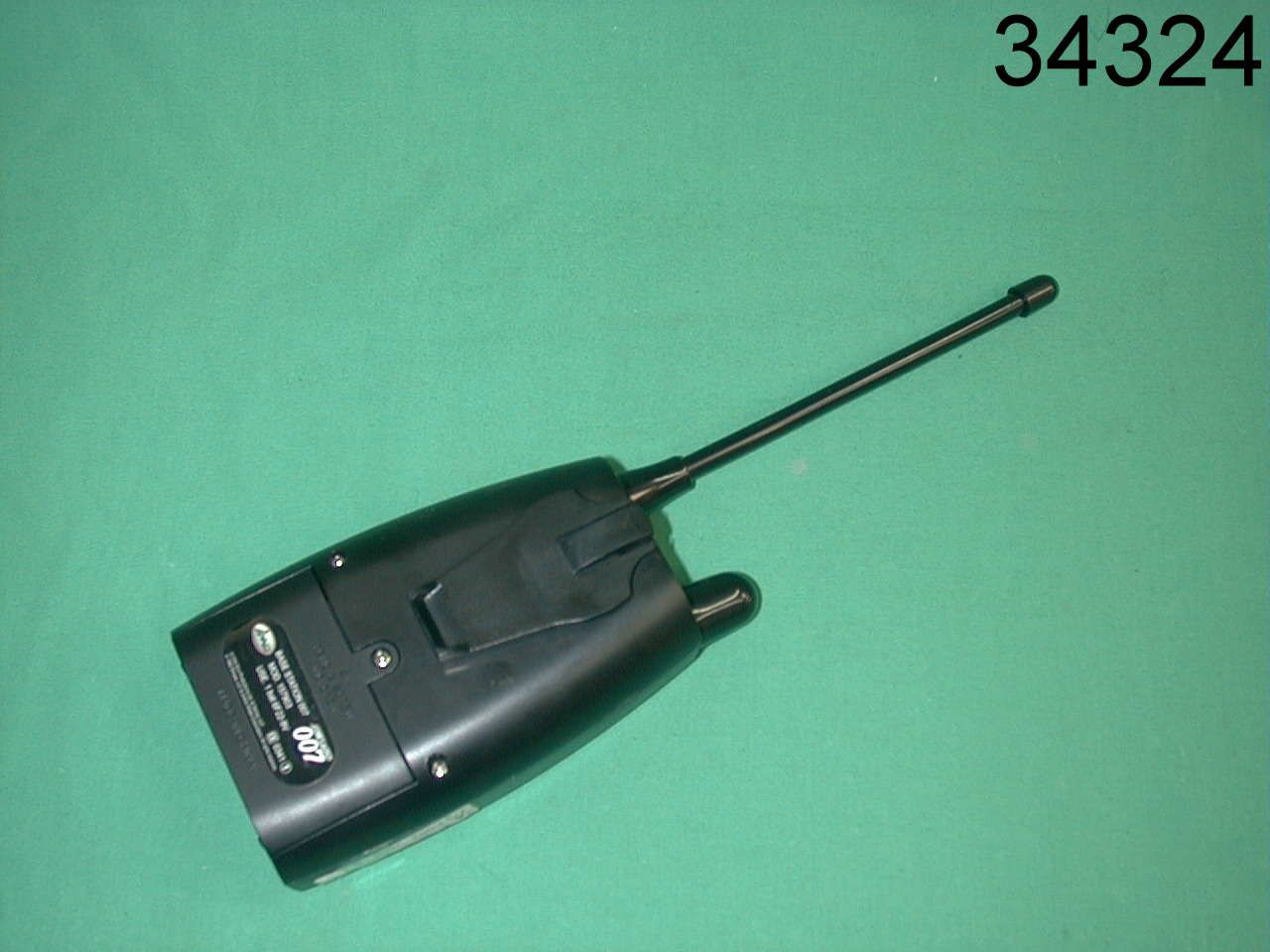

IMCADISA HK LTD – IMC Suite 803, 8/F, Chinachem Golden Plaza, Tsim Sha Tsui East, Kln. Tel: 31072020 Fax: 31070707 E-mail: [email protected] Website: http://www.imc.es Model 157903 Walkie Talkie 007 The FCC label will be placed on the device in the sketching. Gerry Tsang Project Engineer Manager FCC Label

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 34324/3/400F FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 2 of 14 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product : Walkie Talkie 007 Product Class : Low Power Communication Device Transmitter & Receiver Model : 157903 Brand Name : IMC Applicant : IMCADISA HK LTD FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 3 of 14 TABLE OF CONTENTS 1.Cover sheet 2. Introduction 3.Table of Contents 4.Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7.Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz-30MHz) 9. Interference Radiation (Datasheet) 10. Interference Radiation (Datasheet) 11. Cohere Plot at Fundamental Frequency 12. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 13. Measurement of Emissions within Band Edges (Band Edges Plot) 14. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 4 of 14 LABORATORY - REPORT APPLICANT: ADDRESS: IMCADISA HK LTD Suite 1210, 12/F, Chinachem Golden Plaza 77 Mody Road Tsimshatsui East Kowloon HONG KONG DATE OF SAMPLE RECEIVED: 2003-06-06 DATE OF TESTING: 2003-07-07 DESCRIPTION OF SAMPLE: Product:Walkie Talkie 007 Product class:Low Power Communication Device Transmitter & Receiver Model number:157903 Brand name:IMC Additional model number: The following additional models and descriptions are also used: Model number Description 28128 Walkie Talkie Barbie 101401 Secret Agent Set 125933 Walkie Talkie Apollo 157996 Walkie Talkie 007 354159 Walkie Talkie Power Rangers 101302 Travel Set with Walkie Talkie 2579 Walkie Talkie Omega 354173 Walkie Talkie Power Rangers Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators and Subpart B – Unintentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 5 of 14 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 6 of 14 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 7 of 14 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 34324/3/400F Date: 2003-07-16 Page 8 of 14 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 91 Interference Radiation Date: 2003-07-18 Measurement of Radiated Emissions Page: 9 of 14 Acc: FCC Part 15 Subpart C IECC Ref:34324/3/400F Test Equipment Model:157903 Receiver: ESVP Rohde & Schwarz Applicant:IMCADISA HK LTD Antenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Walkie Talkie 007 Connected sets: - Operating mode:Transmitter - Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) Peak49.86203311.7 3245100.0 Av.49.86193211.7 314480.0 Harm. 299.72<16<1610.3< 26 < 2643.5 Harm. 3149.58<16<1615.0< 31 < 3143.5 Harm. 4199.44<16<1616.5< 32 < 3243.5 Harm. 5249.3<16<1617.7< 34 < 3446.0 Harm. 6299.16<16<1620.0< 36 < 3646.0 Harm. 7349.02<16<1617.4< 33 < 3346.0 Harm. 8398.88<16<1618.3< 34 < 3446.0 Harm. 9448.74<16<1619.0< 35 < 3546.0 Harm. 10498.6<16<1619.7< 36 < 3646.0 Harm. 11548.46<16<1620.2< 36 < 3646.0 Harm. 12598.32<16<1620.9< 37 < 3746.0 Harm. 13648.18<16<1621.6< 38 < 3846.0 Harm. 14698.04<16<1622.4< 38 < 3846.0 Harm. 15747.9<16<1623.0< 39 < 3946.0 Harm. 16797.76<16<1623.7< 40 < 4046.0 Harm. 17847.62<16<1624.3< 40 < 4046.0 Harm. 18897.48<16<1625.0< 41 < 4146.0 Harm. 19947.34<16<1625.7< 42 < 4246.0 Harm. 20997.2<16<1626.5< 42 < 4254.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. Note:Unless otherwise indicated, the recorded re…
