RCPIMCWTPCBAA0014WALKIE TALKIE TRANSFORMERS

Product Name Model Number Design Page Confirm Issue Date Applicant IMC Toys HK LTD WALKIE TALKIES apply to all models with PCBA-A WALKIE TALKIES Block Diagram 1OF 1 16-May-14 Signal Amplifier Antenna TX RX Amplifier (U1-LM386) RX TX Oscillation Transmitting Superregenerative Reception Microphone Speaker RX TX RX TX Amplifier U1LM386N X1 49.860MHz 49.860MHz SuperregenerativeReceiverQ1 SignalA mplifier Q2

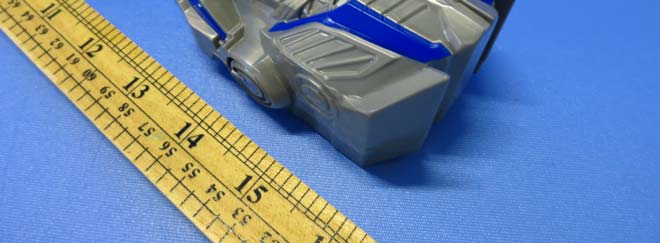

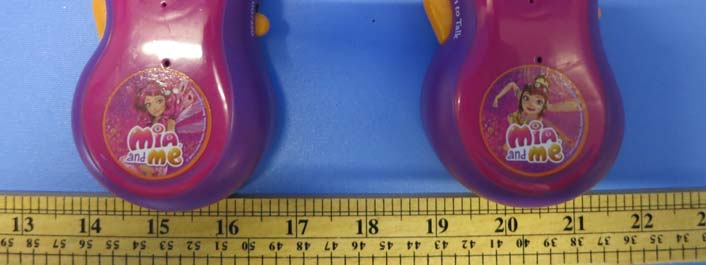

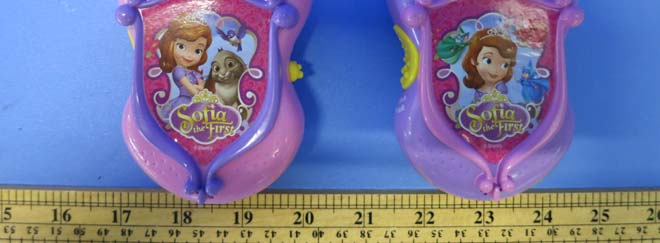

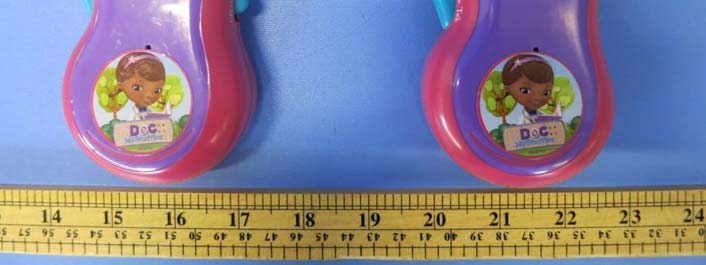

INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Model : 387034 (External) INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Model : 387034 (External) INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 870130 Additional Model : 460010 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 680135 Additional Model : 390041 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 140646 Additional Model : 700666 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 784284 Additional Model : 580107 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 551183 Additional Model : 21068 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 300040 Additional Model : 355200 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 260221 Additional Model : 625006 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 205048 Additional Model : 855014 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 390089 Additional Model : 172050 INTERTEK TESTING SERVICE Report No.: HK14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Additional Model : 16088

Label size : 30mm x 10mm 30mm 10mm Label size : 30mm x 10mm 30mm 10mm Item 390089 Label size :30mm x 10mm Item 680135 Item 260221 17mm 13mm Item 205048 Item 855014 Item 172050 Item 16088 Label size : 17mm x 13mm Item 870130 Item 460010 Item 390041 40mm 6mm Item 140646 Item 700666 Item 784284 Item 551183 Item 21068 Item 300040 Item 355200 Item 625006 Label size : 40mm x 6mm

INTERTEK TESTING SERVICE Report No.: 14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Model : 387034 (Internal) INTERTEK TESTING SERVICE Report No.: 14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Model : 387034 (Internal) INTERTEK TESTING SERVICE Report No.: 14051357HKG-001 FCC ID: RCPIMCWTPCBAA0014 Equipment Photographs Model : 387034 (Internal)

Technical Description The brief circuit description is listed as follows: - Q1, T2 and associated circuit act as 49.860 MHz Super- regenerative Receiver. - X1, T3 and associated circuit act as 49.860 MHz Oscillator. - L1 and associated circuit act as antenna matching circuit. - Q2, Q3, U1 and associated circuit act as Audio Signal Amplifier. - S1-A, S1-B, S1-C and S1-D act as Push-to-talk Control Key. Antenna Used: An External, Integral Antenna has been used. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 44.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report Report No.: 14051357HKG-001 The equipment under test (EUT) is a transceiver for a toy PTT type Walkie Talkie operating at 49.860MHz which is controlled by a crystal. The EUT is powered by a 9V battery. After switched ON the EUT, the user can transmit voice to other side by pressing the push-to-talk button and speaking to the microphone, and release the push-to-talk button to listen voice from the speaker. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 44.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 47.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0000169mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0000169mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

                              !   1 2 3 4 5 6 ABCD 1 2 3 4 5 6 ABCD 387034  " # $ % 1-1 2014 & 5 ' 8  387034-13 SCH2013-69 2013-69 X1 40.685MHz 49.86MHz C3 C4 C10 C11 R16 T2 T3 68pF 68pF 47pF 56pF 56R K165-2T:2T:2T 011 T1 K175-5T:5T:5T:5T:5T 012 56pF 56pF 33pF 27pF 75R K165-2T:2T:2T 011 K175-5T:6T:6T:5T 5 46 S1-B 8 79 S1-C 11 1012 S1-D R14 10K C19 100nF C21 220uF R21 100R ANT K BAT- BAT+ 12 35 4 T2 * M- M+ SP+SP- Q1 9018G C1 47pF R1 1.5K R21M C2 10nF R8 12K C3 * Q2 9018G C4 * R3 22R C5 5nF R4 15K R5 12K C7 100nF C6 5nF R17 10K R6 1K C8 20nF R18 1K C22 47nF 2 13 S1-A Q3 C1815BL R10 150R X1 * R1210KR1133K C11 * C10 * C12 33pF R9 short C9 27nF 12 35 4 T3 * C13 100nF T1 * R20 0R C17 220uF R7 10R 2 - 3 + 5 8 7 6 1 4 U1 LM386M-1 R19 2.2K C20 10nF C18 40nF C24 10uF C16 10uF C15 10uF R13 68R R16 * C26 100nF R2210K R23 6.8K C14 100uF R15 1.5K VCC9V VPQ VPQ 10nF Q19018G 47pF 1.5k 5nF Q29018G 12k 1k 100nF 10k 20nF 12k 100nF 220uF 100nF 220uF 10R 100uF 10uF 10k 40nF 10nF 100nF 22k 47nF 0R 27nF 0R 33k 33pF 10k Q3C1815BL 150R 1.5k U1LM386N 10uF 10uF 68R 6.8k 10k 1k 22R 5nF 15k 1M 49.860MHz 40.685MHz 49.860MHz 49.860MHz
