RCPIMC1400280010Wrist Walkie Talkie

140028-Special DS_USA © Disney/Pixar ITEM 140028_Special DS_USA • EAN: 8421134140028 • 050510 4 2 x 6LR619V Battery requirements: ENGLISH For any claim about its correct functioning, please contact with: IMC TOYS, S.A. • Pare Llaurador, 172 • 08224 Terrassa (Barcelona) España • [email protected] • www.imc.es • NIF: A-08667370 WRIST WALKIE TALKIE USE AND OPERATING INSTRUCTIONS IMC TOYS products undergo strict pro- duction controls to guarantee the en- joyment and safety of your children. They are easy to use and operate. We are certain that they will provide your children with great entertainment. Thank you for purchasing one of our products. To consult our extensive product cata- logue, please visit our web page at www.imc.es. Using a Phillips screwdriver, open the battery compartment of the intercom- municators, located inside the unit, and insert 1 x 6LR61/9V battery (preferably alkaline), noting the polarity for each unit as appears in the diagram, then screw the cover back on. Adjust the intercommunicator to fit your arm by pressing the open button and placing it just above the wrist. En- sure that the lock is completely closed by listening for the click. The intercom- municators are equipped with a special foam to make them adaptable to va- rious diameters of forearm. Repeat this operation for the other unit. To start the intercommunicators, lift up the protective cover and turn the volu- me dial, you will hear a click and the LED operation indicator will light up. Set the volume to the desired level and repeat this operation for the other unit. Press the PUSH TO TALK button to talk and release it to receive a reply. Direct your voice towards the Toy Story shield, as this is where the speaker and micro- phone are located. The best reception is achieved in open spaces without obstacles. Reception may be very poor in some places due to the proximity of electric pylons, high voltage towers or radio or electromagnetic antennae. Reception can be drastically reduced in these areas. To activate the LED laser simulator, press the button located to the right of the volume control and the LED at the front will light up. CARE AND SAFETY To clean the unit, use a slightly moist cloth. Do not use detergents or solvents. In case the device gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a dry cloth. Leave the battery compartment uncovered all night so that it may dry completely. Do not attempt to use the device until it is completely dry. WARNING The construction teams use radio sets. Avoid activating your walkie talkie whe- rever it might cause interference. WARNING! Do not use close to the ear! Misuse may cause damage to hearing. REMARKS ON ENVIRONMENTAL PROTECTION At the end of the life span of this pro- duct, it could not be disposed as the nor- mal household rubbish. It must however be submitted to a collection spot for the recycling of electrical and electronic devices. The symbol on the product, of the user manual or of the packing refers to the above-mentioned. The materials are, according to their marking, recyclable. You make an im- portant contribution to the protection of our environment with the recycling, the material utilization or other forms of utilization of the old devices. Please make enquiries with the respon- sible disposal center at the local autho- rity. WARNING: - Not suitable for children under 3 years of age. It contains small parts which might be ingested by them. Choking hazard. - Please keep the packaging for future reference as it contains very important information. - Please note that due to technical im- provements this product may differ from the one that appears in the illus- tration. - This product requires 2 type 6LR61/9V alkaline batteries (not included). - The batteries or accumulators must be inserted according to the polarity indi- cated in the illustration. - Used batteries or accumulators must be removed from the toy; failure to do so could cause damage. - Do not mix old batteries with new ones. - Do not mix different types of batte- ries. - Use only those batteries recommen- ded by the manufacturer or equiva- lents. - Non-rechargeable batteries must not be recharged. - The battery terminals must not be bridged or shorted. - Changing or handling the batteries must always be carried out under the supervision of an adult. - Remove the batteries from the com- partment if the unit is not going to be used for a long period of time. - Please respect the environment and deposit used batteries in the containers provided. - Rechargeable batteries are to be re- moved from the toy before being char- ged. - Rechargeable batteries are only to be charged under adult supervision. - This product achieves better perfor- mance using alkaline batteries. - Read the instructions before use, fo- llow them and keep them for reference. - The unit may malfunction when there is a radio interference appeared on the power line. The unit will revert to normal operation when the interference stops. - Under the environment with electros- tatic discharge, the sample may mal- function and require user to reset the sample. - Under the environment with Fast Tran- sient, the sample may malfunction and require user to reset the sample. - Remove all elements designed to fasten and protect the product during transport before giving it to children (plastic pieces, labels, wires, etc.). INSTRUCTIONS FOR USE “IMC.TOYS, S.A., as manufacturer, declares under its responsibility that this device observes the rules of 1999/5/EC Directive, of the European Parliament and of the Council dated 9th March 1999, integrated into Spanish Legislation by Real Decreto 1890/2000 of 20th November”. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, use…

Text truncated - open the document above for the full version.

External photo Front View of the product Rear View of the product Battery compartment Battery Cover

Product name: BRAZO INTERCOM TOY STORY Model:140028 FCC ID: RCPIMC1400280010 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal photo Front View of the product (Internal) Rear View of the product (Internal) Inner Circuit Top View Inner Circuit Bottom View Antenna

BUREAU VERITAS TESTREPORTNo.:(5210)147-0487 To: IMCTOYSHONGKONGLTD. TESTREPORT To: Attn:Mr.Y.Y.Wan/ KamanCheung/ SWLeun/ CathYu Address: Room8058-80881,8/F., EmpireCentre,68ModyRoad,TSTEast, Kowloon,HonKon Fax: 31070707 E-mail:[email protected]/ kaman.cheung@imc- hk.net/[email protected]/ cath. uimc-hk.net Attn: Address: Fax: E-mail: FolderNo.: BVCK1OJU121MTHS-B Factoryname: Location: Product: BRAZOINTERCOMTOYSTORY MODEL:140028 SampleNo:(5210)147-0487 Testdate: June8,2010 To June10,2010 TestRequested: FCCPart15- 2008 TestMethod: ANSIC63.4- 2003 FCCID:RCPIMC1400280010 Theresultsgivenin thisreportarerelatedtothetestedspecimenofthedescribedelectricalapparatus. AuthorizedSignature: CONCLUSION:ThesubmittedsamplewasfoundtoCOMPLYwithrequirementofFCCPart15SubpartC. D Reviewedb : KeithYeun A Date:June28,2010 BUREAUVERITASHONGKONGLlMITED- KowloonBayOffice 1/FPacificTradeCentre, 2 KaiHingRoad,KowloonBay, Kowloon,HONGKONG Tel:+85223310888 Fax:+85223310889 www.cps.bureauveritas.com Thisreportisintendedforyourexclusiveuse.Anycopyingorreplicationofthisreporttoorforanyotherpersonorentity,oruse ofournameortrademark,ispermittedonlywithourpriorwrittenpermission.Ourreportislimitedtothetestsamplesidentified herein.Theresultssetforthinthisreportarenotnecessarilyindicativeorrepresentativeofthestatisticalqualityorcharacteristicsof the101fromwhicha testsamplewastakenoranysimilaroridenticalproductunlessspecificallyandexpresslynotedOurreport includesallofthetestsrequestedbyyouandtheresultsthereof.Youshallhavethirtydaysfromreceiptofthisreporttorequest additionaltestingofthesamplesortonotifyusofanyerrorsoromissionsrelatingtoourreport,provided,however,suchnotice shaJlbeinwritingandshallspecificallyaddresstheissueyouwishtoraise.Afailuretoraisesuchissuewithintheprescribedtime shallconstituteyourunqualifiedacceptanceofthecompletenessofthisreport.thetestsconductedandthecorrectnessofthereport contents Page1 of12 TEST REPORT No.: (5210)147-0487 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 12 Location of the test laboratory Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at : BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong List of measuring equipment Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 24-AUG-2010 BILOG ANTENNA SCHAFFNER CBL6112D 25229 30-MAY-2011 OPEN AREA TEST SITE BVCPS N/A N/A 03-JULY-2010 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 07-JULY-2010 COAXIAL CABLE SUHNER N/A N/A 26-OCT-2010 SPECTRUM ANALYZER ADVANTEST R3127 111000909 17-DEC-2010 Remarks:- N/A : Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No.: (5210)147-0487 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 12 Equipment Under Test [EUT] Description of Sample: Model Name: BRAZO INTERCOM TOY STORY Model Number: 140028 Additional Model Number: 140028TS / 140028TS3 Additional Model information: Declare the Circuit, PCB layout and Electrical parts of the products are identical to the basic model. Except the model number. Rating: 9Vd.c (“6F22” size battery x 1) Description of EUT Operation: The Equipment Under Test (EUT) is an IMC TOYS HONG KONG LTD. of Walki…

Text truncated - open the document above for the full version.

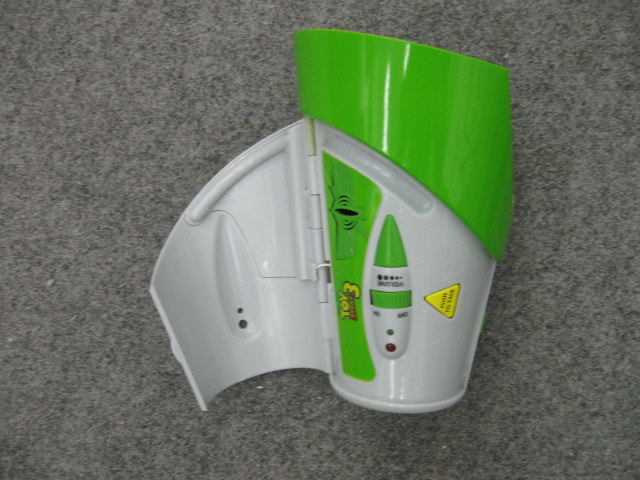

Set up photo
