RE7-AP100802.11b Access Point

PRELIMINARY Meru Wireless Networking Product 1.0 Beta Command-Line Interface Reference July 2003 Document Number: xxxxxx PRELIMINARY Revision History Information in this document is provided in connection with Meru ® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Meru’s Terms and Conditions of Sale for such products, Meru assumes no liability whatsoever, and Meru disclaims any express or implied warranty, relating to sale and/or use of Meru products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Meru products are not intended for use in medical, life saving, or life sustaining applications. Meru may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Meru reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The product may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Meru Networks, Inc. might have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give any license to these patents. This document as well as the described in it are furnished under license and may only be used or copied in accordance with the terms of the license. The information in this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Meru Networks, Inc.. Meru Networks, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this document or any software that may be provided in association with this document. Except as permitted by such license, no part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means without the express written consent of Meru Networks, Inc.. Contact your local Meru sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an ordering number and are referenced in this document, or other Meru literature may be obtained by calling or by visiting Meru’s website at http://www.merunetworks.com Copyright © Meru Networks, Inc., 2003. All rights reserved. *Other names and brands may be claimed as the property of others. This product includes software developed by parties other than Meru. See the back page of this document for a list of copyrights and license agreements. Revision Date RevisionDescription July 20030.11.0 Beta release. PRELIMINARY Contents iii Revision 0.1, July 2003 Contents About This Document . . . . . . . . . . . . . . . . . . vii Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii In This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii Other Sources of Information. . . . . . . . . . . . . . . . . . . . . . . viii Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . viii Syntax Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Contacting Meru . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Web and Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . ix Customer Support Technicians . . . . . . . . . . . . . . . . . . . . . x Chapter 1 Key Concepts . . . . . . . . . . . . . . . . . . . . . . . 1 Network Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Node Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Serial Numbers and Node Numbers . . . . . . . . . . . . . . . . . . . 2 Using the Controller Console and the CLI . . . . . . . . . . . . . . . . . . 2 Chapter 2 CLI Command Reference . . . . . . . . . . . . . . . . . 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Alarms Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 asc: Subcontroller Commands . . . . . . . . . . . . . . . . . . . . . . . 5 asc all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 asc get . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 asc ids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 asc set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 PRELIMINARY iv Contents Revision 0.1, July 2003 ats: Access Point Commands . . . . . . . . . . . . . . . . . . . . . . . . 8 ats all. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ats get . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ats ids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ats images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ats mappings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ats scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ats set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ats upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 auth: RADIUS Authentication Commands . . . . . . . . . . . . . . . . 12 auth all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 auth del. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 auth get. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 auth new . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 auth set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 authstats get. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Channel BSSID Com…

Text truncated - open the document above for the full version.

Installing the Meru Air Point 1001 Revision 0.1, September 2003 (9/22/03) Installing the Meru Air Point 100 This document describes how to physically install a Meru Air Point 100 wireless network access point. Unpacking the Access Point Confirm that the following are in the access point package: zAccess Point zMounting bracket zLight-pipe extender zTwo small mounting screws zRegistration card zThis guide Installation Requirements There are four ways of mounting the access point: zOn a horizontal surface, such as a table or a desk. zOn a vertical surface, usually a wall. 2Installing the Meru Air Point 100 Revision 0.1, September 2003 (9/22/03) Installing the Access Point z Underneath a horizontal surface, usually a ceiling. zAbove a ceiling tile. To complete this installation, you need the following consumable items: You need the following tools: Installing the Access Point Selecting a Location The access point requires a location that has both Installation TypeConsumable Items Required Horizontal mountingNone Vertical mounting over a wall studzTwo #6 screws Vertical mounting on sheetrock zTwo #6 screws zTwo plastic wall anchors Horizontal mounting below a ceilingzTwo #6 screws zTwo plastic wall anchors Mounting above a ceiling tilezTwo #6 screws Installation TypeTools Required Horizontal mountingNone Vertical mounting over a wall stud zDrill z1/8-inch drill bit zScrewdriver Vertical mounting on sheetrockzDrill z3/16-inch drill bit zScrewdriver Horizontal mounting below a ceiling zDrill z3/16-inch drill bit zScrewdriver Mounting above a ceiling tile zDrill z1¼-inch hole saw zScrewdriver Installing the Meru Air Point 1003 Revision 0.1, September 2003 (9/22/03) Installing the Access Point z Relatively unobstructed access to the mobile stations that it will serve zA power-over-Ethernet connection to the network switch servicing the controller The access point communicates with mobile stations using radio waves like those used by cordless phones. These radio waves can go through walls, floors, and windows, but all of these reduce the range. Find a location where the radio waves can get to the mobile station with as little obstruction as possible. In an office with cubi- cles, mounting the access points on the ceiling or on the wall near the ceiling might allow the radio waves to avoid furniture and cubicle walls. The location must also have a 100BaseT power-over-Ethernet (PoE) connection from the access point to the switch for the controller. The power can be supplied by a PoE switch or by a PoE power injector between the switch and the access point. Attaching the Antennas Attach the antennas to the connectors on the access point and hand tighten. Mounting the Access Point Horizontal Mounting 1.Place the access point flat on the horizontal surface. 2.Point the antennas up. 3.Connect the PoE 100BaseT Ethernet cable. Vertical Mounting 1.Mark the location for the two access point mounting screws. They must be 4 ½ inches apart, center-to-center, one above the other. If you are not using plastic wall anchors, you must center the mounting screws on a wall stud. If you do not center the mounting screws on a wall stud, you must use plastic wall anchors. 2.Drill holes at the locations you marked: —3/16-inch holes if you are using plastic anchors —1/8-inch holes if you are using only the screws 3.If you are using plastic anchors, install them in the holes. 4.Screw in the screws most of the way, so that the screw head is about 1/16 of an inch from the wall. 5.Mount the access point on the screws, placing the circular portion of the keyhole mounts over the screw heads and sliding the access point down. 6.Point the antennas up. 7.Connect the PoE 100BaseT Ethernet cable. Mounting Below a Ceiling 1.Mark the location of the two mounting screws. They must be 4 ½ inches apart, center-to-center. 2.Drill holes at the locations you marked: 4Installing the Meru Air Point 100 Revision 0.1, September 2003 (9/22/03) Installing the Access Point — 3/16-inch holes if you are using plastic anchors —1/8-inch holes if you are using only the screws 3.If you are using plastic anchors, install them in the holes. 4.Screw in the screws most of the way, so that the screw head is about 1/16 of an inch from the wall. 5.Mount the access point on the screws, placing the circular portion of the keyhole mounts over the screw heads and sliding the access point down. 6.Point the antennas down. 7.Connect the PoE 100BaseT Ethernet cable. Mounting Above a Ceiling Tile 1.Remove the ceiling tile where the access point will be located. 2.Confirm that there is at least 6 inches of space above the ceiling tile to accommo- date the access point antennas. If there is insulation above the ceiling tile, clear it for at least three inches to the side and three inches above the access point. 3.Cut a hole in the tile, 1¼ inches in diameter, for the access point light-pipe extender. The hole should be at least 6 inches from the edge of the tile. 4.Insert the light-pipe extender into the hole, with the 2-inch flange on the appear- ance side of the ceiling tile. 5.Attach the mounting bracket to the light-pipe extender, with the two small pins on the light-pipe extender fitting into the small holes on the mounting bracket and the two hooked tabs fitting into the two notches in the mounting bracket hole. Note that the tabs are different widths and the wide tab fits only into the wide notch. Press the tabs in towards each other to clear the edges of the notch. They will lock in place. 6.Attach the mounting bracket to the ceiling tile, using two #6 screws. Figure 1: Mounting Bracket and Light-Pipe Extender, as Installed on a Ceiling Tile Mounting bracket Ceiling tile Light-pipe extender #6 screw#6 screw Installing the Meru Air Point 1005 Revision 0.1, September 2003 (9/22/03) Installing the Access Point 7.Slide the access point into the mounting bracket as shown in the following diagram. Slide the bracket’s feet over the two feet of the access point closest …

Text truncated - open the document above for the full version.

~ Meru NETWORKS October 2,2003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ill: RE7-APIOO Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of infoffi1ation accompanying this application outlined below: Schematics, Block Diagram and Theory of Operation. . The above materials contain trade secrets and proprietary infonnation not customarily released to the public. The public disclosure of the materials may be ham1fu1 to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section .0457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

./"II. Meru NETWORKS October 2, 2003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ffi: RE7-APIOO Pursuant to Sections 0.457 and 0.459 of tile Commission's Rules, we hereby request confidential treatment of information accompanying this application outlined below: Schematics, Block Diagram and Theory of Operation. . The above materials contain trade secrets and proprietary infonnation not customarily released to the public. The public disclosure of the materials may be hannful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section .0457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. . wwW.merunetWorks.com 'P408 ~'2f!'(53 OOF' 408'1'15" 5301 ~

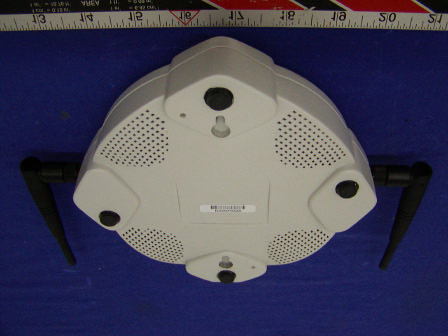

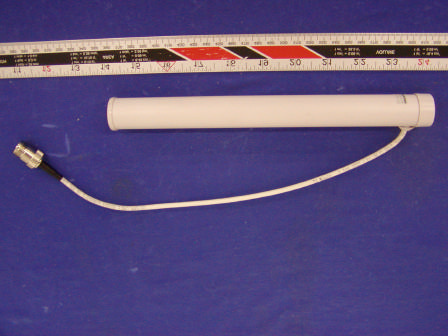

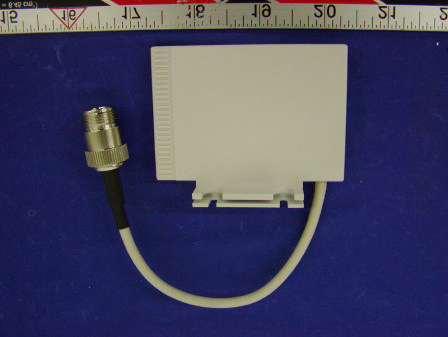

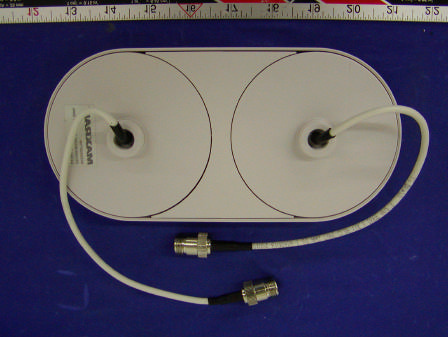

Meru Networks FCC ID: RE7-AP100 EXHIBIT C - EUT PHOTOGRAPHS EUT - Front View EUT - Rear View Meru Networks FCC ID: RE7-AP100 MBF24008 Antenna View MC024005PT Antenna View Meru Networks FCC ID: RE7-AP100 MP24015 Antenna Front View MP24015 Antenna Rear View Meru Networks FCC ID: RE7-AP100 CAP2226 Antenna Front View CAP2226 Antenna Rear View Meru Networks FCC ID: RE7-AP100 MP24013XFPTNF Antenna Front View MP24013XFPTNF Antenna Rear View Meru Networks FCC ID: RE7-AP100 MP24008XFPTNF Antenna Front View MP24008XFPTNF Antenna Rear View Meru Networks FCC ID: RE7-AP100 MHA2400PT Antenna Front View MHA2400PT Antenna Rear View Meru Networks FCC ID: RE7-AP100 MCD2400PTNF Antenna Front View MCD2400PTNF Antenna Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Rear View of EUT/FCC ID Label FCC ID: RE7-AP100 This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EUT – Cover Off View Main Board Over All View Main Board Component View Transceiver Component View with Shielding Transceiver Component View without Shielding Transceiver Solder View EUT Component View without Shielding EUT Component View without Shielding, with Antenna Cable Antenna Connector View, Antenna Cable Inside (Reverse SMA) Antenna Connector View, EUT Side (Reverse SMA)

CONFIDENTIAL INFORMATION: Do Not Disclose Meru Networks Antenna SpecificationsConnector RPSMA Model Description Type Gain (dBi) Initial Test Omni directional "rubber duck" connected directly to the ATS. It has a 90deg articulation radius and is ~3 inches high Omni 2 Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht MCD2400PT Two omnidirectional antennas in a single housing for efficient spatial diversity installations. This antenna attaches to the ceiling and is a low profile. Omni 2.4-2.485 2.2 360 (Omni) 40 <1.5:1 50 -40 to +80 4.25x8.5x0.5 1 lb Azimuth Cut Elevation Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht Listed under C A Single omnidirectional antenna in a single housing. This antenna attaches to the ceiling and is a low profile. Omni 2.3-2.5 2.5 <1.35:1 50 -40 to +80 4.25x0.5 8 oz Elevation Cut Azimuth Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht CONFIDENTIAL INFORMATION: Do Not Disclose MCO24005PT Single omnidirectional antenna with a broad elevation plane radiation pattern that has been shaped to direct energy where it is needed, while suppressing the misdirected upper and lower sidelobe energy. The result is excellent coverage for a variety of indoor applications. Omni 2.4-2.485 5.5 360 32 <1.5:1 -30 to +75 9.8x1.0 8 oz Elevation Cut Azimuth Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht MHA2400PT This antenna is a vertically polarized, bi-directional indoor antenna designed to provide extended WLAN coverage with minimum visibility. This small antenna measures less than 0.5 inch thick by 3 inches wide by 2.5 inches tall and weighs 2.6 ounces. Bi-Directional 2.3-2.5 4 100 75 <1.5:1 10 -40 to +71 3x2.5x0.45 2.6 oz Eleavation Cut Azimuth Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht CONFIDENTIAL INFORMATION: Do Not Disclose MP24008XFP T The directional panel antennas provide efficient and stable performance across the band and can be mounted indoors or outdoors. Patch 2.3-2.5 8.5 60 60 <1.5:1 20 -40 to +80 5.1x4.7x1.5 .5 lbs Elevation Cut Azimuth Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht listed under N O The directional panel antennas provide efficient and stable performance across the band and can be mounted indoors or outdoors. Patch 2.3-2.5 12 35 35 <1.5:1 20 -40 to +80 8.8x8.1x1.6 1.2 lbs Elevation Cut Azimuth Cut Model Description Type Frequency Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Temp Range (degC) Dimensions (in) Weig ht CONFIDENTIAL INFORMATION: Do Not Disclose MP24013XFP T The directional panel antennas provide efficient and stable performance across the band and can be mounted indoors or outdoors. Patch 2.3-2.5 13 35 35 <1.5:1 20 -40 to +80 8.8x8.1x1.6 1.2 lbs Elevation Cut Azimuth Cut

CONFIDENTIAL INFORMATION: Do Not Disclose Outdoor Antenna SpecificationsModel Description Type Frequency (GHz) Gain (dBi) E-Plane beamwidth (deg) VSWR Max Power (W) Wind Survival Dimensions (in) Weight not tested A llows three (3) co-located ATS units per compact antenna Sector 2.4-2.5 14 16 per sector <1.5:1 50 125 mph 19.75x4.7x3 9 lbs while retaining the flexibility to individually adjust each sector from 5 ° Elevation Cut Azimuth Cut uptilt to 10° downtilt. The antenna provides typical port-to-port isolation o f 68 dB. Model Description Type Frequency (GHz) Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Wind Loading@100mph Dimensions ( in) Weight NO24015 The directional panel antennas are designed to cover frequencie s Directional 2.3-2.5 15 40 19 <1.5:1 >20W 39.8 lbs 7.3x13.8x1.5 1.2 lbs between 2300 and 2500 MHz with a VSWR of less than 1.5:1, obtainin g maximum gain with a small, low-profile package. These antennas provide Elevation Cut Azimuth Cut efficient and stable performance across the band and can be mounted in a wide variety of indoor or outdoor locations . Model Description Type Frequency (GHz) Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Sidelobe Wind Survival Dimensions (in) Weig ht not tested The parabolic reflector antennas utilize leadin g Parobolic 2.4-2.5 21 12.5 12.5 <1.5:1 -18 dB 110 mph 24" Diameter 8.5 lbs edge technology that suppresses sidelobe energy and directs it towards it s target area of coverage. The result is outstanding coverage with high gai n Elevation Cut Azimuth Cut and minimum interference. These antennas can be mounted for vertical o r horizontal polarization and feature a micro fine azimuth and elevatio n adjustment mechanism that provides a stronger, better focused signal. Thei r compact, yet rugged design provides greater mounting flexibility fo r locations where space is limited. CONFIDENTIAL INFORMATION: Do Not Disclose Model Description Type Frequency (GHz) Gain (dBi) Horizontal Beamwidth (deg) Vertical Beamwidth (deg) VSWR Max Power (W) Survival wind Dimensions (in) Wei ght MBF24008 The omnidirectional antenna s Omni 2.4-2.5 8 360 13 <1.5:1 10 -40 to +71 Height 20.2" 0.5 lbs are designed to provide maximum performance and reliability under th e toughest weather conditions. These antennas feature a U.V. stabl e Elevation Cut vented radome that provides ultimate protection against weathe r elements. These antennas can be mast, wall or ceiling mounted

Xertex Products Invisible Connectivity... In-Building Nearly every office space has ceiling tiles to which traditional in-building antennas are attached, and most create an undesirable, protruding focal point. Thus arises the challenge of how to hide them, while still getting the same, or better coverage. Centurion answered that challenge by concealing in-building antennas in ceiling tiles for invisible wireless deployment. ™ Antenna Panels are standard Armstrong World Industries ceiling panels with Centurion antennas embedded inside to create a clean, worr y free work environment. •™ Antenna Panels are produced through Centurion’s partnership with Armstrong World Industries • Patent-pending design embeds the latest antenna technology into standard Armstrong ceiling panels • Provides the most efficient and effective in-building coverage because the ceiling plane is the best location for omni-directional antennas • Specifically tuned and tested to perform in suspended panel ceilings • Deliver equal or superior performance to traditional antennas • Provides the capability for wireless connectivity to both voice and data • Compatible with all wireless voice and data standards, including IEEE 802.11b, and PCS Bluetooth, AMPS FEATURES & OPTIONS: ™ ANTENNA PANELS AntennasA www.centurion.com Telematics 802.11/Bluetooth In-Building Mobile Phones LMR Power Specifications subject to change without notice Copyright © 2001 Centurion Wireless Technologies, Inc. All Rights Reserved www.centurion.com 3425 N.44th St., LINCOLN, NE 68504 USA SALES PHONE 800.228.4563 • SALES FAX 800.826.3774 INTERNATIONAL PHONE 402.474.0706 • FAX 402.467.4528 In-Building AZIMUTH PLANE Cut perpendicular to the antenna andperpendicular to the polarization OMNI PLANE Cut in the ceiling plane from above ELEVATION PLANE Cut perpendicularto the antenna and parallel to the polarization TYPICAL SINGLE ELEMENT PATTERNS TYPICAL DUAL BAND PATTERNS All centurion products are designed for maximum efficiency and are customizable and scalable to meet your frequency and application requirements. SPECIFICATIONS: PATTERNS: ™ ANTENNA PANELS General specifications for In-Building i-ceilings Antenna Panels: ELEMENT TYPE Microstrip AVAILABLE FREQUENCIES 806-2500 MHz POLARIZATION Horizontal PEAK GAIN 3.0 dBi IMPEDANCE 50 ohms MAXIMUM IMPUT POWER 50 watts VSWR 1.5 - Total Field - H-pol

P/N Manufacturer M/N Gain Type 830-00004-0000 Nearson S181AH-2450S 2 dBi Omnidirectional Antenna 830-00005-0000 MaxRad MCD2400PT 2.2 dBi Ceiling Mount Omni Diversity 830-00007-0000 Centurion CAP2226 3.5 dBi Ceiling Tile Antenna 830-00008-0000 MaxRad MFB24008 8 dBi Omni 830-00009-0000 MaxRad MCO24005PT 5 dBi Omni 830-00010-0000 MaxRad MP24015 15 dBi Patch 830-00011-0000 MaxRad MHA2400P Hallway Antenna 830-00012-0000 MaxRad MP24008XFP 8 dBi Patch 830-00014-0000 MaxRad MP24013XFP 13 dBi Patch

11 - RF EXPOSURE According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) (A) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f 2 )30 30-30027.50.0730.230 300-1500//f/150030 1500-100,000//1.030 (B) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f 2 )6 30-30061.40.1631.06 300-1500//f/3006 1500-100,000//56 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Indoor Antenna: Meru Networks FCC ID: RE7-AP100 Maximum peak output power at antenna input terminal: 23.73 (dBm) Maximum peak output power at antenna input terminal: 236 (mW) Prediction distance: 20 (cm) Predication frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Antenna Gain (typical): 3 (dBi) Maximum antenna gain: 2.0 (numeric) Power density at predication frequency at 100 cm: 0.09mW/cm 2 ) Outdoor Antenna: Maximum peak output power at antenna input terminal: 23.73 (dBm) Maximum peak output power at antenna input terminal: 236 (mW) Prediction distance: 120 (cm) Predication frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Antenna Gain (typical): 15 (dBi) Maximum antenna gain: 31.6 (numeric) Power density at predication frequency at 120 cm: 0.05mW/cm 2 ) Test Result The EUT is defined to be a mobile device. Predicted power density level at 20cm is 0.09mW/cm^2 which is below the limit of 1 mW/cm^2. Predicted power density level at 120cm is 0.05mW/cm^2 which is below the limit of 1 mW/cm^2.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For Meru Networks 1309 S Mary, Suite 220 Sunnyvale, CA 94087 FCC ID: RE7-AP100 2003-08-21 This Report Concerns: Original Report Equipment Type: 802.11b Access Point Test Engineer:Ling Zhang Report No.:R0308071 Test Date:2003-08-11 Reviewed By:Hans Mellberg Prepared By:Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Meru Networks FCC ID: RE7-AP100 Report # R0308071RptPage 2 of 39 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................4 1.1PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 1.2 OBJECTIVE................................................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................................4 1.5 TEST FACILITY.........................................................................................................................................................................5 1.6 TEST EQUIPMENT LIST............................................................................................................................................................5 1.7 HOST SYSTEM CONFIGURATION LIST AND DETAILS..........................................................................................................6 1.8 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................6 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................7 2.1 JUSTIFICATION.........................................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................................7 2.3 SPECIAL ACCESSORIES............................................................................................................................................................7 2.4 SCHEMATICS / BLOCK DIAGRAM..........................................................................................................................................7 2.5 EQUIPMENT MODIFICATIONS........................................................................................................................................…

Text truncated - open the document above for the full version.
