RE7-AP1010SINGLE RADIO ACCESS POINT AP1000

Meru Networks Inc.
SINGLE RADIO ACCESS POINT AP1000 - FCC ID RE7-AP1010 - Meru Networks Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 30, 2010
Application Purpose
Original Equipment
Date of Application
Sep 29, 2010
Equipment Note
SINGLE RADIO ACCESS POINT AP1000
Frequency Range
5755.00000000 - 5795.00000000
Company
Meru Networks Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AP1000 Beta Test Meru Access Point Installation Guide Copyright © Meru Networks, Inc., 2003–2010. All rights reserved. Other names and brands may be claimed as the property of others. August 2010 Document Number: 882-70037 Rev A Rel 4.0 Ver 20 Access Point Installation Guide AP1000 © 2010 Meru Networks, Inc.Access Points5 AP1000 Beta Test AP1000 The AP1000 Access Point is an internal-antenna AP with either one or two dual-band 802.11n radios, 2x2 MIMO and internal antennas. Features for the AP1000 include: zInternal antennas z802.11n suppport with channel bonding in both 2.4GHz and 5GHz frequency bands. Channel bonding combines two 20MHz channels into a single 40 MHz channel for increased throughput. zPlug and Play deployment using centralized controller platforms zMulti-layered security including standard WPA2 features such as automatic traffic inspection zStandard 802.3af PoE support and support for many 802.at services zAir Traffic Control technology for 802.11n devices and legacy a/b/g devices zChannel span architecture that requires no channel planning or configuration Figure 4: AP1000 ModelConfiguration AP1010i One dual-band 802.11n radio with 2x2 MIMO and internal antennas AP1020i Two dual-band 802.11n radios with 2x2 MIMO and internal antennas  1 Safety Precautions © 2010 Meru Networks, Inc.Installing AP1000 55 AP1000 Beta Test Chapter 4 Installing AP1000 AP1000 is supported by System Director versions 4.1 and greater. This chapter describes how to install and configure an AP1000. It contains the following sections: zSafety Precautions zBest Practices for a Mixed Network zUnpack the AP1000 zPower Requirements zAdditional Equipment zInstalling AP1000 zRestoring AP1000 Settings zCheck AP1000 LEDs zWhere to Go From Here Safety Precautions IMPORTANT—Read and follow the regulatory instructions in Appendix B before installing and operating this product. The AP1000 is only intended for installation in Environment A as defined in IEEE 802.3af. All intercon- nected equipment must be contained within the same building, including the interconnected equip- ment's associated LAN connection. 2 56Meru Access Point Installation Guide© 2010 Meru Networks, Inc. Best Practices for a Mixed Network AP1000 Beta Test Best Practices for a Mixed Network Read this section if you have both AP1000 and AP300 active simultaneously on the same network. The following best practices should be followed to get optimal performance from such a mixed network. zAP320i and AP300 are interchangeable and fully compatible to share a virtual cell. It's like having two AP300s with different antennas. The only difference is that AP320i is detected as a such in the UI of the controller. zIf possible, do not deploy AP1000 and AP300 at the same physical location; we recommend that there be no overlapping coverage between AP1000 and AP300. zIf AP1000 and AP300 do have overlapping coverage, you have two options. Deploy them on separate channels or make sure the ESS profiles on both AP types are unique. The chart below shows two ESS scenarios, one supported, one not supported. Assumptions for the above best practices include: zAP1000 is using Virtual Port with BSSID Virtual Cell. zAP320i is using Virtual Port with BSSID Virtual Cell. zAP1000s and AP300s are on the same channel. (AP1000 and AP320i could also be on different channels.) zAP1000s and AP320i is are on the same controller. (AP1000 and AP320i could also be on different controllers as long as each controller has a unique controller index.) Supported ESS ScenarioAP1000 ConfigurationAP300 Configuration Two Unique ESS profiles ESS Profile name in controller is UniqueName1 ESS Profile name in controller is UniqueName2 AP1000 and AP320i SSID string over the air MeruMeru Unsupported ESS ScenarioAP1000 ConfigurationAP300 Configuration Same ESS profiles ESS Profile name in controller is same name ESS Profile name in controller is same name AP1000 and AP320i SSID string over the air MeruMeru 3 Unpack the AP1000 © 2010 Meru Networks, Inc.Installing AP1000 57 AP1000 Beta Test Unpack the AP1000 AP1000 series beta test uses both the dual radio (AP1020) and single radio (AP1010) models. Confirm that the shipping box contains the following: zAP1000 with built-in ceiling mount clips. Each radio has two built-in antennas, so AP1010 has two built-in antennas and AP1020 has four built-in antennas. zLocking tool for ceiling mount locking. You can see a drawing of this in Figure 31. Power Requirements Radios on an AP1000 use 2x2 MIMO configuration. To power an AP1000, use either an 802.3af or 802.3at PoE cable; either one works automatically with no configuration required. For a list of supported PoEs, see the appendix Supported Power Over Ethernet Devices for Meru APs Additional Equipment The following AP1000 mounting options require the listed additional equipment: . Note:If you want to lock AP1000 to the wall, you need the optional kit 840-00052 ACC-MNT-AP1000-01. Installation TypeAdditional Equipment Ceiling mounting on a suspended ceiling with or without locking zEither an 802.3af or 802.3at PoE cable Wall mounting zEither an 802.3af or 802.3at PoE cable zWall mount screws – Recommend #6, #8 (M3, M3.5) 4 58Meru Access Point Installation Guide© 2010 Meru Networks, Inc. Installing AP1000 AP1000 Beta Test Installing AP1000 Select a Location All AP1000 interconnected equipment must be contained within the same building, including the inter- connected equipment's associated LAN connection. Ceiling mounting is recommended but wall mounting is also supported. In addition, the AP1000 should be mounted in a location that meets the following conditions: zRelatively unobstructed access to the clients the AP serves. Select a location with minimal physical obstructions between the AP and the wireless clients. We recommend planning for about 20 data clients per radio (or per interference region) if you plan to use Virtual Port. This is the recommendation for a data-only installation. Refer to the…

Text truncated - open the document above for the full version.

External Photos

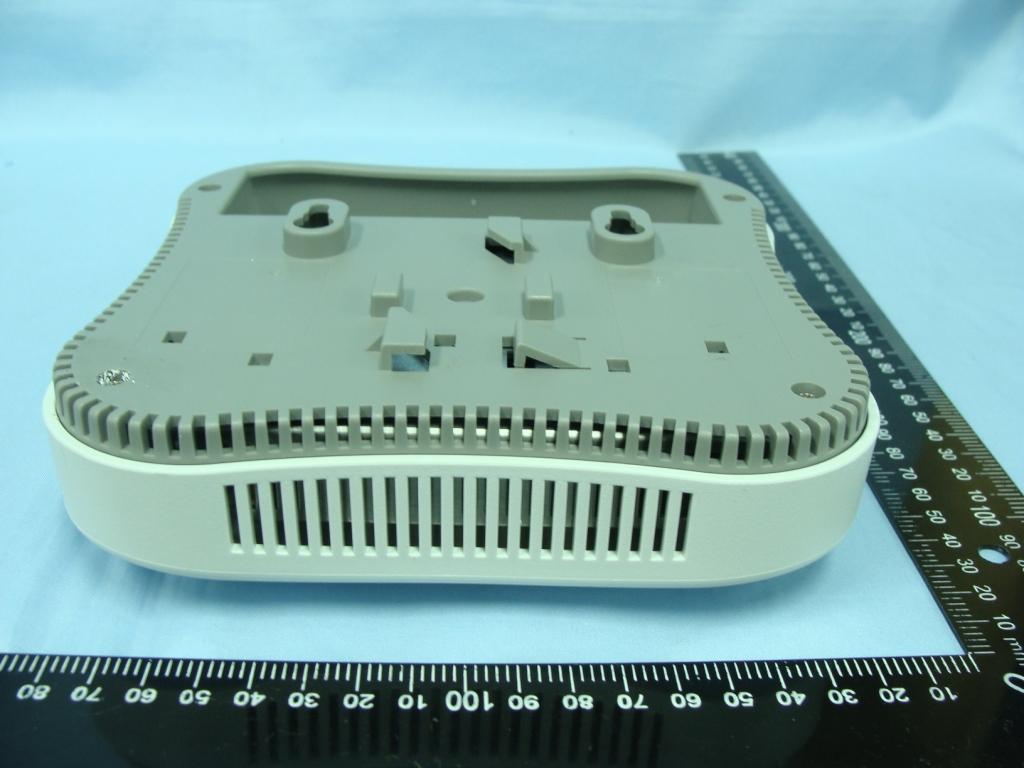

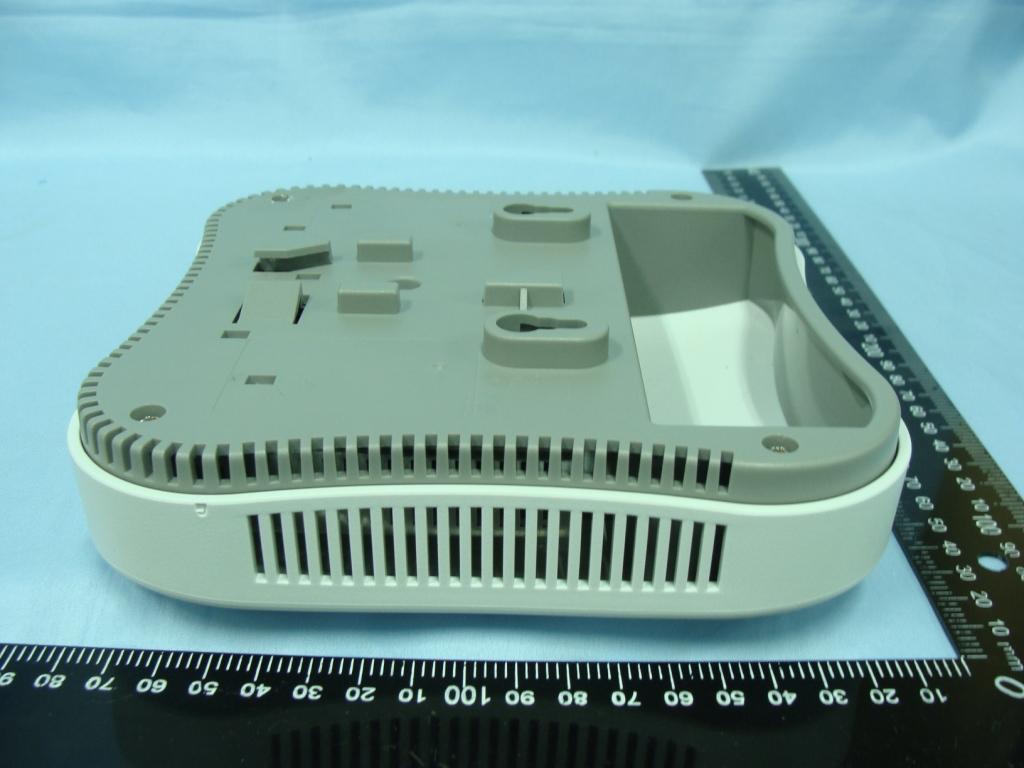

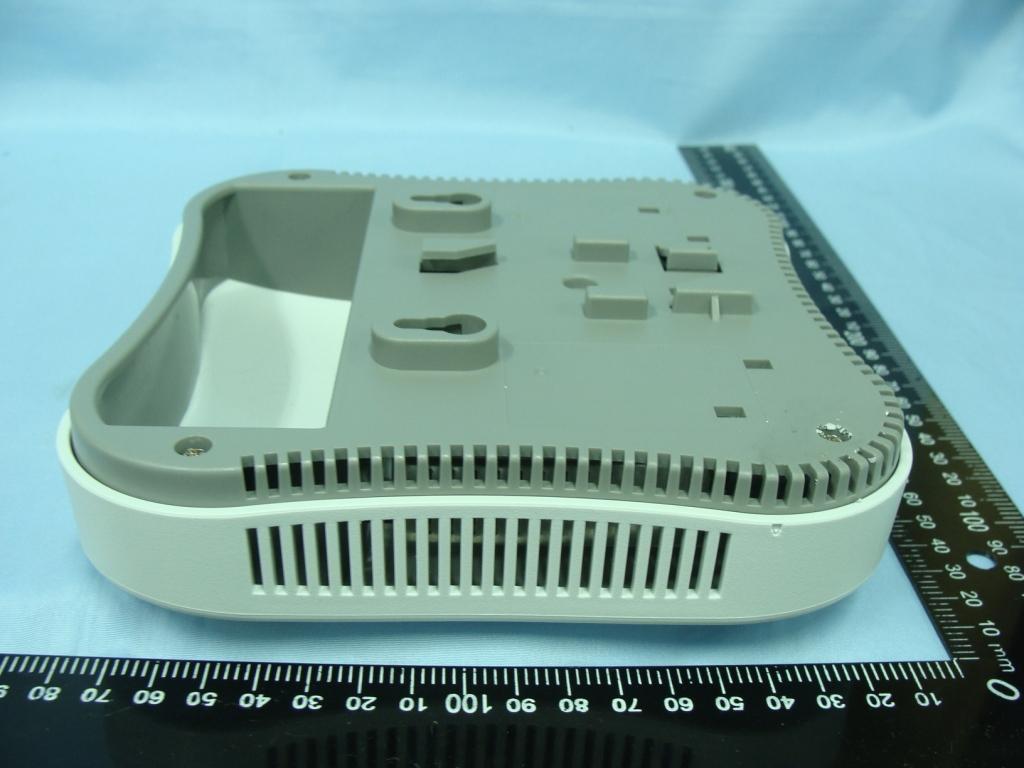

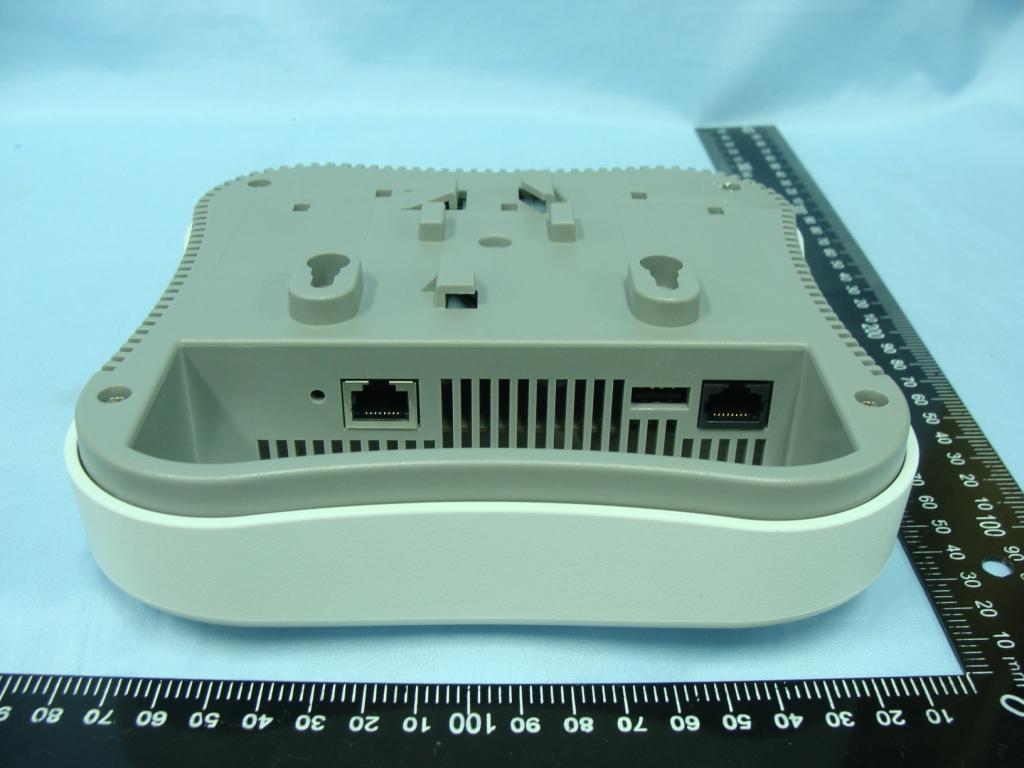

Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 1 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 1. External Photograph of EUT Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 2 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 3 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 4 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 5 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 Photographs of EUT Report No.: EP082617-01 Brand Name: Meru Networks Inc. / Model Name: AP1010i SPORTON INTERNATIONAL INC. Page Number : 6 of 20 TEL : 886-3-327-3456 Report Issued Date : Sep. 29, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RE7-AP1010 IC : 6749A-AP1010 720510
