RE7-AP1014Single Radio Access Point AP1014

Meru AP1014i Installation Guide Copyright © Meru Networks, Inc., 2003–2012. All rights reserved. Other names and brands may be claimed as the property of others. March 2012 Document Number: 882-70015 Rev A Ver 4 AP1014i Installation Guide iii MERU NETWORKS, INC. Limited Product Warranty This Limited Product Warranty applies to the original end-user customer of the Meru product which you purchased for your own use, and not for resale (“Product”), from Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”). Limited Warranties —One-year limited hardware warranty: Meru warrants to you that Meru hardware (other than Third Party Products as described below) will be free from defects in materials and workmanship for a one-year period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Hardware Warranty Period”). If Meru receives written notice from you of such defects during the Hardware Warranty Period, Meru will, at its option, either repair or replace Meru hardware that Meru determines to be defective. Replacement products may be remanufactured units, and will be warranted for the remainder of the original Hardware Warranty Period, or if greater, for thirty days from delivery of such replacement. Should Meru be unable to repair or replace the Meru hardware, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. —90-Day Limited Software Warranty: Meru warrants to you that, for a 90- day period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Software Warranty Period”), when properly installed and used, (a) the media on which the Meru software is provided will be free from defects in materials or workmanship; and (b) the Meru software will substantially conform to the functional specifications in the applicable documentation. If Meru receives written notice from you of a breach of this warranty during the Software Warranty Period and is able to reproduce the defect, Meru will, at its option, either repair or replace the defective Meru software. Should Meru be unable to repair or replace the Meru software, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. Exclusions The warranty on the Product shall not apply to defects resulting from the following: ivMeru Access Point Installation Guide — Alteration or modification of the Product in any way, including without limitation configuration with software or components other than those supplied by Meru or integration with parts other than those supplied by Meru. —Abuse, damage or otherwise being subjected to problems caused by negligence or misapplication (including without limitation improper or inadequate maintenance or calibration), relocation of the products (including without limitation damage caused by use of other than Meru shipping containers), or use of the products other than as specified in the applicable Meru product documentation (including without limitation incompatible operating environments and systems), or improper site preparation or maintenance. —Damage as a result of accidents, extreme power surge, extreme electromagnetic field, acts of nature or other causes beyond the control of Meru. —Use of the Product with software, interfacing, parts or supplies not supplied by Meru. The warranty on the Product does not apply if the Product is sold, or in the case of software, licensed, for free for evaluation or demonstration purposes. Meru expressly disclaims any warranty or obligation to support the Product for all operating environments – for example, as illustration and not limitation, Meru does not warrant or ensure interoperability of the Product with future telecommunica- tion systems or other future software or hardware. You understand and acknowledge that the Products may generate, use or radiate radio frequency energy and may interfere with radio communications and/or radio and television receptions if is not used and/or installed in accordance with the documentation for such products. WHILE MERU USES COMMERCIALLY REASONABLE EFFORTS TO ENSURE COMPLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL INTERFERENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH RADIO COMMUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED ON SUCH INTERFERENCES. Third Party Products - The above Limited Warranties are exclusive of products manufactured by third parties (“Third Party Products”). If such third party manu- facturer provides a separate warranty with respect to the Third Party Product, Meru will include such warranty in the packaging of the Meru Product. Return procedures To obtain warranty service you must: (a) obtain a return materials authorization number (“RMA#”) from Meru by contacting [email protected], and (b) deliver the Product, in accordance with the instructions provided by Meru, along with proof of purchase in the form of a copy of the bill of sale including the Product’s serial number, contact information, RMA# and detailed description of the defect, in either its original package or packaging providing the Product with a v degree of protection equivalent to that of the original packaging, to Meru at the address below. You agree to obtain adequate insurance to cover loss or damage to the Product during shipment. If you obtain an RMA# and return the defective Product as described above, Meru will pay the cost of returning the Product to Meru. Otherwise, you agree to bear such cost, and prior to receipt by Meru, you assume risk of any loss or damage to the Product. Meru is responsible for the cost of return shipment to you if the Meru Product is defective. Returned products which are found by Meru to be not defective, returned out-of- warranty or otherwise ineligible for warranty service will be repaired o…

Text truncated - open the document above for the full version.

Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Date：May 10, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Meru Networks, Inc. hereby authorize Compliance Certification Services Inc./ Jason Lin to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2012/10/18 Your Sincerely, Name/Title: JungChi LIao/ Engineering Architect Company Name: Meru Networks Inc. Address: 894 Ross Drive, Sunnyvale, California 94089, United States TEL: 1-408-916-1469 FAX: 1-408-215-5301 Email:[email protected].

Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Date：May 23, 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: RE7-AP1014 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Meru Networks Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: JungChi LIao/ Engineering Architect Company Name: Meru Networks Inc. Address: 894 Ross Drive, Sunnyvale, California 94089, United States TEL: 1-408-916-1469 FAX: 1-408-215-5301 Email:[email protected].

Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Date：May 25, 2012 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: RE7-AP1014, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Meru/ AP1014xxxxxx(x= 0~9, a~z, Blank or any Characte r) FCC ID: RE7-AP1014 Product Name : Single Radio Access Point AP1014 Regards, Your Sincerely, Name/Title: JungChi LIao/ Engineering Architect Company Name: Meru Networks Inc. Address: 894 Ross Drive, Sunnyvale, California 94089, United States TEL: 1-408-916-1469 FAX: 1-408-215-5301 Email:[email protected].

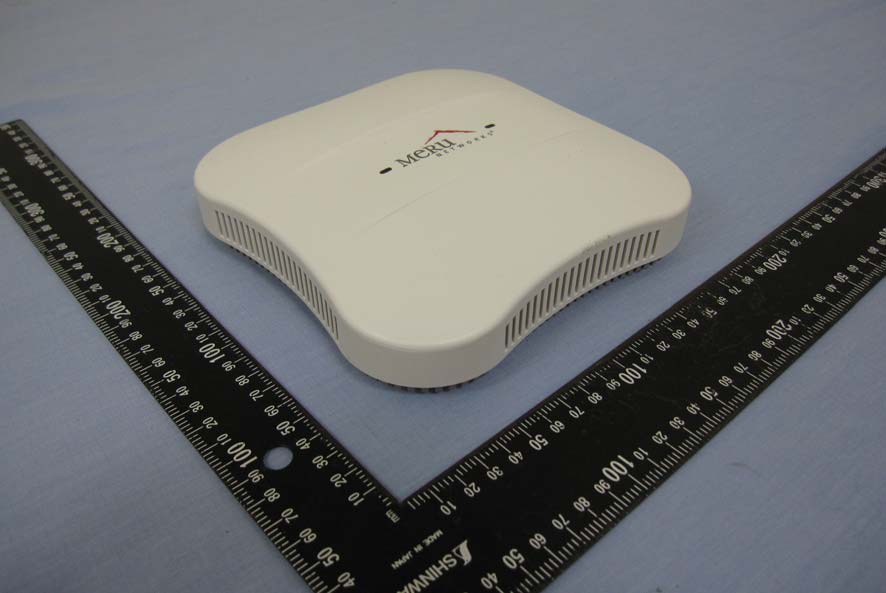

Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 1 / 9 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 2 / 9 Rev. 00

Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T120412D02 Date of Issue: May 10, 2012 A1 - 9 Rev. 00

Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 122 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. According to RSS-Gen §5.5, before equipment certification is granted, the applicable requirements of RSS-102 shall be met. EUT Specification EUT Single Radio Access Point AP1014 Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 19.91 dBm (97.9490 mW) IEEE 802.11g mode: 22.11 dBm (162.5549 mW) IEEE 802.11n HT 20 MHz mode: 21.95 dBm (156.6751 mW) IEEE 802.11n HT 40 MHz mode: 22.01 dBm (158.8547 mW) Antenna gain (Max) 1. Part No: 260-23292: 2.61 dBi (Numeric gain: 1.82) 2. Part No: 260-23293: 3.49 dBi (Numeric gain: 2.23) Antenna Calculation for MIMO Mode: Total ANT=10*LOG(((10^(2.61/20)+10^(3.49/20))^2)/2)=6.07dBi (Numeric gain: 4.05) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 19.91dBm (97.9490mW) at 2442MHz (with 2.23 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 123 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 124 IEEE 802.11b mode: EUT output power = 97.9490mW Numeric Antenna gain = 2.23 Æ Power density = 0.04347 mW / cm2 IEEE 802.11g mode: EUT output power = 162.5549 mW Numeric Antenna gain = 2.23 Æ Power density = 0.072137 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power =156.6751 mW Numeric Antenna gain = 4.05 Æ Power density = 0.12627mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 158.8547 mW Numeric Antenna gain = 4.05 Æ Power density = 0.12803 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 127 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For Single Radio Access Point AP1014 For FCC Model: AP1014xxxxxx(x= 0~9, a~z, Blank or any Character) For IC Model: AP1014i Trade Name: Meru Issued to Meru Networks, Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 15, 2012 Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 15, 2012 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 LABORATORY ACCREDITATIONS AND LISTING................................................................................11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. APPLICABLE RULES FOR INDUSTRY CANADA RSS-210 .....................................................14 8. FCC PART 15.247 REQUIREMENTS & RSS-210 REQUIREMENTS ....................................23 8.1 99% BANDWIDTH............................................................................................................................23 8.2 6DB BANDWIDTH.............................................................................................................................34 8.3 PEAK POWER....................................................................................................................................45 8.4 BAND EDGES MEASUREMENT ................................................................................................56 8.5 PEAK POWER SPECTRAL DENSITY....................................................................................................80 8.6 SPURIOUS EMISSIONS.................................................................................................................91 8.7 RADIATED EMISSIONS ............................................................................................................101 8.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................119 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................122 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................125 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 4 1. TEST RESULT CERTIFICATION Applicant: Meru Networks, Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Manufacturer: Meru Networks, Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Equipment Under Test: Single Radio Access Point AP1014 Tr a d e N a m e : Meru For FCC Model: AP1014xxxxxx(x= 0~9, a~z, Blank or any Character) For IC Model: AP1014i Date of Test: April 17 ~ May 4, 2012 APPLIC…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 125 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 126 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: RE7-AP1014 IC: 6749A-AP1014 Report No.: T120412D02-RP Page 127 Powerline Conducted Emissions Setup Photos
