RE7-AP110SINGLE RADIO ACCESS POINT AP110

AP110 Series Installation Guide Copyright © Meru Networks, Inc., 2003–2011. All rights reserved. Other names and brands may be claimed as the property of others. December 2011 Document Number: 882-70015 Rev A Ver 1 AP110 Installation Guide iii MERU NETWORKS, INC. Limited Product Warranty This Limited Product Warranty applies to the original end-user customer of the Meru product which you purchased for your own use, and not for resale (“Product”), from Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”). Limited Warranties —One-year limited hardware warranty: Meru warrants to you that Meru hardware (other than Third Party Products as described below) will be free from defects in materials and workmanship for a one-year period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Hardware Warranty Period”). If Meru receives written notice from you of such defects during the Hardware Warranty Period, Meru will, at its option, either repair or replace Meru hardware that Meru determines to be defective. Replacement products may be remanufactured units, and will be warranted for the remainder of the original Hardware Warranty Period, or if greater, for thirty days from delivery of such replacement. Should Meru be unable to repair or replace the Meru hardware, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. —90-Day Limited Software Warranty: Meru warrants to you that, for a 90- day period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Software Warranty Period”), when properly installed and used, (a) the media on which the Meru software is provided will be free from defects in materials or workmanship; and (b) the Meru software will substantially conform to the functional specifications in the applicable documentation. If Meru receives written notice from you of a breach of this warranty during the Software Warranty Period and is able to reproduce the defect, Meru will, at its option, either repair or replace the defective Meru software. Should Meru be unable to repair or replace the Meru software, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. Exclusions The warranty on the Product shall not apply to defects resulting from the following: ivMeru Access Point Installation Guide — Alteration or modification of the Product in any way, including without limitation configuration with software or components other than those supplied by Meru or integration with parts other than those supplied by Meru. —Abuse, damage or otherwise being subjected to problems caused by negligence or misapplication (including without limitation improper or inadequate maintenance or calibration), relocation of the products (including without limitation damage caused by use of other than Meru shipping containers), or use of the products other than as specified in the applicable Meru product documentation (including without limitation incompatible operating environments and systems), or improper site preparation or maintenance. —Damage as a result of accidents, extreme power surge, extreme electromagnetic field, acts of nature or other causes beyond the control of Meru. —Use of the Product with software, interfacing, parts or supplies not supplied by Meru. The warranty on the Product does not apply if the Product is sold, or in the case of software, licensed, for free for evaluation or demonstration purposes. Meru expressly disclaims any warranty or obligation to support the Product for all operating environments – for example, as illustration and not limitation, Meru does not warrant or ensure interoperability of the Product with future telecommunica- tion systems or other future software or hardware. You understand and acknowledge that the Products may generate, use or radiate radio frequency energy and may interfere with radio communications and/or radio and television receptions if is not used and/or installed in accordance with the documentation for such products. WHILE MERU USES COMMERCIALLY REASONABLE EFFORTS TO ENSURE COMPLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL INTERFERENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH RADIO COMMUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED ON SUCH INTERFERENCES. Third Party Products - The above Limited Warranties are exclusive of products manufactured by third parties (“Third Party Products”). If such third party manu- facturer provides a separate warranty with respect to the Third Party Product, Meru will include such warranty in the packaging of the Meru Product. Return procedures To obtain warranty service you must: (a) obtain a return materials authorization number (“RMA#”) from Meru by contacting [email protected], and (b) deliver the Product, in accordance with the instructions provided by Meru, along with proof of purchase in the form of a copy of the bill of sale including the Product’s serial number, contact information, RMA# and detailed description of the defect, in either its original package or packaging providing the Product with a v degree of protection equivalent to that of the original packaging, to Meru at the address below. You agree to obtain adequate insurance to cover loss or damage to the Product during shipment. If you obtain an RMA# and return the defective Product as described above, Meru will pay the cost of returning the Product to Meru. Otherwise, you agree to bear such cost, and prior to receipt by Meru, you assume risk of any loss or damage to the Product. Meru is responsible for the cost of return shipment to you if the Meru Product is defective. Returned products which are found by Meru to be not defective, returned out-of- warranty or otherwise ineligible for warranty service will be repaired …

Text truncated - open the document above for the full version.

Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: December 27, 2011 SUBJECT: FCC Application for FCC ID: RE7-AP110 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards,

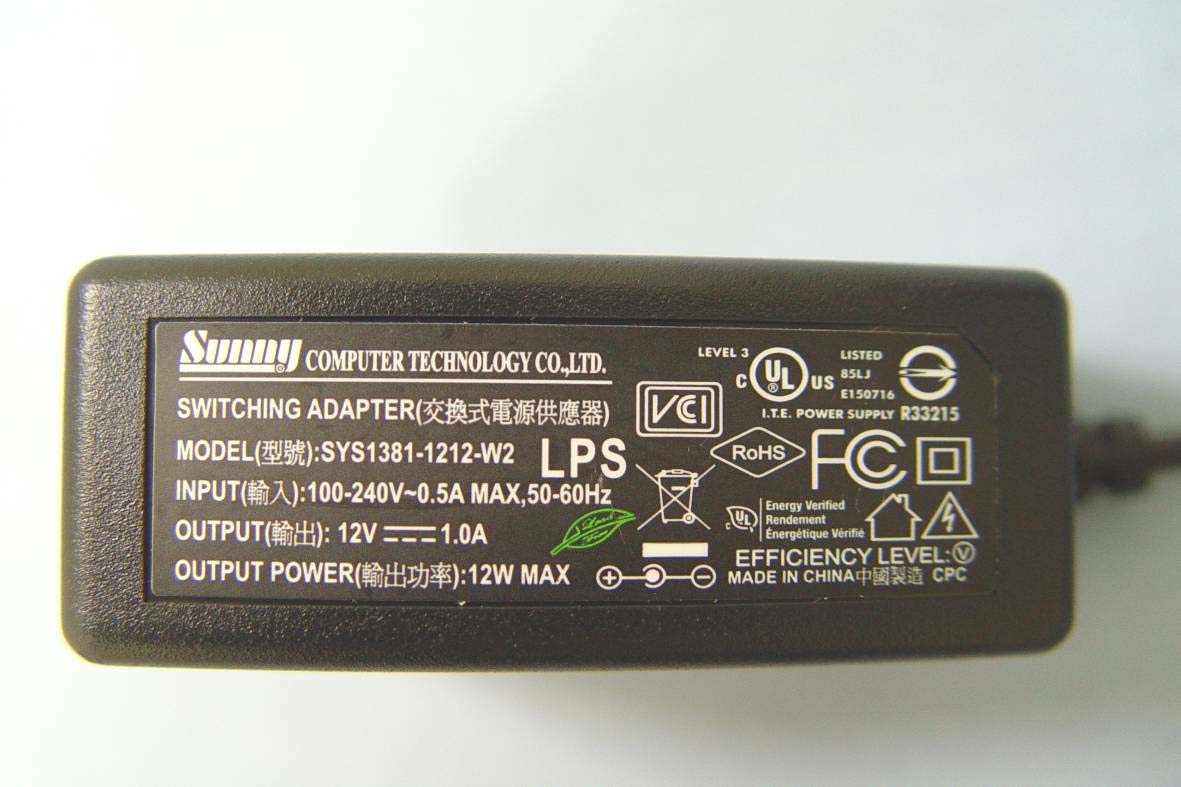

Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 1 Total Page: 12 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 2 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 3 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 4

Label Sample & Location

Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 5 INTERNAL PHOTOGRAPHS OF EUT PIFA Antenna Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 6 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 7 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 8 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 9 WLAN Module Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 10 PIFA Antenna Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 11 Compliance Certification Services Inc. Report No.: T111108201 Date of Issue: November 17, 2011 A1 - 12 PIFA Antenna

WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) DONGGUAN AEON TECH CO.,LTD.(CHINA) SUZHOU AEON TECH CO.,LTD.(CHINA) SPECIFICATION FOR APPROVAL MANUFACTURERCUSTOMER SIGNATURESIGNATURE WHA YU GROUP WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) Address: No. 326,Sec. 2,Kun g Tao 5 Road, Hsin Chu City, Taiwan, R.O.C. Address:Hu pan Industrial District,Tai Ling Shan Town,Dong Guan City,Guangdong,China SUZHOU AEON TECH CO. ,LTD(CHINA) Address:Limin North Road, LiLi Town,LiLi Industrial Park,LinHu Economic Zone Wu jiang City,Jiangsu Province,China Tel:+86-512-63627980 Fax:+86-512-63627981 AEON TECH (SHANGHAI) CO.,LTD(CHINA) 易 ( ) Address:Flat 501,5F,Build 27, NO.68,Gui qing Road, Huhui District, Shanghai,China DONGGUAN PARNER TECH CO. ,LTD.(CHINA) Address:Hu pan Industrial District, Shida Road, Tai Ling Shan Town, Don g Guan City, Guangdong, China PART NAME: RF PIFA Antenna Assembly AEON TECH (SHANGHAI) CO.,LTD(CHINA) DATE : DONGGUAN PARNER TECH CO.,LTD.(CHINA) APPROVED BY : W. Y. P/NO.: C147-510815-A(SSR-12847) REV.: X2 PART NO.: REVISION: CUSTOMER: 磊 Tel:+86-21-64959151 Fax:+86-21-64959059 Tel:+86-769-81662366 Fax:+86-769-81602681 Tel:+86-769-85655858 Fax:+86-769-85655258 Tel:+886-3-5714225(REP.) Fax:+ 886-3-5713853+ 886-3-5723600 DONGGUAN AEON TECH CO. ,LTD.(CHINA) Item Page 1.1 2.2 3.3~5 Contents Description .................................... .................................... ..................... ............... Specification 1. Electrical Properties (With Housing) 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation .....................Omni-directional 1.6 Peak Gain.................. ... 1.7 Cable Loss.....................0.12dB Max. 1.8 Polarization............... ...Linear 1.9 Admitted Powe r......... ... 1.10 Cable........................ ...Φ1.13Coaxial Cable；Gray 1.11 Connector.................. ...MHF Plug 2. Physical Properties : 2.1 Operating Temp. ............-10°C ~ +60°C 2.2 Storage Temp. ............ ...-10°C ~ +70°C RF PIFA Antenna Assembly 1W . 2.4 ~2.5GHz 50Ω Nominal 1.92：1 Max. -10 dB Max. 0.59dBi @2.4 ~2.5GHz 1 2 2007/08/13 RF Antenna Assembly P/NO : C147-510815-A(SSR-12847) SPEC : 2.4~2.5 GHz With housing Isolation Test Results SPEC : 2.4~2.5 GHz With housing 3 C147-510815-A(SSR-12847) X-Z plane(Phi=0) C147-510815-A(SSR-12847) Y-Z plane(Phi=90) 4 C147-510815-A(SSR-12847) X-Y plane(theta=90) 5

WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) DONGGUAN AEON TECH CO.,LTD.(CHINA) SUZHOU AEON TECH CO.,LTD.(CHINA) SPECIFICATION FOR APPROVAL MANUFACTURERCUSTOMER SIGNATURESIGNATURE WHA YU GROUP WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) Address: No. 326,Sec. 2,Kun g Tao 5 Road, Hsin Chu City, Taiwan, R.O.C. Address:Hu pan Industrial District,Tai Ling Shan Town,Dong Guan City,Guangdong,China SUZHOU AEON TECH CO. ,LTD(CHINA) Address:Limin North Road, LiLi Town,LiLi Industrial Park,LinHu Economic Zone Wu jiang City,Jiangsu Province,China Tel:+86-512-63627980 Fax:+86-512-63627981 AEON TECH (SHANGHAI) CO.,LTD(CHINA) 易 ( ) Address:Flat 501,5F,Build 27, NO.68,Gui qing Road, Huhui District, Shanghai,China DONGGUAN PARNER TECH CO. ,LTD.(CHINA) Address:Hu pan Industrial District, Shida Road, Tai Ling Shan Town, Don g Guan City, Guangdong, China PART NAME: RF PIFA Antenna Assembly AEON TECH (SHANGHAI) CO.,LTD(CHINA) DATE : DONGGUAN PARNER TECH CO.,LTD.(CHINA) APPROVED BY : W. Y. P/NO.: C147-510803-A(SSR-12846) REV.: X2 PART NO.: REVISION: CUSTOMER: 磊 Tel:+86-21-64959151 Fax:+86-21-64959059 Tel:+86-769-81662366 Fax:+86-769-81602681 Tel:+86-769-85655858 Fax:+86-769-85655258 Tel:+886-3-5714225(REP.) Fax:+ 886-3-5713853+ 886-3-5723600 DONGGUAN AEON TECH CO. ,LTD.(CHINA) Item Page 1.1 2.2 3.3~5 Contents Description .................................... .................................... ..................... ............... Specification 1. Electrical Properties (With Housing) 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation .....................Omni-directional 1.6 Peak Gain.................. ... 1.7 Cable Loss.....................0.16dB Max. 1.8 Polarization............... ...Linear 1.9 Admitted Powe r......... ... 1.10 Cable........................ ...Φ1.13Coaxial Cable；Gray 1.11 Connector.................. ...MHF Plug 2. Physical Properties : 2.1 Operating Temp. ............-10°C ~ +60°C 2.2 Storage Temp. ............ ...-10°C ~ +70°C RF PIFA Antenna Assembly 1W . 2.4 ~2.5GHz 50Ω Nominal 1.92：1 Max. -10 dB Max. 3.12 dBi @2.4 ~2.5GHz 1 2 2007/08/13 RF Antenna Assembly P/NO : C147-510803-A(SSR-12846) SPEC : 2.4~2.5 GHz With housing Isolation Test Results SPEC : 2.4~2.5 GHz With housing 3 C147-510803-A(SSR-12846) X-Z plane(Phi=0) C147-510803-A(SSR-12846) Y-Z plane(Phi=90) 4 C147-510803-A(SSR-12846) X-Y plane(theta=90) 5

Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 133 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Single Radio Access Point AP110 Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 20.79 dBm (119.94 mW) IEEE 802.11g mode: 23.64 dBm (231.20 mW) IEEE 802.11n HT 20 MHz mode: 22.85 dBm (192.75 mW) IEEE 802.11n HT 40 MHz mode: 24.82 dBm (303.38 mW) Antenna gain (Max) 3.12 dBi (Numeric gain: 2.05) MIMO: 10*LOG(((10^(3.12/20)+10^(0.59/20))^2)/2) = 4.96dBi (Numeric gain: 3.13) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 24.82 dBm (303.38mW) at 2422MHz (with 3.13 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 134 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 135 IEEE 802.11b mode: EUT output power = 119.94 mW Numeric Antenna gain = 2.05 Æ Power density = 0.0489 mW / cm2 IEEE 802.11g mode: EUT output power = 231.20 mW Numeric Antenna gain = 2.05 Æ Power density = 0.0943 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 192.75 mW Numeric Antenna gain = 3.13 Æ Power density = 0.1200 mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 303.38 mW Numeric Antenna gain = 3.13 Æ Power density = 0.1889 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 138 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For Single Radio Access Point AP110 Model: AP110 Series Trade Name: Meru Issued to Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: November 16, 2011 Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 16, 2011 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................... 4 2. EUT DESCRIPTION .......................................................................................................................... 5 3. TEST METHODOLOGY ................................................................................................................... 6 3.1 EUT CONFIGURATION....................................................................................................................... 6 3.2 EUT EXERCISE................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES............................................................................................................ 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................ 7 3.5 DESCRIPTION OF TEST MODES.......................................................................................................... 8 4. INSTRUMENT CALIBRATION....................................................................................................... 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................ 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................ 10 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 11 5.1 FACILITIES ...................................................................................................................................... 11 5.2 EQUIPMENT..................................................................................................................................... 11 5.3 LABORATORY ACCREDITATIONS AND LISTING............................................................................... 11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT...................................................................................................... 13 6.2 SUPPORT EQUIPMENT .............................................................................................................. 13 7. APPLICABLE RULES FOR INDUSTRY CANADA RSS-210 .................................................... 14 8. FCC PART 15.247 REQUIREMENTS & RSS-210 REQUIREMENTS ................................... 23 8.1 99% BANDWIDTH........................................................................................................................... 23 8.2 6DB BANDWIDTH............................................................................................................................ 34 8.3 PEAK POWER................................................................................................................................... 54 8.4 BAND EDGES MEASUREMENT ............................................................................................... 56 8.5 PEAK POWER SPECTRAL DENSITY................................................................................................... 73 8.6 SPURIOUS EMISSIONS................................................................................................................ 93 8.7 RADIATED EMISSIONS ........................................................................................................... 112 8.8 POWERLINE CONDUCTED EMISSIONS............................................................................................ 130 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................ 133 APPENDIX II PHOTOGRAPHS OF TEST SETUP .......................................................................... 136 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: RE7-AP110 IC: 6749A-AP110 Report No.: T111108201 Page 4 1. TEST RESULT CERTIFICATION Applicant: Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Manufacturer: Meru Networks Inc. 894 Ross Drive, Sunnyvale, California 94089, United States Equipment Under Test: Single Radio Access Point AP110 Tr a d e N a m e : Meru Model: AP110 Series Date of Test: November 9 ~ 15, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C & Industry Canada RSS-210 Issue 8 December, 2010 No non-compliance noted We hereby ce…

Text truncated - open the document above for the full version.
