RE7-AP200802.11 a/b/g Wireless Access Point

Meru Access Point Installation Guide Document Number: 880-00011-0006 ii: Revision History Copyright © Meru Networks, Inc., 2003–2004. All rights reserved. Other names and brands may be claimed as the property of others. Printed in USA. Revision DateRevision December 2004 0006 November 2004 0005 October 20040004 August 20040003 June 20040002 May 20040001 Contentsiii Contents About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix In This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Other Sources of Information . . . . . . . . . . . . . . . . . . . . . . . . ix Meru Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . ix External References . . . . . . . . . . . . . . . . . . . . . . . . . . x Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . x Contacting Meru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x Customer Services and Support . . . . . . . . . . . . . . . . . . . . . . x FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . xi Chapter 1About Meru Access Points . . . . . . . . . . . . . . . . . . . . . . . . . 1 Meru Access Point Features . . . . . . . . . . . . . . . . . . . . . . . . . 1 Meru Access Point Models . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 2Installing the AP100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 FCC Safety Compliance Statement . . . . . . . . . . . . . . . . . . . . 5 General Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . 5 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Unpacking the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . 9 Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Attaching the AP Antennas . . . . . . . . . . . . . . . . . . . . . . . 9 Mounting the Access Point. . . . . . . . . . . . . . . . . . . . . . . . 10 Checking LED Activity . . . . . . . . . . . . . . . . . . . . . . . . . . 14 AP100 Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Chapter 3Installing the AP200. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 FCC Safety Compliance Statement . . . . . . . . . . . . . . . . . . . . 17 General Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . 17 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Unpacking the AP200 . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 20 ivMeru Access Point Installation Guide Installing the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . 22 Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Attaching the AP200 Antennas . . . . . . . . . . . . . . . . . . . . . . 22 Mounting the Access Point . . . . . . . . . . . . . . . . . . . . . . . 23 Checking LED Activity . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Ethernet Connector LEDs . . . . . . . . . . . . . . . . . . . . . . . . 31 AP200 Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Appendix ASpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Wireless Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Appendix BDeclarations of Conformity and Regulatory Information . . . . . . . 39 Manufacturers Federal Communication Commission Declaration of Conformity Statement . . . . . . . . . . . . . . . . . . . . . 39 Department of Communications—Canada . . . . . . . . . . . . . . . . . . . 40 Canadian Compliance Statement . . . . . . . . . . . . . . . . . . . . . 40 European Community, Switzerland, Norway, Iceland, and Liechtenstein . . . . . . . 41 Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC . . . . 41 Declaration of Conformity for RF Exposure . . . . . . . . . . . . . . . . . . 42 Guidelines for Operating Meru Access Points in Japan . . . . . . . . . . . . . . 43 Japanese Translation . . . . . . . . . . . . . . . . . . . . . . . . . . 43 English Translation . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Appendix CTranslated Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . 45 Dipole Antenna Installation Warning . . . . . . . . . . . . . . . . . . . . . 46 Explosive Device Proximity Warning . . . . . . . . . . . . . . . . . . . . . 47 Installation Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Circuit Breaker (15A) Warning . . . . . . . . . . . . . . . . . . . . . . . 49 Appendix DChannels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 IEEE 802.11a. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 IEEE 802.11b/g . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 List of Figuresv List of Figures Figure 1 Meru Wireless LAN (WLAN) ..................................................................................1 Figure 2 AP200 .......................................................................................................................3 Figure 3 AP100 .......................................................................................................................3 Figure 4 AP100-P (Plenum Rated) ...…

Text truncated - open the document above for the full version.

1309 South Mary Avenue, Sunnyvale, California 94087 P 408-215-5300 F 408-215-5301 www.merunetworks.com November 17, 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RE7-AP200 Pursuant to Sections 0.467 and 0.459 of the Commission’s Rules, we hereby request Confidential treatment of information accompanying this application outlined below: - Schematics, Block Diagram, and Theory of Operation The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of the materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Paul D. Chapman Senior RF Design Engineer

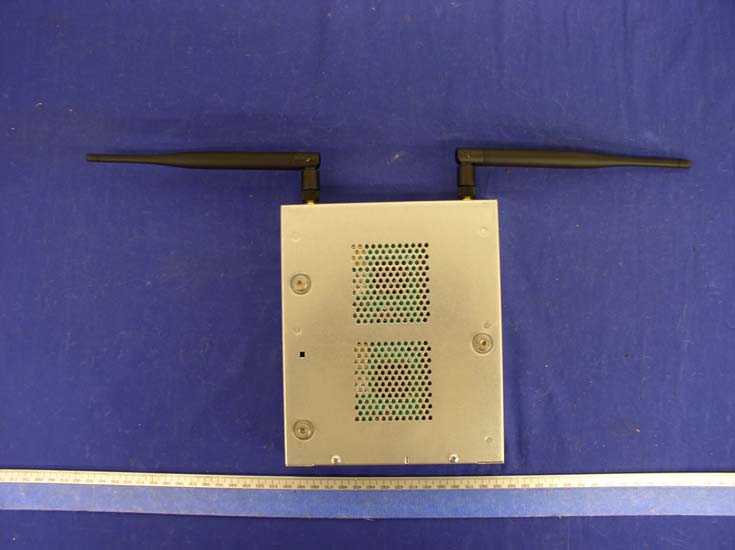

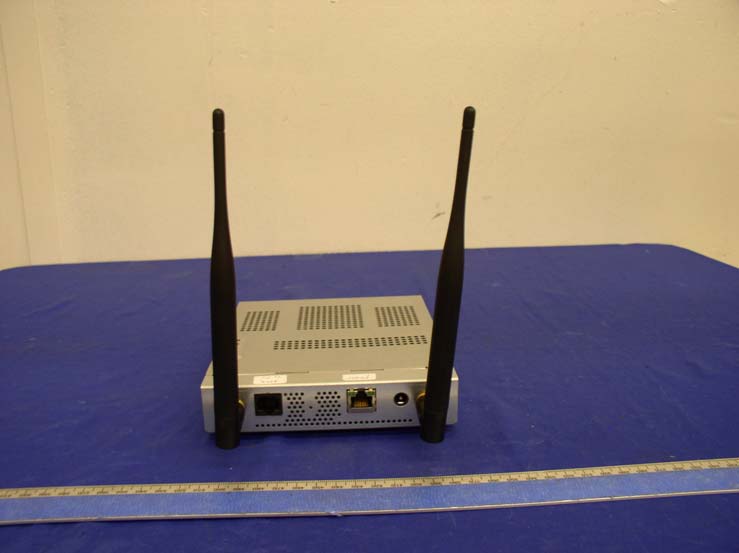

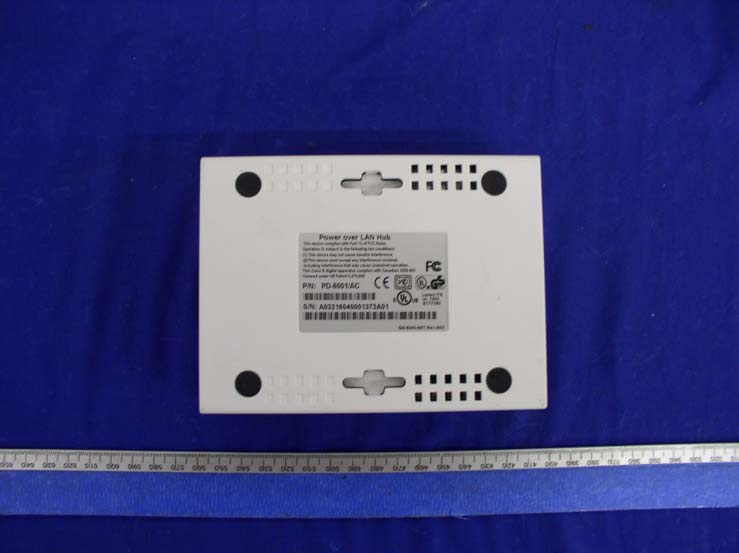

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT Top View EUT Bottom View EUT Port View Power Over Ethernet Adapter Top View Power Over Ethernet Adapter Bottom View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Bottom Side of EUT / Label Location FCC ID: RE7-AP200 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Main Board and Housing Main Board Top View Main Board Bottom View Main Board Bottom View without Radio Board Transmitter Top View Transmitter with Shielding Top View Transmitter Bottom View Receiver Top View Receiver without Shielding Top View Receiver Bottom View

§1.1307(b)(1) & §2.1093 - RF EXPOSURE According to §15.247(b)(4) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2412 – 2462 MHz: Maximum peak output power at antenna input terminal: 18.59 (dBm ) Maximum peak output power at antenna input terminal: 72.28 (mW) Predication frequency: 2400 (MHz) Antenna Gain (typical): 4 (dBi) antenna gain: 2.51 (numeric) Prediction distance: 3.9 (cm) Power density at predication frequency at 3.9 cm: 0.95 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) 5180.00 – 5320.00 MHz Maximum peak output power at antenna input terminal: 16.33 (dBm) Maximum peak output power at antenna input terminal: 42.95 (mW) Predication frequency: 5300 (MHz) Antenna Gain (typical): 5 (dBi) antenna gain: 3.16 (numeric) Prediction distance: 3.3 (cm) Power density at predication frequency at 3.3 cm: 0.99 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) 5725 – 5850 MHz: Maximum peak output power at antenna input terminal: 12.94 (dBm ) Maximum peak output power at antenna input terminal: 19.68 (mW) Predication frequency: 5800 (MHz) Antenna Gain (typical): 4.5 (dBi) antenna gain: 2.82 (numeric) Prediction distance: 1.8 (cm) Power density at predication frequency at 1.8 cm: 0.90 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is of fixed outdoor installation, point -to-point or point-to-multipoint. 1mW/cm2 limit applies. The prediction distance for the 2.4G Hz antenna is 3.9cm. The prediction distance for the 5G Hz antenna is 3.3cm. Note: The DTS cannot transmit simultaneously with the UNII.

Note: The test report is specially limited to the use of the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.247 & 15.407 EMI MEASUREMENT AND TEST REPORT For MERU NETWORKS 1309 S Mary Suite 220 Sunnyvale CA 94087 FCC ID: RE7-AP200 This Report Concerns: Original Report Equipment Type: 802.11a/b/g Wireless Access Point Test Engineer: Ming Jing Report No.: R0411031 Report Date: 2004-11-16 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Meru Networks FCC ID: RE7-AP200 Report # R0411031Rpt-a.doc Page 2 of 86 FCC Part 15.247 & 15.407 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §1.1307(B)(1) & §2.1093 - RF EXPOSURE.................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................11 STANDARD APPLICABLE............................................................................................................................................11 §15.205, §15.209(A), §15.407(B)(5), §15.407(B)(6) - SPURIOUS RADIATED EMISSION..................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................13 SPECTRUM ANALYZER SETUP....................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................14 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 SUMMARY OF TEST RESULTS.....................................................................................................................................14 §15.207(A) - CONDUCTED EMISSIONS.................................................................................................................24 MEASUREMENT UNCERTAINTY..................................................................................................................................24 EUT SETUP................................................................................................................................................................24 SPECTRUM ANALYZER SETUP...............…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
