RE7-AP433802.11a/b/g/n WLAN PCI-E Radio Module

Meru Networks Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 26, 2012
Application Purpose: Original Equipment
Date of Application: Jan 26, 2012
Equipment Note: 802.11a/b/g/n WLAN PCI-E Radio Module
Frequency Range: 5755.00000000 - 5795.00000000
Company: Meru Networks Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Meru 802.11abgn WLAN PCIe Radio Module Regulatory Information Model: 250-02193-010 Peacock 250-02193-010 Peacock_XTAL Meru Networks, Inc Jan 2012 2 Contents 1. Overview........................................................................3 2. Technical Specification.......................................................3 3. Product Application............................................................4 4. Regulatory Information.......................................................4 3 1 Overview This specification is applied to the products as follows: Meru WLAN radio module: 250-02193-010 Peacock and 250-02193-010 Peacock/_XTAL 2 Technical Specification Type and Specification 250-02193-010 Peacock 250-02193-010 Peacock_XTAL Frequency Range 2412 to 2462 MHz 5180 to 5240 MHz 5745 to 5825 MHz 2412 to 2462 MHz 5180 to 5240 MHz 5745 to 5825 MHz RF Output Power 2412 to 2462 MHz = 20 dBm 5180 to 5240 MHz = 17 dBm 5745 to 5825 MHz = 20 dBm 2412 to 2462 MHz = 20 dBm 5180 to 5240 MHz = 17 dBm 5745 to 5825 MHz = 20 dBm Receiver Sensitivity 2412 to 2462 MHz = -82 dBm 5180 to 5240 MHz = -80 dBm 5745 to 5825 MHz = -76 dBm 2412 to 2462 MHz = -82 dBm 5180 to 5240 MHz = -80 dBm 5745 to 5825 MHz = -76 dBm Bandwidth 11, 20 and 40 MHz 20 and 40 MHz Modulation DSSS, OFDM DSSS, OFDM MIMO Type 3 x 3 3 x 3 Power Consumption 2.5 watts 2.5 watts Interface PCIe PCIe Antenna Used Internal and external type Internal and external Working Temperature 0 to 50 degrees ( O C) 0 to 50 degrees ( O C) Humidity 5 to 95% 5 to 95% 4 3 Product Application The Meru Peacock radio module is an 802.11a/b/g/n 3 x 3 MIMO half duplex PCIe radio module is integrated inside a WLAN Access point at the manufacturing facility during the assembly before shipping to the customer. Each AP uses 2 or 3 radios depending upon the AP models. The WLAN Access point is used by the enterprises customers, Education Institution and Health care industry for WLAN data and voice connection from PC, Laptop and portable computing devices. 4 Regulatory Information Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. This device is intended for OEM integrators only. Please see the full Grant of Equipment document for other restrictions. This device must be operated and used with a locally approved access point. Any changes or modifications to this product not expressly approved by Meru Networks Inc. could void the user's authorization to operate the product. Information to Be Supplied to the End User by the OEM or Integrator The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating the Meru wireless adapter, in compliance with local regulations. Host system must be labeled with "Contains FCC ID: XXXXXXXX", FCC ID displayed on label. The Meru wireless adapter must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Meru Networks Inc is not responsible for any radio or television interference caused by unauthorized modification of the devices included with the wireless adapter kit or the substitution or attachment of connecting cables and equipment other than that specified by Meru Networks Inc. The correction of interference caused by such unauthorized modification, substitution or attachment is the responsibility of the user. Meru Networks Inc and authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines. FCC Radio Frequency Interference Requirements This wireless adapter is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this wireless adapter to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. This wireless adapter is intended for OEM integrators only. This wireless adapter cannot be co-located with any other transmitter unless approved by the FCC. 5 USA - Federal Communications Commission (FCC) This wireless adapter complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference that may cause undesired operation. NOTE: The radiated output power of the adapter is far below the FCC radio frequency exposure limits. Nevertheless, the adapter should be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity), or the minimum separation distance as specified by the FCC grant conditions, and the antenna that is built into the computer. Details of the authorized configurations can be found at http://www.fcc.gov/oet/ea/ by entering the FCC ID number on the device. Interference Statement This wireless adapter has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This wireless adapter generates, uses, and can radiate radio frequency energy. If the wireless adapter is not installed and used in accordance with the instructions, the wireless adapter may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a parti…

Text truncated - open the document above for the full version.

External Photos

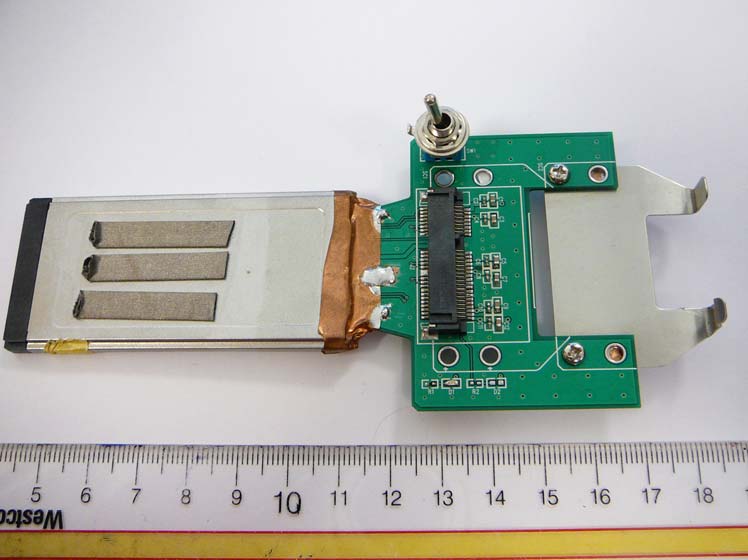

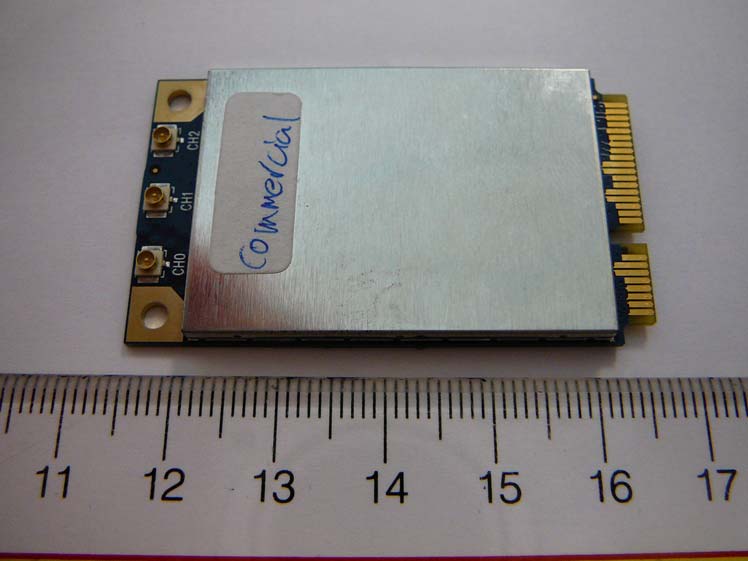

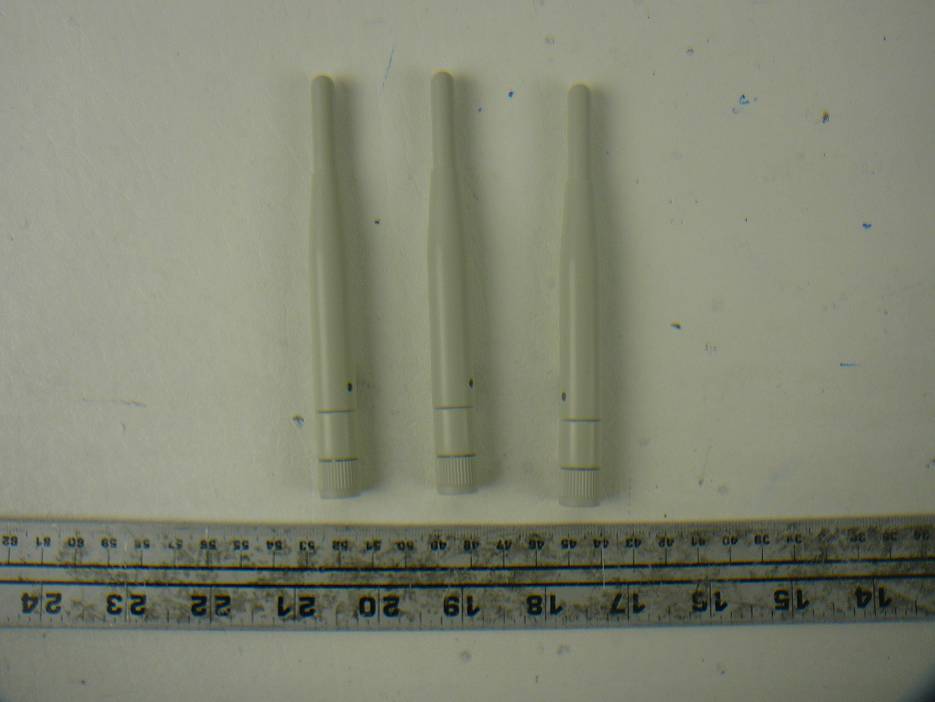

Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 248 of 252 FCC Part 15.247 & IC RSS-210 Test Report 16 Exhibit C - EUT Photographs 16.1 EUT Top View 16.2 EUT Bottom View Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 249 of 252 FCC Part 15.247 & IC RSS-210 Test Report 16.3 EUT on the Test Board View 16.4 Test Board View Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 250 of 252 FCC Part 15.247 & IC RSS-210 Test Report 16.5 ACC-ANT-ABGN230-W antenna 16.6 ACC-ANT-O6ABGN-0607-PT antenna Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 251 of 252 FCC Part 15.247 & IC RSS-210 Test Report 16.7 ACC-ANT-BG080-NM antenna 16.8 MERY-ANT-PI622 antenna

ID Label/Location Info

1 DO NOT SCALE THIS DRAWING ±.010 ±.05 ±1.5° 3 PLCS 2 PLCS ANG UNLESS OTHERWISE NOTED DIMENSIONS ARE IN INCHES C2/A1R DWG SIZE REV/REL SHEET USE PURSUANT TO COMPANY INSTRUCTIONS THIRD ANGLE PROJECTION P TITLE DESCRIPTION DATE REV DRAWING NUMBER PROE FILE NAME HS 1/24/12 MERU NETWORKS PROPRIETARY 845-00657 1 1 1/24/12 Initial Release Label, Regulatory, PCB, XTAL, AP400 SCALE 1:1 RECT 25 x 5 mm IC: 6749A-AP433 FCC ID: RE7-AP433 NOTES: UNLESS OTHERWISE SPECIFIED) 1. MUST CONFORM TO UL969 MARKING & LABELING SYSTEM PGDQ2; VAL-THERM-D OR EQUIVALENT. 2. ALL TEXT AND GRAPHICS ARE BLACK.3. USE ELECTRONIC FILE # 845-00657.AI Model: 250-02193-010 Peacock_XTAL 1 DO NOT SCALE THIS DRAWING ±.010 ±.05 ±1.5° 3 PLCS 2 PLCS ANG UNLESS OTHERWISE NOTED DIMENSIONS ARE IN INCHES C2/A1R DWG SIZE REV/REL SHEET USE PURSUANT TO COMPANY INSTRUCTIONS THIRD ANGLE PROJECTION P TITLE DESCRIPTION DATE REV DRAWING NUMBER PROE FILE NAME HS 1/24/12 MERU NETWORKS PROPRIETARY 845-00623 2 1 12/13/11 Initial Release 2 1/24/12 Add radio model number Label, Regulatory, PCB, AP400 SCALE 1:1 RECT 25 x 5 mm IC: 6749A-AP433 FCC ID: RE7-AP433 NOTES: UNLESS OTHERWISE SPECIFIED) 1. MUST CONFORM TO UL969 MARKING & LABELING SYSTEM PGDQ2; VAL-THERM-D OR EQUIVALENT. 2. ALL TEXT AND GRAPHICS ARE BLACK.3. USE ELECTRONIC FILE # 845-00623.AI Model: 250-02193-010 Peacock

Internal Photos

Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 252 of 252 FCC Part 15.247 & IC RSS-210 Test Report 16.9 EUT without Shielding View 16.10 EUT Antenna Ports View --- END OF REPORT ---

RF Exposure Info

Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 11 of 252 FCC Part 15.247 & IC RSS-210 Test Report 4 FCC §15.247(i), §2.1091 & IC RSS-102 - RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 12 of 252 FCC Part 15.247 & IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results For 2.4 GHz Band, High Power: Maximum peak output power at antenna input terminal (dBm):27.48 Maximum peak output power at antenna input terminal (mW): 559.75 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 6 Maximum Antenna Gain (numeric): 3.98 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.4436 Power density of prediction frequency at 20.0 cm (W/m 2 ): 4.436 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 For 2.4 GHz Band, Lower Power: Maximum peak output power at antenna input terminal (dBm):26.55 Maximum peak output power at antenna input terminal (mW): 451.86 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 8 Maximum Antenna Gain (numeric): 6.31 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.567 Power density of prediction frequency at 20.0 cm (W/m 2 ): 5.67 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 13 of 252 FCC Part 15.247 & IC RSS-210 Test Report For 5.8 GHz Band, High Power: Maximum peak output power at antenna input terminal (dBm):26.57 Maximum peak output power at antenna input terminal (mW): 453.94 Prediction distance (cm): 20 Prediction frequency (MHz): 5745 Maximum Antenna Gain, typical (dBi): 7.0 Maximum Antenna Gain (numeric): 5.01 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.453 Power density of prediction frequency at 20.0 cm (W/m 2 ): 4.53 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 For 5.8 GHz Band, Lower Power: Maximum peak output power at antenna input terminal (dBm):22.83 Maximum peak output power at antenna input terminal (mW): 191.87 Prediction distance (cm): 20 Prediction frequency (MHz): 5745 Maximum Antenna Gain, typical (dBi): 8 Maximum Antenna Gain (numeric): 6.31 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.241 Power density of prediction frequency at 20.0 cm (W/m 2 ): 2.41 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 The device meets MPE both 2.4 GHz and 5.8 GHz bands for the uncontrolled exposure environment.

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 IC RSS-210, ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Meru Networks, Inc 894 Ross Drive, Sunnyvale, CA 94089, USA FCC ID: RE7-AP433 IC: 6749A-AP433 Report Type: Original Report Product Type: 802.11 a/b/g/n Wireless Module Test Engineers: Ning Ma Report Number: R1110122-247 Report Date: 2012-01-25 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 2 of 252 FCC Part 15.247 & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 6 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 6 1.3 OBJECTIVE............................................................................................................................................................... 6 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 6 1.5 TEST METHODOLOGY.............................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................6 1.7 TEST FACILITY........................................................................................................................................................ 7 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 8 2.1 JUSTIFICATION......................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 8 2.3 EQUIPMENT MODIFICATIONS................................................................................................................................... 8 2.4 SPECIAL ACCESSORIES............................................................................................................................................ 9 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 9 2.6 EUT INTERNAL CONFIGURATION............................................................................................................................ 9 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 4 FCC §15.247(I), §2.1091 & IC RSS-102 - RF EXPOSURE ..................................................................................... 11 4.1 APPLICABLE STANDARD........................................................................................................................................ 11 4.2 MPE PREDICTION.................................................................................................................................................. 12 4.3 MPE RESULTS....................................................................................................................................................... 12 5 FCC §15.203 & IC RSS-GEN §7.1.4 – ANTENNA REQUIREMENTS ................................................................. 14 5.1 APPLICABLE STANDARD........................................................................................................................................ 14 5.2 ANTENNA LIST...................................................................................................................................................... 14 6 FCC §15.207 & RSS-GEN §7.2.2 – AC LINE CONDUCTED EMISSIONS ......................................................... 15 6.1 APPLICABLE STANDARD........................................................................................................................................ 15 6.2 TEST SETUP........................................................................................................................................................... 15 6.3 TEST PROCEDURE.................................................................................................................................................. 15 6.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................16 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................. 16 6.6 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 17 6.7 TEST ENVIRONMENTAL CONDITIONS...........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 236 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15 Exhibit B - Test Setup Photographs 15.1 Radiated Emission below 1 GHz Front View @ACC-ANT-ABGN230-N 15.2 Radiated Emission below 1 GHz Rear View @ACC-ANT-ABGN230-N Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 237 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.3 Radiated Emission above 1 GHz Front View @ACC-ANT-ABGN230-N 15.4 Radiated Emission above 1 GHz Rear View @ACC-ANT-ABGN230-N Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 238 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.5 Radiated Emission below 1 GHz Front View @ACC-ANT-06ABGN-0607-PT 15.6 Radiated Emission below 1 GHz Rear View @ACC-ANT-06ABGN-0607-PT Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 239 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.7 Radiated Emission above 1 GHz Front View @ACC-ANT-06ABGN-0607-PT 15.8 Radiated Emission above 1 GHz Rear View @ACC-ANT-06ABGN-0607-PT Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 240 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.9 Radiated Emission below 1 GHz Front View @ACC-ANT-BG080-NM 15.10 Radiated Emission below 1 GHz Rear View @ACC-ANT-BG080-NM Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 241 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.11 Radiated Emission above 1 GHz Front View @ACC-ANT-BG080-NM 15.12 Radiated Emission above 1 GHz Rear View @ACC-ANT-BG080-NM Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 242 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.13 Radiated Emission below 1 GHz Front View @ACC-ANT-A080-NM-1 15.14 Radiated Emission below 1 GHz Rear View @ACC-ANT-A080-NM-1 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 243 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.15 Radiated Emission above 1 GHz Front View @ACC-ANT-A080-NM-1 15.16 Radiated Emission above 1 GHz Rear View @ACC-ANT-A080-NM-1 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 244 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.17 Radiated Emission below 1 GHz Front View @MERU-ANT-PI622 15.18 Radiated Emission below 1 GHz Rear View @MERU-ANT-PI622 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 245 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.19 Radiated Emission above 1 GHz Front View @ACC-ANT-A080-NM-1 15.20 Radiated Emission above 1 GHz Rear View @ACC-ANT-A080-NM-1 Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 246 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.21 Conducted Emission Front View @ACC-ANT-ABGN230-W 15.22 Conducted Emission side View @ACC-ANT-ABGN230-W Meru Networks, Inc FCC ID: RE7-AP433, IC: 6749A-AP433 Report Number: R1110122-247 Page 247 of 252 FCC Part 15.247 & IC RSS-210 Test Report 15.23 Conducted Emission Front View @ACC-ANT-A080-NM-2 15.24 Conducted Emission side View @ACC-ANT-A080-NM-2

Contact Information

Applicant

Rajendran V Chary(Principal Engineer)

[email protected]408-215-5338Fax: 408-215-5301

Test Firm

Bay Area Compliance LaboratoryJohn Chan

[email protected]408-732-9162Fax: 408-732-9164

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
4	15C	5.75 GHz - 5.79 GHz	232.30 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Module Approval. Power listed is the maximum combined conducted output power as indicated in the filing. Device is a half duplex PCI-E Mini Card operating in 3x3 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations as described in this filing. Approval is limited to OEM installation only. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Grantee must coordinate with OEM integrators to determine applicable host configurations to ensure RF exposure compliance, including simultaneous transmission SAR requirements according to published KDB 616217 Supplement documentation. When all conditions of this filing cannot be met installation of this device into specific final products may require the submission of a permissive change application, containing appropriate data demonstrating compliance, or a new application. OEM/Host integrators must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure compliance. OEM/Host integrator is responsible for complying with the instructions and requirements for each transmitter they choose to integrate into a host product.
